2-05 — CLUTCH PIPING (#10856) — 99 parça

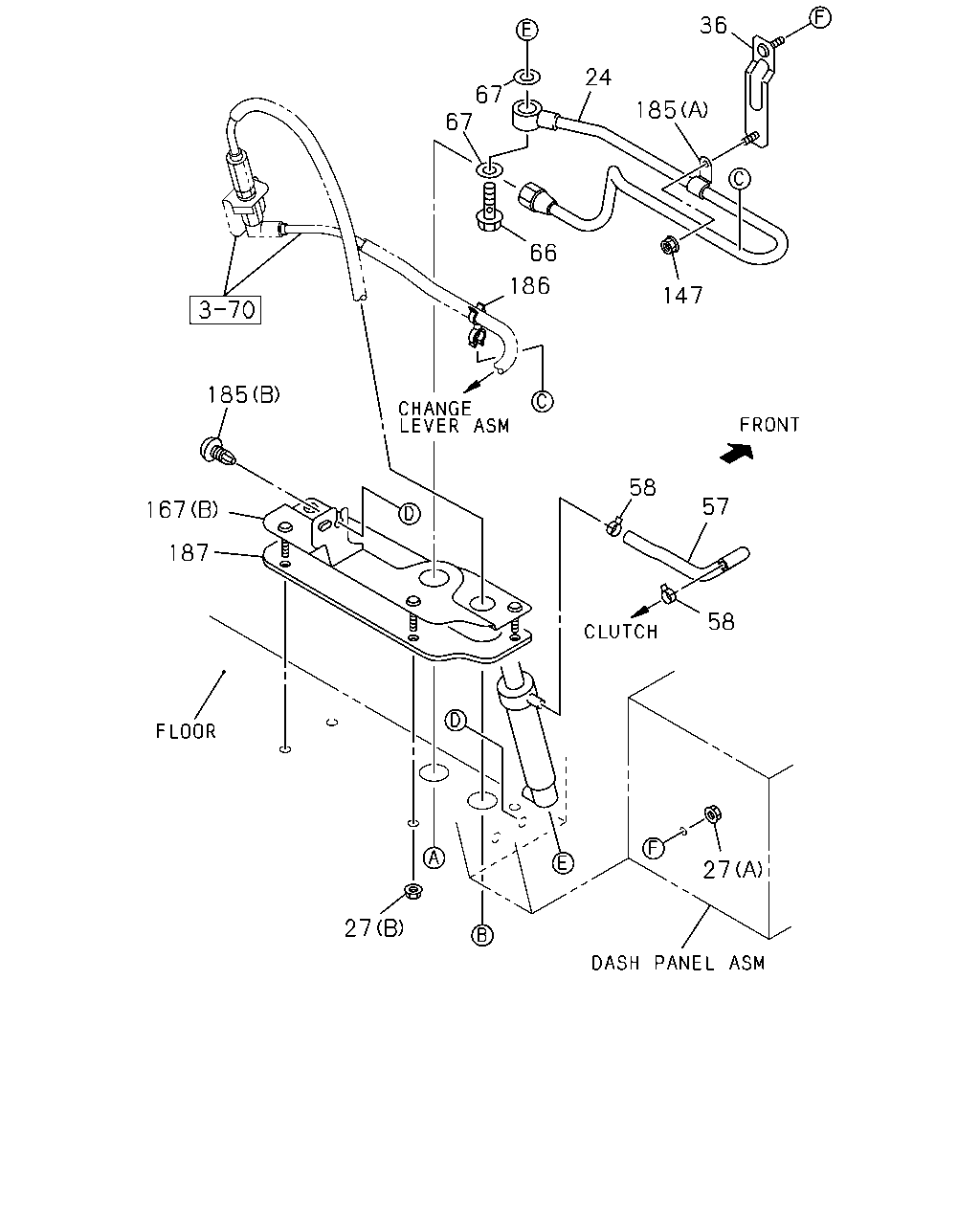

36 24 67 67 185 66 186 147 185 58 57 167 187 58 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	0105-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
36	BRACKET; CLIP	1-71117-191-1	01	1	0105-
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0105-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0105-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0105-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0105-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0105-
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	0105-
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	0105-0205
185	CLIP; BRKT (A) ID=11 L=16	9-09525-025-0	01	1	0206-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-
187	SEAL; BRKT	1-71117-209-2	01	1	0105-

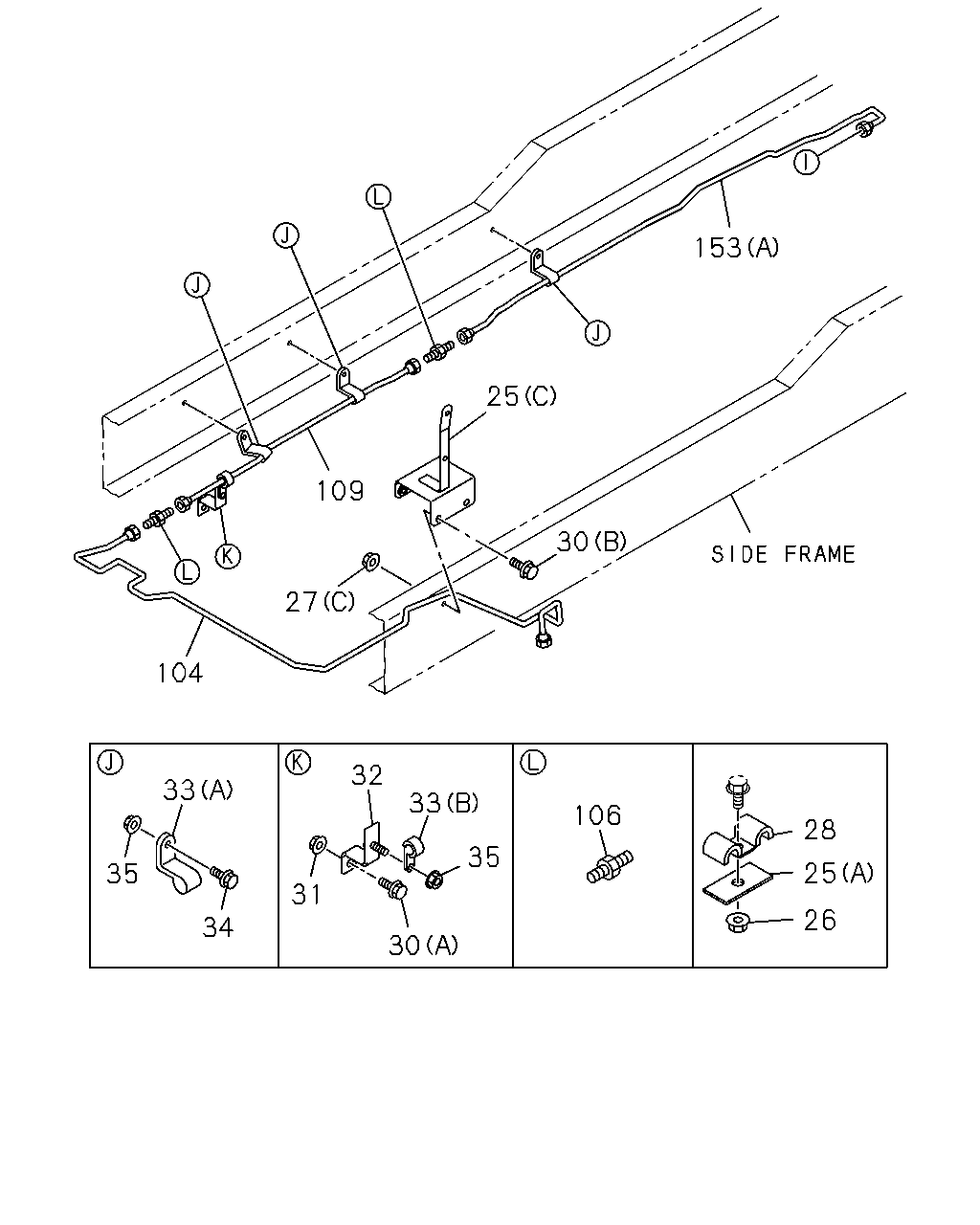

153 25 109 30 27 104 32 33 33 106 28 35 25 35 31 26 34 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	02	1	0105-
25	BRACKET; OIL PIPE (C)	1-47478-583-1	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
28	CLIP; OIL PIPE ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0105-
30	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-
30	BOLT; BRKT (B) M8X35 FLANGE	0-28680-835-0	02	1	0105-
30	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
31	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-
32	BRACKET; CLIP OIL PIPE	1-47477-235-0	01	1	0105-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-
33	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0105-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0105-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0105-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0105-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0105-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	0105-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	0105-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2296	1-49166-267-0	01	1	0107-
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0105-
109	PIPE; AIR,UNION TO UNION L=1015 SERVICED BY L=1100	1-47426-387-0	01	1	0105-0205
109	PIPE; AIR,UNION TO UNION L=1015 SERVICED BY L=1100	1-47434-409-0	01	1	0206-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	0105-0111
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1806 SERVICED BY L=1950	1-47434-414-0	01	1	0112-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (B) L=395	1-49166-204-0	01	1	0107-

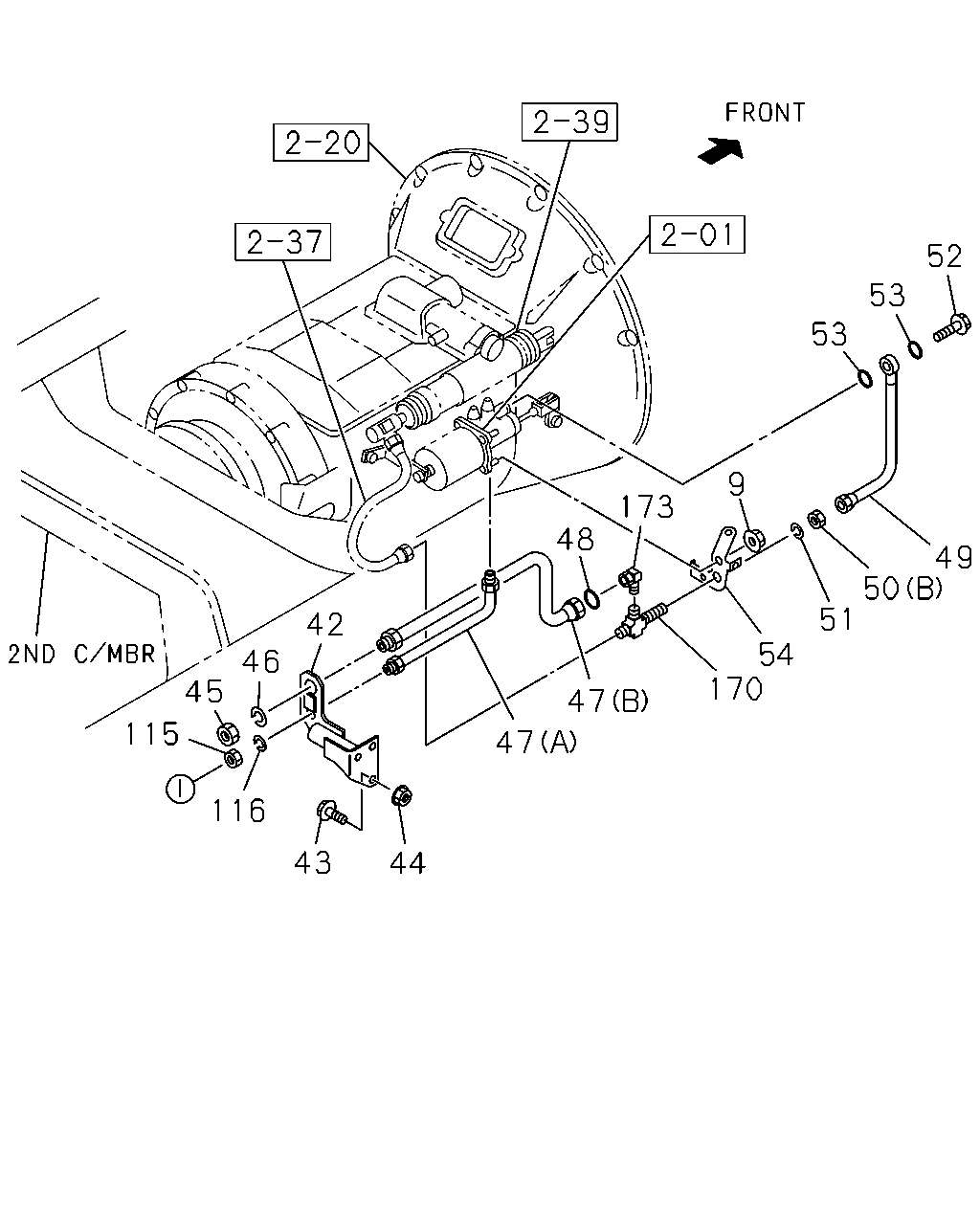

52 53 53 9 173 48 49 50 51 42 54 170 46 47 45 115 47 116 43 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0105-
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-414-0	01	1	0105-0112
42	BRACKET; FLEX HOSE,CLU CONT	1-47479-371-0	01	1	0201-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M10X30 FLANGE	0-28681-030-0	02	1	0105-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M10 FLANGE	0-91150-210-0	02	1	0105-
45	NUT; FLEX HOSE,CLU CONT M20	9-99111-420-0	01	1	0105-
46	WASHER; LK,FLEX HOSE,CLU CONT ID=20.2	9-09150-520-0	01	1	0105-
47	HOSE; FLEX,CLU CONT (A) L=560	0-07806-560-1	01	1	0105-
47	HOSE; FLEX,CLU CONT (B) L=600	1-09364-705-0	01	1	0105-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=245	1-49117-733-0	01	1	0105-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0105-
50	NUT; UNION (B) M20	9-99111-420-0	01	1	0105-
51	WASHER; LK ID=20.2	9-09150-520-0	01	1	0105-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0105-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
170	UNION; AIR PIPE	1-09656-640-0	01	1	0105-
173	CONNECTOR M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0105-

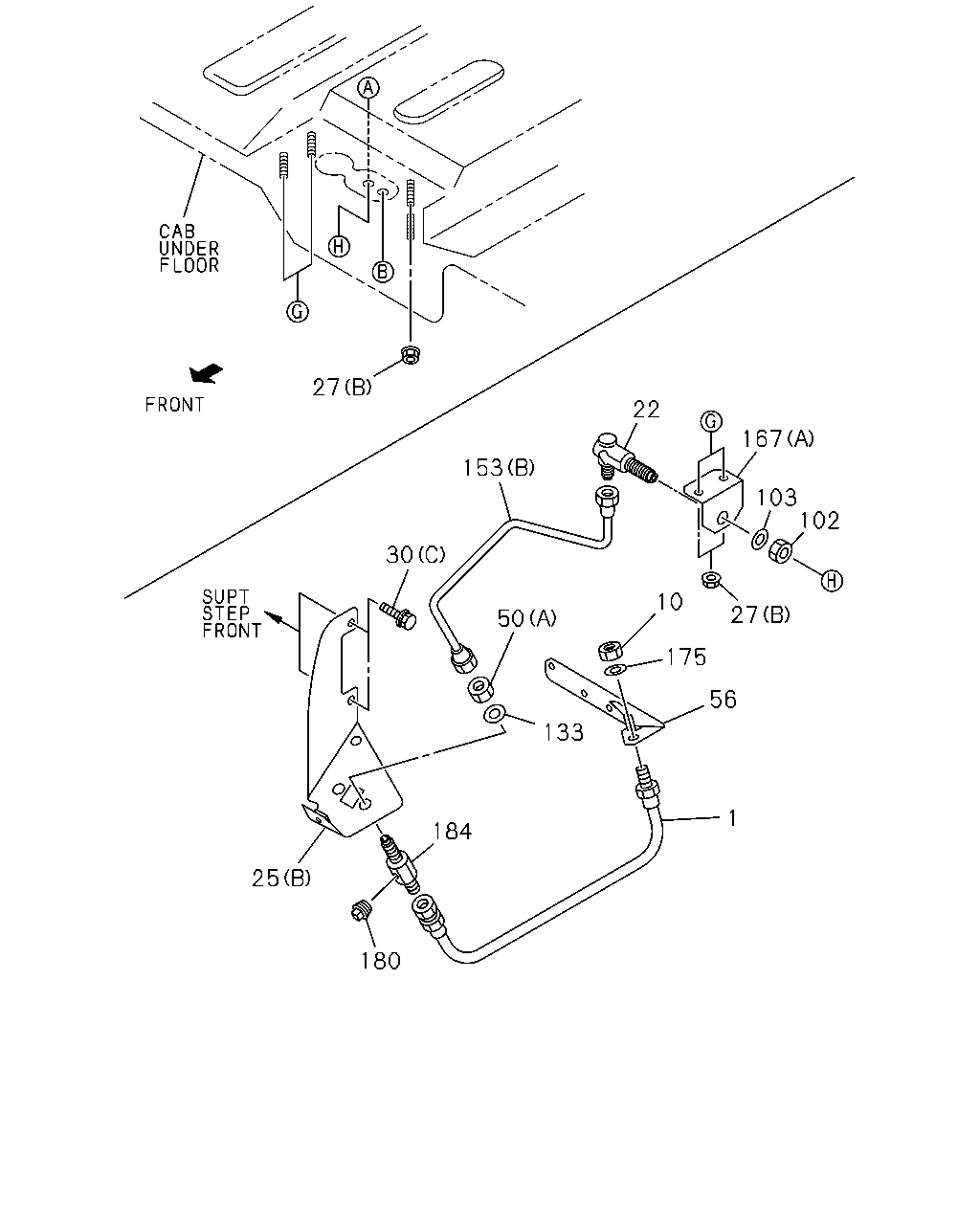

27 22 167 153 103 102 30 10 27 50 175 56 133 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0105-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0105-
25	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	02	1	0105-
25	BRACKET; OIL PIPE (C)	1-47478-583-1	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
30	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-
30	BOLT; BRKT (B) M8X35 FLANGE	0-28680-835-0	02	1	0105-
30	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0105-
50	NUT; UNION (B) M20	9-99111-420-0	01	1	0105-
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	0105-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	0105-0111
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1806 SERVICED BY L=1950	1-47434-414-0	01	1	0112-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (B) L=395	1-49166-204-0	01	1	0107-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0105-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0105-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
180	PLUG; PIPE	9-09204-510-0	01	1	0105-
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
