Isuzu WW
▶
TRUCKS
▶
CXM
▶
10873 - CXM LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#10854) — 62 parça
◀

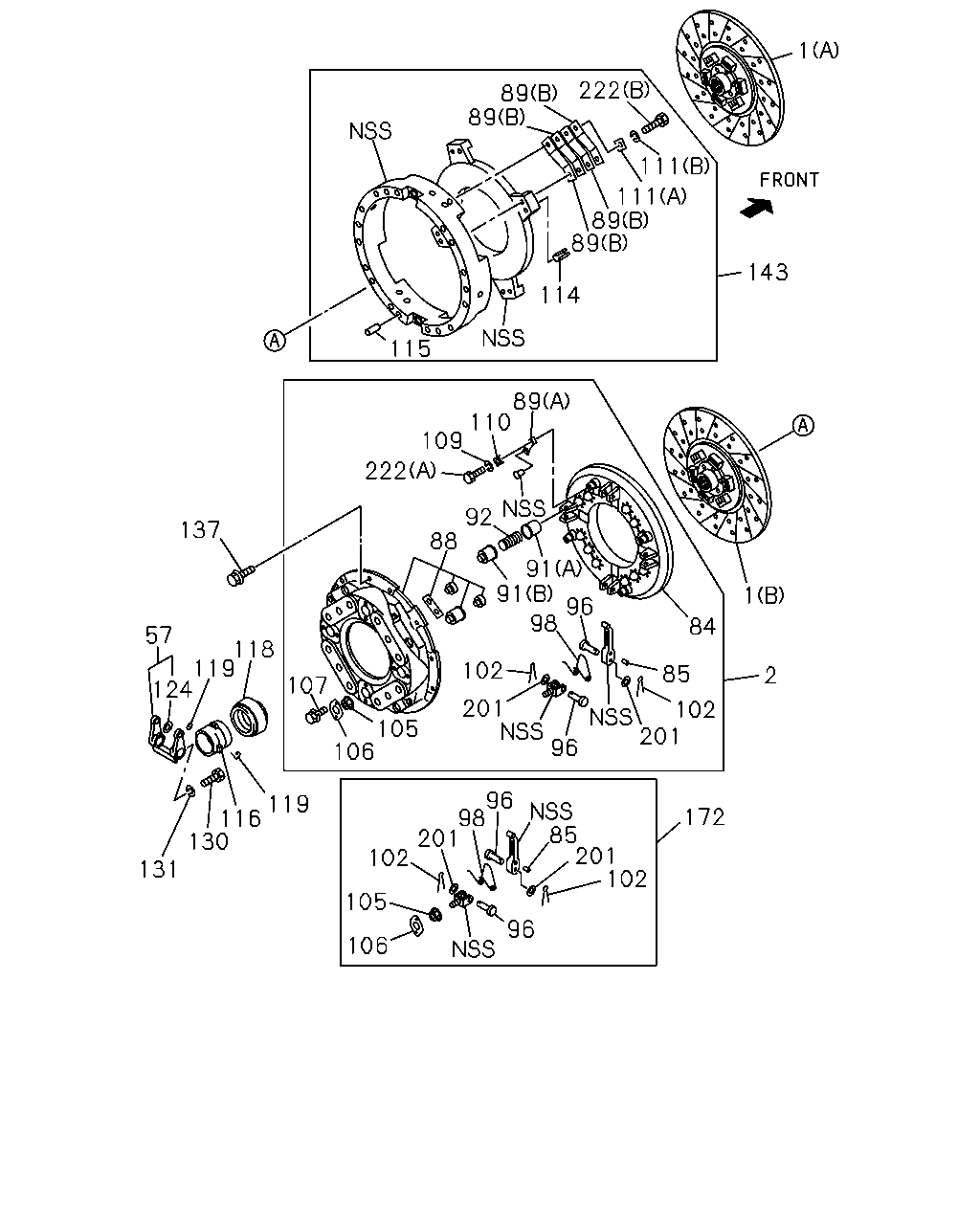

[201A] DISC,PLATE (46 parça)

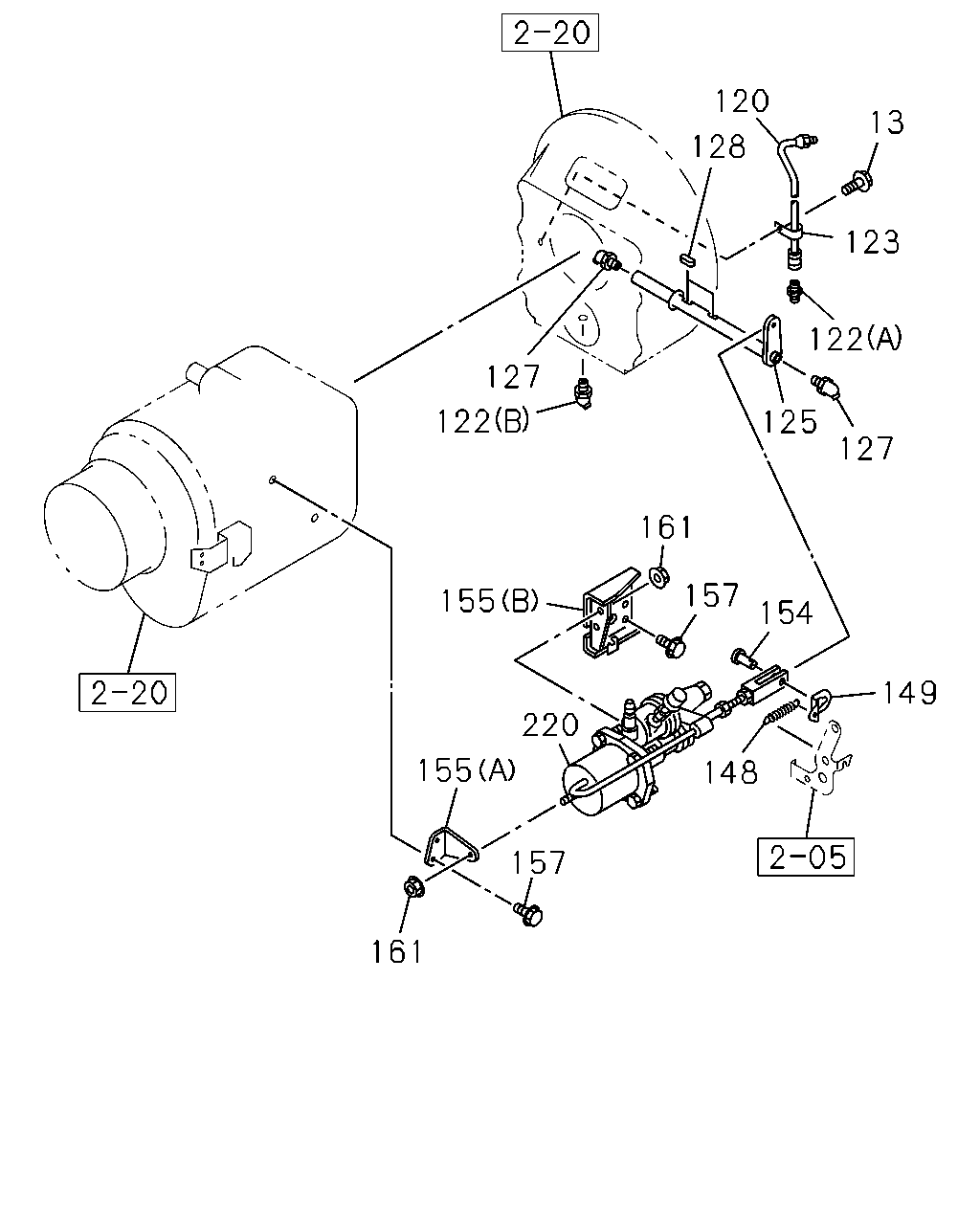

[201A] BOOSTER (16 parça)
▶
1
222
89
89
111
111
89
89
2
143
115
114
89
110
109
222
92
88
91
91
96
98
137
107
105
106
1
84
57
118
119
124
102
85
2
201
102
201
96
96
98
201
102
119
116
130
131
85
201
102
172
105
96
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
(A) FRONT 15.5"
1-31240-883-0
01
1
0105-
1
DISC; CLUTCH
(B) REAR 15.5"
1-31240-884-0
01
1
0105-
2
PLATE ASM; PRESSURE,CLU
1-31220-333-2
01
1
0105-
57
FORK; SHIFT,CLU
1-31340-059-1
01
1
0105-
84
PLATE; PRESSURE
1-31221-087-0
01
1
0105-
85
BUSHING; RELEASE LEVER
1-31239-021-0
16
1
0105-0205
85
BUSHING; RELEASE LEVER
1-31239-053-0
08
1
0206-
88
COVER SUB ASM; CLU
1-31210-020-1
01
1
0105-
89
PLATE; STRAP
(A)
1-31229-010-0
12
1
0105-
89
PLATE; STRAP
(B)
1-31229-048-0
20
1
0105-
91
SEAT; SPR
(B)
1-31219-045-0
12
1
0105-
91
SEAT; SPR
(A)
1-31219-046-0
12
1
0105-
92
SPRING; CLU
1-31214-055-0
12
1
0105-
96
PIN; RELEASE LEVER
1-31232-013-0
08
1
0105-0308
96
PIN; RELEASE LEVER
1-31232-017-0
08
1
0309-
98
SPRING; RETURN
1-31233-007-0
04
1
0105-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08113-022-0
08
1
0105-
105
NUT; SUPPORT
M16
1-31239-013-0
04
1
0105-0205
105
NUT; SUPPORT
1-31235-014-0
04
1
0206-
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
0105-
107
BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER
1-31239-020-0
08
1
0105-0205
107
BOLT; LK PLATE
1-31239-061-0
08
1
0206-
109
WASHER; LK,STRAP
ID=12.2
9-09150-512-0
04
1
0105-
110
WASHER; SPECIAL,STRAP
ID=12
1-31229-006-0
04
1
0105-
111
WASHER; PL,STRAP
(A) ID=12
1-31229-006-0
08
1
0105-
111
WASHER; PL,STRAP
(B) ID=12.2
9-09150-512-0
08
1
0105-
114
PIN; STRAIGHT,INTERMEDIATE PLATE
1-09748-033-0
04
1
0105-
115
PIN; STRAIGHT,FLYWHEEL,SPACER
D=10 L=25
1-09740-039-1
02
1
0105-
116
BLOCK; SHIFT,CLU
1-31321-073-2
01
1
0105-
118
BEARING; CLU RELEASE
1-09820-112-0
01
1
0105-0111
118
BEARING; CLU RELEASE
1-09820-118-0
01
1
0112-
119
SPRING; SHIFT FORK
1-31329-019-0
01
1
0105-
119
SPRING; SHIFT FORK
1-31329-018-0
01
1
0105-
124
BEARING; CAM,SHIFT FORK
1-31349-011-1
02
1
0105-
130
SCREW; SHIFT FORK
M8X14
9-06120-814-0
01
1
0105-
131
WASHER; LK,SHIFT FORK
ID=8.2
9-09150-508-0
01
1
0105-
137
BOLT; CLU COVER
M12X80
0-28181-280-0
02
1
0105-
137
BOLT; CLU COVER
M12X90 FLANGE
0-28181-290-0
10
1
0105-
137
BOLT; CLU COVER
M12X30
0-28781-230-0
04
1
0105-
143
PLATE; INTERMEDIATE
1-31221-109-0
01
1
0105-
172
LEVER KIT; RELEASE,CLU
1-87830-915-0
01
1
0105-0205
172
LEVER KIT; RELEASE,CLU
1-87831-114-0
01
1
0206-0306
172
LEVER KIT; RELEASE,CLU
1-87831-164-1
01
1
0307-
201
WASHER; PIN LEVER SUPPORT
ID=14
9-09651-098-0
08
1
0105-
222
BOLT; STRAP
(A) M12X30
1-09040-016-0
04
1
0105-
222
BOLT; STRAP
(B) M12X26.7
1-09040-086-0
08
1
0105-
120
128
13
123
122
127
122
125
127
161
157
154
155
149
220
155
148
157
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
01
1
0105-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=390
1-09365-143-0
01
1
0105-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 & M10
1-09660-710-0
01
1
0105-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 ELBOW 67.5 DEGREES
9-09031-110-0
01
1
0105-
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20
9-09524-835-0
01
1
0105-
125
SHAFT; CLU
1-31342-262-0
01
1
0105-
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
9-09031-210-0
02
1
0105-
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
0105-
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
0105-
149
EYE; SPRING,RETURN SPRING
1-31426-048-0
01
1
0105-
154
PIN; JAW JOINT
1-31424-009-0
01
1
0105-
155
BRACKET; MINIPACK
(B)
1-31429-323-1
01
1
0105-
155
BRACKET; MINIPACK
(A)
1-31429-350-0
01
1
0105-
157
BOLT; BRKT
M10X25 FLANGE
0-28781-025-0
03
1
0105-
161
NUT; BRKT
M10 FLANGE
0-91150-210-0
03
1
0105-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-386-3
01
1
0105-
