Sayfa 3-20 - Isuzu EPC

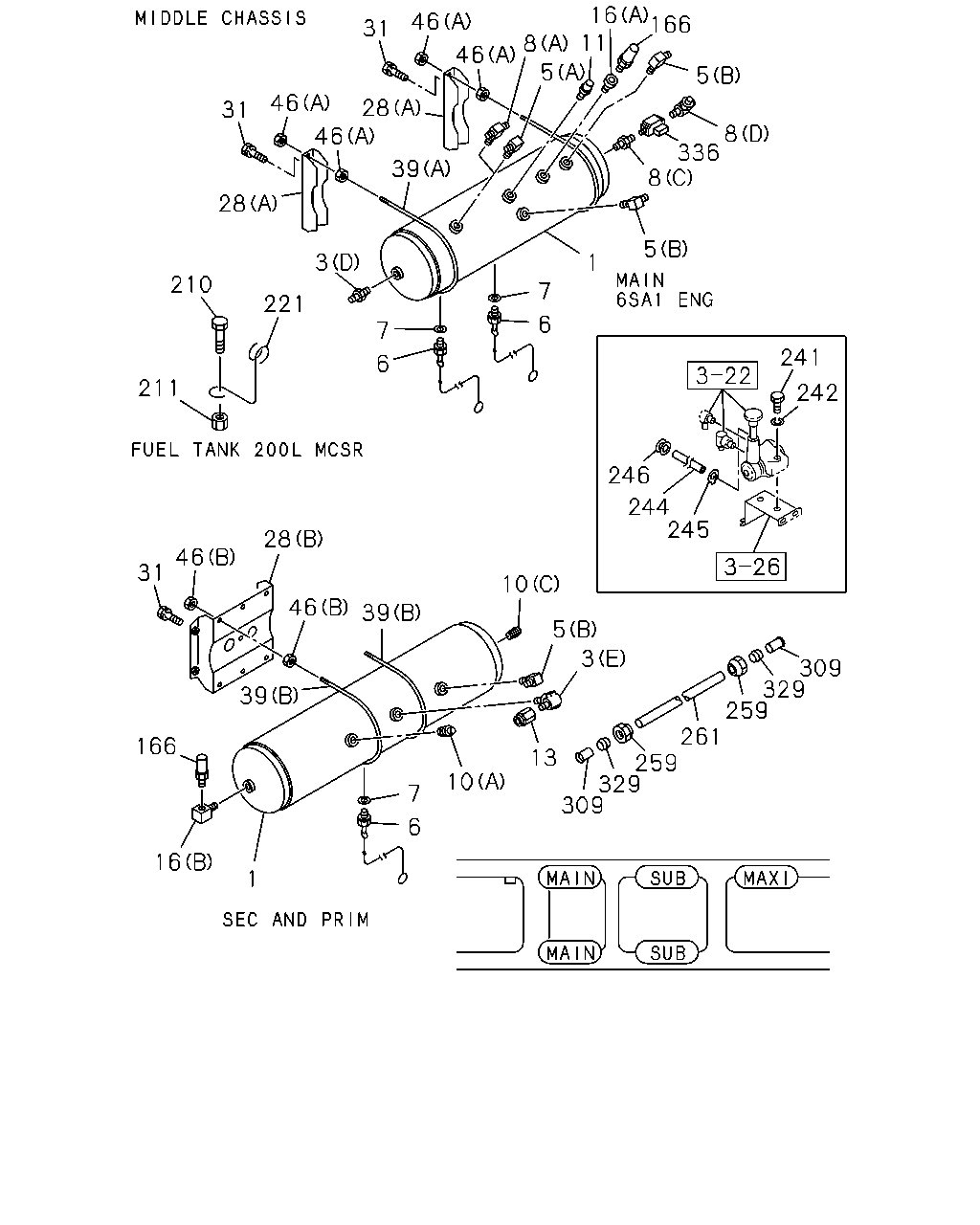

3-20 — AIR TANK (#1085) — 312 parça

16 11 166 46 31 8 5 46 5 46 8 46 31 8 336 8 39 28 5 3 1 210 7 221 6 7 241 6 211 242 246 244 245 28 46 31 10 46 39 5 3 309 329 259 261 259 329 309 39 166 13 10 7 6 16 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR MAIN	1-48330-801-4	01	1	9202-	●
1	TANK ASM; AIR SEC. AND PRIM.	1-48330-765-3	02	1	9202-		●
1	TANK ASM; AIR MAXI	1-48330-764-3	01	1	9202-		●
1	TANK ASM; AIR 6HE1 STD ENG(46L) MAIN	1-48330-948-3	01	1	9202-		●
1	TANK ASM; AIR 6SA1 STD ENG(06L),6SA1TC ENG(28L) MAIN	1-48330-768-5	01	1	9202-		●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	03	1	9202-	●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-2	01	1	9202-	●
3	VALVE; CHECK,AIR TANK (E)	1-48410-133-2	02	1	9202-		●
3	VALVE; CHECK,AIR TANK (D) M22 & PT3/4	1-48410-136-2	01	1	9202-		●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48410-182-2	01	1	9202-		●
3	VALVE; CHECK,AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E)	1-48410-133-2	01	1	9202-		●
5	UNION; AIR TANK (B)	1-09660-534-0	07	1	9202-9205	●
5	UNION; AIR TANK 6SA1 STD ENG(06L) AIR ASSIST CLUTCH<PK1> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	07	1	9206-	●
5	UNION; AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-09660-535-0	02	1	9202-	●
5	UNION; AIR TANK 6SA1TC ENG(28L) (B)	1-09660-534-0	06	1	9206-	●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	06	1	9206-	●
5	UNION; AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-09660-535-0	01	1	9202-9207	●	●
5	UNION; AIR TANK AIR ASSIST CLUTCH<PK1> AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-535-0	01	1	9208-	●
5	UNION; AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-535-0	01	1	9208-		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (A)	1-09660-535-0	01	1	9208-		●
5	UNION; AIR TANK (B)	1-09660-534-0	02	1	9202-		●
5	UNION; AIR TANK (B)	1-09660-534-0	03	1	9202-		●
5	UNION; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	01	1	9202-		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> (C) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9202-9302		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-		●
6	COCK; DRAIN,AIR TANK	1-48312-013-1	05	1	9202-9202	●
6	COCK; DRAIN,AIR TANK W/COVER	1-48312-004-1	05	1	9203-9509	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9510-	●
6	COCK; DRAIN,AIR TANK	1-48312-013-1	03	1	9202-		●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9202-	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	03	1	9202-		●
8	CONNECTOR; AIR TANK 6SA1 STD ENG(06L) AIR ASSIST CLUTCH<PK1> (A)	1-09660-539-0	01	1	9202-	●	●
8	CONNECTOR; AIR TANK FULLER RT6609 M/T(X8M) (C)	1-09660-544-0	01	1	9202-		●
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (C)	1-09660-544-0	01	1	9202-		●
8	CONNECTOR; AIR TANK FULLER RT6609 M/T(X8M) (D)	1-09660-556-0	01	1	9202-		●
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (D)	1-09660-556-0	01	1	9202-		●
8	CONNECTOR; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-09660-593-0	01	1	9202-		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (F) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9202-		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) EXC. EXHAUST BRAKE<NF8>,NEW ZEALAND EQUIPMENT(PK5) ,PTO CONTROL<SV6> (E)	1-09660-532-0	01	1	9202-		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (B) PT1/4	9-99204-513-0	01	1	9202-	●
10	PLUG; AIR TANK 6SA1 STD ENG(06L) AIR ASSIST CLUTCH<PK1> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-102-0	02	1	9202-9202	●
10	PLUG; AIR TANK 6SA1 STD ENG(06L) AIR ASSIST CLUTCH<PK1> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-111-0	02	1	9203-9207	●
10	PLUG; AIR TANK AIR ASSIST CLUTCH<PK1> EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-111-0	02	1	9208-	●
10	PLUG; AIR TANK 6SA1TC ENG(28L) (A)	1-09605-102-0	03	1	9202-9202	●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-102-0	03	1	9202-9202	●
10	PLUG; AIR TANK (A)	1-09605-102-0	03	1	9202-9202		●
10	PLUG; AIR TANK 6SA1TC ENG(28L) (A)	1-09605-111-0	03	1	9203-9207	●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-111-0	03	1	9203-9207	●
10	PLUG; AIR TANK (A)	1-09605-111-0	03	1	9203-9207		●
10	PLUG; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. TIRE INFLATOR DEVICE(SG4) (A)	1-09605-111-0	03	1	9208-	●
10	PLUG; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-111-0	03	1	9208-		●
10	PLUG; AIR TANK 6SA1TC ENG(28L) (A)	1-09605-102-0	01	1	9206-9207	●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-102-0	01	1	9206-9207	●
10	PLUG; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. TIRE INFLATOR DEVICE(SG4) (A)	1-09605-102-0	01	1	9208-	●
10	PLUG; AIR TANK (C)	1-09605-103-0	02	1	9202-9202		●
10	PLUG; AIR TANK (C)	1-09605-112-0	02	1	9203-		●
10	PLUG; AIR TANK (A)	1-09605-102-0	01	1	9202-9202		●
10	PLUG; AIR TANK (A)	1-09605-111-0	01	1	9203-		●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-102-0	04	1	9202-9202		●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-111-0	04	1	9203-		●
11	VALVE; SAFETY,AIR TANK	1-48320-007-0	01	1	9202-9202	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9203-	●	●
13	ADAPTER; NYLON TUBE M20X36	1-09660-576-0	03	1	9202-	●	●
16	CONNECTOR; SWITCH	1-09660-547-0	03	1	9202-9202	●
16	CONNECTOR; SWITCH (A)	1-09660-547-0	01	1	9202-9202		●
16	CONNECTOR; SWITCH (B)	1-09660-549-0	02	1	9202-9202		●
16	CONNECTOR; SWITCH (B)	1-09660-640-1	02	1	9203-9302		●
16	CONNECTOR; SWITCH (B) PT1/2 & NPTF1/2 2WAY	1-09660-695-0	02	1	9303-		●
16	CONNECTOR; SWITCH (A)	1-09660-549-0	01	1	9202-9202		●
16	CONNECTOR; SWITCH (A)	1-09660-640-1	01	1	9203-9302		●
16	CONNECTOR; SWITCH (A) PT1/2 & NPTF1/2 2WAY	1-09660-695-0	01	1	9303-		●
28	BRACKET; AIR TANK	1-48317-240-4	02	1	9202-	●
28	BRACKET; AIR TANK (B)	1-48317-441-0	02	1	9202-		●
28	BRACKET; AIR TANK (A)	1-48317-494-0	02	1	9202-		●
28	BRACKET; AIR TANK (B)	1-48317-441-0	01	1	9202-		●
31	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	0-50041-035-0	12	1	9202-		●
39	U-BOLT; AIR TANK (B) L=205	1-48317-003-0	04	1	9202-9501		●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-0	04	1	9502-		●
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	9202-		●
39	U-BOLT; AIR TANK (B) L=205	1-48317-003-0	02	1	9202-9501		●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-0	02	1	9502-		●
46	NUT; U-BOLT (A) M8	9-09110-408-0	08	1	9202-		●
46	NUT; U-BOLT (B) M8	9-09111-408-0	16	1	9202-		●
46	NUT; U-BOLT (B) M8	9-09111-408-0	08	1	9202-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-040-0	03	1	9202-9411	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	03	1	9412-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-040-0	03	1	9202-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	03	1	9412-		●
210	BOLT; STRING GUIDE FUEL TANK 200L FMCSR<PK6> M8X20 FLANGE	0-28010-820-0	03	1	9202-9204		●
210	BOLT; STRING GUIDE FUEL TANK 200L FMCSR<PK6> M8X20 FLANGE	0-28080-820-0	03	1	9205-		●
211	NUT; STRING GUIDE FUEL TANK 200L FMCSR<PK6> M8	9-09110-408-0	03	1	9202-		●
221	GUIDE; STRING,AIR TANK FUEL TANK 200L FMCSR<PK6>	1-48319-091-0	03	1	9202-		●
241	BOLT; SET,CONT VLV M8X65	0-10805-865-0	02	1	9202-	●	●
242	WASHER; LK,CONT VLV ID=8.2	9-09150-508-0	02	1	9202-	●	●
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●	●
245	CLIP; VINYL PIPE ID=15	9-09715-098-0	01	1	9202-	●	●
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	9202-	●	●
259	NUT; SLEEVE OD=1/2"	1-09660-558-0	AR	1	9202-	●	●
261	TUBE; NYLON SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9202-	●	●
309	RING; INSERT OD=1/2"	1-09669-107-0	AR	1	9202-	●	●
329	SLEEVE; NYLON TUBE ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9202-	●	●
336	VALVE; PROTECTION AUSTRALIA EQUIPMENT(RR3)	1-48110-006-0	01	1	9202-	●
336	VALVE; PROTECTION FULLER RT6609 M/T(X8M)	1-48110-060-0	01	1	9202-		●
336	VALVE; PROTECTION NEW ZEALAND EQUIPMENT(PK5)	1-48110-060-0	01	1	9202-		●

28 5 46 10 31 46 13 3 39 166 10 336 39 7 6 16 1 1 5 166 11 5 8 8 8 39 8 336 39 46 46 46 46 7 31 3 6 7 28 6 31 28 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR MAIN	1-48330-801-4	01	1	9202-	●
1	TANK ASM; AIR SEC. AND PRIM.	1-48330-765-3	02	1	9202-		●
1	TANK ASM; AIR MAXI	1-48330-764-3	01	1	9202-		●
1	TANK ASM; AIR 6HE1 STD ENG(46L) MAIN	1-48330-948-3	01	1	9202-		●
1	TANK ASM; AIR 6SA1 STD ENG(06L),6SA1TC ENG(28L) MAIN	1-48330-768-5	01	1	9202-		●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	03	1	9202-	●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-2	01	1	9202-	●
3	VALVE; CHECK,AIR TANK (E)	1-48410-133-2	02	1	9202-		●
3	VALVE; CHECK,AIR TANK (D) M22 & PT3/4	1-48410-136-2	01	1	9202-		●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48410-182-2	01	1	9202-		●
3	VALVE; CHECK,AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E)	1-48410-133-2	01	1	9202-		●
5	UNION; AIR TANK (B)	1-09660-534-0	07	1	9202-9205	●
5	UNION; AIR TANK 6SA1 STD ENG(06L) AIR ASSIST CLUTCH<PK1> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	07	1	9206-	●
5	UNION; AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-09660-535-0	02	1	9202-	●
5	UNION; AIR TANK 6SA1TC ENG(28L) (B)	1-09660-534-0	06	1	9206-	●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	06	1	9206-	●
5	UNION; AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-09660-535-0	01	1	9202-9207	●	●
5	UNION; AIR TANK AIR ASSIST CLUTCH<PK1> AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-535-0	01	1	9208-	●
5	UNION; AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-535-0	01	1	9208-		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (A)	1-09660-535-0	01	1	9208-		●
5	UNION; AIR TANK (B)	1-09660-534-0	02	1	9202-		●
5	UNION; AIR TANK (B)	1-09660-534-0	03	1	9202-		●
5	UNION; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	01	1	9202-		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> (C) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9202-9302		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-		●
6	COCK; DRAIN,AIR TANK	1-48312-013-1	05	1	9202-9202	●
6	COCK; DRAIN,AIR TANK W/COVER	1-48312-004-1	05	1	9203-9509	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9510-	●
6	COCK; DRAIN,AIR TANK	1-48312-013-1	03	1	9202-		●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9202-	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	03	1	9202-		●
8	CONNECTOR; AIR TANK 6SA1 STD ENG(06L) AIR ASSIST CLUTCH<PK1> (A)	1-09660-539-0	01	1	9202-	●	●
8	CONNECTOR; AIR TANK FULLER RT6609 M/T(X8M) (C)	1-09660-544-0	01	1	9202-		●
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (C)	1-09660-544-0	01	1	9202-		●
8	CONNECTOR; AIR TANK FULLER RT6609 M/T(X8M) (D)	1-09660-556-0	01	1	9202-		●
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (D)	1-09660-556-0	01	1	9202-		●
8	CONNECTOR; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-09660-593-0	01	1	9202-		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (F) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9202-		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) EXC. EXHAUST BRAKE<NF8>,NEW ZEALAND EQUIPMENT(PK5) ,PTO CONTROL<SV6> (E)	1-09660-532-0	01	1	9202-		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (B) PT1/4	9-99204-513-0	01	1	9202-	●
10	PLUG; AIR TANK 6SA1 STD ENG(06L) AIR ASSIST CLUTCH<PK1> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-102-0	02	1	9202-9202	●
10	PLUG; AIR TANK 6SA1 STD ENG(06L) AIR ASSIST CLUTCH<PK1> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-111-0	02	1	9203-9207	●
10	PLUG; AIR TANK AIR ASSIST CLUTCH<PK1> EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-111-0	02	1	9208-	●
10	PLUG; AIR TANK 6SA1TC ENG(28L) (A)	1-09605-102-0	03	1	9202-9202	●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-102-0	03	1	9202-9202	●
10	PLUG; AIR TANK (A)	1-09605-102-0	03	1	9202-9202		●
10	PLUG; AIR TANK 6SA1TC ENG(28L) (A)	1-09605-111-0	03	1	9203-9207	●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-111-0	03	1	9203-9207	●
10	PLUG; AIR TANK (A)	1-09605-111-0	03	1	9203-9207		●
10	PLUG; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. TIRE INFLATOR DEVICE(SG4) (A)	1-09605-111-0	03	1	9208-	●
10	PLUG; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-111-0	03	1	9208-		●
10	PLUG; AIR TANK 6SA1TC ENG(28L) (A)	1-09605-102-0	01	1	9206-9207	●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-102-0	01	1	9206-9207	●
10	PLUG; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. TIRE INFLATOR DEVICE(SG4) (A)	1-09605-102-0	01	1	9208-	●
10	PLUG; AIR TANK (C)	1-09605-103-0	02	1	9202-9202		●
10	PLUG; AIR TANK (C)	1-09605-112-0	02	1	9203-		●
10	PLUG; AIR TANK (A)	1-09605-102-0	01	1	9202-9202		●
10	PLUG; AIR TANK (A)	1-09605-111-0	01	1	9203-		●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-102-0	04	1	9202-9202		●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-111-0	04	1	9203-		●
11	VALVE; SAFETY,AIR TANK	1-48320-007-0	01	1	9202-9202	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9203-	●	●
13	ADAPTER; NYLON TUBE M20X36	1-09660-576-0	03	1	9202-	●	●
16	CONNECTOR; SWITCH	1-09660-547-0	03	1	9202-9202	●
16	CONNECTOR; SWITCH (A)	1-09660-547-0	01	1	9202-9202		●
16	CONNECTOR; SWITCH (B)	1-09660-549-0	02	1	9202-9202		●
16	CONNECTOR; SWITCH (B)	1-09660-640-1	02	1	9203-9302		●
16	CONNECTOR; SWITCH (B) PT1/2 & NPTF1/2 2WAY	1-09660-695-0	02	1	9303-		●
16	CONNECTOR; SWITCH (A)	1-09660-549-0	01	1	9202-9202		●
16	CONNECTOR; SWITCH (A)	1-09660-640-1	01	1	9203-9302		●
16	CONNECTOR; SWITCH (A) PT1/2 & NPTF1/2 2WAY	1-09660-695-0	01	1	9303-		●
28	BRACKET; AIR TANK	1-48317-240-4	02	1	9202-	●
28	BRACKET; AIR TANK (B)	1-48317-441-0	02	1	9202-		●
28	BRACKET; AIR TANK (A)	1-48317-494-0	02	1	9202-		●
28	BRACKET; AIR TANK (B)	1-48317-441-0	01	1	9202-		●
31	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	0-50041-035-0	12	1	9202-		●
39	U-BOLT; AIR TANK (B) L=205	1-48317-003-0	04	1	9202-9501		●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-0	04	1	9502-		●
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	9202-		●
39	U-BOLT; AIR TANK (B) L=205	1-48317-003-0	02	1	9202-9501		●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-0	02	1	9502-		●
46	NUT; U-BOLT (A) M8	9-09110-408-0	08	1	9202-		●
46	NUT; U-BOLT (B) M8	9-09111-408-0	16	1	9202-		●
46	NUT; U-BOLT (B) M8	9-09111-408-0	08	1	9202-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-040-0	03	1	9202-9411	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	03	1	9412-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-040-0	03	1	9202-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	03	1	9412-		●
336	VALVE; PROTECTION AUSTRALIA EQUIPMENT(RR3)	1-48110-006-0	01	1	9202-	●
336	VALVE; PROTECTION FULLER RT6609 M/T(X8M)	1-48110-060-0	01	1	9202-		●
336	VALVE; PROTECTION NEW ZEALAND EQUIPMENT(PK5)	1-48110-060-0	01	1	9202-		●

111 95 121 121 95 111 111 111 111 111 111 23 175 35 174 3 13 28 10 37 3 38 42 13 16 166 38 5 44 166 41 2 5 10 42 37 44 10 3 11 41 5 3 13 166 45 5 28 1 64 7 67 45 7 6 42 6 43 43 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR MAIN	1-48330-801-4	01	1	9202-	●
1	TANK ASM; AIR SEC. AND PRIM.	1-48330-765-3	02	1	9202-		●
1	TANK ASM; AIR MAXI	1-48330-764-3	01	1	9202-		●
1	TANK ASM; AIR 6HE1 STD ENG(46L) MAIN	1-48330-948-3	01	1	9202-		●
1	TANK ASM; AIR 6SA1 STD ENG(06L),6SA1TC ENG(28L) MAIN	1-48330-768-5	01	1	9202-		●
2	TANK; AIR	1-48330-882-2	01	1	9202-	●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	03	1	9202-	●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-2	01	1	9202-	●
3	VALVE; CHECK,AIR TANK (E)	1-48410-133-2	02	1	9202-		●
3	VALVE; CHECK,AIR TANK (D) M22 & PT3/4	1-48410-136-2	01	1	9202-		●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48410-182-2	01	1	9202-		●
3	VALVE; CHECK,AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E)	1-48410-133-2	01	1	9202-		●
5	UNION; AIR TANK (B)	1-09660-534-0	07	1	9202-9205	●
5	UNION; AIR TANK 6SA1 STD ENG(06L) AIR ASSIST CLUTCH<PK1> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	07	1	9206-	●
5	UNION; AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-09660-535-0	02	1	9202-	●
5	UNION; AIR TANK 6SA1TC ENG(28L) (B)	1-09660-534-0	06	1	9206-	●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	06	1	9206-	●
5	UNION; AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-09660-535-0	01	1	9202-9207	●	●
5	UNION; AIR TANK AIR ASSIST CLUTCH<PK1> AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-535-0	01	1	9208-	●
5	UNION; AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-535-0	01	1	9208-		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (A)	1-09660-535-0	01	1	9208-		●
5	UNION; AIR TANK (B)	1-09660-534-0	02	1	9202-		●
5	UNION; AIR TANK (B)	1-09660-534-0	03	1	9202-		●
5	UNION; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-534-0	01	1	9202-		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> (C) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9202-9302		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-		●
6	COCK; DRAIN,AIR TANK	1-48312-013-1	05	1	9202-9202	●
6	COCK; DRAIN,AIR TANK W/COVER	1-48312-004-1	05	1	9203-9509	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9510-	●
6	COCK; DRAIN,AIR TANK	1-48312-013-1	03	1	9202-		●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9202-	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	03	1	9202-		●
8	CONNECTOR; AIR TANK 6SA1 STD ENG(06L) AIR ASSIST CLUTCH<PK1> (A)	1-09660-539-0	01	1	9202-	●	●
8	CONNECTOR; AIR TANK FULLER RT6609 M/T(X8M) (C)	1-09660-544-0	01	1	9202-		●
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (C)	1-09660-544-0	01	1	9202-		●
8	CONNECTOR; AIR TANK FULLER RT6609 M/T(X8M) (D)	1-09660-556-0	01	1	9202-		●
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (D)	1-09660-556-0	01	1	9202-		●
8	CONNECTOR; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-09660-593-0	01	1	9202-		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (F) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9202-		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) EXC. EXHAUST BRAKE<NF8>,NEW ZEALAND EQUIPMENT(PK5) ,PTO CONTROL<SV6> (E)	1-09660-532-0	01	1	9202-		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (B) PT1/4	9-99204-513-0	01	1	9202-	●
10	PLUG; AIR TANK 6SA1 STD ENG(06L) AIR ASSIST CLUTCH<PK1> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-102-0	02	1	9202-9202	●
10	PLUG; AIR TANK 6SA1 STD ENG(06L) AIR ASSIST CLUTCH<PK1> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-111-0	02	1	9203-9207	●
10	PLUG; AIR TANK AIR ASSIST CLUTCH<PK1> EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-111-0	02	1	9208-	●
10	PLUG; AIR TANK 6SA1TC ENG(28L) (A)	1-09605-102-0	03	1	9202-9202	●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-102-0	03	1	9202-9202	●
10	PLUG; AIR TANK (A)	1-09605-102-0	03	1	9202-9202		●
10	PLUG; AIR TANK 6SA1TC ENG(28L) (A)	1-09605-111-0	03	1	9203-9207	●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-111-0	03	1	9203-9207	●
10	PLUG; AIR TANK (A)	1-09605-111-0	03	1	9203-9207		●
10	PLUG; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. TIRE INFLATOR DEVICE(SG4) (A)	1-09605-111-0	03	1	9208-	●
10	PLUG; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-111-0	03	1	9208-		●
10	PLUG; AIR TANK 6SA1TC ENG(28L) (A)	1-09605-102-0	01	1	9206-9207	●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-102-0	01	1	9206-9207	●
10	PLUG; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. TIRE INFLATOR DEVICE(SG4) (A)	1-09605-102-0	01	1	9208-	●
10	PLUG; AIR TANK (C)	1-09605-103-0	02	1	9202-9202		●
10	PLUG; AIR TANK (C)	1-09605-112-0	02	1	9203-		●
10	PLUG; AIR TANK (A)	1-09605-102-0	01	1	9202-9202		●
10	PLUG; AIR TANK (A)	1-09605-111-0	01	1	9203-		●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-102-0	04	1	9202-9202		●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09605-111-0	04	1	9203-		●
11	VALVE; SAFETY,AIR TANK	1-48320-007-0	01	1	9202-9202	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9203-	●	●
13	ADAPTER; NYLON TUBE M20X36	1-09660-576-0	03	1	9202-	●	●
16	CONNECTOR; SWITCH	1-09660-547-0	03	1	9202-9202	●
16	CONNECTOR; SWITCH (A)	1-09660-547-0	01	1	9202-9202		●
16	CONNECTOR; SWITCH (B)	1-09660-549-0	02	1	9202-9202		●
16	CONNECTOR; SWITCH (B)	1-09660-640-1	02	1	9203-9302		●
16	CONNECTOR; SWITCH (B) PT1/2 & NPTF1/2 2WAY	1-09660-695-0	02	1	9303-		●
16	CONNECTOR; SWITCH (A)	1-09660-549-0	01	1	9202-9202		●
16	CONNECTOR; SWITCH (A)	1-09660-640-1	01	1	9203-9302		●
16	CONNECTOR; SWITCH (A) PT1/2 & NPTF1/2 2WAY	1-09660-695-0	01	1	9303-		●
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE(SG4)	9-48319-102-0	01	1	9202-9207	●
28	BRACKET; AIR TANK	1-48317-240-4	02	1	9202-	●
28	BRACKET; AIR TANK (B)	1-48317-441-0	02	1	9202-		●
28	BRACKET; AIR TANK (A)	1-48317-494-0	02	1	9202-		●
28	BRACKET; AIR TANK (B)	1-48317-441-0	01	1	9202-		●
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE(SG4)	1-09680-036-0	01	1	9202-9207	●
37	BOLT; AIR TANK M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9202-9202	●
37	BOLT; AIR TANK M12X45	1-09030-052-1	08	1	9203-	●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9202-	●
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9202-	●
41	PIN; BAND FIX	9-08221-060-0	02	1	9202-	●
42	WASHER; PL (A) ID=8.4 OD=22	9-09160-708-0	04	1	9202-	●
42	WASHER; PL (B) ID=10.5	9-09164-510-0	02	1	9202-	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	9-01900-825-0	04	1	9202-9202	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	9203-	●
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	9-01960-620-0	04	1	9202-9202	●
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9203-	●
44	PIN; SPLIT OD=2.8 L=18	9-08113-018-0	02	1	9202-	●
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	12	1	9202-	●
64	STAY; AIR TANK,MAIN	1-48317-220-1	01	1	9202-	●
67	STAY; SUB TANK	1-48317-246-0	01	1	9202-	●
95	VALVE; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48410-251-0	01	1	9202-9310	●	●
95	VALVE; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48410-251-0	02	1	9311-	●	●
95	VALVE; DOUBLE CHECK HONG KONG EQUIPMENT(PQ1)	1-48410-050-0	01	1	9203-		●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (F)	1-09660-531-0	01	1	9202-9208	●
111	CONNECTOR; CHECK VLV AUSTRALIA EQUIPMENT(RR3) (F)	1-09660-531-0	01	1	9209-	●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-09660-534-0	01	1	9202-	●	●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E)	1-09660-563-0	01	1	9202-9310	●	●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-09660-535-0	01	1	9311-	●	●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E)	1-09660-563-0	02	1	9311-	●	●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (F)	1-09660-555-0	01	1	9311-	●	●
111	CONNECTOR; CHECK VLV HONG KONG EQUIPMENT(PQ1) (B)	1-09660-569-0	01	1	9203-		●
111	CONNECTOR; CHECK VLV HONG KONG EQUIPMENT(PQ1) (A)	1-09660-570-0	01	1	9203-		●
111	CONNECTOR; CHECK VLV HONG KONG EQUIPMENT(PQ1) (C)	1-09660-628-0	01	1	9203-		●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (G)	1-09660-615-0	01	1	9202-		●
121	BOLT; DOUBLE CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28010-835-0	01	1	9202-9204	●	●
121	BOLT; DOUBLE CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28080-835-0	01	1	9205-9310	●	●
121	BOLT; DOUBLE CHECK VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28080-835-0	02	1	9311-	●	●
121	BOLT; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1) M8X14 W/LK WASHER	0-50040-814-0	02	1	9203-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-040-0	03	1	9202-9411	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	03	1	9412-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-040-0	03	1	9202-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-0	03	1	9412-		●
174	COCK; AIR,INFLATOR 6SA1 STD ENG(06L) TIRE INFLATOR DEVICE(SG4)	1-09680-036-0	01	1	9208-	●
175	CAP; AIR COCK 6SA1 STD ENG(06L) TIRE INFLATOR DEVICE(SG4)	9-48319-102-0	01	1	9208-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
