Isuzu WW
▶
TRUCKS
▶
CXM
▶
10873 - CXM LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

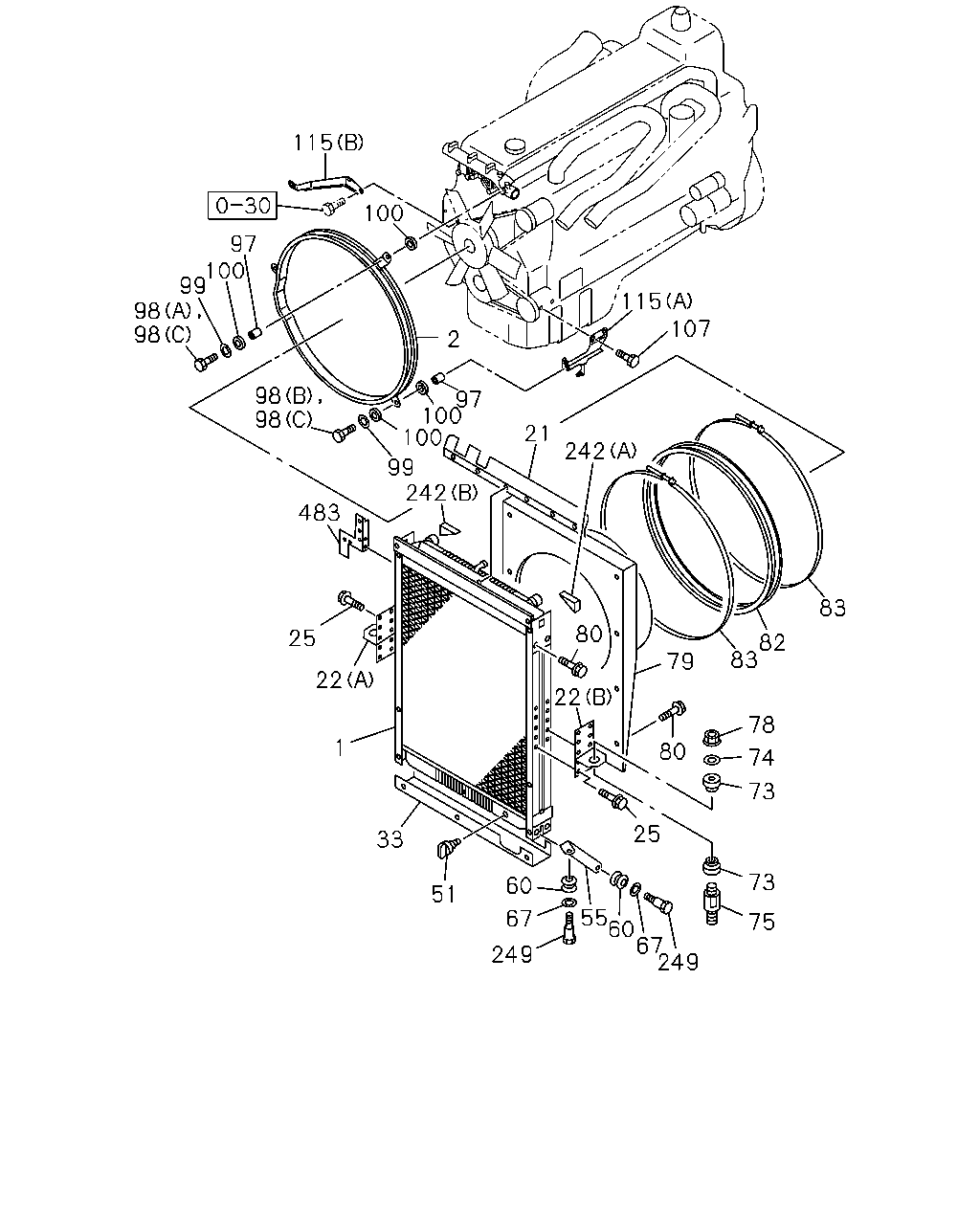

1-10 - RADIATOR
▶
1-10 — RADIATOR
(#10843) — 37 parça
115
100
97
100
99
98
98
115
107
2
98
98
97
100
100
21
242
99
242
483
83
80
25
82
83
79
22
22
78
1
80
74
73
25
33
73
60
51
55
60
67
249
67
75
249
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-730-1
01
1
0105-
2
GUIDE; FAN
1-21551-420-0
01
1
0105-
21
SEAL; RAD
1-21460-098-0
01
1
0105-
22
BRACKET; RAD MTG
(A)
1-21464-503-0
01
1
0105-
22
BRACKET; RAD MTG
(B)
1-21464-504-0
01
1
0105-
25
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
18
1
0105-
33
PROTECTOR; RAD
1-21419-050-0
01
1
0105-
51
PLUG; DRAIN
W/GASKET
1-09609-009-0
01
1
0105-
55
STAY; RAD TO UPR MBR
1-21464-499-0
01
1
0105-
55
STAY; RAD TO UPR MBR
1-21464-498-0
01
1
0105-
60
GROMMET
1-09332-117-0
04
1
0105-
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
9-09160-612-0
04
1
0105-
73
RUBBER; CUSHION,RAD MTG
T=14
1-21467-004-0
04
1
0105-
74
WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22
1-09503-154-1
02
1
0105-
75
BOLT; CUSHION RUBBER,RAD MTG
1-21466-005-0
02
1
0105-
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91150-210-0
02
1
0105-
79
GUIDE; FAN,RAD
1-21551-422-1
01
1
0105-
80
BOLT; FAN GUIDE
M8X12 FLANGE
0-28080-812-0
18
1
0105-0107
80
BOLT; FAN GUIDE
M8X12 FLANGE
0-28080-812-0
17
1
0108-
82
COVER; FAN,RAD
1-21559-262-1
01
1
0105-
83
CLIP; FAN COVER
1-09707-152-2
02
1
0105-
97
TUBE; DIST,FAN GUIDE
ID=11.8 L=27
1-21559-149-0
03
1
0105-
98
BOLT; RAD FAN GUIDE
(A) M10X40 FLANGE
0-28081-040-0
01
1
0105-0105
98
BOLT; RAD FAN GUIDE
(C) M10X45 FLANGE
0-28081-045-0
03
1
0105-
98
BOLT; RAD FAN GUIDE
(B) M10X60 FLANGE
0-28081-060-0
02
1
0105-0105
99
WASHER; PL
ID=10.5 OD=26
9-09164-710-0
03
1
0105-
100
RUBBER; MTG
1-09337-017-0
06
1
0105-
107
BOLT; BRKT TO STAY
M14X25 FLANGE
0-28981-425-0
02
1
0105-
115
BRACKET; FAN GUIDE
(A)
1-21559-353-0
01
1
0105-
115
BRACKET; FAN GUIDE
(B)
1-21559-354-0
01
1
0105-0307
115
BRACKET; FAN GUIDE
(B)
1-21559-485-0
01
1
0308-
242
BRACKET; RAD
(A)
1-21464-629-0
01
1
0105-
242
BRACKET; RAD
(B)
1-21464-630-0
01
1
0105-
249
BOLT; STAY,RAD MBR
M8X30
1-09009-020-1
04
1
0105-0201
249
BOLT; STAY,RAD MBR
M8X30
1-09009-020-1
02
1
0202-
249
BOLT; STAY,RAD MBR
M8X26
1-09009-175-0
02
1
0202-
483
BRACKET; SEAL
1-21460-092-1
01
1
0105-
