Isuzu WW
▶
TRUCKS
▶
CXM
▶
10873 - CXM LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#10842) — 56 parça
◀

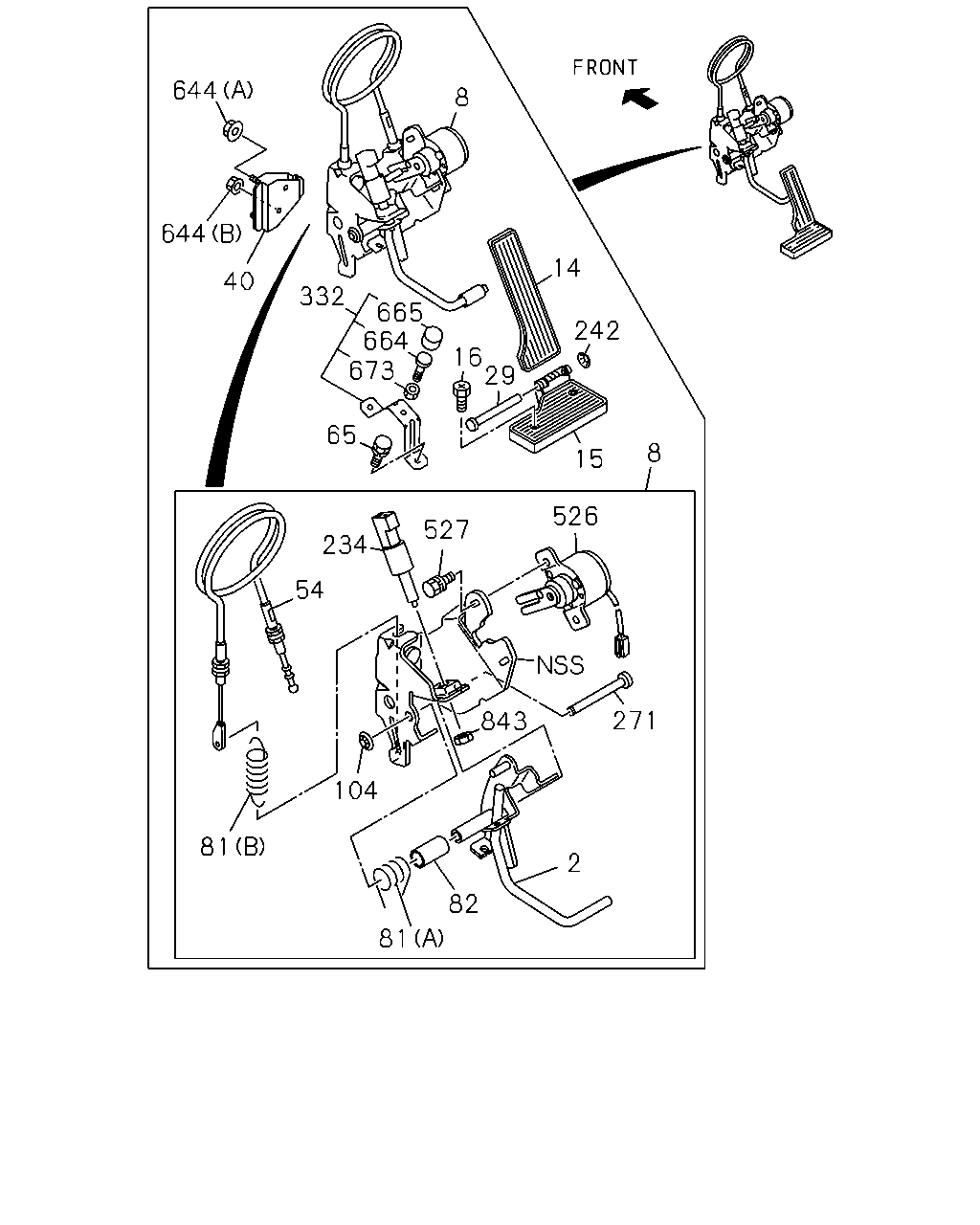

[101A] ACCEL PEDAL (27 parça)
[101A] WIRING;CONT WIRE (29 parça)
▶
644
8
644
14
40
332
665
664
673
242
16
29
65
8
15
526
527
234
54
843
271
104
81
2
82
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LEVER; ENG CONT
1-71907-550-1
01
1
0105-
8
LINK ASM; ENG CONT
1-71907-551-3
01
1
0105-
14
PAD; PEDAL,ACCEL
1-73907-563-0
01
1
0105-
15
STAND; HEEL,ACCEL PEDAL
1-73907-266-3
01
1
0105-
16
SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
0105-
29
SHAFT; ACCEL PEDAL
OD=8.0 L=74
1-71907-212-1
01
1
0105-
40
BRACKET; ENG CONT CABLE
1-71907-269-0
01
1
0105-
54
CABLE; ENG CONT
L=850
1-71907-257-0
01
1
0105-
65
BOLT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0105-
81
SPRING; RETURN,ENG CONT LEVER
(B)
1-71907-268-0
01
1
0105-0206
81
SPRING; RETURN,ENG CONT LEVER
(B)
8-97997-917-0
01
1
0207-
81
SPRING; RETURN,ENG CONT LEVER
(A)
8-97853-205-1
01
1
0105-
82
BUSHING; ENG CONT LVR
L=31.5
1-53459-627-0
01
1
0105-
104
NUT; ENG CONT
ID=7.9 PUSH NUT
8-94368-617-0
01
1
0105-
234
SWITCH; ACCEL
1-82380-131-2
01
1
0105-
242
NUT; ACCEL PEDAL
ID=7.9 PUSH NUT
8-97022-565-0
01
1
0105-
271
SHAFT; ENG CONT
OD=8.0 L=69
1-71907-298-0
01
1
0105-
332
BRACKET; ACCEL PEDAL STOPPER
1-73998-937-1
01
1
0105-
526
SENSOR; ACCEL
1-81534-003-2
01
1
0105-
527
BOLT; ACCEL SENSOR
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0105-0206
527
BOLT; ACCEL SENSOR
M6X16 W/LK&PL WASHER
8-94139-963-0
02
1
0207-
644
NUT; LINK,ENG CONT
(B) M8 FLANGE
0-91150-108-0
02
1
0105-
644
NUT; LINK,ENG CONT
(A) M8 FLANGE W/RUBBER
1-09984-176-0
03
1
0105-
664
BOLT; STOPPER
M8X45
0-20800-845-0
01
1
0105-
665
COVER; STOPPER
RUBBER
1-23249-009-0
01
1
0105-
673
NUT; STOPPER
M8
9-09111-408-0
01
1
0105-
843
NUT
M12
9-99111-412-0
01
1
0105-
406
759
404
56
439
405
404
66
23
55
396
158
759
66
64
759
404
324
405
443
122
123
121
409
410
443
42
446
323
447
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
BRACKET; FUEL CUT CABLE
1-14319-099-0
01
1
0105-0112
23
BRACKET; FUEL CUT CABLE
1-14319-140-0
01
1
0201-0401
23
BRACKET; FUEL CUT CABLE
1-14319-113-0
01
1
0402-0402
23
BRACKET; FUEL CUT CABLE
1-14319-099-0
01
1
0403-
42
BOLT; BRKT,ENG CONT CABLE
M8X20 FLANGE
0-28680-820-0
01
1
0105-
55
PIN; JAW JOINT
L=11
1-09744-102-0
01
1
0105-
56
PIN; SNAP,JAW JOINT
L=17.9
1-09747-002-0
01
1
0105-
64
BRACKET; ENG CONT CABLE
1-47477-804-3
01
1
0105-
66
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0105-
121
PIN; JOINT,CABLE
L=11
1-09744-102-0
01
1
0105-
122
WASHER; PL,CABLE
ID=5.3
9-09160-505-0
01
1
0105-
123
PIN; SNAP,CABLE
L=17.9
1-09747-002-0
01
1
0105-
158
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
0105-
323
BOLT; CLIP
M8X12 FLANGE
0-28080-812-0
01
1
0105-
324
NUT; CLIP FIX
M8 FLANGE
0-91150-108-0
01
1
0105-
396
BRACKET; CLIP
1-47478-055-0
01
1
0105-
404
CLIP; CABLE
(A)
1-14319-111-0
02
1
0105-
404
CLIP; CABLE
(B) ID=9 L=40
9-09524-875-0
01
1
0105-
405
BOLT; CABLE CLIP
M8X16 FLANGE
0-28080-816-0
02
1
0105-
406
NUT; CABLE CLIP
M8 FLANGE
0-91150-108-0
01
1
0105-
409
SLEEVE
ID=6 OD=10 L=70
1-09376-512-0
01
1
0105-0105
410
CLIP; BAND
L=300
1-09707-001-1
01
1
0105-0504
410
CLIP; BAND
L=350
1-09707-183-0
01
1
0505-
439
WASHER; PL,PIN,JAW JOINT
ID=5.3
9-09160-505-0
01
1
0105-
443
CLIP; CABLE
(B) ID=9 H=20 L=50
1-09700-084-0
01
1
0105-
443
CLIP; CABLE
(A) ID=11 H=20 L=20
5-09700-351-0
01
1
0105-
446
CLIP; ENG CONT
ID=11 L=20
9-09525-035-0
01
1
0105-
447
NUT; BRKT,CONT WIRE
M8 FLANGE
0-91150-108-0
01
1
0105-
759
WIRE; CONT,FUEL CUT
L=752
1-23230-026-1
01
1
0105-
