Isuzu WW
▶
TRUCKS
▶
CXM
▶
10873 - CXM LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶
0-42 — FUEL PUMP AND PIPE
(#10830) — 23 parça
◀

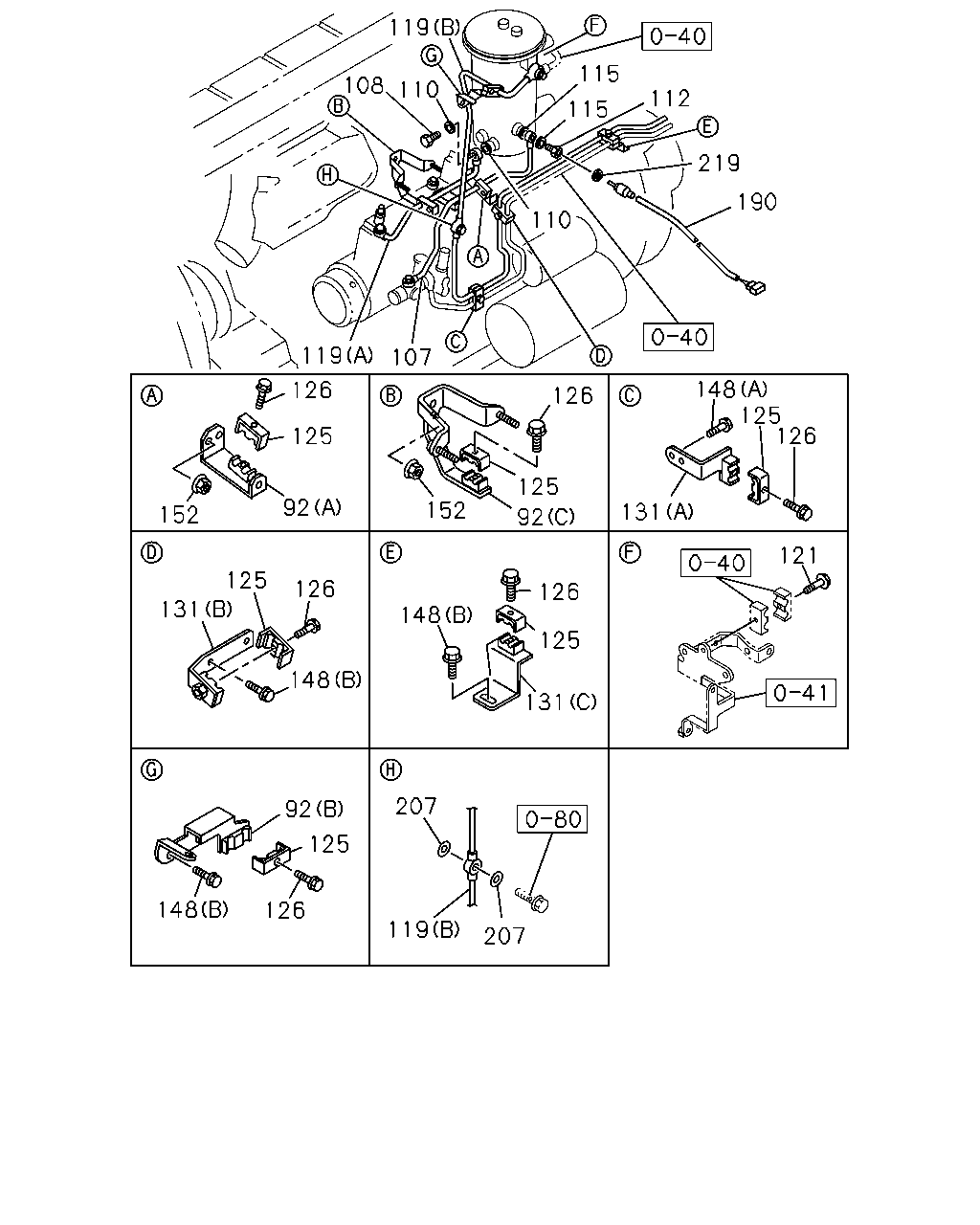

[042A] PIPE,CLIP AND SENSOR (22 parça)

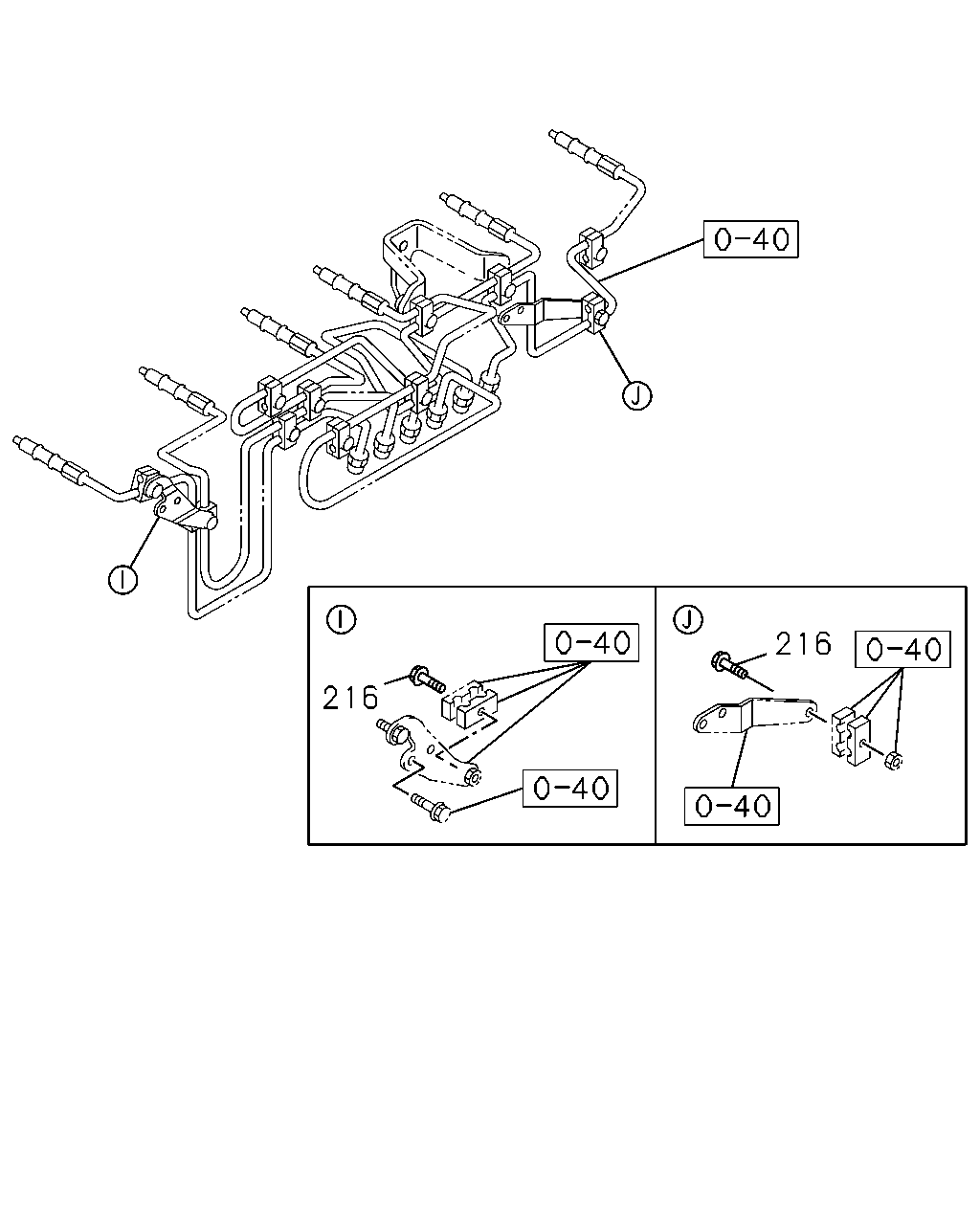

[042A] INJ PUMP BRKT PLUG (1 parça)
▶
119
115
108
110
112
115
219
110
190
119
126
107
148
125
126
126
125
125
92
152
92
152
131
121
125
131
126
126
148
125
148
131
207
92
125
148
126
119
207
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
92
BRACKET; FUEL PIPE
(A)
1-15419-425-0
01
1
0105-
92
BRACKET; FUEL PIPE
(B)
1-15419-474-1
01
1
0105-
92
BRACKET; FUEL PIPE
(C)
1-15419-592-0
01
1
0105-
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
1-15415-731-0
01
1
0105-
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0105-
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0105-
112
BOLT; JOINT,FUEL FILTER
1-09675-156-1
01
1
0105-
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0105-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A)
1-15415-539-1
01
1
0105-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B)
1-15416-402-0
01
1
0105-
121
BOLT; CLIP
M6X30 FLANGE
0-28080-630-0
01
1
0105-
125
CLIP; FUEL PIPE
ID=10 & 10 L=25
8-94393-280-2
06
1
0105-
126
BOLT; CLIP,FUEL PIPE
M6X30 FLANGE
0-28080-630-0
06
1
0105-
131
BRACKET; FUEL PIPE CLIP
(A)
1-15419-336-0
01
1
0105-
131
BRACKET; FUEL PIPE CLIP
(B)
1-15419-372-0
01
1
0105-
131
BRACKET; FUEL PIPE CLIP
(C)
1-15419-423-1
01
1
0105-
148
BOLT; BRKT
(A) M8X16 FLANGE
0-28080-816-0
02
1
0105-
148
BOLT; BRKT
(B) M10X20 FLANGE
0-28181-020-0
05
1
0105-
152
NUT; BRKT
M8 FLANGE
0-91150-108-0
04
1
0105-
190
SENSOR; FUEL TEMP
1-81535-036-7
01
1
0105-
207
GASKET; EYE BOLT
ID=14.2 OD=19.2
1-09630-085-0
02
1
0105-
219
GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
01
1
0105-
216
216
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
216
BOLT; CLIP,FUEL PIPE
M6X40 FLANGE
0-28080-640-0
02
1
0105-
