0-39 — AIR COMPRESSOR; BRAKE (#10827) — 30 parça

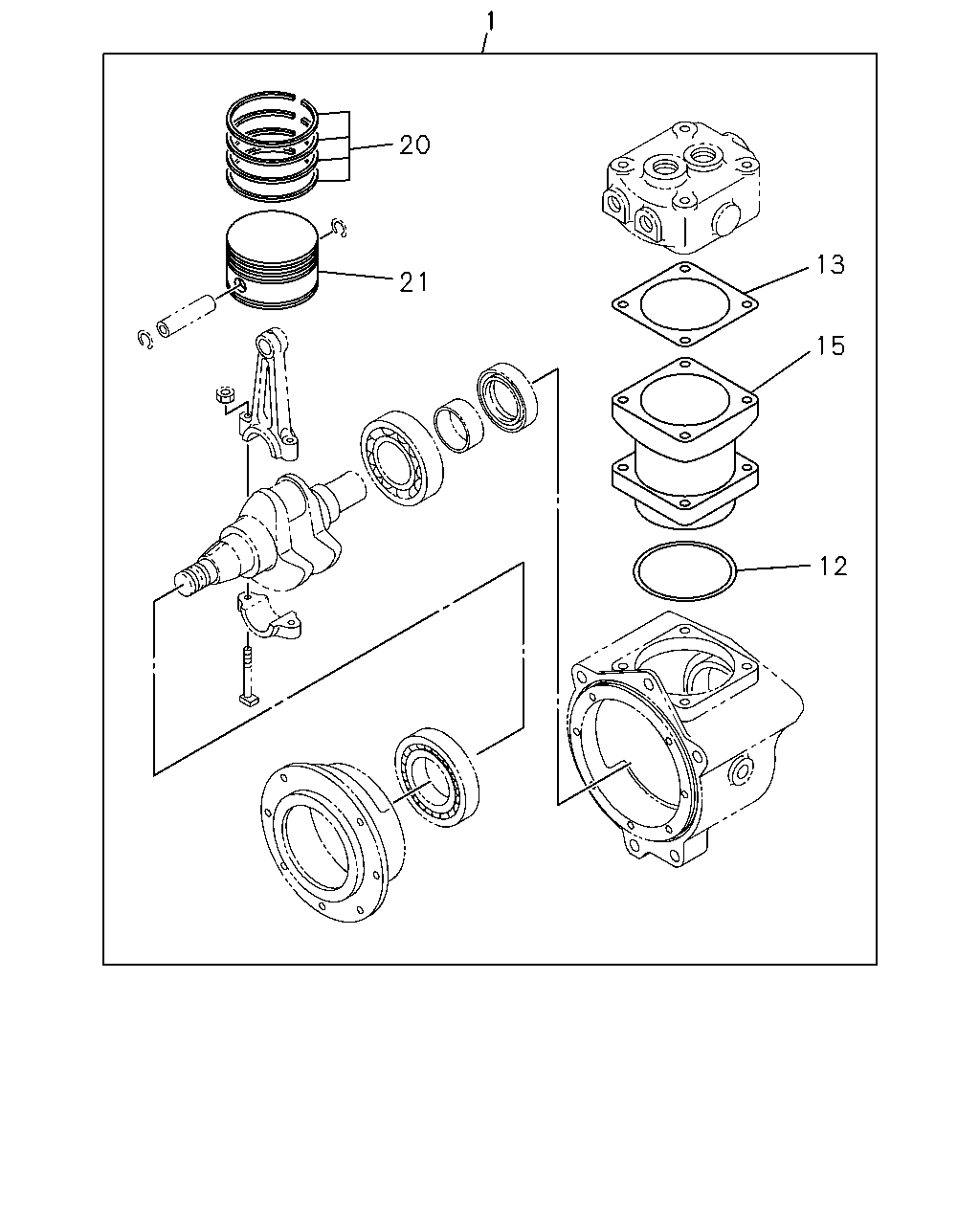

1 20 13 21 15 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LINER KIT; CYL,AIR CMPR	1-19163-060-1	01	1	0105-
12	GASKET; AIR CMPR	1-19623-539-0	01	1	0105-
13	GASKET; AIR CMPR	1-19139-017-1	01	1	0105-
15	CYLINDER; AIR CMPR	1-19151-251-0	01	1	0105-
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0105-
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0105-

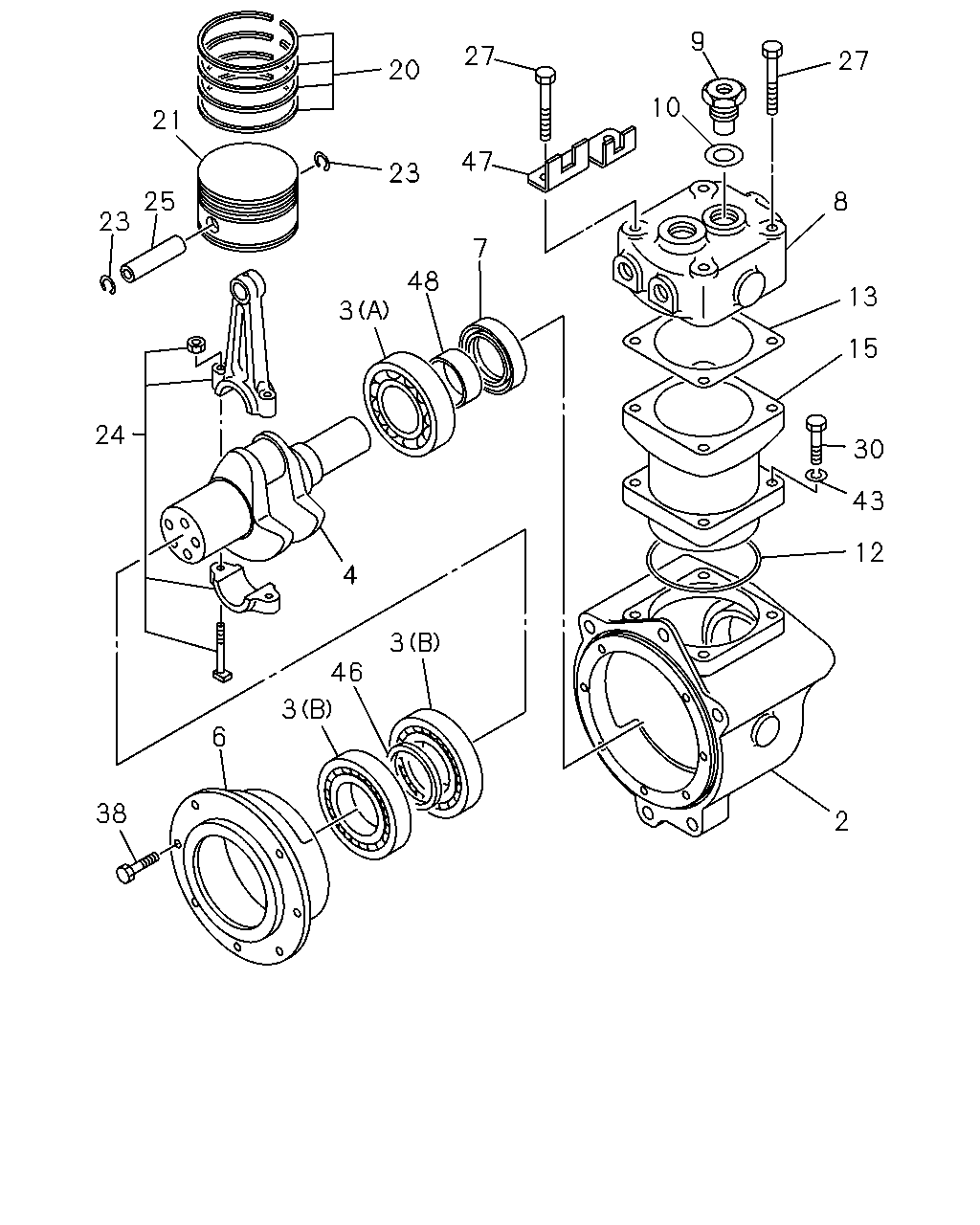

9 27 27 20 10 21 47 23 25 23 8 7 48 3 13 15 24 30 43 12 4 3 46 3 6 38 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CRANKCASE; AIR CMPR	1-19151-270-2	01	1	0105-
3	BEARING; AIR CMPR (A)	1-09800-232-0	01	1	0105-
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0105-
4	CRANKSHAFT; AIR CMPR	1-19171-067-1	01	1	0105-
6	COVER ASM; BRG,AIR CMPR	1-19156-068-1	01	1	0105-
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	0105-
8	HEAD ASM; CYL,AIR CMPR	1-19110-016-0	01	1	0105-
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-021-1	01	1	0105-
10	SHIM; AIR CMPR	9-19139-021-0	01	1	0105-
12	GASKET; AIR CMPR	1-19623-539-0	01	1	0105-
13	GASKET; AIR CMPR	1-19139-017-1	01	1	0105-
15	CYLINDER; AIR CMPR	1-19151-251-0	01	1	0105-
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0105-
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0105-
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0105-
24	ROD ASM; CONN,AIR CMPR	1-19173-014-0	01	1	0105-
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0105-
27	BOLT; HD M10X60	9-01066-060-0	04	1	0105-
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	0105-
38	BOLT; COVER FIX	1-19159-016-0	07	1	0105-
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	0105-
46	SPACER; BRG	1-19179-016-0	01	1	0105-
47	BRACKET; PIPE	1-19119-029-0	01	1	0105-
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	0105-
