0 - Engine, Emission, Engine Electrical
▶
0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE
▶

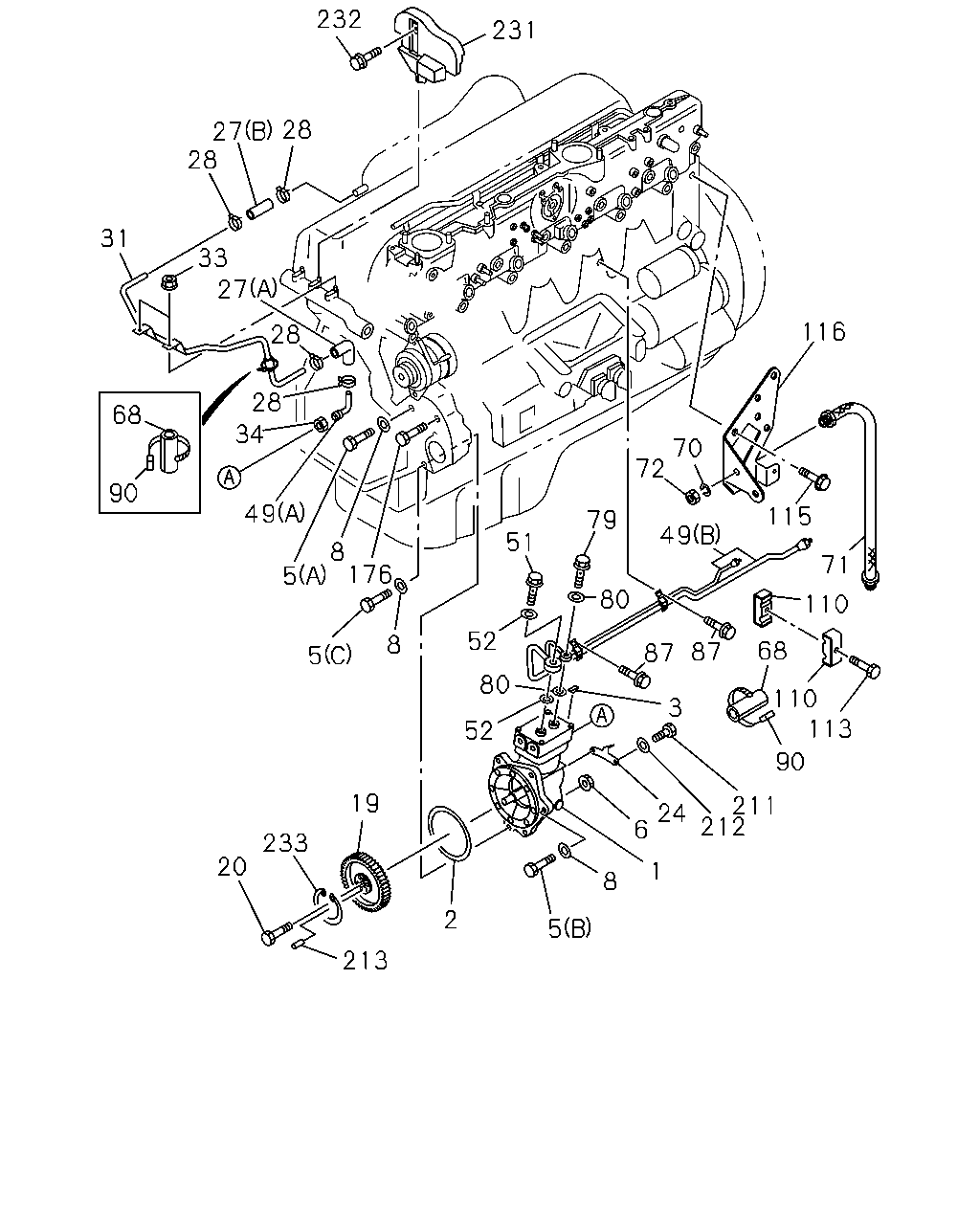

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#10826) — 43 parça
232
231
28
27
28
31
33
27
116
28
28
68
34
70
72
115
90
49
79
49
51
8
176
71
5
80
110
52
8
68
87
87
5
80
110
113
3
52
90
19
211
212
24
6
233
20
1
8
2
5
213
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
1-19100-292-4
01
1
0105-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-476-0
01
1
0105-
3
KEY; COUPLING,INJ PUMP
9-08055-622-0
01
1
0105-
5
BOLT; AIR CMPR FIX
(A) M14X128
8-94399-253-1
01
1
0105-
5
BOLT; AIR CMPR FIX
(B) M14X90
9-91666-490-0
01
1
0105-
5
BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150
9-09804-172-1
01
1
0105-
5
BOLT; AIR CMPR FIX
HEATER & DEFROSTER(C41) (C) M14X100
9-91666-400-0
01
1
0105-
6
NUT; AIR CMPR
M14 FLANGE
0-91150-114-0
01
1
0105-
8
WASHER; PL,AIR CMPR
ID=15 OD=26
9-09164-514-0
03
1
0105-
19
GEAR; INJ PUMP
Z=54
1-12524-151-0
01
1
0105-0205
19
GEAR; INJ PUMP
Z=54
1-12524-164-0
01
1
0206-
20
BOLT; GEAR TO SHAFT
M12X39 FLANGE
1-09070-116-0
05
1
0105-
24
POINTER; AIR CMPR
1-11327-040-1
01
1
0105-
27
HOSE; AIR CMPR,SUCTION
(B)
0-02117-080-0
01
1
0105-
27
HOSE; AIR CMPR,SUCTION
(A)
1-09360-916-0
01
1
0105-
28
CLIP; HOSE,AIR CMPR
ID=22.7
8-94466-382-0
04
1
0105-
31
PIPE; AIR,AIR CMPR SUCTION
1-19192-991-0
01
1
0105-
33
NUT; PIPE FIX
M8 FLANGE
0-91150-108-0
02
1
0105-
34
NUT; LK SUCTION PIPE
9-09840-254-0
01
1
0105-
49
PIPE; AIR,CHARGE
(B)
1-19192-785-2
01
1
0105-
49
PIPE; AIR,CHARGE
(A)
9-19119-032-0
01
1
0105-
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-175-1
01
1
0105-
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
0105-
68
SLEEVE; RUBBER
ID=9 OD=14 L=35
8-94127-043-0
01
1
0105-
68
SLEEVE; RUBBER
ID=18 OD=22 L=25
8-94412-773-0
02
1
0105-
70
WASHER; LK
ID=12.2
9-09150-512-0
01
1
0105-
71
HOSE; FLEX,AIR GOV
L=520
1-09363-657-0
01
1
0105-
72
NUT; GOV HOSE
M12
9-09840-280-0
01
1
0105-
79
BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE
1-09675-086-0
01
1
0105-
80
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0105-
87
BOLT; BRKT FIX
M10X20 FLANGE
0-28181-020-0
02
1
0105-
90
CLIP; HARNESS
L=140
5-09707-031-1
02
1
0105-
110
CLIP; AIR PIPE
1-09701-208-0
02
1
0105-
113
BOLT; CLIP,AIR PIPE
M6X40 FLANGE
0-28080-640-0
01
1
0105-
115
BOLT; AIR PIPE
M10X20 FLANGE
0-28181-020-0
02
1
0105-
116
BRACKET; AIR PIPE
1-19199-212-1
01
1
0105-
176
BOLT; BRKT FIX
M10X135
8-94397-139-1
01
1
0105-
211
BOLT; POINTER
M10X16
0-23801-016-0
02
1
0105-
212
WASHER; LK,POINTER
ID=10.2
9-09150-510-0
02
1
0105-
213
PIN; AIR CMPR GEAR
OD=5 L=10
9-08150-510-0
01
1
0105-
231
INSULATOR; HEAD COVER
1-19389-208-1
01
1
0105-
232
BOLT; INSULATOR
M8X12 FLANGE
0-28080-812-0
01
1
0105-
233
RING; FRICTION
1-12529-003-0
01
1
0105-0205
