1 |

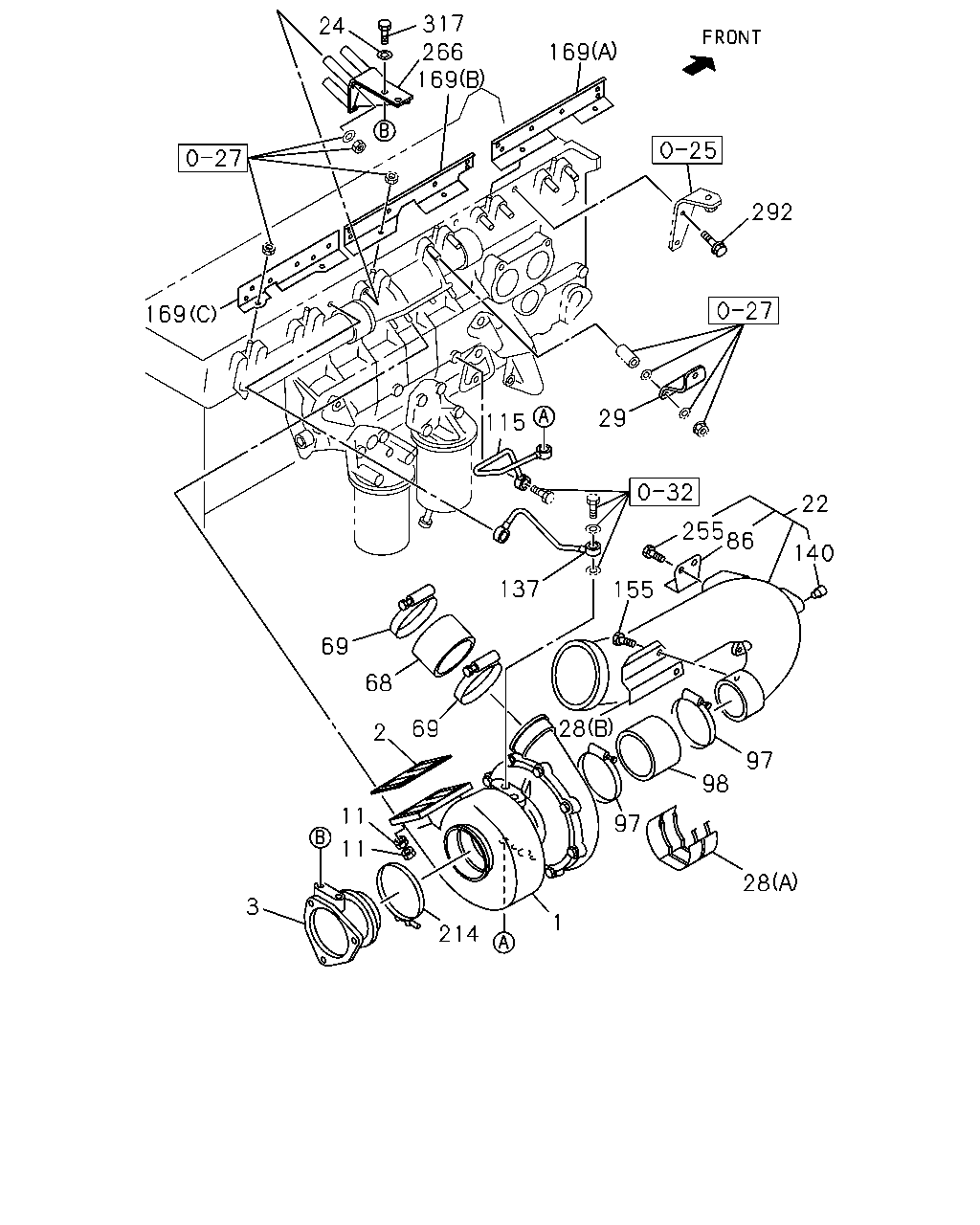

TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
|
1-14400-372-1 |
01 |
1 |
0105- |
| |
2 |
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-14145-187-0 |
01 |
1 |
0105- |
| |
3 |
PIPE; EXH,TURBOCHARGER
|
1-14144-542-1 |
01 |
1 |
0105- |
| |
11 |
NUT; TURBOCHARGER
M10
|
1-09420-005-0 |
08 |
1 |
0105- |
| |
22 |
DUCT; INL,ACL TO TURBOCHARGER
|
1-14134-083-2 |
01 |
1 |
0105- |
| |
24 |
WASHER; PL,PIPE
|
1-09500-007-0 |
02 |
1 |
0105- |
| |
28 |
PROTECTOR; HEAT,HOSE,AIR DUCT
(A)
|
1-14181-244-0 |
01 |
1 |
0105- |
| |
28 |
PROTECTOR; HEAT,HOSE,AIR DUCT
(B)
|
1-14181-272-0 |
01 |
1 |
0105- |
| |
29 |
BRACKET; INL PIPE,ACL TO TURBOCHARGER
|
1-14119-392-0 |
01 |
1 |
0105- |
| |
68 |
HOSE; RUBBER,TURBOCHARGER TO INL COVER
|
1-09360-917-0 |
01 |
1 |
0105- |
| |
69 |
CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95
|
1-09707-114-0 |
02 |
1 |
0105-0306 |
| |
69 |
CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95
|
1-09707-198-0 |
02 |
1 |
0307- |
| |
86 |
BRACKET; INL PIPE
|
1-14119-361-0 |
01 |
1 |
0105- |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
|
1-09707-144-0 |
02 |
1 |
0105-0306 |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=87-113
|
1-09707-199-0 |
02 |
1 |
0307- |
| |
98 |
HOSE; RUBBER,TURBOCHARGER OUTLET
ID=89 L=80
|
1-09360-356-1 |
01 |
1 |
0105- |
| |
115 |
PIPE; WATER,TURBOCHARGER OUT
|
1-13721-605-0 |
01 |
1 |
0105- |
| |
137 |
PIPE; WATER,TURBOCHARGER IN
|
1-13721-506-2 |
01 |
1 |
0105- |
| |
140 |
PIPE; AIR PIPE
|
9-14119-228-1 |
01 |
1 |
0105- |
| |
155 |
BOLT; HEAT PROTECTOR
M8X12 FLANGE
|
0-28080-812-0 |
02 |
1 |
0105- |
| |
169 |
PROTECTOR; HEAT,HD COVER
(A)
|
1-14181-301-1 |
01 |
1 |
0105-0110 |
| |
169 |
PROTECTOR; HEAT,HD COVER
(B)
|
1-14181-302-1 |
01 |
1 |
0105- |
| |
169 |
PROTECTOR; HEAT,HD COVER
(C)
|
1-14181-320-0 |
01 |
1 |
0105- |
| |
214 |
BAND; "V",TURBOCHARGER TO EXH PIPE
|
1-09709-094-1 |
01 |
1 |
0105- |
| |
255 |
BOLT; INL PIPE
M10X20 FLANGE
|
0-28181-020-0 |
02 |
1 |
0105- |
| |
266 |
BRACKET; EXH PIPE
|
1-14149-195-0 |
01 |
1 |
0105- |
| |
292 |
BOLT; BRKT TO CYL HD
M10X16 FLANGE
|
0-28181-016-0 |
04 |
1 |
0105- |
| |
317 |
BOLT; EXH PIPE
M10X20
|
1-09020-073-2 |
02 |
1 |
0105- |
