0-33 — FAN AND FAN BELT (#10822) — 30 parça

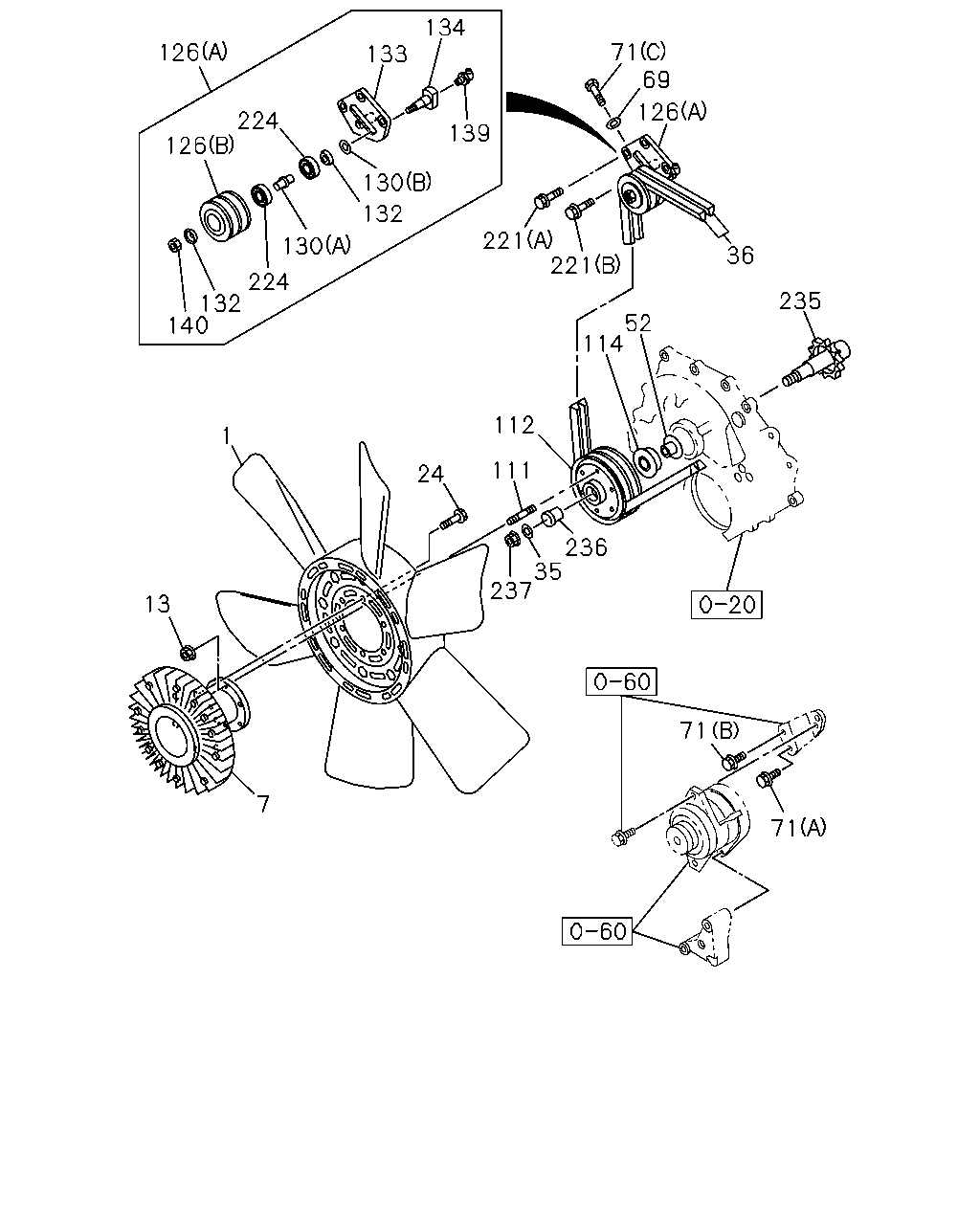

çizim 75794
134 126 71 69 126 133 224 126 139 130 132 130 221 221 36 224 132 140 235 52 114 112 1 111 236 35 237 24 13 71 7 71
BalonParca AdiParca NoAdetTipApplied Date
1 FAN; COOLING 1-13660-286-1 01 1 0105-
7 COUPLING; FAN 1-21650-204-1 01 1 0105-
13 NUT; COOLING FAN
M10 FLANGE 		0-91150-210-0 06 1 0105-
24 BOLT; FAN
M10X40 FLANGE 		0-28791-040-0 06 1 0105-
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 0105-0312
35 WASHER; PL 1-09503-242-0 01 1 0401-
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714310) MITSUBOSHI 		1-13671-430-0 01 1 0105-
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 0105-
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 0105-
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 0105-
71 BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE 		0-28186-011-0 01 1 0105-
71 BOLT; ADJ PLATE,GEN
(C) M10X140 		1-09000-104-1 01 1 0105-
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 0105-
112 PULLEY; FAN CENTER 1-13663-124-1 01 1 0105-
114 SEAL; OIL 1-09625-570-0 01 1 0105-
126 PULLEY; IDLE
(A) 		1-13660-358-2 01 1 0105-
126 PULLEY; IDLE
(B) 		1-13663-111-2 01 1 0105-
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 0105-
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 0105-
132 COVER; DUST 1-13664-009-2 02 1 0105-
133 BRACKET; IDLE PULLEY 1-13669-150-1 01 1 0105-
134 SPINDLE; IDLE PULLEY 1-13665-035-0 01 1 0105-
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		9-09031-210-0 01 1 0105-
140 NUT; IDLE PULLEY
M18 		9-99111-518-0 01 1 0105-
221 BOLT; IDLE PULLEY
(B) M10X80 FLANGE 		0-28181-080-0 01 1 0105-
221 BOLT; IDLE PULLEY
(A) M10X90 FLANGE 		0-28181-090-0 03 1 0105-
224 BEARING; IDLE PULLEY 1-09800-176-0 02 1 0105-
235 SHAFT; FAN CENTER 1-13660-278-3 01 1 0105-
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 0105-
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 0105-
