3-05 — REAR WHEEL BRAKE (#1082) — 91 parça

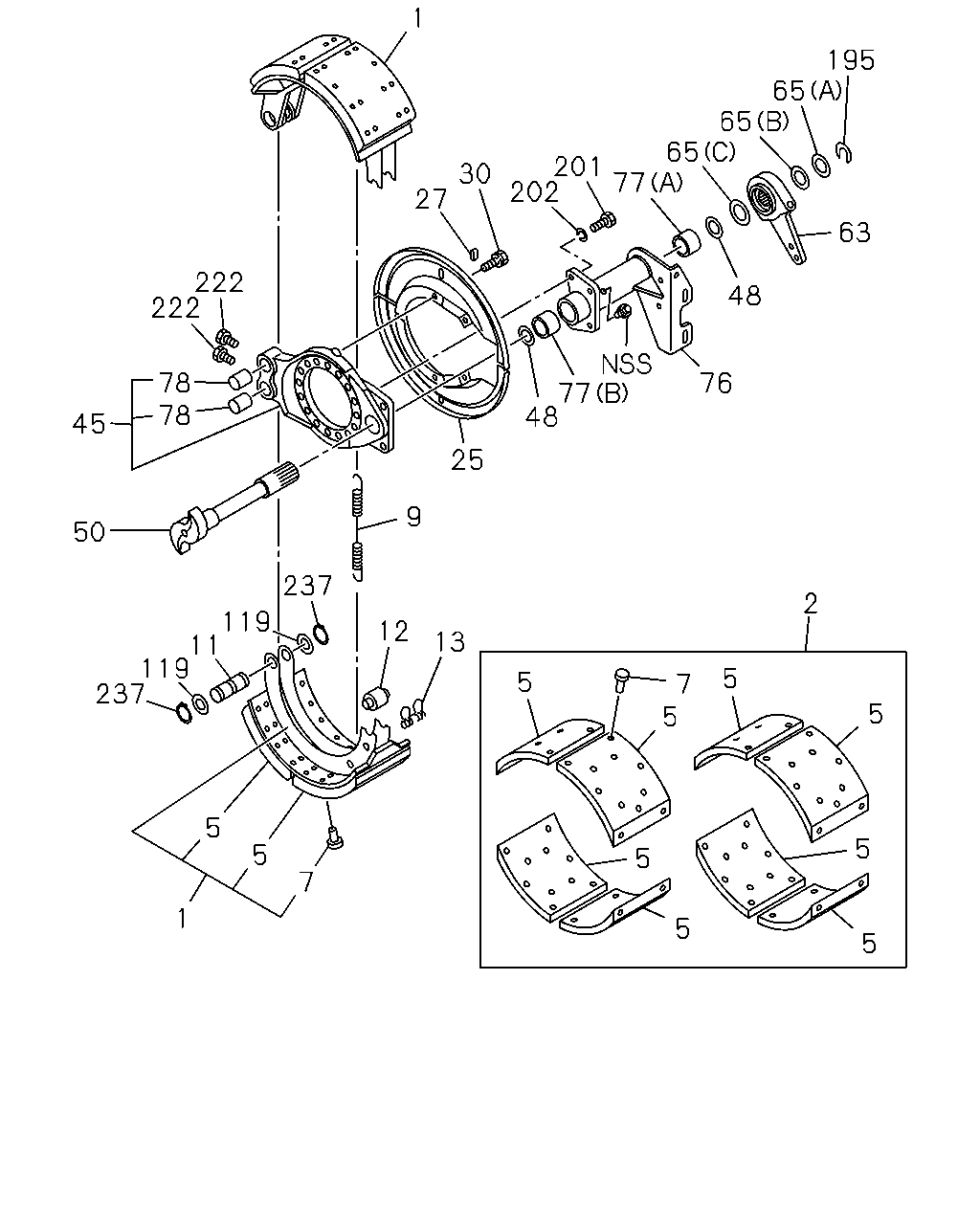

1 195 65 65 65 77 201 202 30 27 63 222 222 48 77 48 78 78 76 45 25 9 50 237 2 119 11 119 237 12 13 5 5 7 5 5 5 5 5 5 7 1 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-612-0	04	1	9202-	●	●
1	SHOE; BRK,RR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-390-0	04	1	9202-	●	●
2	LINING SET; RR BRK,STANDARD HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-613-0	01	1	9202-	●	●
2	LINING SET; RR BRK,STANDARD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-315-0	01	1	9202-	●	●
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY PACKAGE TRUCK<RD2> ANC BLOCK SIDE	1-87061-615-0	04	1	9202-	●	●
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY PACKAGE TRUCK<RD2> CAM BLOCK SIDE	1-87061-616-0	04	1	9202-	●	●
5	LINING; RR BRK SHOE,STANDARD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-314-0	08	1	9202-	●	●
7	RIVET; LINING,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-614-0	AR	1	9202-	●	●
7	RIVET; LINING,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-377-0	AR	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-610-0	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-87061-313-0	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-87061-384-0	04	1	9202-	●	●
11	PIN; ANCHOR,RR WHEEL BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-617-0	04	1	9202-	●	●
12	ROLLER; CAM,BRK SHOE HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-607-0	04	1	9202-	●	●
12	ROLLER; CAM,BRK SHOE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-379-0	02	1	9202-	●	●
13	CLIP; ROLLER PIN,BRK SHOE HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-606-0	04	1	9202-	●	●
25	COVER SET; RR BRK DRUM	1-87061-392-0	02	1	9202-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-87061-402-0	04	1	9202-	●	●
30	BOLT; DRUM COVER HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-603-0	12	1	9202-	●	●
30	BOLT; DRUM COVER EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-389-0	12	1	9202-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-608-0	02	1	9202-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-387-0	02	1	9202-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-87061-386-0	04	1	9202-	●	●
50	CAMSHAFT; BRK,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-601-0	01	1	9202-	●	●
50	CAMSHAFT; BRK,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-602-0	01	1	9202-	●	●
50	CAMSHAFT; BRK,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-375-0	01	1	9202-	●	●
50	CAMSHAFT; BRK,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-376-0	01	1	9202-	●	●
63	ADJUSTER ASM; SLACK,RR BRK	1-87061-391-0	02	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK HEAVY DUTY PACKAGE TRUCK<RD2> (A) 0.030"	1-87061-368-0	04	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK HEAVY DUTY PACKAGE TRUCK<RD2> (B) 0.060"	1-87061-374-0	02	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-87061-381-0	04	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 0.030"	1-87061-368-0	06	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 0.060"	1-87061-374-0	06	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-87061-381-0	02	1	9202-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-619-0	01	1	9202-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-618-0	01	1	9202-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-397-0	01	1	9202-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-396-0	01	1	9202-	●	●
77	BUSHING HEAVY DUTY PACKAGE TRUCK<RD2> (A) NYLON	1-87061-312-0	02	1	9202-	●	●
77	BUSHING HEAVY DUTY PACKAGE TRUCK<RD2> (B) BRONZE	1-87061-620-0	02	1	9202-	●	●
77	BUSHING EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-312-0	04	1	9202-	●	●
78	BUSHING; BRKT HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-609-0	04	1	9202-	●	●
119	WASHER; PL,ANCHOR PIN HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-604-0	08	1	9202-	●	●
195	RING; SNAP,CM/SHF	1-87061-388-0	02	1	9202-	●	●
201	BOLT; BRKT,POWER CHAMBER	1-87061-378-0	08	1	9202-	●	●
202	WASHER; LK,BRKT	1-87061-403-0	08	1	9202-	●	●
222	BOLT; LK,ANCHOR PIN HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-611-0	04	1	9202-	●	●
237	RING; SNAP,ANCHOR PIN HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-605-0	08	1	9202-	●	●

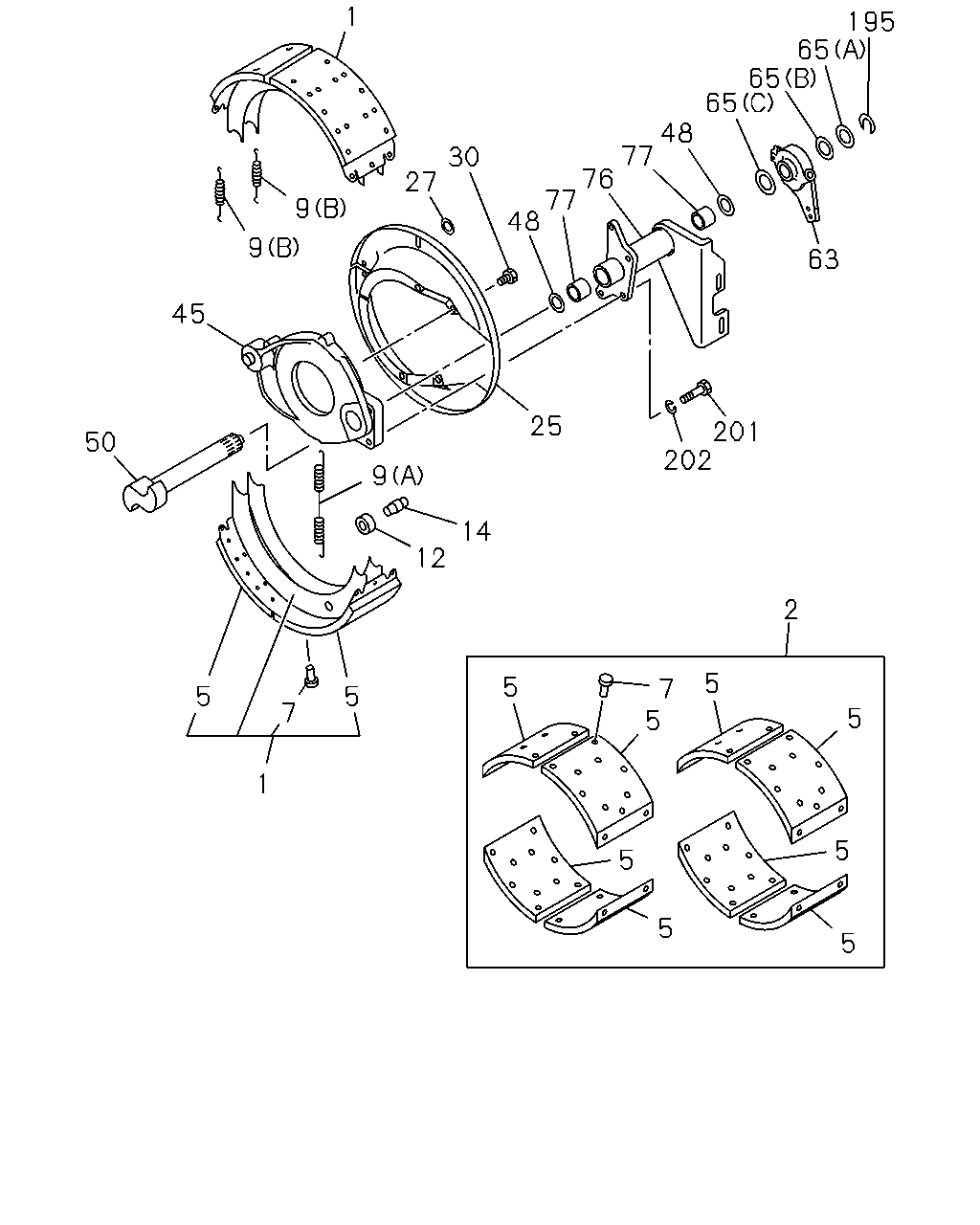

1 195 65 65 65 48 77 76 77 48 30 27 9 9 63 45 25 201 202 50 9 14 12 2 5 5 7 5 5 5 7 5 1 5 5 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-612-0	04	1	9202-	●	●
1	SHOE; BRK,RR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-390-0	04	1	9202-	●	●
2	LINING SET; RR BRK,STANDARD HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-613-0	01	1	9202-	●	●
2	LINING SET; RR BRK,STANDARD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-315-0	01	1	9202-	●	●
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY PACKAGE TRUCK<RD2> ANC BLOCK SIDE	1-87061-615-0	04	1	9202-	●	●
5	LINING; RR BRK SHOE,STANDARD HEAVY DUTY PACKAGE TRUCK<RD2> CAM BLOCK SIDE	1-87061-616-0	04	1	9202-	●	●
5	LINING; RR BRK SHOE,STANDARD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-314-0	08	1	9202-	●	●
7	RIVET; LINING,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-614-0	AR	1	9202-	●	●
7	RIVET; LINING,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-377-0	AR	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-610-0	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-87061-313-0	02	1	9202-	●	●
9	SPRING; RETURN,BRK SHOE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-87061-384-0	04	1	9202-	●	●
12	ROLLER; CAM,BRK SHOE HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-607-0	04	1	9202-	●	●
12	ROLLER; CAM,BRK SHOE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-379-0	02	1	9202-	●	●
14	PIN; CAM ROLLER,BRK SHOE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-380-0	02	1	9202-	●	●
25	COVER SET; RR BRK DRUM	1-87061-392-0	02	1	9202-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-87061-402-0	04	1	9202-	●	●
30	BOLT; DRUM COVER HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-603-0	12	1	9202-	●	●
30	BOLT; DRUM COVER EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-389-0	12	1	9202-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-608-0	02	1	9202-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-387-0	02	1	9202-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-87061-386-0	04	1	9202-	●	●
50	CAMSHAFT; BRK,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-601-0	01	1	9202-	●	●
50	CAMSHAFT; BRK,RR BRK HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-602-0	01	1	9202-	●	●
50	CAMSHAFT; BRK,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-375-0	01	1	9202-	●	●
50	CAMSHAFT; BRK,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-376-0	01	1	9202-	●	●
63	ADJUSTER ASM; SLACK,RR BRK	1-87061-391-0	02	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK HEAVY DUTY PACKAGE TRUCK<RD2> (A) 0.030"	1-87061-368-0	04	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK HEAVY DUTY PACKAGE TRUCK<RD2> (B) 0.060"	1-87061-374-0	02	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-87061-381-0	04	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 0.030"	1-87061-368-0	06	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 0.060"	1-87061-374-0	06	1	9202-	●	●
65	SPACER; SLACK ADJ,BRK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-87061-381-0	02	1	9202-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-619-0	01	1	9202-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-618-0	01	1	9202-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-397-0	01	1	9202-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-396-0	01	1	9202-	●	●
77	BUSHING HEAVY DUTY PACKAGE TRUCK<RD2> (A) NYLON	1-87061-312-0	02	1	9202-	●	●
77	BUSHING HEAVY DUTY PACKAGE TRUCK<RD2> (B) BRONZE	1-87061-620-0	02	1	9202-	●	●
77	BUSHING EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-312-0	04	1	9202-	●	●
195	RING; SNAP,CM/SHF	1-87061-388-0	02	1	9202-	●	●
201	BOLT; BRKT,POWER CHAMBER	1-87061-378-0	08	1	9202-	●	●
202	WASHER; LK,BRKT	1-87061-403-0	08	1	9202-	●	●
