Isuzu WW
▶
TRUCKS
▶
CXM
▶
10873 - CXM LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

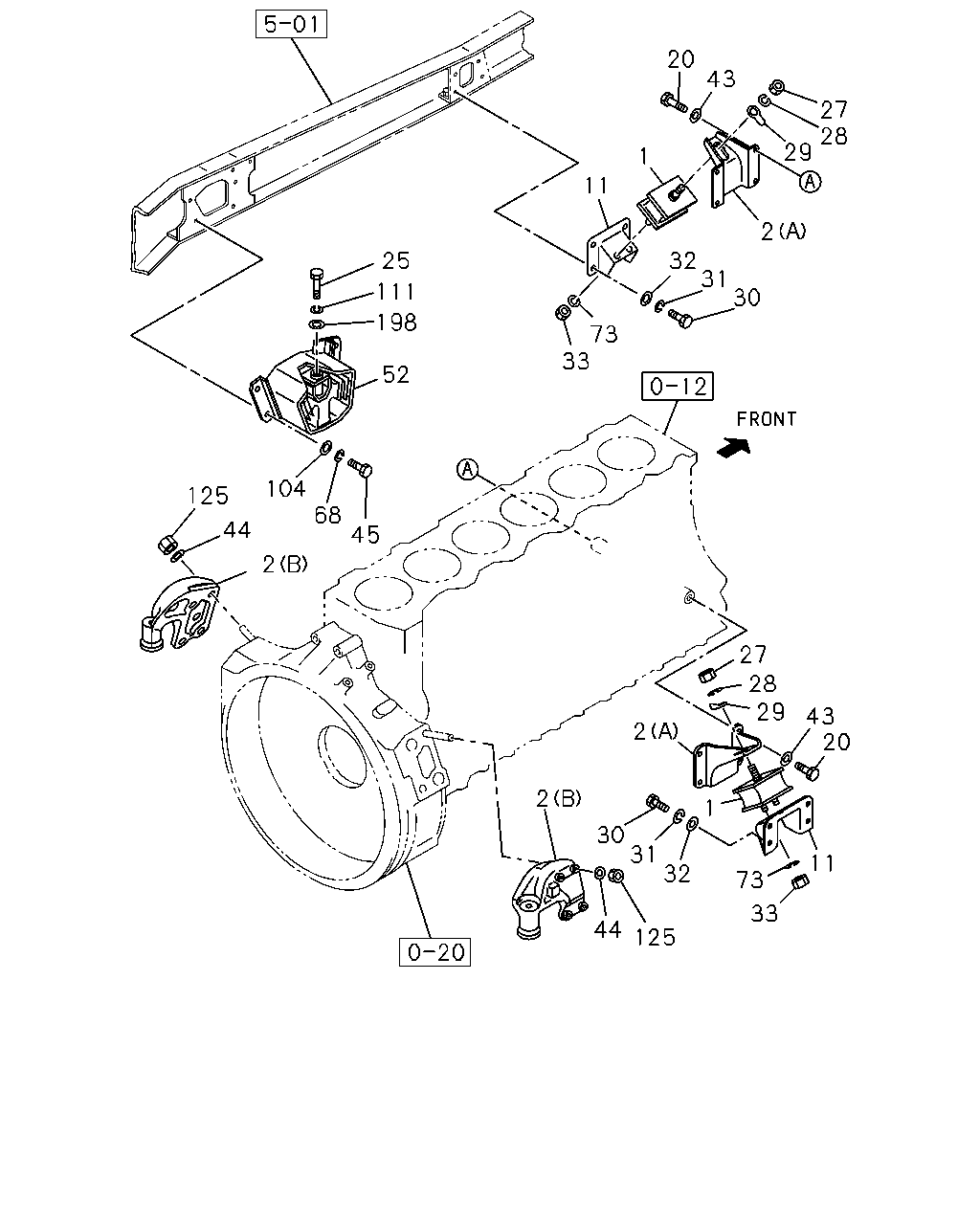

0-22 — ENGINE MOUNTING
(#10815) — 25 parça
20
43
27
28
29
1
11
2
32
31
30
25
111
198
73
33
52
104
68
45
125
44
2
27
28
29
43
20
2
1
28
73
33
30
31
32
44
125
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-147-1
02
1
0105-
2
FOOT; ENG
(A) FRONT
1-11771-220-0
02
1
0105-
2
FOOT; ENG
(B) REAR
1-11777-197-1
01
1
0105-
2
FOOT; ENG
(B) REAR
1-11777-189-1
01
1
0105-
11
BRACKET; CUSHION RUBBER,FRT
1-53211-338-0
02
1
0105-
20
BOLT; ENG FOOT
M14X32
9-92361-432-0
08
1
0105-
25
BOLT; CUSHION RUBBER TO BRKT
M22X105
9-09804-230-1
02
1
0105-0503
25
BOLT; CUSHION RUBBER TO BRKT
M22X105
1-09000-773-0
02
1
0504-
27
NUT; CUSHION RUBBER TO ENG FOOT
M18
9-99110-518-0
02
1
0105-
28
WASHER; LK,SUPPORT BRKT
ID=18.2
9-09150-518-0
02
1
0105-
29
PLATE; LK,CUSHION RUBBER,FRT
1-53229-040-0
02
1
0105-
30
BOLT; BRKT TO FRAME
M14X35
9-92061-435-0
08
1
0105-
31
WASHER; LK,BRKT TO FRAME
ID=14.2
9-09150-814-0
08
1
0105-
32
WASHER; PL,BRKT TO FRAME
ID=15
9-09651-069-0
08
1
0105-
33
NUT; CUSHION RUBBER TO BRKT
M14
9-99110-414-0
04
1
0105-
43
WASHER; ENG FOOT
ID=14.2
1-09503-050-0
08
1
0105-
44
WASHER; LK,ENG FOOT
ID=18.2 OD=29
1-09503-032-0
08
1
0105-
45
BOLT; CUSHION RUBBER TO FRAME
M14X40
9-92061-440-0
12
1
0105-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-327-0
02
1
0105-
68
WASHER; LK,CUSHION RUBBER
ID=14.2
9-09150-814-0
12
1
0105-
73
WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2
9-09150-514-0
04
1
0105-
104
WASHER; PL,CUSHION RUBBER
ID=15
9-09651-069-0
12
1
0105-
111
WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5
9-09150-622-0
02
1
0105-
125
NUT; ENG FOOT
M18
9-99110-518-0
08
1
0105-
198
WASHER; PL,CUSHION TO BRKT,RR
9-09164-622-0
02
1
0105-
