0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶

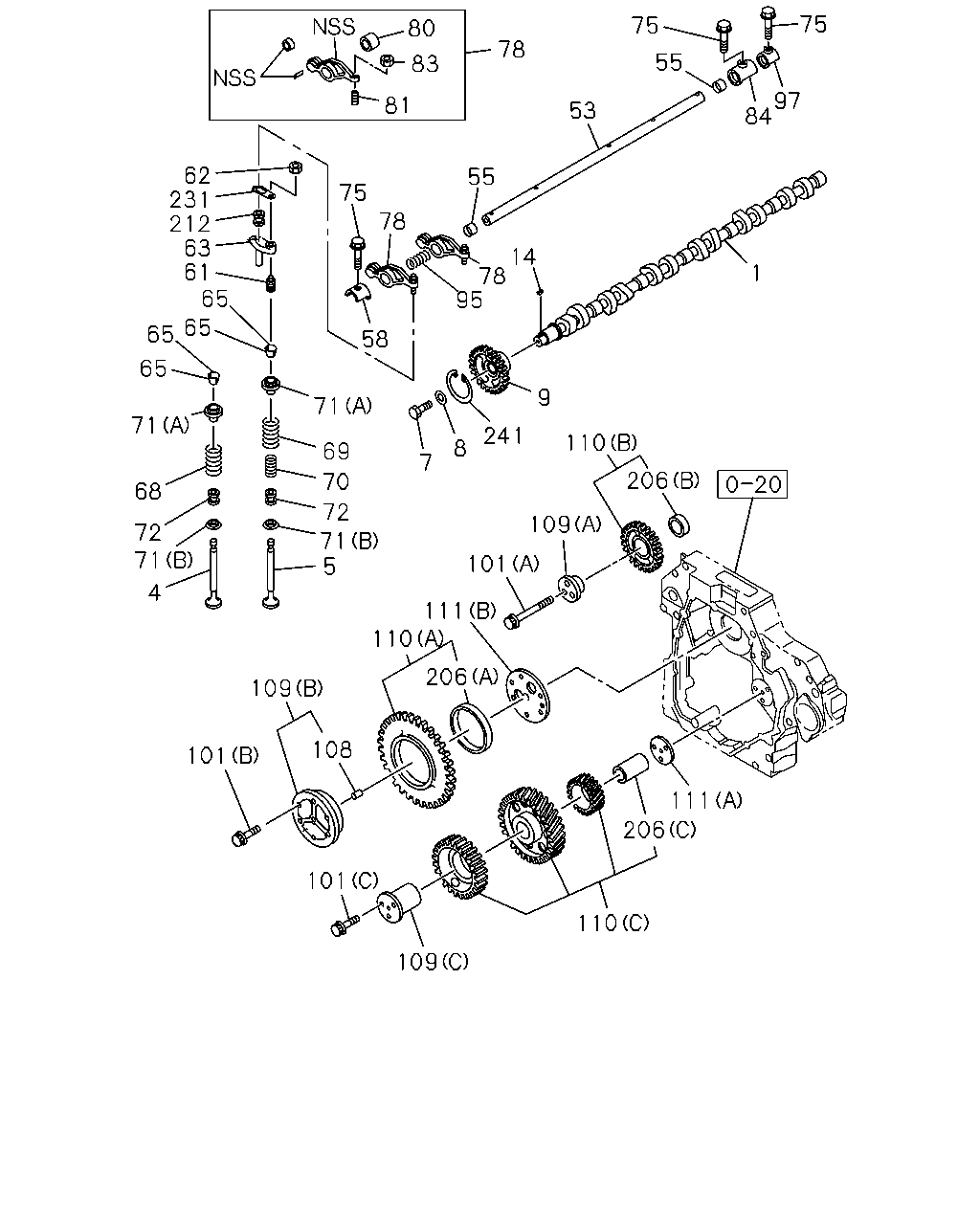

0-14 — CAMSHAFT AND VALVE
(#10812) — 54 parça
75
75
80
78
55
83
97
84
81
53
62
231
212
63
61
65
55
75
78
14
78
95
1
65
65
58
65
9
71
71
241
110
8
69
7
206
70
68
72
109
72
71
71
5
101
4
111
110
206
109
108
101
111
206
101
110
109
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAMSHAFT
1-12511-255-2
01
1
0105-
4
VALVE; INL
1-12551-151-3
12
1
0105-
5
VALVE; EXH
1-12552-109-1
12
1
0105-
7
BOLT; CM/SHF GEAR
M14X28
9-92061-428-0
01
1
0105-
8
WASHER; CM/SHF GEAR
ID=14.5
9-09851-850-3
01
1
0105-
9
GEAR; CM/SHF
Z=54
1-12522-055-2
01
1
0105-0202
9
GEAR; CM/SHF
Z=54
1-12522-060-0
01
1
0203-
14
KEY; CM/SHF
9-08055-516-0
01
1
0105-
53
SHAFT; ROCKER ARM
1-12621-090-0
01
1
0105-0107
53
SHAFT; ROCKER ARM
1-12621-092-0
01
1
0108-
55
PLUG; ROCKER SHAFT END
OD=18
9-11129-082-0
02
1
0105-
58
BRACKET; ROCKER SHAFT,FRT
1-12628-070-3
01
1
0105-
61
SCREW; ADJ,BRIDGE
1-12616-042-0
12
1
0105-
62
NUT; ADJ SCREW LK BRIDGE
M10
9-09840-310-0
12
1
0105-
63
BRIDGE
1-12611-277-3
12
1
0105-
65
COLLAR; SPLIT
1-12565-007-0
48
1
0105-
68
SPRING; VLV
1-12561-092-0
12
1
0105-0505
68
SPRING; VLV
8-97603-305-0
12
1
0506-
69
SPRING; VLV,OUTER
1-12561-093-0
12
1
0105-
70
SPRING; VLV,INNER
1-12562-060-0
12
1
0105-
71
SEAT; SPR
(A) UPPER
1-12563-055-0
24
1
0105-0109
71
SEAT; SPR
(A) UPPER
1-12563-060-0
24
1
0110-
71
SEAT; SPR
(B) LOWER
1-12563-056-2
24
1
0105-
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-12569-020-0
24
1
0105-
75
BOLT; BRKT
M12X97 FLANGE
1-09044-087-1
07
1
0105-
78
ARM; ROCKER
1-12610-061-1
12
1
0105-0107
78
ARM; ROCKER
1-12610-079-2
12
1
0108-0201
78
ARM; ROCKER
1-12610-080-0
12
1
0202-
80
BUSHING; ROCKER ARM
1-09330-129-0
12
1
0108-0201
81
SCREW; ADJ,ROCKER ARM
1-12616-034-1
12
1
0105-
83
NUT; ADJ SCREW,LK
M12
9-99110-512-0
12
1
0105-
84
BRACKET; ROCKER SHAFT,INTER
1-12628-068-2
05
1
0105-
95
SPRING; ROCKER SHAFT
1-09580-472-1
06
1
0105-
97
BRACKET; ROCKER SHAFT,RR
1-12628-072-3
01
1
0105-
101
BOLT; THRUST COLLAR
(A) M10X40 FLANGE
0-28181-040-0
03
1
0105-
101
BOLT; THRUST COLLAR
(B) M10X60 FLANGE
0-28181-060-0
06
1
0105-
101
BOLT; THRUST COLLAR
(C) M12X114
1-09070-087-2
03
1
0105-
108
DOWEL; SHAFT
OD=12 L=32
9-08161-232-0
01
1
0105-
109
SHAFT; IDLE GEAR
(B)
1-12531-076-2
01
1
0105-
109
SHAFT; IDLE GEAR
(C)
1-12531-092-1
01
1
0105-
109
SHAFT; IDLE GEAR
(A)
1-12531-093-1
01
1
0105-
110
GEAR ASM; IDLE
(B)
1-12523-215-3
01
1
0105-0202
110
GEAR ASM; IDLE
(B)
1-12523-371-1
01
1
0203-
110
GEAR ASM; IDLE
(C)
1-12523-231-6
01
1
0105-
110
GEAR ASM; IDLE
(A)
1-12523-313-0
01
1
0105-0202
110
GEAR ASM; IDLE
(A)
1-12523-369-1
01
1
0203-
111
COLLAR; THRUST,IDLE GEAR
(A)
1-12535-008-1
01
1
0105-
111
COLLAR; THRUST,IDLE GEAR
(B)
1-12535-019-0
01
1
0105-
206
BUSHING; IDLE GEAR
(B) AFTER PRESS FITTING, MACHINE IT.
1-09330-108-0
01
1
0105-
206
BUSHING; IDLE GEAR
(C) AFTER PRESS FITTING, MACHINE IT.
1-09330-113-0
01
1
0105-
206
BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT.
1-09330-124-1
01
1
0105-
212
CAP; ADJ SCREW
1-12616-040-0
12
1
0105-
231
PLATE; CAP
1-12619-011-2
12
1
0105-
241
RING; FRICTION
1-12529-003-0
01
1
0105-0205
