◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 9 - Tools ▶ 9-01 - TOOLS ▶

9-01 — TOOLS (#10806) — 150 parça

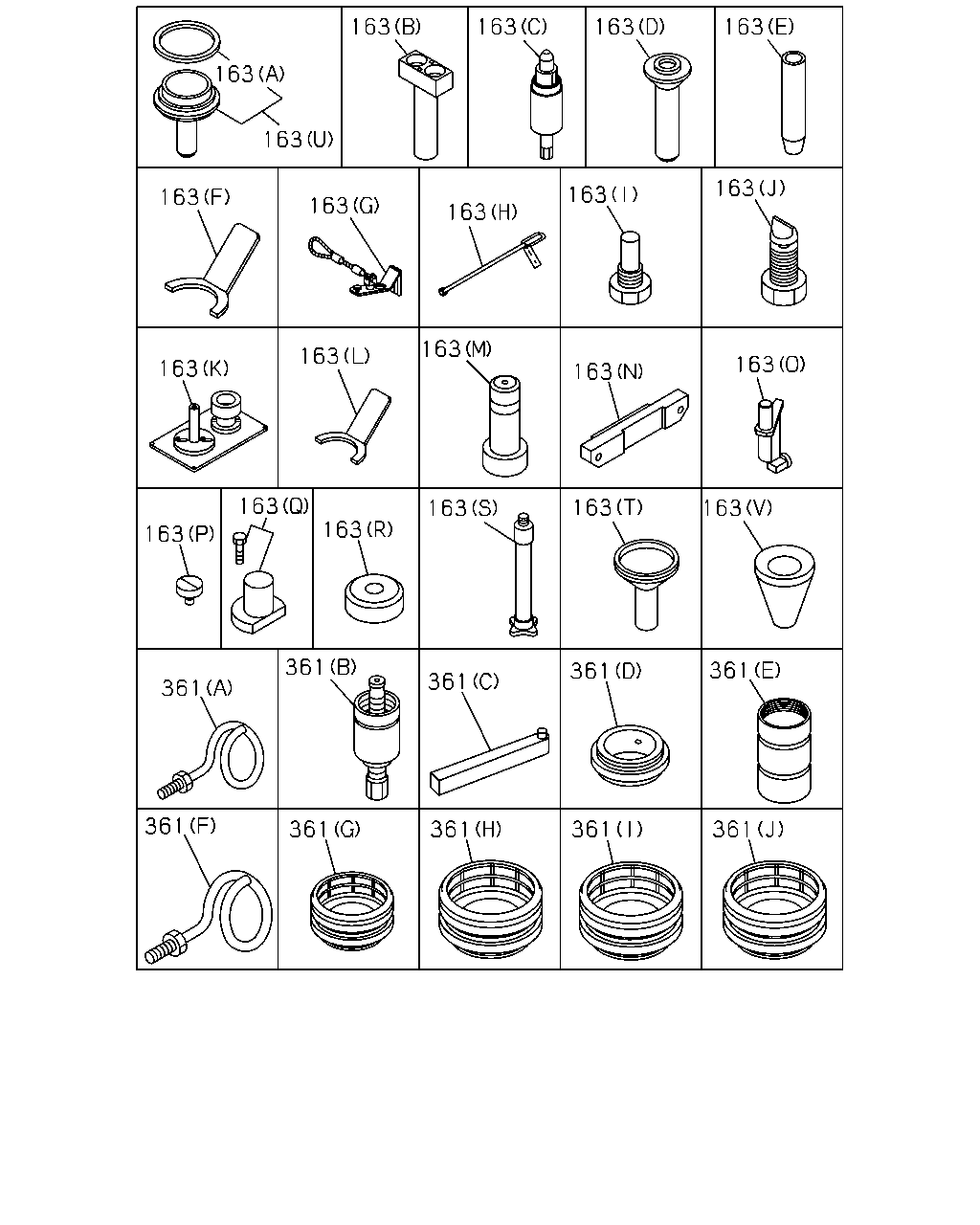

163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 361 361 361 361 361 361 361 361 361 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (P)	1-85221-242-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U) (P)	1-85221-249-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-85221-193-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-85221-194-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-85221-229-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-85221-230-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85221-231-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F) TOP GEAR SHAFT	1-85221-232-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-85221-233-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (H)	1-85221-234-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (I)	1-85221-235-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (J)	1-85221-236-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (K)	1-85221-237-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (L) MAIN SHAFT	1-85221-238-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (M)	1-85221-239-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (N)	1-85221-240-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (O)	1-85221-241-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (Q)	1-85221-243-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (R)	1-85221-244-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (S)	1-85221-245-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (T)	1-85221-246-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (U)	1-85221-247-0	01	1	0106-
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (V)	1-85221-248-0	01	1	0106-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (I) COUNTER BRG FRT	1-85219-023-0	01	1	0106-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (I) COUNTER BRG FRT	1-85219-023-0	01	1	0106-
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U) (I) COUNTER BRG FRT	1-85219-025-0	01	1	0106-
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M10	1-85210-091-0	01	1	0106-
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-85219-015-0	01	1	0106-
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-85219-017-0	01	1	0106-
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) TOP BRG	1-85219-018-0	01	1	0106-
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85219-019-0	01	1	0106-
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F) M12	1-85219-020-0	01	1	0106-
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (G) COUNTER BRG RR	1-85219-021-0	01	1	0106-
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (H) TOP BRG	1-85219-022-0	01	1	0106-
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (J) TOP BRG MAIN SHAFT SIDE	1-85219-024-0	01	1	0106-

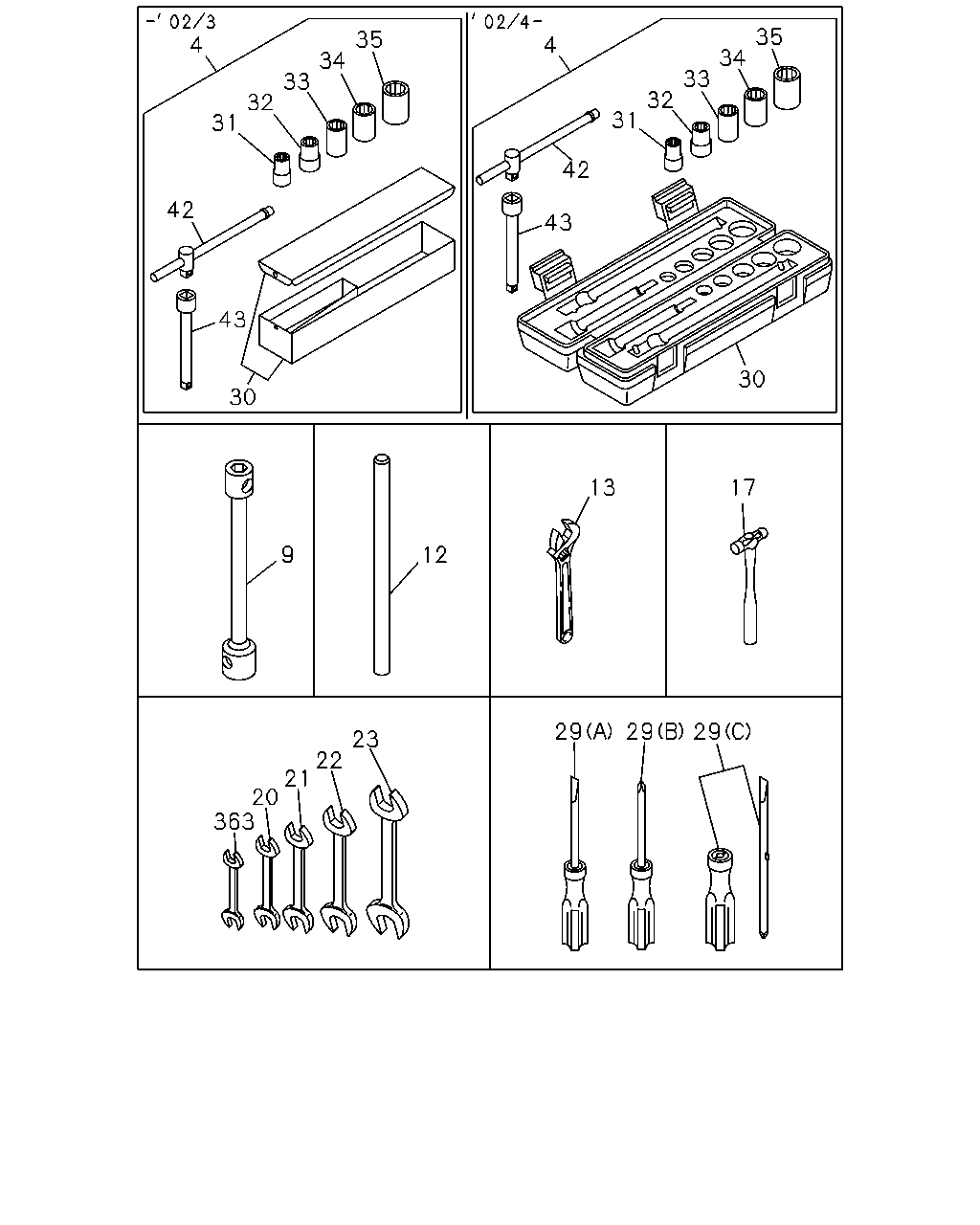

4 35 34 33 32 35 34 33 32 4 31 31 42 42 43 43 30 30 13 17 9 12 29 23 22 21 20 363 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	9-85110-012-0	01	1	0106-0203
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	1-85000-491-0	01	1	0204-
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	0106-
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	0106-
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0106-
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0106-
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0106-
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0106-
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0106-
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0106-
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	0106-
29	DRIVER; SCREW TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	0106-
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	0106-
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	9-85581-260-0	01	1	0106-0203
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	1-85000-492-0	01	1	0204-
31	WRENCH; 12 TOOL B KIT<SL1>	9-09590-012-0	01	1	0106-0203
31	WRENCH; 12 TOOL B KIT<SL1>	1-85000-495-0	01	1	0204-
32	WRENCH; 14 TOOL B KIT<SL1>	9-09590-014-0	01	1	0106-0203
32	WRENCH; 14 TOOL B KIT<SL1>	1-85000-496-0	01	1	0204-
33	WRENCH; 17 TOOL B KIT<SL1>	9-09590-017-0	01	1	0106-0203
33	WRENCH; 17 TOOL B KIT<SL1>	1-85000-497-0	01	1	0204-
34	WRENCH; 19 TOOL B KIT<SL1>	9-09590-019-0	01	1	0106-0203
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	0204-
35	WRENCH; 22 TOOL B KIT<SL1>	9-09590-022-0	01	1	0106-0203
35	WRENCH; 22 TOOL B KIT<SL1>	1-85000-499-0	01	1	0204-
42	HANDLE; SLIDING TOOL B KIT<SL1>	9-09590-512-0	01	1	0106-0203
42	HANDLE; SLIDING TOOL B KIT<SL1>	1-85000-500-0	01	1	0204-
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1>	9-09590-812-0	01	1	0106-0203
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1>	1-85000-501-0	01	1	0204-
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	9-99592-108-0	01	1	0106-

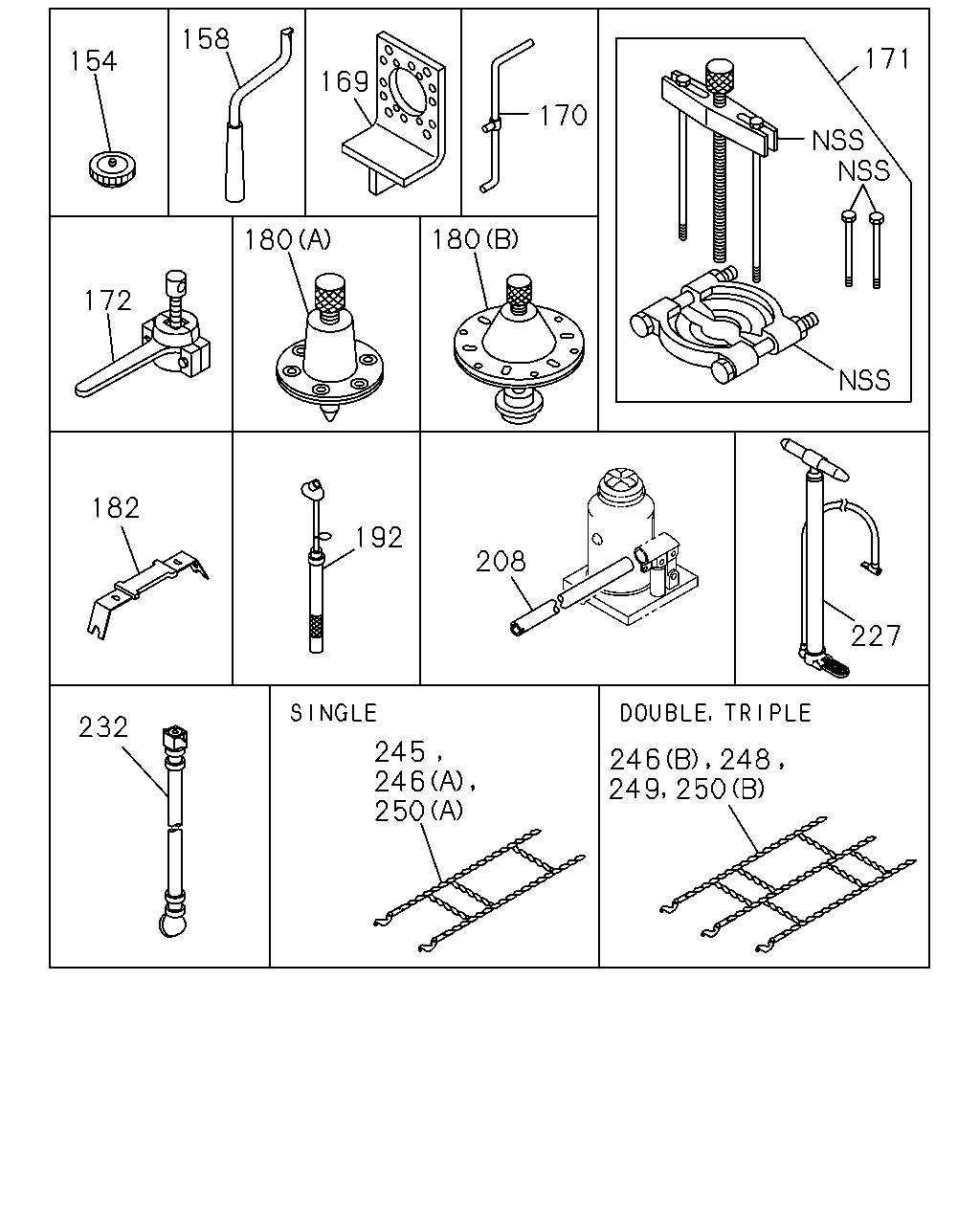

158 169 171 154 170 180 180 172 182 192 208 227 232 245 246 250 246 248 249 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0106-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0106-
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	0106-
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	0106-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0106-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	0106-
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	0106-
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	0106-
182	REMOVER ASM	1-85239-008-0	01	1	0106-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0106-
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-002-0	01	1	0106-
208	HANDLE; JACK TOOL B KIT<SL1> L=600	1-85515-009-0	01	1	0106-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0106-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	0106-
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	01	1	0106-
246	CHAIN; TIRE,1000-20,SINGLE (A) 10.00-20 SINGLE TYPE	9-85591-239-0	01	1	0106-
246	CHAIN; TIRE,1000-20,SINGLE (B) 11.00-20 SINGLE TYPE	9-85591-259-0	01	1	0106-
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	01	1	0106-
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	01	1	0106-
250	CHAIN; TIRE,1000-20,TRIPLE (A) 10.00-20 TRIPLE TYPE	9-85591-241-0	01	1	0106-
250	CHAIN; TIRE,1000-20,TRIPLE (B) 11.00-20 TRIPLE TYPE	9-85591-261-0	01	1	0106-

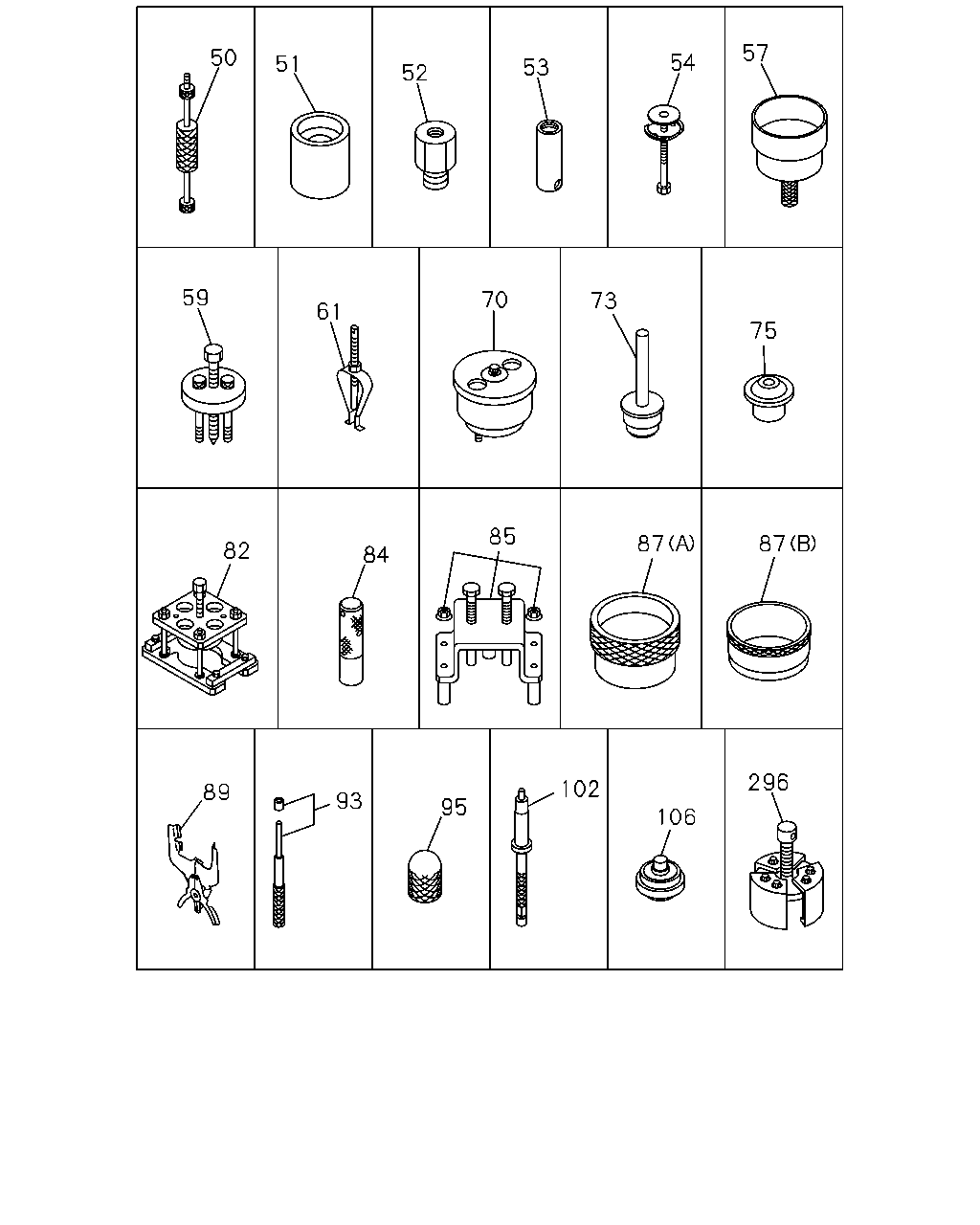

57 50 54 51 53 52 59 70 73 61 75 85 87 87 82 84 296 102 89 93 95 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	REPLACER; NOZZLE HOLDER L=300	1-85230-013-0	01	1	0106-
51	PULLER ASM; WATER PUMP	1-85220-047-0	01	1	0106-
52	REMOVER; WATER PUMP	1-85210-062-0	01	1	0106-
53	PULLER; TAPER BUSHING	1-85210-063-0	01	1	0106-
54	PULLER; THERMOSTAT SEAL	1-85210-067-0	01	1	0106-
57	TOOL; SETTING CRANK GEAR OD=162	1-85220-045-0	01	1	0106-
59	PULLER ASM; TIMING GEAR 6WA1 TC-C(55L)	1-85210-065-0	01	1	0106-
61	PULLER ASM; PILOT BRG	9-85210-157-0	01	1	0106-
70	TOOL; SETTING,OIL SEAL	1-85220-043-0	01	1	0106-
73	TOOL; SETTING,THERMOSTAT SEAL	1-85221-034-0	01	1	0106-
75	TOOL; SETTING,OIL SEAL	1-85220-049-0	01	1	0106-
82	PULLER ASM; CR/SHF GEAR	1-85210-064-0	01	1	0106-
84	REPLACER; VALVE SEAL EXHAUST	1-85221-184-0	01	1	0106-
84	REPLACER; VALVE SEAL INLET	1-85221-187-0	01	1	0106-
85	REPLACER ASM; VALVE SPR	1-85235-013-0	01	1	0106-
87	TOOL; PISTON 6WA1 TC-C(55L) (A)	1-85220-046-0	01	1	0106-
87	TOOL; PISTON 6WF1 TC-C(1B8),6WG1 TC-N(71L),6WG1 TC-C(72L) (B)	1-85220-059-0	01	1	0106-0112
87	TOOL; PISTON 6WF1 TC-C(1B8),6WG1 TC-N(71L) (B)	1-85220-059-0	01	1	0201-
89	TOOL; PISTON RING 6WA1 TC-C(55L)	1-85221-029-0	01	1	0106-
89	TOOL; PISTON RING 6WF1 TC-C(1B8),6WG1 TC-N(71L),6WG1 TC-C(72L)	1-85221-025-0	01	1	0106-0112
89	TOOL; PISTON RING 6WF1 TC-C(1B8),6WG1 TC-N(71L)	1-85221-025-0	01	1	0201-
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	0106-
95	SETTING TOOL; BRIDGE GUIDE	9-85221-324-0	01	1	0106-
102	ADAPTER; COMP GAGE	1-85317-019-0	01	1	0106-
106	TOOL; SETTING PILOT BRG	1-85221-057-0	01	1	0106-
296	REPLACER; SLINGER	1-85210-027-0	01	1	0106-

166 167

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	166	ALIGNER; CLU RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=57.5	1-85253-015-0	01	1	0106-
	167	ALIGNER; CLU PILOT L=300 OD=41.1	1-85253-020-0	01	1	0106-

40 39 38 37 115 36 189 193 237 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	WRENCH; 24	9-85111-377-0	01	1	0106-
37	WRENCH; 27	9-85111-375-0	01	1	0106-
38	WRENCH; 32	9-85111-358-0	01	1	0106-
39	WRENCH; 36	9-85111-374-0	01	1	0106-
40	WRENCH; 41	9-85111-356-0	01	1	0106-
115	PLIER TOOL B KIT<SL1>	5-85171-001-0	01	1	0106-0212
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0301-
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	0106-
193	JACK ASM TOOL B KIT<SL1> 15TON	1-85510-019-1	01	1	0106-
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-3	01	1	0106-
237	BAG; TOOL TOOL B KIT<SL1>	8-97130-902-0	01	1	0106-

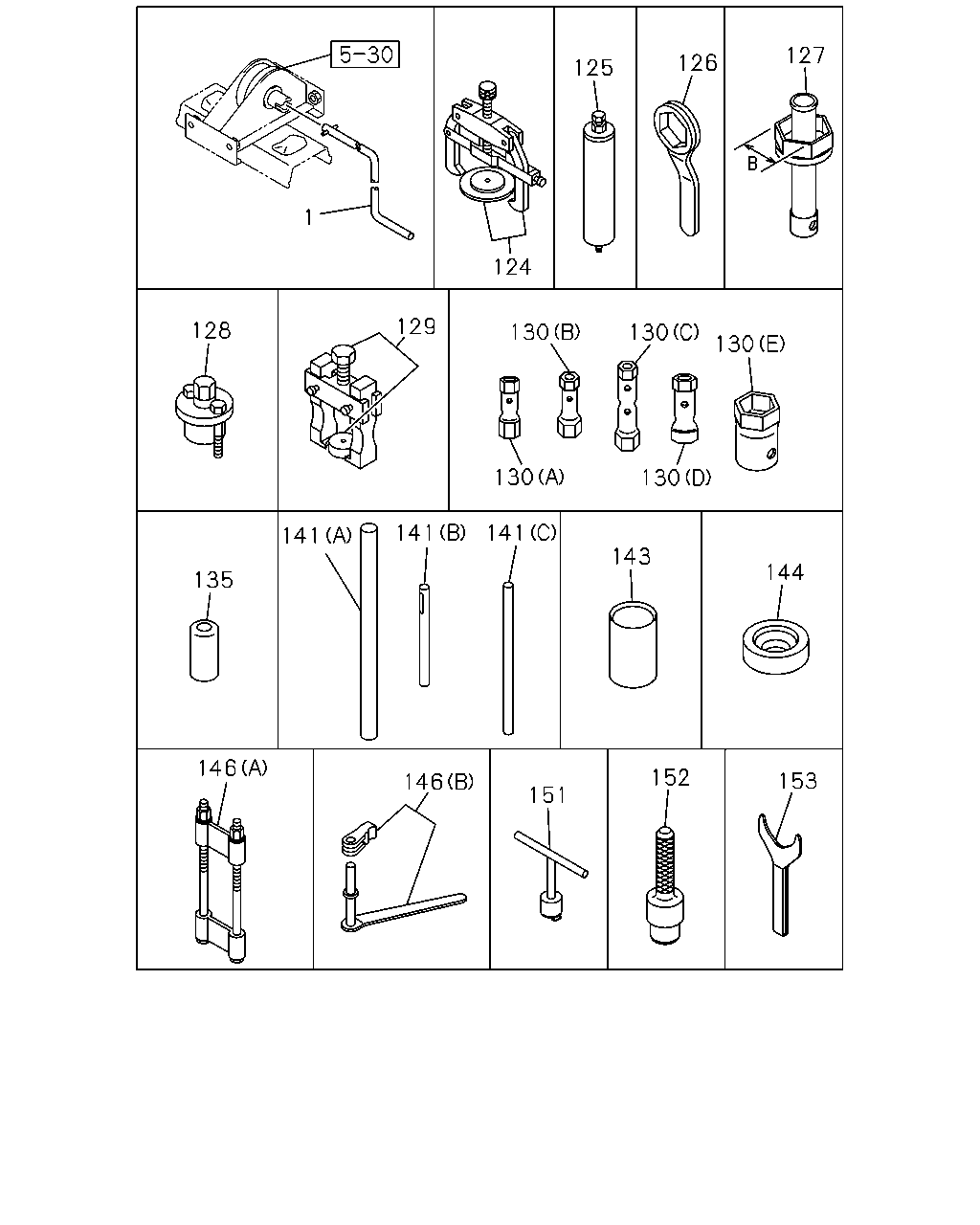

127 126 125 1 124 129 128 130 130 130 130 130 141 141 141 143 144 135 146 152 153 146 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	0106-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	0106-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0106-
126	WRENCH; FRT HUB BRG NUT L=257 B=63	9-85111-373-0	01	1	0106-
127	WRENCH ASM; HUB BRG NUT REARWARD REAR L=400 B=105	9-85113-509-0	01	1	0106-
127	WRENCH ASM; HUB BRG NUT FORWARD REAR	9-85113-524-0	01	1	0106-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	0106-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0106-
130	WRENCH; BOX (E) B=63	9-85111-368-0	01	1	0106-
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	0106-
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	0106-
130	WRENCH; BOX (C) B=36 & 41 L=200	9-85112-330-0	01	1	0106-
130	WRENCH; BOX (B) B=41 & 46 L=165	9-85113-401-0	01	1	0106-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	0106-
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	0106-
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	0106-
141	HANDLE; WRENCH (C) OD=19 L=400	9-85114-306-0	01	1	0106-
141	HANDLE; WRENCH (C) OD=16 L=300	9-85114-307-0	01	1	0106-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	0106-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	0106-
146	REPLACER KIT; LEAF SPR (B)	1-85237-017-0	01	1	0106-
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	0106-
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	0106-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	0106-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0106-
