2-85 — POWER TAKE OFF CONTROL (#1080) — 18 parça

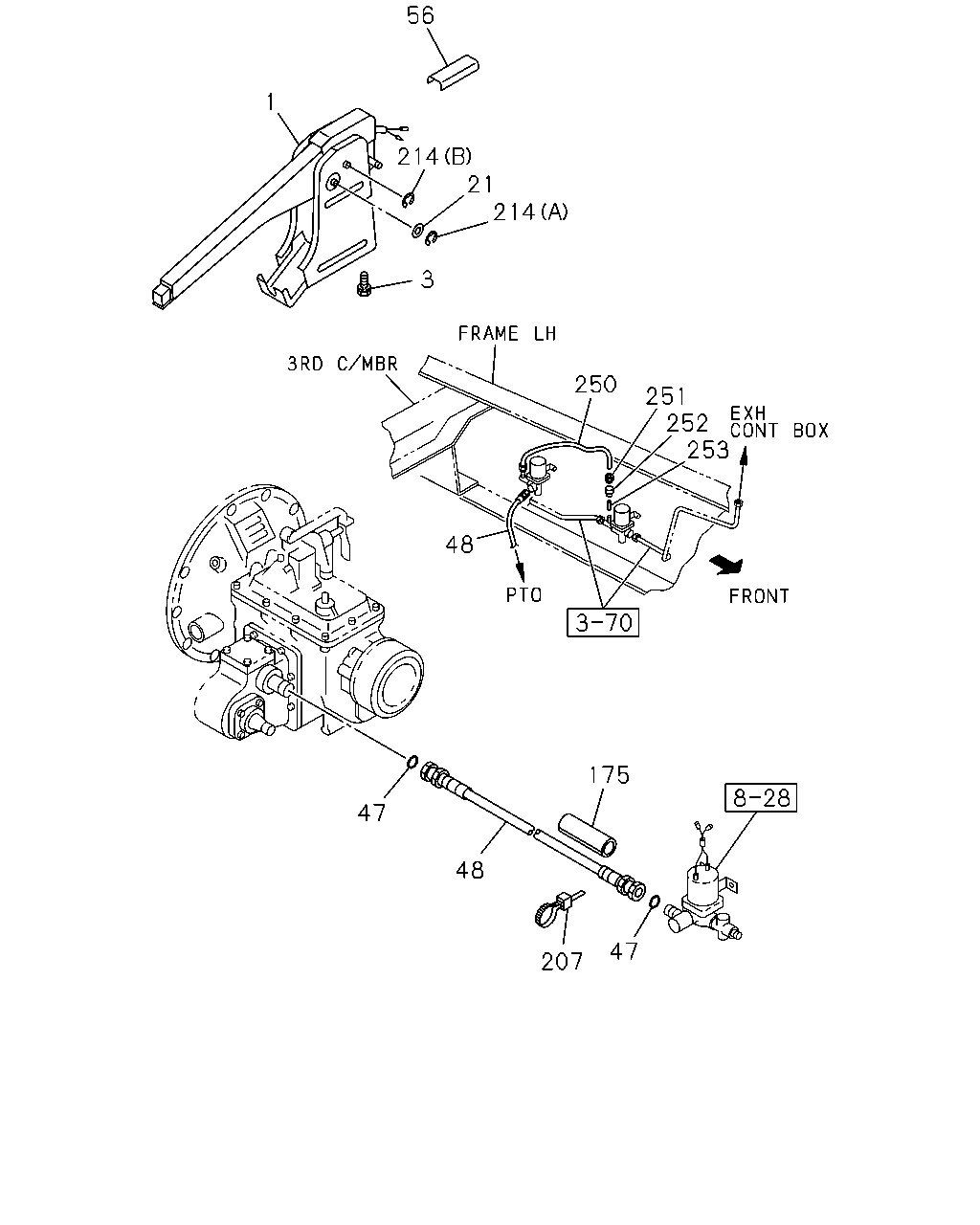

çizim 92755
56 1 214 21 214 3 250 251 252 253 48 175 47 48 47 207
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> 		1-38300-100-6 01 1 9202- ● ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M6X16 W/LK&PL WASHER 		9-01960-616-0 04 1 9202-9204 ● ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9205- ● ● ●
21 WASHER; PL,CONT LEVER
DUMP CONTROL LEVER<RC4> ID=8.4 		9-09160-508-0 01 1 9202- ● ● ●
47 GASKET; FLEX HOSE
PTO CONTROL<SV6> ID=11 OD=18 		9-09572-510-0 02 1 9202- ● ● ●
48 HOSE; FLEX,PTO
6HE1 STD ENG(46L) PTO CONTROL<SV6> L=390 		0-07150-390-0 01 1 9202- ● ●
48 HOSE; FLEX,PTO
6SA1 STD ENG(06L) PTO CONTROL<SV6> L=360 		0-07150-360-0 01 1 9202- ● ●
56 PATCH; DUMP CONT BRKT
DUMP CONTROL LEVER<RC4> 		1-79998-219-0 01 1 9202- ● ● ●
175 SLEEVE; RUBBER,AIR PIPE
6HE1 STD ENG(46L) PTO CONTROL<SV6> EXC. NEW ZEALAND EQUIPMENT(PK5) ID=29 OD=39 L=40 		1-09337-013-0 01 1 9202- ● ●
207 CLIP; BAND
6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> L=250 		1-09707-126-0 01 1 9202- ● ●
207 CLIP; BAND
6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) PTO CONTROL<SV6> NEW ZEALAND EQUIPMENT(PK5) L=250 		1-09707-126-0 01 1 9202- ● ●
207 CLIP; BAND
6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) PTO CONTROL<SV6> EXC. NEW ZEALAND EQUIPMENT(PK5) L=250 		1-09707-126-0 02 1 9202- ● ●
214 RING; SNAP,LK BOLT
DUMP CONTROL LEVER<RC4> (A) ID=6 		9-09185-406-0 01 1 9202- ● ● ●
214 RING; SNAP,LK BOLT
DUMP CONTROL LEVER<RC4> (B) ID=8 		9-09185-408-0 01 1 9202- ● ● ●
250 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=30000 OD=3/8" 		1-09368-250-0 AR 1 9202- ● ● ●
251 NUT; SLEEVE
PTO CONTROL<SV6> OD=3/8" 		1-09660-557-0 AR 1 9202- ● ● ●
252 SLEEVE; TUBE
PTO CONTROL<SV6> ID=9.75 OD=12.17 L=9.91 		1-09666-060-0 AR 1 9202- ● ● ●
253 RING; INSERT
PTO CONTROL<SV6> OD=3/8" 		1-09669-108-0 AR 1 9202- ● ● ●
