Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#108) — 375 parça

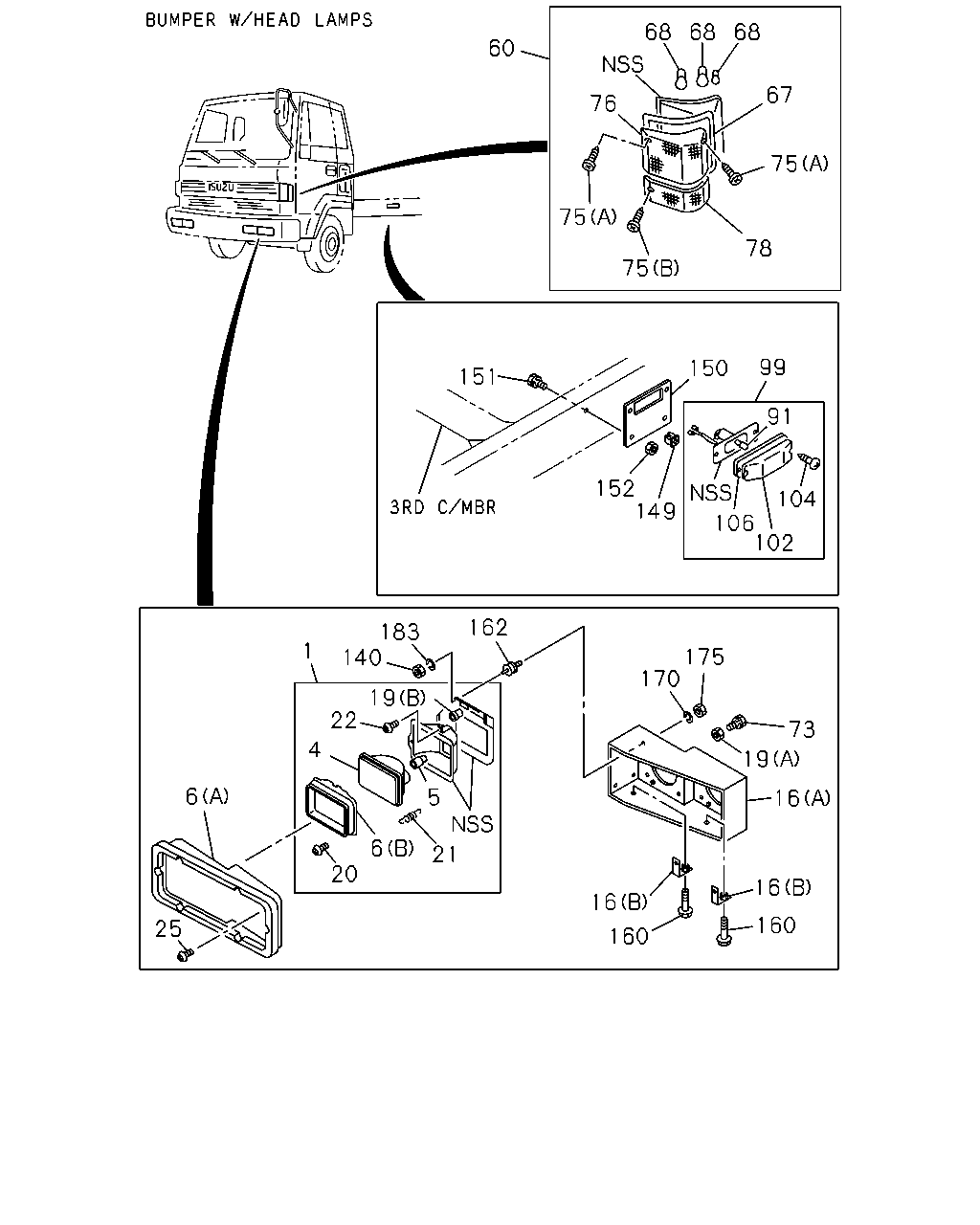

68 68 68 60 67 76 75 75 78 75 99 150 151 91 152 149 104 106 102 162 183 140 1 175 170 19 22 73 4 19 6 5 16 6 21 20 16 16 160 25 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82110-292-5	01	1	9308-	●
1	LAMP ASM; HEAD HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82110-291-5	01	1	9308-	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5>	1-82110-218-4	01	1	9202-	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5>	1-82110-217-4	01	1	9202-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB> INNER TYPE 1 24V 70W	1-82110-257-1	01	1	9202-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB> OUTER TYPE 2 24V 75/70W	1-82110-260-1	01	1	9202-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB> INNER TYPE 1 24V 70W	1-82110-256-1	01	1	9202-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB> OUTER TYPE 2 24V 75/70W	1-82110-258-1	01	1	9202-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> BULB TYPE	1-82110-239-3	01	1	9202-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> BULB TYPE	1-82110-238-3	01	1	9202-	●	●
4	HEADLAMP UNIT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82119-073-0	01	1	9308-	●
4	HEADLAMP UNIT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82119-072-0	01	1	9308-	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> TYPE 2 24V 75/70W	1-82191-031-0	02	1	9202-9307	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> TYPE 2 24V 75/70W	1-82191-031-0	02	1	9308-9404	●	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> TYPE 2 24V 75/70W	1-82191-031-0	02	1	9308-9404	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> TYPE 2 24V 75/70W	1-82191-031-0	02	1	9405-	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> TYPE 2 24V 75/70W	1-82191-031-0	02	1	9405-	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> TYPE 2 24V 75/70W	1-82191-031-0	02	1	9405-		●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> TYPE 1 24V 70W	1-82191-032-0	02	1	9202-9307	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> TYPE 1 24V 70W	1-82191-032-0	02	1	9308-9404	●	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> TYPE 1 24V 70W	1-82191-032-0	02	1	9308-9404	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> TYPE 1 24V 70W	1-82191-032-0	02	1	9405-	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> TYPE 1 24V 70W	1-82191-032-0	02	1	9405-	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> TYPE 1 24V 70W	1-82191-032-0	02	1	9405-		●
5	BULB; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 24V 75/70W	1-82194-063-0	02	1	9308-	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> 24V 75/70W	1-82193-006-0	02	1	9202-9307	●	●
5	BULB; HEADLAMP BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> 24V 75/70W	1-82193-006-0	02	1	9308-9404	●	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82193-006-0	02	1	9308-9404	●	●
5	BULB; HEADLAMP BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> 24V 75/70W	1-82193-006-0	02	1	9405-	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> 24V 75/70W	1-82193-006-0	02	1	9405-	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> 24V 75/70W	1-82193-006-0	02	1	9405-		●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> 24V 70W	1-82193-007-0	02	1	9202-9307	●	●
5	BULB; HEADLAMP BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> 24V 70W	1-82193-007-0	02	1	9308-9404	●	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 70W	1-82193-007-0	02	1	9308-9404	●	●
5	BULB; HEADLAMP BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> 24V 70W	1-82193-007-0	02	1	9405-	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> 24V 70W	1-82193-007-0	02	1	9405-	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> 24V 70W	1-82193-007-0	02	1	9405-		●
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-079-0	01	1	9202-	●	●
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-078-0	01	1	9202-	●	●
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82114-027-0	04	1	9202-	●	●
6	RIM; HEADLAMP HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB> (B) INNER 24V 70W	1-82114-018-0	02	1	9202-	●	●
6	RIM; HEADLAMP HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB> (B) OUTER 24V 75/70W	1-82114-019-0	02	1	9202-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-077-2	04	1	9202-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-073-2	01	1	9202-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-074-2	01	1	9202-	●	●
19	NUT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	9-09110-510-0	02	1	9202-	●	●
19	NUT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> D=7X7 L=7.5	8-94291-927-0	08	1	9202-9307	●	●
19	NUT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> D=7X7 L=7.5	8-94291-927-0	08	1	9308-	●	●
19	NUT; HEADLAMP HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB> (B)	1-82119-056-0	08	1	9202-	●	●
20	SCREW; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-82119-023-0	16	1	9202-9307	●	●
20	SCREW; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82119-023-0	16	1	9308-	●	●
20	SCREW; HEADLAMP HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB>	1-82119-090-0	16	1	9202-9205	●	●
20	SCREW; HEADLAMP HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB>	1-82119-104-0	16	1	9206-	●	●
21	SPRING; ADJ HEADLAMP	1-82119-021-0	04	1	9202-9307	●	●
21	SPRING; ADJ HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-021-0	04	1	9308-	●	●
22	SCREW; ADJ,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-82119-024-0	08	1	9202-9205	●	●
22	SCREW; ADJ,HEADLAMP HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB>	1-82119-030-0	08	1	9202-9205	●	●
22	SCREW; ADJ,HEADLAMP	1-82119-095-0	08	1	9206-9307	●	●
22	SCREW; ADJ,HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-095-0	08	1	9308-	●	●
25	SCREW; LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20	8-97030-365-0	08	1	9308-	●
25	SCREW; LAMP BUMPER W/HEADLAMPS<SLB> M6X12	1-09981-315-0	08	1	9202-	●	●
25	SCREW; LAMP EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER	1-09981-430-0	08	1	9202-9309	●	●
25	SCREW; LAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> M6X12 W/LK&PL WASHER	1-09981-430-0	08	1	9308-	●
25	SCREW; LAMP EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER	1-09981-430-0	08	1	9308-		●
60	LAMP ASM; FRT COMB HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82210-172-3	01	1	9308-	●
60	LAMP ASM; FRT COMB HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82210-173-3	01	1	9308-	●
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB>	1-82210-159-0	01	1	9202-	●	●
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB>	1-82210-158-0	01	1	9202-	●	●
60	LAMP ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82210-141-1	01	1	9202-9307	●	●
60	LAMP ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82210-141-1	01	1	9308-	●
60	LAMP ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82210-141-1	01	1	9308-		●
60	LAMP ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82210-140-1	01	1	9202-9307	●	●
60	LAMP ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82210-140-1	01	1	9308-	●
60	LAMP ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82210-140-1	01	1	9308-		●
67	GASKET; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82216-027-0	01	1	9308-	●
67	GASKET; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82216-028-0	01	1	9308-	●
67	GASKET; FRT COMB LAMP	1-82216-015-0	01	1	9202-9307	●	●
67	GASKET; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82216-015-0	01	1	9308-	●
67	GASKET; FRT COMB LAMP	1-82216-015-0	01	1	9308-		●
67	GASKET; FRT COMB LAMP	1-82216-014-0	01	1	9202-9307	●	●
67	GASKET; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82216-014-0	01	1	9308-	●
67	GASKET; FRT COMB LAMP	1-82216-014-0	01	1	9308-		●
68	BULB; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 25W	1-82194-029-0	02	1	9308-	●
68	BULB; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 12W	1-82194-030-0	02	1	9308-	●
68	BULB; FRT COMB LAMP 24V 21W	1-82194-036-0	04	1	9202-9307	●	●
68	BULB; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 21W	1-82194-036-0	04	1	9308-	●
68	BULB; FRT COMB LAMP 24V 21W	1-82194-036-0	04	1	9308-		●
68	BULB; FRT COMB LAMP 24V 5W	1-82194-039-0	02	1	9202-9307	●	●
68	BULB; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 5W	1-82194-039-0	02	1	9308-	●
68	BULB; FRT COMB LAMP 24V 5W	1-82194-039-0	02	1	9308-		●
73	BOLT; BRKT,HEADLAMP BUMPER W/HEADLAMPS<SLB> M10X25 W/LK WASHER	9-01901-025-0	08	1	9202-9204	●	●
73	BOLT; BRKT,HEADLAMP BUMPER W/HEADLAMPS<SLB> M10X25 W/LK WASHER	0-50041-025-0	08	1	9205-	●	●
75	SCREW; FRT COMB LAMP (B)	1-82219-001-0	08	1	9202-	●	●
75	SCREW; FRT COMB LAMP (A)	1-82219-002-0	04	1	9202-9307	●	●
75	SCREW; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	1-82219-002-0	04	1	9308-	●
75	SCREW; FRT COMB LAMP (A)	1-82219-002-0	04	1	9308-		●
76	LENS; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82215-057-0	01	1	9308-	●
76	LENS; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82215-058-0	01	1	9308-	●
76	LENS; FRT COMB LAMP	1-82215-037-0	01	1	9202-9307	●	●
76	LENS; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82215-037-0	01	1	9308-	●
76	LENS; FRT COMB LAMP	1-82215-037-0	01	1	9308-		●
76	LENS; FRT COMB LAMP	1-82215-038-0	01	1	9202-9307	●	●
76	LENS; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82215-038-0	01	1	9308-	●
76	LENS; FRT COMB LAMP	1-82215-038-0	01	1	9308-		●
78	LENS ASM; FRT COMB BUMPER W/HEADLAMPS<SLB>	1-82215-051-0	01	1	9202-	●	●
78	LENS ASM; FRT COMB BUMPER W/HEADLAMPS<SLB>	1-82215-050-0	01	1	9202-	●	●
78	LENS ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82215-034-0	01	1	9202-9307	●	●
78	LENS ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82215-034-0	01	1	9308-	●
78	LENS ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82215-034-0	01	1	9308-		●
78	LENS ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82215-035-0	01	1	9202-9307	●	●
78	LENS ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82215-035-0	01	1	9308-	●
78	LENS ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82215-035-0	01	1	9308-		●
91	BULB; SIDE TURN SIGNAL BUMPER W/HEADLAMPS<SLB> 24V 5W	1-82194-042-0	02	1	9202-	●	●
99	LAMP; SIDE FLASHER BUMPER W/HEADLAMPS<SLB>	1-82220-013-2	01	1	9202-	●	●
99	LAMP; SIDE FLASHER BUMPER W/HEADLAMPS<SLB>	1-82220-012-2	01	1	9202-	●	●
102	LENS; SIDE TURN SIGNAL BUMPER W/HEADLAMPS<SLB>	8-94230-837-0	02	1	9202-	●	●
104	SCREW; SIDE TURN SIGNAL BUMPER W/HEADLAMPS<SLB>	1-82229-003-0	04	1	9202-	●	●
106	GASKET; SIDE TURN SIGNAL BUMPER W/HEADLAMPS<SLB>	5-82226-009-0	01	1	9202-	●	●
106	GASKET; SIDE TURN SIGNAL BUMPER W/HEADLAMPS<SLB>	5-82226-008-0	01	1	9202-	●	●
140	NUT BUMPER W/HEADLAMPS<SLB> M5	9-99110-405-0	12	1	9202-	●	●
149	GROMMET; SCREW,SIDE FLASHER BUMPER W/HEADLAMPS<SLB> M4	5-09470-002-0	04	1	9202-	●	●
150	BRACKET; SIDE FLASHER BUMPER W/HEADLAMPS<SLB>	1-82227-003-0	02	1	9202-	●	●
151	BOLT; BRKT,SIDE FLASHER BUMPER W/HEADLAMPS<SLB> M8X25 W/LK WASHER	9-01900-825-0	04	1	9202-9202	●	●
151	BOLT; BRKT,SIDE FLASHER BUMPER W/HEADLAMPS<SLB> M8X25 W/LK WASHER	9-01900-825-0	02	1	9203-9204	●	●
151	BOLT; BRKT,SIDE FLASHER BUMPER W/HEADLAMPS<SLB> M8X25 W/LK WASHER	0-50040-825-0	06	1	9205-	●	●
152	NUT; BRKT,SIDE FLASHER BUMPER W/HEADLAMPS<SLB> M8	9-09110-408-0	04	1	9202-9202	●	●
152	NUT; BRKT,SIDE FLASHER BUMPER W/HEADLAMPS<SLB> M8	9-09110-408-0	02	1	9203-	●	●
160	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M8X16 FLANGE	0-28010-816-0	04	1	9202-9204	●	●
160	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M8X16 FLANGE	0-28080-816-0	04	1	9205-	●	●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB>	1-82117-304-0	16	1	9202-	●	●
170	WASHER; LK BUMPER W/HEADLAMPS<SLB> ID=8.2	9-09150-508-0	16	1	9202-	●	●
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8	9-09110-408-0	16	1	9202-	●	●
183	WASHER; HEADLAMP BUMPER W/HEADLAMPS<SLB> ID=5.1	9-09150-505-0	12	1	9202-	●	●

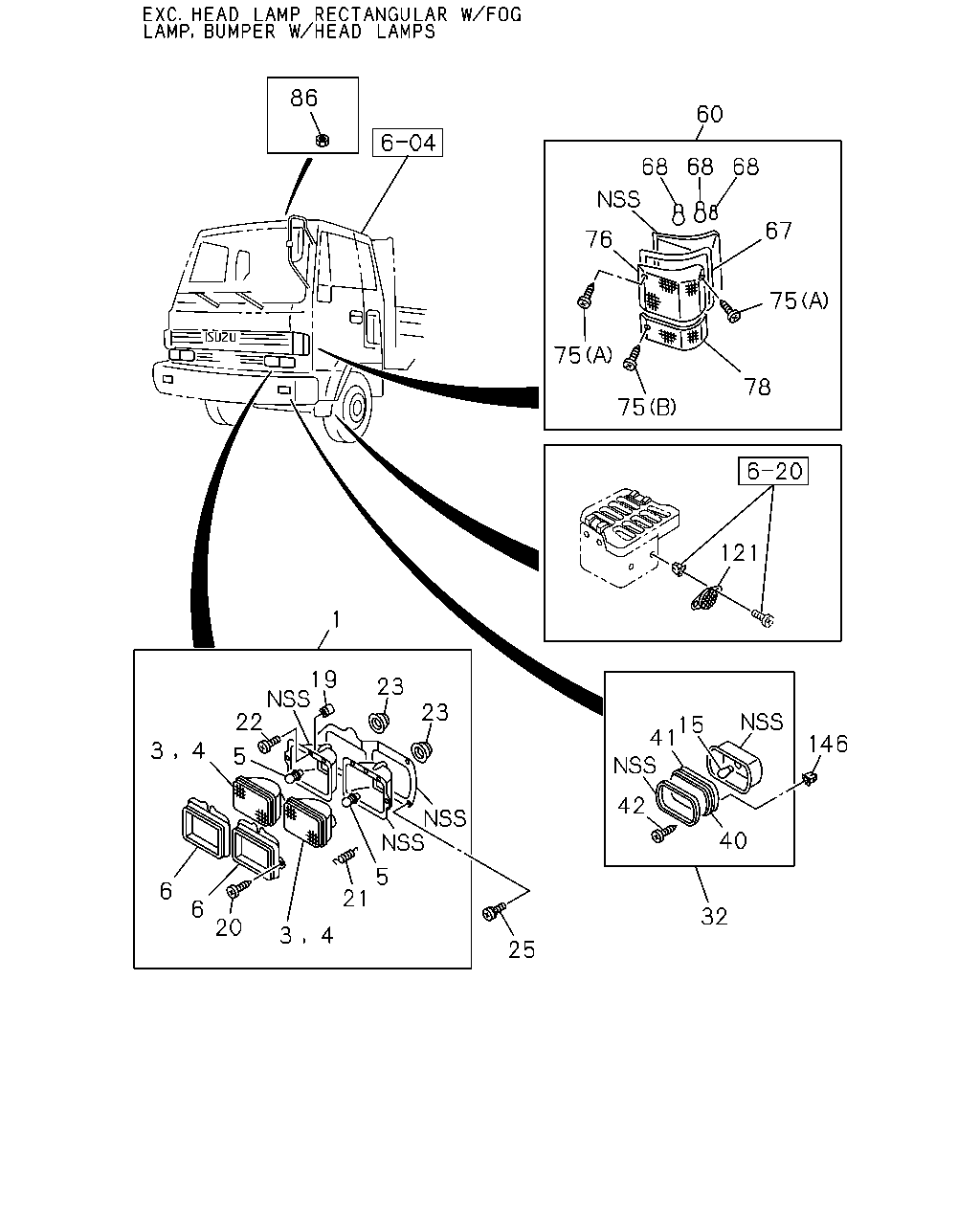

86 60 68 68 68 67 76 75 75 78 75 121 1 19 22 23 23 15 41 146 3 4 5 42 40 5 6 21 6 32 20 3 4 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82110-292-5	01	1	9308-	●
1	LAMP ASM; HEAD HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82110-291-5	01	1	9308-	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5>	1-82110-218-4	01	1	9202-	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5>	1-82110-217-4	01	1	9202-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB> INNER TYPE 1 24V 70W	1-82110-257-1	01	1	9202-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB> OUTER TYPE 2 24V 75/70W	1-82110-260-1	01	1	9202-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB> INNER TYPE 1 24V 70W	1-82110-256-1	01	1	9202-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB> OUTER TYPE 2 24V 75/70W	1-82110-258-1	01	1	9202-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> BULB TYPE	1-82110-239-3	01	1	9202-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> BULB TYPE	1-82110-238-3	01	1	9202-	●	●
3	SEALED BEAM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HALOGEN HEADLAMPS<TT5> 24V 55W	1-82191-021-0	02	1	9202-9307	●	●
3	SEALED BEAM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5> 24V 55W	1-82191-021-0	02	1	9308-	●	●
3	SEALED BEAM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HALOGEN HEADLAMPS<TT5> 24V 50/65W	1-82191-022-1	02	1	9202-9307	●	●
3	SEALED BEAM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5> 24V 50/65W	1-82191-022-1	02	1	9308-	●	●
4	HEADLAMP UNIT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82119-073-0	01	1	9308-	●
4	HEADLAMP UNIT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82119-072-0	01	1	9308-	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> TYPE 2 24V 75/70W	1-82191-031-0	02	1	9202-9307	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> TYPE 2 24V 75/70W	1-82191-031-0	02	1	9308-9404	●	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> TYPE 2 24V 75/70W	1-82191-031-0	02	1	9308-9404	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> TYPE 2 24V 75/70W	1-82191-031-0	02	1	9405-	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> TYPE 2 24V 75/70W	1-82191-031-0	02	1	9405-	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> TYPE 2 24V 75/70W	1-82191-031-0	02	1	9405-		●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> TYPE 1 24V 70W	1-82191-032-0	02	1	9202-9307	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> TYPE 1 24V 70W	1-82191-032-0	02	1	9308-9404	●	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> TYPE 1 24V 70W	1-82191-032-0	02	1	9308-9404	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> TYPE 1 24V 70W	1-82191-032-0	02	1	9405-	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> TYPE 1 24V 70W	1-82191-032-0	02	1	9405-	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> TYPE 1 24V 70W	1-82191-032-0	02	1	9405-		●
5	BULB; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 24V 75/70W	1-82194-063-0	02	1	9308-	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> 24V 75/70W	1-82193-006-0	02	1	9202-9307	●	●
5	BULB; HEADLAMP BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> 24V 75/70W	1-82193-006-0	02	1	9308-9404	●	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82193-006-0	02	1	9308-9404	●	●
5	BULB; HEADLAMP BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> 24V 75/70W	1-82193-006-0	02	1	9405-	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> 24V 75/70W	1-82193-006-0	02	1	9405-	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> 24V 75/70W	1-82193-006-0	02	1	9405-		●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> 24V 70W	1-82193-007-0	02	1	9202-9307	●	●
5	BULB; HEADLAMP BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> 24V 70W	1-82193-007-0	02	1	9308-9404	●	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 70W	1-82193-007-0	02	1	9308-9404	●	●
5	BULB; HEADLAMP BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> 24V 70W	1-82193-007-0	02	1	9405-	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> 24V 70W	1-82193-007-0	02	1	9405-	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> 24V 70W	1-82193-007-0	02	1	9405-		●
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-079-0	01	1	9202-	●	●
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-078-0	01	1	9202-	●	●
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82114-027-0	04	1	9202-	●	●
6	RIM; HEADLAMP HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB> (B) INNER 24V 70W	1-82114-018-0	02	1	9202-	●	●
6	RIM; HEADLAMP HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB> (B) OUTER 24V 75/70W	1-82114-019-0	02	1	9202-	●	●
15	BULB; FOG LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 24V 35W	1-82194-081-0	02	1	9308-	●
15	BULB; FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB> 24V 35W	1-82193-005-0	02	1	9202-	●	●
19	NUT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	9-09110-510-0	02	1	9202-	●	●
19	NUT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> D=7X7 L=7.5	8-94291-927-0	08	1	9202-9307	●	●
19	NUT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> D=7X7 L=7.5	8-94291-927-0	08	1	9308-	●	●
19	NUT; HEADLAMP HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB> (B)	1-82119-056-0	08	1	9202-	●	●
20	SCREW; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-82119-023-0	16	1	9202-9307	●	●
20	SCREW; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82119-023-0	16	1	9308-	●	●
20	SCREW; HEADLAMP HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB>	1-82119-090-0	16	1	9202-9205	●	●
20	SCREW; HEADLAMP HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB>	1-82119-104-0	16	1	9206-	●	●
21	SPRING; ADJ HEADLAMP	1-82119-021-0	04	1	9202-9307	●	●
21	SPRING; ADJ HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-021-0	04	1	9308-	●	●
22	SCREW; ADJ,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-82119-024-0	08	1	9202-9205	●	●
22	SCREW; ADJ,HEADLAMP HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB>	1-82119-030-0	08	1	9202-9205	●	●
22	SCREW; ADJ,HEADLAMP	1-82119-095-0	08	1	9206-9307	●	●
22	SCREW; ADJ,HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-095-0	08	1	9308-	●	●
23	COVER; BULB,HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-069-0	02	1	9308-	●
23	COVER; BULB,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HALOGEN HEADLAMPS<TT5>	8-94160-623-0	04	1	9202-9307	●	●
23	COVER; BULB,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5>	8-94160-623-0	04	1	9308-	●
23	COVER; BULB,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HALOGEN HEADLAMPS<TT5>	8-94160-623-0	04	1	9308-		●
25	SCREW; LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20	8-97030-365-0	08	1	9308-	●
25	SCREW; LAMP BUMPER W/HEADLAMPS<SLB> M6X12	1-09981-315-0	08	1	9202-	●	●
25	SCREW; LAMP EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER	1-09981-430-0	08	1	9202-9309	●	●
25	SCREW; LAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> M6X12 W/LK&PL WASHER	1-09981-430-0	08	1	9308-	●
25	SCREW; LAMP EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER	1-09981-430-0	08	1	9308-		●
32	LAMP ASM; FOG EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82110-210-3	01	1	9202-	●
32	LAMP ASM; FOG EXC. BUMPER W/HEADLAMPS<SLB>	1-82110-210-3	01	1	9202-		●
32	LAMP ASM; FOG EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82110-209-3	01	1	9202-	●
32	LAMP ASM; FOG EXC. BUMPER W/HEADLAMPS<SLB>	1-82110-209-3	01	1	9202-		●
40	LENS; FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82115-008-0	01	1	9202-	●
40	LENS; FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-82115-008-0	01	1	9202-		●
40	LENS; FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82115-007-0	01	1	9202-	●
40	LENS; FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-82115-007-0	01	1	9202-		●
41	GASKET; LENS,FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82116-007-0	02	1	9202-	●
41	GASKET; LENS,FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-82116-007-0	02	1	9202-		●
42	SCREW; LENS,FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82119-025-0	04	1	9202-	●
42	SCREW; LENS,FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-82119-025-0	04	1	9202-		●
60	LAMP ASM; FRT COMB HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82210-172-3	01	1	9308-	●
60	LAMP ASM; FRT COMB HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82210-173-3	01	1	9308-	●
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB>	1-82210-159-0	01	1	9202-	●	●
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB>	1-82210-158-0	01	1	9202-	●	●
60	LAMP ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82210-141-1	01	1	9202-9307	●	●
60	LAMP ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82210-141-1	01	1	9308-	●
60	LAMP ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82210-141-1	01	1	9308-		●
60	LAMP ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82210-140-1	01	1	9202-9307	●	●
60	LAMP ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82210-140-1	01	1	9308-	●
60	LAMP ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82210-140-1	01	1	9308-		●
67	GASKET; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82216-027-0	01	1	9308-	●
67	GASKET; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82216-028-0	01	1	9308-	●
67	GASKET; FRT COMB LAMP	1-82216-015-0	01	1	9202-9307	●	●
67	GASKET; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82216-015-0	01	1	9308-	●
67	GASKET; FRT COMB LAMP	1-82216-015-0	01	1	9308-		●
67	GASKET; FRT COMB LAMP	1-82216-014-0	01	1	9202-9307	●	●
67	GASKET; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82216-014-0	01	1	9308-	●
67	GASKET; FRT COMB LAMP	1-82216-014-0	01	1	9308-		●
68	BULB; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 25W	1-82194-029-0	02	1	9308-	●
68	BULB; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 12W	1-82194-030-0	02	1	9308-	●
68	BULB; FRT COMB LAMP 24V 21W	1-82194-036-0	04	1	9202-9307	●	●
68	BULB; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 21W	1-82194-036-0	04	1	9308-	●
68	BULB; FRT COMB LAMP 24V 21W	1-82194-036-0	04	1	9308-		●
68	BULB; FRT COMB LAMP 24V 5W	1-82194-039-0	02	1	9202-9307	●	●
68	BULB; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 5W	1-82194-039-0	02	1	9308-	●
68	BULB; FRT COMB LAMP 24V 5W	1-82194-039-0	02	1	9308-		●
75	SCREW; FRT COMB LAMP (B)	1-82219-001-0	08	1	9202-	●	●
75	SCREW; FRT COMB LAMP (A)	1-82219-002-0	04	1	9202-9307	●	●
75	SCREW; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	1-82219-002-0	04	1	9308-	●
75	SCREW; FRT COMB LAMP (A)	1-82219-002-0	04	1	9308-		●
76	LENS; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82215-057-0	01	1	9308-	●
76	LENS; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82215-058-0	01	1	9308-	●
76	LENS; FRT COMB LAMP	1-82215-037-0	01	1	9202-9307	●	●
76	LENS; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82215-037-0	01	1	9308-	●
76	LENS; FRT COMB LAMP	1-82215-037-0	01	1	9308-		●
76	LENS; FRT COMB LAMP	1-82215-038-0	01	1	9202-9307	●	●
76	LENS; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82215-038-0	01	1	9308-	●
76	LENS; FRT COMB LAMP	1-82215-038-0	01	1	9308-		●
78	LENS ASM; FRT COMB BUMPER W/HEADLAMPS<SLB>	1-82215-051-0	01	1	9202-	●	●
78	LENS ASM; FRT COMB BUMPER W/HEADLAMPS<SLB>	1-82215-050-0	01	1	9202-	●	●
78	LENS ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82215-034-0	01	1	9202-9307	●	●
78	LENS ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82215-034-0	01	1	9308-	●
78	LENS ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82215-034-0	01	1	9308-		●
78	LENS ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82215-035-0	01	1	9202-9307	●	●
78	LENS ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82215-035-0	01	1	9308-	●
78	LENS ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82215-035-0	01	1	9308-		●
86	NUT; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) M6 FLANGE	0-91150-106-0	08	1	9202-9210	●	●
86	NUT; MARKER LAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> M6 FLANGE	0-91150-106-0	08	1	9211-	●
86	NUT; MARKER LAMP EXC. BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91150-106-0	08	1	9211-		●
121	REFLECTOR; REFLEX AUSTRALIA EQUIPMENT(RR3) LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB>	1-82290-020-0	02	1	9407-	●	●
146	GROMMET; FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> D=9.7X9.7 L=8	8-94222-314-0	04	1	9202-	●
146	GROMMET; FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB> D=9.7X9.7 L=8	8-94222-314-0	04	1	9202-		●

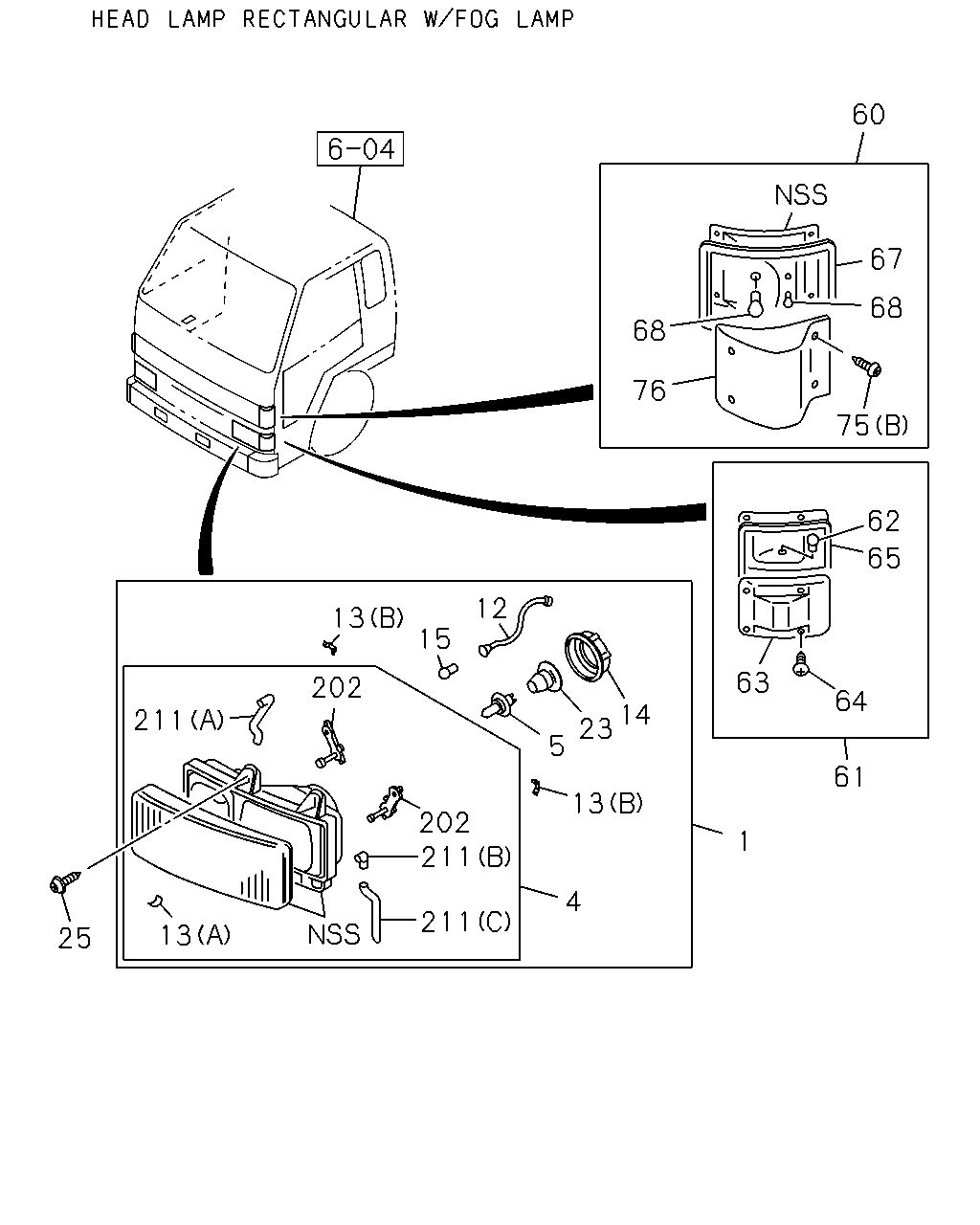

60 67 68 68 76 75 62 65 12 13 15 63 202 64 14 23 211 5 61 13 202 211 1 4 211 13 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82110-292-5	01	1	9308-	●
1	LAMP ASM; HEAD HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82110-291-5	01	1	9308-	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5>	1-82110-218-4	01	1	9202-	●	●
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5>	1-82110-217-4	01	1	9202-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB> INNER TYPE 1 24V 70W	1-82110-257-1	01	1	9202-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB> OUTER TYPE 2 24V 75/70W	1-82110-260-1	01	1	9202-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB> INNER TYPE 1 24V 70W	1-82110-256-1	01	1	9202-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> BUMPER W/HEADLAMPS<SLB> OUTER TYPE 2 24V 75/70W	1-82110-258-1	01	1	9202-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> BULB TYPE	1-82110-239-3	01	1	9202-	●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> BULB TYPE	1-82110-238-3	01	1	9202-	●	●
4	HEADLAMP UNIT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82119-073-0	01	1	9308-	●
4	HEADLAMP UNIT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82119-072-0	01	1	9308-	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> TYPE 2 24V 75/70W	1-82191-031-0	02	1	9202-9307	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> TYPE 2 24V 75/70W	1-82191-031-0	02	1	9308-9404	●	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> TYPE 2 24V 75/70W	1-82191-031-0	02	1	9308-9404	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> TYPE 2 24V 75/70W	1-82191-031-0	02	1	9405-	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> TYPE 2 24V 75/70W	1-82191-031-0	02	1	9405-	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> TYPE 2 24V 75/70W	1-82191-031-0	02	1	9405-		●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> TYPE 1 24V 70W	1-82191-032-0	02	1	9202-9307	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> TYPE 1 24V 70W	1-82191-032-0	02	1	9308-9404	●	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> TYPE 1 24V 70W	1-82191-032-0	02	1	9308-9404	●	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> TYPE 1 24V 70W	1-82191-032-0	02	1	9405-	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> TYPE 1 24V 70W	1-82191-032-0	02	1	9405-	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> TYPE 1 24V 70W	1-82191-032-0	02	1	9405-		●
5	BULB; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 24V 75/70W	1-82194-063-0	02	1	9308-	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> 24V 75/70W	1-82193-006-0	02	1	9202-9307	●	●
5	BULB; HEADLAMP BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> 24V 75/70W	1-82193-006-0	02	1	9308-9404	●	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82193-006-0	02	1	9308-9404	●	●
5	BULB; HEADLAMP BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> 24V 75/70W	1-82193-006-0	02	1	9405-	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> 24V 75/70W	1-82193-006-0	02	1	9405-	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> 24V 75/70W	1-82193-006-0	02	1	9405-		●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> 24V 70W	1-82193-007-0	02	1	9202-9307	●	●
5	BULB; HEADLAMP BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> 24V 70W	1-82193-007-0	02	1	9308-9404	●	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 70W	1-82193-007-0	02	1	9308-9404	●	●
5	BULB; HEADLAMP BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> 24V 70W	1-82193-007-0	02	1	9405-	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> 24V 70W	1-82193-007-0	02	1	9405-	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> 24V 70W	1-82193-007-0	02	1	9405-		●
12	HARNESS; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	8-97029-217-0	02	1	9308-	●
13	CLIP; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> (A)	1-82119-074-0	10	1	9308-	●
13	CLIP; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> (B)	1-82119-084-0	04	1	9308-	●
14	CAP; BULB,LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82119-070-0	02	1	9308-	●
15	BULB; FOG LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> HALOGEN HEADLAMPS<TT5> EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 24V 35W	1-82194-081-0	02	1	9308-	●
15	BULB; FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB> 24V 35W	1-82193-005-0	02	1	9202-	●	●
23	COVER; BULB,HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-069-0	02	1	9308-	●
23	COVER; BULB,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HALOGEN HEADLAMPS<TT5>	8-94160-623-0	04	1	9202-9307	●	●
23	COVER; BULB,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5>	8-94160-623-0	04	1	9308-	●
23	COVER; BULB,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HALOGEN HEADLAMPS<TT5>	8-94160-623-0	04	1	9308-		●
25	SCREW; LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20	8-97030-365-0	08	1	9308-	●
25	SCREW; LAMP BUMPER W/HEADLAMPS<SLB> M6X12	1-09981-315-0	08	1	9202-	●	●
25	SCREW; LAMP EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER	1-09981-430-0	08	1	9202-9309	●	●
25	SCREW; LAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> M6X12 W/LK&PL WASHER	1-09981-430-0	08	1	9308-	●
25	SCREW; LAMP EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER	1-09981-430-0	08	1	9308-		●
60	LAMP ASM; FRT COMB HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82210-172-3	01	1	9308-	●
60	LAMP ASM; FRT COMB HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82210-173-3	01	1	9308-	●
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB>	1-82210-159-0	01	1	9202-	●	●
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB>	1-82210-158-0	01	1	9202-	●	●
60	LAMP ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82210-141-1	01	1	9202-9307	●	●
60	LAMP ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82210-141-1	01	1	9308-	●
60	LAMP ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82210-141-1	01	1	9308-		●
60	LAMP ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82210-140-1	01	1	9202-9307	●	●
60	LAMP ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-82210-140-1	01	1	9308-	●
60	LAMP ASM; FRT COMB EXC. BUMPER W/HEADLAMPS<SLB>	1-82210-140-1	01	1	9308-		●
61	LAMP ASM; CORNERING HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82210-171-3	01	1	9308-	●
61	LAMP ASM; CORNERING HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82210-170-3	01	1	9308-	●
62	BULB; CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 30/10W	1-82194-065-0	02	1	9308-	●
63	LENS; CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82215-056-0	01	1	9308-	●
63	LENS; CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82215-055-0	01	1	9308-	●
64	SCREW; CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M4X25 TAPPING	0-71190-425-0	08	1	9308-	●
65	GASKET; CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82216-026-0	01	1	9308-	●
65	GASKET; CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82216-025-0	01	1	9308-	●
67	GASKET; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82216-027-0	01	1	9308-	●
67	GASKET; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82216-028-0	01	1	9308-	●
67	GASKET; FRT COMB LAMP	1-82216-015-0	01	1	9202-9307	●	●
67	GASKET; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82216-015-0	01	1	9308-	●
67	GASKET; FRT COMB LAMP	1-82216-015-0	01	1	9308-		●
67	GASKET; FRT COMB LAMP	1-82216-014-0	01	1	9202-9307	●	●
67	GASKET; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82216-014-0	01	1	9308-	●
67	GASKET; FRT COMB LAMP	1-82216-014-0	01	1	9308-		●
68	BULB; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 25W	1-82194-029-0	02	1	9308-	●
68	BULB; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 12W	1-82194-030-0	02	1	9308-	●
68	BULB; FRT COMB LAMP 24V 21W	1-82194-036-0	04	1	9202-9307	●	●
68	BULB; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 21W	1-82194-036-0	04	1	9308-	●
68	BULB; FRT COMB LAMP 24V 21W	1-82194-036-0	04	1	9308-		●
68	BULB; FRT COMB LAMP 24V 5W	1-82194-039-0	02	1	9202-9307	●	●
68	BULB; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 5W	1-82194-039-0	02	1	9308-	●
68	BULB; FRT COMB LAMP 24V 5W	1-82194-039-0	02	1	9308-		●
75	SCREW; FRT COMB LAMP (B)	1-82219-001-0	08	1	9202-	●	●
75	SCREW; FRT COMB LAMP (A)	1-82219-002-0	04	1	9202-9307	●	●
75	SCREW; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	1-82219-002-0	04	1	9308-	●
75	SCREW; FRT COMB LAMP (A)	1-82219-002-0	04	1	9308-		●
76	LENS; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82215-057-0	01	1	9308-	●
76	LENS; FRT COMB LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82215-058-0	01	1	9308-	●
76	LENS; FRT COMB LAMP	1-82215-037-0	01	1	9202-9307	●	●
76	LENS; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82215-037-0	01	1	9308-	●
76	LENS; FRT COMB LAMP	1-82215-037-0	01	1	9308-		●
76	LENS; FRT COMB LAMP	1-82215-038-0	01	1	9202-9307	●	●
76	LENS; FRT COMB LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82215-038-0	01	1	9308-	●
76	LENS; FRT COMB LAMP	1-82215-038-0	01	1	9308-		●
202	GEAR UNIT; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=62.5	1-82119-076-0	01	1	9308-	●
202	GEAR UNIT; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=30	1-82119-078-0	01	1	9308-	●
202	GEAR UNIT; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=62.5	1-82119-075-0	01	1	9308-	●
202	GEAR UNIT; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=30	1-82119-077-0	01	1	9308-	●
211	TUBE; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-82119-081-0	02	1	9308-	●
211	TUBE; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	1-82119-080-1	01	1	9308-	●
211	TUBE; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-82119-083-0	01	1	9308-	●
211	TUBE; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	1-82119-079-1	01	1	9308-	●
211	TUBE; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-82119-082-0	01	1	9308-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
