8-50 — AIR CONDITIONING SYSTEM; FRONT
(#10797) — 21 parça
◀

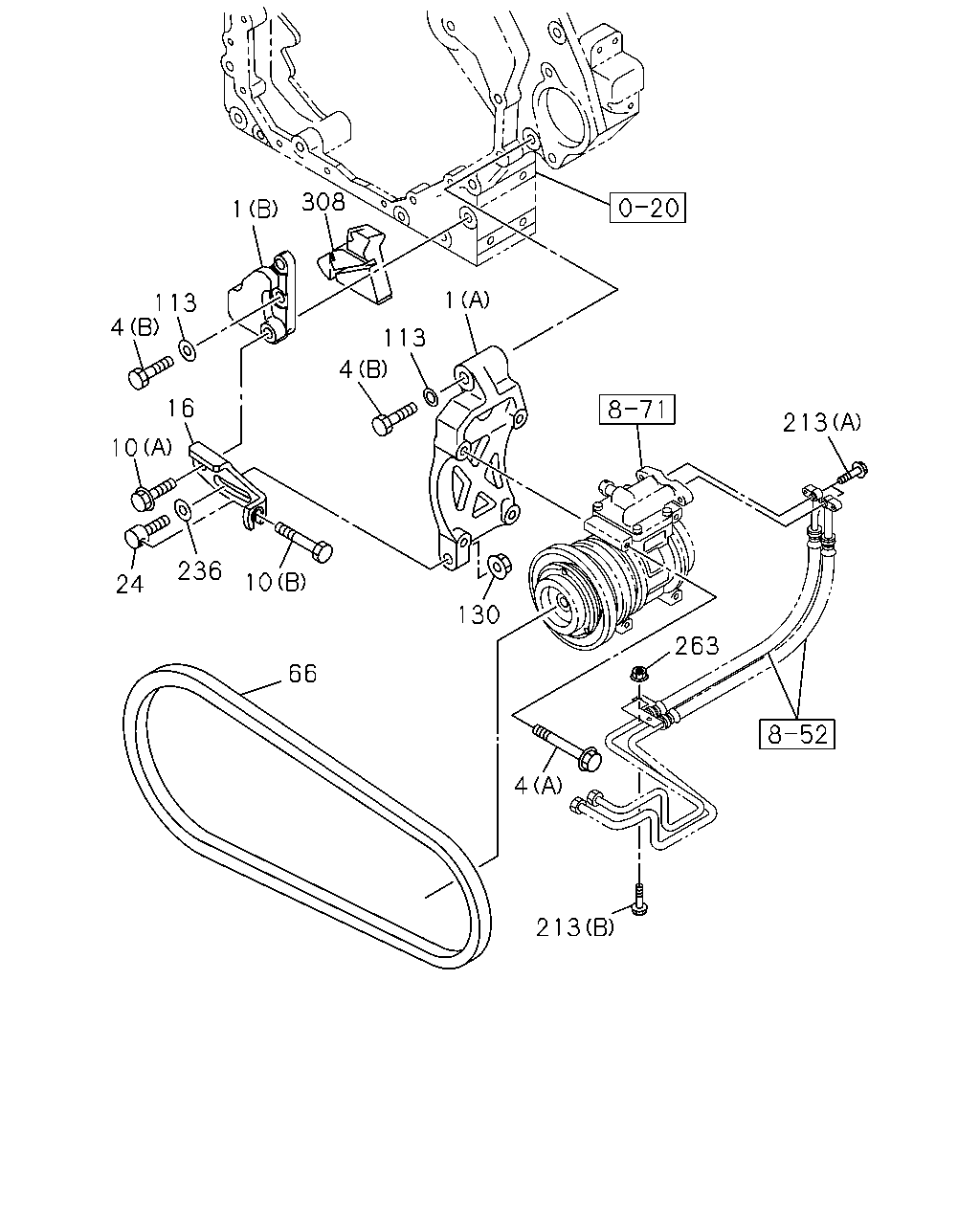

[850A] FRAME SIDE (17 parça)

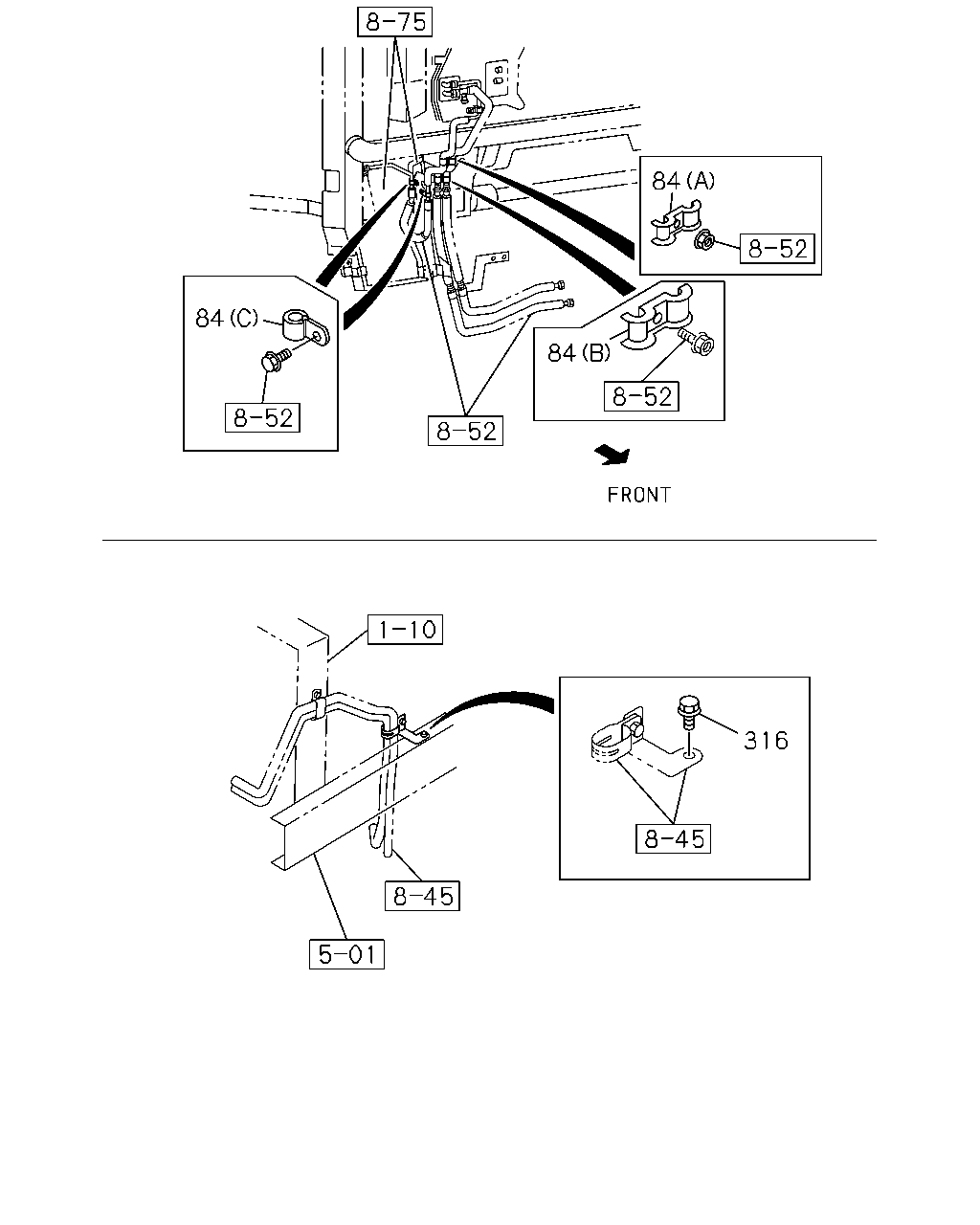

[850A] CAB SIDE (4 parça)
▶
308
1
1
113
4
113
4
16
213
10
236
10
24
130
263
66
4
213
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83571-987-0
01
1
0106-
1
BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83573-001-0
01
1
0106-
4
BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X80 FLANGE
0-28080-880-0
04
1
0106-
4
BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M14X130
9-09804-194-1
02
1
0106-
10
BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE
0-28181-225-0
01
1
0106-
10
BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90
1-09009-151-0
01
1
0106-
16
PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
1-13674-253-1
01
1
0106-
24
PIECE; SLIDING
AIR CONDITIONER MANUAL CONTROL(C60) M12X45
1-13674-160-0
01
1
0106-
66
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1131
1-13671-436-0
01
1
0106-
113
WASHER; PL,BRKT
AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26
9-09164-514-0
02
1
0106-
130
NUT; ADJ BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE
0-91150-112-0
01
1
0106-
213
BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X30 FLANGE
0-28080-630-0
02
1
0106-
213
BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE
0-28080-816-0
02
1
0106-
236
WASHER; PL,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32
9-09160-712-0
01
1
0106-
263
NUT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91150-108-0
02
1
0106-
308
INSULATOR; COOLER
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)
1-19389-213-0
01
1
0106-0112
308
INSULATOR; COOLER
6WA1 TC-C(55L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60)
1-19389-213-0
01
1
0201-
84
84
84
316
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
84
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2
1-83574-190-0
01
1
0106-
84
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20
1-83574-195-1
01
1
0106-
84
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20
9-09524-835-0
02
1
0106-
316
BOLT; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE
0-28080-820-0
01
1
0106-
