8-28 — CHASSIS ELECTRICAL (#10794) — 149 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO	1-83460-088-1	01	1	0106-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0106-

275 282 284 283 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	SOCKET; TRAILER 7P	1-82523-014-0	01	1	0106-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0106-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0106-
275	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (C) M8X30 FLANGE	0-28680-830-0	01	1	0106-0112
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) (C) M8X30 FLANGE	0-28680-830-0	01	1	0201-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-742-2	01	1	0106-
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A)	1-82569-277-2	01	1	0106-0112
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L) (A)	1-82569-277-2	01	1	0201-
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91150-210-0	01	1	0106-0112
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91150-210-0	01	1	0201-
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	0106-0112
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) M8 FLANGE	0-91150-108-0	01	1	0201-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	02	1	0106-
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-0112
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0201-

89 34 89 89 285 210 34 90 267 90 34 602 261 210 284 34 89 261 34 424 33 34 272 290 714 39 34 286 34 275 261 34 261

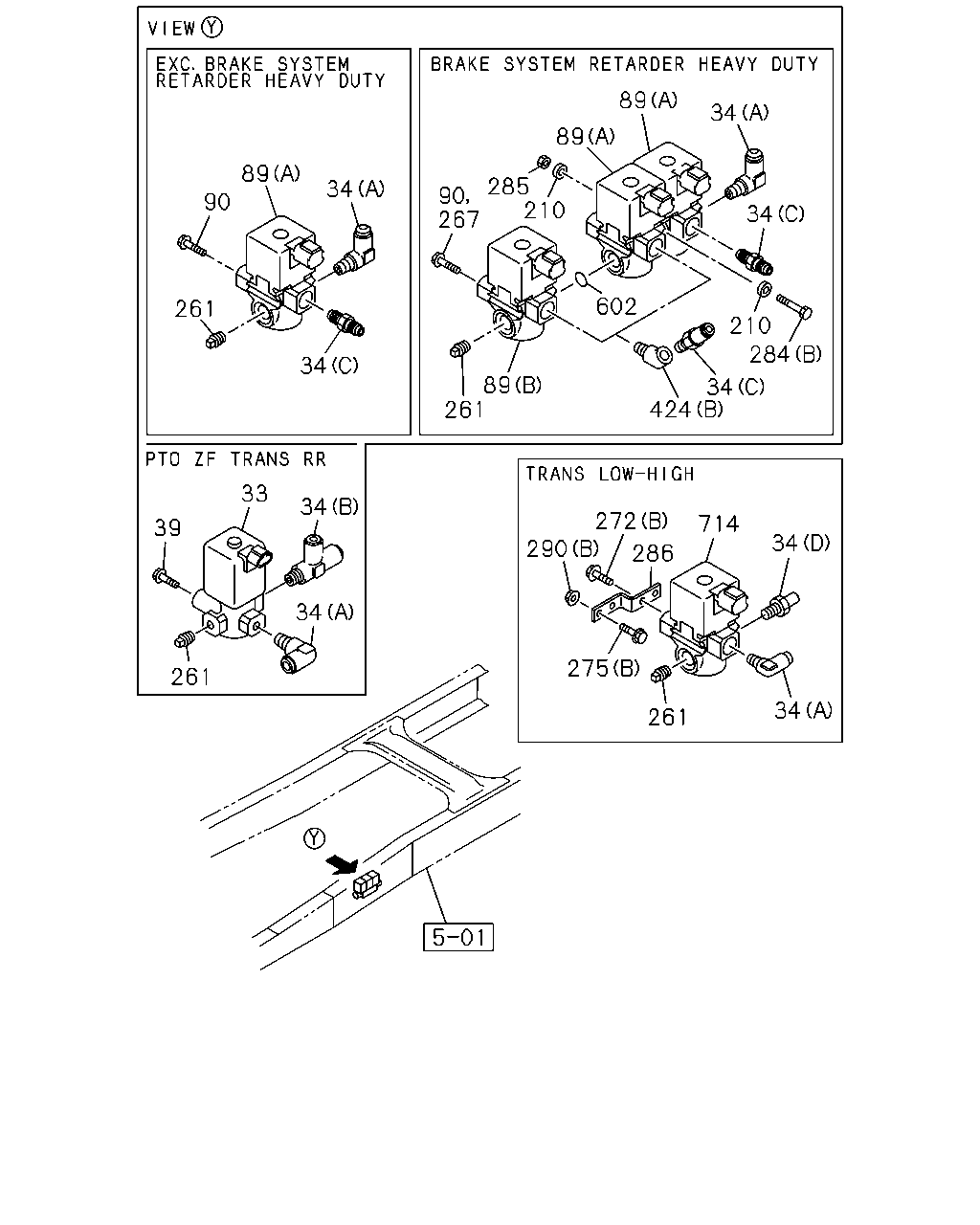

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM)	1-82563-871-2	02	1	0106-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0106-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0106-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (B) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0106-
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM) M8X20 FLANGE	0-28680-820-0	02	1	0106-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	02	1	0106-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0106-
89	VALVE; MAG,DIFF LOCK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0106-
90	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	03	1	0106-
90	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	02	1	0106-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	04	1	0106-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	0106-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0106-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0106-
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	02	1	0106-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M10X30 FLANGE	0-28681-030-0	02	1	0106-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M10X20 FLANGE	0-28681-020-0	02	1	0202-
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8X35 FLANGE	0-28680-835-0	02	1	0106-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0106-
275	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (C) M8X30 FLANGE	0-28680-830-0	01	1	0106-0112
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) (C) M8X30 FLANGE	0-28680-830-0	01	1	0201-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	02	1	0106-
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-0112
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0201-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	02	1	0106-
286	BRACKET ZF M/T<X9E>	1-82569-278-0	01	1	0106-
290	NUT (A) M6 FLANGE	0-91150-106-0	01	1	0106-
290	NUT ZF M/T<X9E> (B) M8 FLANGE	0-91150-108-0	02	1	0106-
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) R1/4 & RC1/4	1-09664-211-0	02	1	0106-
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0106-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0106-0110
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	02	1	0106-
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-82563-871-2	01	1	0106-

22 24 344 25 331 331 24 26 615 22 367 341 427 121 429 427 226 367

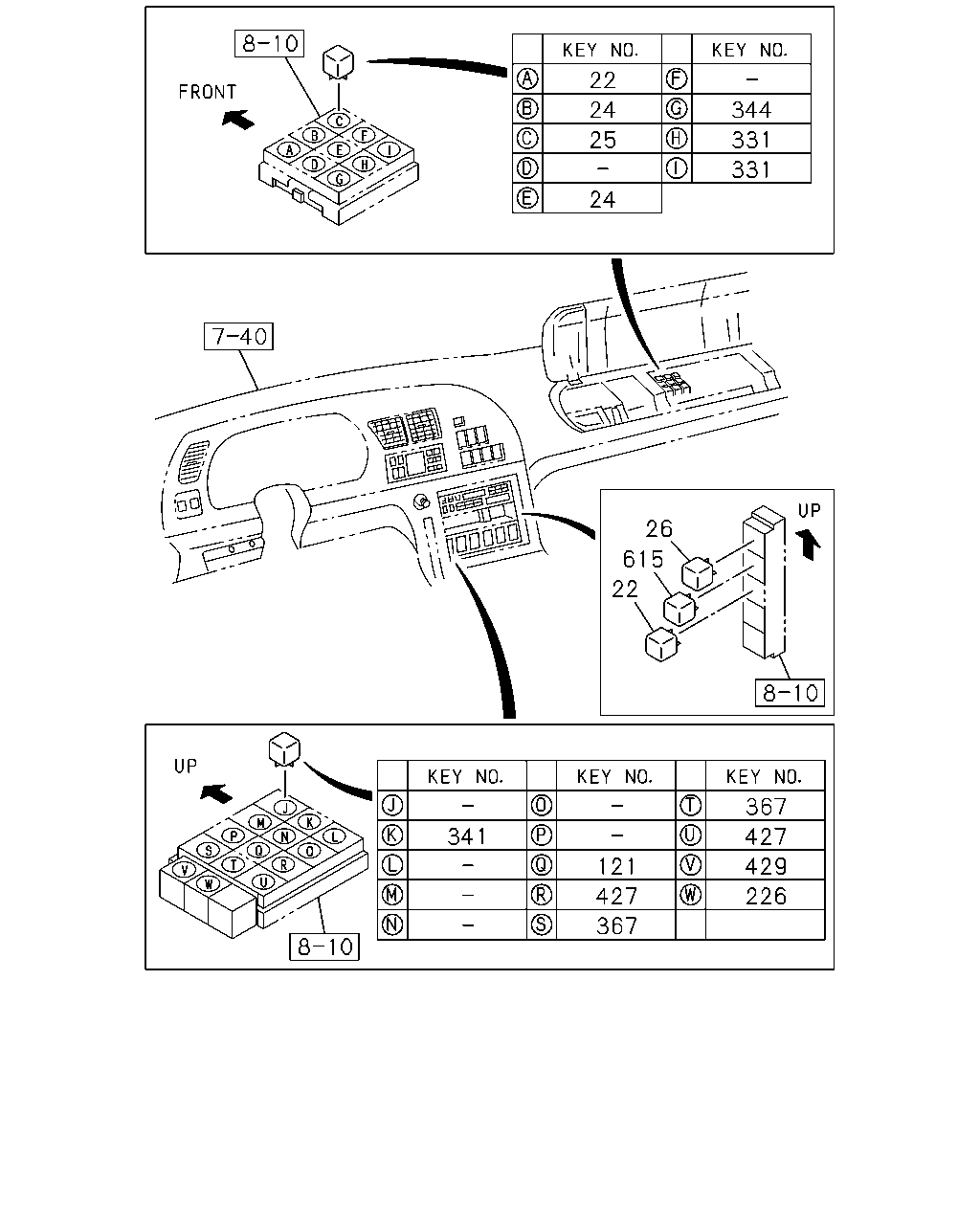

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A JIDECO	8-97062-815-1	02	1	0106-0111
22	RELAY; STOP LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
24	RELAY; LIGHTING 24V 12.5A JIDECO	8-97062-815-1	02	1	0106-0111
24	RELAY; LIGHTING 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
25	RELAY; TAIL LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
26	RELAY; CONSENT 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
26	RELAY; CONSENT 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
121	RELAY; PARKING BRK 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
226	RELAY; EXH BRK EXC. ELECTRONIC GOV RED4(Q4F) 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
226	RELAY; EXH BRK EXC. ELECTRONIC GOV RED4(Q4F) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A JIDECO	8-97062-815-1	02	1	0106-0111
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
341	RELAY FULL FLOATING CAB(W16) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
344	RELAY; LAMP CORNERING LAMP<TDS> 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
344	RELAY; LAMP CORNERING LAMP<TDS> 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
367	RELAY; NEUTRAL 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
367	RELAY; NEUTRAL AUTO CAB TILT<WV2> 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
427	RELAY; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. ELECTRONIC GOV RED4(Q4F) 24V 10A MATSUSHITA	8-97173-035-1	02	1	0106-
429	RELAY; POWER CUT 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
429	RELAY; POWER CUT 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
615	RELAY; TRAILER 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
615	RELAY; TRAILER 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-

15 377 180 290 1 67 58 312 661 4 440 468

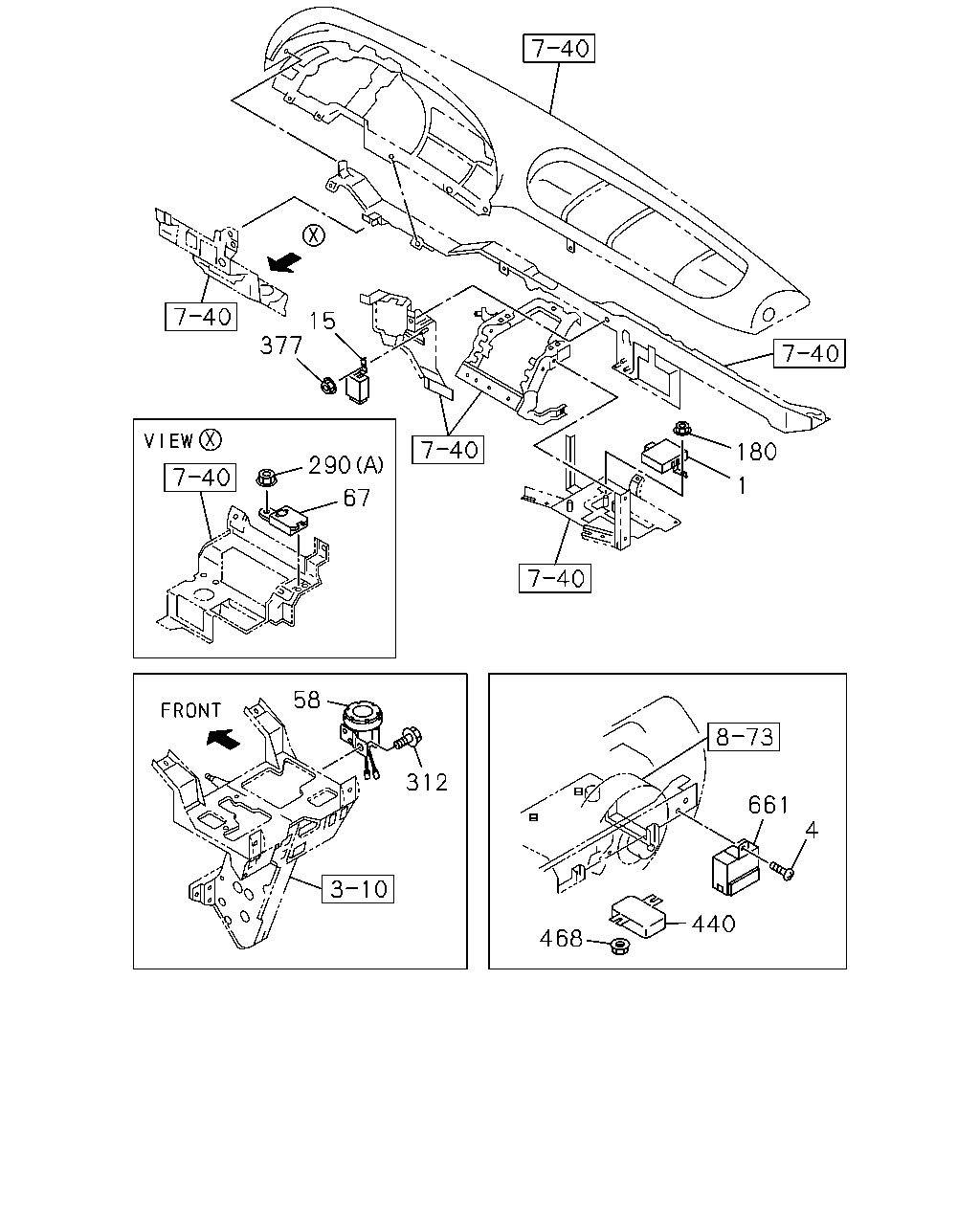

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-1	01	1	0106-
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0106-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0106-
58	BUZZER; AIR PRESSURE WARNING METRO	1-83460-074-1	01	1	0106-
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0106-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0106-
290	NUT (A) M6 FLANGE	0-91150-106-0	01	1	0106-
290	NUT ZF M/T<X9E> (B) M8 FLANGE	0-91150-108-0	02	1	0106-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0106-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0106-
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0106-
468	NUT; MODULE M6 FLANGE	0-91150-106-0	02	1	0106-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0106-

507 174 79 79 88 88 78 424 88 424 88 282 505 81 77 88 40 456 78 424 505 77 386 387

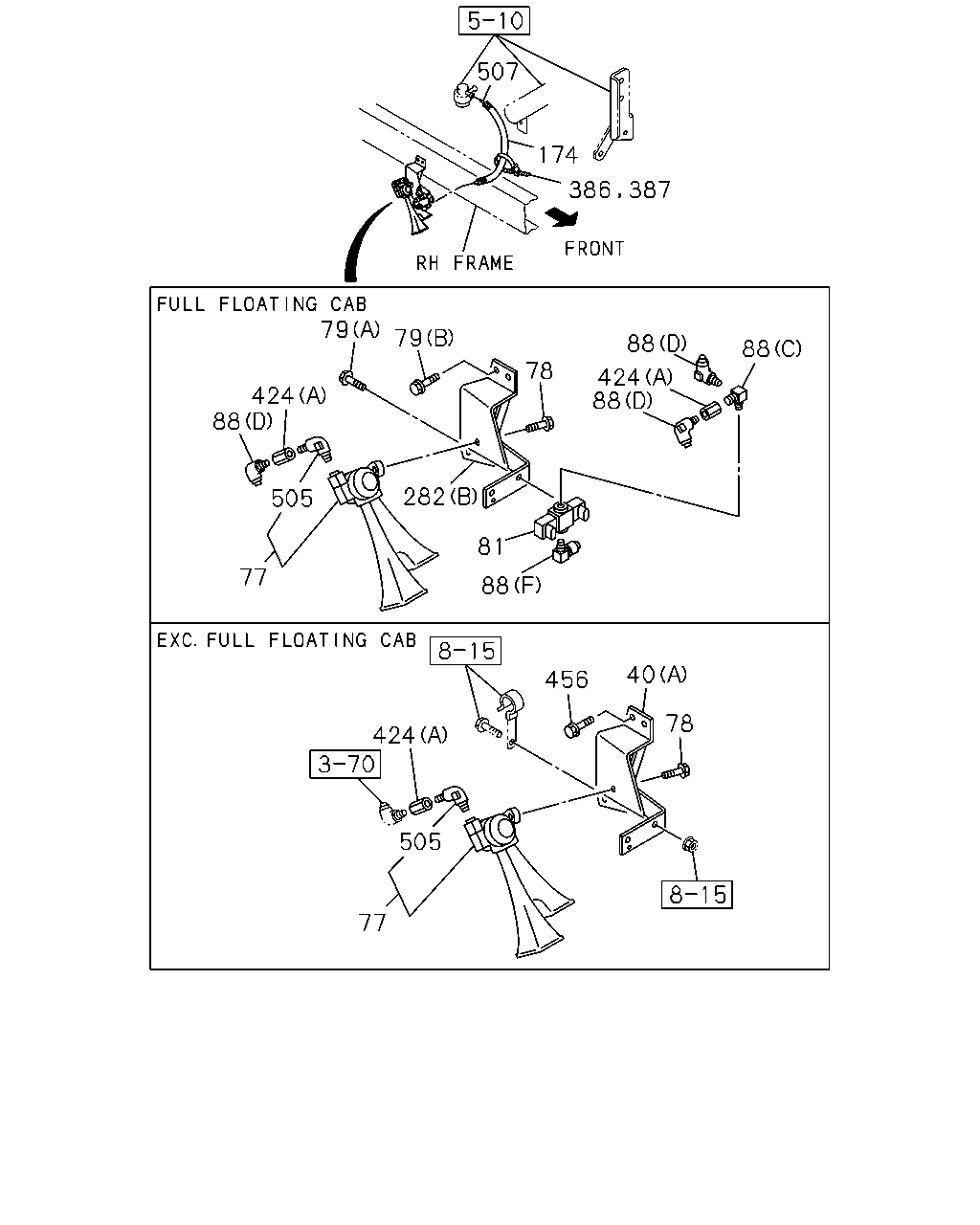

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-888-0	01	1	0106-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-742-1	01	1	0106-0110
77	HORN ASM	1-83430-041-2	01	1	0106-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0106-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	0106-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0106-
174	COVER FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0106-0108
174	COVER FULL FLOATING CAB(W16) L=770	1-83129-347-0	01	1	0109-0109
174	COVER FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	0110-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-742-2	01	1	0106-
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A)	1-82569-277-2	01	1	0106-0112
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L) (A)	1-82569-277-2	01	1	0201-
386	CLIP; HARNESS FULL FLOATING CAB(W16) L=250	5-09707-030-1	01	1	0207-
387	CLIP; BAND FULL FLOATING CAB(W16) L=250	5-09707-030-1	01	1	0106-0206
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) R1/4 & RC1/4	1-09664-211-0	02	1	0106-
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0106-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0106-0110
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	0106-0110
505	JOINT; AIR HORN	1-83439-006-0	01	1	0106-
507	TUBE; NYLON FULL FLOATING CAB(W16) L=950 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0106-0108
507	TUBE; NYLON FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0109-

86 117 116 115 84 85 275 40 88 88 450 65 272 88

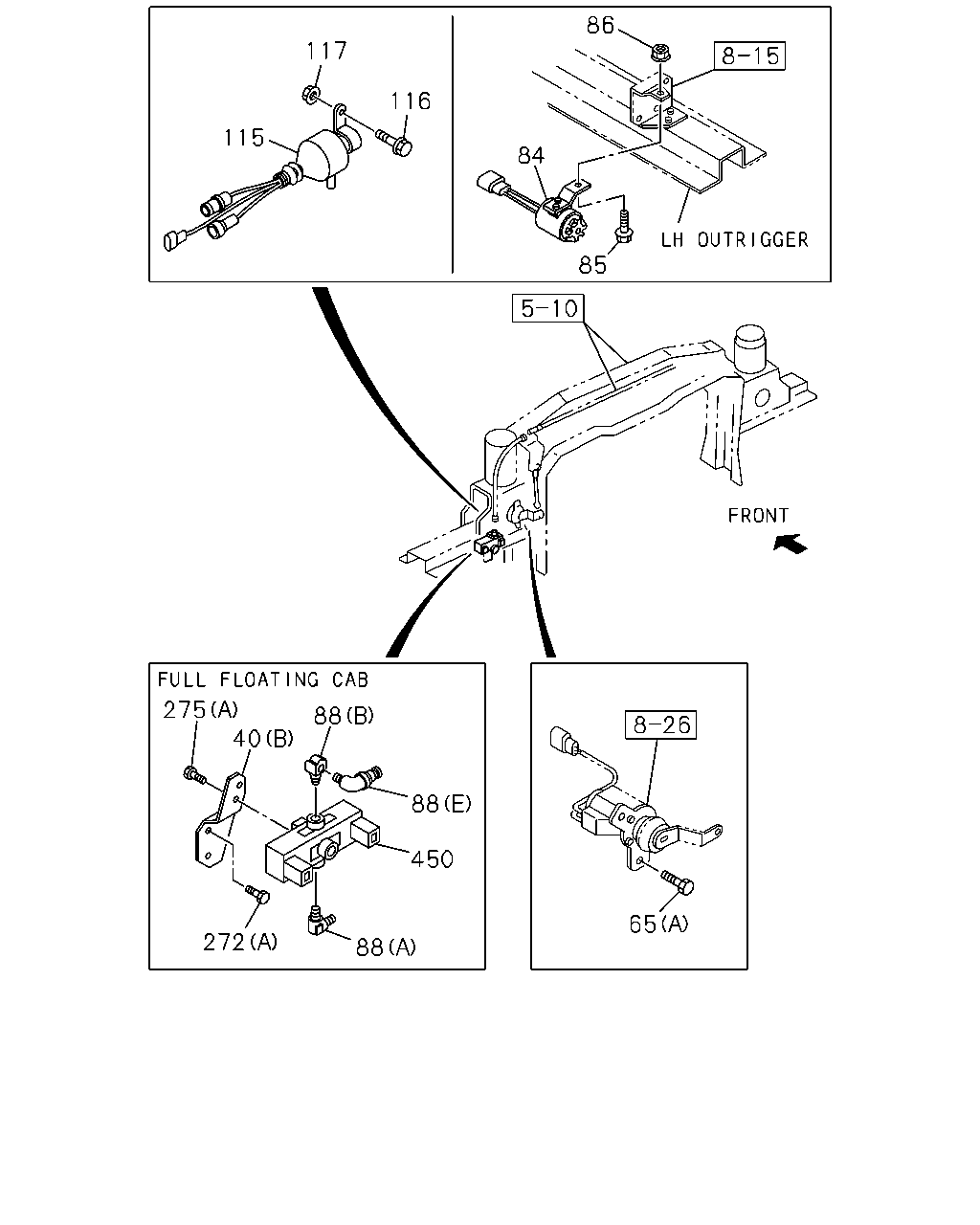

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-888-0	01	1	0106-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-742-1	01	1	0106-0110
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0106-
84	BUZZER; POWER CAB TILT METRO	1-83460-096-2	01	1	0106-
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0106-0201
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28080-816-0	01	1	0202-
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0106-
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> HITACHI	1-81171-087-0	01	1	0106-0210
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-075-1	01	1	0211-
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28080-816-0	02	1	0106-
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8 FLANGE	0-91150-108-0	02	1	0106-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M10X30 FLANGE	0-28681-030-0	02	1	0106-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M10X20 FLANGE	0-28681-020-0	02	1	0202-
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8X35 FLANGE	0-28680-835-0	02	1	0106-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0106-
275	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (C) M8X30 FLANGE	0-28680-830-0	01	1	0106-0112
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) (C) M8X30 FLANGE	0-28680-830-0	01	1	0201-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0106-
