◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#10793) — 48 parça

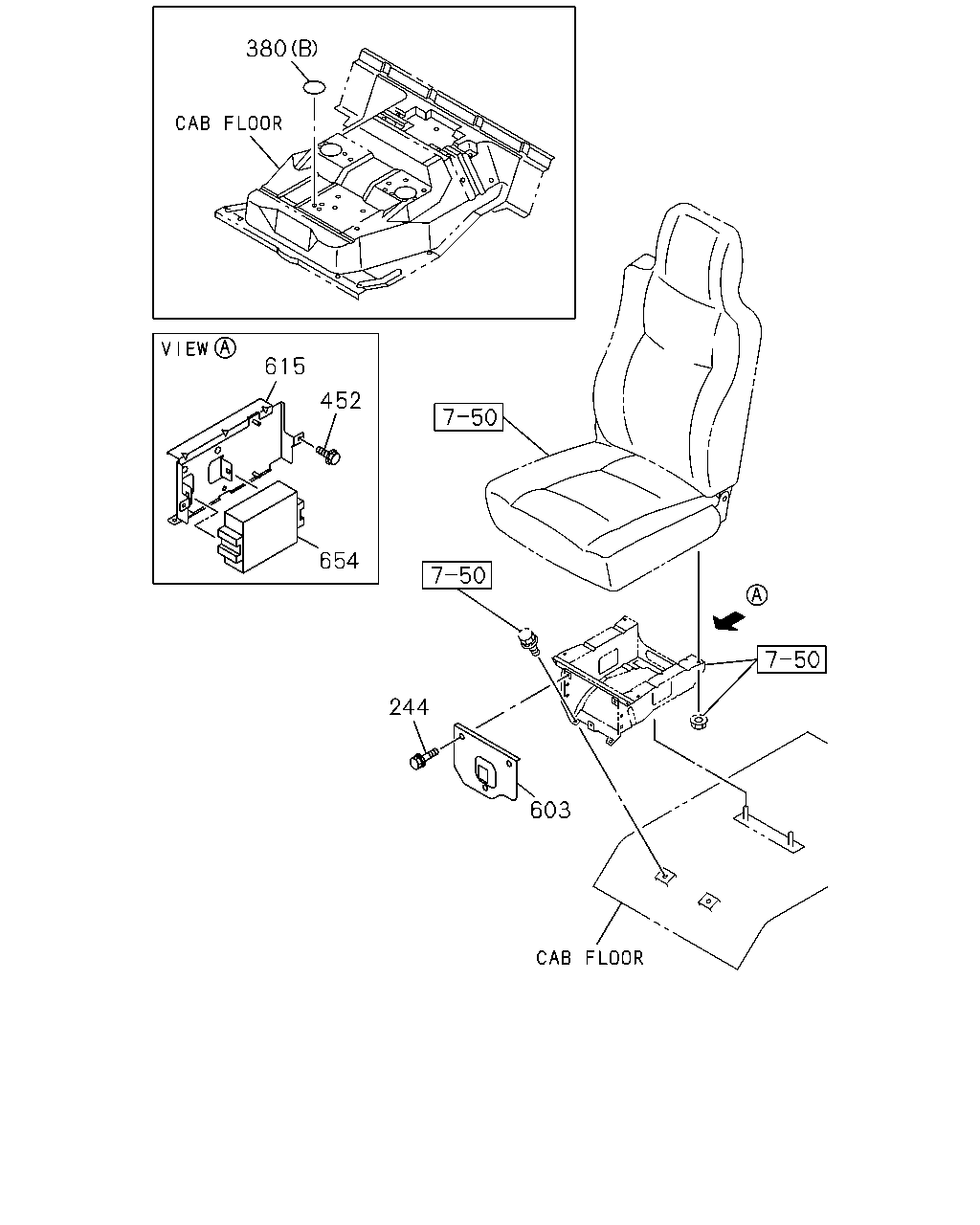

çizim 24901
380 615 452 654 244 603
BalonParca AdiParca NoAdetTipApplied Date
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106-
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0401-
380 SEAL
FULL FLOATING CAB(W16) (A) 450X350 		1-76770-008-0 01 1 0212-
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) OD=25 BLACK 		1-76798-019-0 02 1 0106-
452 BOLT; BRKT
ELECTRONIC GOV RED4(Q4F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106-
603 COVER; CONT UNIT,SEAT STAND 1-75557-497-1 01 1 0106-
615 BRACKET; ECU,SEAT STAND
ELECTRONIC GOV RED4(Q4F) 		1-75557-491-0 01 1 0106-0304
615 BRACKET; ECU,SEAT STAND
ELECTRONIC GOV RED4(Q4F) 		1-75557-514-0 01 1 0305-
654 CONTROL UNIT; EXH & RETARDER
ELECTRONIC GOV RED4(Q4F) 		1-80150-044-1 01 1 0106-0111
654 CONTROL UNIT; EXH & RETARDER
ELECTRONIC GOV RED4(Q4F) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-80150-117-0 01 1 0112-
654 CONTROL UNIT; EXH & RETARDER
ELECTRONIC GOV RED4(Q4F) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-80150-118-0 01 1 0112-

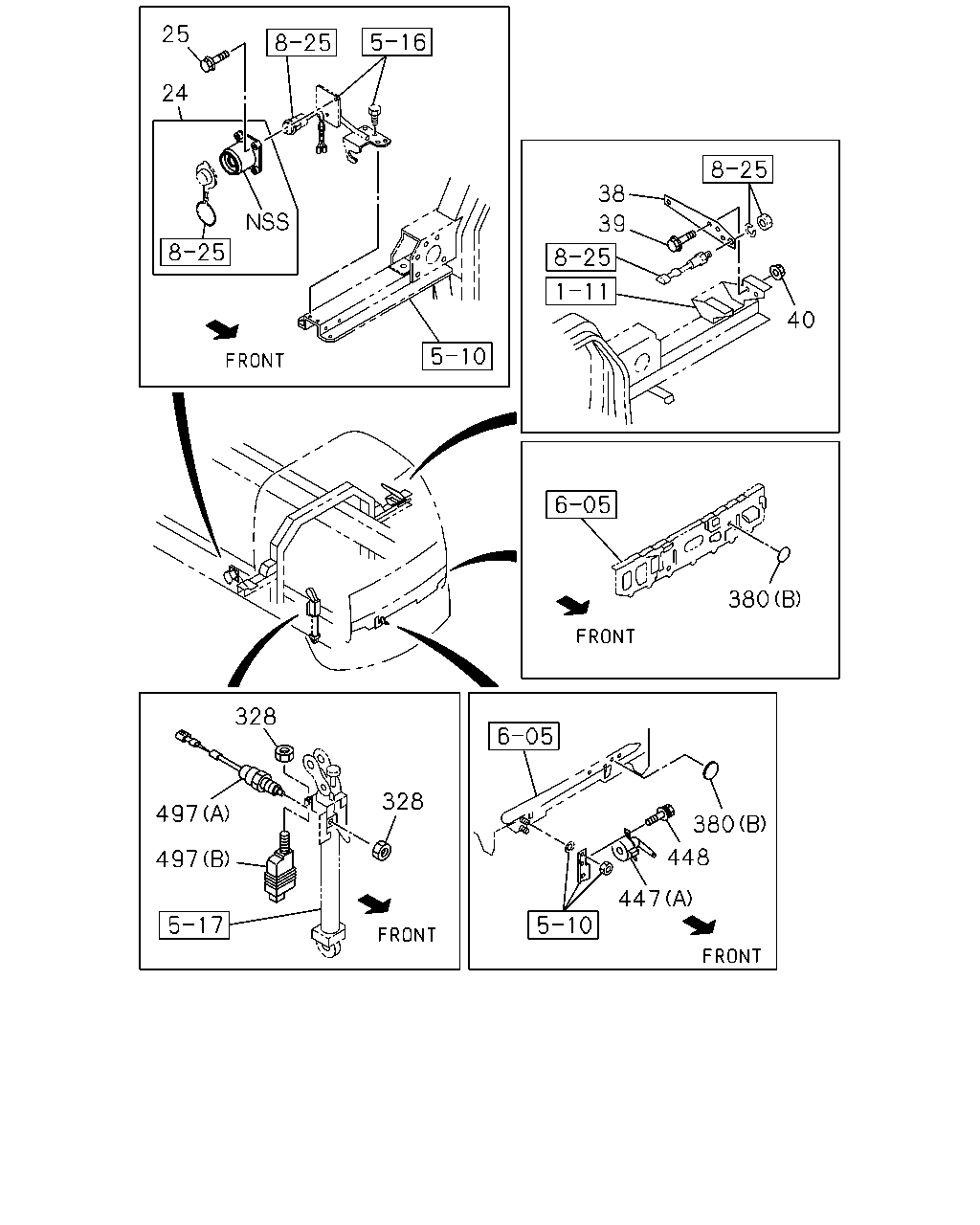

çizim 75964
25 24 38 39 40 380 328 328 497 380 448 497 447
BalonParca AdiParca NoAdetTipApplied Date
24 BOX; SW,CAB TILT
AUTO CAB TILT<WV2> 		1-82389-007-1 01 1 0106-
25 BOLT; SW BOX
AUTO CAB TILT<WV2> M6X16 FLANGE 		0-28080-616-0 02 1 0106-
38 BRACKET; SW,STARTER SUB 1-82699-741-0 01 1 0106-
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 0106-
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 0106-
328 NUT
M16 		9-99111-416-0 02 1 0106-
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0401-
380 SEAL
FULL FLOATING CAB(W16) (A) 450X350 		1-76770-008-0 01 1 0212-
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) OD=25 BLACK 		1-76798-019-0 02 1 0106-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-80250-010-1 01 1 0106-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-80250-011-1 01 1 0106-
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106-0407
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0408-
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 0106-
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 0106-

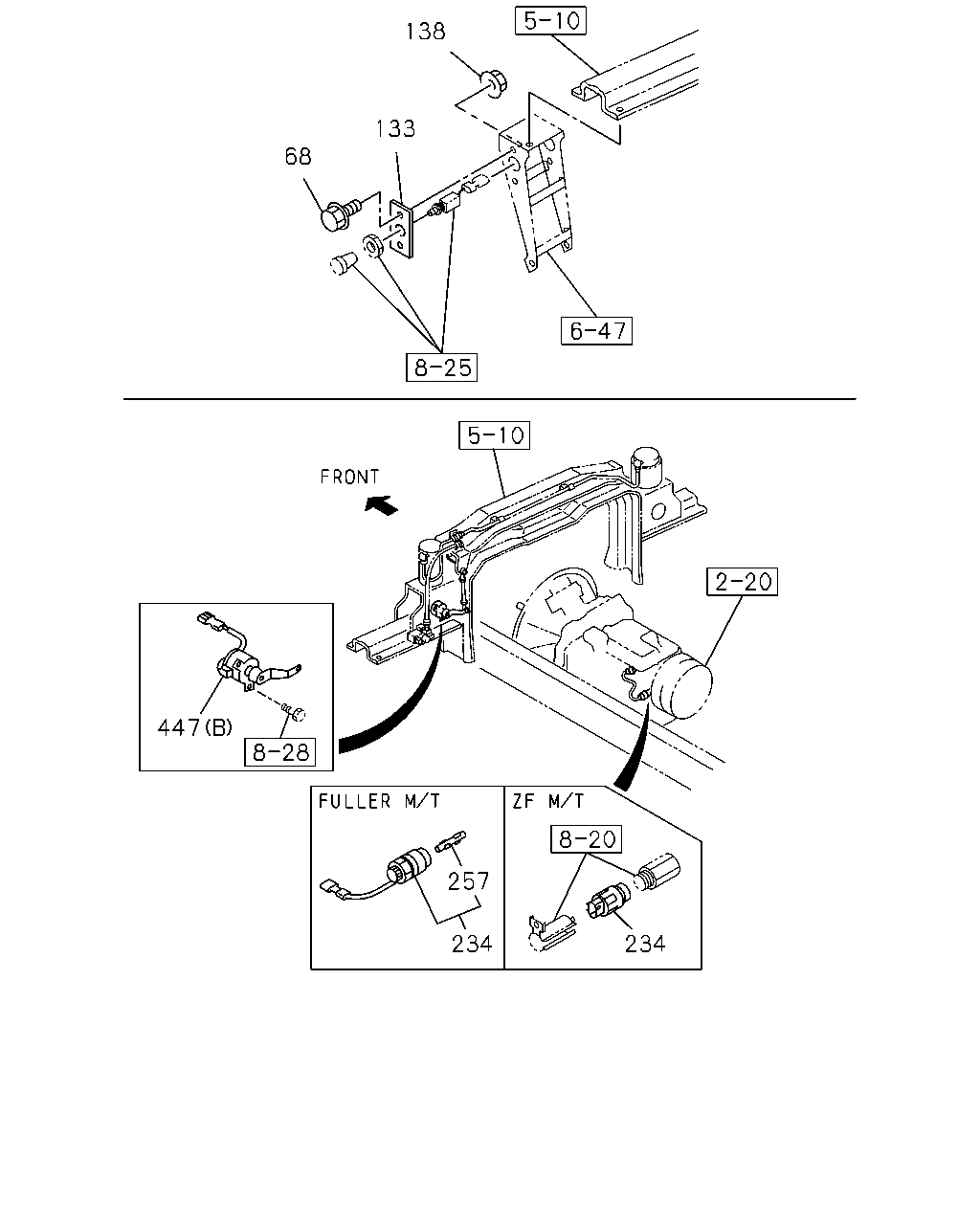

çizim 77120
138 133 68 447 257 234 234
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0106-0403
68 BOLT; BRKT
INSPECTION LAMP<T95> M8X25 FLANGE 		0-28680-825-0 02 1 0404-
133 BRACKET; SWITCH 1-82699-815-0 01 1 0106-0403
133 BRACKET; SWITCH
INSPECTION LAMP<T95> 		1-82699-815-0 01 1 0404-
138 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0106-0403
138 NUT; BRKT
INSPECTION LAMP<T95> M8 FLANGE 		0-91150-108-0 02 1 0404-
234 SENSOR; VEHICLE SPD
FULLER M/T<X9B> 25 PULSE 		1-83127-414-1 01 1 0106-
234 SENSOR; VEHICLE SPD
ZF M/T<X9E> 		1-80240-001-1 01 1 0106-0202
234 SENSOR; VEHICLE SPD
ZF M/T<X9E> 25 PULSE ALUMINUM 		8-97328-058-0 01 1 0203-
257 KEY; SPEED SENSOR
FULLER M/T<X9B> 		1-83129-073-0 01 1 0106-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-80250-010-1 01 1 0106-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-80250-011-1 01 1 0106-

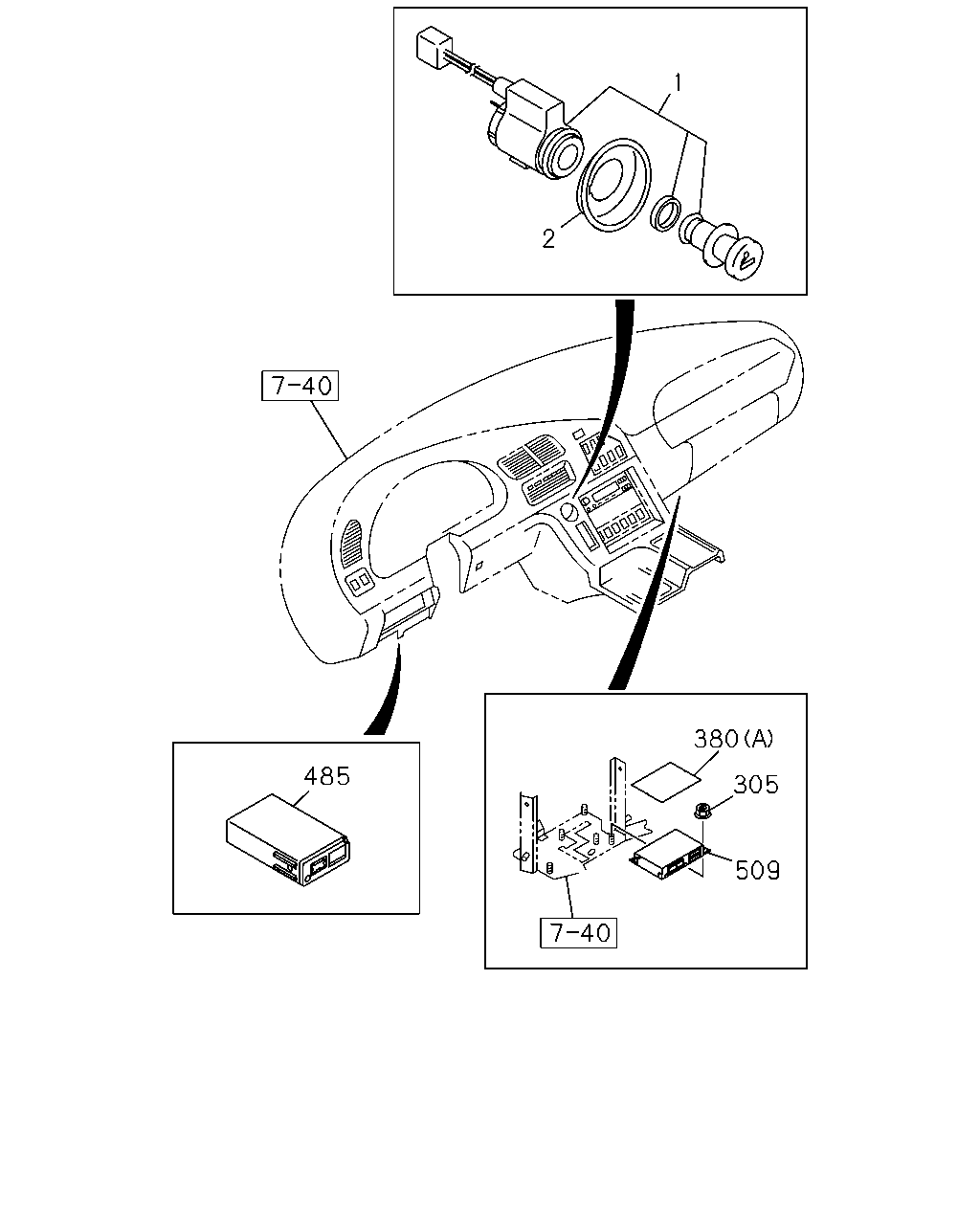

çizim 77604
1 2 380 485 305 509
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97064-970-1 01 1 0106-0108
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0106-
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91150-106-0 02 1 0106-
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0401-
380 SEAL
FULL FLOATING CAB(W16) (A) 450X350 		1-76770-008-0 01 1 0212-
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) OD=25 BLACK 		1-76798-019-0 02 1 0106-
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0106-0205
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0206-
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-042-1 01 1 0106-
