Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10872 - EXZ LHD FUEL TANK 400L/400L+400L
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#10792) — 41 parça
◀

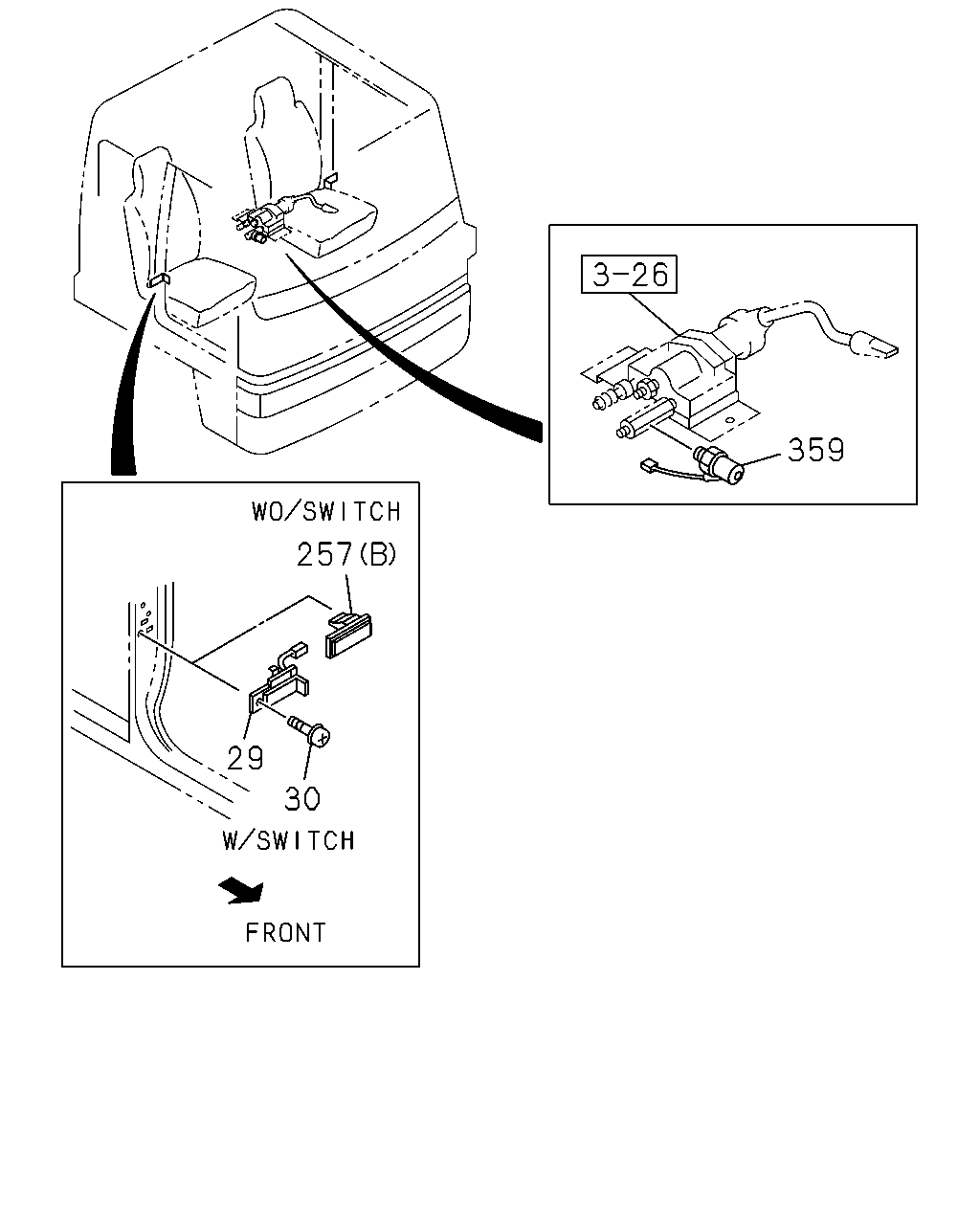

[825A] FRAME SIDE;NO.3 (1 parça)

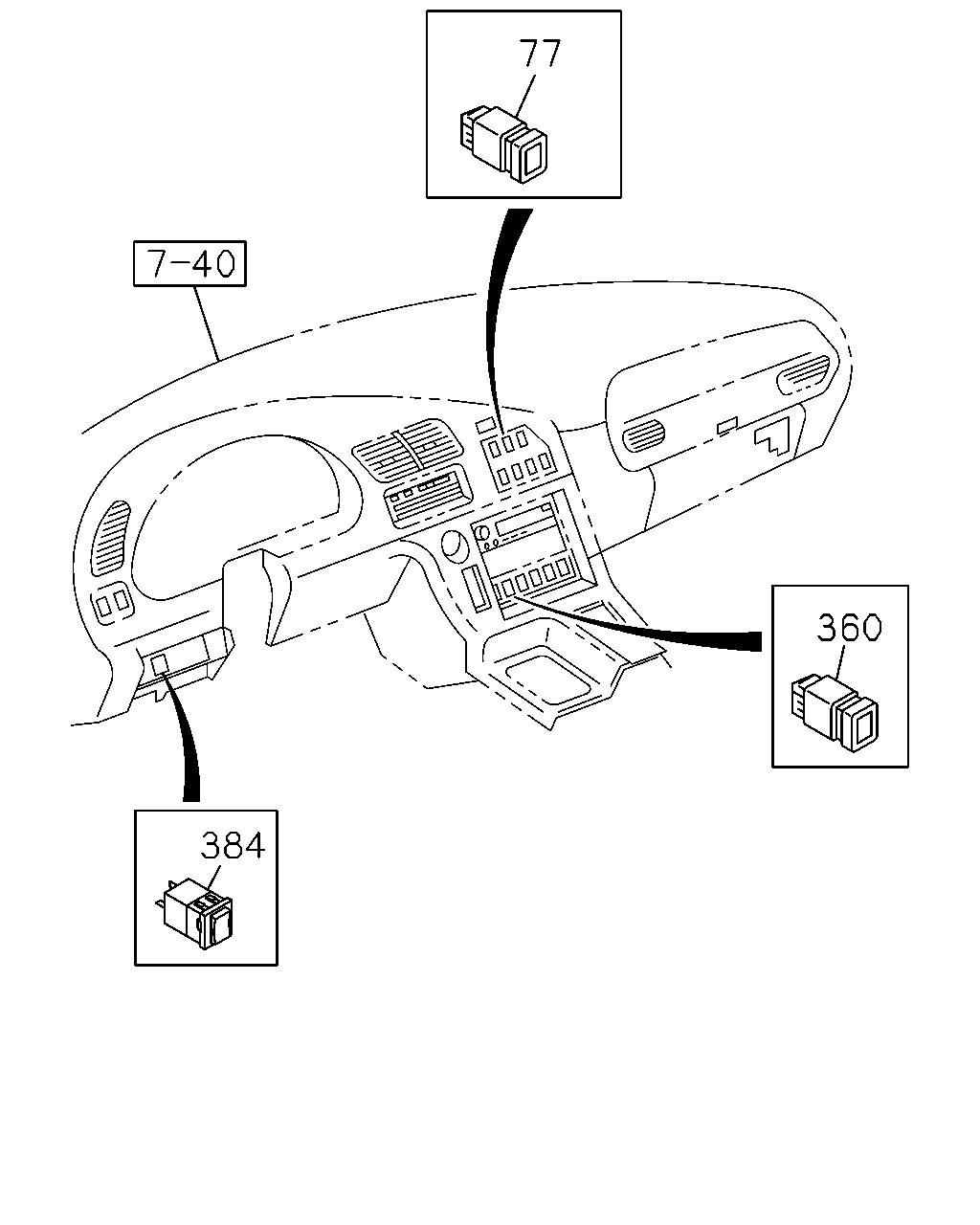

[825A] INST PANEL SIDE;NO.2 (4 parça)
[825A] FRAME SIDE;NO.1 (8 parça)

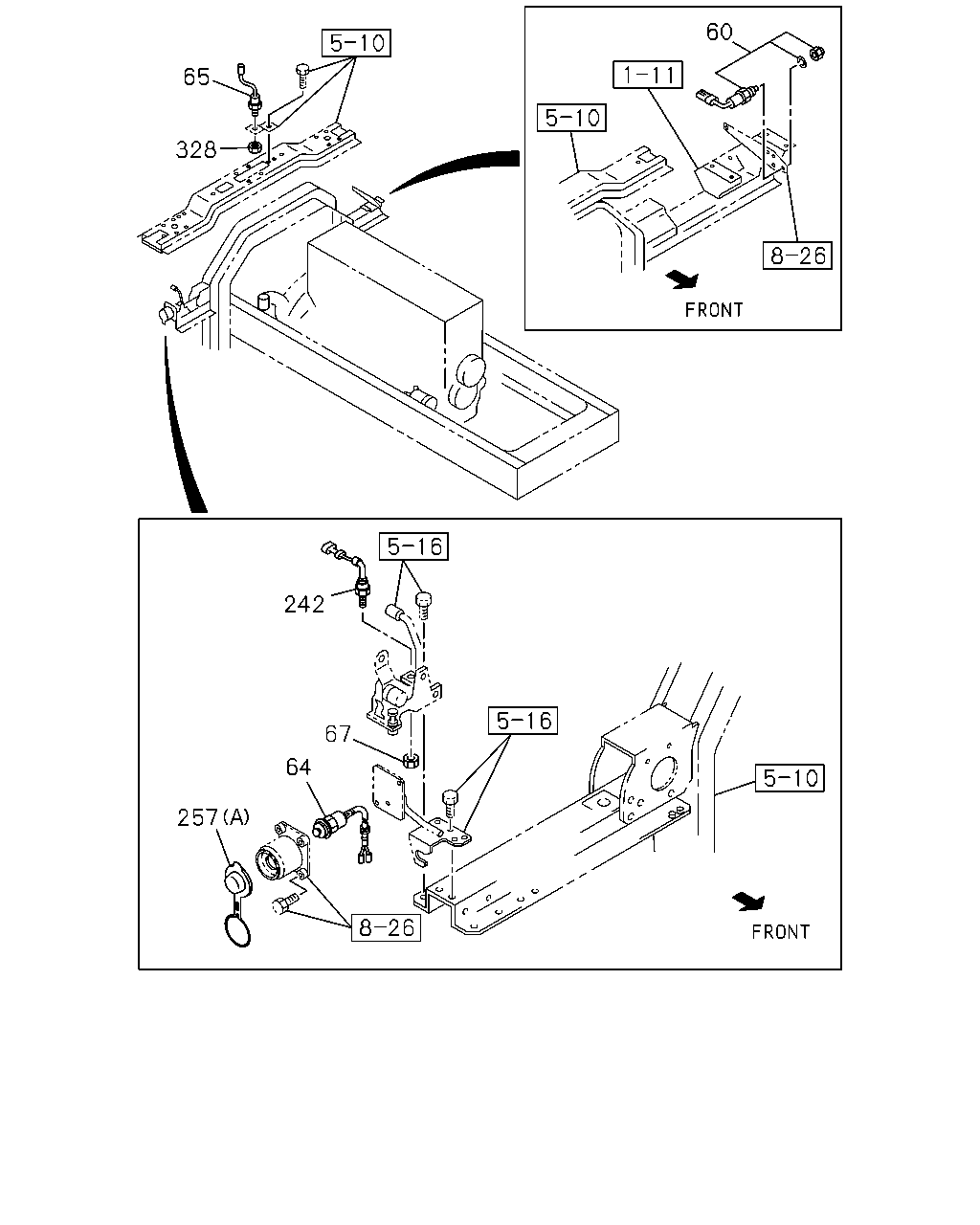

[825A] FRAME SIDE;NO.2 (10 parça)

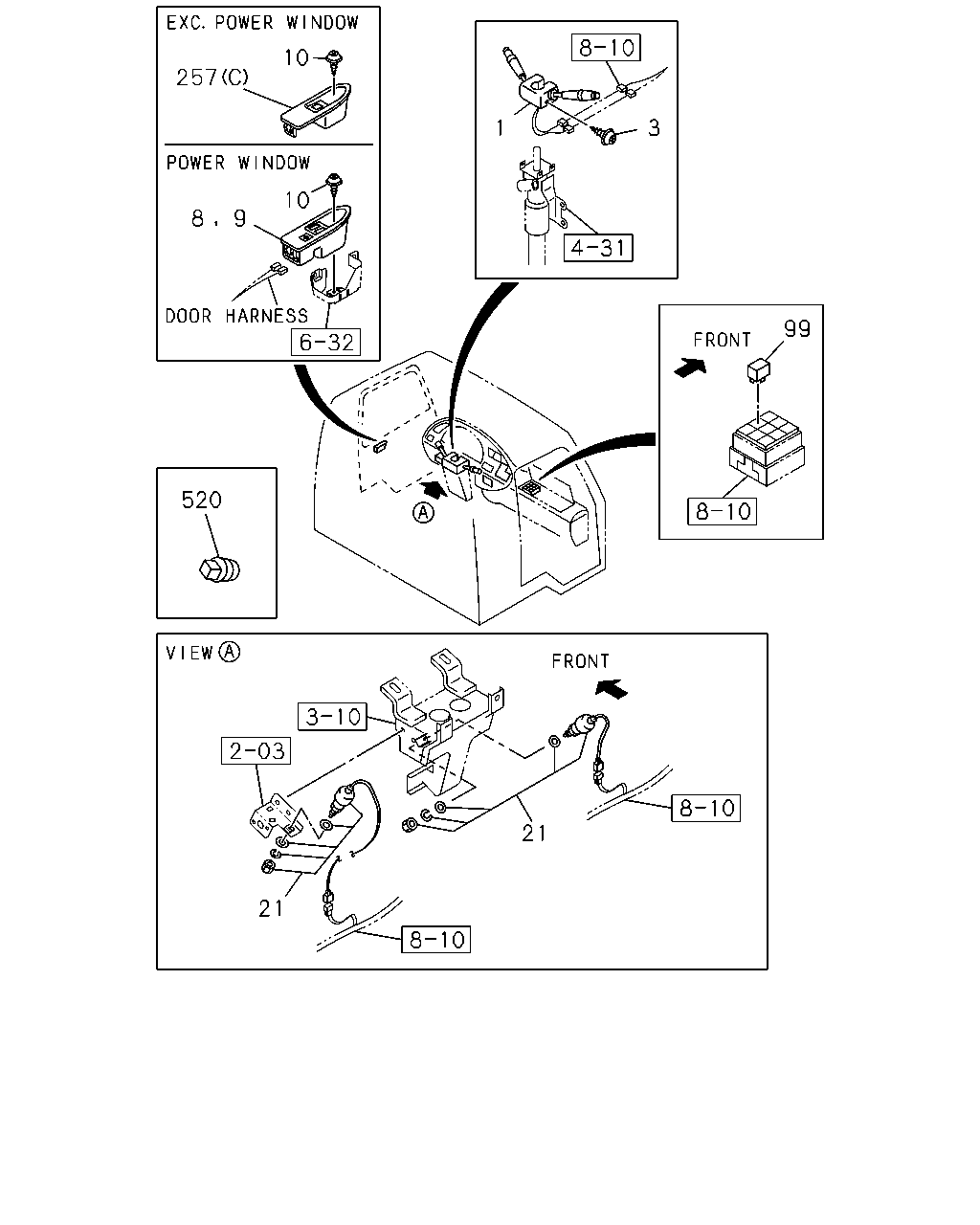

[825A] INST PANEL SIDE;NO.1 (18 parça)
▶
255
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
255
SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95>
1-82340-360-1
01
1
0106-
77
360
384
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
77
SWITCH; PTO
PTO ZF TRANS RR(BDM)
1-82340-413-0
01
1
0106-
77
SWITCH; PTO
PTO CONTROL OPERATION CAB BACK<TBZ>
1-82340-413-0
01
1
0106-
360
SWITCH ASM; DIFF LK
1-82340-677-0
01
1
0106-
384
SWITCH; IDLING CONT,ELEC
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)
1-82350-213-1
01
1
0106-
359
257
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
01
1
0106-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
0106-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
0106-
257
COVER; HOLE,SW
AUTO CAB TILT<WV2> (A)
1-82389-008-0
01
1
0106-
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C)
1-82389-012-2
01
1
0106-
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C)
1-82389-011-2
01
1
0106-
359
SWITCH; TRAILER BRAKE
GREEN
1-82410-176-0
01
1
0106-0508
359
SWITCH; TRAILER BRAKE
TRAILER BRAKE HAND CONTROL<NLG> GREEN
1-82410-176-1
01
1
0509-
60
65
328
242
67
64
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
60
SWITCH; STARTER SUB
1-82380-107-1
01
1
0106-
64
SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2>
1-82380-108-0
01
1
0106-
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
0106-
67
NUT; SW,CAB TILT
AUTO CAB TILT<WV2> M16 H=18.5
1-09409-013-0
01
1
0106-
242
SWITCH
AUTO CAB TILT<WV2> STAMP NO
1-82380-126-0
01
1
0106-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
0106-
257
COVER; HOLE,SW
AUTO CAB TILT<WV2> (A)
1-82389-008-0
01
1
0106-
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C)
1-82389-012-2
01
1
0106-
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C)
1-82389-011-2
01
1
0106-
328
NUT; SW
M16
9-99110-416-0
01
1
0106-
10
257
3
1
10
8
9
99
520
21
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-648-0
01
1
0106-0312
1
SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-735-0
01
1
0401-
1
SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-647-0
01
1
0106-0312
1
SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-734-0
01
1
0401-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
0106-
8
SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER SIDE
1-82380-157-3
01
1
0106-
9
SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER SIDE
1-82380-158-3
01
1
0106-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
0106-
21
SWITCH; CLU
1-82380-114-3
01
1
0106-
21
SWITCH; CLU
ZF M/T<X9E>
1-82380-114-3
01
1
0106-
99
RELAY; FOG LAMP
24V 12.5A JIDECO
8-97062-815-1
01
1
0106-0111
99
RELAY; FOG LAMP
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0112-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
0106-
257
COVER; HOLE,SW
AUTO CAB TILT<WV2> (A)
1-82389-008-0
01
1
0106-
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C)
1-82389-012-2
01
1
0106-
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C)
1-82389-011-2
01
1
0106-
520
PLUG; CONNECTOR
PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4
9-99204-513-0
01
1
0106-0111
520
PLUG; CONNECTOR
PT1/4
9-99204-513-0
01
1
0112-
