◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#10789) — 433 parça

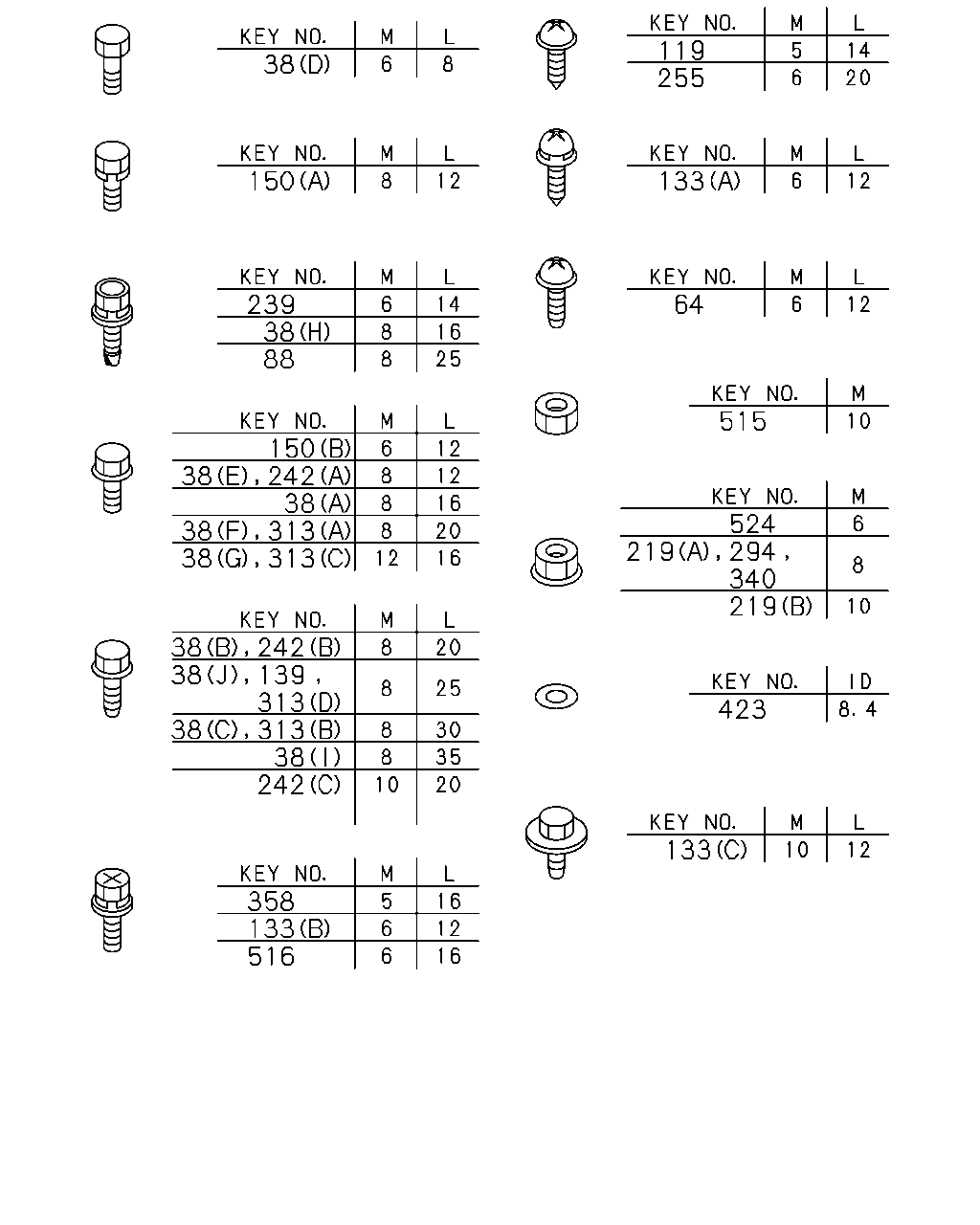

çizim 21518
119 255 38 150 133 239 38 88 64 515 150 38 524 294 340 219 219 38 139 313 38 242 423 133 358 133 516 38 242 38 38 313 313 38 242 38 313
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 07 1 0208-
38 BOLT; CLIP,HARNESS
(D) M6X8 		0-20800-608-0 01 1 0106-
38 BOLT; CLIP,HARNESS
(E) M8X12 FLANGE 		0-28080-812-0 01 1 0106-
38 BOLT; CLIP,HARNESS
(F) M8X20 FLANGE 		0-28080-820-0 01 1 0106-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0106
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0106
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0106
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B>,ZF M/T<X9E> (B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0403
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0403
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B>,ZF M/T<X9E> (B) M8X20 FLANGE 		0-28680-820-0 01 1 0404-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X20 FLANGE 		0-28680-820-0 01 1 0404-
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE 		0-28680-820-0 01 1 0404-
38 BOLT; CLIP,HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0404-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 05 1 0106-0106
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0107
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0112
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0112
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0201-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0201-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0201-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 03 1 0106-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 09 1 0106-0207
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 02 1 0208-
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		1-09044-079-0 01 1 0106-
38 BOLT; CLIP,HARNESS
(H) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0106-
38 BOLT; CLIP,HARNESS
(I) M8X35 FLANGE 		0-28680-835-0 02 1 0107-0112
38 BOLT; CLIP,HARNESS
(I) M8X35 FLANGE 		0-28680-835-0 01 1 0201-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0106-
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (C) M8X30 FLANGE 		0-28680-830-0 02 1 0106-0108
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (C) M8X30 FLANGE 		0-28680-830-0 01 1 0109-0112
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (C) M8X30 FLANGE 		0-28680-830-0 01 1 0201-0403
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (J) M8X25 FLANGE 		0-28080-825-0 01 1 0109-0112
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (J) M8X25 FLANGE 		0-28080-825-0 01 1 0201-
64 SCREW; CLIP
ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0106-0112
64 SCREW; CLIP
6WF1 TC-C(1B8),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0201-
64 SCREW; CLIP
6WA1 TC-C(55L) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0201-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0106-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0106-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0106-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
139 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE 		0-28680-825-0 01 1 0106-
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X12 W/LK WASHER 		0-50040-812-0 01 1 0106-
150 BOLT; CLIP
6WF1 TC-C(1B8) (B) M6X12 FLANGE 		0-28080-612-0 01 1 0106-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 07 1 0208-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106
219 NUT
FULLER M/T<X9B> (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106
219 NUT
FULLER M/T<X9B> (A) M8 FLANGE 		0-91150-108-0 01 1 0107-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0107-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0106-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0111-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0111-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0106-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0107-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 09 1 0106-0207
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0208-
219 NUT
(B) M10 FLANGE 		0-91250-210-0 01 1 0106-0110
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0106-
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28080-812-0 01 1 0106-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0106-
242 BOLT; BRKT,HARNESS
(C) M10X20 FLANGE 		0-28681-020-0 02 1 0106-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0106-
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0106-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0106-0106
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0106-0106
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 01 1 0106-0106
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0106-
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 01 1 0106-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0106-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0106
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0106
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0106-
313 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) (C) M12X16 		0-28181-216-0 01 1 0107-0108
313 BOLT; BRKT
ZF M/T<X9E> (D) M8X20 FLANGE 		0-28680-820-0 01 1 0106-
313 BOLT; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) M8X20 FLANGE 		0-28080-820-0 01 1 0106-0112
313 BOLT; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L) (A) M8X20 FLANGE 		0-28080-820-0 01 1 0201-0211
313 BOLT; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L) (A) M8X20 FLANGE 		0-28080-820-0 02 1 0212-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0106-0211
340 NUT; HARNESS CAB TO FRAME
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE 		0-91150-108-0 01 1 0106-0211
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0212-
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0106-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0106-
515 NUT; BRKT
M10 		9-09110-510-0 02 1 0106-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 02 1 0106-

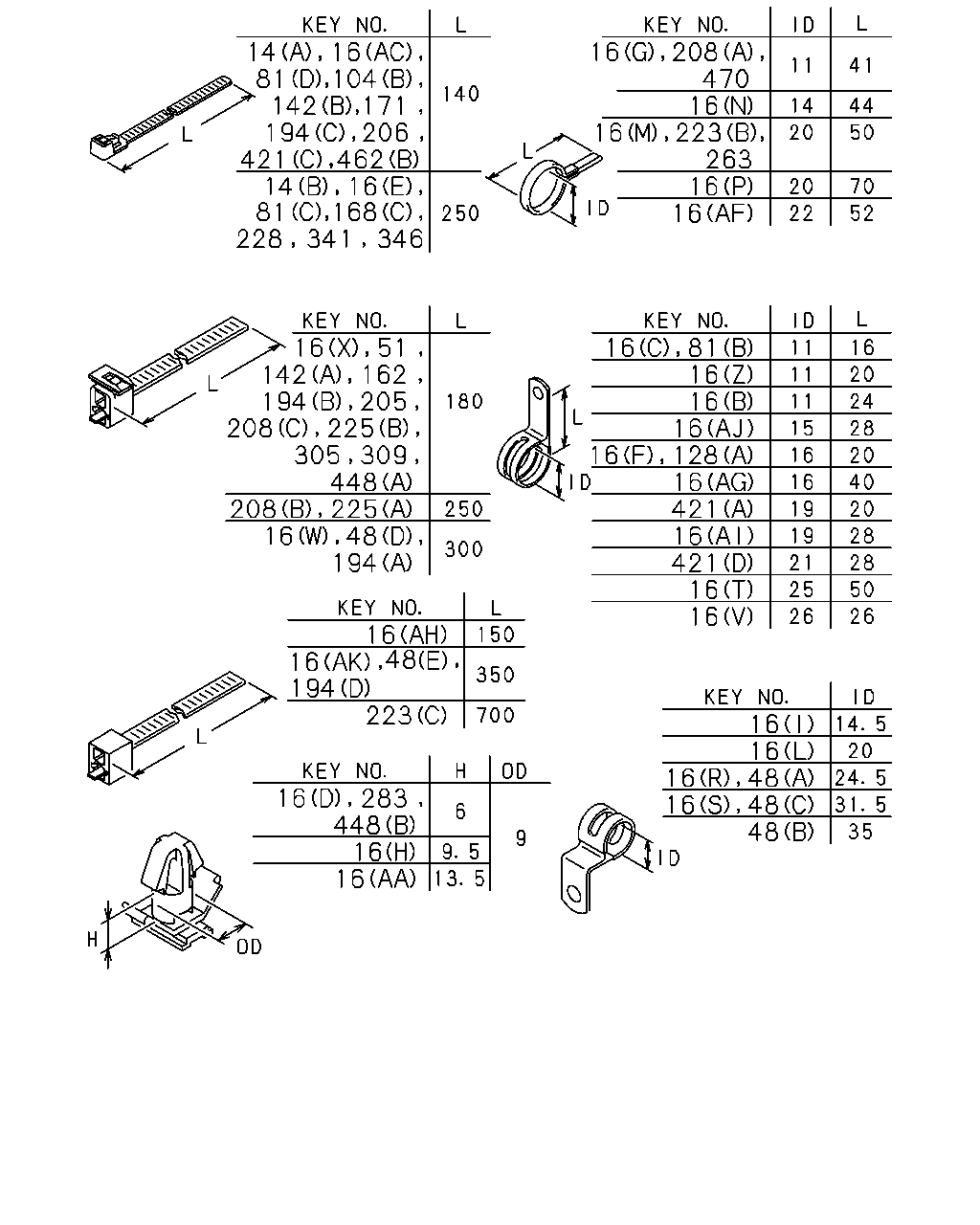

çizim 21520
14 16 81 104 142 171 194 206 421 462 14 16 81 168 228 341 346 16 51 142 205 194 208 225 305 309 448 208 225 16 48 194 16 16 48 194 223 16 283 448 16 16 16 208 470 16 16 223 263 16 16 16 81 16 16 16 16 128 16 421 16 421 16 16 16 16 16 48 16 48 48 162
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250 		5-09707-030-1 02 1 0106-
14 CLIP; BAND,HARNESS
P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250 		5-09707-030-1 02 1 0106-
14 CLIP; BAND,HARNESS
P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=140 		5-09707-031-1 01 1 0106-0404
14 CLIP; BAND,HARNESS
P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=140 		5-09707-031-1 01 1 0106-0404
14 CLIP; BAND,HARNESS
P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=140 		5-09707-031-1 01 1 0405-
14 CLIP; BAND,HARNESS
P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=140 		5-09707-031-1 01 1 0405-
14 CLIP; BAND,HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (A) L=140 		5-09707-031-1 01 1 0405-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (L) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
ZF M/T<X9E> (F) ID=16 L=20 		9-09525-535-0 01 1 0206-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 01 1 0106-0106
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 04 1 0107-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 07 1 0106-0106
16 CLIP; HARNESS
(AJ) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 0106-
16 CLIP; HARNESS
(P) ID=20 L=70 		1-09700-485-0 04 1 0106-
16 CLIP; HARNESS
(Q) ID=15 L=35 		1-09700-507-0 01 1 0106-
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0106-0106
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-0108
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-0112
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-0112
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0201-
16 CLIP; HARNESS
(S) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0106-
16 CLIP; HARNESS
(T) ID=25 L=50 		1-09701-019-0 02 1 0106-0106
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (G) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(V) ID=26 L=26 		1-09701-236-0 01 1 0106-
16 CLIP; HARNESS
(W) L=300 		1-09707-001-1 03 1 0106-0504
16 CLIP; HARNESS
(AK) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(X) L=180 		1-09707-162-1 01 1 0106-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(X) L=180 		1-09707-162-1 02 1 0106-
16 CLIP; HARNESS
(Y) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0106-
16 CLIP; HARNESS
(Y) W/SPONGE RUBBER 		1-09709-150-0 01 1 0106-
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 06 1 0106-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0107-
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 0106-0106
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 0106-0106
16 CLIP; HARNESS
(N) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
(N) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
(AA) OD=9 H=13.5 		1-09709-180-0 01 1 0106-
16 CLIP; HARNESS
(AB) ID=6-10 & 6-10 		1-09709-192-1 01 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 0106-
16 CLIP; HARNESS
ZF M/T<X9E> (E) L=250 		5-09707-030-1 03 1 0106-
16 CLIP; HARNESS
(AC) L=140 		5-09707-031-1 02 1 0106-
16 CLIP; HARNESS
(AD) ID=7-10 		8-94472-578-0 01 1 0106-
16 CLIP; HARNESS
(AE) ID=14-20 		8-97061-603-0 03 1 0106-
16 CLIP; HARNESS
(F) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
(F) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
(F) ID=16 L=20 		9-09525-535-0 01 1 0106-0108
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (F) ID=16 L=20 		9-09525-535-0 01 1 0106-0108
16 CLIP; HARNESS
FULLER M/T<X9B> (F) ID=16 L=20 		9-09525-535-0 01 1 0106-0108
16 CLIP; HARNESS
(F) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
FULLER M/T<X9B> (F) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
FULLER M/T<X9B> (F) ID=16 L=20 		9-09525-535-0 02 1 0206-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 08 1 0106-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0106-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0106-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0106-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 03 1 0106-
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AH) L=150 		1-09707-145-1 01 1 0106-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=16 		9-09525-025-0 01 1 0106-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=24 		9-09525-045-0 01 1 0106-
16 CLIP; HARNESS
FULLER M/T<X9B> (D) OD=9 H=6 		1-09709-178-0 02 1 0106-0106
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (D) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
FULLER M/T<X9B> (E) L=250 		5-09707-030-1 02 1 0106-
16 CLIP; HARNESS
FULLER M/T<X9B> (D) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (H) OD=9 H=9.5 		1-09709-179-0 01 1 0106-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (A) L=20 		1-09987-246-2 04 1 0106-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (J) ID=15 H=30 L=30 		1-09700-832-0 01 1 0106-0106
16 CLIP; HARNESS
ZF M/T<X9E> (AI) ID=19 L=28 		9-09525-856-0 01 1 0106-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (I) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0106-0108
16 CLIP; HARNESS
ZF M/T<X9E> (I) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0109-
16 CLIP; HARNESS
ZF M/T<X9E> (G) ID=11 L=41 		1-09700-403-0 02 1 0106-0106
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0106-0106
16 CLIP; HARNESS
ZF M/T<X9E> (G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (D) OD=9 H=6 		1-09709-178-0 03 1 0106-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (AG) ID=16 L=40 		9-09525-576-0 01 1 0106-0205
16 CLIP; HARNESS
FULLER M/T<X9B> (AG) ID=16 L=40 		9-09525-576-0 01 1 0206-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (K) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0106-0112
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (K) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0201-0402
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (K) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-0403
16 CLIP; HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (K) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (K) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (L) ID=20 H=23 L=27 		1-09700-861-0 01 1 0106-0109
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (N) ID=14 L=44 		9-09917-427-0 01 1 0106-0106
16 CLIP; HARNESS
(N) ID=14 L=44 		9-09917-427-0 01 1 0106-0106
16 CLIP; HARNESS
(N) ID=14 L=44 		9-09917-427-0 01 1 0106-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (X) L=180 		1-09707-162-1 01 1 0107-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (M) ID=20 L=50 		9-09917-430-0 02 1 0106-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0110-0112
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (M) ID=20 L=50 		9-09917-430-0 03 1 0110-0112
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0201-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (M) ID=20 L=50 		9-09917-430-0 03 1 0201-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=11 L=20 		9-09525-032-0 01 1 0106-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0106-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0106-
48 CLIP; FRAME HARNESS
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0106-
48 CLIP; FRAME HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0106-
48 CLIP; FRAME HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0106-0111
48 CLIP; FRAME HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0112-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 02 1 0106-0504
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 02 1 0505-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 06 1 0106-0504
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 06 1 0505-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 0106-
81 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0106-
81 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 0106-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		9-09525-025-0 01 1 0106-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=7-10 		8-94472-578-0 02 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 08 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) L=140 		5-09707-031-1 02 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=21 L=47.5 		8-94178-108-0 02 1 0106-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0106-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0106-
142 CLIP; HARNESS,ENG
6WA1 TC-C(55L) (A) L=180 		1-09707-162-1 01 1 0106-0107
142 CLIP; HARNESS,ENG
6WF1 TC-C(1B8) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=180 		1-09707-162-1 01 1 0106-0107
142 CLIP; HARNESS,ENG
6WG1 TC-N(71L),6WG1 TC-C(72L) (A) L=180 		1-09707-162-1 02 1 0108-0112
142 CLIP; HARNESS,ENG
6WF1 TC-C(1B8) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=180 		1-09707-162-1 02 1 0108-0112
142 CLIP; HARNESS,ENG
6WG1 TC-N(71L) (A) L=180 		1-09707-162-1 02 1 0201-
142 CLIP; HARNESS,ENG
6WF1 TC-C(1B8) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=180 		1-09707-162-1 02 1 0201-
142 CLIP; HARNESS,ENG
6WG1 TC-N(71L),6WG1 TC-C(72L) (A) L=180 		1-09707-162-1 02 1 0106-0107
142 CLIP; HARNESS,ENG
6WF1 TC-C(1B8) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=180 		1-09707-162-1 02 1 0106-0107
142 CLIP; HARNESS,ENG
6WA1 TC-C(55L) (A) L=180 		1-09707-162-1 01 1 0108-
142 CLIP; HARNESS,ENG
6WF1 TC-C(1B8) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=180 		1-09707-162-1 01 1 0108-
142 CLIP; HARNESS,ENG
(B) L=140 		5-09707-031-1 01 1 0111-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0106-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0106-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0106-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULL FLOATING CAB(W16) (C) L=250 		5-09707-030-1 01 1 0109-0109
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 0106-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0106-0504
194 CLIP; BAND
(D) L=350 		1-09707-183-0 01 1 0505-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0106-0112
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0106-0112
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0201-0305
194 CLIP; BAND
ELECTRONIC GOV RED3(KG5) (B) L=180 		1-09707-162-1 01 1 0201-0305
194 CLIP; BAND
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ELECTRONIC GOV RED4(Q4F) (B) L=180 		1-09707-162-1 01 1 0201-0305
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0306-
194 CLIP; BAND
6WA1 TC-C(55L) EXC. RLD GOVERNOR(SD7),EURO2 SPECIFICATION<THN> (B) L=180 		1-09707-162-1 01 1 0306-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0106-0112
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0201-0305
194 CLIP; BAND
ELECTRONIC GOV RED4(Q4F) (C) L=140 		5-09707-031-1 01 1 0201-0305
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0306-
194 CLIP; BAND
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (C) L=140 		5-09707-031-1 01 1 0306-
194 CLIP; BAND
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) L=140 		5-09707-031-1 01 1 0306-
205 CLIP; BACK LAMP HARNESS
L=180 		1-09707-162-1 01 1 0106-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0106-
208 CLIP; HARNESS,MAG VLV
(B) L=250 		1-09707-126-0 01 1 0106-
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=41 		1-09700-403-0 01 1 0106-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> (C) L=180 		1-09707-162-1 01 1 0112-
223 CLIP; AIR TANK HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 02 1 0106-0111
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0112-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> EXC. AUTO DRAIN<J78> (C) L=700 		1-09707-190-0 02 1 0112-
225 CLIP; AIR TANK HARNESS
(A) L=250 		1-09707-126-0 01 1 0106-0111
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 03 1 0106-0111
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 04 1 0112-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 02 1 0106-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 01 1 0106-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0106-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0106-
309 CLIP; HARNESS,HAND BRAKE CABLE
L=180 		1-09707-162-1 01 1 0106-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 0106-
346 CLIP; BAND FRAME HARNESS
L=250 		5-09707-030-1 01 1 0212-
421 CLIP; FLOOR HARNESS
(B) L=20 		1-09987-246-2 01 1 0106-0207
421 CLIP; FLOOR HARNESS
(A) ID=19 L=20 		9-09525-832-0 02 1 0106-0106
421 CLIP; FLOOR HARNESS
(D) ID=21 L=28 		1-09700-673-1 02 1 0106-
421 CLIP; FLOOR HARNESS
ELECTRONIC GOV RED4(Q4F) (B) L=20 		1-09987-246-2 05 1 0106-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) L=140 		5-09707-031-1 01 1 0106-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0106-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 0106-0106
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0301-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0301-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0106-
çizim 75788
16 16 16 116 421 16 16 16 16 16 104 223 16 81 16 104 168 168 128 148 462
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (L) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
ZF M/T<X9E> (F) ID=16 L=20 		9-09525-535-0 01 1 0206-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 01 1 0106-0106
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 04 1 0107-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 07 1 0106-0106
16 CLIP; HARNESS
(AJ) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 0106-
16 CLIP; HARNESS
(P) ID=20 L=70 		1-09700-485-0 04 1 0106-
16 CLIP; HARNESS
(Q) ID=15 L=35 		1-09700-507-0 01 1 0106-
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0106-0106
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-0108
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-0112
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-0112
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0201-
16 CLIP; HARNESS
(S) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0106-
16 CLIP; HARNESS
(T) ID=25 L=50 		1-09701-019-0 02 1 0106-0106
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (G) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(V) ID=26 L=26 		1-09701-236-0 01 1 0106-
16 CLIP; HARNESS
(W) L=300 		1-09707-001-1 03 1 0106-0504
16 CLIP; HARNESS
(AK) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(X) L=180 		1-09707-162-1 01 1 0106-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(X) L=180 		1-09707-162-1 02 1 0106-
16 CLIP; HARNESS
(Y) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0106-
16 CLIP; HARNESS
(Y) W/SPONGE RUBBER 		1-09709-150-0 01 1 0106-
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 06 1 0106-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0107-
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 0106-0106
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 0106-0106
16 CLIP; HARNESS
(N) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
(N) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
(AA) OD=9 H=13.5 		1-09709-180-0 01 1 0106-
16 CLIP; HARNESS
(AB) ID=6-10 & 6-10 		1-09709-192-1 01 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 0106-
16 CLIP; HARNESS
ZF M/T<X9E> (E) L=250 		5-09707-030-1 03 1 0106-
16 CLIP; HARNESS
(AC) L=140 		5-09707-031-1 02 1 0106-
16 CLIP; HARNESS
(AD) ID=7-10 		8-94472-578-0 01 1 0106-
16 CLIP; HARNESS
(AE) ID=14-20 		8-97061-603-0 03 1 0106-
16 CLIP; HARNESS
(F) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
(F) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
(F) ID=16 L=20 		9-09525-535-0 01 1 0106-0108
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (F) ID=16 L=20 		9-09525-535-0 01 1 0106-0108
16 CLIP; HARNESS
FULLER M/T<X9B> (F) ID=16 L=20 		9-09525-535-0 01 1 0106-0108
16 CLIP; HARNESS
(F) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
FULLER M/T<X9B> (F) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
FULLER M/T<X9B> (F) ID=16 L=20 		9-09525-535-0 02 1 0206-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 08 1 0106-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0106-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0106-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0106-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 03 1 0106-
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AH) L=150 		1-09707-145-1 01 1 0106-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=16 		9-09525-025-0 01 1 0106-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=24 		9-09525-045-0 01 1 0106-
16 CLIP; HARNESS
FULLER M/T<X9B> (D) OD=9 H=6 		1-09709-178-0 02 1 0106-0106
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (D) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
FULLER M/T<X9B> (E) L=250 		5-09707-030-1 02 1 0106-
16 CLIP; HARNESS
FULLER M/T<X9B> (D) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (H) OD=9 H=9.5 		1-09709-179-0 01 1 0106-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (A) L=20 		1-09987-246-2 04 1 0106-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (J) ID=15 H=30 L=30 		1-09700-832-0 01 1 0106-0106
16 CLIP; HARNESS
ZF M/T<X9E> (AI) ID=19 L=28 		9-09525-856-0 01 1 0106-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (I) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0106-0108
16 CLIP; HARNESS
ZF M/T<X9E> (I) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0109-
16 CLIP; HARNESS
ZF M/T<X9E> (G) ID=11 L=41 		1-09700-403-0 02 1 0106-0106
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0106-0106
16 CLIP; HARNESS
ZF M/T<X9E> (G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (D) OD=9 H=6 		1-09709-178-0 03 1 0106-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (AG) ID=16 L=40 		9-09525-576-0 01 1 0106-0205
16 CLIP; HARNESS
FULLER M/T<X9B> (AG) ID=16 L=40 		9-09525-576-0 01 1 0206-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (K) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0106-0112
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (K) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0201-0402
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (K) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-0403
16 CLIP; HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (K) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (K) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (L) ID=20 H=23 L=27 		1-09700-861-0 01 1 0106-0109
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (N) ID=14 L=44 		9-09917-427-0 01 1 0106-0106
16 CLIP; HARNESS
(N) ID=14 L=44 		9-09917-427-0 01 1 0106-0106
16 CLIP; HARNESS
(N) ID=14 L=44 		9-09917-427-0 01 1 0106-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (X) L=180 		1-09707-162-1 01 1 0107-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (M) ID=20 L=50 		9-09917-430-0 02 1 0106-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0110-0112
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (M) ID=20 L=50 		9-09917-430-0 03 1 0110-0112
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0201-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (M) ID=20 L=50 		9-09917-430-0 03 1 0201-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=11 L=20 		9-09525-032-0 01 1 0106-
81 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0106-
81 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 0106-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		9-09525-025-0 01 1 0106-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=7-10 		8-94472-578-0 02 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 08 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) L=140 		5-09707-031-1 02 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=21 L=47.5 		8-94178-108-0 02 1 0106-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0106-0112
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 		1-09987-246-2 06 1 0201-
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 		1-09987-246-2 05 1 0201-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0106-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0106-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0106-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0106-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0106-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULL FLOATING CAB(W16) (C) L=250 		5-09707-030-1 01 1 0109-0109
223 CLIP; AIR TANK HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 02 1 0106-0111
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0112-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> EXC. AUTO DRAIN<J78> (C) L=700 		1-09707-190-0 02 1 0112-
421 CLIP; FLOOR HARNESS
(B) L=20 		1-09987-246-2 01 1 0106-0207
421 CLIP; FLOOR HARNESS
(A) ID=19 L=20 		9-09525-832-0 02 1 0106-0106
421 CLIP; FLOOR HARNESS
(D) ID=21 L=28 		1-09700-673-1 02 1 0106-
421 CLIP; FLOOR HARNESS
ELECTRONIC GOV RED4(Q4F) (B) L=20 		1-09987-246-2 05 1 0106-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) L=140 		5-09707-031-1 01 1 0106-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0301-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0301-

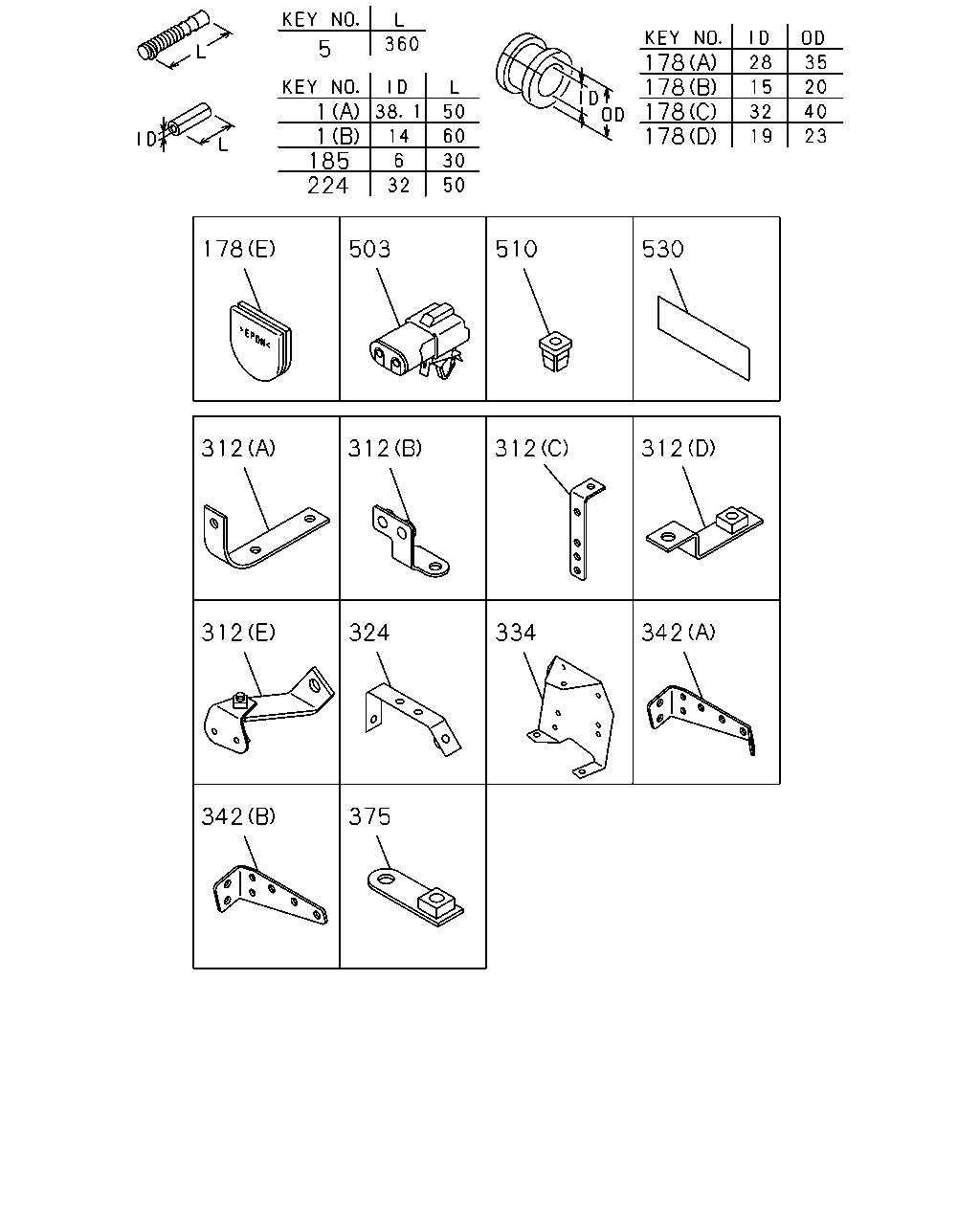

çizim 75809
178 178 178 178 5 1 1 185 224 178 503 510 530 312 312 312 312 312 324 334 342 342 375
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 L=50 		5-09360-835-0 01 1 0212-
1 SLEEVE; RUBBER
ELECTRONIC GOV RED4(Q4F) (B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0201-
5 GUIDE; HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=360 		1-82699-476-1 01 1 0106-0403
5 GUIDE; HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> L=360 		1-82699-476-1 01 1 0404-
5 GUIDE; HARNESS
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=360 		1-82699-476-1 01 1 0404-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0106-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0106-
178 GROMMET; HARNESS
AIR DRYER<PS7> (B) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0106-
178 GROMMET; HARNESS
(C) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0106-
178 GROMMET; HARNESS
(E) 		1-82699-891-0 01 1 0106-
178 GROMMET; HARNESS
(D) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0106-0106
178 GROMMET; HARNESS
INSPECTION LAMP<T95> (D) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0107-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0106-
224 SLEEVE; RUBBER,HARNESS
P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0106-
224 SLEEVE; RUBBER,HARNESS
P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0106-
312 BRACKET; CLIP HARNESS
(B) L=60 H=30 		1-47477-716-1 01 1 0106-
312 BRACKET; CLIP HARNESS
(A) 		1-47478-769-0 01 1 0106-
312 BRACKET; CLIP HARNESS
(C) 		1-82698-358-0 01 1 0106-0106
312 BRACKET; CLIP HARNESS
(C) 		1-82698-358-0 02 1 0106-
312 BRACKET; CLIP HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (E) 		1-47477-902-0 01 1 0107-0108
312 BRACKET; CLIP HARNESS
ZF M/T<X9E> (D) 		1-82699-304-0 01 1 0106-
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82698-258-0 01 1 0106-
334 BRACKET 1-53458-709-1 01 1 0106-
342 BRACKET; HARNESS CAB MTG
ZF M/T<X9E> (A) 		1-82698-224-0 01 1 0106-
342 BRACKET; HARNESS CAB MTG
EXC. ZF M/T<X9E> (B) 		1-82699-625-0 01 1 0106-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0106-
503 CONNECTOR
EXC. AUTO CAB TILT<WV2> 2P MALE LIGHT GRAY 		1-82691-078-0 01 1 0106-
510 GROMMET; SCREW
ELECTRONIC GOV RED3(KG5) D=9.7X9.7 L=8 		8-94222-314-0 02 1 0106-0112
510 GROMMET; SCREW
6WF1 TC-C(1B8),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) D=9.7X9.7 L=8 		8-94222-314-0 02 1 0201-
510 GROMMET; SCREW
6WA1 TC-C(55L) D=9.7X9.7 L=8 		8-94222-314-0 02 1 0201-
530 SEAL; HARNESS
180X40 		1-72498-019-0 01 1 0106-
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0106-0207
530 SEAL; HARNESS
180X40 		1-72498-019-0 08 1 0208-
530 SEAL; HARNESS
ELECTRONIC GOV RED4(Q4F) 180X40 		1-72498-019-0 06 1 0106-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-0 01 1 0106-
530 SEAL; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) 180X40 		1-72498-019-0 04 1 0106-0112
530 SEAL; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) 180X40 		1-72498-019-0 04 1 0201-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
