◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#10786) — 30 parça
çizim 75176
250 253
BalonParca AdiParca NoAdetTipApplied Date
250 LAMP ASM; SEARCH LIGHT
INSPECTION LAMP<T95> 		1-82180-014-0 01 1 0106-
253 BULB; SEARCH LIGHT
INSPECTION LAMP<T95> 24V 70W 		1-82194-087-0 01 1 0106-

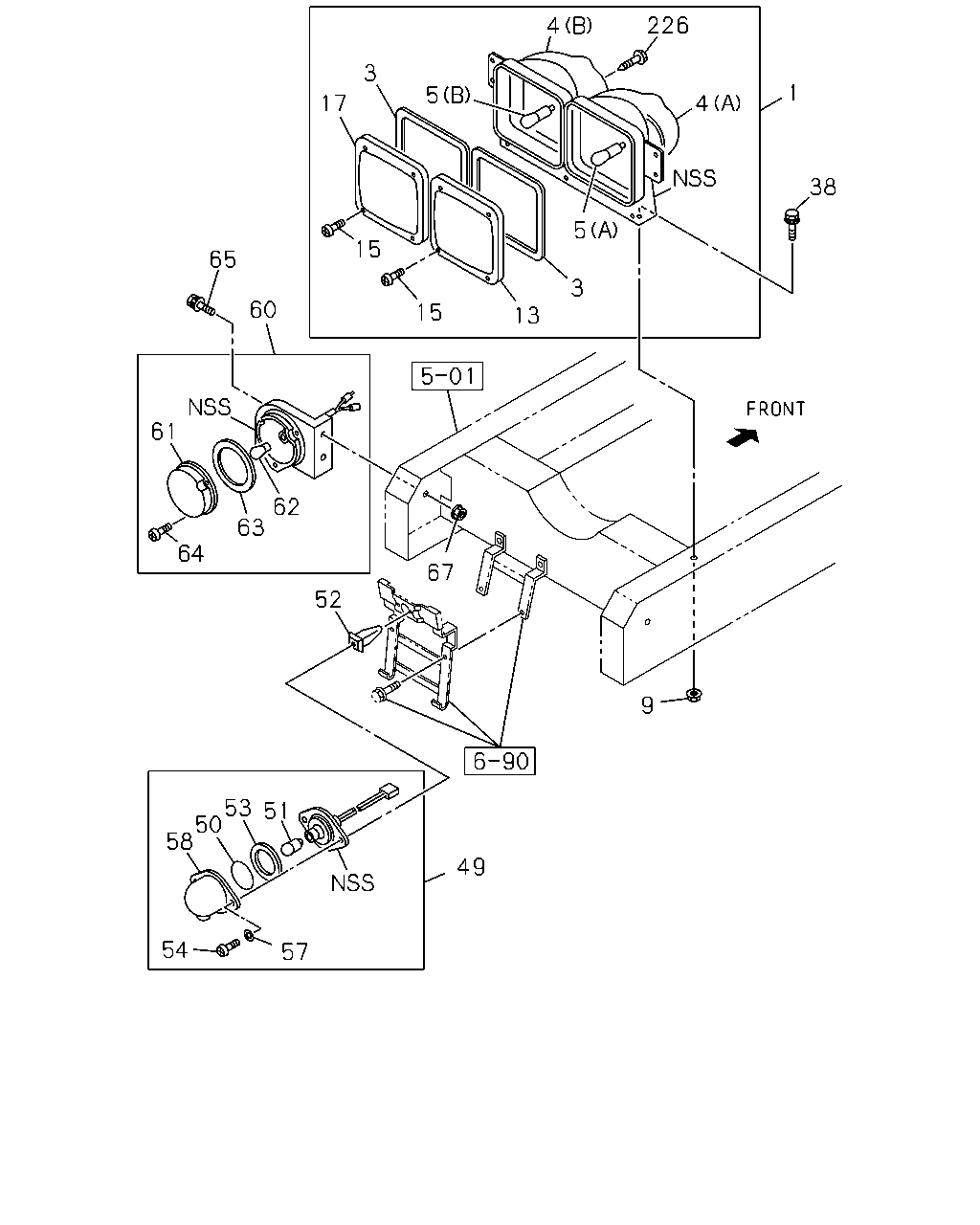

çizim 77299
226 4 3 1 5 17 4 38 5 15 65 3 60 15 13 61 62 63 64 67 52 9 53 50 58 51 49 54 57
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB 1-82230-160-2 01 1 0106-
1 LAMP ASM; RR COMB 1-82230-159-2 01 1 0106-
3 GASKET; RR COMB LAMP 1-82236-003-0 04 1 0106-
4 COVER; RR,RR COMB LAMP
(A) 		1-82239-033-0 02 1 0106-
4 COVER; RR,RR COMB LAMP
(B) 		1-82239-034-0 02 1 0106-
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0106-
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 02 1 0106-
9 NUT; LAMP,RR COMB
M8 FLANGE 		0-91150-108-0 02 1 0106-
13 LENS; TURN SIGNAL 1-82235-016-0 02 1 0106-
15 SCREW; RR COMB LAMP 1-82239-019-0 16 1 0106-
17 LENS; STOP,RR COMB LAMP 1-82235-002-0 02 1 0106-
38 BOLT; LAMP,RR COMB
M8X40 W/LK&PL WASHER 		0-50140-840-0 02 1 0106-
49 LAMP; LICENSE PLATE
24V 10W 		1-82120-024-1 01 1 0106-
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 0106-
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 0106-
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 0106-
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 0106-
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 0106-
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 0106-
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 0106-
60 LAMP; BACKUP 1-82130-023-1 01 1 0106-
61 LENS; BACKUP LAMP 1-82135-003-0 01 1 0106-
62 BULB; BACKUP LAMP
24V 21W 		1-82194-036-0 01 1 0106-
63 GASKET; BACKUP LAMP 1-82136-002-0 01 1 0106-
64 SCREW; BACKUP LAMP 1-82139-002-0 03 1 0106-
65 BOLT; LAMP,BACKUP
M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 0106-
67 NUT; FLANGE
M10 FLANGE 		0-91150-210-0 02 1 0106-
226 SCREW; PROTECTOR 1-82239-032-0 08 1 0106-
