Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#10782) — 242 parça

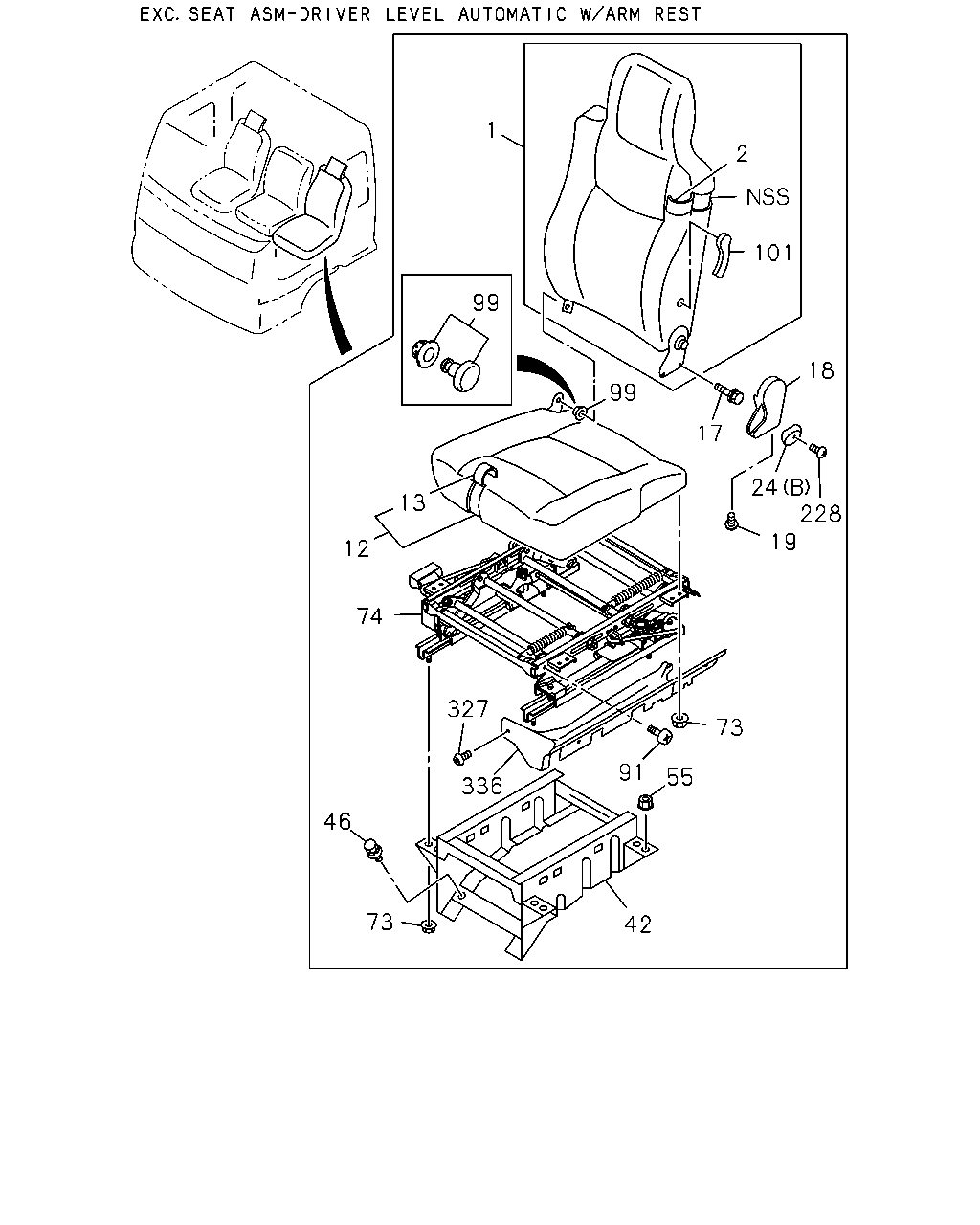

1 2 101 99 18 17 24 228 19 13 12 74 327 73 91 55 336 46 73 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-289-3	01	1	0106-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-291-3	01	1	0106-
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-290-3	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-115-1	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-117-1	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-116-1	01	1	0106-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ)	1-75207-288-2	01	1	0106-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-006-2	01	1	0106-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75127-114-1	01	1	0106-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-104-1	01	1	0106-
17	BOLT; RECLINING EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20	8-97255-906-0	02	1	0106-
17	BOLT; RECLINING FABRIC SEAT W/RECLINING(SFQ) M8X20	8-97255-906-0	02	1	0106-
18	COVER; RECLINING EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY	8-97859-018-0	01	1	0106-
18	COVER; RECLINING FABRIC SEAT W/RECLINING(SFQ) DARK GRAY	8-97859-018-0	01	1	0106-
19	SCREW; COVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0106-
19	SCREW; COVER FABRIC SEAT W/RECLINING(SFQ) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0106-
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0106-
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DARK GRAY	8-97859-019-0	01	1	0106-
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) (B) DARK GRAY	8-97859-019-0	01	1	0106-
42	STAND; DRIVER SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-1	01	1	0106-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0106-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0106-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0106-
73	NUT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	08	1	0106-
73	NUT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE	1-75538-207-0	08	1	0106-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-331-1	01	1	0106-
74	ADJUSTER; FRT SEAT,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ)	1-75518-331-1	01	1	0106-
91	SCREW; SEAT ADJ COVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0106-
91	SCREW; SEAT ADJ COVER FABRIC SEAT W/RECLINING(SFQ) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0106-
99	BUSHING; SEAT BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-97854-087-0	01	1	0106-
99	BUSHING; SEAT BACK FABRIC SEAT W/RECLINING(SFQ)	8-97854-087-0	01	1	0106-
101	LEVER ASM; LUMBAR EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	5-75190-138-0	01	1	0106-
101	LEVER ASM; LUMBAR FABRIC SEAT W/RECLINING(SFQ)	5-75190-138-0	01	1	0106-
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0106-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) M4X6	8-97042-273-0	01	1	0106-
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0106-
327	CLIP; COVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	01	1	0106-
327	CLIP; COVER FABRIC SEAT W/RECLINING(SFQ)	1-09987-273-0	01	1	0106-
336	COVER; DRIVER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-313-0	01	1	0106-
336	COVER; DRIVER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75518-313-0	01	1	0106-

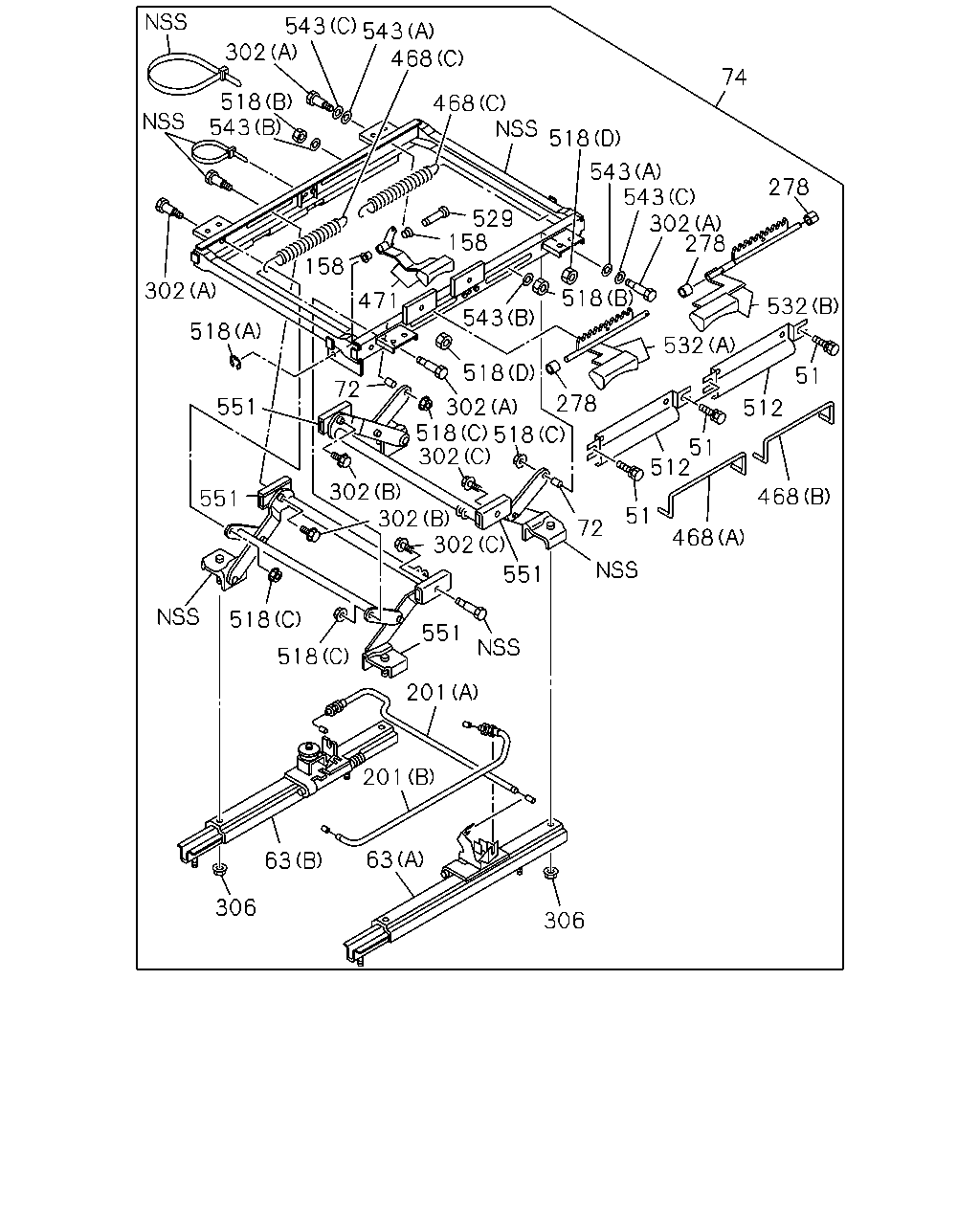

543 543 302 468 74 518 543 468 518 543 543 302 278 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 302 512 51 512 302 302 302 468 551 51 72 468 551 518 551 518 201 201 63 63 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-325-1	04	1	0106-
51	SCREW; COVER FABRIC SEAT W/RECLINING(SFQ)	1-75518-325-1	04	1	0106-
63	ADJUSTER; SEAT SLIDE EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-227-1	01	1	0106-
63	ADJUSTER; SEAT SLIDE FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-227-1	01	1	0106-
63	ADJUSTER; SEAT SLIDE EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-324-0	01	1	0106-
63	ADJUSTER; SEAT SLIDE FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-324-0	01	1	0106-
72	SPACER; SEAT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-334-1	02	1	0106-
72	SPACER; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ)	1-75518-334-1	02	1	0106-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-331-1	01	1	0106-
74	ADJUSTER; FRT SEAT,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ)	1-75518-331-1	01	1	0106-
158	BUSHING; LINK ARM EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-209-0	02	1	0106-
158	BUSHING; LINK ARM FABRIC SEAT W/RECLINING(SFQ)	1-75518-209-0	02	1	0106-
201	CABLE; ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667	1-75518-288-0	01	1	0106-
201	CABLE; ADJ FABRIC SEAT W/RECLINING(SFQ) (A) L=667	1-75518-288-0	01	1	0106-
201	CABLE; ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605	1-75518-289-1	01	1	0106-
201	CABLE; ADJ FABRIC SEAT W/RECLINING(SFQ) (B) L=605	1-75518-289-1	01	1	0106-
278	COLLAR; FRT SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-244-0	03	1	0106-
278	COLLAR; FRT SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75518-244-0	03	1	0106-
302	BOLT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-266-2	02	1	0106-
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) (C)	1-75518-266-2	02	1	0106-
302	BOLT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-270-1	04	1	0106-
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-270-1	04	1	0106-
302	BOLT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-336-1	02	1	0106-
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-336-1	02	1	0106-
306	NUT; SEAT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	06	1	0106-
306	NUT; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE	1-75538-207-0	06	1	0106-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0106-
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0106-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-206-0	01	1	0106-
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0106-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-207-0	01	1	0106-
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0106-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (C)	1-75518-208-0	02	1	0106-
471	LEVER; SEAT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-290-0	01	1	0106-
471	LEVER; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ)	1-75518-290-0	01	1	0106-
512	COVER; LEVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-245-1	02	1	0106-
512	COVER; LEVER FABRIC SEAT W/RECLINING(SFQ)	1-75518-245-1	02	1	0106-
518	NUT; TILT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-263-0	01	1	0106-
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-263-0	01	1	0106-
518	NUT; TILT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-264-0	04	1	0106-
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-264-0	04	1	0106-
518	NUT; TILT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT	5-09984-020-0	02	1	0106-
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) (D) M6 LOCK NUT	5-09984-020-0	02	1	0106-
518	NUT; TILT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE	8-94152-886-0	04	1	0106-
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) (C) M8 FLANGE	8-94152-886-0	04	1	0106-
529	PIN; LINK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-262-0	01	1	0106-
529	PIN; LINK FABRIC SEAT W/RECLINING(SFQ)	1-75518-262-0	01	1	0106-
532	LEVER ASM; TILT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-221-0	01	1	0106-
532	LEVER ASM; TILT FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-221-0	01	1	0106-
532	LEVER ASM; TILT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-222-1	01	1	0106-
532	LEVER ASM; TILT FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-222-1	01	1	0106-
543	WASHER; HEIGHT ADJUSTER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-335-0	02	1	0106-
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) (C)	1-75518-335-0	02	1	0106-
543	WASHER; HEIGHT ADJUSTER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-337-0	02	1	0106-0406
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-337-0	02	1	0106-0406
543	WASHER; HEIGHT ADJUSTER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4	9-09160-506-0	04	1	0106-
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) (B) ID=6.4	9-09160-506-0	04	1	0106-
551	SLIDER; HEIGHT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-265-0	04	1	0106-
551	SLIDER; HEIGHT ADJ FABRIC SEAT W/RECLINING(SFQ)	1-75518-265-0	04	1	0106-

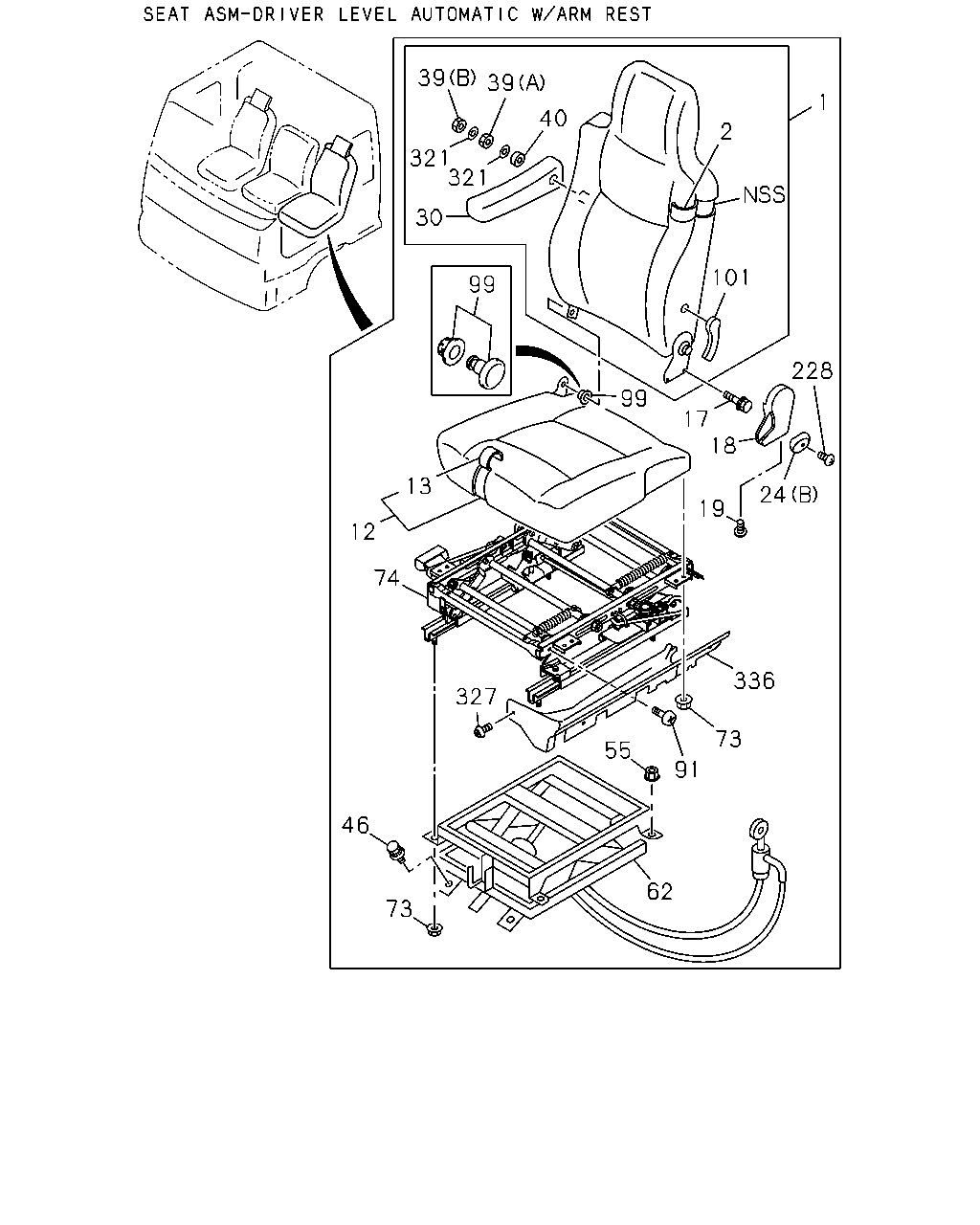

39 39 1 40 2 321 321 30 101 99 228 99 17 18 24 13 19 12 74 336 327 73 55 91 46 62 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-289-3	01	1	0106-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-291-3	01	1	0106-
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-290-3	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-115-1	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-117-1	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-116-1	01	1	0106-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ)	1-75207-288-2	01	1	0106-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-006-2	01	1	0106-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75127-114-1	01	1	0106-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-104-1	01	1	0106-
17	BOLT; RECLINING EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20	8-97255-906-0	02	1	0106-
17	BOLT; RECLINING FABRIC SEAT W/RECLINING(SFQ) M8X20	8-97255-906-0	02	1	0106-
18	COVER; RECLINING EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY	8-97859-018-0	01	1	0106-
18	COVER; RECLINING FABRIC SEAT W/RECLINING(SFQ) DARK GRAY	8-97859-018-0	01	1	0106-
19	SCREW; COVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0106-
19	SCREW; COVER FABRIC SEAT W/RECLINING(SFQ) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0106-
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0106-
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DARK GRAY	8-97859-019-0	01	1	0106-
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) (B) DARK GRAY	8-97859-019-0	01	1	0106-
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-120-1	01	1	0106-
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	0106-
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	0106-
40	SPACER; ARM REST FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	0106-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0106-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0106-

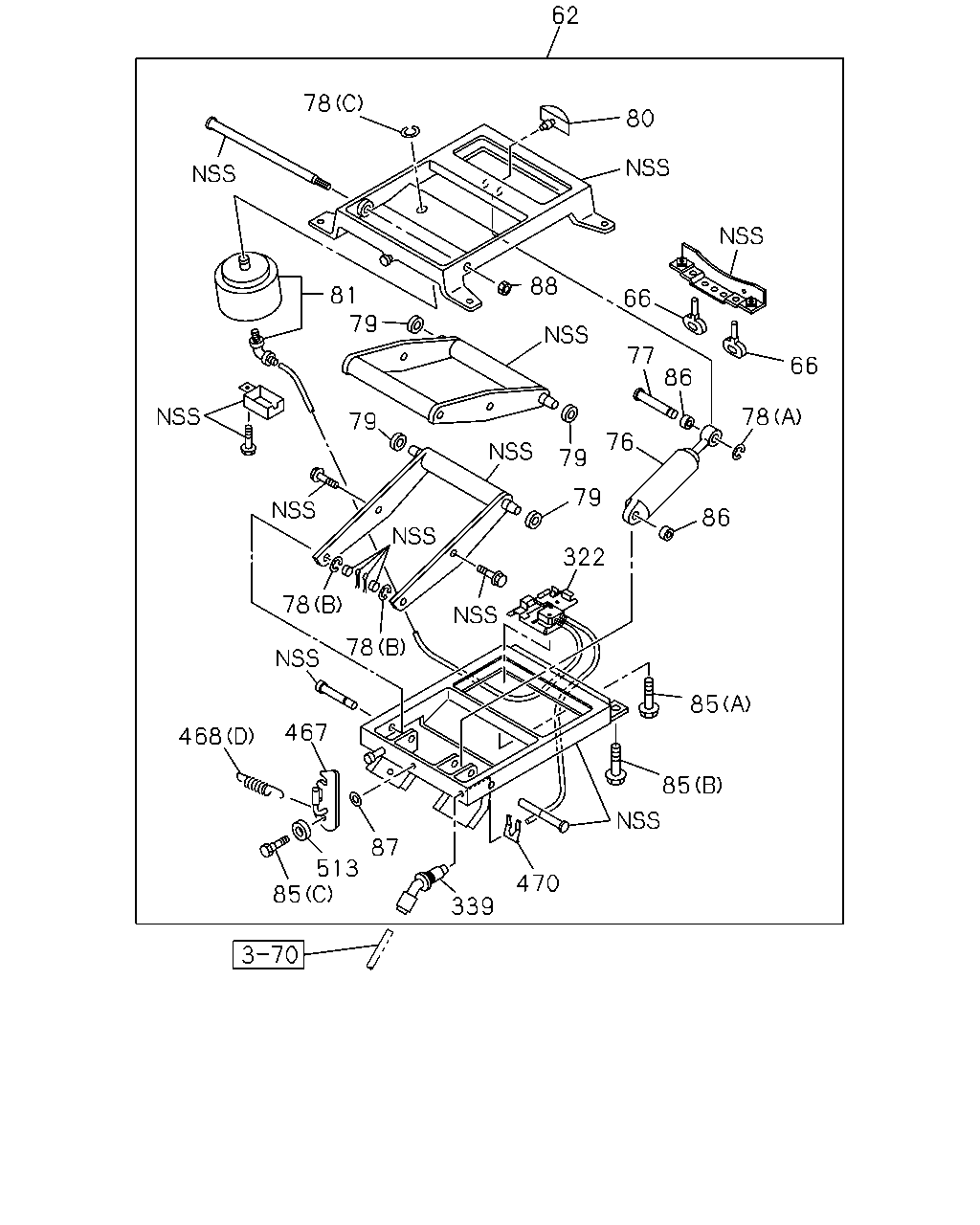

62	DAMPER ASM; SEAT SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-6	01	1	0106-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0106-
73	NUT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	08	1	0106-
73	NUT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE	1-75538-207-0	08	1	0106-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-331-1	01	1	0106-
74	ADJUSTER; FRT SEAT,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ)	1-75518-331-1	01	1	0106-
91	SCREW; SEAT ADJ COVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0106-
91	SCREW; SEAT ADJ COVER FABRIC SEAT W/RECLINING(SFQ) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0106-
99	BUSHING; SEAT BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-97854-087-0	01	1	0106-
99	BUSHING; SEAT BACK FABRIC SEAT W/RECLINING(SFQ)	8-97854-087-0	01	1	0106-
101	LEVER ASM; LUMBAR EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	5-75190-138-0	01	1	0106-
101	LEVER ASM; LUMBAR FABRIC SEAT W/RECLINING(SFQ)	5-75190-138-0	01	1	0106-
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0106-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) M4X6	8-97042-273-0	01	1	0106-
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0106-
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22	9-09160-610-0	01	1	0106-
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	0106-
327	CLIP; COVER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	01	1	0106-
327	CLIP; COVER FABRIC SEAT W/RECLINING(SFQ)	1-09987-273-0	01	1	0106-
336	COVER; DRIVER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-313-0	01	1	0106-
336	COVER; DRIVER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75518-313-0	01	1	0106-

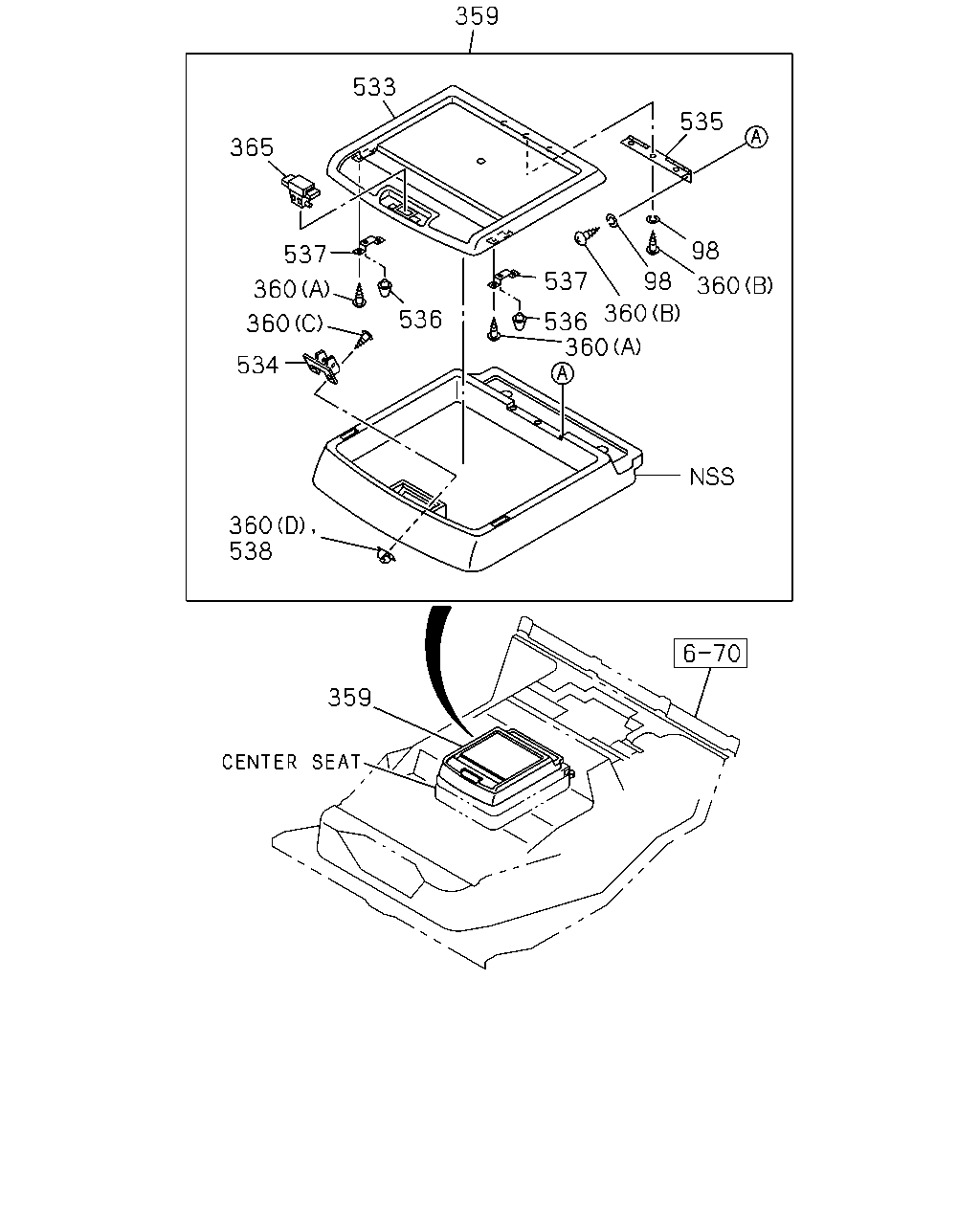

359 533 535 365 98 537 98 537 360 360 360 536 536 360 360 534 360 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0311-
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0106-0211
359	BOX; PARCEL	1-72538-157-2	01	1	0106-0211
359	BOX; PARCEL	1-72538-275-3	01	1	0212-
360	SCREW; PARCEL (C) M5X20	9-09829-324-1	02	1	0212-0310
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0106-
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0106-
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0106-0211
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0310
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	0106-0310
365	LOCK ASM; SEAT	1-72538-180-0	01	1	0106-
533	LID; PARCEL BOX	1-72538-194-2	01	1	0106-0211
533	LID; PARCEL BOX	1-72538-277-0	01	1	0212-
534	STRIKER; PARCEL BOX	1-72538-181-0	01	1	0106-
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	0106-
536	RUBBER; CUSHION	5-09983-002-1	02	1	0106-
537	BRACKET; RUBBER	1-72548-057-1	02	1	0106-
538	GROMMET; SCREW	1-09983-165-0	02	1	0311-

62 78 80 88 81 79 66 77 86 66 78 79 76 79 79 86 322 78 78 85 467 468 85 87 513 85 470 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-6	01	1	0106-
66	RUBBER; LWR STOPPER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	0106-
76	DAMPER; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-230-2	01	1	0106-
77	PIN; DAMPER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	0106-
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	0106-
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10	9-09185-410-0	02	1	0106-0406
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15	9-09185-415-0	01	1	0106-
79	ROLLER ASM; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	0106-
80	RUBBER; STOPPER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-123-0	01	1	0106-
81	SPRING; AIR FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-151-2	01	1	0106-
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-0	01	1	0106-
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75538-208-0	02	1	0106-
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0106-
86	BUSHING; GUIDE FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0106-
87	WASHER; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	9-09150-508-0	01	1	0106-
88	NUT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-273-1	01	1	0106-
322	VALVE; AIR SPRING FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-187-2	01	1	0106-
339	UNION; DRIVER SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-2	01	1	0106-
467	LEVER; LOCK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	0106-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0106-
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0106-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-206-0	01	1	0106-
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0106-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-207-0	01	1	0106-
468	SPRING; RETURN EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0106-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (C)	1-75518-208-0	02	1	0106-
470	CLIP; HOSE FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	0106-
513	SPACER; LEVER FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	0106-

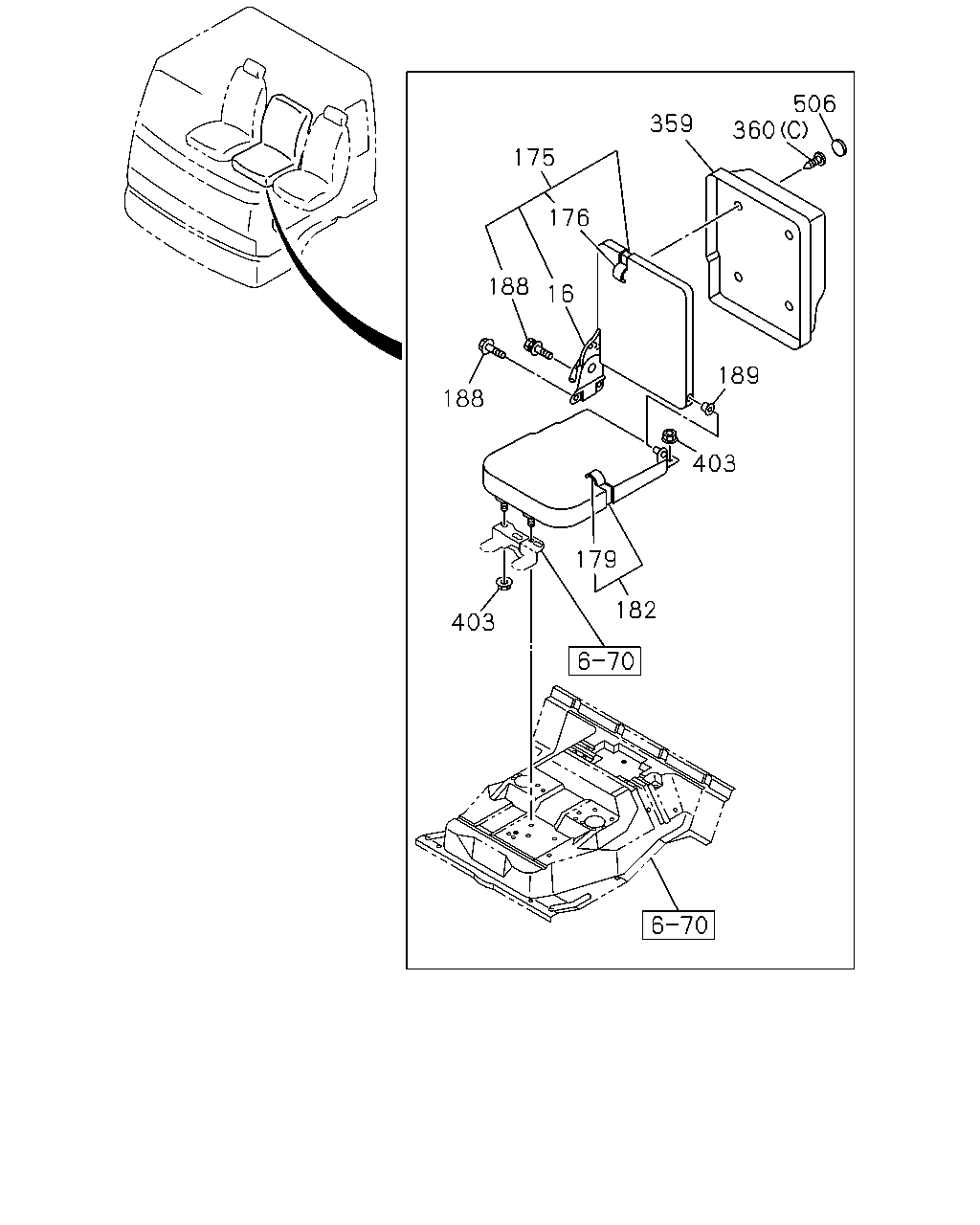

506 360 359 175 176 188 16 189 188 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING	1-75418-062-1	01	1	0106-
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-258-2	01	1	0106-
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75026-856-2	01	1	0106-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-078-1	01	1	0106-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-710-1	01	1	0106-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ)	1-75127-073-1	01	1	0106-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75127-127-1	01	1	0106-
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-305-2	01	1	0106-
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75207-009-2	01	1	0106-
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	0106-
189	BUSHING; HINGE,CENTER SEAT BACK	8-97854-900-0	01	1	0106-
359	BOX; PARCEL	1-72538-157-2	01	1	0106-0211
359	BOX; PARCEL	1-72538-275-3	01	1	0212-
360	SCREW; PARCEL (C) M5X20	9-09829-324-1	02	1	0212-0310
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0106-
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0106-
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0106-0211
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0310
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	0106-0310
403	NUT; CENTER SEAT M8 FLANGE	8-94279-504-1	04	1	0106-0206
403	NUT; CENTER SEAT M8 FLANGE	8-94279-518-0	04	1	0207-0312
403	NUT; CENTER SEAT M8 FLANGE	1-75538-207-0	04	1	0401-
506	CAP; PARCEL BOX	1-09983-164-0	04	1	0106-0211
506	CAP; PARCEL BOX	1-09983-180-2	04	1	0212-

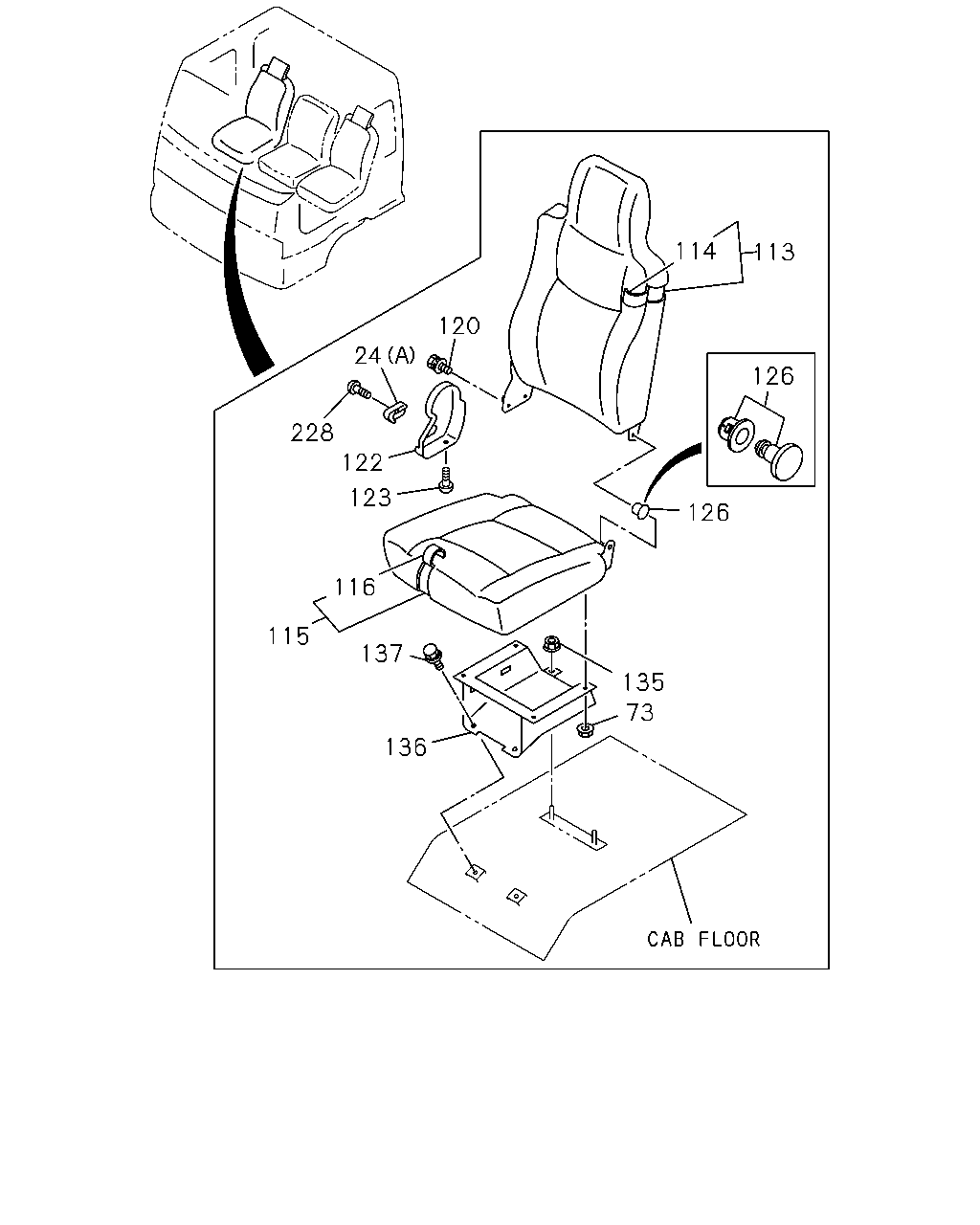

114 113 120 24 126 228 122 123 126 116 115 137 135 73 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0106-
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DARK GRAY	8-97859-019-0	01	1	0106-
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) (B) DARK GRAY	8-97859-019-0	01	1	0106-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0106-
73	NUT; ADJ,HEIGHT CONT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	08	1	0106-
73	NUT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE	1-75538-207-0	08	1	0106-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-301-4	01	1	0106-
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75208-067-3	01	1	0106-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-125-1	01	1	0106-
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-702-1	01	1	0106-
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-298-1	01	1	0106-
115	CUSHION ASM; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75207-367-1	01	1	0106-
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75127-122-1	01	1	0106-
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75127-133-1	01	1	0106-
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0106-
122	COVER; ADJ,RECLINING DARK GRAY	8-97867-020-0	01	1	0106-
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0106-
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0106-
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0106-
136	STAND; PASSENGER SEAT	1-75557-493-1	01	1	0106-0212
136	STAND; PASSENGER SEAT	1-75558-602-3	01	1	0301-
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0106-
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0106-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) M4X6	8-97042-273-0	01	1	0106-
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
