Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#10777) — 313 parça

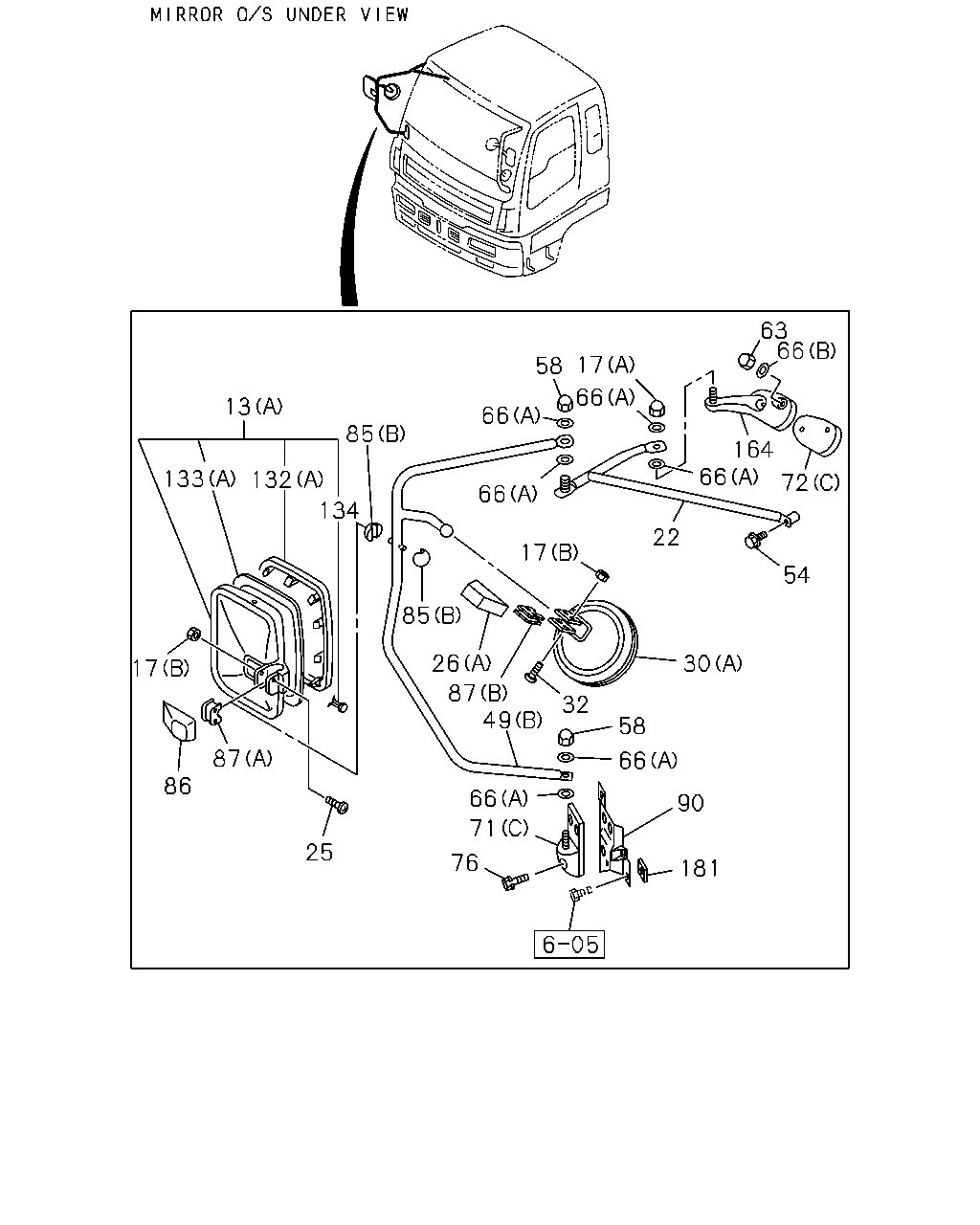

63 66 17 58 66 13 66 85 164 66 133 132 72 66 134 22 17 54 85 26 30 17 87 49 32 58 87 66 86 66 90 71 25 76 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-1	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0106-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	0106-0207
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	02	1	0208-0210
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0106-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0106-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	01	1	0106-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0106-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0106-
22	STAY; OUTSIDE MIRROR HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71707-079-0	01	1	0106-
22	STAY; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, HIGH ROOF<S2F>	1-71797-876-0	01	1	0106-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-652-1	01	1	0106-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-649-1	01	1	0106-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0106-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0106-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0106-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0106-
49	STAY; MIRROR SIDE (A)	1-71798-491-2	01	1	0106-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D)	1-71798-490-2	01	1	0106-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-897-1	01	1	0106-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (B)	1-71797-855-1	01	1	0106-
54	BOLT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M6X40 LK&PL WASHER	8-94279-215-0	02	1	0106-
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M10	1-09985-342-0	02	1	0106-
63	NUT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	02	1	0106-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-0207
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) UPPER	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR (A) UPPER	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) LOWER	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR (B) LOWER	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-580-3	01	1	0106-
72	SHEET HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71797-798-1	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-487-3	01	1	0106-
72	SHEET (A)	1-71798-487-3	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-488-1	01	1	0106-
72	SHEET (B)	1-71798-488-1	01	1	0106-
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X30 W/LK WASHER	8-94279-183-1	03	1	0106-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=19.1	1-71737-633-2	02	1	0106-
85	PIVOT; MAIN MIRROR (A) ID=19.1	1-71737-633-2	02	1	0106-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0106-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0106-
87	SPACER (A)	1-71737-704-0	01	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0106-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0106-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0106-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0106-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0106-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-935-0	01	1	0106-
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0106-
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-934-0	01	1	0106-
132	RING; MIRROR (A)	1-71737-934-0	01	1	0106-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-926-0	01	1	0106-
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0106-
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-927-0	01	1	0106-
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	0106-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0106-
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0106-
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-936-0	01	1	0106-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0106-
164	STAY; ROOF EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71798-300-5	01	1	0106-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0106-

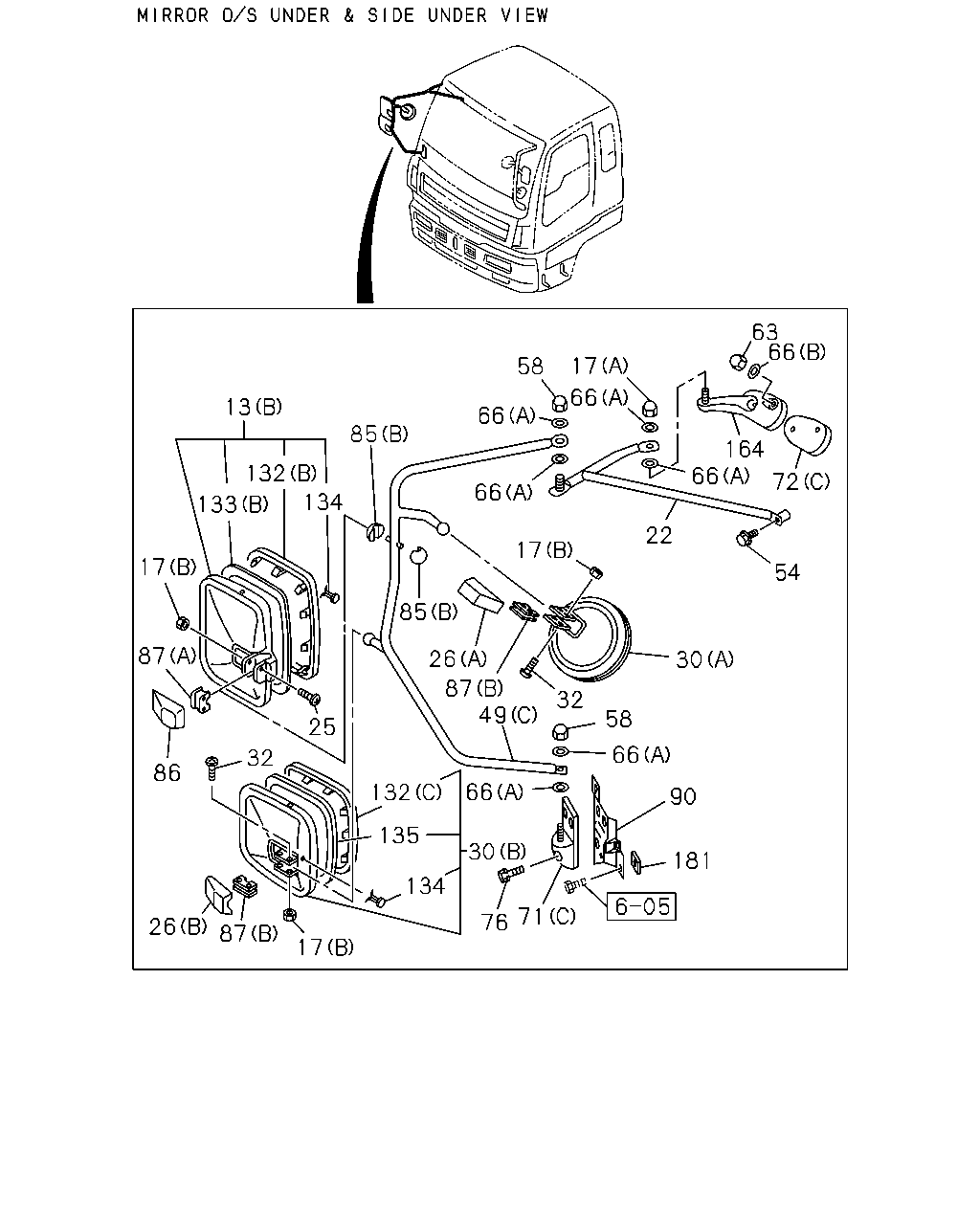

63 66 17 58 66 13 66 85 164 66 132 72 66 134 133 22 17 17 54 85 87 26 30 87 49 32 58 25 66 32 86 66 132 90 135 30 181 134 71 76 26 87 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-1	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0106-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	0106-0207
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	02	1	0208-0210
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0106-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0106-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	01	1	0106-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0106-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0106-
22	STAY; OUTSIDE MIRROR HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71707-079-0	01	1	0106-
22	STAY; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, HIGH ROOF<S2F>	1-71797-876-0	01	1	0106-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-652-1	01	1	0106-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-649-1	01	1	0106-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0106-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0106-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0106-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0106-
49	STAY; MIRROR SIDE (A)	1-71798-491-2	01	1	0106-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D)	1-71798-490-2	01	1	0106-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-897-1	01	1	0106-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (B)	1-71797-855-1	01	1	0106-
54	BOLT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M6X40 LK&PL WASHER	8-94279-215-0	02	1	0106-
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M10	1-09985-342-0	02	1	0106-
63	NUT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	02	1	0106-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-0207
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) UPPER	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR (A) UPPER	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) LOWER	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR (B) LOWER	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-580-3	01	1	0106-
72	SHEET HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71797-798-1	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-487-3	01	1	0106-
72	SHEET (A)	1-71798-487-3	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-488-1	01	1	0106-
72	SHEET (B)	1-71798-488-1	01	1	0106-
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X30 W/LK WASHER	8-94279-183-1	03	1	0106-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=19.1	1-71737-633-2	02	1	0106-
85	PIVOT; MAIN MIRROR (A) ID=19.1	1-71737-633-2	02	1	0106-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0106-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0106-
87	SPACER (A)	1-71737-704-0	01	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0106-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0106-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0106-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0106-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0106-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-935-0	01	1	0106-
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0106-
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-934-0	01	1	0106-
132	RING; MIRROR (A)	1-71737-934-0	01	1	0106-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-926-0	01	1	0106-
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0106-
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-927-0	01	1	0106-
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	0106-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0106-
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0106-
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-936-0	01	1	0106-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0106-
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-929-0	01	1	0106-
164	STAY; ROOF EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71798-300-5	01	1	0106-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0106-

1 2

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	MIRROR; ROOM	1-73117-033-1	01	1	0106-
	2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0106-

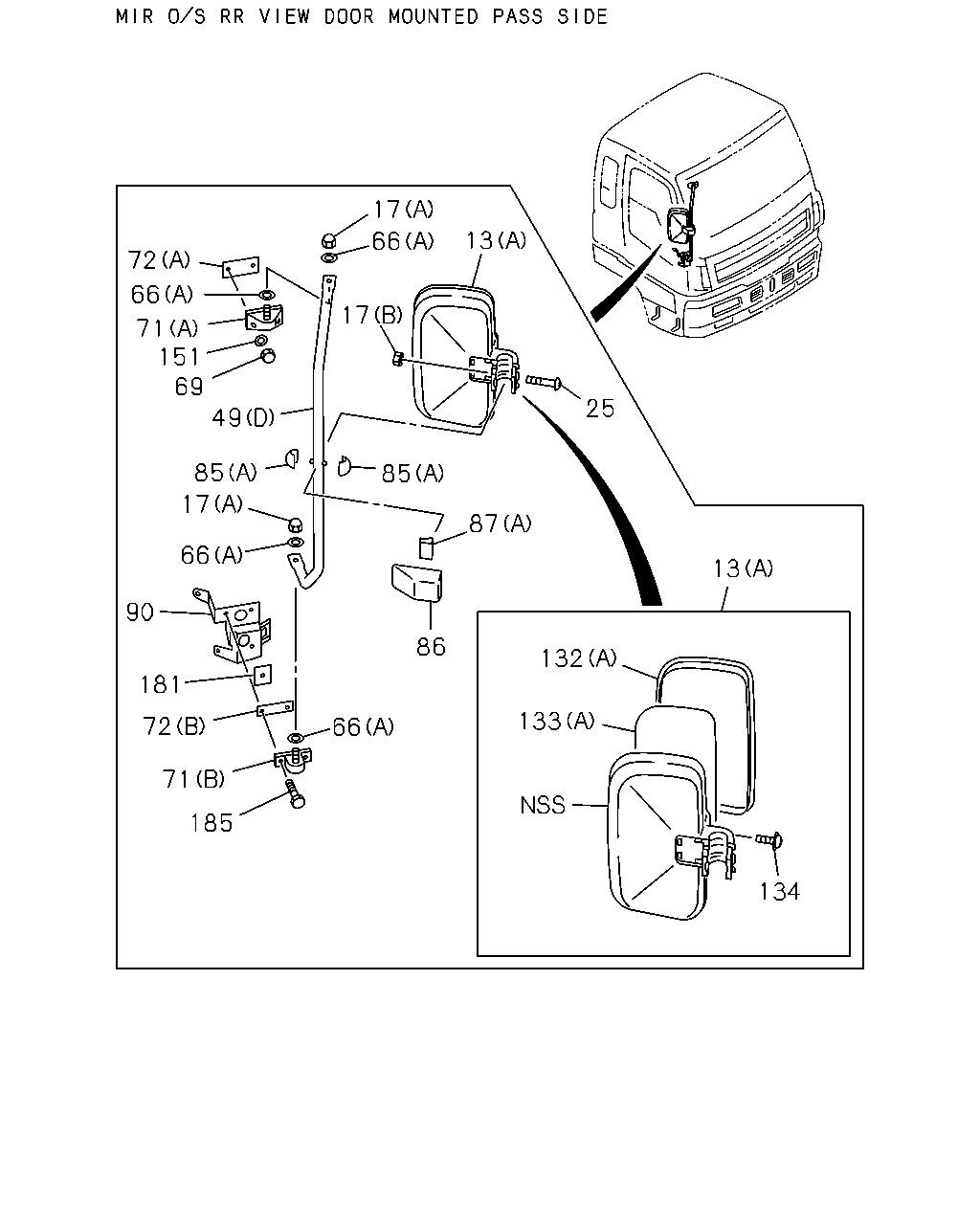

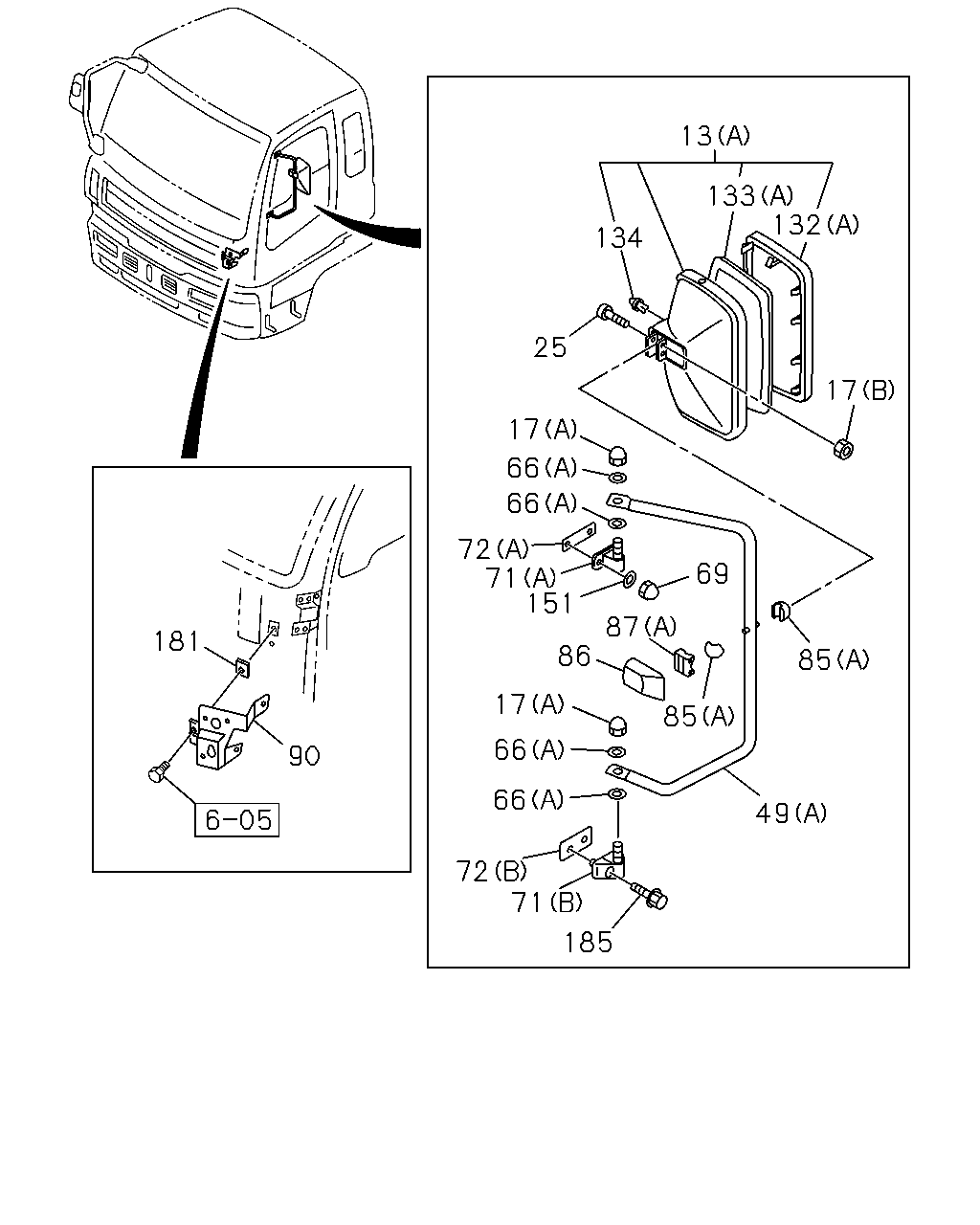

13 133 132 134 25 17 17 66 66 72 71 151 69 87 181 86 85 17 85 66 90 66 49 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-1	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0106-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	0106-0207
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	02	1	0208-0210
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0106-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0106-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	01	1	0106-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0106-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0106-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-
49	STAY; MIRROR SIDE (A)	1-71798-491-2	01	1	0106-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D)	1-71798-490-2	01	1	0106-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-897-1	01	1	0106-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (B)	1-71797-855-1	01	1	0106-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-0207
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	02	1	0106-
69	NUT; CAP M8	1-09984-187-0	02	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) UPPER	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR (A) UPPER	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) LOWER	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR (B) LOWER	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-580-3	01	1	0106-
72	SHEET HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71797-798-1	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-487-3	01	1	0106-
72	SHEET (A)	1-71798-487-3	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-488-1	01	1	0106-
72	SHEET (B)	1-71798-488-1	01	1	0106-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=19.1	1-71737-633-2	02	1	0106-
85	PIVOT; MAIN MIRROR (A) ID=19.1	1-71737-633-2	02	1	0106-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0106-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0106-
87	SPACER (A)	1-71737-704-0	01	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0106-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0106-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0106-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0106-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0106-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-935-0	01	1	0106-
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0106-
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-934-0	01	1	0106-
132	RING; MIRROR (A)	1-71737-934-0	01	1	0106-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-926-0	01	1	0106-
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0106-
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-927-0	01	1	0106-
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	0106-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0106-
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0106-
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-936-0	01	1	0106-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0106-
151	WASHER; PL,MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0106-
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28690-835-0	02	1	0106-
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	02	1	0106-

17 13 66 72 66 17 71 151 69 25 49 85 85 17 87 66 13 90 86 132 181 133 72 66 71 185 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-1	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-918-3	01	1	0106-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0106-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	0106-0207
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	02	1	0208-0210
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	0211-
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0106-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0106-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	01	1	0106-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0106-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0106-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50	1-09981-444-0	02	1	0106-0404
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0405-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0405-
49	STAY; MIRROR SIDE (A)	1-71798-491-2	01	1	0106-
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D)	1-71798-490-2	01	1	0106-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-897-1	01	1	0106-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (B)	1-71797-855-1	01	1	0106-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-0207
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	0106-
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	02	1	0106-
69	NUT; CAP M8	1-09984-187-0	02	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) UPPER	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR (A) UPPER	1-71798-484-1	01	1	0106-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) LOWER	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR (B) LOWER	1-71798-486-2	01	1	0106-
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71798-580-3	01	1	0106-
72	SHEET HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71797-798-1	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-487-3	01	1	0106-
72	SHEET (A)	1-71798-487-3	01	1	0106-
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-488-1	01	1	0106-
72	SHEET (B)	1-71798-488-1	01	1	0106-
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=19.1	1-71737-633-2	02	1	0106-
85	PIVOT; MAIN MIRROR (A) ID=19.1	1-71737-633-2	02	1	0106-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0106-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0106-
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-704-0	01	1	0106-
87	SPACER (A)	1-71737-704-0	01	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0106-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0106-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0106-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0106-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0106-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0106-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-935-0	01	1	0106-
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0106-
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-934-0	01	1	0106-
132	RING; MIRROR (A)	1-71737-934-0	01	1	0106-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-926-0	01	1	0106-
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0106-
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-927-0	01	1	0106-
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	0106-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0106-
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0106-
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-936-0	01	1	0106-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0106-
151	WASHER; PL,MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0106-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0106-
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28690-835-0	02	1	0106-
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	02	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
