7-10 — CAUTION PLATE AND LABEL (#10776) — 66 parça

4 6 144 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	LABEL; ENG MAINTENANCE 6WA1 TC-C(55L)	1-85886-840-0	01	1	0106-
4	LABEL; ENG MAINTENANCE 6WG1 TC-N(71L)	1-85886-890-0	01	1	0106-
4	LABEL; ENG MAINTENANCE 6WG1 TC-N(71L),6WG1 TC-C(72L) EXC. EURO2 SPECIFICATION<THN>	1-85886-863-0	01	1	0106-0112
6	PLATE; CAUTION,SPARE TIRE CAUTIONS PORTUGUESE<NAT> SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53639-045-0	01	1	0106-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7>	1-85883-114-0	01	1	0106-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7>	1-85883-113-0	01	1	0106-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8>	1-85883-108-0	01	1	0106-0112
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-53639-004-0	01	1	0106-0112
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-53639-004-0	01	1	0201-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1>	1-53639-005-0	01	1	0106-
144	PLATE; CAUTION,CLU TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-85888-690-0	01	1	0106-
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS ARABIAN<WJ7>	1-85877-948-0	01	1	0106-
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS CHINESE<SL7>	1-85887-934-0	01	1	0106-
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS FRENCH<WJ8>	1-85887-936-0	01	1	0106-0112
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>	1-85887-935-0	01	1	0106-0112
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>	1-85887-935-0	01	1	0201-
228	PLATE; CAUTION,AIR DRYER CAUTIONS PORTUGUESE<NAT> AIR DRYER<PS7>	1-85877-998-0	01	1	0106-

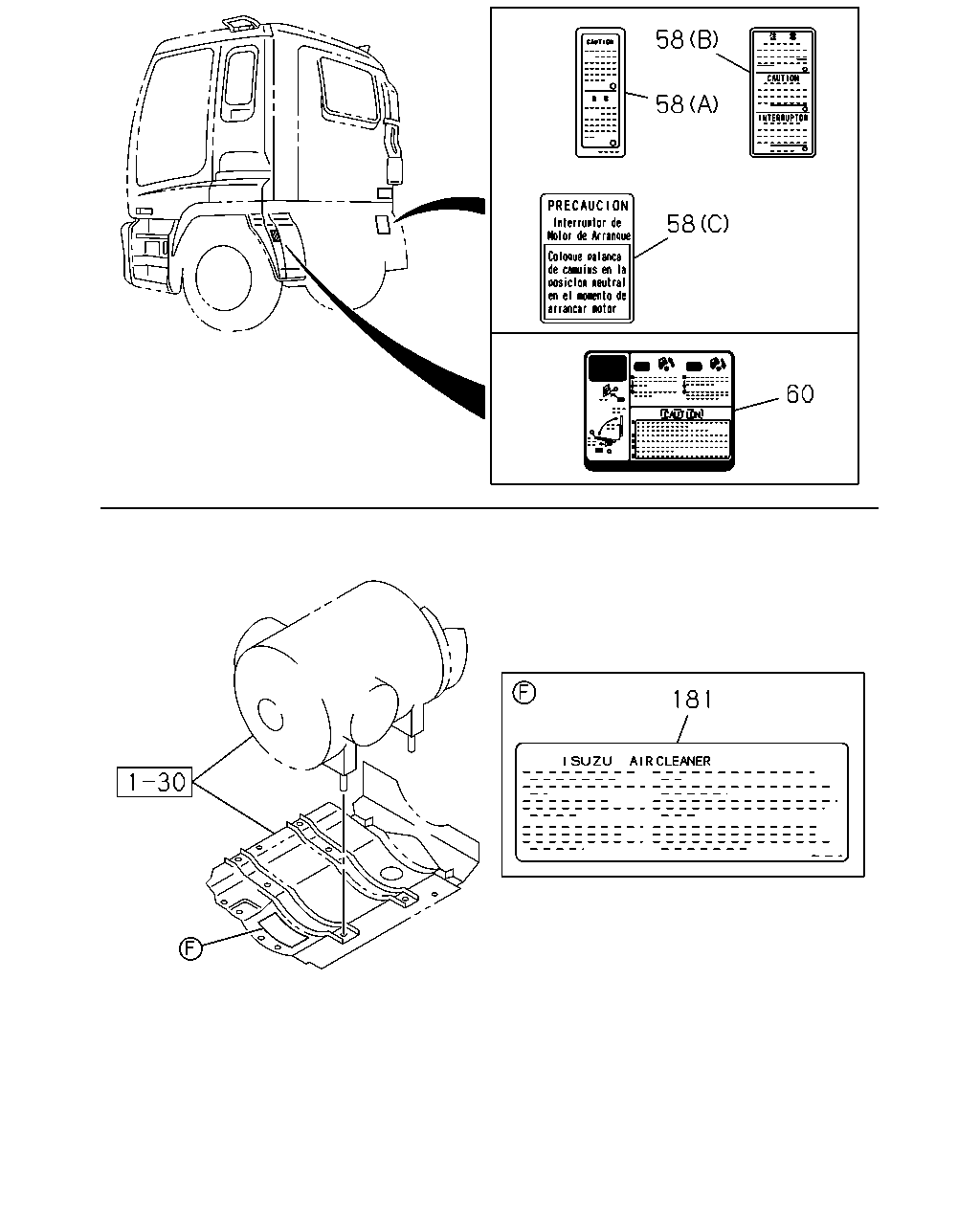

58 58 58 60 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	PLATE; CAUTION,ENG START CAUTIONS ARABIAN<WJ7> (A)	1-85887-537-0	01	1	0106-
58	PLATE; CAUTION,ENG START CAUTIONS CHINESE<SL7> (A)	1-85887-536-0	01	1	0106-
58	PLATE; CAUTION,ENG START CAUTIONS FRENCH<WJ8> (A)	1-85887-535-0	01	1	0106-0112
58	PLATE; CAUTION,ENG START CAUTIONS PORTUGUESE<NAT> (A)	1-85878-007-0	01	1	0106-
58	PLATE; CAUTION,ENG START EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (B)	1-85887-457-0	01	1	0106-0112
58	PLATE; CAUTION,ENG START EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (B)	1-85887-457-0	01	1	0201-
58	PLATE; CAUTION,ENG START CAUTIONS SPANISH<YN1> (C)	9-83999-419-0	01	1	0106-
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7>	1-85883-181-0	01	1	0106-
60	PLATE; CAUTION,CAB TILT CAUTIONS CHINESE<SL7>	1-85883-175-0	01	1	0106-
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8>	1-85883-176-0	01	1	0106-0112
60	PLATE; CAUTION,CAB TILT CAUTIONS PORTUGUESE<NAT>	1-85883-182-0	01	1	0106-
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85883-174-0	01	1	0106-0112
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-85883-174-0	01	1	0201-
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1>	1-85883-177-0	01	1	0106-
181	PLATE; CAUTION,AIR CLEANER CAUTIONS PORTUGUESE<NAT>	1-85886-884-0	01	1	0106-0112
181	PLATE; CAUTION,AIR CLEANER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85886-884-0	01	1	0106-0112
181	PLATE; CAUTION,AIR CLEANER CAUTIONS PORTUGUESE<NAT>	1-85886-884-0	01	1	0201-
181	PLATE; CAUTION,AIR CLEANER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-85886-884-0	01	1	0201-
181	PLATE; CAUTION,AIR CLEANER CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85886-796-1	01	1	0106-0112
181	PLATE; CAUTION,AIR CLEANER EXC. CAUTIONS PORTUGUESE<NAT>,ACL DRY DONALDSON 13"DBL ELEMENT<Q2Y>,CAUTIONS CHINESE<SL7>,CAUTIONS AR ABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85886-796-1	01	1	0106-0112
181	PLATE; CAUTION,AIR CLEANER CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1>	1-85886-796-1	01	1	0201-
181	PLATE; CAUTION,AIR CLEANER EXC. CAUTIONS PORTUGUESE<NAT>,ACL DRY DONALDSON 13"DBL ELEMENT<Q2Y>,CAUTIONS CHINESE<SL7>,CAUTIONS AR ABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-85886-796-1	01	1	0201-

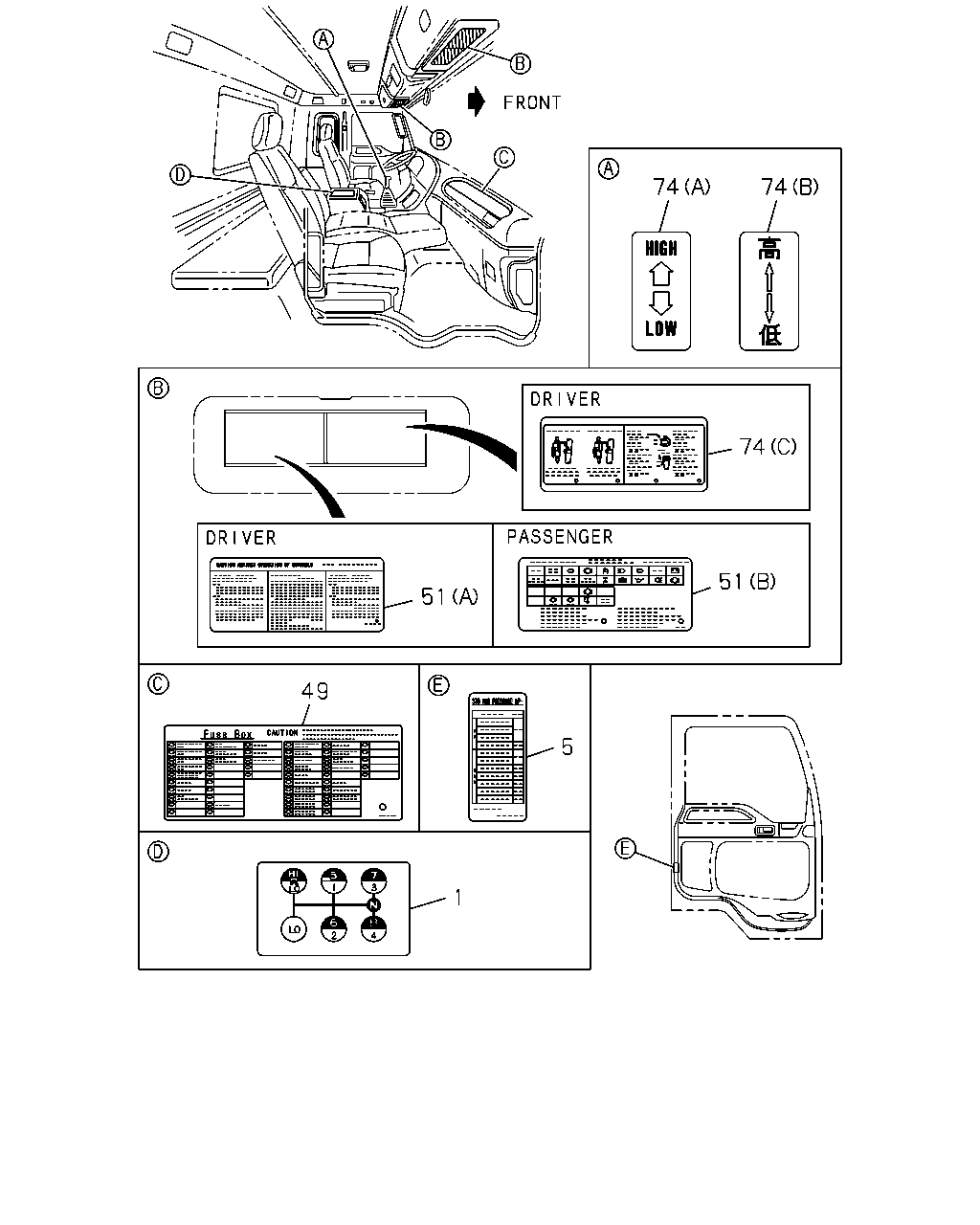

74 74 74 51 51 49 5 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PLATE; CAUTION,SHIFT PATTERN TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R)	1-85881-519-0	01	1	0106-
5	LABEL; TIRE AIR PRESSURE	1-85880-764-0	01	1	0106-0405
5	LABEL; TIRE AIR PRESSURE	1-85880-780-0	01	1	0406-0410
5	LABEL; TIRE AIR PRESSURE	1-85880-778-0	01	1	0411-
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85878-331-0	01	1	0106-
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85878-329-0	01	1	0106-0106
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85878-359-0	01	1	0107-
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	1-85878-330-0	01	1	0106-0112
49	PLATE; CAUTION,FUSE BOX CAUTIONS PORTUGUESE<NAT>	1-85878-332-0	01	1	0106-
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85878-327-0	01	1	0106-0112
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-85878-327-0	01	1	0201-
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	1-85878-328-0	01	1	0106-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (B)	1-85878-335-1	01	1	0106-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-758-0	01	1	0106-
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (A)	1-85880-727-0	01	1	0106-
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> (B)	1-85878-334-1	01	1	0106-0112
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (B)	1-85878-334-1	01	1	0201-
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-726-0	01	1	0106-0112
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT> (B)	1-85878-336-1	01	1	0106-
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT> (A)	1-85880-759-0	01	1	0106-
51	PLATE; CAUTION,WARNING EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85878-333-1	01	1	0106-0112
51	PLATE; CAUTION,WARNING EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7> (B)	1-85878-333-1	01	1	0201-
51	PLATE; CAUTION,WARNING EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-85880-725-0	01	1	0106-0112
51	PLATE; CAUTION,WARNING EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7> (A)	1-85880-725-0	01	1	0201-
74	PLATE; CAUTION,CHANGE LEV TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> (C)	1-85881-617-0	01	1	0106-
74	PLATE; CAUTION,CHANGE LEV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) CAUTIONS CHINESE<SL7> (B)	1-85881-666-2	01	1	0106-
74	PLATE; CAUTION,CHANGE LEV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. CAUTIONS CHINESE<SL7> (A)	1-85881-736-1	01	1	0106-
