Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10872 - EXZ LHD FUEL TANK 400L/400L+400L
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-87 - TRUNK ROOM PACKAGE AND REAR PARCEL
▶

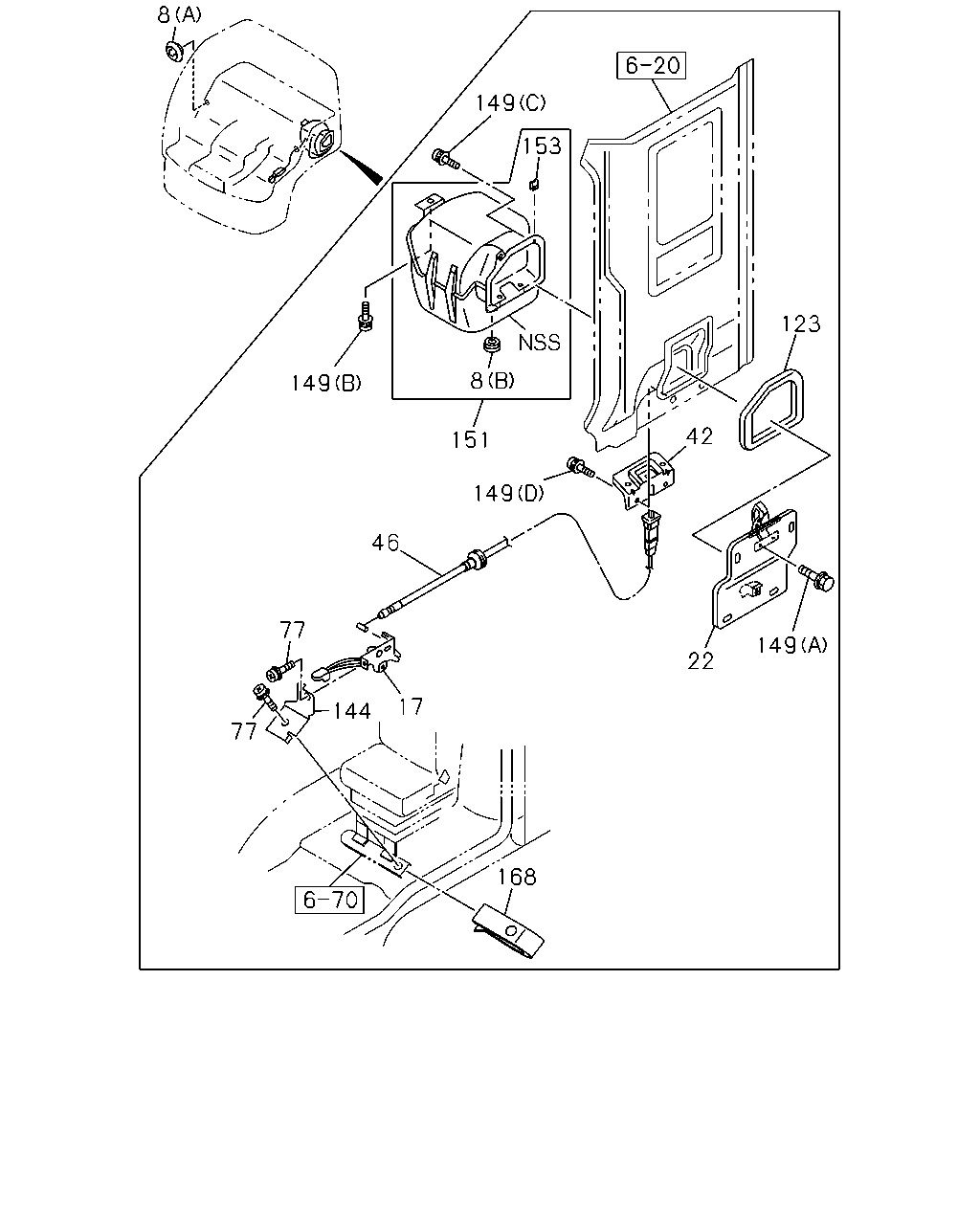

6-87 — TRUNK ROOM PACKAGE AND REAR PARCEL
(#10773) — 17 parça
8
149
153
123
8
149
42
151
149
46
77
149
22
17
144
77
168
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28
8-94279-720-0
01
1
0106-
8
GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (B) OD=44
8-94279-727-0
01
1
0110-
8
GROMMET; BOARD FIX
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (B) OD=28
8-94279-720-0
02
1
0106-
17
KNOB; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM>
1-73328-018-0
01
1
0106-
22
LID; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM>
1-71707-063-0
01
1
0106-
42
BRACKET ASM; HOOK
BAGGAGE BOX CAB RR SIDE<TBM>
1-71797-068-1
01
1
0106-
46
LOCK; RR COMPT LID
BAGGAGE BOX CAB RR SIDE<TBM> L=886.5
1-79517-007-0
01
1
0106-
77
SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> M6X20 W/LK&PL WASHER
8-94279-403-0
02
1
0106-
123
SEAL; REAR
BAGGAGE BOX CAB RR SIDE<TBM>
1-71797-061-1
01
1
0106-
144
BRACKET
BAGGAGE BOX CAB RR SIDE<TBM>
1-73907-583-3
01
1
0106-
149
SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (D) M6X12 W/LK&PL WASHER
8-94279-200-0
02
1
0106-
149
SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0106-
149
SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (A) M6X16 W/LK&PL WASHER
8-94279-402-0
02
1
0106-
149
SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (C) M6X20 W/LK&PL WASHER
8-94279-403-0
04
1
0106-
151
BOX ASM
BAGGAGE BOX CAB RR SIDE<TBM>
1-71797-951-2
01
1
0106-
153
J-NUT
BAGGAGE BOX CAB RR SIDE<TBM>
8-94279-056-0
02
1
0110-
168
NUT; BRKT
BAGGAGE BOX CAB RR SIDE<TBM>
1-09984-156-0
01
1
0106-
