2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#1077) — 28 parça

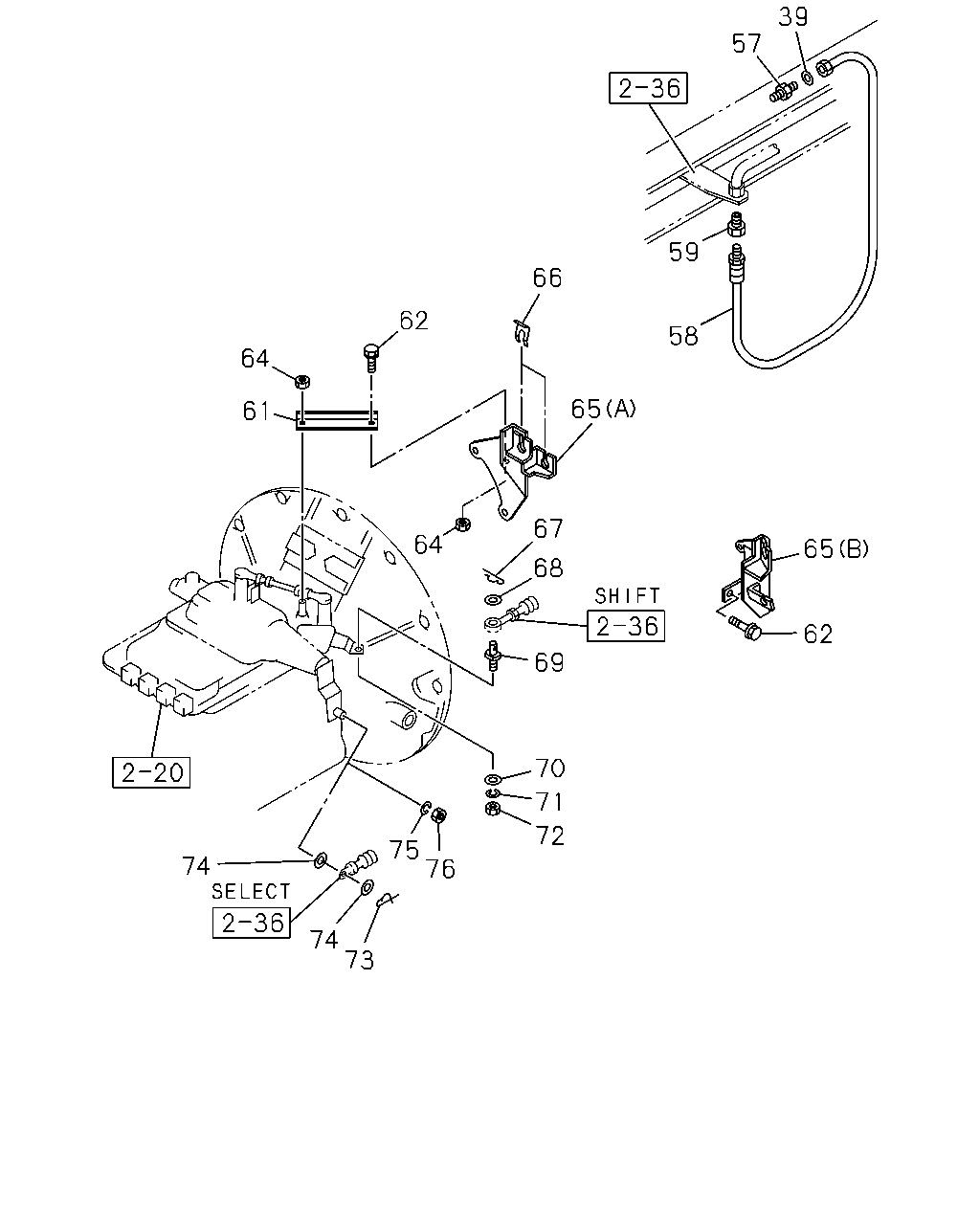

çizim 92282
39 57 59 66 62 58 64 65 61 67 64 65 68 62 69 70 71 72 75 76 74 74 73
BalonParca AdiParca NoAdetTipApplied Date A B C D E
39 GASKET; FLEX HOSE
ASSISTER SHIFT CONTROL<WX8> ID=11 OD=18 		9-09572-510-0 01 1 9202- ● ● ●
57 NIPPLE; POWER ASSISTOR
ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 		9-09902-386-0 01 1 9202- ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> L=400 		0-07120-400-0 01 1 9202- ● ●
58 HOSE; FLEX,POWER ASSISTOR
6SA1 STD ENG(06L) ASSISTER SHIFT CONTROL<WX8> L=500 		0-07120-500-0 01 1 9202- ● ●
59 CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
6SA1 STD ENG(06L) ASSISTER SHIFT CONTROL<WX8> 		1-09650-373-0 01 1 9202- ● ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 9202- ● ● ●
62 BOLT; STAY
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9202- ● ● ●
62 BOLT; STAY
M10X20 W/LK&PL WASHER 		0-50141-020-0 02 1 9202-9202 ●
62 BOLT; STAY
M10X20 W/LK&PL WASHER 		0-50151-020-0 02 1 9203- ● ●
64 NUT; STAY
M10 FLANGE 		5-09440-006-0 02 1 9202- ● ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ASSISTER SHIFT CONTROL<WX8> (A) 		1-33657-347-1 01 1 9202- ● ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (A) 		1-33657-490-1 01 1 9202- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6SA1 STD ENG(06L) ASSISTER SHIFT CONTROL<WX8> (A) 		1-33657-438-0 01 1 9202- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(B) 		1-33657-492-2 01 1 9202- ● ●
66 CLIP; SELECT BRKT 1-09700-778-1 02 1 9202- ● ● ● ● ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 9202- ● ● ● ● ●
68 WASHER; PL,TRANS CONT,SELECT
ID=8.4 OD=18 		9-09164-608-0 01 1 9202- ● ● ● ● ●
69 PIN; TRANS CONT,SELECT 1-33659-116-0 01 1 9202- ● ● ● ● ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 9202- ● ● ● ● ●
71 WASHER; LK,TRANS CONT,SELECT
ID=8.2 		9-09150-608-0 01 1 9202-9203 ● ● ● ●
71 WASHER; LK,TRANS CONT,SELECT
ID=8.2 		9-09150-508-0 01 1 9204- ● ● ● ● ●
72 NUT; TRANS CONT,SELECT
M8 		9-09110-408-0 01 1 9202- ● ● ● ● ●
73 RING; SNAP,WIRE SHAFT
EXC. ASSISTER SHIFT CONTROL<WX8> L=32.6 		8-94157-842-0 01 1 9202- ● ● ●
73 RING; SNAP,WIRE SHAFT
L=32.6 		8-94157-842-0 01 1 9202- ● ●
74 WASHER; PL,WIRE
EXC. ASSISTER SHIFT CONTROL<WX8> ID=10.5 OD=32 		9-09164-810-0 02 1 9202- ● ● ●
74 WASHER; PL,WIRE
ID=10.5 OD=32 		9-09164-810-0 02 1 9202- ● ●
75 WASHER; LK,BALL JOINT,SELECT WIRE
ASSISTER SHIFT CONTROL<WX8> ID=10.2 		9-09150-510-0 01 1 9202- ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
ASSISTER SHIFT CONTROL<WX8> M10 		9-09110-510-0 01 1 9202- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
