Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10872 - EXZ LHD FUEL TANK 400L/400L+400L
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶
6-76 — FLOOR EQUIPMENT AND SEALING
(#10768) — 21 parça
◀

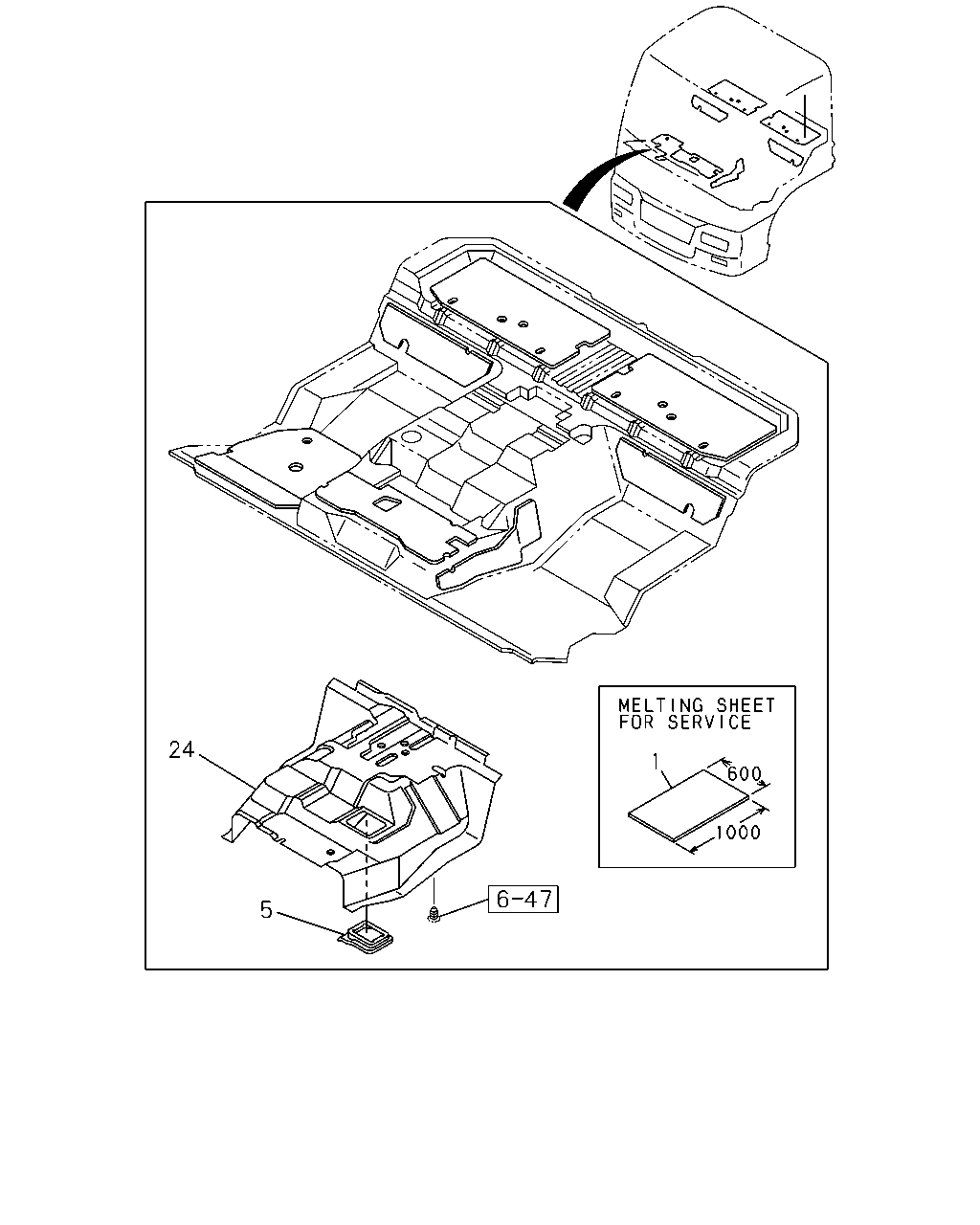

[676A] MELTING SHEET,COVER AND INSULATOR (3 parça)

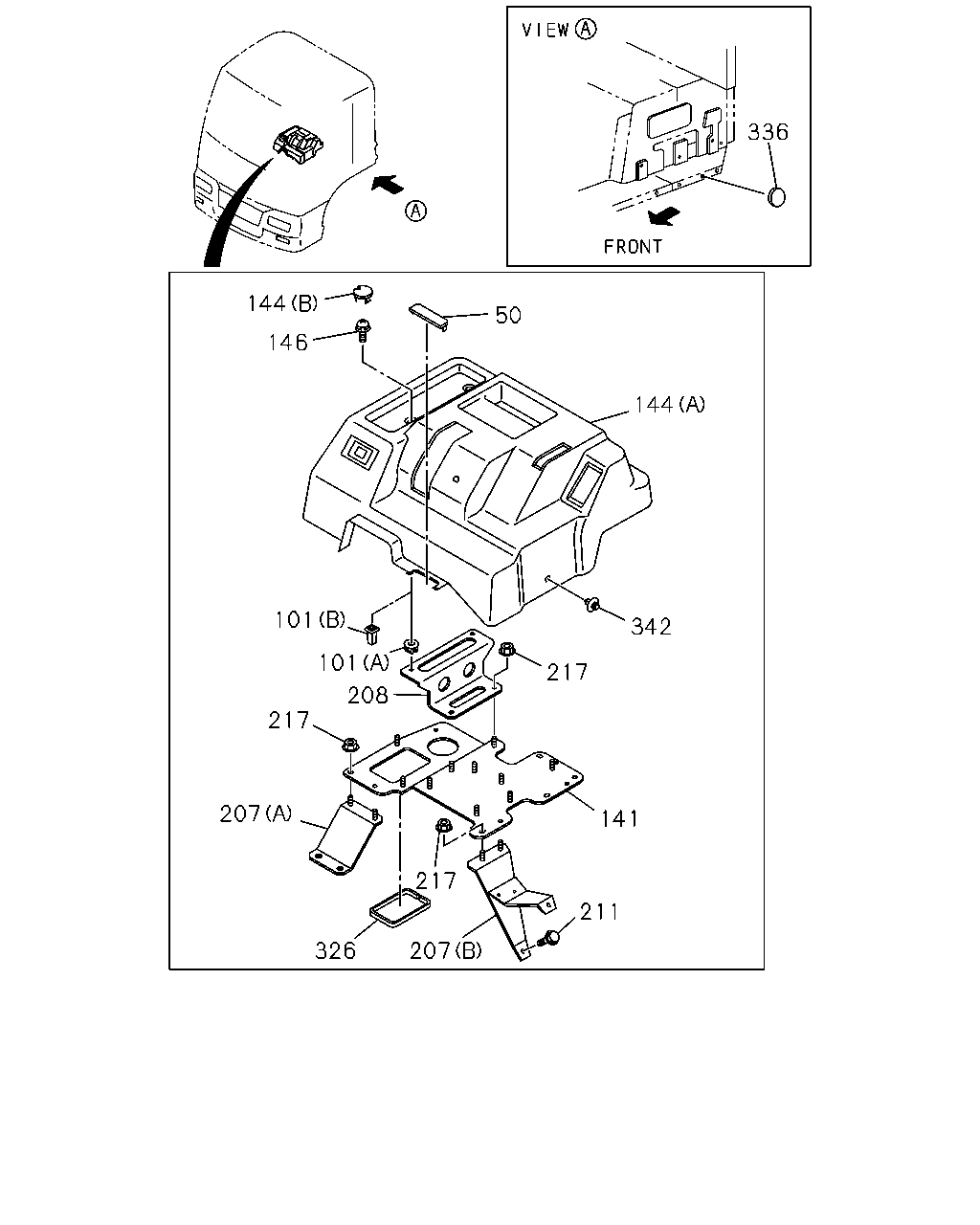

[676A] HAND BRAKE VALVE COVER (18 parça)
▶
24
1
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0
1-61970-039-0
AR
1
0106-
5
COVER; CHANGE LEVER
1-33619-163-0
01
1
0106-
24
INSULATOR; HEAT,FRT
1-71907-373-7
01
1
0106-
336
144
50
146
144
101
342
101
217
208
217
207
141
217
211
326
207
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
COVER ASM; SUPPORT,SIDE
1-72537-124-0
01
1
0106-
101
GROMMET; SCREW,FLOOR BOARD
(A) D=7X7 L=7.5
5-09983-007-0
02
1
0106-
101
GROMMET; SCREW,FLOOR BOARD
(B) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
01
1
0106-
141
HOLDER
1-79996-438-1
01
1
0106-
144
COVER; HAND BRK VLV
(A)
1-72417-369-2
01
1
0106-
144
COVER; HAND BRK VLV
(B)
1-76337-461-0
02
1
0106-
146
BOLT; COVER BRKT
M5X16 W/PL WASHER TAPPING
8-94279-123-0
03
1
0106-
207
BRACKET ASM; HAND BRAKE VALVE
(A)
1-79996-129-1
01
1
0106-
207
BRACKET ASM; HAND BRAKE VALVE
(B)
1-79996-130-1
01
1
0106-
208
BRACKET ASM; COVER & BRK VLV
1-79996-347-1
01
1
0106-
211
BOLT; COVER
M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0106-
211
BOLT; COVER
M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0106-
211
BOLT; COVER
M8X30 W/LK&PL WASHER
8-94279-210-0
01
1
0106-
217
NUT
M8 FLANGE
0-91150-108-0
06
1
0106-
326
SEAL; COVER
1-79996-132-0
01
1
0106-
336
SEAL; FLOOR SIDE
OD=25 BLACK
1-76798-019-0
01
1
0405-
336
SEAL; FLOOR SIDE
OD=25 BLACK
1-76798-019-0
02
1
0106-
342
FASTENER
D8X13.5
1-09987-270-0
01
1
0106-
