◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#10766) — 35 parça

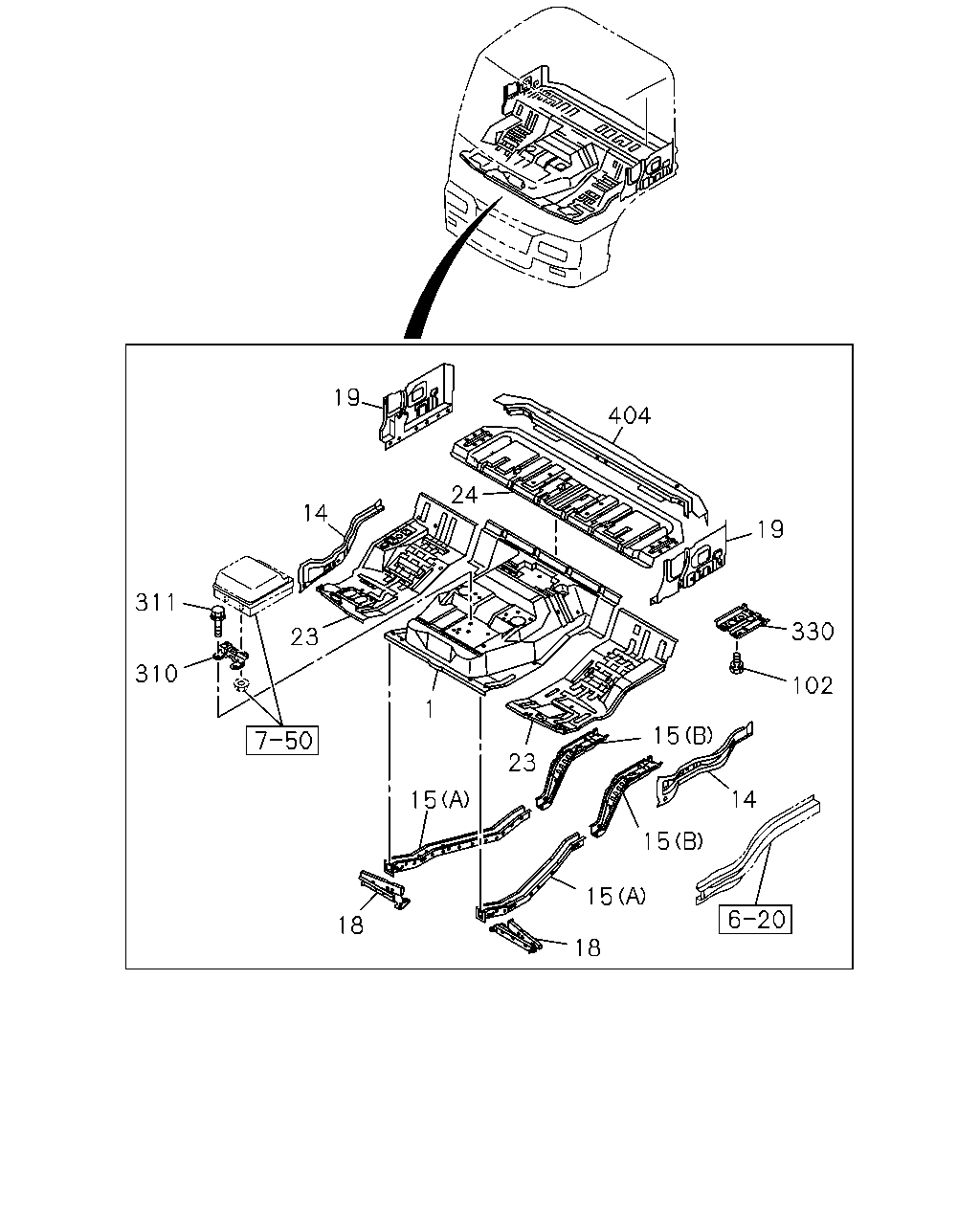

çizim 75763
19 404 24 14 19 311 330 23 310 102 1 15 23 14 15 15 15 18 18
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62172-627-5 01 1 0106-
1 PANEL; FLOOR
ZF M/T<X9E> 		1-62172-627-5 01 1 0106-
14 PANEL; FLOOR SIDE,FRT
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62482-918-6 01 1 0106-
14 PANEL; FLOOR SIDE,FRT
ZF M/T<X9E> 		1-62482-918-6 01 1 0106-
14 PANEL; FLOOR SIDE,FRT
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62482-917-6 01 1 0106-
14 PANEL; FLOOR SIDE,FRT
ZF M/T<X9E> 		1-62482-917-6 01 1 0106-
15 FRAME; UNDER
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) 		1-62472-670-3 01 1 0106-
15 FRAME; UNDER
ZF M/T<X9E> (A) 		1-62472-670-3 01 1 0106-
15 FRAME; UNDER
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> (B) 		1-62472-680-1 01 1 0106-
15 FRAME; UNDER
ZF M/T<X9E> (B) 		1-62472-680-1 01 1 0106-
15 FRAME; UNDER
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> (B) 		1-62472-598-6 01 1 0106-
15 FRAME; UNDER
ZF M/T<X9E> (B) 		1-62472-598-6 01 1 0106-
15 FRAME; UNDER
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) 		1-62472-669-3 01 1 0106-
15 FRAME; UNDER
ZF M/T<X9E> (A) 		1-62472-669-3 01 1 0106-
18 FRAME; FLOOR,CENTER SIDE
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62483-105-5 01 1 0106-
18 FRAME; FLOOR,CENTER SIDE
ZF M/T<X9E> 		1-62483-105-5 01 1 0106-
18 FRAME; FLOOR,CENTER SIDE
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-671-3 01 1 0106-
18 FRAME; FLOOR,CENTER SIDE
ZF M/T<X9E> 		1-62472-671-3 01 1 0106-
19 PANEL; FLOOR SIDE,REAR
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-659-2 01 1 0106-
19 PANEL; FLOOR SIDE,REAR
ZF M/T<X9E> 		1-62472-659-2 01 1 0106-
19 PANEL; FLOOR SIDE,REAR
FULLER M/T<X9B>,ZF M/T<X9E> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 0106-
19 PANEL; FLOOR SIDE,REAR
ZF M/T<X9E> BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 0106-
23 PANEL; FLOOR,SIDE
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62172-805-0 01 1 0106-
23 PANEL; FLOOR,SIDE
ZF M/T<X9E> 		1-62172-805-0 01 1 0106-
23 PANEL; FLOOR,SIDE
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62172-800-0 01 1 0106-
23 PANEL; FLOOR,SIDE
ZF M/T<X9E> 		1-62172-800-0 01 1 0106-
24 PANEL; BED PAN
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62172-540-9 01 1 0106-
24 PANEL; BED PAN
ZF M/T<X9E> 		1-62172-540-9 01 1 0106-
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0106-
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 0106-
311 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0106-
330 REINFORCEMENT; FLOOR
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62172-585-5 01 1 0106-
330 REINFORCEMENT; FLOOR
ZF M/T<X9E> 		1-62172-585-5 01 1 0106-
404 RAIL ASM; MTG,RR
FULLER M/T<X9B> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-596-8 01 1 0106-
404 RAIL ASM; MTG,RR
ZF M/T<X9E> 		1-62472-596-8 01 1 0106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
