2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#1076) — 141 parça

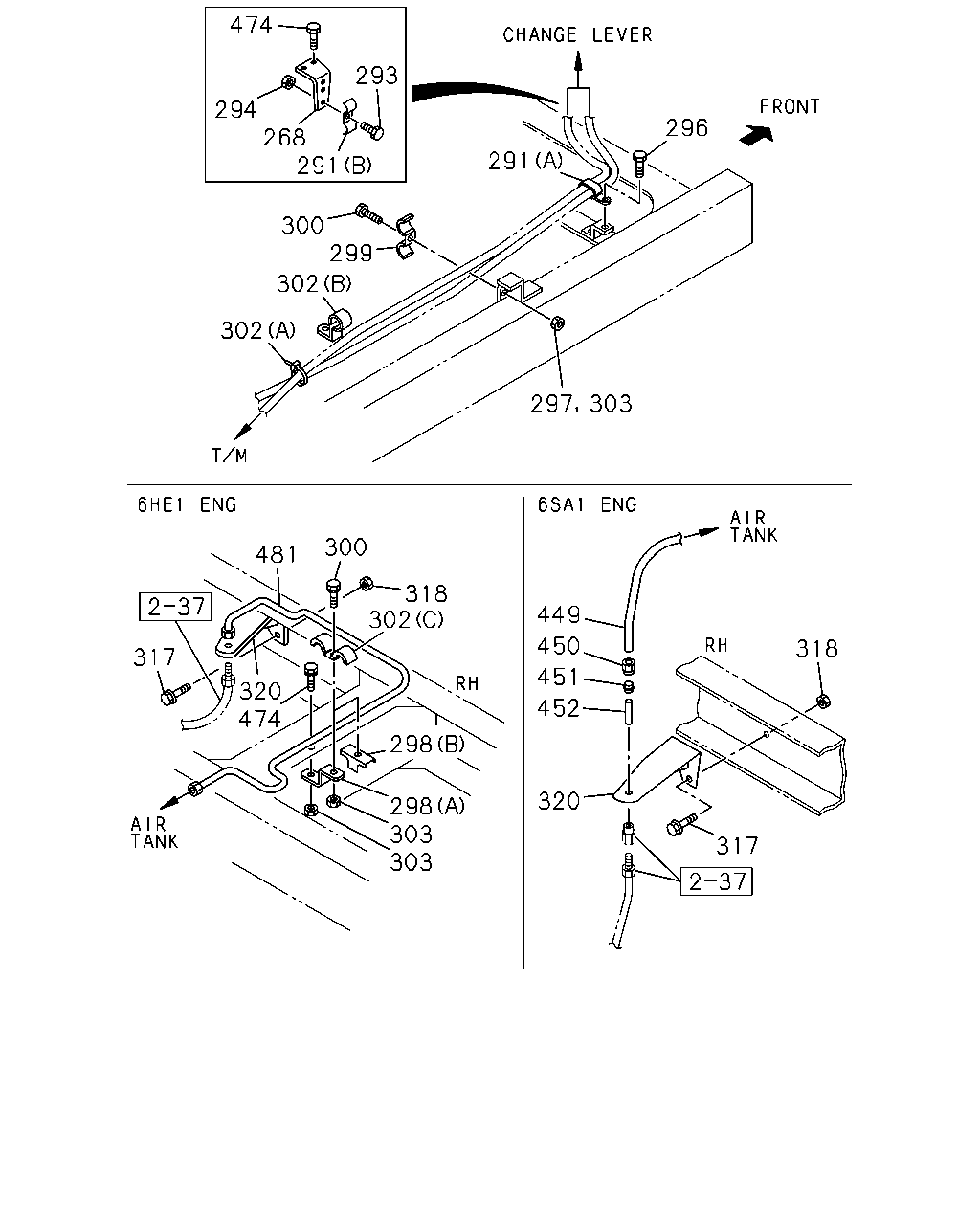

474 293 294 268 291 296 291 300 299 302 302 300 481 318 302 449 450 318 317 451 320 474 452 298 320 298 303 303 317 297 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
268	BRACKET; LINK ROD	1-46147-049-1	01	1	9202-9206	●	●	●	●
268	BRACKET; LINK ROD	1-46147-135-1	01	1	9207-	●	●	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●	●	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6HE1 STD ENG(46L) (A)	1-09701-100-3	01	1	9202-	●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X18	0-28010-818-0	01	1	9202-9204	●	●	●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●	●	●	●
294	NUT; CLIP M8	9-09110-408-0	01	1	9202-	●	●	●	●	●
296	BOLT; CLIP,SHIFT & SELECT 6HE1 STD ENG(46L) M8X18	0-28010-818-0	01	1	9202-9204	●	●
296	BOLT; CLIP,SHIFT & SELECT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
297	NUT; CLIP 6HE1 STD ENG(46L) M8	9-09110-408-0	01	1	9202-	●	●
298	BRACKET 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (A)	1-47475-601-0	01	1	9202-9204	●	●
298	BRACKET 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (B)	1-47475-427-1	01	1	9205-	●	●
299	CLIP; WIRE,POWER ASSISTOR BRKT ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●		●	●	●
300	BOLT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
300	BOLT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●
300	BOLT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8X16 FLANGE	0-28080-816-0	01	1	9202-9204	●	●
300	BOLT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8X35 FLANGE	0-28080-835-0	01	1	9205-	●	●
300	BOLT; CLIP 6SA1 STD ENG(06L) M8X18	0-28010-818-0	01	1	9202-9204	●		●
300	BOLT; CLIP M8X18	0-28010-818-0	01	1	9202-9204				●
300	BOLT; CLIP 6SA1 STD ENG(06L) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●		●
300	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9205-				●	●
302	CLIP; BAND (A) L=140	5-09707-031-0	04	1	9202-	●	●	●	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) (A) L=250	5-09707-030-0	01	1	9202-	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) (A) L=140	5-09707-031-0	01	1	9202-	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9202-	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (C) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9202-	●	●
303	NUT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8	9-09110-408-0	02	1	9202-	●	●
303	NUT; CLIP M8	9-09110-408-0	01	1	9202-	●		●	●	●
317	BOLT; BRKT,SIDE MBR ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●	●
317	BOLT; BRKT,SIDE MBR ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●	●
317	BOLT; BRKT,SIDE MBR M8X25 W/LK WASHER	9-01900-825-0	01	1	9202-9204				●
317	BOLT; BRKT,SIDE MBR M8X25 FLANGE	0-28080-825-0	01	1	9205-				●
318	NUT; BRKT,SIDE MBR ASSISTER SHIFT CONTROL<WX8>	9-09110-408-0	02	1	9202-	●	●	●
318	NUT; BRKT,SIDE MBR	9-09110-408-0	01	1	9202-				●
320	BRACKET; FLEX HOSE ASSISTER SHIFT CONTROL<WX8>	1-47476-671-0	01	1	9202-	●	●	●
449	TUBE; NYLON 6SA1 STD ENG(06L) ASSISTER SHIFT CONTROL<WX8> SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9202-	●		●
450	NUT; SLEEVE 6SA1 STD ENG(06L) ASSISTER SHIFT CONTROL<WX8> OD=3/8"	1-09660-557-0	AR	1	9202-	●		●
451	SLEEVE; TUBE 6SA1 STD ENG(06L) ASSISTER SHIFT CONTROL<WX8> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9202-	●		●
452	RING; INSERT 6SA1 STD ENG(06L) ASSISTER SHIFT CONTROL<WX8> OD=3/8"	1-09669-108-0	AR	1	9202-	●		●
474	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9202-9204	●	●	●	●
474	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●	●	●	●
481	PIPE; AIR,AIR TANK 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8>	1-47495-233-0	01	1	9205-	●	●

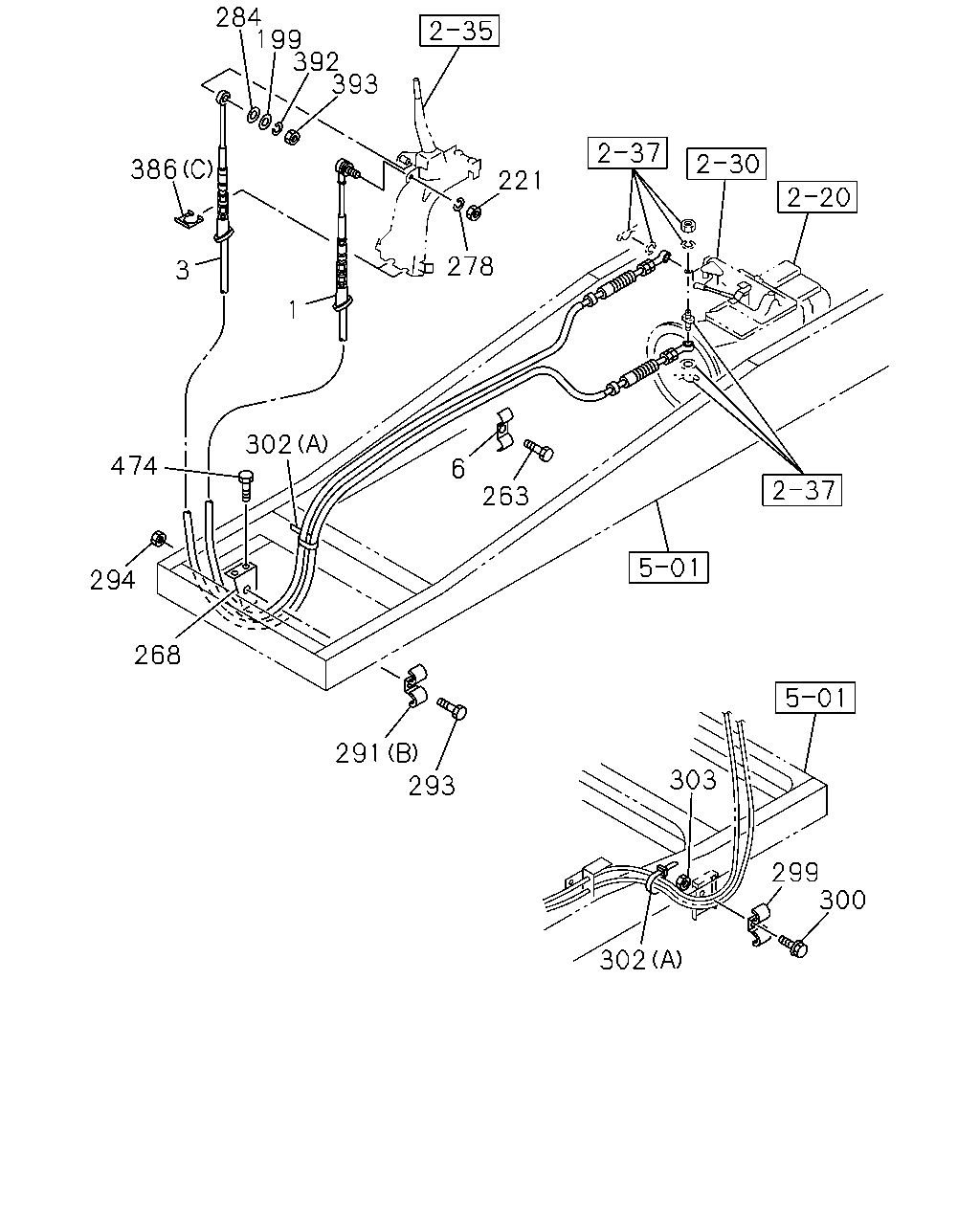

284 199 392 393 386 221 278 3 1 302 474 6 263 294 268 291 303 293 299 300 302

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	CABLE; SHIFT,TRANS CONT 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> L=3180	1-33670-250-0	01	1	9202-9202	●	●
1	CABLE; SHIFT,TRANS CONT 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> L=3210	1-33670-252-1	01	1	9203-	●	●
1	CABLE; SHIFT,TRANS CONT 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> L=3210	1-33670-253-1	01	1	9202-	●	●
1	CABLE; SHIFT,TRANS CONT 6SA1 STD ENG(06L) ASSISTER SHIFT CONTROL<WX8> L=3220	1-33660-663-1	01	1	9202-	●		●
1	CABLE; SHIFT,TRANS CONT 6SA1 STD ENG(06L) EXC. ASSISTER SHIFT CONTROL<WX8> L=3380	1-33660-453-1	01	1	9202-	●		●
1	CABLE; SHIFT,TRANS CONT L=3418	1-33670-126-0	01	1	9202-				●	●
3	CABLE; SELECT,TRANS CONT 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> L=3275	1-33670-258-0	01	1	9202-	●	●
3	CABLE; SELECT,TRANS CONT 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> L=3280	1-33670-259-0	01	1	9202-	●	●
3	CABLE; SELECT,TRANS CONT 6SA1 STD ENG(06L) L=3310	1-33660-433-1	01	1	9202-	●		●
3	CABLE; SELECT,TRANS CONT L=3355	1-33670-127-1	01	1	9202-				●	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●	●	●	●	●
199	WASHER; PL,SELECT ID=6.4 OD=14	9-09164-606-0	01	1	9202-	●	●	●	●	●
221	NUT; SHIFT WIRE TO LEVER M10	9-09110-410-0	01	1	9202-	●	●	●	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	9202-	●	●	●	●	●
268	BRACKET; LINK ROD	1-46147-049-1	01	1	9202-9206	●	●	●	●
268	BRACKET; LINK ROD	1-46147-135-1	01	1	9207-	●	●	●	●	●
278	WASHER; LK,SHIFT WIRE ID=10.2	9-09150-510-0	01	1	9202-	●	●	●	●	●
284	WASHER; WAVE,SELECT CABLE,CAB	8-94242-854-0	01	1	9202-	●	●	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●	●	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6HE1 STD ENG(46L) (A)	1-09701-100-3	01	1	9202-	●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X18	0-28010-818-0	01	1	9202-9204	●	●	●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●	●	●	●
294	NUT; CLIP M8	9-09110-408-0	01	1	9202-	●	●	●	●	●
299	CLIP; WIRE,POWER ASSISTOR BRKT ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●		●	●	●
300	BOLT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
300	BOLT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●
300	BOLT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8X16 FLANGE	0-28080-816-0	01	1	9202-9204	●	●
300	BOLT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8X35 FLANGE	0-28080-835-0	01	1	9205-	●	●
300	BOLT; CLIP 6SA1 STD ENG(06L) M8X18	0-28010-818-0	01	1	9202-9204	●		●
300	BOLT; CLIP M8X18	0-28010-818-0	01	1	9202-9204				●
300	BOLT; CLIP 6SA1 STD ENG(06L) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●		●
300	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9205-				●	●
302	CLIP; BAND (A) L=140	5-09707-031-0	04	1	9202-	●	●	●	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) (A) L=250	5-09707-030-0	01	1	9202-	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) (A) L=140	5-09707-031-0	01	1	9202-	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9202-	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (C) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9202-	●	●
303	NUT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8	9-09110-408-0	02	1	9202-	●	●
303	NUT; CLIP M8	9-09110-408-0	01	1	9202-	●		●	●	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-0	02	1	9202-	●	●	●	●	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-0	04	1	9202-				●
386	CLIP; CONT CABLE & TUBE (B) ID=11 L=20	9-09525-032-0	02	1	9202-				●	●
386	CLIP; CONT CABLE & TUBE (B) ID=13 L=20	9-09525-232-0	02	1	9202-				●	●
392	WASHER; LK,SELECT CABLE,CAB ID=6.1	9-09150-506-0	01	1	9202-	●	●	●	●	●
393	NUT; SELECT CABLE,CAB M6	9-09111-406-0	01	1	9202-	●	●	●	●	●
474	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9202-9204	●	●	●	●
474	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●	●	●	●

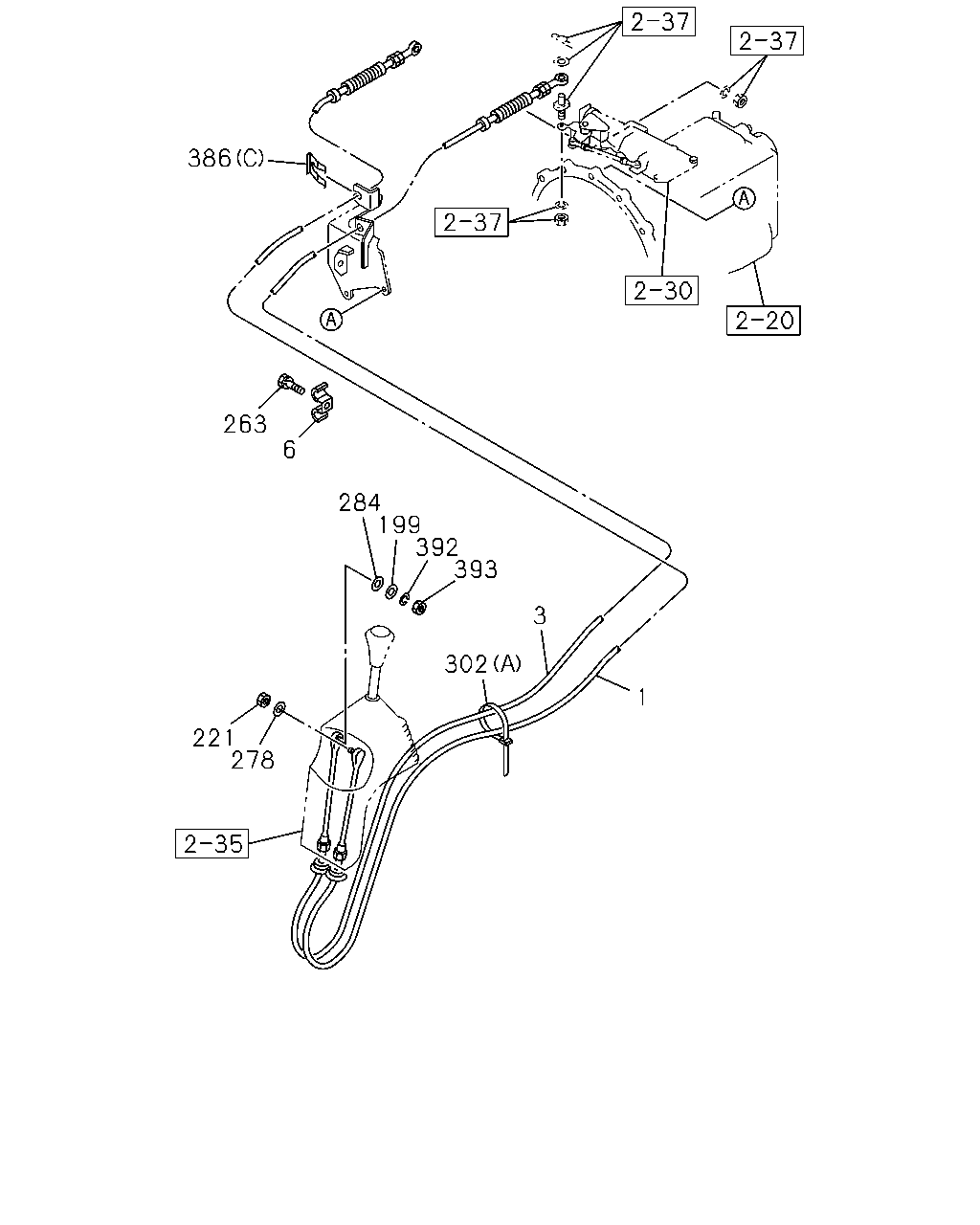

386 263 6 284 199 392 393 3 302 1 221 278

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	CABLE; SHIFT,TRANS CONT 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> L=3180	1-33670-250-0	01	1	9202-9202	●	●
1	CABLE; SHIFT,TRANS CONT 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> L=3210	1-33670-252-1	01	1	9203-	●	●
1	CABLE; SHIFT,TRANS CONT 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> L=3210	1-33670-253-1	01	1	9202-	●	●
1	CABLE; SHIFT,TRANS CONT 6SA1 STD ENG(06L) ASSISTER SHIFT CONTROL<WX8> L=3220	1-33660-663-1	01	1	9202-	●		●
1	CABLE; SHIFT,TRANS CONT 6SA1 STD ENG(06L) EXC. ASSISTER SHIFT CONTROL<WX8> L=3380	1-33660-453-1	01	1	9202-	●		●
1	CABLE; SHIFT,TRANS CONT L=3418	1-33670-126-0	01	1	9202-				●	●
3	CABLE; SELECT,TRANS CONT 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> L=3275	1-33670-258-0	01	1	9202-	●	●
3	CABLE; SELECT,TRANS CONT 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> L=3280	1-33670-259-0	01	1	9202-	●	●
3	CABLE; SELECT,TRANS CONT 6SA1 STD ENG(06L) L=3310	1-33660-433-1	01	1	9202-	●		●
3	CABLE; SELECT,TRANS CONT L=3355	1-33670-127-1	01	1	9202-				●	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●	●	●	●	●
199	WASHER; PL,SELECT ID=6.4 OD=14	9-09164-606-0	01	1	9202-	●	●	●	●	●
221	NUT; SHIFT WIRE TO LEVER M10	9-09110-410-0	01	1	9202-	●	●	●	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	9202-	●	●	●	●	●
278	WASHER; LK,SHIFT WIRE ID=10.2	9-09150-510-0	01	1	9202-	●	●	●	●	●
284	WASHER; WAVE,SELECT CABLE,CAB	8-94242-854-0	01	1	9202-	●	●	●	●	●
302	CLIP; BAND (A) L=140	5-09707-031-0	04	1	9202-	●	●	●	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) (A) L=250	5-09707-030-0	01	1	9202-	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) (A) L=140	5-09707-031-0	01	1	9202-	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9202-	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (C) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9202-	●	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-0	02	1	9202-	●	●	●	●	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-0	04	1	9202-				●
386	CLIP; CONT CABLE & TUBE (B) ID=11 L=20	9-09525-032-0	02	1	9202-				●	●
386	CLIP; CONT CABLE & TUBE (B) ID=13 L=20	9-09525-232-0	02	1	9202-				●	●
392	WASHER; LK,SELECT CABLE,CAB ID=6.1	9-09150-506-0	01	1	9202-	●	●	●	●	●
393	NUT; SELECT CABLE,CAB M6	9-09111-406-0	01	1	9202-	●	●	●	●	●

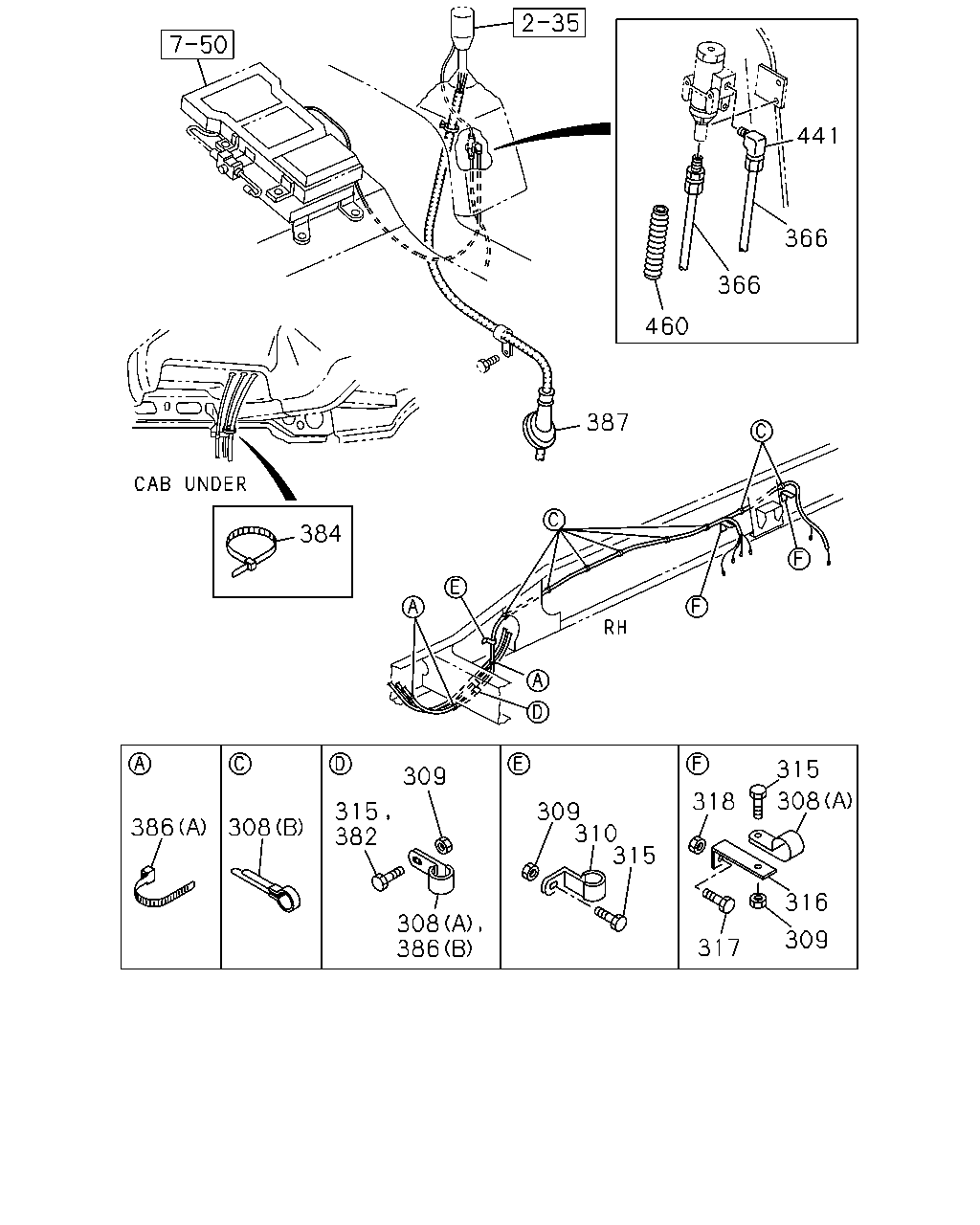

441 366 366 460 387 384 315 309 308 318 315 382 309 310 315 386 308 316 308 386 309 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
308	CLIP; PIPE (A) ID=11 L=20	9-09525-035-0	02	1	9202-				●
308	CLIP; PIPE (B) ID=14 L=44	9-09917-427-0	06	1	9202-				●
309	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9202-				●
310	CLIP; TUBE ID=11 H=45 L=25	1-09700-866-0	01	1	9202-				●
315	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9202-9204				●
315	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9205-				●
315	BOLT; PIPE CLIP M8X25 W/LK WASHER	9-01900-825-0	02	1	9202-9204				●
315	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9205-				●
316	BRACKET; CLIP	1-34656-009-0	01	1	9202-				●
317	BOLT; BRKT,SIDE MBR ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●	●
317	BOLT; BRKT,SIDE MBR ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●	●
317	BOLT; BRKT,SIDE MBR M8X25 W/LK WASHER	9-01900-825-0	01	1	9202-9204				●
317	BOLT; BRKT,SIDE MBR M8X25 FLANGE	0-28080-825-0	01	1	9205-				●
318	NUT; BRKT,SIDE MBR ASSISTER SHIFT CONTROL<WX8>	9-09110-408-0	02	1	9202-	●	●	●
318	NUT; BRKT,SIDE MBR	9-09110-408-0	01	1	9202-				●
366	TUBE; NYLON,FULLER CONT BLACK OD=1/8" L=30000	1-09368-256-0	AR	1	9202-				●	●
382	SCREW; CLIP,FULLER M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9202-				●	●
384	CLIP; BAND,CONT TUBE L=100	5-09707-036-0	01	1	9202-				●	●
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-0	02	1	9202-	●	●	●	●	●
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-0	04	1	9202-				●
386	CLIP; CONT CABLE & TUBE (B) ID=11 L=20	9-09525-032-0	02	1	9202-				●	●
386	CLIP; CONT CABLE & TUBE (B) ID=13 L=20	9-09525-232-0	02	1	9202-				●	●
387	GROMMET; CONT TUBE,FULLER	1-09333-126-0	01	1	9202-				●	●
441	CONNECTOR; NYLON TUBE AIR ASSIST CLUTCH<PK1>	1-09660-563-0	01	1	9202-				●	●
460	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-83129-335-0	01	1	9209-					●
