6-03 — RADIATOR GRILLE (#10753) — 18 parça

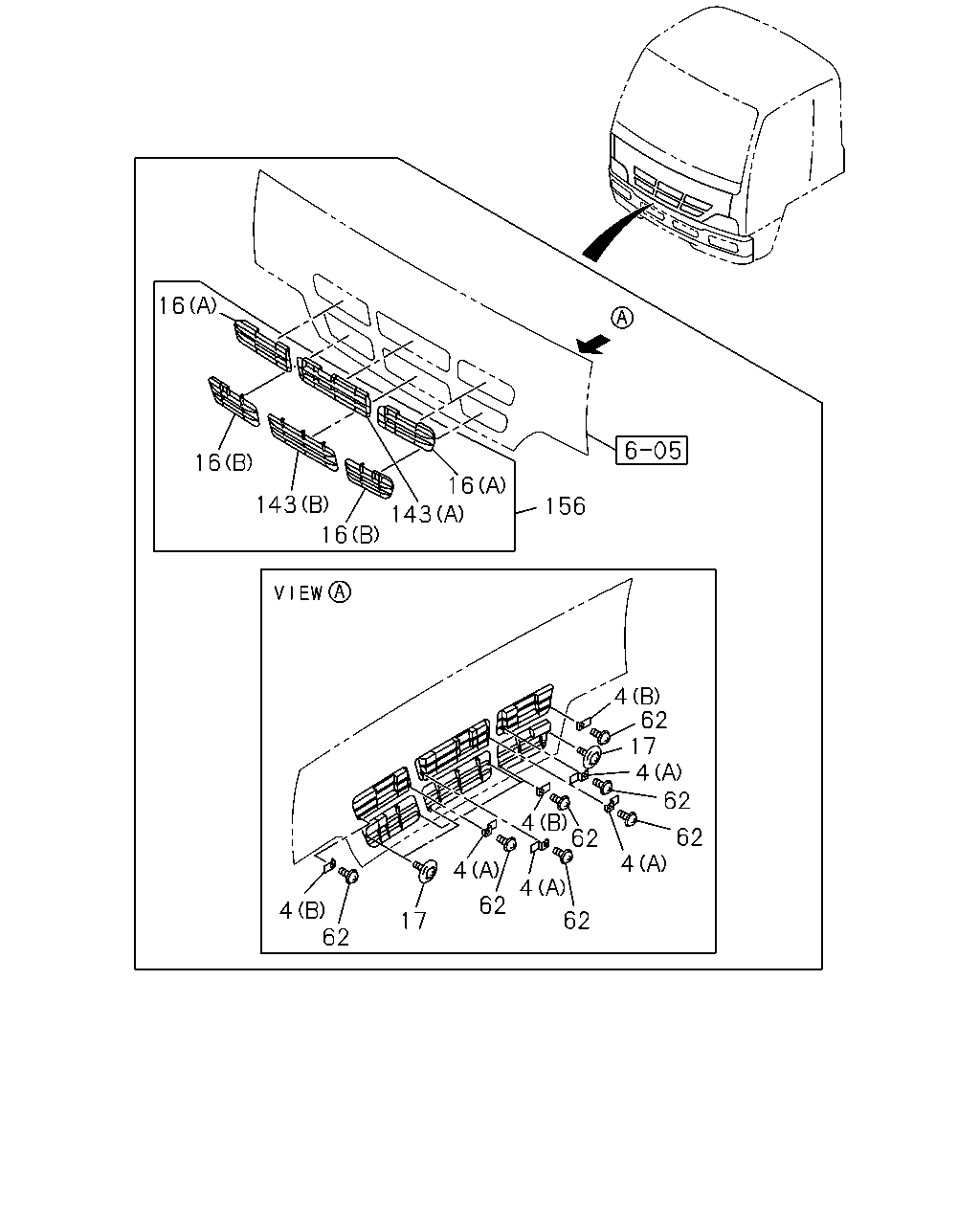

16 16 16 143 143 156 16 4 62 17 4 62 4 62 62 4 4 4 62 4 62 62 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BRACKET; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71117-240-1	04	1	0106-
4	BRACKET; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71117-241-1	05	1	0106-
16	GRILLE; RAD,SIDE EXC. BUMPER W/HEADLAMPS<SLB> (A) UPPER	1-71117-226-3	01	1	0106-
16	GRILLE; RAD,SIDE EXC. BUMPER W/HEADLAMPS<SLB> (B) LOWER	1-71117-228-3	01	1	0106-
16	GRILLE; RAD,SIDE EXC. BUMPER W/HEADLAMPS<SLB> (A) UPPER	1-71117-225-3	01	1	0106-
16	GRILLE; RAD,SIDE EXC. BUMPER W/HEADLAMPS<SLB> (B) LOWER	1-71117-227-3	01	1	0106-
17	SCREW; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M5	1-71117-238-1	03	1	0106-
62	SCREW; BRKT,RAD GRILLE BUMPER W/HEADLAMPS<SLB> M5X12	1-09981-539-0	02	1	0106-
62	SCREW; BRKT,RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M5X12	1-09981-539-0	09	1	0106-
143	GRILLE; RAD,CENTER EXC. BUMPER W/HEADLAMPS<SLB> (A) UPPER	1-71117-223-3	01	1	0106-
143	GRILLE; RAD,CENTER EXC. BUMPER W/HEADLAMPS<SLB> (B) LOWER	1-71117-224-3	01	1	0106-
156	GRILLE KIT; RAD EXC. BUMPER W/HEADLAMPS<SLB>	1-71117-245-0	01	1	0106-

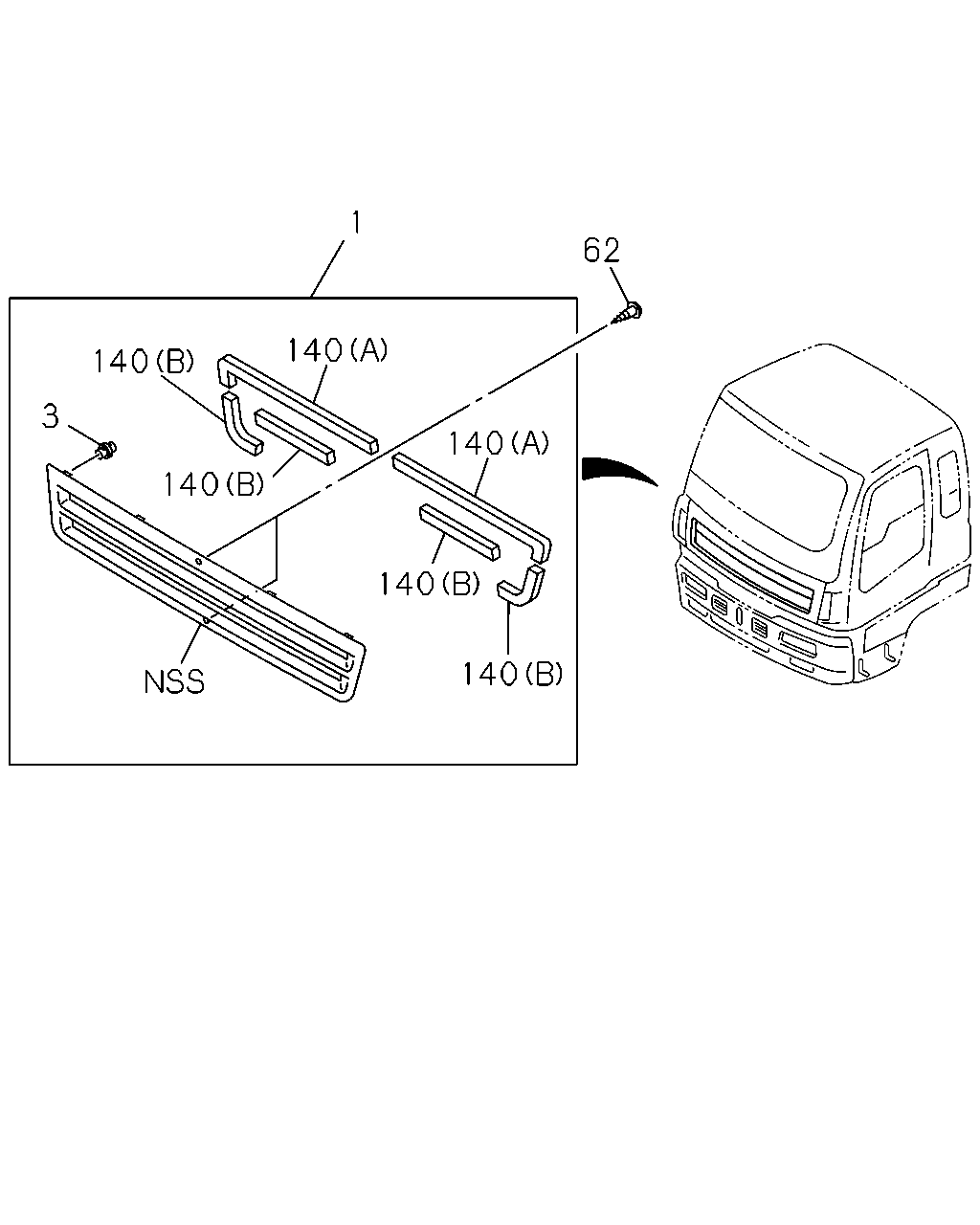

1 62 140 140 3 140 140 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GRILLE; RAD BUMPER W/HEADLAMPS<SLB>	1-71117-252-6	01	1	0106-
3	CLIP; GRILLE BUMPER W/HEADLAMPS<SLB>	1-71117-251-0	14	1	0106-
62	SCREW; BRKT,RAD GRILLE BUMPER W/HEADLAMPS<SLB> M5X12	1-09981-539-0	02	1	0106-
62	SCREW; BRKT,RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M5X12	1-09981-539-0	09	1	0106-
140	SEAL; RAD GRILLE BUMPER W/HEADLAMPS<SLB> (A)	1-71117-254-2	02	1	0106-
140	SEAL; RAD GRILLE BUMPER W/HEADLAMPS<SLB> (B)	1-71117-255-0	04	1	0106-
