◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#10752) — 77 parça

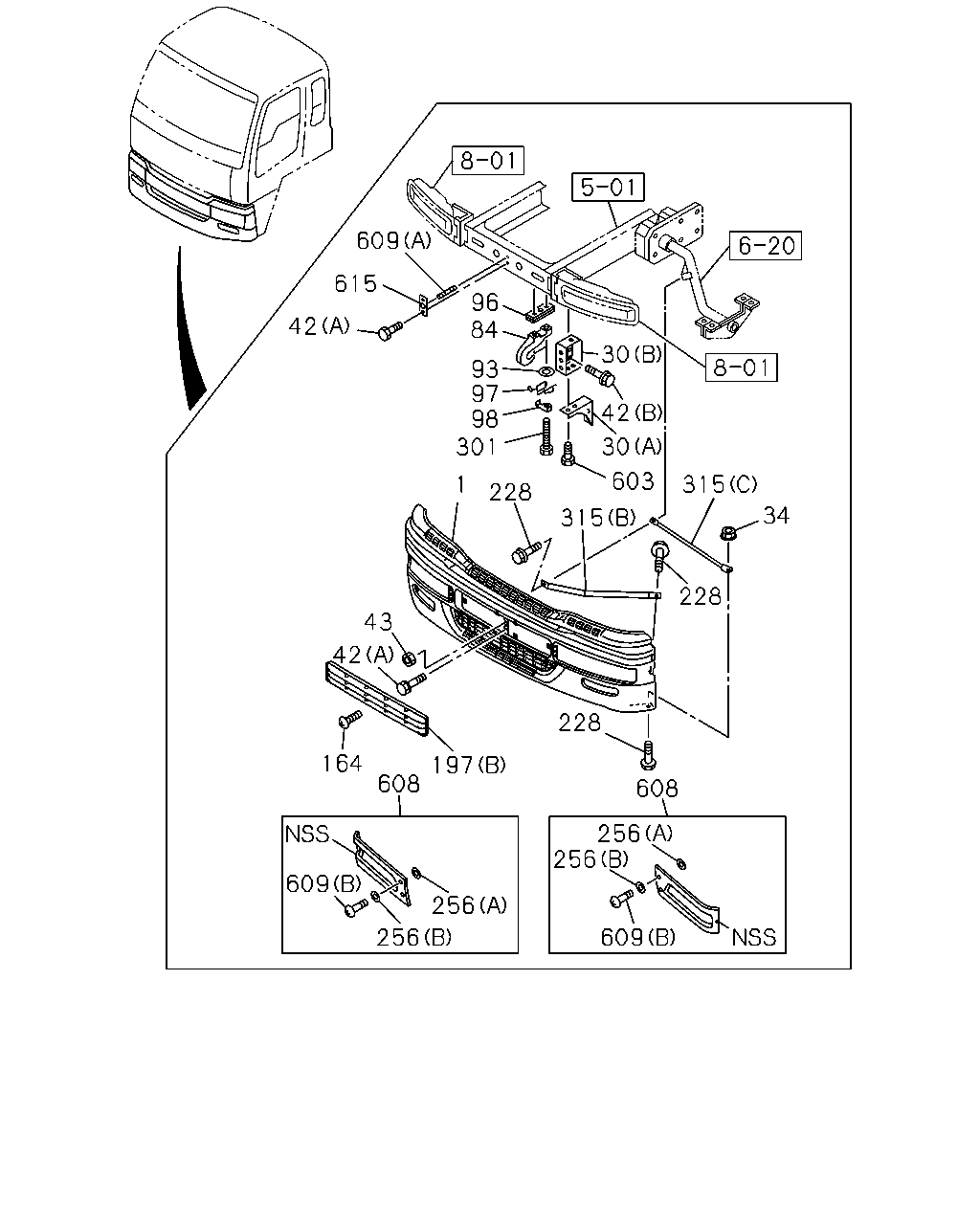

çizim 76065
609 615 96 84 42 30 93 97 98 301 42 30 603 315 1 228 34 315 228 43 42 228 164 197 608 608 256 256 609 256 256 609
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71210-746-4 01 1 0106-
30 BRACKET; FRT BUMPER
(A) 		1-71230-430-0 01 1 0106-
30 BRACKET; FRT BUMPER
(A) 		1-71230-431-0 01 1 0106-
30 BRACKET; FRT BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-71230-455-1 01 1 0106-
30 BRACKET; FRT BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-71230-456-1 01 1 0106-
34 NUT; BRKT,BUMPER
M8 FLANGE 		0-91150-108-0 02 1 0106-
34 NUT; BRKT,BUMPER
M8 FLANGE 		0-91150-108-0 17 1 0106-
42 BOLT; BUMPER
(A) M10X25 FLANGE 		0-28681-025-0 07 1 0106-
42 BOLT; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X35 FLANGE 		0-28081-035-0 08 1 0106-0106
42 BOLT; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X30 FLANGE 		0-28681-030-0 08 1 0107-
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 02 1 0106-
84 HOOK 1-57181-027-1 01 1 0106-
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0106-
96 PLATE; DIST,HOOK 1-53497-560-0 01 1 0106-
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0106-
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0106-
164 SCREW; AIR INT GRILLE
M6X20 		1-71260-141-0 06 1 0106-
197 GRILLE; BUMPER
(A) 		1-71260-117-0 01 1 0106-
197 GRILLE; BUMPER
(B) 		1-71260-157-2 01 1 0106-
228 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 0106-
256 WASHER; PL
BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-173-0 03 1 0106-
256 WASHER; PL
BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 03 1 0106-
256 WASHER; PL
BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-153-0 03 1 0106-
256 WASHER; PL
BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-71260-165-0 03 1 0106-
256 WASHER; PL
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-173-0 06 1 0106-
256 WASHER; PL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-173-0 06 1 0106-
256 WASHER; PL
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0106-
256 WASHER; PL
BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0106-
301 BOLT; HOOK TO FRAME
M16X70 		0-10811-670-0 01 1 0106-
301 BOLT; HOOK TO FRAME
M16X80 		0-10811-680-0 01 1 0106-
315 STAY; BUMPER
(B) 		1-71230-408-0 02 1 0106-
315 STAY; BUMPER
(C) 		1-71230-501-0 02 1 0106-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0106-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0106-
603 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0106-
608 LID; BUMPER
BUMPER W/HEADLAMPS<SLB> 		1-71210-753-4 01 1 0106-
608 LID; BUMPER
BUMPER W/HEADLAMPS<SLB> 		1-71210-752-4 01 1 0106-
608 LID; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71210-897-0 01 1 0106-
608 LID; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71210-896-0 01 1 0106-
609 STUD; BUMPER
(A) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0106-
609 STUD; BUMPER
BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-71260-175-0 03 1 0106-
609 STUD; BUMPER
BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-71260-164-0 03 1 0106-
609 STUD; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-71260-175-0 06 1 0106-
609 STUD; BUMPER
BUMPER W/HEADLAMPS<SLB> (B) 		1-71260-175-0 06 1 0106-
615 BRACKET; BUMPER CENTER 1-71230-407-0 01 1 0106-

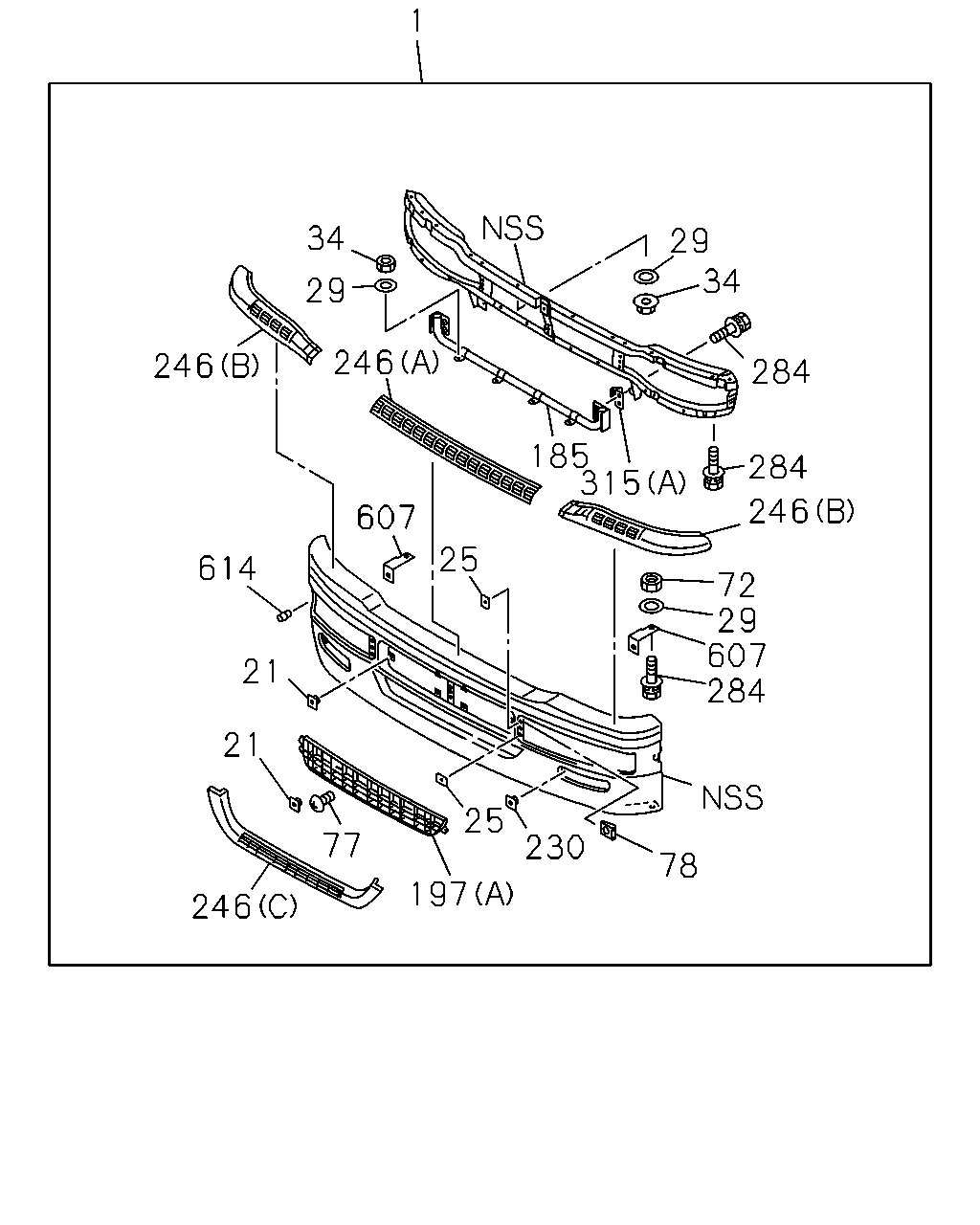

çizim 81256
1 34 29 34 29 246 246 284 185 315 284 246 607 25 614 72 29 607 284 21 21 25 77 230 78 197 246
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71210-746-4 01 1 0106-
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9X9 L=7 M5 		8-94163-979-0 14 1 0212-
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8 		8-94222-314-0 24 1 0106-0211
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8 		8-94222-314-0 10 1 0212-
25 SPACER; PLATFORM 1-71260-162-0 06 1 0106-
29 WASHER; FRT BUMPER
ID=8.4 		9-09160-508-0 21 1 0106-0211
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 19 1 0212-
34 NUT; BRKT,BUMPER
M8 FLANGE 		0-91150-108-0 02 1 0106-
34 NUT; BRKT,BUMPER
M8 FLANGE 		0-91150-108-0 17 1 0106-
72 NUT; BRKT
M8 		9-09110-508-0 04 1 0106-0211
72 NUT; BRKT
M8 		9-09110-508-0 02 1 0212-
77 SCREW; BRKT
M5X12 		9-93490-512-0 16 1 0106-0211
77 SCREW; BRKT
M5X16 TAPPING 		9-07076-516-0 14 1 0212-
78 NUT; SPIRE 1-71260-152-0 04 1 0106-0211
78 NUT; SPIRE 1-71260-174-0 06 1 0212-
185 BRACKET; BUMPER,INNER 1-71230-406-0 01 1 0106-0211
197 GRILLE; BUMPER
(A) 		1-71260-117-0 01 1 0106-
197 GRILLE; BUMPER
(B) 		1-71260-157-2 01 1 0106-
230 NUT; BRK,HD LAMP,LWR
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0106-
246 PROTECTOR; BUMPER
(A) 		1-71260-155-0 01 1 0106-
246 PROTECTOR; BUMPER
(C) 		1-71260-156-1 01 1 0106-
246 PROTECTOR; BUMPER
(B) 		1-71260-095-1 01 1 0106-
246 PROTECTOR; BUMPER
(B) 		1-71260-094-1 01 1 0106-
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 0106-0211
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0212-
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0106-
315 STAY; BUMPER
(B) 		1-71230-408-0 02 1 0106-
315 STAY; BUMPER
(C) 		1-71230-501-0 02 1 0106-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0106-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0106-
607 BRACKET 1-71230-454-0 02 1 0106-
614 STOPPER; LID 1-71260-163-0 12 1 0106-
