Isuzu WW
▶
TRUCKS
▶
EXD
▶
10865 - EXD RHD FUEL TANK 400L/400L+200L
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶
6-01 — FRONT BUMPER
(#10748) — 57 parça
◀
[601A] FIXING;ASM,HOOK AND OTHER PARTS (31 parça)
[601A] COMPONENT (26 parça)
▶

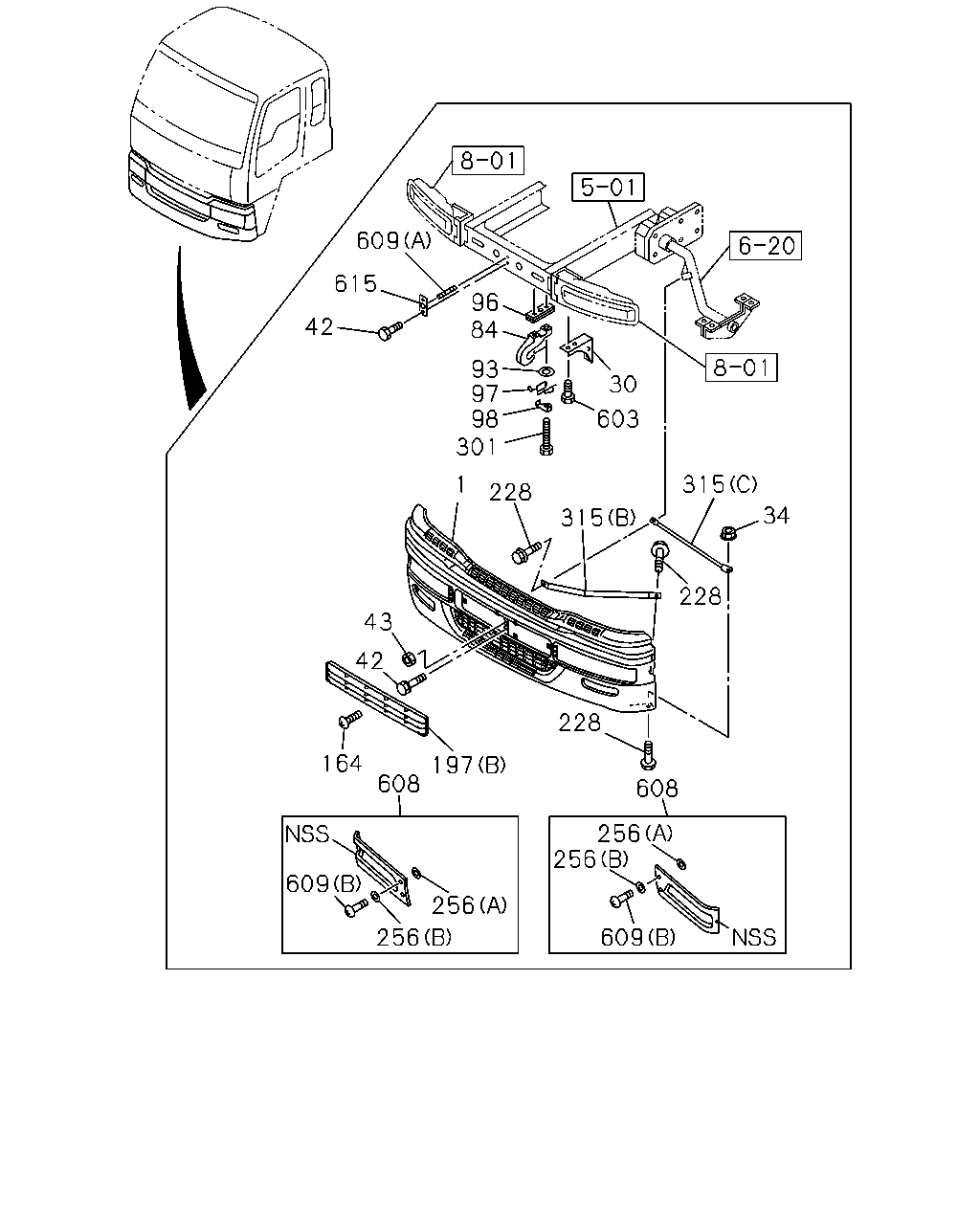

609
615
96
84
42
93
97
98
301
30
603
315
1
228
34
315
228
43
42
228
164
197
608
608
256
256
609
256
609
256
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
FOG LAMP<T96>
1-71210-870-3
01
1
0107-
1
BUMPER ASM; FRT
EXC. FOG LAMP<T96> WHITE
1-71210-746-4
01
1
0107-
30
BRACKET; FRT BUMPER
1-71230-430-0
01
1
0107-
30
BRACKET; FRT BUMPER
1-71230-431-0
01
1
0107-
34
NUT; BRKT,BUMPER
M8 FLANGE
0-91150-108-0
17
1
0107-
34
NUT; BRKT,BUMPER
M8 FLANGE
0-91150-108-0
02
1
0107-
42
BOLT; BUMPER
M10X25 FLANGE
0-28681-025-0
07
1
0107-
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91150-210-0
02
1
0107-
84
HOOK
1-57181-027-1
01
1
0107-
93
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
0107-
96
PLATE; DIST,HOOK
1-53497-560-0
01
1
0107-
97
SPRING; FRT HOOK
9-53519-003-0
01
1
0107-
98
STOPPER; SPR,FRT HOOK
9-53519-006-0
01
1
0107-
164
SCREW; AIR INT GRILLE
M6X20
1-71260-141-0
06
1
0107-
197
GRILLE; BUMPER
(A)
1-71260-117-0
01
1
0107-
197
GRILLE; BUMPER
(B)
1-71260-157-2
01
1
0107-
228
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
06
1
0107-
256
WASHER; PL
(A)
1-71260-173-0
06
1
0107-
256
WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON
5-09985-028-0
06
1
0107-
301
BOLT; HOOK TO FRAME
M16X70
0-10811-670-0
01
1
0107-
301
BOLT; HOOK TO FRAME
M16X80
0-10811-680-0
01
1
0107-
315
STAY; BUMPER
(B)
1-71230-408-0
02
1
0107-
315
STAY; BUMPER
(C)
1-71230-501-0
02
1
0107-
315
STAY; BUMPER
(A)
1-71230-346-2
01
1
0107-
315
STAY; BUMPER
(A)
1-71230-347-2
01
1
0107-
603
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
04
1
0107-
608
LID; BUMPER
1-71210-753-4
01
1
0107-
608
LID; BUMPER
1-71210-752-4
01
1
0107-
609
STUD; BUMPER
(B)
1-71260-175-0
06
1
0107-
609
STUD; BUMPER
(A) M10X28,M10X15 L=50
5-09300-050-0
01
1
0107-
615
BRACKET; BUMPER CENTER
1-71230-407-0
01
1
0107-

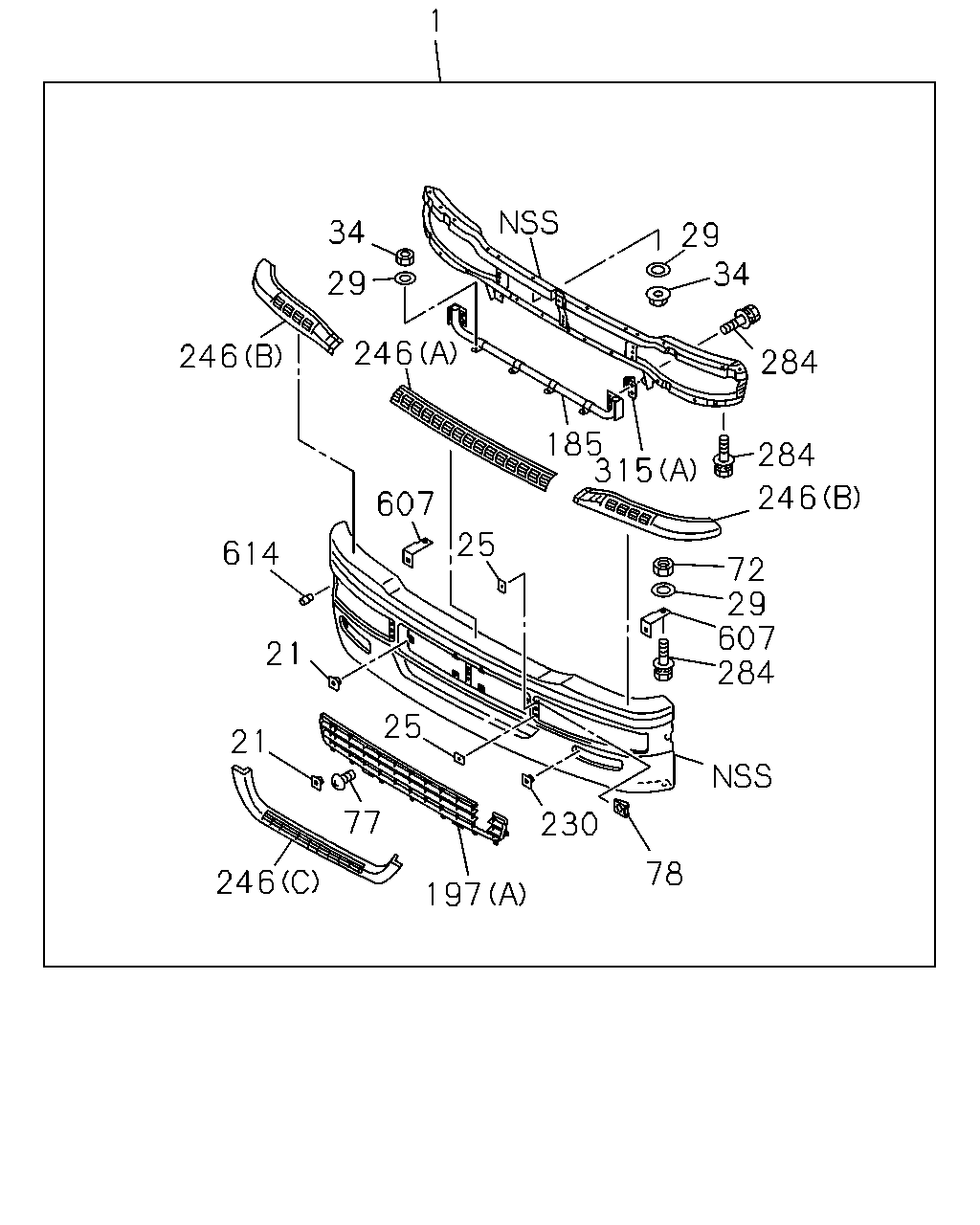

1
34
29
34
29
246
246
284
185
315
284
246
607
25
614
72
29
607
284
21
25
21
77
230
78
246
197
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
FOG LAMP<T96>
1-71210-870-3
01
1
0107-
1
BUMPER ASM; FRT
EXC. FOG LAMP<T96> WHITE
1-71210-746-4
01
1
0107-
21
GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8
8-94222-314-0
24
1
0107-
25
SPACER; PLATFORM
1-71260-162-0
06
1
0107-
29
WASHER; FRT BUMPER
ID=8.4
9-09160-508-0
21
1
0107-
34
NUT; BRKT,BUMPER
M8 FLANGE
0-91150-108-0
17
1
0107-
34
NUT; BRKT,BUMPER
M8 FLANGE
0-91150-108-0
02
1
0107-
72
NUT; BRKT
M8
9-09110-508-0
04
1
0107-
77
SCREW; BRKT
M5X12
9-93490-512-0
16
1
0107-
78
NUT; SPIRE
1-71260-152-0
04
1
0107-
185
BRACKET; BUMPER,INNER
1-71230-406-0
01
1
0107-
197
GRILLE; BUMPER
(A)
1-71260-117-0
01
1
0107-
197
GRILLE; BUMPER
(B)
1-71260-157-2
01
1
0107-
230
NUT; BRK,HD LAMP,LWR
D=9.7X9.7 L=8
8-94222-314-0
04
1
0107-
246
PROTECTOR; BUMPER
(A)
1-71260-155-0
01
1
0107-
246
PROTECTOR; BUMPER
(C)
1-71260-156-1
01
1
0107-
246
PROTECTOR; BUMPER
(B)
1-71260-095-1
01
1
0107-
246
PROTECTOR; BUMPER
(B)
1-71260-094-1
01
1
0107-
284
BOLT; BRKT
M8X20 W/LK&PL WASHER
0-50140-820-0
04
1
0107-
284
BOLT; BRKT
M8X25 W/LK&PL WASHER
0-50140-825-0
04
1
0107-
315
STAY; BUMPER
(B)
1-71230-408-0
02
1
0107-
315
STAY; BUMPER
(C)
1-71230-501-0
02
1
0107-
315
STAY; BUMPER
(A)
1-71230-346-2
01
1
0107-
315
STAY; BUMPER
(A)
1-71230-347-2
01
1
0107-
607
BRACKET
1-71230-454-0
02
1
0107-
614
STOPPER; LID
1-71260-163-0
12
1
0107-
