4-80 — ROAD WHEEL (#10740) — 40 parça

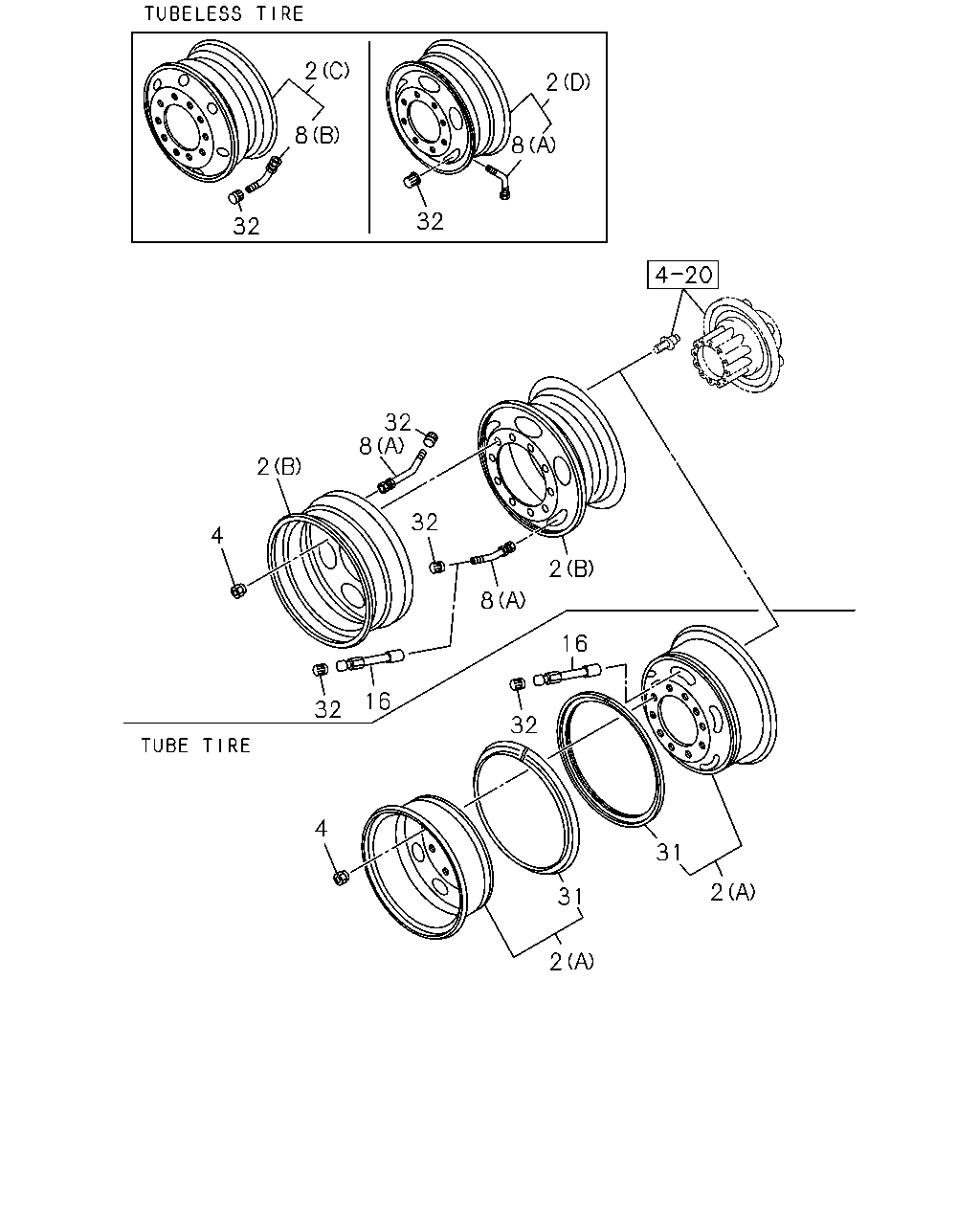

2 2 8 8 32 32 32 8 2 32 4 2 8 16 16 32 32 4 31 2 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL NOT PAINTED TOPY BLACK<TGJ> (A) SPARE	1-42350-448-0	01	1	0107-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) DISC WHEEL NOT PAINTED TOPY BLACK<TGJ> (A)	1-42350-448-0	06	1	0107-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (D)	1-42350-538-0	06	1	0107-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (B) SPARE	1-42350-467-1	01	1	0107-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (D) SPARE	1-42350-538-0	01	1	0107-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (B)	1-42350-467-1	06	1	0107-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C) SPARE	1-42350-211-0	01	1	0107-
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C)	1-42350-211-0	06	1	0107-
4	NUT; WHEEL,RR AXLE M22	1-42333-043-0	20	1	0107-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-020-3	06	1	0107-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A)	1-42370-020-3	06	1	0107-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42370-020-3	01	1	0107-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A) SPARE	1-42370-020-3	01	1	0107-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) SPARE	1-42370-008-0	01	1	0107-
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B)	1-42370-008-0	06	1	0107-
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	1-42370-024-0	02	1	0107-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL NOT PAINTED TOPY BLACK<TGJ>	1-42355-014-0	01	1	0107-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) DISC WHEEL NOT PAINTED TOPY BLACK<TGJ>	1-42355-014-0	06	1	0107-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	0107-
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	0107-

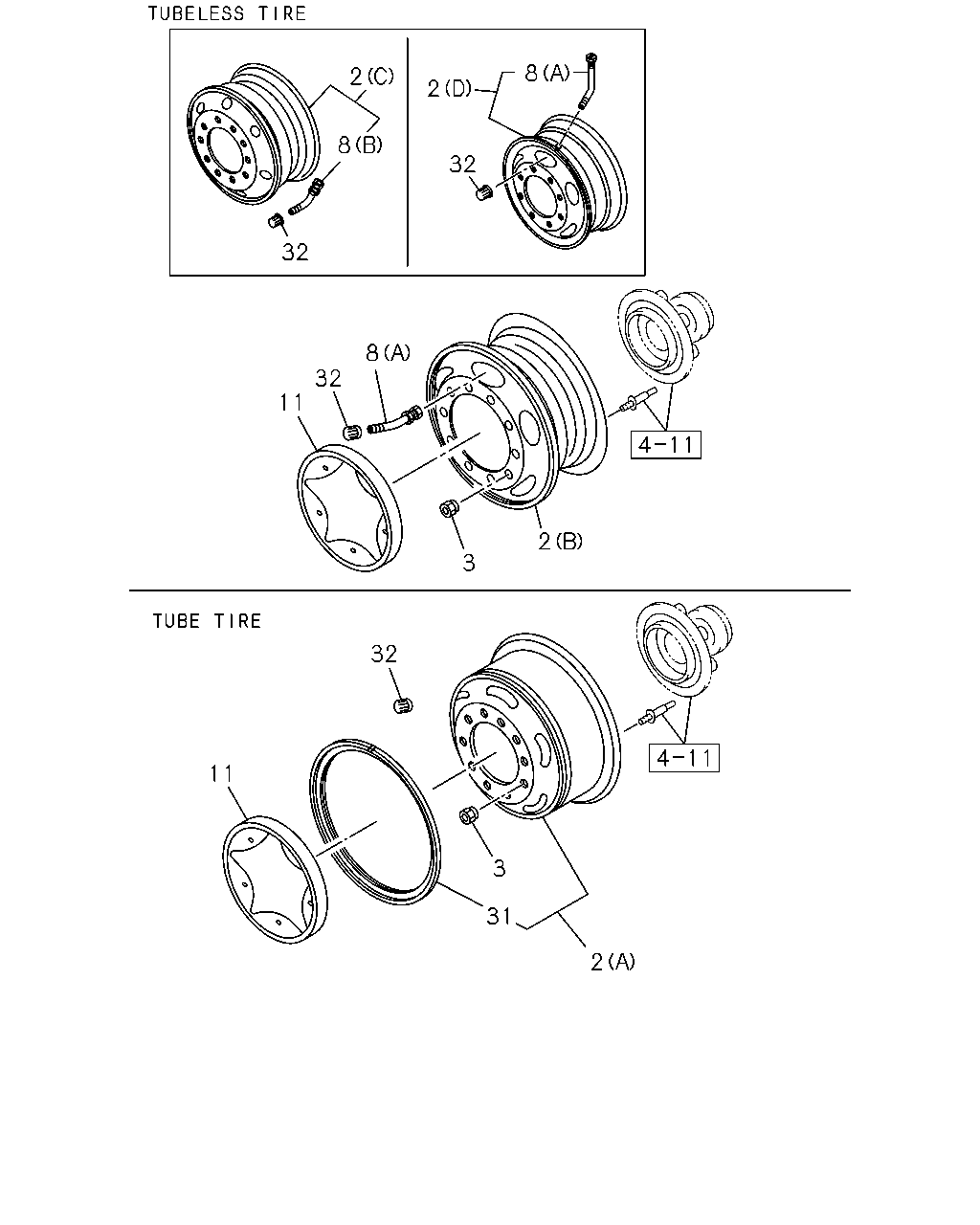

8 2 2 8 32 32 8 32 11 2 3 32 11 3 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL NOT PAINTED TOPY BLACK<TGJ> (A) SPARE	1-42350-448-0	01	1	0107-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) DISC WHEEL NOT PAINTED TOPY BLACK<TGJ> (A)	1-42350-448-0	06	1	0107-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (D)	1-42350-538-0	06	1	0107-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (B) SPARE	1-42350-467-1	01	1	0107-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (D) SPARE	1-42350-538-0	01	1	0107-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (B)	1-42350-467-1	06	1	0107-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C) SPARE	1-42350-211-0	01	1	0107-
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C)	1-42350-211-0	06	1	0107-
3	NUT; WHEEL,FRT AXLE M22	1-42333-043-0	20	1	0107-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-020-3	06	1	0107-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A)	1-42370-020-3	06	1	0107-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42370-020-3	01	1	0107-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A) SPARE	1-42370-020-3	01	1	0107-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) SPARE	1-42370-008-0	01	1	0107-
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B)	1-42370-008-0	06	1	0107-
11	STEP; DISC WHEEL SIDE DISC WHEEL STEP<W66>	1-43139-012-2	02	1	0107-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL NOT PAINTED TOPY BLACK<TGJ>	1-42355-014-0	01	1	0107-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) DISC WHEEL NOT PAINTED TOPY BLACK<TGJ>	1-42355-014-0	06	1	0107-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	0107-
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
