Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#1074) — 714 parça

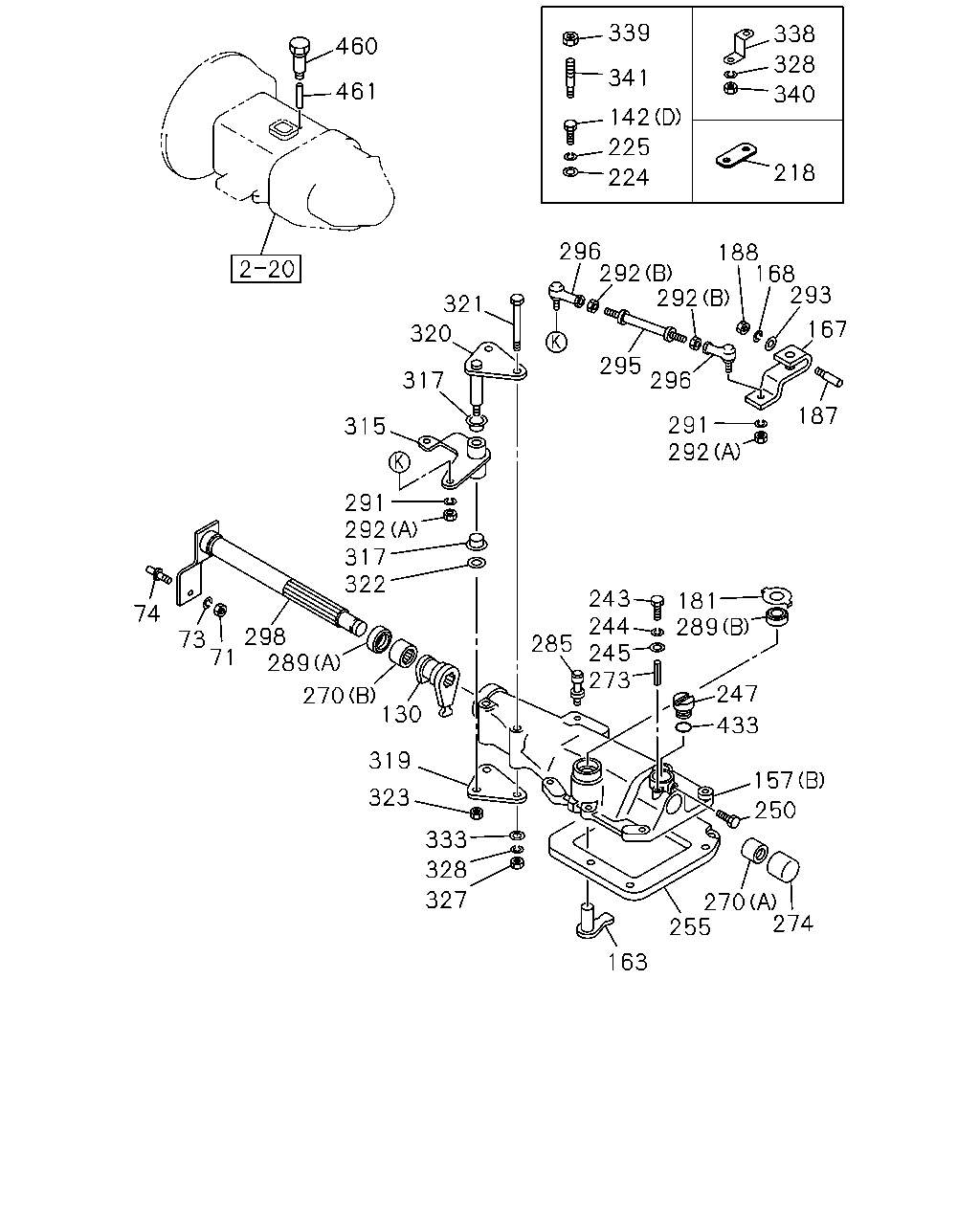

339 338 460 328 341 461 340 142 225 218 224 296 292 292 188 168 293 321 167 320 295 296 317 187 291 292 315 291 292 317 322 243 244 245 273 181 289 74 298 289 73 71 285 247 270 130 433 319 157 323 250 333 328 327 270 255 274 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
71	NUT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	9202-9205	●	●	●
71	NUT; SHIFT LEVER M10	9-09110-410-0	01	1	9202-9205				●
71	NUT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	01	1	9206-	●	●	●
71	NUT; SHIFT LEVER M10	9-09110-510-0	01	1	9206-				●	●
73	WASHER; LK,SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	01	1	9202-9205	●	●	●
73	WASHER; LK,SHIFT LEVER ID=10.2	9-09150-510-0	01	1	9202-9205				●
73	WASHER; LK,SHIFT LEVER ID=10.2	9-09150-510-0	01	1	9206-				●	●
74	PIN; WIRE,SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33659-115-0	01	1	9202-	●	●	●
74	PIN; WIRE,SHIFT LEVER	1-33659-115-0	01	1	9202-				●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9202-		●	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-093-1	01	1	9202-		●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-110-1	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-094-2	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL	1-33521-109-0	01	1	9202-				●	●
142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (D) M10X28 W/LK&PL WASHER	0-50141-028-0	04	1	9202-				●	●
142	BOLT; QUAD BOX (A)	1-87060-778-0	11	1	9202-				●	●
142	BOLT; QUAD BOX (B)	1-87060-786-0	02	1	9202-				●	●
142	BOLT; QUAD BOX (C)	1-87061-229-0	02	1	9202-				●	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9202-		●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-349-0	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-392-1	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9202-	●
157	BOX; QUAD,TRANS (A)	1-87061-550-0	01	1	9202-				●
157	BOX; QUAD,TRANS (B)	1-33541-398-1	01	1	9202-				●	●
157	BOX; QUAD,TRANS (A)	1-87061-518-0	01	1	9209-					●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9202-	●	●	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9202-	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-070-0	01	1	9202-				●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9202-9205	●	●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9206-				●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9202-	●	●	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9202-	●	●	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9202-9205	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9206-				●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-09700-415-0	01	1	9202-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-47476-812-1	01	1	9202-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX	1-82699-228-0	02	1	9202-				●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9202-		●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	04	1	9202-9205	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9202-				●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9202-		●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	06	1	9202-9205	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	02	1	9202-				●	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10	0-20800-610-0	01	1	9202-9205	●	●	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10 FLANGE	0-28080-610-0	01	1	9206-	●	●	●
243	BOLT; COVER M6X10	0-20800-610-0	01	1	9206-				●	●
244	WASHER; LK,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.1	9-09150-506-0	01	1	9202-9205	●	●	●
244	WASHER; LK,COVER ID=6.1	9-09150-506-0	01	1	9202-9205				●
244	WASHER; LK,COVER ID=6.1	9-09150-506-0	01	1	9206-				●	●
245	WASHER; PL,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.4	9-09160-506-0	01	1	9202-9205	●	●	●
245	WASHER; PL,COVER ID=6.4	9-09160-506-0	01	1	9202-9205				●
245	WASHER; PL,COVER ID=6.4	9-09160-506-0	01	1	9206-				●	●
247	BUSHING ASM; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33529-019-0	01	1	9202-	●	●	●
247	BUSHING ASM; DETENT	1-33529-019-0	01	1	9202-				●	●
250	SCREW; BUSHING EXC. ASSISTER SHIFT CONTROL<WX8>	9-06130-618-0	01	1	9202-	●	●	●
250	SCREW; BUSHING	9-06130-618-0	01	1	9202-				●	●
255	PLATE; DIST,QUAD BOX	1-33549-070-1	01	1	9202-				●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NTN	1-09811-006-0	01	1	9202-	●	●	●
270	BEARING; NEEDLE,QUAD BOX (A) NTN	1-09811-006-0	01	1	9202-				●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NSK	1-09811-057-0	01	1	9202-	●	●	●
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-057-0	01	1	9202-				●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NTN	1-09811-260-0	01	1	9202-	●	●	●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-260-0	01	1	9202-				●	●
273	PIN; SPR,STOPPER EXC. ASSISTER SHIFT CONTROL<WX8>	1-09748-016-0	01	1	9202-	●	●	●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9202-				●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9202-	●	●	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9202-	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9202-	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9202-	●	●	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9202-9205	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9206-9312				●	●
292	NUT; LINK ROD (A)	9-09110-408-0	02	1	9202-9205	●	●	●
292	NUT; LINK ROD (A) M8	9-09110-408-0	02	1	9206-9312				●	●
292	NUT; LINK ROD (A) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9302-9312	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9401-	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9202-	●	●	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9202-	●	●	●	●	●
295	ROD; LINK,RELAY LEVER L=130	1-33652-392-0	01	1	9202-9402	●	●	●	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9403-	●	●	●	●	●
296	ROD END L=48	1-09760-038-1	02	1	9202-	●	●	●	●	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-105-1	01	1	9202-	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-091-1	01	1	9202-	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-119-0	01	1	9202-				●	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-494-0	01	1	9202-	●	●	●
315	LEVER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-496-0	01	1	9202-	●	●	●
315	LEVER; SELECT	1-33651-552-0	01	1	9202-				●	●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9202-	●	●	●	●	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33651-352-0	01	1	9202-	●	●	●
319	BRACKET; SELECT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-240-0	01	1	9202-	●	●	●
319	BRACKET; SELECT LEVER	1-33657-240-0	01	1	9202-				●	●
320	SHAFT; LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-241-0	01	1	9202-	●	●	●
320	SHAFT; LEVER	1-33657-241-0	01	1	9202-				●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	0-50051-025-0	02	1	9202-9205	●	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9206-	●	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9202-	●	●	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9202-				●	●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9202-	●	●	●	●	●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9202-	●	●	●	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	9202-9205	●	●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	03	1	9206-9307				●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-510-0	02	1	9308-				●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	03	1	9202-9205	●	●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	03	1	9202-9205				●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9206-9404	●	●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9405-	●	●	●	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●
328	WASHER; LK,BRKT EXC. ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	02	1	9202-9205	●	●	●
328	WASHER; LK,BRKT ID=10.2	9-09150-510-0	06	1	9202-				●	●
333	WASHER; PL,LEVER ID=10.5 OD=18	9-09160-510-0	02	1	9202-				●	●
338	BRACKET; FLEX TUBE	1-47475-868-0	03	1	9202-				●	●
339	NUT; QUAD BOX M10	9-09110-510-0	02	1	9202-				●	●
340	NUT; BRKT M10	9-09110-510-0	04	1	9202-				●	●
341	STUD; QUAD BOX	1-09305-004-0	02	1	9202-				●	●
433	GASKET; BUSHING EXC. ASSISTER SHIFT CONTROL<WX8>	1-09623-130-0	01	1	9202-	●	●	●
433	GASKET; BUSHING	1-09623-130-0	01	1	9202-				●	●
460	ADAPTER; NEUTRAL SW	1-09660-460-2	01	1	9202-				●	●
461	ROD; ADAPTER	1-82446-001-0	01	1	9202-				●	●

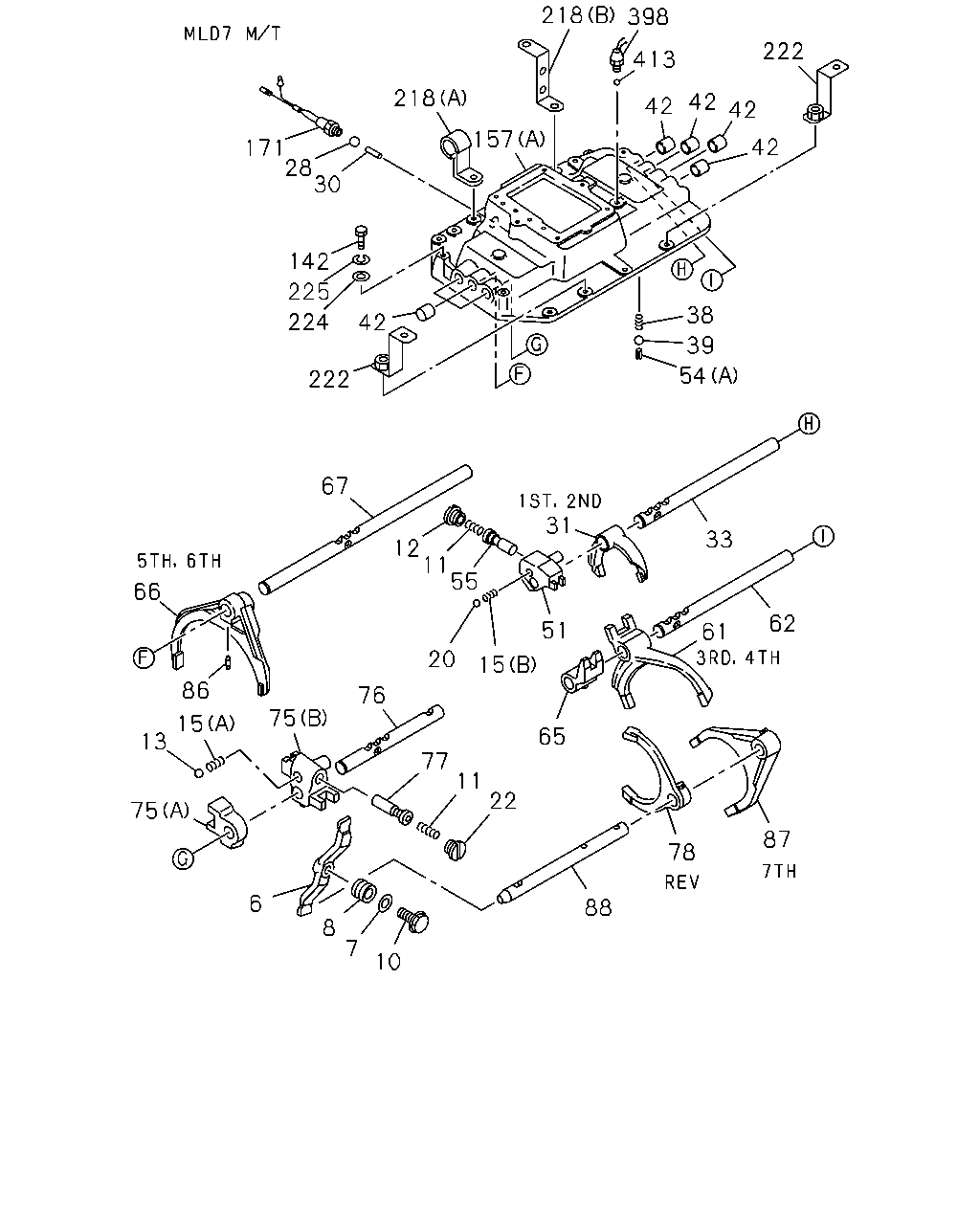

218 398 222 413 218 42 42 42 157 42 171 28 30 142 225 38 224 42 39 54 222 67 31 33 12 11 55 66 62 51 61 20 15 86 76 75 15 65 13 77 11 22 75 87 78 7 6 88 8 7 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	LEVER; RELAY	1-33511-009-1	01	1	9202-	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9202-	●
8	SPINDLE; REV & 7TH	9-33513-022-1	01	1	9202-	●
10	BOLT; SPINDLE M10X25 W/LK WASHER	0-50051-025-0	02	1	9202-9203	●
10	BOLT; SPINDLE M10X22	1-09033-005-0	02	1	9204-9205	●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9206-	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9202-		●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	02	1	9202-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9202-		●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9202-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9202-	●	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9202-	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-440-0	01	1	9202-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9202-	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9202-		●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9202-	●
28	BALL; INTER LK	9-00097-501-0	04	1	9202-	●	●	●
28	BALL; INTER LK	1-87061-224-0	02	1	9202-				●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9202-	●	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9202-		●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-426-0	01	1	9202-	●
31	ARM; SHIFT,LOW & 2ND	1-87061-463-0	01	1	9202-				●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9202-		●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-246-2	01	1	9202-	●
33	ROD; SHIFT,LOW & 2ND	1-87061-417-0	01	1	9202-				●	●
38	SPRING; DETENT ASSISTER SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9202-	●	●	●
38	SPRING; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9202-	●	●	●
38	SPRING; DETENT	1-87061-552-0	03	1	9202-				●
38	SPRING; DETENT	1-87060-785-0	03	1	9209-					●
39	BALL; DETENT	1-09843-012-0	04	1	9202-	●	●	●
39	BALL; DETENT	1-87060-789-0	03	1	9202-				●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9202-		●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9202-	●
51	BLOCK; SHIFT,1ST & 2ND	1-33511-311-2	01	1	9202-	●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9202-		●	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9202-	●	●	●
55	SLEEVE; 1ST & 2ND	1-33516-025-0	01	1	9202-	●
61	ARM; SHIFT,3RD & 4TH	1-33511-414-3	01	1	9202-9412		●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9501-		●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-419-3	01	1	9202-9412	●
61	ARM; SHIFT,3RD & 4TH	1-33511-491-1	01	1	9501-	●
61	ARM; SHIFT,3RD & 4TH	1-87061-462-0	01	1	9202-				●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9202-		●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-247-0	01	1	9202-	●
62	ROD; SHIFT,3RD & 4TH	1-87061-418-0	01	1	9202-				●	●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-308-1	01	1	9202-		●	●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-331-2	01	1	9202-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-224-2	01	1	9202-9412		●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9501-		●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-228-2	01	1	9202-9412	●

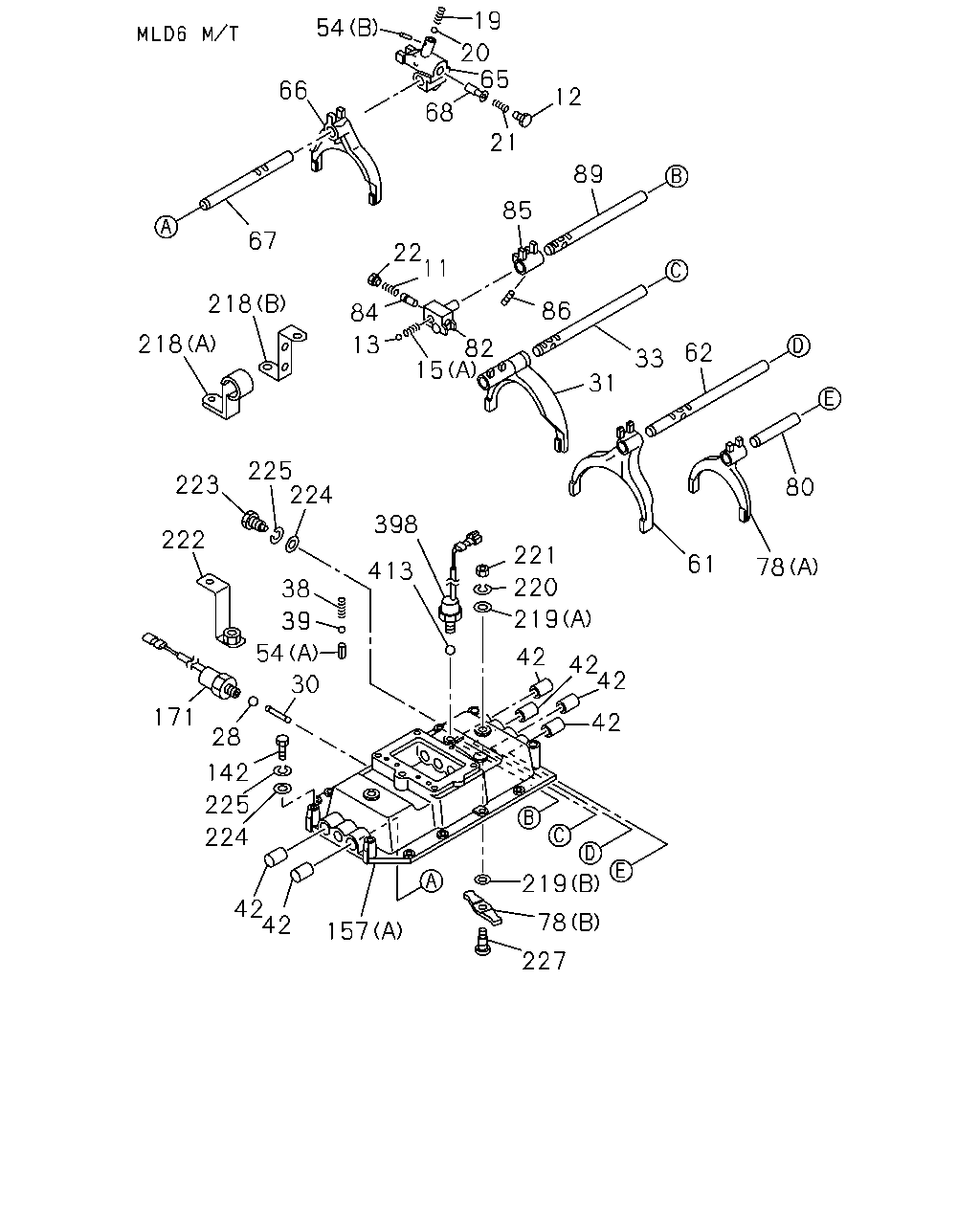

66	ARM; SHIFT,5TH & 6TH	1-33511-489-1	01	1	9501-	●
67	ROD; SHIFT,5TH & 6TH L=278	1-33531-255-1	01	1	9202-		●	●
67	ROD; SHIFT,5TH & 6TH L=407	1-33531-248-0	01	1	9202-	●
75	BLOCK ASM; SHIFT,REV & 7TH (A)	1-33511-202-3	01	1	9202-	●
75	BLOCK ASM; SHIFT,REV & 7TH (B)	1-33511-309-1	01	1	9202-	●
76	ROD; SHIFT,REV & 7TH BLOCK	1-33531-249-0	01	1	9202-	●
77	SLEEVE; REV & 7TH	1-33516-025-0	01	1	9202-	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9202-		●	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9202-		●	●
78	ARM; SHIFT,REV	1-33511-232-5	01	1	9202-	●
78	ARM; SHIFT,REV	1-87061-464-0	01	1	9202-				●	●
86	SCREW; TAPER,ARM TO ROD	1-09129-014-2	07	1	9202-9412		●	●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	07	1	9501-		●	●
86	SCREW; TAPER,ARM TO ROD	1-09129-014-2	09	1	9202-9412	●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	09	1	9501-	●
87	ARM; SHIFT,7TH	1-33511-229-4	01	1	9202-	●
88	ROD; SHIFT,REV & 7TH ARM	1-33531-250-0	01	1	9202-	●

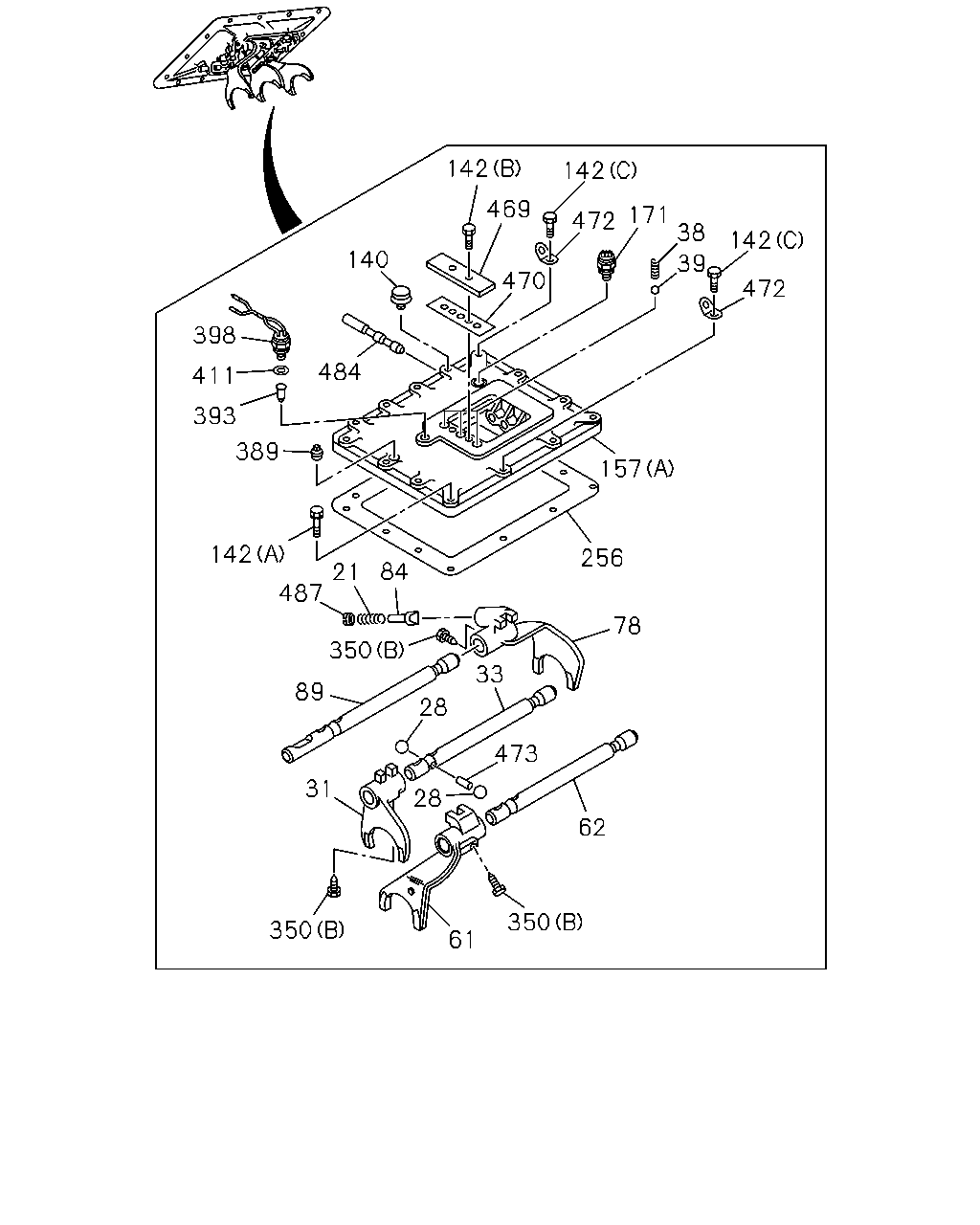

142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (D) M10X28 W/LK&PL WASHER	0-50141-028-0	04	1	9202-				●	●
142	BOLT; QUAD BOX (A)	1-87060-778-0	11	1	9202-				●	●
142	BOLT; QUAD BOX (B)	1-87060-786-0	02	1	9202-				●	●
142	BOLT; QUAD BOX (C)	1-87061-229-0	02	1	9202-				●	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9202-		●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-349-0	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-392-1	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9202-	●
157	BOX; QUAD,TRANS (A)	1-87061-550-0	01	1	9202-				●
157	BOX; QUAD,TRANS (B)	1-33541-398-1	01	1	9202-				●	●
157	BOX; QUAD,TRANS (A)	1-87061-518-0	01	1	9209-					●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9202-	●	●	●
171	SWITCH; NEUTRAL	1-87061-488-0	01	1	9202-				●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-09700-415-0	01	1	9202-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-47476-812-1	01	1	9202-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX	1-82699-228-0	02	1	9202-				●	●
222	BRACKET; CLIP	1-47475-868-0	02	1	9202-	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9202-		●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	04	1	9202-9205	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9202-				●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9202-		●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	06	1	9202-9205	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	02	1	9202-				●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9202-	●	●	●
398	SWITCH; REV LAMP	1-82440-046-0	01	1	9202-				●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9202-	●	●	●

292 295 292 296 296 167 188 168 293 187 291 181 321 292 142 320 289 285 298 74 243 244 245 273 247 433 289 73 71 317 142 290 270 250 315 157 270 291 274 281 19 277 292 317 130 319 163 282 322 280 328 275 323 327 276 284

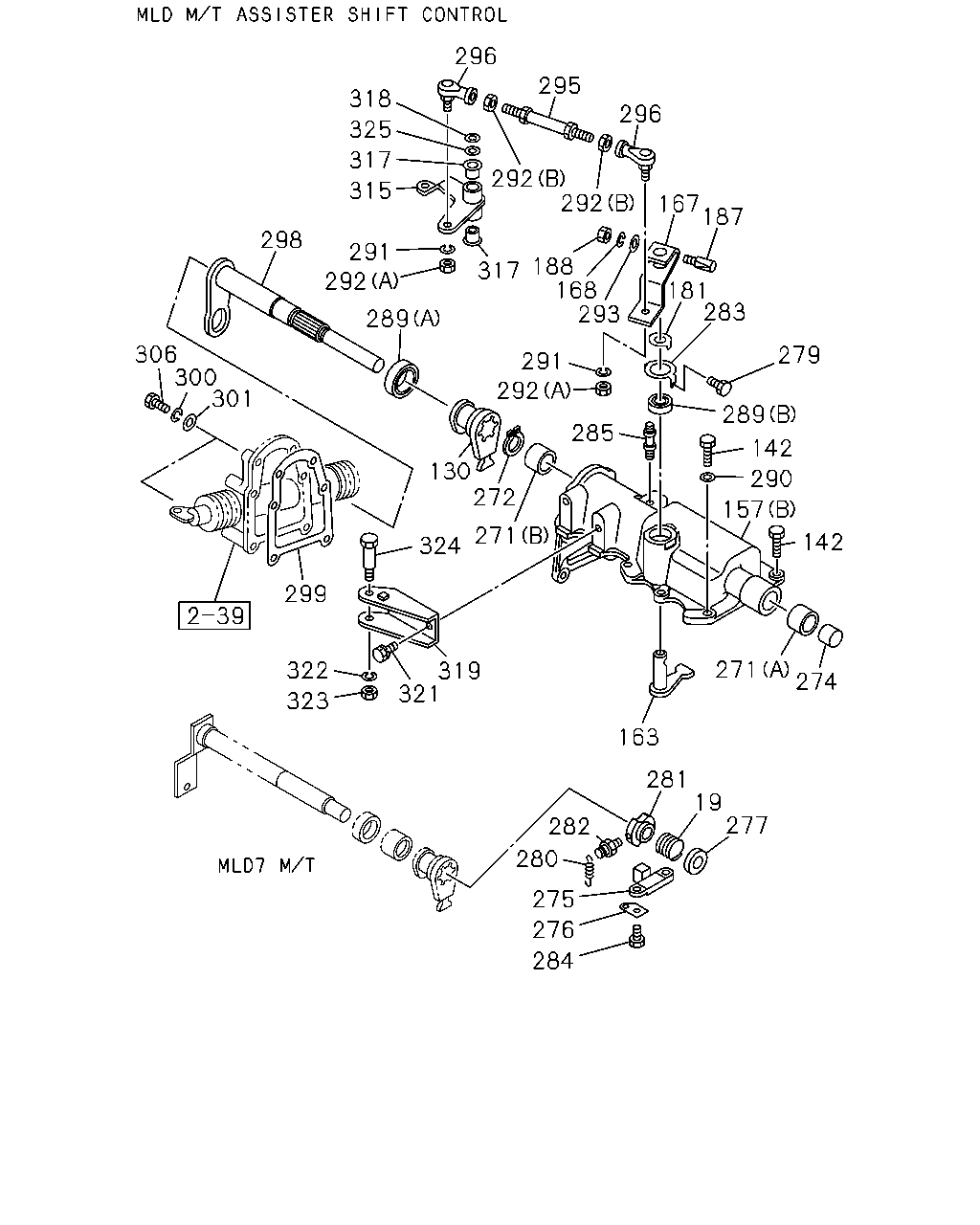

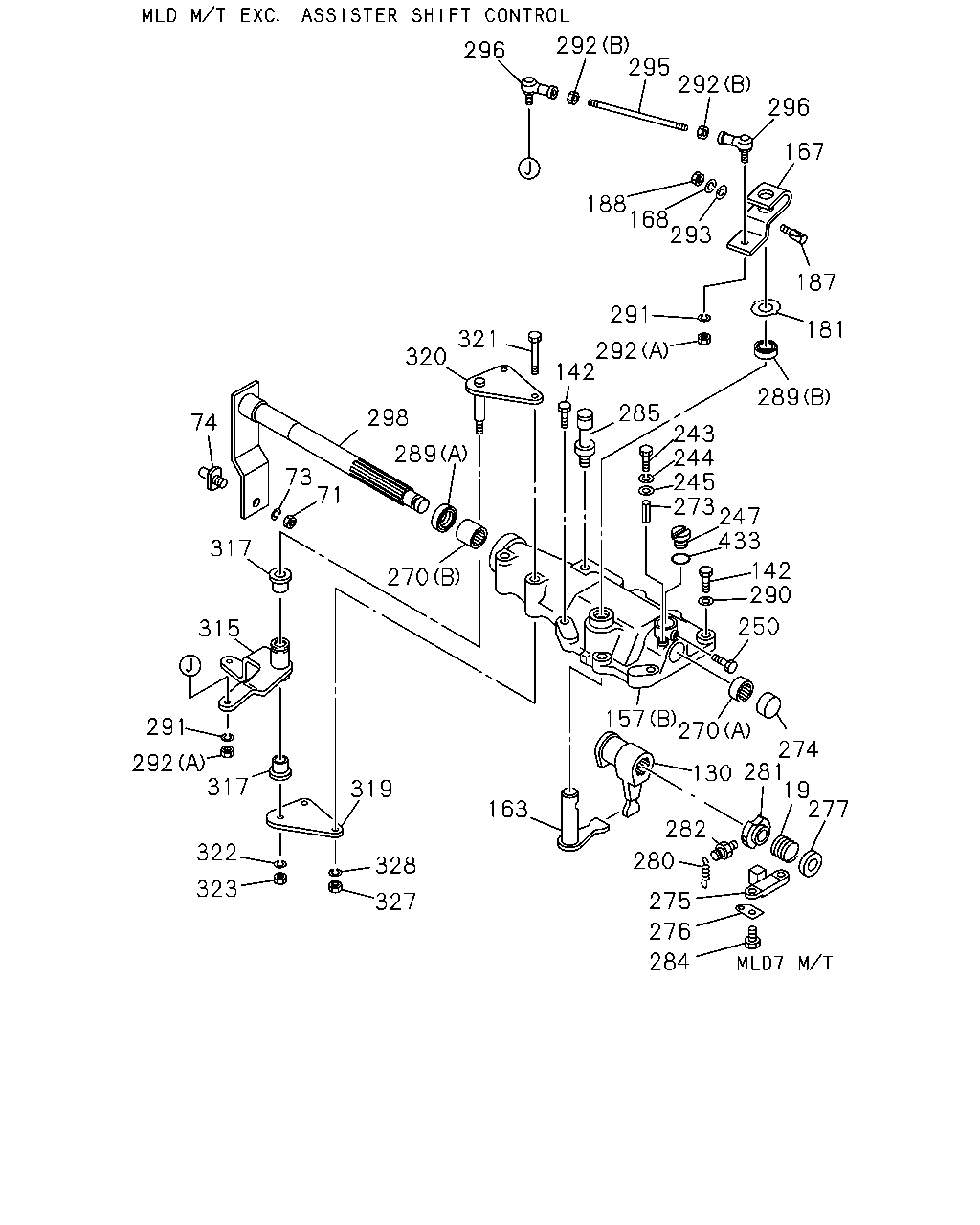

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
19	SPRING; COIL COMP	1-09580-441-0	01	1	9202-		●	●
19	SPRING; COIL COMP	1-09580-403-1	01	1	9202-	●
71	NUT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	9202-9205	●	●	●
71	NUT; SHIFT LEVER M10	9-09110-410-0	01	1	9202-9205				●
71	NUT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	01	1	9206-	●	●	●
71	NUT; SHIFT LEVER M10	9-09110-510-0	01	1	9206-				●	●
73	WASHER; LK,SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	01	1	9202-9205	●	●	●
73	WASHER; LK,SHIFT LEVER ID=10.2	9-09150-510-0	01	1	9202-9205				●
73	WASHER; LK,SHIFT LEVER ID=10.2	9-09150-510-0	01	1	9206-				●	●
74	PIN; WIRE,SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33659-115-0	01	1	9202-	●	●	●
74	PIN; WIRE,SHIFT LEVER	1-33659-115-0	01	1	9202-				●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9202-		●	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-093-1	01	1	9202-		●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-110-1	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-094-2	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL	1-33521-109-0	01	1	9202-				●	●
142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (D) M10X28 W/LK&PL WASHER	0-50141-028-0	04	1	9202-				●	●
142	BOLT; QUAD BOX (A)	1-87060-778-0	11	1	9202-				●	●
142	BOLT; QUAD BOX (B)	1-87060-786-0	02	1	9202-				●	●
142	BOLT; QUAD BOX (C)	1-87061-229-0	02	1	9202-				●	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9202-		●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-349-0	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-392-1	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9202-	●
157	BOX; QUAD,TRANS (A)	1-87061-550-0	01	1	9202-				●
157	BOX; QUAD,TRANS (B)	1-33541-398-1	01	1	9202-				●	●
157	BOX; QUAD,TRANS (A)	1-87061-518-0	01	1	9209-					●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9202-	●	●	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9202-	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-070-0	01	1	9202-				●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9202-9205	●	●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9206-				●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9202-	●	●	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9202-	●	●	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9202-9205	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9206-				●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●	●	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10	0-20800-610-0	01	1	9202-9205	●	●	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10 FLANGE	0-28080-610-0	01	1	9206-	●	●	●
243	BOLT; COVER M6X10	0-20800-610-0	01	1	9206-				●	●
244	WASHER; LK,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.1	9-09150-506-0	01	1	9202-9205	●	●	●
244	WASHER; LK,COVER ID=6.1	9-09150-506-0	01	1	9202-9205				●
244	WASHER; LK,COVER ID=6.1	9-09150-506-0	01	1	9206-				●	●
245	WASHER; PL,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.4	9-09160-506-0	01	1	9202-9205	●	●	●
245	WASHER; PL,COVER ID=6.4	9-09160-506-0	01	1	9202-9205				●
245	WASHER; PL,COVER ID=6.4	9-09160-506-0	01	1	9206-				●	●
247	BUSHING ASM; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33529-019-0	01	1	9202-	●	●	●
247	BUSHING ASM; DETENT	1-33529-019-0	01	1	9202-				●	●
250	SCREW; BUSHING EXC. ASSISTER SHIFT CONTROL<WX8>	9-06130-618-0	01	1	9202-	●	●	●
250	SCREW; BUSHING	9-06130-618-0	01	1	9202-				●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NTN	1-09811-006-0	01	1	9202-	●	●	●
270	BEARING; NEEDLE,QUAD BOX (A) NTN	1-09811-006-0	01	1	9202-				●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NSK	1-09811-057-0	01	1	9202-	●	●	●
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-057-0	01	1	9202-				●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NTN	1-09811-260-0	01	1	9202-	●	●	●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-260-0	01	1	9202-				●	●
273	PIN; SPR,STOPPER EXC. ASSISTER SHIFT CONTROL<WX8>	1-09748-016-0	01	1	9202-	●	●	●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9202-				●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9202-	●	●	●	●	●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-027-0	01	1	9202-	●
276	PLATE; SPRING RET	1-33529-010-0	01	1	9202-	●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	9202-	●
280	SPRING; COIL TENSION	1-09583-227-0	01	1	9202-	●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-025-2	01	1	9202-	●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	9202-	●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	9202-	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9202-	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9202-	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9202-	●	●	●	●	●
290	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9202-9205	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9202-9205	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9206-9312				●	●
292	NUT; LINK ROD (A)	9-09110-408-0	02	1	9202-9205	●	●	●
292	NUT; LINK ROD (A) M8	9-09110-408-0	02	1	9206-9312				●	●
292	NUT; LINK ROD (A) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9302-9312	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9401-	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9202-	●	●	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9202-	●	●	●	●	●
295	ROD; LINK,RELAY LEVER L=130	1-33652-392-0	01	1	9202-9402	●	●	●	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9403-	●	●	●	●	●
296	ROD END L=48	1-09760-038-1	02	1	9202-	●	●	●	●	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-105-1	01	1	9202-	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-091-1	01	1	9202-	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-119-0	01	1	9202-				●	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-494-0	01	1	9202-	●	●	●
315	LEVER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-496-0	01	1	9202-	●	●	●
315	LEVER; SELECT	1-33651-552-0	01	1	9202-				●	●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9202-	●	●	●	●	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33651-352-0	01	1	9202-	●	●	●
319	BRACKET; SELECT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-240-0	01	1	9202-	●	●	●
319	BRACKET; SELECT LEVER	1-33657-240-0	01	1	9202-				●	●
320	SHAFT; LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-241-0	01	1	9202-	●	●	●
320	SHAFT; LEVER	1-33657-241-0	01	1	9202-				●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	0-50051-025-0	02	1	9202-9205	●	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9206-	●	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9202-	●	●	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9202-				●	●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9202-	●	●	●	●	●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9202-	●	●	●	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	9202-9205	●	●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	03	1	9206-9307				●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-510-0	02	1	9308-				●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	03	1	9202-9205	●	●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	03	1	9202-9205				●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9206-9404	●	●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9405-	●	●	●	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●
328	WASHER; LK,BRKT EXC. ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	02	1	9202-9205	●	●	●
328	WASHER; LK,BRKT ID=10.2	9-09150-510-0	06	1	9202-				●	●
433	GASKET; BUSHING EXC. ASSISTER SHIFT CONTROL<WX8>	1-09623-130-0	01	1	9202-	●	●	●
433	GASKET; BUSHING	1-09623-130-0	01	1	9202-				●	●

296 295 318 296 325 317 292 292 315 167 187 298 291 188 168 293 317 292 181 283 289 306 300 301 279 291 292 289 285 142 130 272 290 157 271 142 324 299 271 274 322 319 321 323 163 281 19 277 282 280 275 276 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
19	SPRING; COIL COMP	1-09580-441-0	01	1	9202-		●	●
19	SPRING; COIL COMP	1-09580-403-1	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9202-		●	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-093-1	01	1	9202-		●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-110-1	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-094-2	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL	1-33521-109-0	01	1	9202-				●	●
142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (D) M10X28 W/LK&PL WASHER	0-50141-028-0	04	1	9202-				●	●
142	BOLT; QUAD BOX (A)	1-87060-778-0	11	1	9202-				●	●
142	BOLT; QUAD BOX (B)	1-87060-786-0	02	1	9202-				●	●
142	BOLT; QUAD BOX (C)	1-87061-229-0	02	1	9202-				●	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9202-		●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-349-0	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-392-1	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9202-	●
157	BOX; QUAD,TRANS (A)	1-87061-550-0	01	1	9202-				●
157	BOX; QUAD,TRANS (B)	1-33541-398-1	01	1	9202-				●	●
157	BOX; QUAD,TRANS (A)	1-87061-518-0	01	1	9209-					●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9202-	●	●	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9202-	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-070-0	01	1	9202-				●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9202-9205	●	●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9206-				●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9202-	●	●	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9202-	●	●	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9202-9205	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9206-				●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	9202-	●	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	9202-	●	●	●
272	RING; SNAP,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-09588-175-0	01	1	9202-	●	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9202-	●	●	●	●	●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-027-0	01	1	9202-	●
276	PLATE; SPRING RET	1-33529-010-0	01	1	9202-	●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	9202-	●
279	BOLT; STOPPER ASSISTER SHIFT CONTROL<WX8> M5X8	0-20800-508-0	01	1	9202-	●
280	SPRING; COIL TENSION	1-09583-227-0	01	1	9202-	●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-025-2	01	1	9202-	●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	9202-	●
283	STOPPER; SHIFT SHAFT ASSISTER SHIFT CONTROL<WX8>	1-33529-029-0	01	1	9202-	●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	9202-	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9202-	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9202-	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9202-	●	●	●	●	●
290	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9202-9205	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9202-9205	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9206-9312				●	●
292	NUT; LINK ROD (A)	9-09110-408-0	02	1	9202-9205	●	●	●
292	NUT; LINK ROD (A) M8	9-09110-408-0	02	1	9206-9312				●	●
292	NUT; LINK ROD (A) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9302-9312	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9401-	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9202-	●	●	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9202-	●	●	●	●	●
295	ROD; LINK,RELAY LEVER L=130	1-33652-392-0	01	1	9202-9402	●	●	●	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9403-	●	●	●	●	●
296	ROD END L=48	1-09760-038-1	02	1	9202-	●	●	●	●	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-105-1	01	1	9202-	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-091-1	01	1	9202-	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-119-0	01	1	9202-				●	●
299	GASKET; QUAD BOX TO POWER ASSISTOR ALSO INCLUDED IN GASKET SET(M/T). ASSISTER SHIFT CONTROL<WX8>	1-33542-032-0	01	1	9202-9406	●	●	●
300	WASHER; LK,SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	06	1	9202-9205	●	●	●
301	WASHER; PL,SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> ID=10.5 OD=18	9-09160-510-0	06	1	9202-9205	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X50	0-16806-050-0	02	1	9202-9205	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X45 FLANGE	0-28181-045-0	02	1	9206-	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X75	0-16806-075-0	02	1	9202-9205	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X70 FLANGE	0-28181-070-0	02	1	9206-9507	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X70 FLANGE	0-28181-070-0	04	1	9508-	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X75	1-09040-072-0	02	1	9202-9205	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X72	1-09040-095-1	02	1	9206-9406	●	●	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-494-0	01	1	9202-	●	●	●
315	LEVER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-496-0	01	1	9202-	●	●	●
315	LEVER; SELECT	1-33651-552-0	01	1	9202-				●	●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9202-	●	●	●	●	●
318	WASHER; WAVE ASSISTER SHIFT CONTROL<WX8>	9-09855-315-0	01	1	9202-	●	●	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33651-352-0	01	1	9202-	●	●	●
319	BRACKET; SELECT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-240-0	01	1	9202-	●	●	●
319	BRACKET; SELECT LEVER	1-33657-240-0	01	1	9202-				●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	0-50051-025-0	02	1	9202-9205	●	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9206-	●	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9202-	●	●	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9202-				●	●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9202-	●	●	●	●	●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9202-	●	●	●	●	●
324	BOLT; SHAFT ASSISTER SHIFT CONTROL<WX8> L=61	1-33619-126-2	01	1	9202-	●	●	●
325	SHIM; LEVER ASSISTER SHIFT CONTROL<WX8>	1-33659-096-0	01	1	9202-	●	●	●

142 142 469 171 472 38 142 470 140 39 472 398 484 411 393 389 157 142 84 256 21 487 78 350 33 89 28 473 31 28 62 350 350 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9202-		●	●
21	SPRING; COIL COMP SLEEVE	1-87061-207-0	01	1	9202-				●	●
28	BALL; INTER LK	9-00097-501-0	04	1	9202-	●	●	●
28	BALL; INTER LK	1-87061-224-0	02	1	9202-				●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9202-		●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-426-0	01	1	9202-	●
31	ARM; SHIFT,LOW & 2ND	1-87061-463-0	01	1	9202-				●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9202-		●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-246-2	01	1	9202-	●
33	ROD; SHIFT,LOW & 2ND	1-87061-417-0	01	1	9202-				●	●
38	SPRING; DETENT ASSISTER SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9202-	●	●	●
38	SPRING; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9202-	●	●	●
38	SPRING; DETENT	1-87061-552-0	03	1	9202-				●
38	SPRING; DETENT	1-87060-785-0	03	1	9209-					●
39	BALL; DETENT	1-09843-012-0	04	1	9202-	●	●	●
39	BALL; DETENT	1-87060-789-0	03	1	9202-				●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-414-3	01	1	9202-9412		●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9501-		●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-419-3	01	1	9202-9412	●
61	ARM; SHIFT,3RD & 4TH	1-33511-491-1	01	1	9501-	●
61	ARM; SHIFT,3RD & 4TH	1-87061-462-0	01	1	9202-				●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9202-		●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-247-0	01	1	9202-	●
62	ROD; SHIFT,3RD & 4TH	1-87061-418-0	01	1	9202-				●	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9202-		●	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9202-		●	●
78	ARM; SHIFT,REV	1-33511-232-5	01	1	9202-	●
78	ARM; SHIFT,REV	1-87061-464-0	01	1	9202-				●	●
84	SLEEVE; REV	1-33516-025-0	01	1	9202-		●	●
84	SLEEVE; REV	1-87061-112-0	01	1	9202-				●	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	9202-		●	●
89	ROD; SHIFT,REV	1-87061-424-0	01	1	9202-				●	●
140	BREATHER; AIR,TRANS	1-87060-780-0	01	1	9202-				●	●
142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (D) M10X28 W/LK&PL WASHER	0-50141-028-0	04	1	9202-				●	●
142	BOLT; QUAD BOX (A)	1-87060-778-0	11	1	9202-				●	●
142	BOLT; QUAD BOX (B)	1-87060-786-0	02	1	9202-				●	●
142	BOLT; QUAD BOX (C)	1-87061-229-0	02	1	9202-				●	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9202-		●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-349-0	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-392-1	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9202-	●
157	BOX; QUAD,TRANS (A)	1-87061-550-0	01	1	9202-				●
157	BOX; QUAD,TRANS (B)	1-33541-398-1	01	1	9202-				●	●
157	BOX; QUAD,TRANS (A)	1-87061-518-0	01	1	9209-					●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9202-	●	●	●
171	SWITCH; NEUTRAL	1-87061-488-0	01	1	9202-				●	●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-421-0	01	1	9202-				●	●
350	SCREW; SHIFT ARM (B)	1-87061-202-0	03	1	9202-				●
350	SCREW; SHIFT ARM (A)	1-87061-566-0	02	1	9202-				●
350	SCREW; SHIFT ARM (B)	1-87061-202-0	04	1	9209-					●
350	SCREW; SHIFT ARM (A)	1-87061-257-0	02	1	9209-					●
389	PLUG; QUAD BOX,NEUTRAL SW	1-87061-553-0	01	1	9202-				●
389	PLUG; QUAD BOX,NEUTRAL SW	1-87061-091-0	01	1	9209-					●
393	PIN; SW	1-87061-139-0	01	1	9202-				●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9202-	●	●	●
398	SWITCH; REV LAMP	1-82440-046-0	01	1	9202-				●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T).	1-87060-781-0	01	1	9202-				●	●
469	COVER; SPRING,QUAD BOX	1-87061-419-0	01	1	9202-				●	●
470	GASKET; SPRING COVER	1-87061-420-0	01	1	9202-				●	●
472	EYE; LIFTING	1-87060-783-0	02	1	9202-				●	●
473	PIN; ROLL	1-87060-808-0	01	1	9202-				●	●
484	SHAFT; AIR VALVE	1-87061-551-0	01	1	9202-				●
484	SHAFT; AIR VALVE	1-87061-164-0	01	1	9209-					●
487	PLUG; SHIFT BLOCK	1-87061-213-0	01	1	9202-				●	●

19 54 20 65 66 12 68 21 89 85 67 22 11 84 218 86 218 13 82 15 62 33 31 225 224 223 80 398 222 221 61 78 413 220 38 219 39 54 42 42 42 30 171 42 28 142 225 224 219 42 42 78 157 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9202-		●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	02	1	9202-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9202-		●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9202-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9202-	●	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9202-	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-440-0	01	1	9202-	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9202-		●	●
19	SPRING; COIL COMP	1-09580-403-1	01	1	9202-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9202-	●	●	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9202-		●	●
21	SPRING; COIL COMP SLEEVE	1-87061-207-0	01	1	9202-				●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9202-		●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9202-	●
28	BALL; INTER LK	9-00097-501-0	04	1	9202-	●	●	●
28	BALL; INTER LK	1-87061-224-0	02	1	9202-				●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9202-	●	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9202-		●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-426-0	01	1	9202-	●
31	ARM; SHIFT,LOW & 2ND	1-87061-463-0	01	1	9202-				●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9202-		●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-246-2	01	1	9202-	●
33	ROD; SHIFT,LOW & 2ND	1-87061-417-0	01	1	9202-				●	●
38	SPRING; DETENT ASSISTER SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9202-	●	●	●
38	SPRING; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9202-	●	●	●
38	SPRING; DETENT	1-87061-552-0	03	1	9202-				●
38	SPRING; DETENT	1-87060-785-0	03	1	9209-					●
39	BALL; DETENT	1-09843-012-0	04	1	9202-	●	●	●
39	BALL; DETENT	1-87060-789-0	03	1	9202-				●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9202-		●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9202-	●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9202-		●	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9202-	●	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-414-3	01	1	9202-9412		●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9501-		●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-419-3	01	1	9202-9412	●
61	ARM; SHIFT,3RD & 4TH	1-33511-491-1	01	1	9501-	●
61	ARM; SHIFT,3RD & 4TH	1-87061-462-0	01	1	9202-				●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9202-		●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-247-0	01	1	9202-	●
62	ROD; SHIFT,3RD & 4TH	1-87061-418-0	01	1	9202-				●	●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-308-1	01	1	9202-		●	●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-331-2	01	1	9202-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-224-2	01	1	9202-9412		●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9501-		●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-228-2	01	1	9202-9412	●
66	ARM; SHIFT,5TH & 6TH	1-33511-489-1	01	1	9501-	●
67	ROD; SHIFT,5TH & 6TH L=278	1-33531-255-1	01	1	9202-		●	●
67	ROD; SHIFT,5TH & 6TH L=407	1-33531-248-0	01	1	9202-	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	9202-		●	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9202-		●	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9202-		●	●
78	ARM; SHIFT,REV	1-33511-232-5	01	1	9202-	●
78	ARM; SHIFT,REV	1-87061-464-0	01	1	9202-				●	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	9202-		●	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	9202-		●	●
84	SLEEVE; REV	1-33516-025-0	01	1	9202-		●	●
84	SLEEVE; REV	1-87061-112-0	01	1	9202-				●	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	9202-		●	●
86	SCREW; TAPER,ARM TO ROD	1-09129-014-2	07	1	9202-9412		●	●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	07	1	9501-		●	●
86	SCREW; TAPER,ARM TO ROD	1-09129-014-2	09	1	9202-9412	●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	09	1	9501-	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	9202-		●	●
89	ROD; SHIFT,REV	1-87061-424-0	01	1	9202-				●	●
142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (D) M10X28 W/LK&PL WASHER	0-50141-028-0	04	1	9202-				●	●
142	BOLT; QUAD BOX (A)	1-87060-778-0	11	1	9202-				●	●
142	BOLT; QUAD BOX (B)	1-87060-786-0	02	1	9202-				●	●
142	BOLT; QUAD BOX (C)	1-87061-229-0	02	1	9202-				●	●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9202-		●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-349-0	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-392-1	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9202-	●
157	BOX; QUAD,TRANS (A)	1-87061-550-0	01	1	9202-				●
157	BOX; QUAD,TRANS (B)	1-33541-398-1	01	1	9202-				●	●
157	BOX; QUAD,TRANS (A)	1-87061-518-0	01	1	9209-					●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9202-	●	●	●
171	SWITCH; NEUTRAL	1-87061-488-0	01	1	9202-				●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-09700-415-0	01	1	9202-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-47476-812-1	01	1	9202-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX	1-82699-228-0	02	1	9202-				●	●
219	WASHER; PL,SPINDLE (A) ID=12.5 OD=26	9-09164-612-0	01	1	9202-9205		●	●
219	WASHER; PL,SPINDLE (B) ID=16.5	9-09857-042-0	01	1	9202-		●	●
220	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	01	1	9202-9205		●	●
221	NUT; SPINDLE M12	9-99110-412-0	01	1	9202-9205		●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9206-		●	●
222	BRACKET; CLIP	1-47475-868-0	02	1	9202-	●	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9202-		●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9202-		●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	04	1	9202-9205	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9202-				●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9202-		●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	06	1	9202-9205	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	02	1	9202-				●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9202-		●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9202-	●	●	●
398	SWITCH; REV LAMP	1-82440-046-0	01	1	9202-				●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9202-	●	●	●

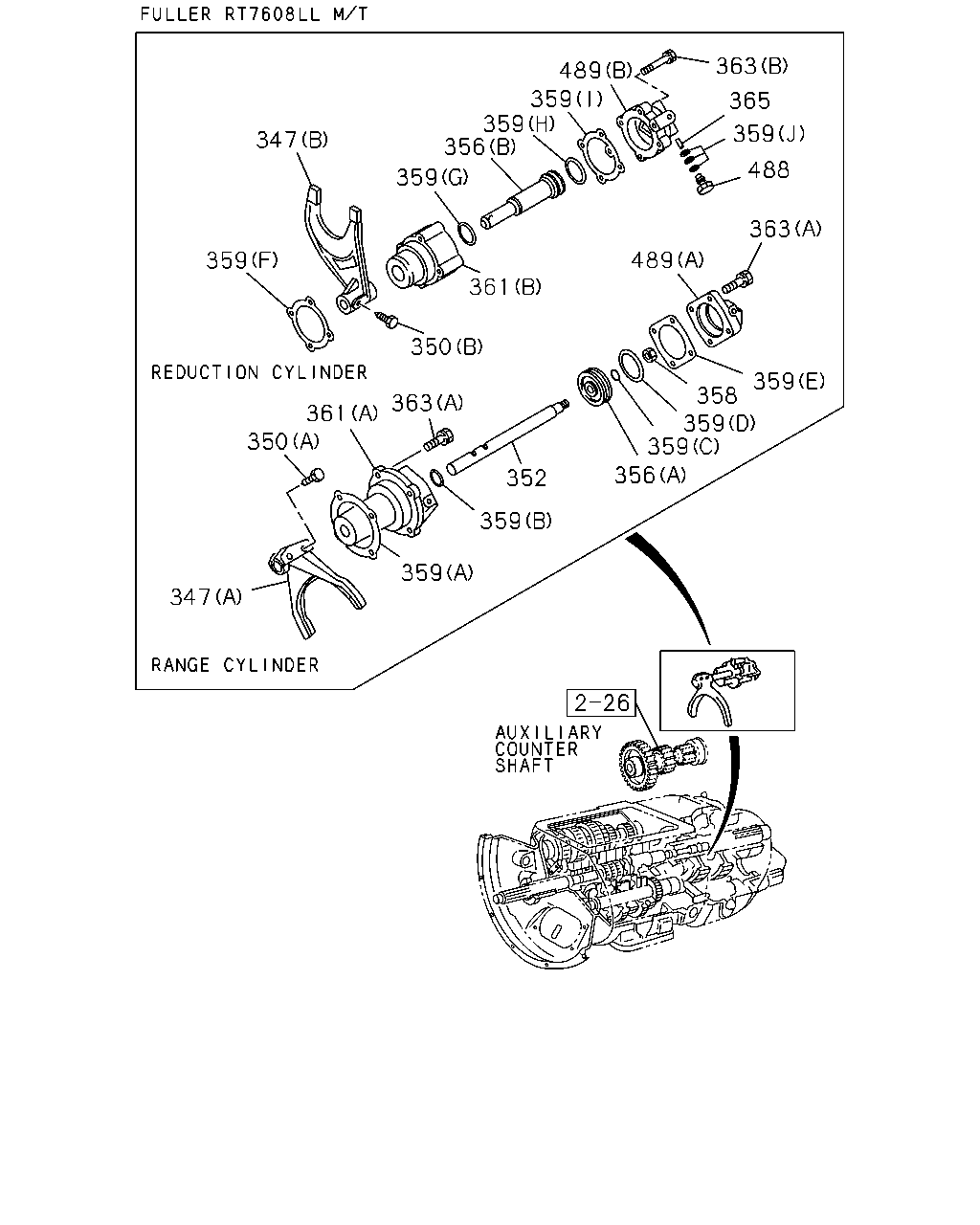

363 489 359 359 356 365 359 347 488 359 363 489 359 361 350 359 358 359 359 363 361 350 356 352 359 359 347

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	E
347	ARM; SHIFT,RANGE CHANGE	1-87061-567-0	01	1	9202-	●
347	ARM; SHIFT,RANGE CHANGE (A)	1-87061-260-0	01	1	9209-		●
347	ARM; SHIFT,RANGE CHANGE (B)	1-87061-432-0	01	1	9209-		●
350	SCREW; SHIFT ARM (B)	1-87061-202-0	03	1	9202-	●
350	SCREW; SHIFT ARM (A)	1-87061-566-0	02	1	9202-	●
350	SCREW; SHIFT ARM (B)	1-87061-202-0	04	1	9209-		●
350	SCREW; SHIFT ARM (A)	1-87061-257-0	02	1	9209-		●
352	ROD; SHIFT,RANGE CHANGE	1-87061-568-0	01	1	9202-	●
352	ROD; SHIFT,RANGE CHANGE	1-87061-261-0	01	1	9209-		●
356	PISTON; AIR CYL	1-87061-573-0	01	1	9202-	●
356	PISTON; AIR CYL (A)	1-87061-121-0	01	1	9209-		●
356	PISTON; AIR CYL (B)	1-87061-477-0	01	1	9209-		●
358	NUT; SHIFT ROD	1-87061-575-0	01	1	9202-	●
358	NUT; SHIFT ROD	1-87061-222-0	01	1	9209-		●
359	GASKET; AIR CYL (A)	1-87061-569-0	01	1	9202-	●
359	GASKET; AIR CYL (B)	1-87061-571-0	01	1	9202-	●
359	GASKET; AIR CYL (C)	1-87061-572-0	01	1	9202-	●
359	GASKET; AIR CYL (D)	1-87061-574-0	01	1	9202-	●
359	GASKET; AIR CYL (E)	1-87061-576-0	01	1	9202-	●
359	GASKET; AIR CYL (J)	1-87060-994-0	03	1	9209-		●
359	GASKET; AIR CYL (D)	1-87061-122-0	01	1	9209-		●
359	GASKET; AIR CYL (C)	1-87061-123-0	01	1	9209-		●
359	GASKET; AIR CYL (B)	1-87061-136-0	01	1	9209-		●
359	GASKET; AIR CYL (A)	1-87061-256-0	01	1	9209-		●
359	GASKET; AIR CYL (E)	1-87061-258-0	01	1	9209-		●
359	GASKET; AIR CYL (F)	1-87061-264-0	01	1	9209-		●
359	GASKET; AIR CYL (I)	1-87061-268-0	01	1	9209-		●
359	GASKET; AIR CYL (G)	1-87061-474-0	01	1	9209-		●
359	GASKET; AIR CYL (H)	1-87061-475-0	01	1	9209-		●
361	CYLINDER; AIR,SHIFT	1-87061-570-0	01	1	9202-	●
361	CYLINDER; AIR,SHIFT (A)	1-87061-262-0	01	1	9209-		●
361	CYLINDER; AIR,SHIFT (B)	1-87061-476-0	01	1	9209-		●
363	BOLT; AIR CYL	1-87061-229-0	04	1	9202-	●
363	BOLT; AIR CYL (A)	1-87060-778-0	08	1	9209-		●
363	BOLT; AIR CYL (B)	1-87061-270-0	04	1	9209-		●
365	VALVE; AIR CYL	1-87060-997-0	01	1	9209-		●
488	PLUG; AIR CYL	1-87060-998-0	01	1	9209-		●
489	COVER; AIR CYL	1-87061-577-0	01	1	9202-	●
489	COVER; AIR CYL (A)	1-87061-259-0	01	1	9209-		●
489	COVER; AIR CYL (B)	1-87061-269-0	01	1	9209-		●

492 492 485 486 486 492 485 486

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	E
485	TROUGH; OIL (A)	1-87061-489-0	01	1	9209-	●
485	TROUGH; OIL (B)	1-87061-490-0	01	1	9209-	●
486	BOLT; OIL TROUGH (A)	1-87061-527-0	02	1	9209-	●
486	BOLT; OIL TROUGH (B)	1-87061-528-0	01	1	9209-	●
492	SPACER; OIL TROUGH	1-87061-494-0	03	1	9209-	●

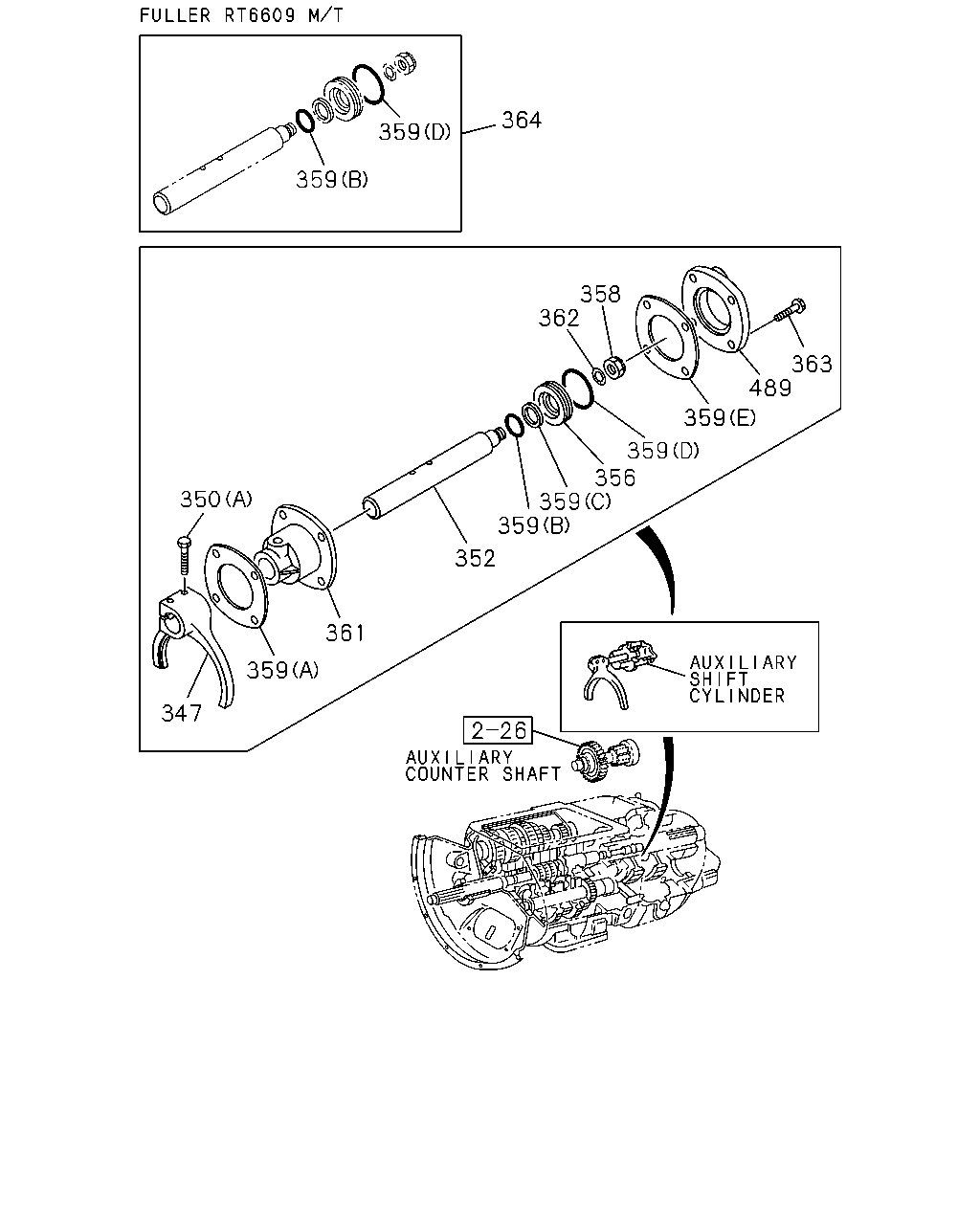

364 359 359 358 362 363 489 359 359 356 359 359 350 352 361 359 347

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	E
347	ARM; SHIFT,RANGE CHANGE	1-87061-567-0	01	1	9202-	●
347	ARM; SHIFT,RANGE CHANGE (A)	1-87061-260-0	01	1	9209-		●
347	ARM; SHIFT,RANGE CHANGE (B)	1-87061-432-0	01	1	9209-		●
350	SCREW; SHIFT ARM (B)	1-87061-202-0	03	1	9202-	●
350	SCREW; SHIFT ARM (A)	1-87061-566-0	02	1	9202-	●
350	SCREW; SHIFT ARM (B)	1-87061-202-0	04	1	9209-		●
350	SCREW; SHIFT ARM (A)	1-87061-257-0	02	1	9209-		●
352	ROD; SHIFT,RANGE CHANGE	1-87061-568-0	01	1	9202-	●
352	ROD; SHIFT,RANGE CHANGE	1-87061-261-0	01	1	9209-		●
356	PISTON; AIR CYL	1-87061-573-0	01	1	9202-	●
356	PISTON; AIR CYL (A)	1-87061-121-0	01	1	9209-		●
356	PISTON; AIR CYL (B)	1-87061-477-0	01	1	9209-		●
358	NUT; SHIFT ROD	1-87061-575-0	01	1	9202-	●
358	NUT; SHIFT ROD	1-87061-222-0	01	1	9209-		●
359	GASKET; AIR CYL (A)	1-87061-569-0	01	1	9202-	●
359	GASKET; AIR CYL (B)	1-87061-571-0	01	1	9202-	●
359	GASKET; AIR CYL (C)	1-87061-572-0	01	1	9202-	●
359	GASKET; AIR CYL (D)	1-87061-574-0	01	1	9202-	●
359	GASKET; AIR CYL (E)	1-87061-576-0	01	1	9202-	●
359	GASKET; AIR CYL (J)	1-87060-994-0	03	1	9209-		●
359	GASKET; AIR CYL (D)	1-87061-122-0	01	1	9209-		●
359	GASKET; AIR CYL (C)	1-87061-123-0	01	1	9209-		●
359	GASKET; AIR CYL (B)	1-87061-136-0	01	1	9209-		●
359	GASKET; AIR CYL (A)	1-87061-256-0	01	1	9209-		●
359	GASKET; AIR CYL (E)	1-87061-258-0	01	1	9209-		●
359	GASKET; AIR CYL (F)	1-87061-264-0	01	1	9209-		●
359	GASKET; AIR CYL (I)	1-87061-268-0	01	1	9209-		●
359	GASKET; AIR CYL (G)	1-87061-474-0	01	1	9209-		●
359	GASKET; AIR CYL (H)	1-87061-475-0	01	1	9209-		●
361	CYLINDER; AIR,SHIFT	1-87061-570-0	01	1	9202-	●
361	CYLINDER; AIR,SHIFT (A)	1-87061-262-0	01	1	9209-		●
361	CYLINDER; AIR,SHIFT (B)	1-87061-476-0	01	1	9209-		●
362	WASHER; AIR CYL	1-87061-525-0	01	1	9202-	●
363	BOLT; AIR CYL	1-87061-229-0	04	1	9202-	●
363	BOLT; AIR CYL (A)	1-87060-778-0	08	1	9209-		●
363	BOLT; AIR CYL (B)	1-87061-270-0	04	1	9209-		●
364	SEAL KIT; AIR CYL	1-87061-578-0	01	1	9202-	●
489	COVER; AIR CYL	1-87061-577-0	01	1	9202-	●
489	COVER; AIR CYL (A)	1-87061-259-0	01	1	9209-		●
489	COVER; AIR CYL (B)	1-87061-269-0	01	1	9209-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
