◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10865 - EXD RHD FUEL TANK 400L/400L+200L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#10731) — 161 parça

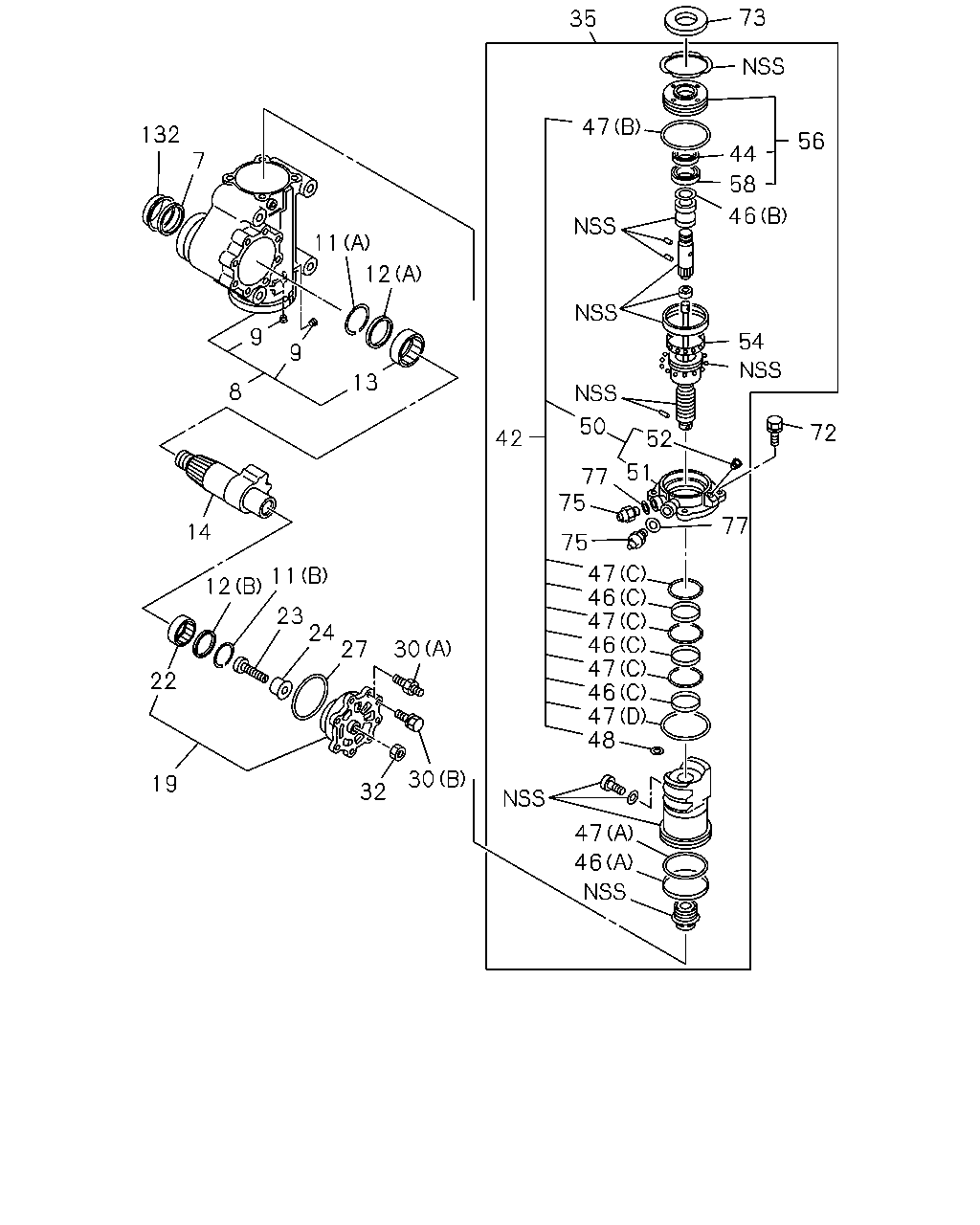

çizim 20103
73 35 47 132 56 44 7 58 11 46 12 9 54 9 13 8 50 72 42 52 51 77 75 77 14 75 47 46 47 46 47 46 47 48 11 12 23 24 27 30 22 30 19 32 47 46
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44240-102-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-868-1 		1-44241-097-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: C = 1-44000-868-1 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: C = 1-44000-868-1 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: C = 1-44000-868-1 		1-44519-226-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-265-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: C = 1-44000-868-1 		1-44249-038-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44249-072-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 1-44000-868-1 		1-44321-022-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-863-1 		1-44321-035-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-858-1 		1-44321-037-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-868-1 		1-44260-019-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44260-021-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: C = 1-44000-868-1 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-234-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) STUD ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 1-44000-868-1 		1-44150-054-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-858-1 		1-44150-057-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-863-1 		1-44150-085-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: C = 1-44000-868-1 		1-44560-073-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: C = 1-44000-868-1 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: C = 1-44000-868-1 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: C = 1-44000-868-1 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: C = 1-44000-868-1 		1-44560-072-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44560-076-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44561-020-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
M22X1.5 ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44259-035-1 02 1 -
75 CONNECTOR; HSG STRG UNIT
M22X1.5 ASM PART: C = 1-44000-868-1 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-227-0 01 1 -

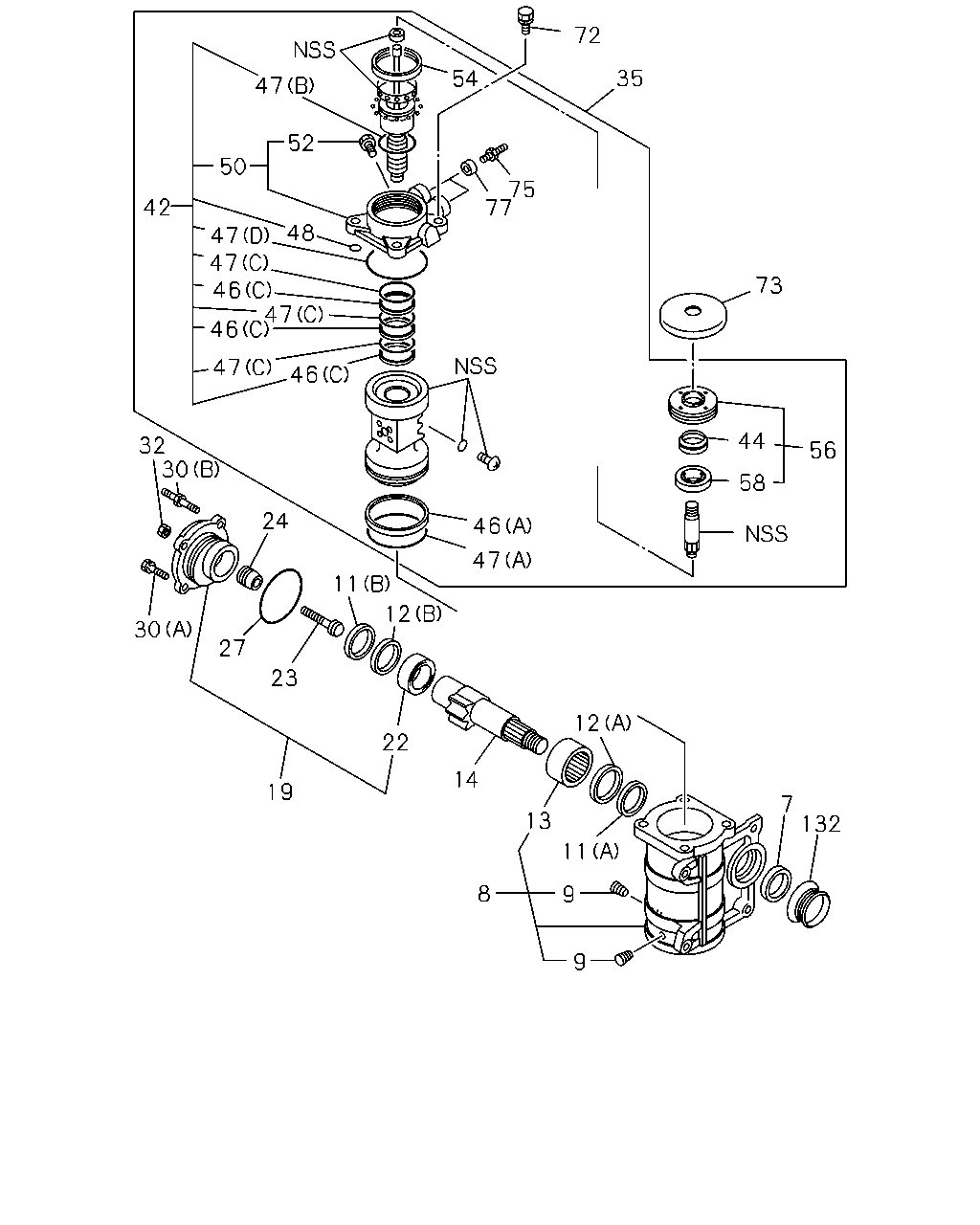

çizim 20366
72 35 54 47 52 50 75 77 42 48 47 47 46 47 46 73 47 46 44 32 30 56 58 24 46 47 11 12 30 27 23 12 22 14 19 7 13 132 11 8 9 9
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44240-102-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-868-1 		1-44241-097-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: C = 1-44000-868-1 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: C = 1-44000-868-1 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: C = 1-44000-868-1 		1-44519-226-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-265-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: C = 1-44000-868-1 		1-44249-038-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44249-072-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 1-44000-868-1 		1-44321-022-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-863-1 		1-44321-035-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-858-1 		1-44321-037-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-868-1 		1-44260-019-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44260-021-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: C = 1-44000-868-1 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-234-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) STUD ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 1-44000-868-1 		1-44150-054-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-858-1 		1-44150-057-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-863-1 		1-44150-085-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: C = 1-44000-868-1 		1-44560-073-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: C = 1-44000-868-1 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: C = 1-44000-868-1 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: C = 1-44000-868-1 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: C = 1-44000-868-1 		1-44560-072-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44560-076-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
M22X1.5 ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44259-035-1 02 1 -
75 CONNECTOR; HSG STRG UNIT
M22X1.5 ASM PART: C = 1-44000-868-1 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-227-0 01 1 -

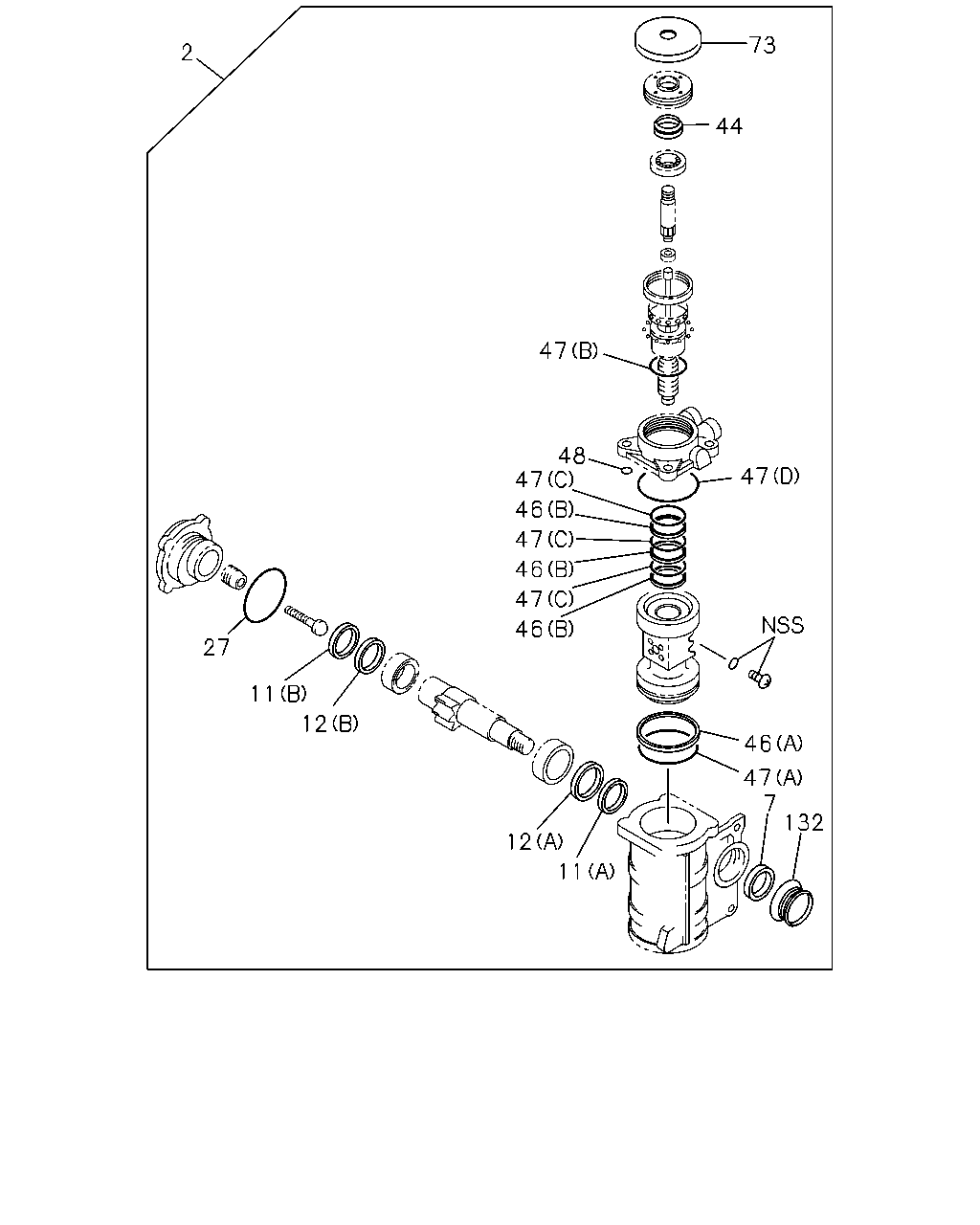

çizim 74504
73 2 44 47 48 47 47 46 47 46 47 46 27 11 12 46 47 7 132 12 11
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: C = 1-44000-868-1 		1-85574-030-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-85574-052-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44249-041-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: C = 1-44000-868-1 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: C = 1-44000-868-1 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: C = 1-44000-868-1 		1-44519-226-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: C = 1-44000-868-1 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: C = 1-44000-868-1 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: C = 1-44000-868-1 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-227-0 01 1 -

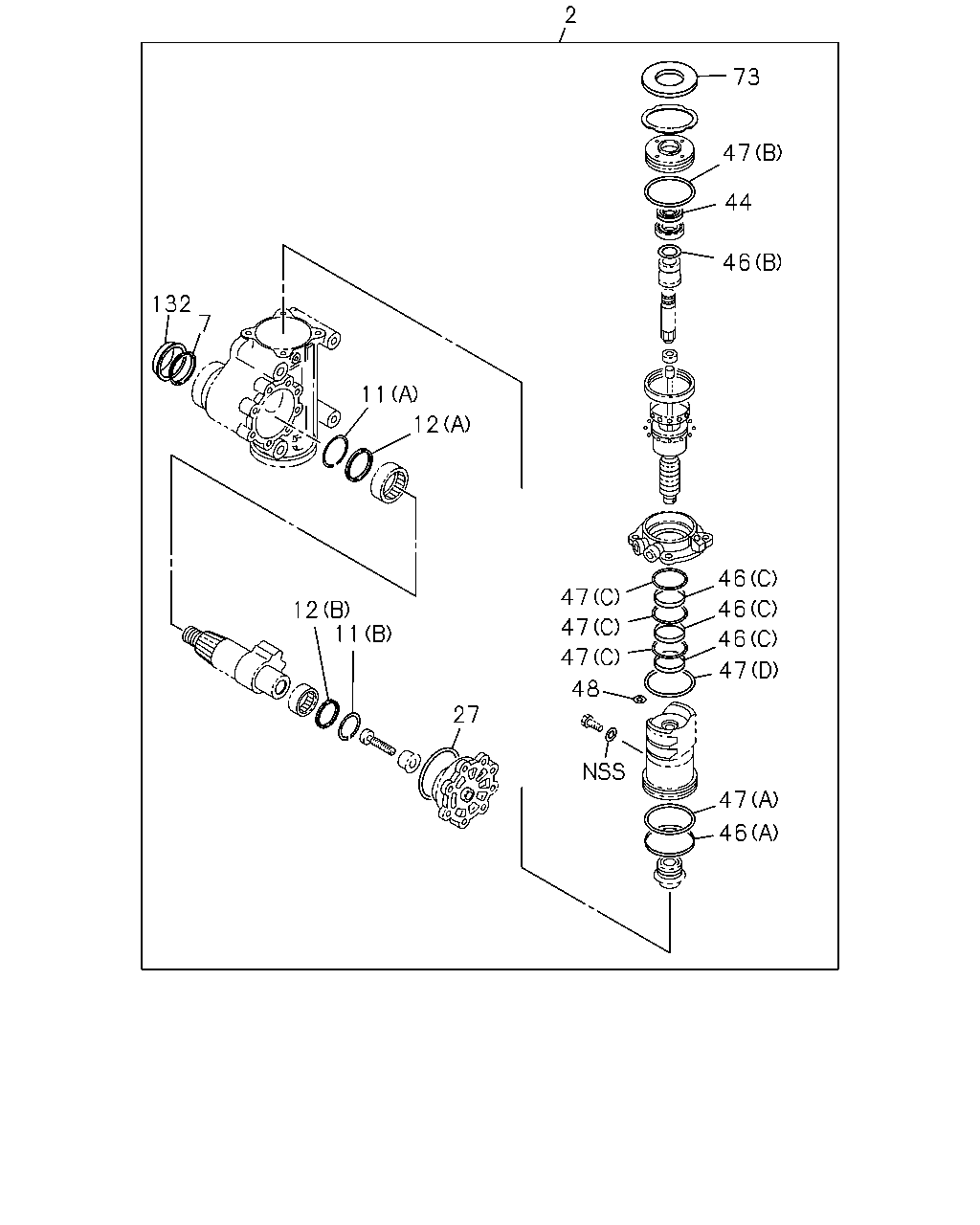

çizim 75455
2 73 47 44 46 132 7 11 12 46 47 46 12 11 47 46 47 47 48 27 47 46
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: C = 1-44000-868-1 		1-85574-030-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-85574-052-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44249-041-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: C = 1-44000-868-1 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: C = 1-44000-868-1 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: C = 1-44000-868-1 		1-44519-226-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: C = 1-44000-868-1 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: C = 1-44000-868-1 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: C = 1-44000-868-1 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-868-1 		1-44519-227-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
