Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#1073) — 578 parça

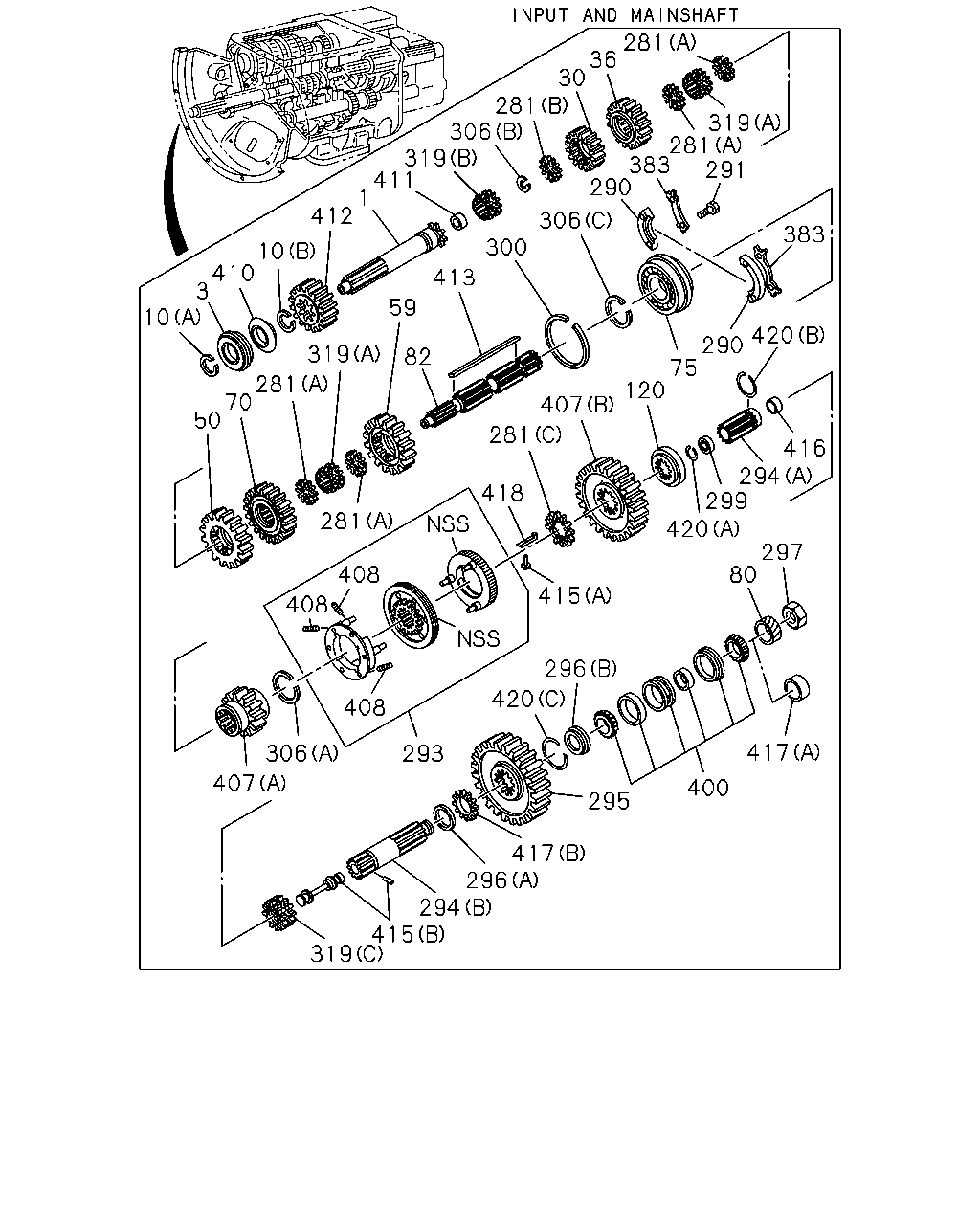

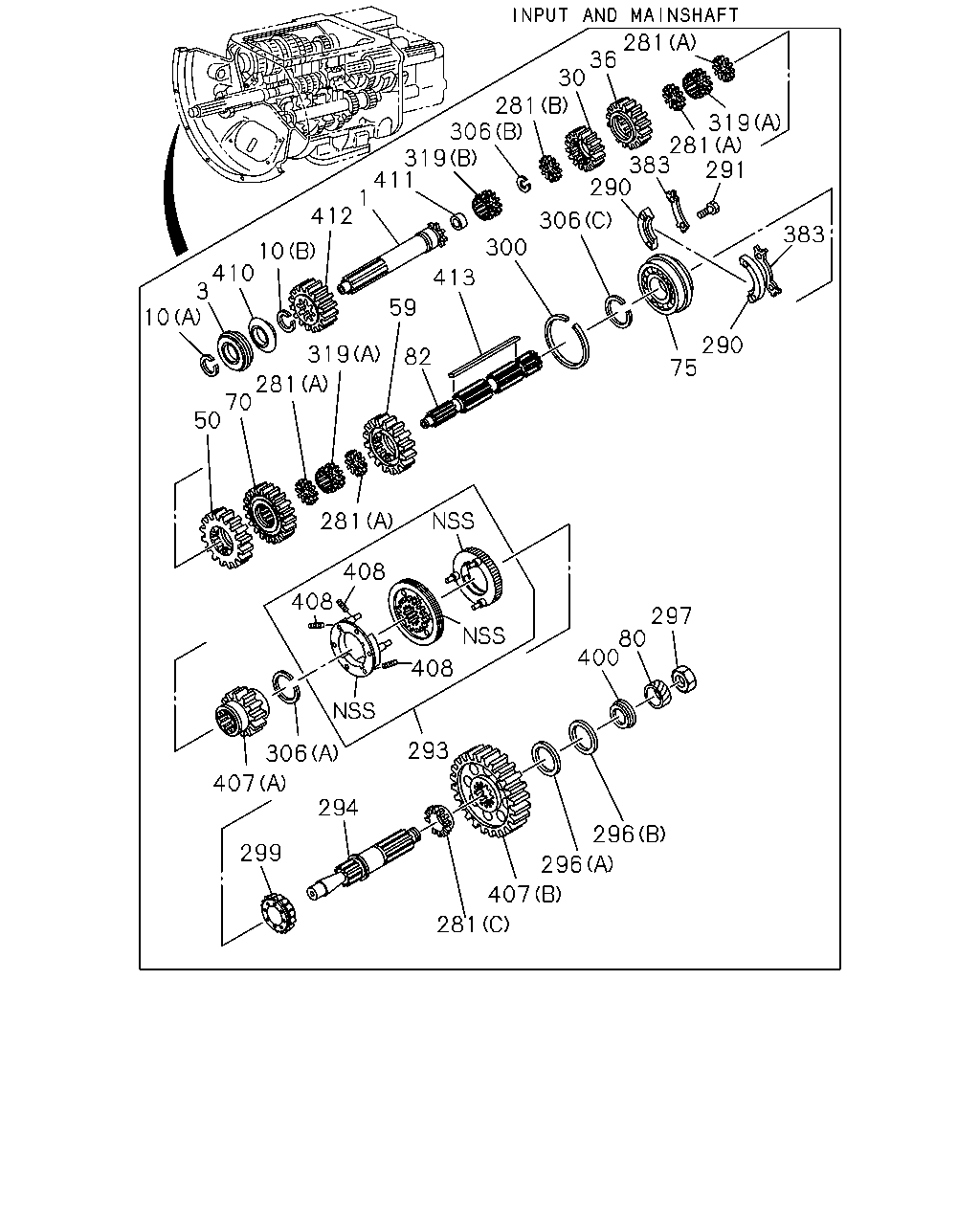

281 36 30 281 306 319 411 1 412 319 281 383 291 290 306 383 300 10 410 3 413 59 10 420 290 75 120 319 82 281 70 50 407 281 416 294 299 420 418 281 297 80 408 415 408 296 420 408 417 306 293 407 400 295 417 296 294 415 319

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-502-1	01	1	9202-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9202-		●	●
1	SHAFT; TOP GEAR,TRANS	1-87061-761-0	01	1	9202-				●
1	SHAFT; TOP GEAR,TRANS	1-87061-763-0	01	1	9209-					●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9202-	●	●	●
3	BEARING; TOP GEAR SHAFT	1-87061-559-0	01	1	9202-				●
3	BEARING; TOP GEAR SHAFT	1-87061-501-0	01	1	9209-					●
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	9202-	●	●	●
10	RING; SNAP,PILOT BRG (A)	1-87060-700-0	01	1	9202-				●
10	RING; SNAP,PILOT BRG (B)	1-87061-426-0	01	1	9202-				●	●
10	RING; SNAP,PILOT BRG (A)	1-87061-295-0	01	1	9209-					●
30	GEAR; 4TH,MAINSHAFT Z=54-36	1-33253-525-1	01	1	9202-9308	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9309-	●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-524-1	01	1	9202-9308		●	●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9309-		●	●
30	GEAR; 4TH,MAINSHAFT	1-87061-484-0	01	1	9202-				●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-378-2	01	1	9202-9308	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-0	01	1	9309-	●	●	●
36	GEAR; 3RD,MAINSHAFT	1-87061-471-0	01	1	9202-				●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-298-2	01	1	9202-9308	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9309-	●	●	●
50	GEAR; 2ND,MAINSHAFT	1-87061-558-0	01	1	9202-				●
50	GEAR; 2ND,MAINSHAFT	1-87061-448-0	01	1	9209-					●
59	GEAR; REV MAINSHAFT Z=44	1-33257-042-1	01	1	9202-9308	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9309-	●	●	●
59	GEAR; REV MAINSHAFT	1-87061-449-0	01	1	9202-				●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33251-300-1	01	1	9202-9308	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9309-	●	●	●
70	GEAR; 1ST,MAINSHAFT	1-87061-469-0	01	1	9202-				●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT	1-87061-500-0	01	1	9202-				●	●
80	GEAR; SPD DRIVE Z=7	1-33371-040-2	01	1	9202-	●	●	●
80	GEAR; SPD DRIVE	1-33371-034-0	01	1	9202-				●
80	GEAR; SPD DRIVE	1-33371-035-0	01	1	9209-					●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-205-2	01	1	9202-9308	●		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9309-	●		●
82	SHAFT; MAIN,TRANS Z=37-26-20-19	1-33231-206-2	01	1	9202-9308		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9309-		●
82	SHAFT; MAIN,TRANS	1-87061-455-0	01	1	9202-				●	●
120	SLEEVE	1-87061-436-0	01	1	9209-					●
281	WASHER; THRUST,MAINSHAFT (C)	1-87061-582-0	01	1	9202-				●
281	WASHER; THRUST,MAINSHAFT (A) T=0.260	1-87061-457-0	04	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (A) T=0.264	1-87061-458-0	04	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (A) T=0.269	1-87061-459-0	04	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (A) T=0.274	1-87061-460-0	04	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (A) T=0.279	1-87061-461-0	04	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (B) T=0.260	1-87061-479-0	01	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (B) T=0.264	1-87061-480-0	01	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (B) T=0.269	1-87061-481-0	01	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (B) T=0.274	1-87061-482-0	01	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (B) T=0.279	1-87061-483-0	01	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (C) T=0.203	1-87061-273-0	01	1	9209-					●
281	WASHER; THRUST,MAINSHAFT (C) T=0.207	1-87061-274-0	01	1	9209-					●
281	WASHER; THRUST,MAINSHAFT (C) T=0.211	1-87061-275-0	01	1	9209-					●
290	RETAINER; BRG	1-87061-562-0	02	1	9202-				●
290	RETAINER; BRG	1-87061-492-0	02	1	9209-					●
291	BOLT; RET	1-87061-529-0	04	1	9202-				●	●
293	SYNCHRONIZER; LOW HIGH	1-87061-579-0	01	1	9202-				●
293	SYNCHRONIZER; LOW HIGH	1-87061-216-0	01	1	9209-					●
294	SHAFT; OUTPUT	1-87061-581-0	01	1	9202-				●
294	SHAFT; OUTPUT (A)	1-87061-280-0	01	1	9209-					●
294	SHAFT; OUTPUT (B)	1-87061-506-0	01	1	9209-					●
295	GEAR; LOW,DRIVEN	1-87061-441-0	01	1	9209-					●
296	WASHER; THRUST (A)	1-87061-584-0	01	1	9202-				●
296	WASHER; THRUST (B)	1-87061-585-0	01	1	9202-				●
296	WASHER; THRUST (A)	1-87061-411-0	01	1	9209-					●
296	WASHER; THRUST (B)	1-87061-430-0	01	1	9209-					●
297	NUT; LOCK	1-87061-586-0	01	1	9202-				●
297	NUT; LOCK	1-87061-291-0	01	1	9209-					●
299	BEARING; OUTPUT SHAFT FRT	1-87061-580-0	01	1	9202-				●
299	BEARING; OUTPUT SHAFT FRT	1-87061-279-0	01	1	9209-					●
300	RING; SNAP,COUNTER SHAFT,RR END	1-87061-549-0	02	1	9202-				●
300	RING; SNAP,COUNTER SHAFT,RR END	1-87061-295-0	02	1	9209-					●
306	RING; SNAP,MAINSHAFT (A)	1-87061-415-0	01	1	9202-				●	●
306	RING; SNAP,MAINSHAFT (B)	1-87061-428-0	01	1	9202-				●	●
306	RING; SNAP,MAINSHAFT (C)	1-87061-429-0	01	1	9202-				●	●
319	CLUTCH; SLIDING (A)	1-87061-456-0	02	1	9202-				●	●
319	CLUTCH; SLIDING (B)	1-87061-478-0	01	1	9202-				●	●
319	CLUTCH; SLIDING (C)	1-87061-425-0	01	1	9209-					●
383	WASHER; LK	1-87061-563-0	02	1	9202-				●
383	WASHER; LK	1-87061-493-0	02	1	9209-					●
400	BEARING; OUTPUT SHAFT RR	1-87061-594-0	01	1	9202-				●
400	BEARING; OUTPUT SHAFT RR	1-87061-413-0	01	1	9209-					●
407	GEAR; PRIMARY MAIN (A)	1-87061-564-0	01	1	9202-				●
407	GEAR; PRIMARY MAIN (B)	1-87061-583-0	01	1	9202-				●
407	GEAR; PRIMARY MAIN (B)	1-87061-486-0	01	1	9209-					●
407	GEAR; PRIMARY MAIN (A)	1-87061-487-0	01	1	9209-					●
408	SPRING	1-87061-137-0	03	1	9202-				●	●
410	SPACER; TOP GEAR SHAFT	1-87061-560-0	01	1	9202-				●
410	SPACER; TOP GEAR SHAFT	1-87061-467-0	01	1	9209-					●
411	BUSHING; TOP GEAR SHAFT	1-87061-427-0	01	1	9202-				●	●
412	GEAR; DRIVE	1-87061-561-0	01	1	9202-				●
412	GEAR; DRIVE	1-87060-718-0	01	1	9209-					●
413	KEY; MAIN SHAFT	1-87061-507-0	01	1	9202-				●	●
415	PIN; OUTPUT SHAFT (A)	1-87061-271-0	01	1	9209-					●
415	PIN; OUTPUT SHAFT (B)	1-87061-284-0	01	1	9209-					●
416	BUSHING; OUTPUT SHAFT	1-87061-282-0	01	1	9209-					●
417	SPACER; OUTPUT SHAFT (A)	1-87061-414-0	01	1	9209-					●
417	SPACER; OUTPUT SHAFT (B)	1-87061-439-0	01	1	9209-					●
418	KEY; OUTPUT SHAFT	1-87061-272-0	01	1	9209-					●
420	RING; SNAP,OUTPUT SHAFT (A)	1-87061-278-0	01	1	9209-					●
420	RING; SNAP,OUTPUT SHAFT (B)	1-87061-281-0	01	1	9209-					●
420	RING; SNAP,OUTPUT SHAFT (C)	1-87061-289-0	01	1	9209-					●

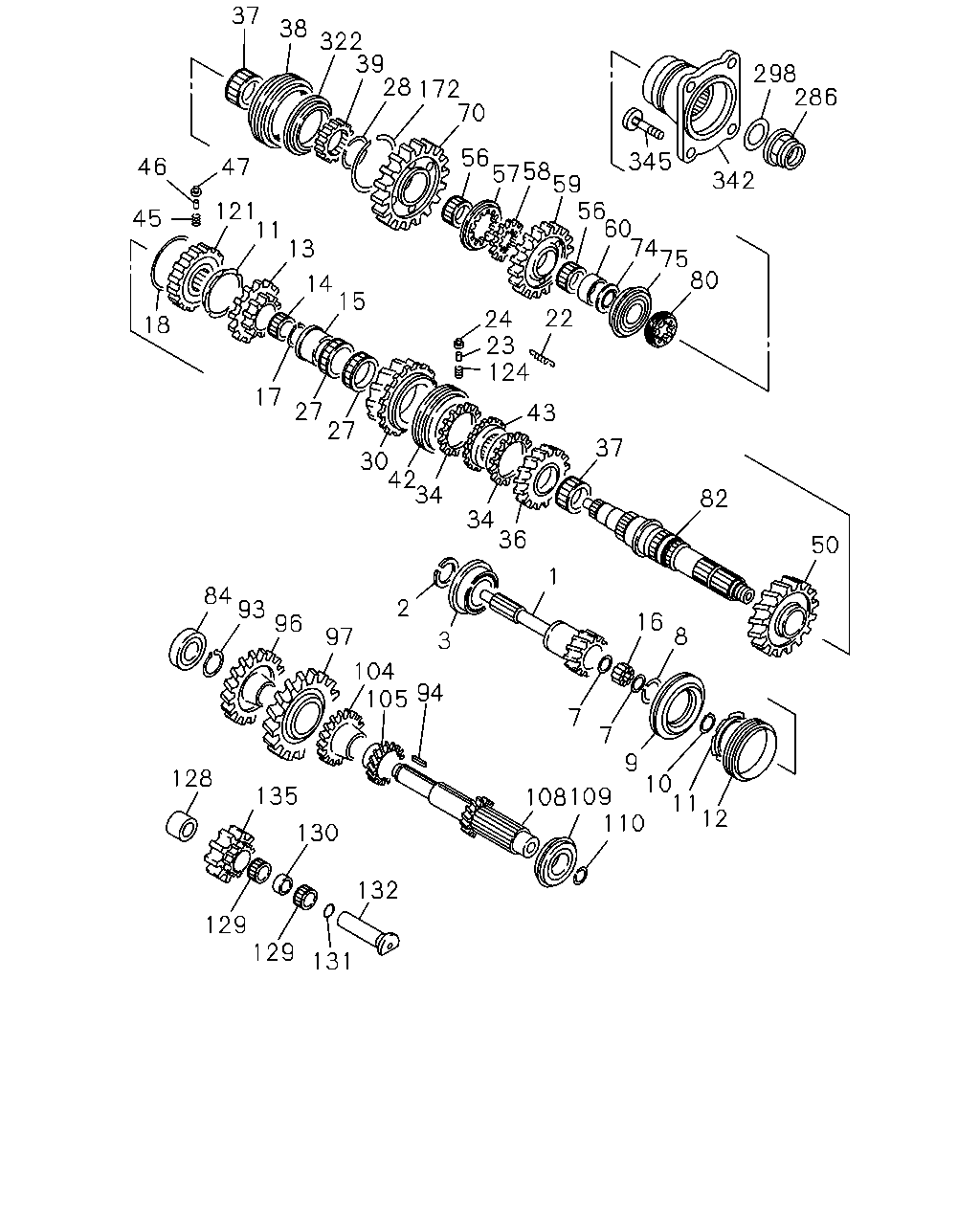

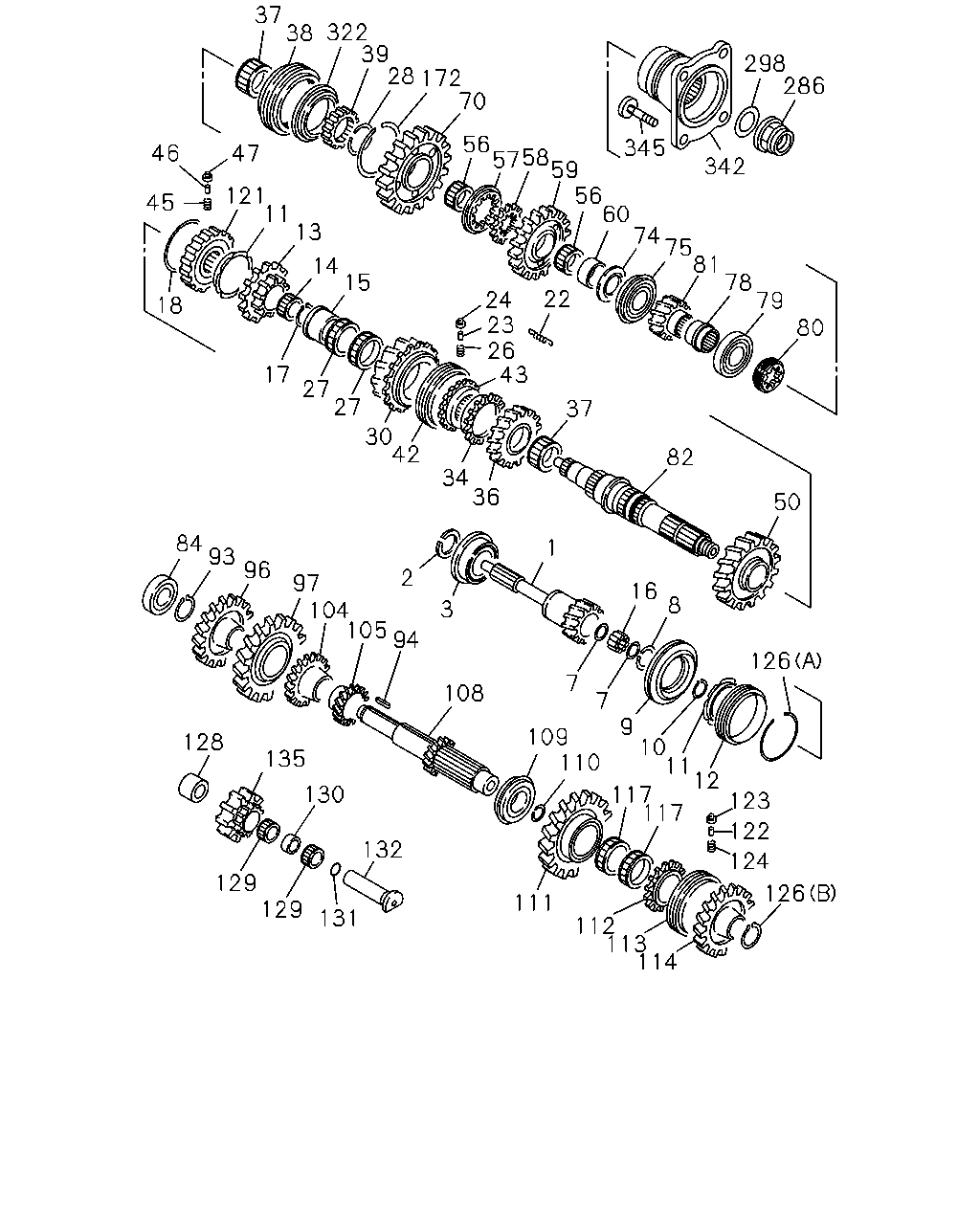

37 38 322 39 28 172 70 298 286 56 57 58 59 56 60 74 75 80 345 46 47 342 121 11 45 13 14 15 22 24 23 124 18 17 27 27 43 37 30 42 34 82 34 36 50 1 84 93 96 2 16 8 97 3 104 94 105 7 7 9 10 11 12 128 135 110 130 132 129 129 131 108 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-502-1	01	1	9202-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9202-		●	●
1	SHAFT; TOP GEAR,TRANS	1-87061-761-0	01	1	9202-				●
1	SHAFT; TOP GEAR,TRANS	1-87061-763-0	01	1	9209-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9202-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9202-	●	●	●
3	BEARING; TOP GEAR SHAFT	1-87061-559-0	01	1	9202-				●
3	BEARING; TOP GEAR SHAFT	1-87061-501-0	01	1	9209-					●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9202-	●	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9202-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9202-	●	●	●
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	9202-	●	●	●
10	RING; SNAP,PILOT BRG (A)	1-87060-700-0	01	1	9202-				●
10	RING; SNAP,PILOT BRG (B)	1-87061-426-0	01	1	9202-				●	●
10	RING; SNAP,PILOT BRG (A)	1-87061-295-0	01	1	9209-					●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9202-	●	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9202-	●	●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-400-3	01	1	9202-9308	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9309-	●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-413-2	01	1	9202-9308		●	●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-572-0	01	1	9309-		●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9202-	●	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9202-	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	9202-	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9202-	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9202-	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9202-	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9202-	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9202-	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=54-36	1-33253-525-1	01	1	9202-9308	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9309-	●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-524-1	01	1	9202-9308		●	●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9309-		●	●
30	GEAR; 4TH,MAINSHAFT	1-87061-484-0	01	1	9202-				●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9205-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-378-2	01	1	9202-9308	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-0	01	1	9309-	●	●	●
36	GEAR; 3RD,MAINSHAFT	1-87061-471-0	01	1	9202-				●	●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	9202-	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9202-	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9202-	●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-197-0	01	1	9202-9412	●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9501-	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9202-	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-198-1	01	1	9202-9412	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9501-	●	●	●
45	SPRING; BLOCK INSERT	1-09580-373-0	06	1	9202-9209	●	●	●
45	SPRING; BLOCK INSERT	1-09580-395-0	06	1	9210-	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9202-	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9202-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-298-2	01	1	9202-9308	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9309-	●	●	●
50	GEAR; 2ND,MAINSHAFT	1-87061-558-0	01	1	9202-				●
50	GEAR; 2ND,MAINSHAFT	1-87061-448-0	01	1	9209-					●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	9202-	●	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9202-	●	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9202-	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-042-1	01	1	9202-9308	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9309-	●	●	●
59	GEAR; REV MAINSHAFT	1-87061-449-0	01	1	9202-				●	●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9202-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33251-300-1	01	1	9202-9308	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9309-	●	●	●
70	GEAR; 1ST,MAINSHAFT	1-87061-469-0	01	1	9202-				●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT	1-87061-500-0	01	1	9202-				●	●
80	GEAR; SPD DRIVE Z=7	1-33371-040-2	01	1	9202-	●	●	●
80	GEAR; SPD DRIVE	1-33371-034-0	01	1	9202-				●
80	GEAR; SPD DRIVE	1-33371-035-0	01	1	9209-					●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-205-2	01	1	9202-9308	●		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9309-	●		●
82	SHAFT; MAIN,TRANS Z=37-26-20-19	1-33231-206-2	01	1	9202-9308		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9309-		●
82	SHAFT; MAIN,TRANS	1-87061-455-0	01	1	9202-				●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9202-	●	●	●
84	BEARING; COUNTER SHAFT,FRT (A)	1-87061-554-0	02	1	9202-				●
84	BEARING; COUNTER SHAFT,FRT (B)	1-87061-587-0	02	1	9202-				●
84	BEARING; COUNTER SHAFT,FRT (A)	1-87061-470-0	02	1	9209-					●

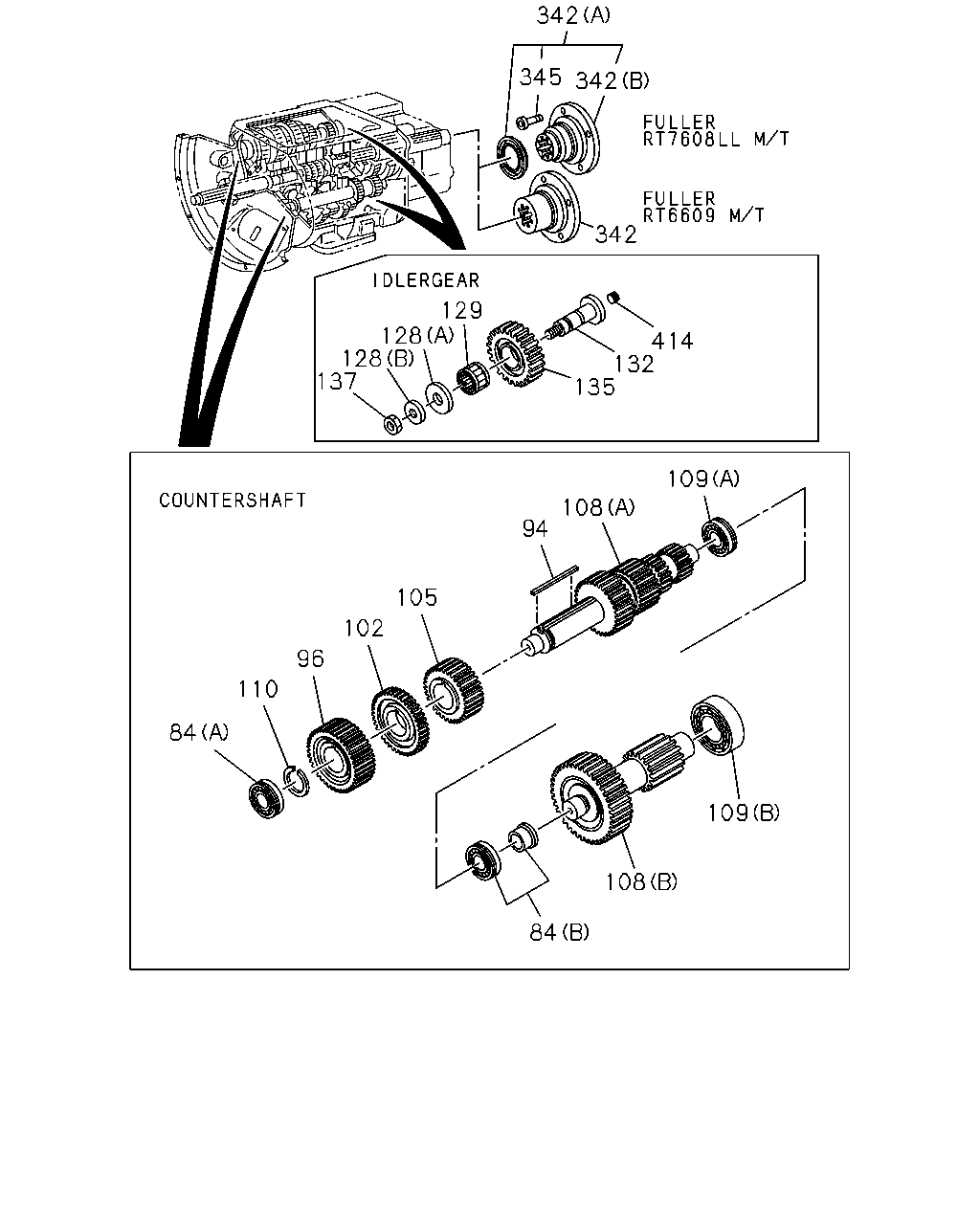

84	BEARING; COUNTER SHAFT,FRT (B)	1-87061-495-0	02	1	9209-					●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9202-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9202-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9202-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-87061-450-0	02	1	9202-				●	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-161-2	01	1	9202-9308	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9309-	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-162-2	01	1	9202-9308		●	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9309-		●	●
96	GEAR; COUNTER DRIVE	1-87061-555-0	02	1	9202-				●
96	GEAR; COUNTER DRIVE	1-87061-444-0	02	1	9209-					●
97	GEAR; 5TH,COUNTER Z=40	1-33332-074-1	01	1	9202-9308	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9309-	●
97	GEAR; 5TH,COUNTER Z=41	1-33332-081-0	01	1	9202-9308		●	●
97	GEAR; 5TH,COUNTER Z=41	1-33332-114-0	01	1	9309-		●	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-072-1	01	1	9202-9308	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9309-	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-080-0	01	1	9202-9308		●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9309-		●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-140-0	01	1	9202-9203	●	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9204-	●	●	●
105	GEAR; 3RD,COUNTER	1-87061-556-0	02	1	9202-				●
105	GEAR; 3RD,COUNTER	1-87061-447-0	02	1	9209-					●
108	SHAFT; COUNTER Z=19	1-33311-181-0	01	1	9202-9308	●		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9309-	●		●
108	SHAFT; COUNTER Z=19-13	1-33311-182-0	01	1	9202-9308		●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	9309-		●
108	SHAFT; COUNTER (A)	1-87061-557-0	02	1	9202-				●
108	SHAFT; COUNTER (B)	1-87061-588-0	02	1	9202-				●
108	SHAFT; COUNTER (A)	1-87061-509-0	02	1	9209-					●
108	SHAFT; COUNTER (B)	1-87061-510-0	02	1	9209-					●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9202-	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9202-	●	●	●
109	BEARING; COUNTER SHAFT,RR (A)	1-87061-554-0	02	1	9202-				●
109	BEARING; COUNTER SHAFT,RR (B)	1-87061-589-0	02	1	9202-				●
109	BEARING; COUNTER SHAFT,RR (A)	1-87061-470-0	02	1	9209-					●
109	BEARING; COUNTER SHAFT,RR (B)	1-87061-499-0	01	1	9209-					●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9202-	●	●	●
110	RING; SNAP,COUNTER BRG	1-87061-410-0	02	1	9202-				●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9202-	●	●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-395-0	03	1	9202-	●	●	●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=42	1-33239-079-1	01	1	9202-	●	●	●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=2	1-33363-024-1	01	1	9202-	●	●	●
128	WASHER; THRUST,REV SHAFT (A)	1-87061-453-0	02	1	9202-				●	●
128	WASHER; THRUST,REV SHAFT (B)	1-87061-454-0	02	1	9202-				●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER	1-87061-416-0	02	1	9202-				●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9202-	●	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9202-	●	●	●
132	SHAFT; REV	1-33351-017-0	01	1	9202-	●	●	●
132	SHAFT; REV	1-87061-565-0	02	1	9202-				●
132	SHAFT; REV	1-87061-452-0	02	1	9209-					●
135	GEAR; REV IDLER Z=30	1-33361-044-2	01	1	9202-9308	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9309-	●	●	●
135	GEAR; REV IDLER	1-87061-451-0	02	1	9202-				●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9202-	●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9202-	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9202-	●	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9202-	●	●	●
342	FLANGE; OUTPUT	1-37243-176-3	01	1	9202-9510	●	●	●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9511-	●	●	●
342	FLANGE; OUTPUT	1-37243-189-1	01	1	9202-				●
342	FLANGE; OUTPUT (A)	1-37243-221-0	01	1	9209-					●
342	FLANGE; OUTPUT (B)	1-37243-222-0	01	1	9209-					●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9202-9208	●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9209-9412	●	●	●		●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-	●	●	●		●

281 36 30 281 306 319 411 1 412 319 281 383 291 290 306 383 300 10 410 3 413 59 10 290 75 319 82 281 70 50 281 408 408 297 80 400 408 293 306 407 294 296 299 296 407 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-502-1	01	1	9202-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9202-		●	●
1	SHAFT; TOP GEAR,TRANS	1-87061-761-0	01	1	9202-				●
1	SHAFT; TOP GEAR,TRANS	1-87061-763-0	01	1	9209-					●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9202-	●	●	●
3	BEARING; TOP GEAR SHAFT	1-87061-559-0	01	1	9202-				●
3	BEARING; TOP GEAR SHAFT	1-87061-501-0	01	1	9209-					●
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	9202-	●	●	●
10	RING; SNAP,PILOT BRG (A)	1-87060-700-0	01	1	9202-				●
10	RING; SNAP,PILOT BRG (B)	1-87061-426-0	01	1	9202-				●	●
10	RING; SNAP,PILOT BRG (A)	1-87061-295-0	01	1	9209-					●
30	GEAR; 4TH,MAINSHAFT Z=54-36	1-33253-525-1	01	1	9202-9308	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9309-	●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-524-1	01	1	9202-9308		●	●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9309-		●	●
30	GEAR; 4TH,MAINSHAFT	1-87061-484-0	01	1	9202-				●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-378-2	01	1	9202-9308	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-0	01	1	9309-	●	●	●
36	GEAR; 3RD,MAINSHAFT	1-87061-471-0	01	1	9202-				●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-298-2	01	1	9202-9308	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9309-	●	●	●
50	GEAR; 2ND,MAINSHAFT	1-87061-558-0	01	1	9202-				●
50	GEAR; 2ND,MAINSHAFT	1-87061-448-0	01	1	9209-					●
59	GEAR; REV MAINSHAFT Z=44	1-33257-042-1	01	1	9202-9308	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9309-	●	●	●
59	GEAR; REV MAINSHAFT	1-87061-449-0	01	1	9202-				●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33251-300-1	01	1	9202-9308	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9309-	●	●	●
70	GEAR; 1ST,MAINSHAFT	1-87061-469-0	01	1	9202-				●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT	1-87061-500-0	01	1	9202-				●	●
80	GEAR; SPD DRIVE Z=7	1-33371-040-2	01	1	9202-	●	●	●
80	GEAR; SPD DRIVE	1-33371-034-0	01	1	9202-				●
80	GEAR; SPD DRIVE	1-33371-035-0	01	1	9209-					●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-205-2	01	1	9202-9308	●		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9309-	●		●
82	SHAFT; MAIN,TRANS Z=37-26-20-19	1-33231-206-2	01	1	9202-9308		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9309-		●
82	SHAFT; MAIN,TRANS	1-87061-455-0	01	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (C)	1-87061-582-0	01	1	9202-				●
281	WASHER; THRUST,MAINSHAFT (A) T=0.260	1-87061-457-0	04	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (A) T=0.264	1-87061-458-0	04	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (A) T=0.269	1-87061-459-0	04	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (A) T=0.274	1-87061-460-0	04	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (A) T=0.279	1-87061-461-0	04	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (B) T=0.260	1-87061-479-0	01	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (B) T=0.264	1-87061-480-0	01	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (B) T=0.269	1-87061-481-0	01	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (B) T=0.274	1-87061-482-0	01	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (B) T=0.279	1-87061-483-0	01	1	9202-				●	●
281	WASHER; THRUST,MAINSHAFT (C) T=0.203	1-87061-273-0	01	1	9209-					●
281	WASHER; THRUST,MAINSHAFT (C) T=0.207	1-87061-274-0	01	1	9209-					●
281	WASHER; THRUST,MAINSHAFT (C) T=0.211	1-87061-275-0	01	1	9209-					●
290	RETAINER; BRG	1-87061-562-0	02	1	9202-				●
290	RETAINER; BRG	1-87061-492-0	02	1	9209-					●
291	BOLT; RET	1-87061-529-0	04	1	9202-				●	●
293	SYNCHRONIZER; LOW HIGH	1-87061-579-0	01	1	9202-				●
293	SYNCHRONIZER; LOW HIGH	1-87061-216-0	01	1	9209-					●
294	SHAFT; OUTPUT	1-87061-581-0	01	1	9202-				●
294	SHAFT; OUTPUT (A)	1-87061-280-0	01	1	9209-					●
294	SHAFT; OUTPUT (B)	1-87061-506-0	01	1	9209-					●
296	WASHER; THRUST (A)	1-87061-584-0	01	1	9202-				●
296	WASHER; THRUST (B)	1-87061-585-0	01	1	9202-				●
296	WASHER; THRUST (A)	1-87061-411-0	01	1	9209-					●
296	WASHER; THRUST (B)	1-87061-430-0	01	1	9209-					●
297	NUT; LOCK	1-87061-586-0	01	1	9202-				●
297	NUT; LOCK	1-87061-291-0	01	1	9209-					●
299	BEARING; OUTPUT SHAFT FRT	1-87061-580-0	01	1	9202-				●
299	BEARING; OUTPUT SHAFT FRT	1-87061-279-0	01	1	9209-					●
300	RING; SNAP,COUNTER SHAFT,RR END	1-87061-549-0	02	1	9202-				●
300	RING; SNAP,COUNTER SHAFT,RR END	1-87061-295-0	02	1	9209-					●
306	RING; SNAP,MAINSHAFT (A)	1-87061-415-0	01	1	9202-				●	●
306	RING; SNAP,MAINSHAFT (B)	1-87061-428-0	01	1	9202-				●	●
306	RING; SNAP,MAINSHAFT (C)	1-87061-429-0	01	1	9202-				●	●
319	CLUTCH; SLIDING (A)	1-87061-456-0	02	1	9202-				●	●
319	CLUTCH; SLIDING (B)	1-87061-478-0	01	1	9202-				●	●
319	CLUTCH; SLIDING (C)	1-87061-425-0	01	1	9209-					●
383	WASHER; LK	1-87061-563-0	02	1	9202-				●
383	WASHER; LK	1-87061-493-0	02	1	9209-					●
400	BEARING; OUTPUT SHAFT RR	1-87061-594-0	01	1	9202-				●
400	BEARING; OUTPUT SHAFT RR	1-87061-413-0	01	1	9209-					●
407	GEAR; PRIMARY MAIN (A)	1-87061-564-0	01	1	9202-				●
407	GEAR; PRIMARY MAIN (B)	1-87061-583-0	01	1	9202-				●
407	GEAR; PRIMARY MAIN (B)	1-87061-486-0	01	1	9209-					●
407	GEAR; PRIMARY MAIN (A)	1-87061-487-0	01	1	9209-					●
408	SPRING	1-87061-137-0	03	1	9202-				●	●
410	SPACER; TOP GEAR SHAFT	1-87061-560-0	01	1	9202-				●
410	SPACER; TOP GEAR SHAFT	1-87061-467-0	01	1	9209-					●
411	BUSHING; TOP GEAR SHAFT	1-87061-427-0	01	1	9202-				●	●
412	GEAR; DRIVE	1-87061-561-0	01	1	9202-				●
412	GEAR; DRIVE	1-87060-718-0	01	1	9209-					●
413	KEY; MAIN SHAFT	1-87061-507-0	01	1	9202-				●	●

37 38 322 39 28 172 70 298 286 56 57 58 59 56 60 74 75 81 78 79 345 46 47 342 121 11 45 13 14 15 22 24 23 26 43 18 80 17 27 27 37 30 42 82 34 36 50 84 93 96 1 2 97 104 105 94 16 8 3 126 7 108 7 9 10 11 12 109 110 128 135 130 117 117 123 122 132 124 129 129 126 111 131 112 113 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-502-1	01	1	9202-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9202-		●	●
1	SHAFT; TOP GEAR,TRANS	1-87061-761-0	01	1	9202-				●
1	SHAFT; TOP GEAR,TRANS	1-87061-763-0	01	1	9209-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9202-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9202-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9202-	●	●	●
3	BEARING; TOP GEAR SHAFT	1-87061-559-0	01	1	9202-				●
3	BEARING; TOP GEAR SHAFT	1-87061-501-0	01	1	9209-					●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9202-	●	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9202-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9202-	●	●	●
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	9202-	●	●	●
10	RING; SNAP,PILOT BRG (A)	1-87060-700-0	01	1	9202-				●
10	RING; SNAP,PILOT BRG (B)	1-87061-426-0	01	1	9202-				●	●
10	RING; SNAP,PILOT BRG (A)	1-87061-295-0	01	1	9209-					●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9202-	●	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9202-	●	●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-400-3	01	1	9202-9308	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9309-	●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-413-2	01	1	9202-9308		●	●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-572-0	01	1	9309-		●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9202-	●	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9202-	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	9202-	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9202-	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9202-	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9202-	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-	●	●	●
26	SPRING; BLOCK,INSERT	1-09580-395-0	03	1	9202-		●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9202-	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9202-	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=54-36	1-33253-525-1	01	1	9202-9308	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9309-	●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-524-1	01	1	9202-9308		●	●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9309-		●	●
30	GEAR; 4TH,MAINSHAFT	1-87061-484-0	01	1	9202-				●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9205-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-378-2	01	1	9202-9308	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-0	01	1	9309-	●	●	●
36	GEAR; 3RD,MAINSHAFT	1-87061-471-0	01	1	9202-				●	●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	9202-	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9202-	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9202-	●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-197-0	01	1	9202-9412	●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9501-	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9202-	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-198-1	01	1	9202-9412	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9501-	●	●	●
45	SPRING; BLOCK INSERT	1-09580-373-0	06	1	9202-9209	●	●	●
45	SPRING; BLOCK INSERT	1-09580-395-0	06	1	9210-	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9202-	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9202-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-298-2	01	1	9202-9308	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9309-	●	●	●
50	GEAR; 2ND,MAINSHAFT	1-87061-558-0	01	1	9202-				●
50	GEAR; 2ND,MAINSHAFT	1-87061-448-0	01	1	9209-					●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	9202-	●	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9202-	●	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9202-	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-042-1	01	1	9202-9308	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9309-	●	●	●
59	GEAR; REV MAINSHAFT	1-87061-449-0	01	1	9202-				●	●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9202-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33251-300-1	01	1	9202-9308	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9309-	●	●	●
70	GEAR; 1ST,MAINSHAFT	1-87061-469-0	01	1	9202-				●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT	1-87061-500-0	01	1	9202-				●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-085-0	01	1	9202-		●
79	BEARING; BALL,MAINSHAFT KOYO	1-09800-150-0	01	1	9202-		●
79	BEARING; BALL,MAINSHAFT NTN	1-09800-151-0	01	1	9202-		●
80	GEAR; SPD DRIVE Z=7	1-33371-040-2	01	1	9202-	●	●	●
80	GEAR; SPD DRIVE	1-33371-034-0	01	1	9202-				●
80	GEAR; SPD DRIVE	1-33371-035-0	01	1	9209-					●
81	GEAR; 7TH,MAIN Z=19	1-33254-002-1	01	1	9202-9308		●
81	GEAR; 7TH,MAIN Z=19	1-33254-013-0	01	1	9309-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-205-2	01	1	9202-9308	●		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9309-	●		●
82	SHAFT; MAIN,TRANS Z=37-26-20-19	1-33231-206-2	01	1	9202-9308		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9309-		●
82	SHAFT; MAIN,TRANS	1-87061-455-0	01	1	9202-				●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9202-	●	●	●
84	BEARING; COUNTER SHAFT,FRT (A)	1-87061-554-0	02	1	9202-				●
84	BEARING; COUNTER SHAFT,FRT (B)	1-87061-587-0	02	1	9202-				●
84	BEARING; COUNTER SHAFT,FRT (A)	1-87061-470-0	02	1	9209-					●
84	BEARING; COUNTER SHAFT,FRT (B)	1-87061-495-0	02	1	9209-					●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9202-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9202-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9202-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-87061-450-0	02	1	9202-				●	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-161-2	01	1	9202-9308	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9309-	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-162-2	01	1	9202-9308		●	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9309-		●	●
96	GEAR; COUNTER DRIVE	1-87061-555-0	02	1	9202-				●
96	GEAR; COUNTER DRIVE	1-87061-444-0	02	1	9209-					●
97	GEAR; 5TH,COUNTER Z=40	1-33332-074-1	01	1	9202-9308	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9309-	●
97	GEAR; 5TH,COUNTER Z=41	1-33332-081-0	01	1	9202-9308		●	●
97	GEAR; 5TH,COUNTER Z=41	1-33332-114-0	01	1	9309-		●	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-072-1	01	1	9202-9308	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9309-	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-080-0	01	1	9202-9308		●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9309-		●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-140-0	01	1	9202-9203	●	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9204-	●	●	●
105	GEAR; 3RD,COUNTER	1-87061-556-0	02	1	9202-				●
105	GEAR; 3RD,COUNTER	1-87061-447-0	02	1	9209-					●
108	SHAFT; COUNTER Z=19	1-33311-181-0	01	1	9202-9308	●		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9309-	●		●
108	SHAFT; COUNTER Z=19-13	1-33311-182-0	01	1	9202-9308		●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	9309-		●
108	SHAFT; COUNTER (A)	1-87061-557-0	02	1	9202-				●
108	SHAFT; COUNTER (B)	1-87061-588-0	02	1	9202-				●
108	SHAFT; COUNTER (A)	1-87061-509-0	02	1	9209-					●
108	SHAFT; COUNTER (B)	1-87061-510-0	02	1	9209-					●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9202-	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9202-	●	●	●
109	BEARING; COUNTER SHAFT,RR (A)	1-87061-554-0	02	1	9202-				●
109	BEARING; COUNTER SHAFT,RR (B)	1-87061-589-0	02	1	9202-				●
109	BEARING; COUNTER SHAFT,RR (A)	1-87061-470-0	02	1	9209-					●
109	BEARING; COUNTER SHAFT,RR (B)	1-87061-499-0	01	1	9209-					●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9202-	●	●	●
110	RING; SNAP,COUNTER BRG	1-87061-410-0	02	1	9202-				●	●
111	GEAR; 7TH COUNTER SHAFT Z=45	1-33338-228-2	01	1	9202-9301		●
111	GEAR; 7TH COUNTER SHAFT Z=45	1-33338-309-1	01	1	9302-9308		●
111	GEAR; 7TH COUNTER SHAFT Z=45	1-33338-311-1	01	1	9309-		●
112	RING; BLOCK,7TH SYN Z=36	1-33265-281-1	01	1	9202-		●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-111-3	01	1	9202-		●
114	HUB; CLU,7TH	1-33261-159-1	01	1	9202-		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-105-0	02	1	9202-		●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9202-	●	●	●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-		●
123	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-		●
124	SPRING; PLUNGER,CLU HUB	1-09580-395-0	03	1	9202-	●	●	●
126	RING; SNAP,CLU HUB (A) OD=121.2	1-09587-031-0	01	1	9202-		●
126	RING; SNAP,CLU HUB (B) OD=55.8	1-09588-043-0	01	1	9202-		●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=42	1-33239-079-1	01	1	9202-	●	●	●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=2	1-33363-024-1	01	1	9202-	●	●	●
128	WASHER; THRUST,REV SHAFT (A)	1-87061-453-0	02	1	9202-				●	●
128	WASHER; THRUST,REV SHAFT (B)	1-87061-454-0	02	1	9202-				●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER	1-87061-416-0	02	1	9202-				●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9202-	●	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9202-	●	●	●
132	SHAFT; REV	1-33351-017-0	01	1	9202-	●	●	●
132	SHAFT; REV	1-87061-565-0	02	1	9202-				●
132	SHAFT; REV	1-87061-452-0	02	1	9209-					●
135	GEAR; REV IDLER Z=30	1-33361-044-2	01	1	9202-9308	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9309-	●	●	●
135	GEAR; REV IDLER	1-87061-451-0	02	1	9202-				●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9202-	●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9202-	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9202-	●	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9202-	●	●	●
342	FLANGE; OUTPUT	1-37243-176-3	01	1	9202-9510	●	●	●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9511-	●	●	●
342	FLANGE; OUTPUT	1-37243-189-1	01	1	9202-				●
342	FLANGE; OUTPUT (A)	1-37243-221-0	01	1	9209-					●
342	FLANGE; OUTPUT (B)	1-37243-222-0	01	1	9209-					●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9202-9208	●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9209-9412	●	●	●		●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-	●	●	●		●

342 345 342 342 129 128 128 137 414 132 135 109 108 94 105 102 96 110 84 109 108 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9202-	●	●	●
84	BEARING; COUNTER SHAFT,FRT (A)	1-87061-554-0	02	1	9202-				●
84	BEARING; COUNTER SHAFT,FRT (B)	1-87061-587-0	02	1	9202-				●
84	BEARING; COUNTER SHAFT,FRT (A)	1-87061-470-0	02	1	9209-					●
84	BEARING; COUNTER SHAFT,FRT (B)	1-87061-495-0	02	1	9209-					●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9202-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9202-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-87061-450-0	02	1	9202-				●	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-161-2	01	1	9202-9308	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9309-	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-162-2	01	1	9202-9308		●	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9309-		●	●
96	GEAR; COUNTER DRIVE	1-87061-555-0	02	1	9202-				●
96	GEAR; COUNTER DRIVE	1-87061-444-0	02	1	9209-					●
102	GEAR; PTO DRIVE,COUNTER	1-87061-446-0	02	1	9202-				●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-140-0	01	1	9202-9203	●	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9204-	●	●	●
105	GEAR; 3RD,COUNTER	1-87061-556-0	02	1	9202-				●
105	GEAR; 3RD,COUNTER	1-87061-447-0	02	1	9209-					●
108	SHAFT; COUNTER Z=19	1-33311-181-0	01	1	9202-9308	●		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9309-	●		●
108	SHAFT; COUNTER Z=19-13	1-33311-182-0	01	1	9202-9308		●
108	SHAFT; COUNTER Z=19-13	1-33311-274-0	01	1	9309-		●
108	SHAFT; COUNTER (A)	1-87061-557-0	02	1	9202-				●
108	SHAFT; COUNTER (B)	1-87061-588-0	02	1	9202-				●
108	SHAFT; COUNTER (A)	1-87061-509-0	02	1	9209-					●
108	SHAFT; COUNTER (B)	1-87061-510-0	02	1	9209-					●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9202-	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9202-	●	●	●
109	BEARING; COUNTER SHAFT,RR (A)	1-87061-554-0	02	1	9202-				●
109	BEARING; COUNTER SHAFT,RR (B)	1-87061-589-0	02	1	9202-				●
109	BEARING; COUNTER SHAFT,RR (A)	1-87061-470-0	02	1	9209-					●
109	BEARING; COUNTER SHAFT,RR (B)	1-87061-499-0	01	1	9209-					●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9202-	●	●	●
110	RING; SNAP,COUNTER BRG	1-87061-410-0	02	1	9202-				●	●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=42	1-33239-079-1	01	1	9202-	●	●	●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=2	1-33363-024-1	01	1	9202-	●	●	●
128	WASHER; THRUST,REV SHAFT (A)	1-87061-453-0	02	1	9202-				●	●
128	WASHER; THRUST,REV SHAFT (B)	1-87061-454-0	02	1	9202-				●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER	1-87061-416-0	02	1	9202-				●	●
132	SHAFT; REV	1-33351-017-0	01	1	9202-	●	●	●
132	SHAFT; REV	1-87061-565-0	02	1	9202-				●
132	SHAFT; REV	1-87061-452-0	02	1	9209-					●
135	GEAR; REV IDLER Z=30	1-33361-044-2	01	1	9202-9308	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9309-	●	●	●
135	GEAR; REV IDLER	1-87061-451-0	02	1	9202-				●	●
137	NUT; REV GEAR	1-87061-221-0	02	1	9202-				●	●
342	FLANGE; OUTPUT	1-37243-176-3	01	1	9202-9510	●	●	●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9511-	●	●	●
342	FLANGE; OUTPUT	1-37243-189-1	01	1	9202-				●
342	FLANGE; OUTPUT (A)	1-37243-221-0	01	1	9209-					●
342	FLANGE; OUTPUT (B)	1-37243-222-0	01	1	9209-					●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9202-9208	●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9209-9412	●	●	●		●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-	●	●	●		●
414	PLUG; REV SHAFT	1-87061-203-0	02	1	9202-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
