4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#10729) — 173 parça

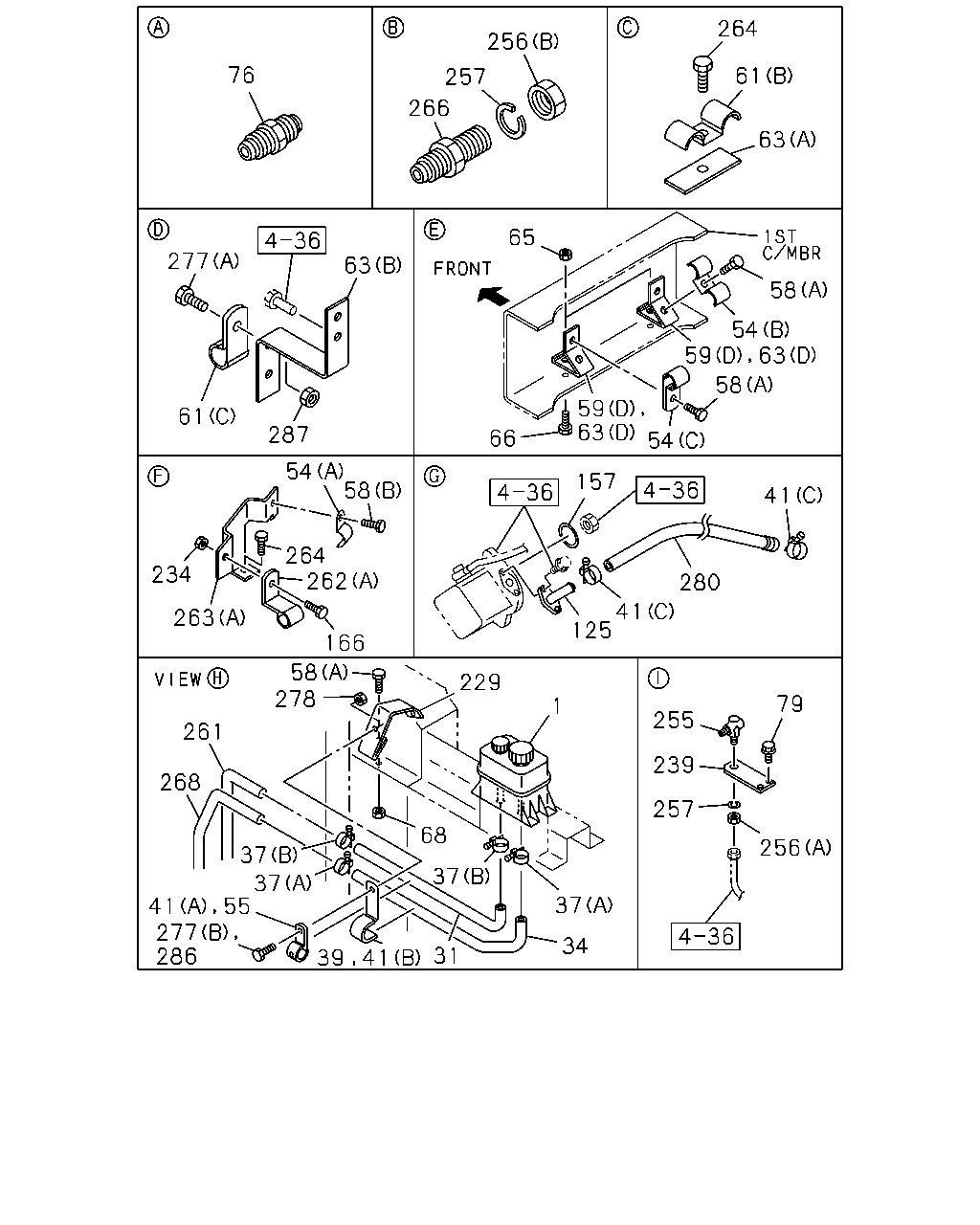

264 256 76 61 257 266 63 65 277 63 58 54 58 59 63 61 287 66 54 54 58 157 41 264 262 234 280 41 125 263 166 58 278 229 79 1 255 261 239 268 257 68 256 37 37 37 277 286 37 34 31 59 63 41 39 41 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0107-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0107-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0107-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0107-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	0107-
39	CLIP; FLEX HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=32 L=75	1-09700-702-0	01	1	0107-
41	CLIP; HOSE,P/S (C) ID=38	9-09915-041-1	02	1	0107-
41	CLIP; HOSE,P/S LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=28 L=30	1-09700-607-1	01	1	0107-
41	CLIP; HOSE,P/S LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=32 L=75	1-09700-702-0	01	1	0107-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0107-
54	CLIP; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=16 L=20	9-09525-535-0	01	1	0107-
54	CLIP; OIL PIPE ISUZU M/T<X9A> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=16 L=20	9-09525-535-0	01	1	0107-
54	CLIP; OIL PIPE MJD7S M/T(Y2Y) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0107-
54	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0107-
54	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
55	CLIP; P/S RUBBER HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=28 L=30	1-09700-607-1	01	1	0107-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0107-
58	BOLT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X25 FLANGE	0-28680-825-0	04	1	0107-
58	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-
58	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X25 FLANGE	0-28680-825-0	01	1	0107-
58	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M10X25 FLANGE	0-28681-025-0	02	1	0107-
59	BRACKET; CLIP,OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-47477-669-1	01	1	0107-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	0107-
59	BRACKET; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47477-193-0	01	1	0107-
59	BRACKET; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-47477-426-0	02	1	0107-
61	CLIP; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=15 H=24 L=20	1-09700-606-0	02	1	0107-
61	CLIP; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	04	1	0107-
61	CLIP; OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
61	CLIP; OIL PIPE ZF M/T<X9E> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
61	CLIP; OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=16 L=20	9-09525-535-0	02	1	0107-
61	CLIP; OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=16 L=20	9-09525-535-0	02	1	0107-
61	CLIP; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0107-
63	BRACKET; CLIP,P/S LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=50	1-47475-299-2	01	1	0107-
63	BRACKET; CLIP,P/S EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47475-963-1	01	1	0107-
63	BRACKET; CLIP,P/S EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-47477-193-0	01	1	0107-
63	BRACKET; CLIP,P/S EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-47477-621-1	02	1	0107-
65	NUT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-208-0	02	1	0107-
65	NUT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	02	1	0107-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0107-
66	BOLT; BRKT,OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	01	1	0107-
68	NUT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> M10 FLANGE	0-91150-210-0	02	1	0107-
68	NUT; CLIP,OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
76	UNION; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> M22	9-09233-015-1	02	1	0107-
76	UNION; OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M22	9-09233-015-1	01	1	0107-
76	UNION; OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M22	9-09233-015-1	01	1	0107-
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0107-
79	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	01	1	0107-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0107-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=79.6	1-09623-421-0	02	1	0107-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=79.6	1-09623-421-0	01	1	0107-
166	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0107-
166	BOLT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	01	1	0107-
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	0107-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	0107-
239	BRACKET; FLEX HOSE LIGHT DUTY PACKAGE TRUCK<Y21>	1-47479-082-0	01	1	0107-
239	BRACKET; FLEX HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-47476-679-4	01	1	0107-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09654-163-1	01	1	0107-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0107-
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0107-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0107-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0107-
261	PIPE; OIL,UNION TO HOSE LIGHT DUTY PACKAGE TRUCK<Y21>	1-21116-664-0	01	1	0107-
261	PIPE; OIL,UNION TO HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=1031	1-21117-048-0	01	1	0107-
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0107-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	0107-
263	BRACKET; P/S PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (C) L=115 B=25	1-47476-758-0	01	1	0107-
263	BRACKET; P/S PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47477-597-3	01	1	0107-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0107-
264	BOLT; PIPE BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	01	1	0107-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0107-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE LIGHT DUTY PACKAGE TRUCK<Y21>	1-21116-853-0	01	1	0107-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=1315	1-21116-855-0	01	1	0107-
277	BOLT; HOSE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-
277	BOLT; HOSE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-
277	BOLT; HOSE CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-
277	BOLT; HOSE CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M10X25 FLANGE	0-28681-025-0	01	1	0107-
278	NUT; HOSE CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M10 FLANGE	0-91150-210-0	01	1	0107-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	0107-
286	BOLT; CLIP,P/S HOSE LIGHT DUTY PACKAGE TRUCK<Y21> M10X25 FLANGE	0-28681-025-0	01	1	0107-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0107-
287	NUT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M10 FLANGE	0-91150-210-0	01	1	0107-

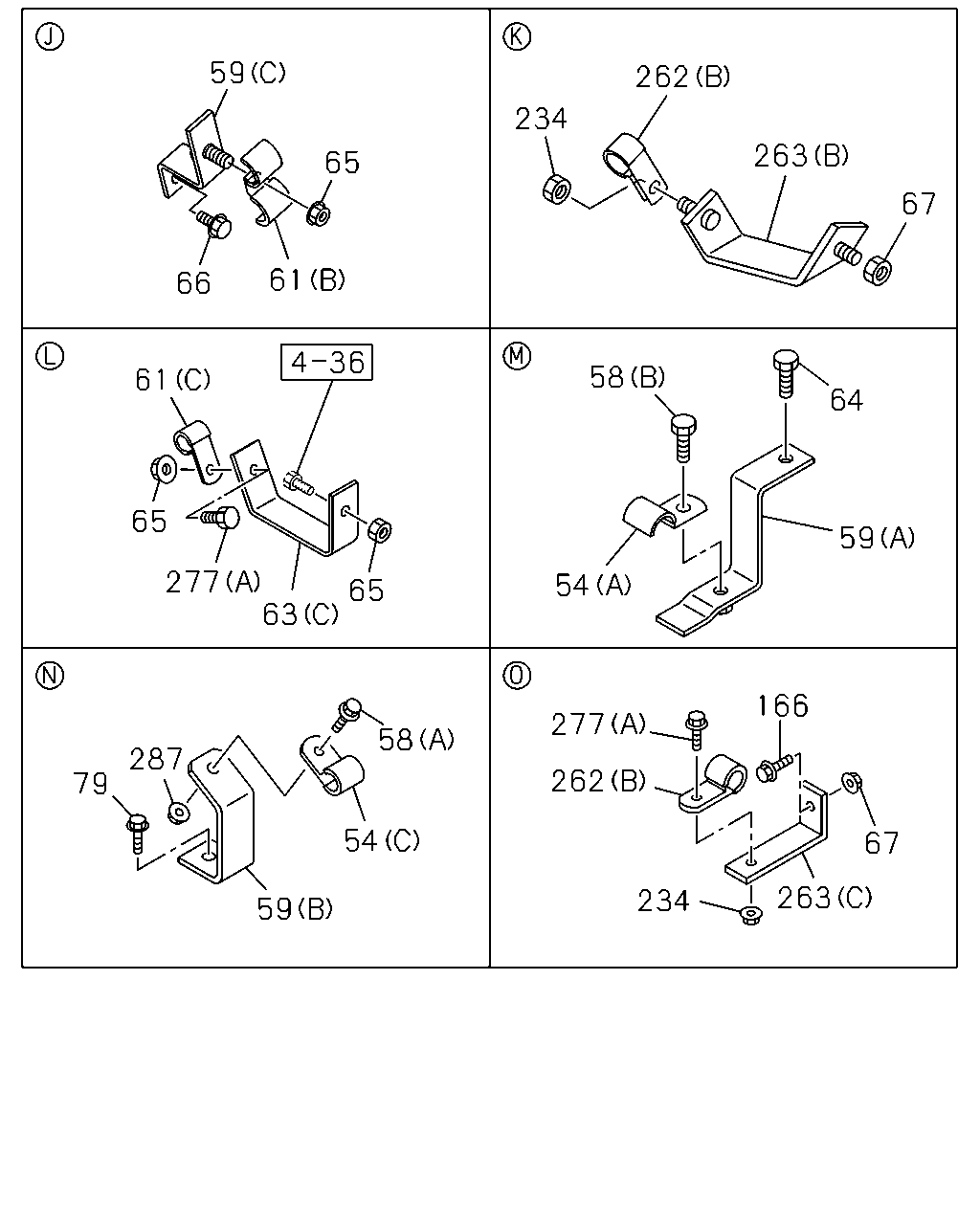

59 262 234 263 65 67 61 66 58 61 64 65 59 277 65 63 54 166 277 58 287 262 79 54 67 263 234 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0107-
54	CLIP; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=16 L=20	9-09525-535-0	01	1	0107-
54	CLIP; OIL PIPE ISUZU M/T<X9A> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=16 L=20	9-09525-535-0	01	1	0107-
54	CLIP; OIL PIPE MJD7S M/T(Y2Y) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0107-
54	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0107-
54	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0107-
58	BOLT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X25 FLANGE	0-28680-825-0	04	1	0107-
58	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-
58	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X25 FLANGE	0-28680-825-0	01	1	0107-
58	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M10X25 FLANGE	0-28681-025-0	02	1	0107-
59	BRACKET; CLIP,OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-47477-669-1	01	1	0107-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	0107-
59	BRACKET; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47477-193-0	01	1	0107-
59	BRACKET; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-47477-426-0	02	1	0107-
61	CLIP; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=15 H=24 L=20	1-09700-606-0	02	1	0107-
61	CLIP; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	04	1	0107-
61	CLIP; OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
61	CLIP; OIL PIPE ZF M/T<X9E> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
61	CLIP; OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=16 L=20	9-09525-535-0	02	1	0107-
61	CLIP; OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=16 L=20	9-09525-535-0	02	1	0107-
61	CLIP; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0107-
63	BRACKET; CLIP,P/S LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=50	1-47475-299-2	01	1	0107-
63	BRACKET; CLIP,P/S EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47475-963-1	01	1	0107-
63	BRACKET; CLIP,P/S EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-47477-193-0	01	1	0107-
63	BRACKET; CLIP,P/S EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-47477-621-1	02	1	0107-
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	01	1	0107-
65	NUT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-208-0	02	1	0107-
65	NUT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	02	1	0107-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0107-
66	BOLT; BRKT,OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	01	1	0107-
67	NUT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	02	1	0107-
67	NUT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0107-
79	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	01	1	0107-
166	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0107-
166	BOLT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	01	1	0107-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	0107-
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0107-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	0107-
263	BRACKET; P/S PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (C) L=115 B=25	1-47476-758-0	01	1	0107-
263	BRACKET; P/S PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47477-597-3	01	1	0107-
277	BOLT; HOSE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-
277	BOLT; HOSE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-
277	BOLT; HOSE CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-
277	BOLT; HOSE CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M10X25 FLANGE	0-28681-025-0	01	1	0107-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0107-
287	NUT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M10 FLANGE	0-91150-210-0	01	1	0107-

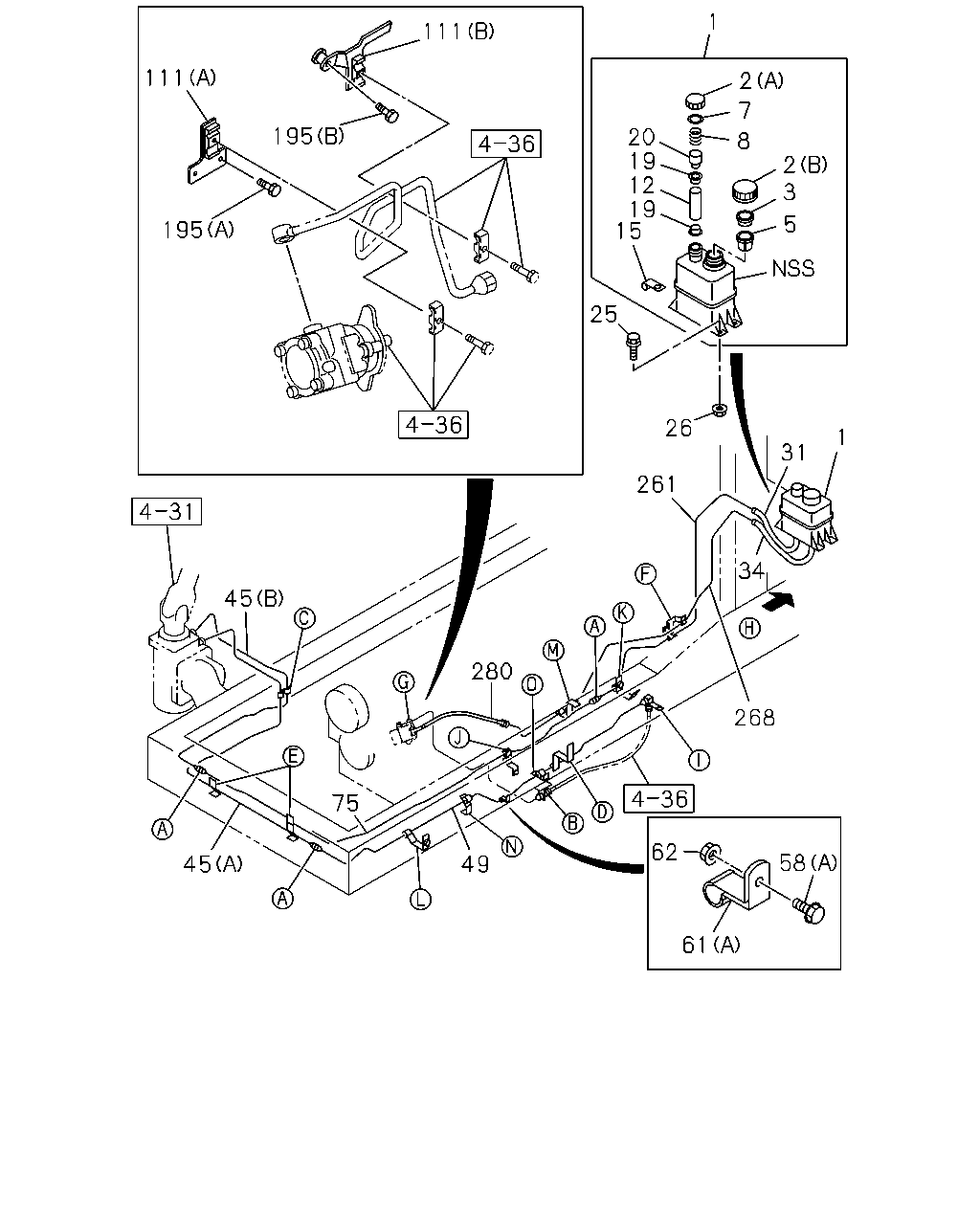

1 111 111 2 7 195 20 19 12 19 15 8 2 3 5 195 25 26 1 31 261 34 45 280 268 75 62 8 45 49 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0107-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0107-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0107-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0107-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0107-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0107-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0107-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0107-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0107-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0107-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0107-
25	BOLT; OIL TANK BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	04	1	0107-
25	BOLT; OIL TANK BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	04	1	0107-
26	NUT; OIL TANK TO BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	04	1	0107-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0107-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0107-
45	PIPE; OIL,P/S UNIT TO UNION LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-21116-172-0	01	1	0107-
45	PIPE; OIL,P/S UNIT TO UNION LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-21116-738-0	01	1	0107-
45	PIPE; OIL,P/S UNIT TO UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=1234	1-21116-238-0	01	1	0107-
45	PIPE; OIL,P/S UNIT TO UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-21116-849-0	01	1	0107-
49	PIPE; OIL,FLEX HOSE TO UNION LIGHT DUTY PACKAGE TRUCK<Y21>	1-21116-896-0	01	1	0107-
49	PIPE; OIL,FLEX HOSE TO UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=1663	1-21116-235-0	01	1	0107-
61	CLIP; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=15 H=24 L=20	1-09700-606-0	02	1	0107-
61	CLIP; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	04	1	0107-
61	CLIP; OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
61	CLIP; OIL PIPE ZF M/T<X9E> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
61	CLIP; OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=16 L=20	9-09525-535-0	02	1	0107-
61	CLIP; OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=16 L=20	9-09525-535-0	02	1	0107-
61	CLIP; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0107-
62	NUT; CLIP FIX LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=1815	1-21117-076-0	01	1	0107-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0107-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0107-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0107-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0107-
261	PIPE; OIL,UNION TO HOSE LIGHT DUTY PACKAGE TRUCK<Y21>	1-21116-664-0	01	1	0107-
261	PIPE; OIL,UNION TO HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=1031	1-21117-048-0	01	1	0107-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE LIGHT DUTY PACKAGE TRUCK<Y21>	1-21116-853-0	01	1	0107-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=1315	1-21116-855-0	01	1	0107-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
