Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#10725) — 472 parça

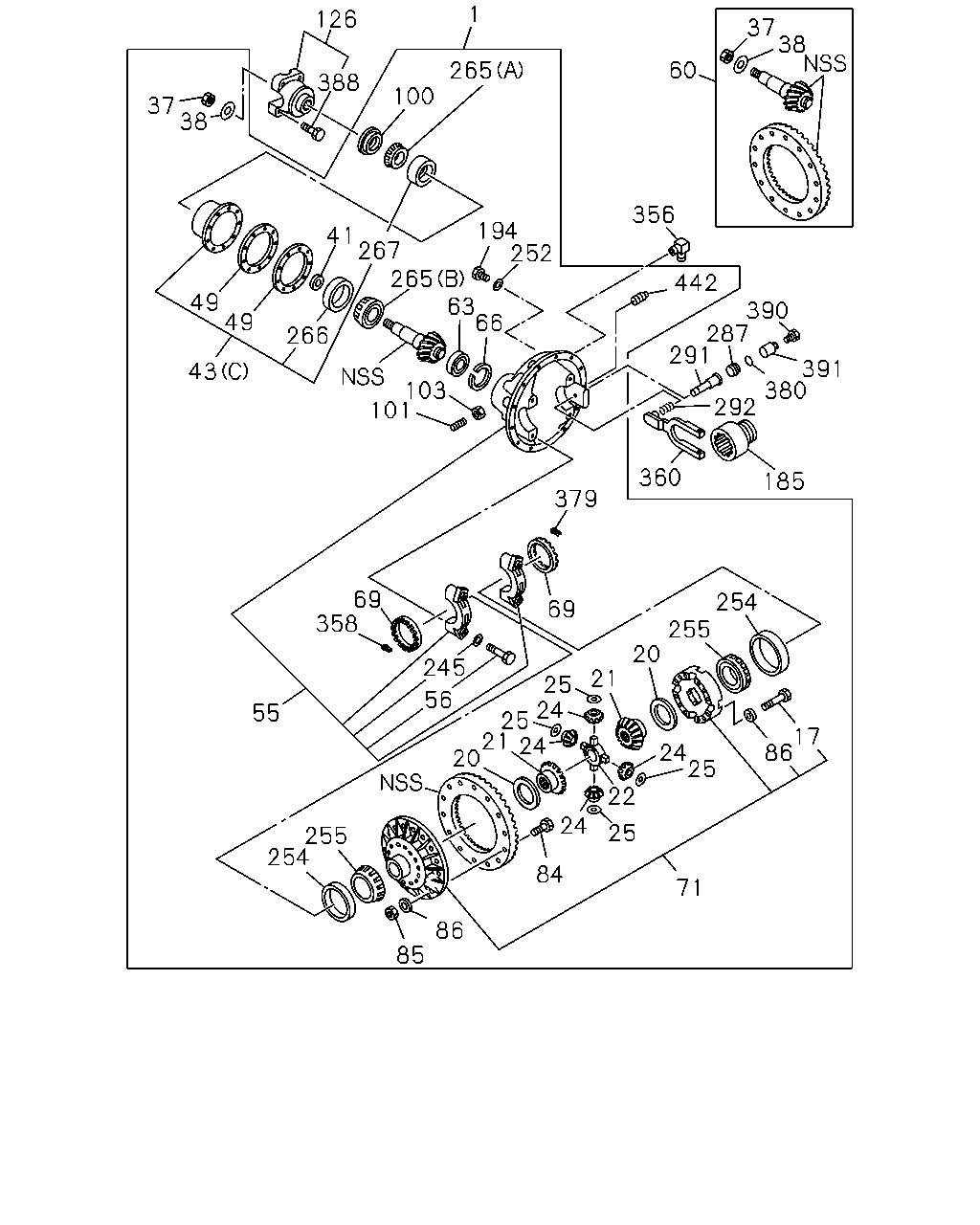

1 126 37 38 60 265 388 100 37 38 356 194 252 41 267 265 63 66 442 49 49 390 287 291 266 103 101 391 380 292 43 360 185 379 69 358 254 255 20 69 245 21 25 24 25 21 24 20 56 55 17 86 24 25 22 24 25 25 254 84 71 86 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 39/8	1-41002-404-0	01	1	0107-	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 39/8	1-41002-395-0	01	1	0107-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 41/9	1-41002-405-0	01	1	0107-		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 41/9	1-41002-396-0	01	1	0107-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 41/10	1-41002-407-0	01	1	0107-			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 41/10	1-41002-398-0	01	1	0107-			●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 43/11	1-41002-408-0	01	1	0107-				●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 43/11	1-41002-399-0	01	1	0107-				●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 39/9	1-41002-406-0	01	1	0107-					●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 39/9	1-41002-397-0	01	1	0107-					●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 41/11	1-41002-409-0	01	1	0107-						●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 41/11	1-41002-304-0	01	1	0107-						●
1	DRIVE ASM; FINAL,RR 43/11	1-41002-806-0	01	1	0107-							●
1	DRIVE ASM; FINAL,RR 41/11	1-41002-807-0	01	1	0107-								●
17	BOLT; DIFF CAGE SETTING M16X141 FLANGE	1-09070-013-0	08	1	0107-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X105 FLANGE	1-09070-014-0	04	1	0107-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING	1-41519-037-0	12	1	0107-							●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-270-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-271-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-272-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-273-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-274-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-275-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-276-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR	1-41562-269-0	02	1	0107-							●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-114-0	02	1	0107-	●	●	●	●	●	●
21	GEAR; SIDE,DIFF	1-41561-113-0	02	1	0107-							●	●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	0107-	●	●	●	●	●	●
22	SPIDER; DIFF PINION	1-41521-054-0	01	1	0107-							●	●
24	GEAR; PINION,DIFF Z=10	1-41551-034-0	04	1	0107-	●	●	●	●	●	●
24	GEAR; PINION,DIFF	1-41551-035-0	04	1	0107-							●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	0107-	●	●	●	●	●	●
25	WASHER; THRUST,PINION	1-41552-037-0	04	1	0107-							●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0107-	●	●	●	●	●	●
37	NUT; DRIVING PINION	1-41219-028-0	01	1	0107-							●	●
38	WASHER; PL,DRIVING PINION	1-41349-058-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.8	1-41229-302-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=8.0	1-41229-303-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=8.2	1-41229-304-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=8.4	1-41229-305-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=8.6	1-41229-306-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=8.8	1-41229-307-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=9.0	1-41229-308-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=6.35	1-41229-283-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.38	1-41229-284-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.40	1-41229-285-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.43	1-41229-286-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.45	1-41229-287-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.50	1-41229-288-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.60	1-41229-289-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.63	1-41229-290-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.65	1-41229-291-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.68	1-41229-292-0	01	1	0107-							●	●
43	CAGE; FINAL PINION (C)	1-41151-082-0	01	1	0107-							●	●
43	CAGE; FINAL PINION (A) T=82	1-41151-057-0	01	1	0107-	●	●	●	●	●
43	CAGE; FINAL PINION (B)	1-41151-079-0	01	1	0107-						●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0107-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0107-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0107-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0107-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-092-0	AR	1	0107-						●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-093-0	AR	1	0107-						●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-094-0	AR	1	0107-						●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-095-0	AR	1	0107-						●
49	SHIM; FINAL PINION CAGE T=0.050	1-41154-085-0	AR	1	0107-							●	●
49	SHIM; FINAL PINION CAGE T=0.125	1-41154-086-0	AR	1	0107-							●	●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-087-0	AR	1	0107-							●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-088-0	AR	1	0107-							●	●
55	CARRIER; DIFF	1-41110-117-0	01	1	0107-	●	●	●	●	●
55	CARRIER; DIFF	1-41110-112-0	01	1	0107-						●
55	CARRIER; DIFF	1-41110-107-0	01	1	0107-							●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0107-	●	●	●	●	●	●
56	BOLT; BRG CAP	1-41119-066-0	04	1	0107-							●	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-618-0	01	1	0107-	●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-619-0	01	1	0107-		●
60	GEAR SET; FINAL DRIVE,RR 41/10	1-41210-621-0	01	1	0107-			●
60	GEAR SET; FINAL DRIVE,RR 43/11	1-41210-622-0	01	1	0107-				●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-620-0	01	1	0107-					●
60	GEAR SET; FINAL DRIVE,RR 41/11	1-41210-570-0	01	1	0107-						●
60	GEAR SET; FINAL DRIVE,RR 43/11	1-41151-083-0	01	1	0107-							●
60	GEAR SET; FINAL DRIVE,RR 41/11	1-41210-646-0	01	1	0107-								●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0107-	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	0107-	●	●	●	●	●
63	BEARING; PINION PILOT	1-09810-244-0	01	1	0107-						●
63	BEARING; PINION PILOT	1-41219-034-0	01	1	0107-							●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0107-	●	●	●	●	●
66	RING; SNAP,PILOT BRG ID=41.9	1-09588-075-1	01	1	0107-						●
66	RING; SNAP,PILOT BRG	1-41219-035-0	01	1	0107-							●	●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	0107-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	0107-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-040-0	01	1	0107-							●	●
69	NUT; ADJ,DIFF CAGE	1-41121-041-0	01	1	0107-							●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	0107-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-251-0	01	1	0107-						●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-237-0	01	1	0107-							●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	0107-	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41519-036-0	16	1	0107-							●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0107-	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	16	1	0107-							●	●
86	WASHER; PL,DIFF CAGE SETTING	1-41519-035-0	28	1	0107-							●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0107-	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-616-0	01	1	0107-						●
100	SEAL; OIL,FINAL PINION	1-41349-180-0	01	1	0107-							●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST	1-41259-001-0	01	1	0107-							●	●
103	NUT; ADJ BOLT	1-41259-002-0	01	1	0107-							●	●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	0107-	●	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-373-0	01	1	0107-							●	●
185	COLLAR; SHIFT FORK	1-48269-067-0	01	1	0107-							●	●
194	PLUG DIFF LOCK<C3N> M8X10 FLANGE	0-28080-810-0	01	1	0107-	●	●	●	●	●	●
194	PLUG	1-41119-072-0	01	1	0107-							●	●
245	WASHER; PL,BRG CAP	1-41119-065-0	04	1	0107-							●	●
252	GASKET; CARRIER	1-41229-121-0	01	1	0107-							●	●
254	CUP; DIFF BRG	1-41519-052-0	01	1	0107-							●	●
254	CUP; DIFF BRG	1-41519-031-0	01	1	0107-							●	●
255	CONE; DIFF BRG	1-41519-053-0	01	1	0107-							●	●
255	CONE; DIFF BRG	1-41519-033-0	01	1	0107-							●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-030-0	01	1	0107-							●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-033-0	01	1	0107-							●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER	1-41219-032-0	01	1	0107-							●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER	1-41219-031-0	01	1	0107-							●	●
287	PISTON; SHIFT UNIT	1-48262-013-0	01	1	0107-							●	●
291	ROD; PUSH	1-48263-006-0	01	1	0107-							●	●
292	SPRING; PISTON	1-48265-008-0	01	1	0107-							●	●
356	NIPPLE; SHIFT UNIT	1-09650-490-0	01	1	0107-							●	●
358	PIN; SPR	1-41129-013-0	01	1	0107-							●	●
360	FORK; SHIFT	1-48269-068-0	01	1	0107-							●	●
379	PIN; SPLIT	1-41129-012-0	01	1	0107-							●	●
380	GASKET; PISTON	1-48269-075-0	01	1	0107-							●	●
388	BOLT; COUPLING M14X48.5	1-09046-013-0	04	1	0107-							●	●
389	WASHER; FINAL PINION CAGE	1-41329-034-0	08	1	0107-							●	●
390	BOLT; CAGING	1-48269-071-0	01	1	0107-							●	●
391	CYLINDER; SHIFT	1-48269-070-0	01	1	0107-							●	●
442	COVER; CARRIER,DIFF LK	1-48269-181-0	01	1	0107-							●	●

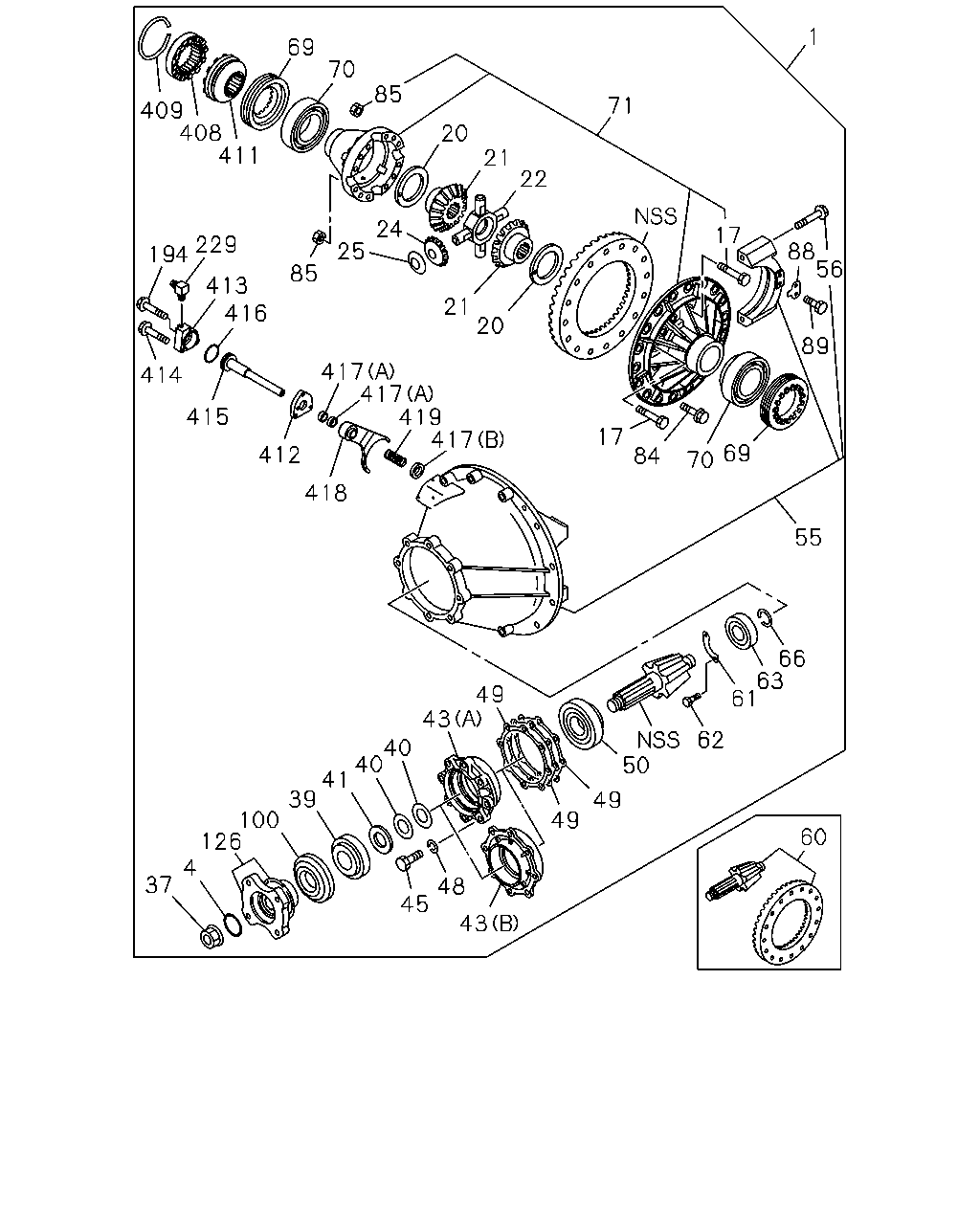

1 69 70 85 71 409 408 411 20 21 22 24 17 229 194 25 88 56 85 413 416 21 20 89 417 417 419 417 414 415 17 69 412 84 70 418 55 66 63 61 49 43 62 50 40 40 41 39 100 126 4 49 49 60 37 48 45 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 39/8	1-41002-404-0	01	1	0107-	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 39/8	1-41002-395-0	01	1	0107-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 41/9	1-41002-405-0	01	1	0107-		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 41/9	1-41002-396-0	01	1	0107-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 41/10	1-41002-407-0	01	1	0107-			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 41/10	1-41002-398-0	01	1	0107-			●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 43/11	1-41002-408-0	01	1	0107-				●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 43/11	1-41002-399-0	01	1	0107-				●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 39/9	1-41002-406-0	01	1	0107-					●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 39/9	1-41002-397-0	01	1	0107-					●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 41/11	1-41002-409-0	01	1	0107-						●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 41/11	1-41002-304-0	01	1	0107-						●
1	DRIVE ASM; FINAL,RR 43/11	1-41002-806-0	01	1	0107-							●
1	DRIVE ASM; FINAL,RR 41/11	1-41002-807-0	01	1	0107-								●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0107-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X141 FLANGE	1-09070-013-0	08	1	0107-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X105 FLANGE	1-09070-014-0	04	1	0107-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING	1-41519-037-0	12	1	0107-							●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-270-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-271-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-272-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-273-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-274-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-275-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-276-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR	1-41562-269-0	02	1	0107-							●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-114-0	02	1	0107-	●	●	●	●	●	●
21	GEAR; SIDE,DIFF	1-41561-113-0	02	1	0107-							●	●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	0107-	●	●	●	●	●	●
22	SPIDER; DIFF PINION	1-41521-054-0	01	1	0107-							●	●
24	GEAR; PINION,DIFF Z=10	1-41551-034-0	04	1	0107-	●	●	●	●	●	●
24	GEAR; PINION,DIFF	1-41551-035-0	04	1	0107-							●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	0107-	●	●	●	●	●	●
25	WASHER; THRUST,PINION	1-41552-037-0	04	1	0107-							●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0107-	●	●	●	●	●	●
37	NUT; DRIVING PINION	1-41219-028-0	01	1	0107-							●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0107-	●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	0107-	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0107-						●
39	BEARING; FINAL PINION JTEKT	1-09812-074-1	01	1	0107-						●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-309-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.26	1-41229-310-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.27	1-41229-311-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.28	1-41229-312-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.29	1-41229-313-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.30	1-41229-314-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.31	1-41229-315-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.32	1-41229-316-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.33	1-41229-317-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.34	1-41229-336-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.35	1-41229-337-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.8	1-41229-302-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=8.0	1-41229-303-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=8.2	1-41229-304-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=8.4	1-41229-305-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=8.6	1-41229-306-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=8.8	1-41229-307-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=9.0	1-41229-308-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=6.35	1-41229-283-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.38	1-41229-284-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.40	1-41229-285-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.43	1-41229-286-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.45	1-41229-287-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.50	1-41229-288-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.60	1-41229-289-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.63	1-41229-290-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.65	1-41229-291-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.68	1-41229-292-0	01	1	0107-							●	●
43	CAGE; FINAL PINION (C)	1-41151-082-0	01	1	0107-							●	●
43	CAGE; FINAL PINION (A) T=82	1-41151-057-0	01	1	0107-	●	●	●	●	●
43	CAGE; FINAL PINION (B)	1-41151-079-0	01	1	0107-						●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0107-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X35	0-23801-635-0	08	1	0107-						●
45	BOLT; FINAL PINION CAGE	1-41159-010-0	08	1	0107-							●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0107-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0107-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0107-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0107-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0107-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-092-0	AR	1	0107-						●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-093-0	AR	1	0107-						●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-094-0	AR	1	0107-						●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-095-0	AR	1	0107-						●
49	SHIM; FINAL PINION CAGE T=0.050	1-41154-085-0	AR	1	0107-							●	●
49	SHIM; FINAL PINION CAGE T=0.125	1-41154-086-0	AR	1	0107-							●	●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-087-0	AR	1	0107-							●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-088-0	AR	1	0107-							●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0107-	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-1	01	1	0107-	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-229-0	01	1	0107-						●
55	CARRIER; DIFF	1-41110-117-0	01	1	0107-	●	●	●	●	●
55	CARRIER; DIFF	1-41110-112-0	01	1	0107-						●
55	CARRIER; DIFF	1-41110-107-0	01	1	0107-							●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0107-	●	●	●	●	●	●
56	BOLT; BRG CAP	1-41119-066-0	04	1	0107-							●	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-618-0	01	1	0107-	●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-619-0	01	1	0107-		●
60	GEAR SET; FINAL DRIVE,RR 41/10	1-41210-621-0	01	1	0107-			●
60	GEAR SET; FINAL DRIVE,RR 43/11	1-41210-622-0	01	1	0107-				●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-620-0	01	1	0107-					●
60	GEAR SET; FINAL DRIVE,RR 41/11	1-41210-570-0	01	1	0107-						●
60	GEAR SET; FINAL DRIVE,RR 43/11	1-41151-083-0	01	1	0107-							●
60	GEAR SET; FINAL DRIVE,RR 41/11	1-41210-646-0	01	1	0107-								●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	0107-	●	●	●	●	●
62	BOLT; RET M8X16	0-20800-816-0	02	1	0107-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0107-	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	0107-	●	●	●	●	●
63	BEARING; PINION PILOT	1-09810-244-0	01	1	0107-						●
63	BEARING; PINION PILOT	1-41219-034-0	01	1	0107-							●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0107-	●	●	●	●	●
66	RING; SNAP,PILOT BRG ID=41.9	1-09588-075-1	01	1	0107-						●
66	RING; SNAP,PILOT BRG	1-41219-035-0	01	1	0107-							●	●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	0107-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	0107-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-040-0	01	1	0107-							●	●
69	NUT; ADJ,DIFF CAGE	1-41121-041-0	01	1	0107-							●	●
70	BEARING; DIFF CAGE JTEKT ID=110 OD=170 T=38	1-09812-226-0	02	1	0107-	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	0107-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-251-0	01	1	0107-						●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-237-0	01	1	0107-							●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	0107-	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41519-036-0	16	1	0107-							●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0107-	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	16	1	0107-							●	●
88	PLATE; LK,ADJ NUT T=3.2	1-41124-026-0	02	1	0107-	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	0107-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0107-	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-616-0	01	1	0107-						●
100	SEAL; OIL,FINAL PINION	1-41349-180-0	01	1	0107-							●	●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	0107-	●	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-373-0	01	1	0107-							●	●
194	PLUG DIFF LOCK<C3N> M8X10 FLANGE	0-28080-810-0	01	1	0107-	●	●	●	●	●	●
194	PLUG	1-41119-072-0	01	1	0107-							●	●
229	CONNECTOR DIFF LOCK<C3N> M12 & PT1/8	9-09224-306-2	01	1	0107-	●	●	●	●	●	●
389	WASHER; FINAL PINION CAGE	1-41329-034-0	08	1	0107-							●	●
408	CLAW; CLU,DIFF LK DIFF LOCK<C3N>	1-41266-020-1	01	1	0107-	●	●	●	●	●	●
409	CIRCUIT DIFF LOCK<C3N>	1-33219-024-0	01	1	0107-	●	●	●	●	●	●
411	SLEEVE; CLU DIFF LOCK<C3N>	1-41266-021-1	01	1	0107-	●	●	●	●	●	●
412	STOPPER; STROKE,SHIFT DIFF LOCK<C3N>	1-41279-017-1	01	1	0107-	●	●	●	●	●	●
413	CYLINDER; DIFF LK DIFF LOCK<C3N>	1-41279-018-0	01	1	0107-	●	●	●	●	●	●
414	BOLT; CYL DIFF LOCK<C3N> M8X45 FLANGE	0-28080-845-0	03	1	0107-	●	●	●	●	●	●
415	ROD; PISTON,DIFF LK DIFF LOCK<C3N>	1-41279-016-0	01	1	0107-	●	●	●	●	●	●
416	GASKET DIFF LOCK<C3N> ID=43.7	9-09561-344-0	01	1	0107-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (B) T=15.0	1-41229-339-0	01	1	0107-	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=4.0	1-41229-274-0	AR	1	0107-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=4.5	1-41229-275-0	AR	1	0107-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=5.0	1-41229-276-0	AR	1	0107-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=5.5	1-41229-277-0	AR	1	0107-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=6.0	1-41229-278-0	AR	1	0107-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=6.5	1-41229-279-0	AR	1	0107-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=7.0	1-41229-280-0	AR	1	0107-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=7.5	1-41229-281-0	AR	1	0107-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=8.0	1-41229-282-0	AR	1	0107-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=10.0	1-41229-297-0	AR	1	0107-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=15.0	1-41229-298-0	AR	1	0107-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (B) T=10.0	1-41229-338-0	01	1	0107-		●			●
417	SHIM; DIFF LK DIFF LOCK<C3N> (B) T=20.0	1-41229-340-0	01	1	0107-						●
418	SHIFT FORK; DIFF LK DIFF LOCK<C3N>	1-41271-012-0	01	1	0107-	●	●	●	●	●	●
419	SPRING; DIFF LK DIFF LOCK<C3N>	1-09580-507-0	01	1	0107-	●	●	●	●	●	●

69 70 1 85 71 20 21 22 85 24 25 17 56 430 21 20 88 89 429 70 84 17 69 55 63 61 66 49 43 62 40 40 41 50 49 39 100 126 4 49 60 37 48 45 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 39/8	1-41002-404-0	01	1	0107-	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 39/8	1-41002-395-0	01	1	0107-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 41/9	1-41002-405-0	01	1	0107-		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 41/9	1-41002-396-0	01	1	0107-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 41/10	1-41002-407-0	01	1	0107-			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 41/10	1-41002-398-0	01	1	0107-			●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 43/11	1-41002-408-0	01	1	0107-				●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 43/11	1-41002-399-0	01	1	0107-				●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 39/9	1-41002-406-0	01	1	0107-					●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 39/9	1-41002-397-0	01	1	0107-					●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 41/11	1-41002-409-0	01	1	0107-						●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 41/11	1-41002-304-0	01	1	0107-						●
1	DRIVE ASM; FINAL,RR 43/11	1-41002-806-0	01	1	0107-							●
1	DRIVE ASM; FINAL,RR 41/11	1-41002-807-0	01	1	0107-								●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0107-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X141 FLANGE	1-09070-013-0	08	1	0107-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X105 FLANGE	1-09070-014-0	04	1	0107-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING	1-41519-037-0	12	1	0107-							●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-270-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-271-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-272-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-273-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-274-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-275-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-276-1	AR	1	0107-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR	1-41562-269-0	02	1	0107-							●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-114-0	02	1	0107-	●	●	●	●	●	●
21	GEAR; SIDE,DIFF	1-41561-113-0	02	1	0107-							●	●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	0107-	●	●	●	●	●	●
22	SPIDER; DIFF PINION	1-41521-054-0	01	1	0107-							●	●
24	GEAR; PINION,DIFF Z=10	1-41551-034-0	04	1	0107-	●	●	●	●	●	●
24	GEAR; PINION,DIFF	1-41551-035-0	04	1	0107-							●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	0107-	●	●	●	●	●	●
25	WASHER; THRUST,PINION	1-41552-037-0	04	1	0107-							●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0107-	●	●	●	●	●	●
37	NUT; DRIVING PINION	1-41219-028-0	01	1	0107-							●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0107-	●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	0107-	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0107-						●
39	BEARING; FINAL PINION JTEKT	1-09812-074-1	01	1	0107-						●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0107-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-309-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.26	1-41229-310-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.27	1-41229-311-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.28	1-41229-312-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.29	1-41229-313-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.30	1-41229-314-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.31	1-41229-315-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.32	1-41229-316-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.33	1-41229-317-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.34	1-41229-336-0	AR	1	0107-						●
40	SHIM; FINAL PINION T=3.35	1-41229-337-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0107-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.8	1-41229-302-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=8.0	1-41229-303-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=8.2	1-41229-304-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=8.4	1-41229-305-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=8.6	1-41229-306-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=8.8	1-41229-307-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=9.0	1-41229-308-0	AR	1	0107-						●
41	SPACER; FINAL DRIVE PINION BRG T=6.35	1-41229-283-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.38	1-41229-284-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.40	1-41229-285-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.43	1-41229-286-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.45	1-41229-287-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.50	1-41229-288-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.60	1-41229-289-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.63	1-41229-290-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.65	1-41229-291-0	01	1	0107-							●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.68	1-41229-292-0	01	1	0107-							●	●
43	CAGE; FINAL PINION (C)	1-41151-082-0	01	1	0107-							●	●
43	CAGE; FINAL PINION (A) T=82	1-41151-057-0	01	1	0107-	●	●	●	●	●
43	CAGE; FINAL PINION (B)	1-41151-079-0	01	1	0107-						●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0107-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X35	0-23801-635-0	08	1	0107-						●
45	BOLT; FINAL PINION CAGE	1-41159-010-0	08	1	0107-							●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0107-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0107-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0107-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0107-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0107-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-092-0	AR	1	0107-						●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-093-0	AR	1	0107-						●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-094-0	AR	1	0107-						●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-095-0	AR	1	0107-						●
49	SHIM; FINAL PINION CAGE T=0.050	1-41154-085-0	AR	1	0107-							●	●
49	SHIM; FINAL PINION CAGE T=0.125	1-41154-086-0	AR	1	0107-							●	●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-087-0	AR	1	0107-							●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-088-0	AR	1	0107-							●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0107-	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-1	01	1	0107-	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-229-0	01	1	0107-						●
55	CARRIER; DIFF	1-41110-117-0	01	1	0107-	●	●	●	●	●
55	CARRIER; DIFF	1-41110-112-0	01	1	0107-						●
55	CARRIER; DIFF	1-41110-107-0	01	1	0107-							●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0107-	●	●	●	●	●	●
56	BOLT; BRG CAP	1-41119-066-0	04	1	0107-							●	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-618-0	01	1	0107-	●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-619-0	01	1	0107-		●
60	GEAR SET; FINAL DRIVE,RR 41/10	1-41210-621-0	01	1	0107-			●
60	GEAR SET; FINAL DRIVE,RR 43/11	1-41210-622-0	01	1	0107-				●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-620-0	01	1	0107-					●
60	GEAR SET; FINAL DRIVE,RR 41/11	1-41210-570-0	01	1	0107-						●
60	GEAR SET; FINAL DRIVE,RR 43/11	1-41151-083-0	01	1	0107-							●
60	GEAR SET; FINAL DRIVE,RR 41/11	1-41210-646-0	01	1	0107-								●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	0107-	●	●	●	●	●
62	BOLT; RET M8X16	0-20800-816-0	02	1	0107-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0107-	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	0107-	●	●	●	●	●
63	BEARING; PINION PILOT	1-09810-244-0	01	1	0107-						●
63	BEARING; PINION PILOT	1-41219-034-0	01	1	0107-							●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0107-	●	●	●	●	●
66	RING; SNAP,PILOT BRG ID=41.9	1-09588-075-1	01	1	0107-						●
66	RING; SNAP,PILOT BRG	1-41219-035-0	01	1	0107-							●	●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	0107-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	0107-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-040-0	01	1	0107-							●	●
69	NUT; ADJ,DIFF CAGE	1-41121-041-0	01	1	0107-							●	●
70	BEARING; DIFF CAGE JTEKT ID=110 OD=170 T=38	1-09812-226-0	02	1	0107-	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	0107-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-251-0	01	1	0107-						●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-237-0	01	1	0107-							●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	0107-	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41519-036-0	16	1	0107-							●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0107-	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	16	1	0107-							●	●
88	PLATE; LK,ADJ NUT T=3.2	1-41124-026-0	02	1	0107-	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	0107-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0107-	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-616-0	01	1	0107-						●
100	SEAL; OIL,FINAL PINION	1-41349-180-0	01	1	0107-							●	●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	0107-	●	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-373-0	01	1	0107-							●	●
389	WASHER; FINAL PINION CAGE	1-41329-034-0	08	1	0107-							●	●
429	PLATE; DUMMY EXC. DIFF LOCK<C3N>	1-41279-014-0	01	1	0107-	●	●	●	●	●	●
430	BOLT; PLATE,DUMMY EXC. DIFF LOCK<C3N> M8X20 FLANGE	0-28680-820-0	03	1	0107-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
