4-10 — FRONT AXLE (#10722) — 114 parça

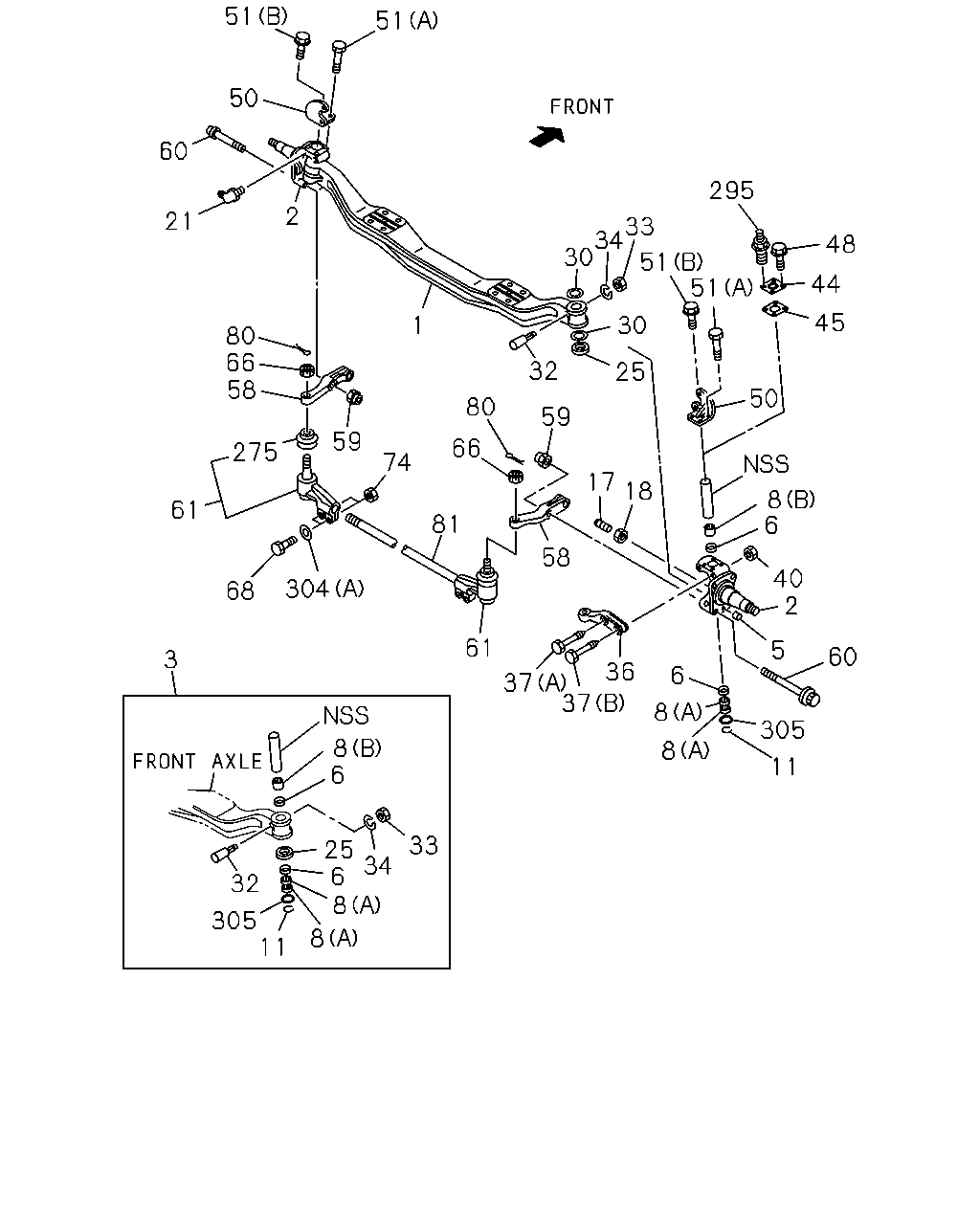

51 51 50 60 295 2 21 33 34 30 48 51 51 44 45 30 1 80 66 58 32 25 50 80 59 59 66 275 74 17 18 8 6 61 81 58 40 2 304 68 61 5 60 3 36 6 37 37 8 305 8 6 8 11 33 25 34 6 8 32 305 11 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-107-5	01	1	0107-
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	0107-
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	0107-
3	KING PIN SET	1-87830-738-4	02	1	0107-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0107-
6	SEAL; KING PIN	9-09926-024-0	04	1	0107-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0107-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0107-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0107-
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM SPRING BRAKE(BCR) ANTILOCK BRAKE SYSTEM(BFA) M18X38	1-09009-164-0	02	1	0107-
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTILOCK BRAKE SYSTEM(BFA) M18X43	1-09009-065-0	02	1	0107-
17	BOLT; STOPPER KNUCKLE EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M18X43	1-09009-065-0	02	1	0107-
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM SPRING BRAKE(BCR) ANTILOCK BRAKE SYSTEM(BFA) M18	9-99111-518-0	02	1	0107-
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTILOCK BRAKE SYSTEM(BFA) M18	9-99110-518-0	02	1	0107-
18	NUT; STOPPER BOLT,KNUCKLE EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M18	9-99110-518-0	02	1	0107-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0107-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0107-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0107-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0107-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0107-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0107-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0107-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0107-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0107-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0107-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0107-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0107-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0107-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0107-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0107-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0107-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0107-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0107-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0107-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0107-
36	ARM; KNUCKLE	1-43133-063-3	01	1	0107-
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	0107-
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	0107-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0107-
44	COVER; KING PIN BRAKE SYSTEM SPRING BRAKE(BCR)	1-43175-014-1	02	1	0107-
45	GASKET; KING PIN COVER BRAKE SYSTEM SPRING BRAKE(BCR)	1-42319-044-0	02	1	0107-
48	BOLT; COVER BRAKE SYSTEM SPRING BRAKE(BCR) ANTILOCK BRAKE SYSTEM(BFA) M12X16 FLANGE	0-28081-216-0	04	1	0107-
48	BOLT; COVER BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTILOCK BRAKE SYSTEM(BFA) M12X16 FLANGE	0-28081-216-0	08	1	0107-
50	BRACKET; POWER CHAMBER DISC WHEEL AL<SDM> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA)	1-43145-010-3	01	1	0107-
50	BRACKET; POWER CHAMBER BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM>	1-43145-010-3	01	1	0107-
50	BRACKET; POWER CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR),DISC WHEEL AL<SDM>	1-43145-010-3	01	1	0107-
50	BRACKET; POWER CHAMBER DISC WHEEL AL<SDM> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA)	1-43145-009-3	01	1	0107-
50	BRACKET; POWER CHAMBER BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM>	1-43145-009-3	01	1	0107-
50	BRACKET; POWER CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR),DISC WHEEL AL<SDM>	1-43145-009-3	01	1	0107-
51	BOLT; POWER CHAMBER BRKT ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) M12X25 FLANGE	0-28681-225-0	02	1	0107-
51	BOLT; POWER CHAMBER BRKT ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (C) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0107-
51	BOLT; POWER CHAMBER BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA) (B) M12X25 FLANGE	0-28681-225-0	06	1	0107-
51	BOLT; POWER CHAMBER BRKT DISC WHEEL AL<SDM> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA) (A) M12X60 FLANGE	0-28081-260-0	02	1	0107-
51	BOLT; POWER CHAMBER BRKT BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM> (A) M12X60 FLANGE	0-28081-260-0	02	1	0107-
51	BOLT; POWER CHAMBER BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),DISC WHEEL AL<SDM> (A) M12X60 FLANGE	0-28081-260-0	02	1	0107-
58	ARM; TIE ROD	1-43135-042-3	01	1	0107-
58	ARM; TIE ROD	1-43134-042-3	01	1	0107-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0107-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0107-
61	ROD END; TIE ROD	1-43150-802-0	01	1	0107-
61	ROD END; TIE ROD	1-43150-801-0	01	1	0107-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0107-
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0107-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0107-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0107-
81	ROD; TIE	1-43151-118-0	01	1	0107-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0107-
295	STUD; COVER,KING PIN BRAKE SYSTEM SPRING BRAKE(BCR) ANTILOCK BRAKE SYSTEM(BFA) M8X14,M12X16 L=41.7	1-09029-097-0	04	1	0107-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0107-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0107-
305	COVER; KNUCKLE	1-43175-021-0	02	1	0107-

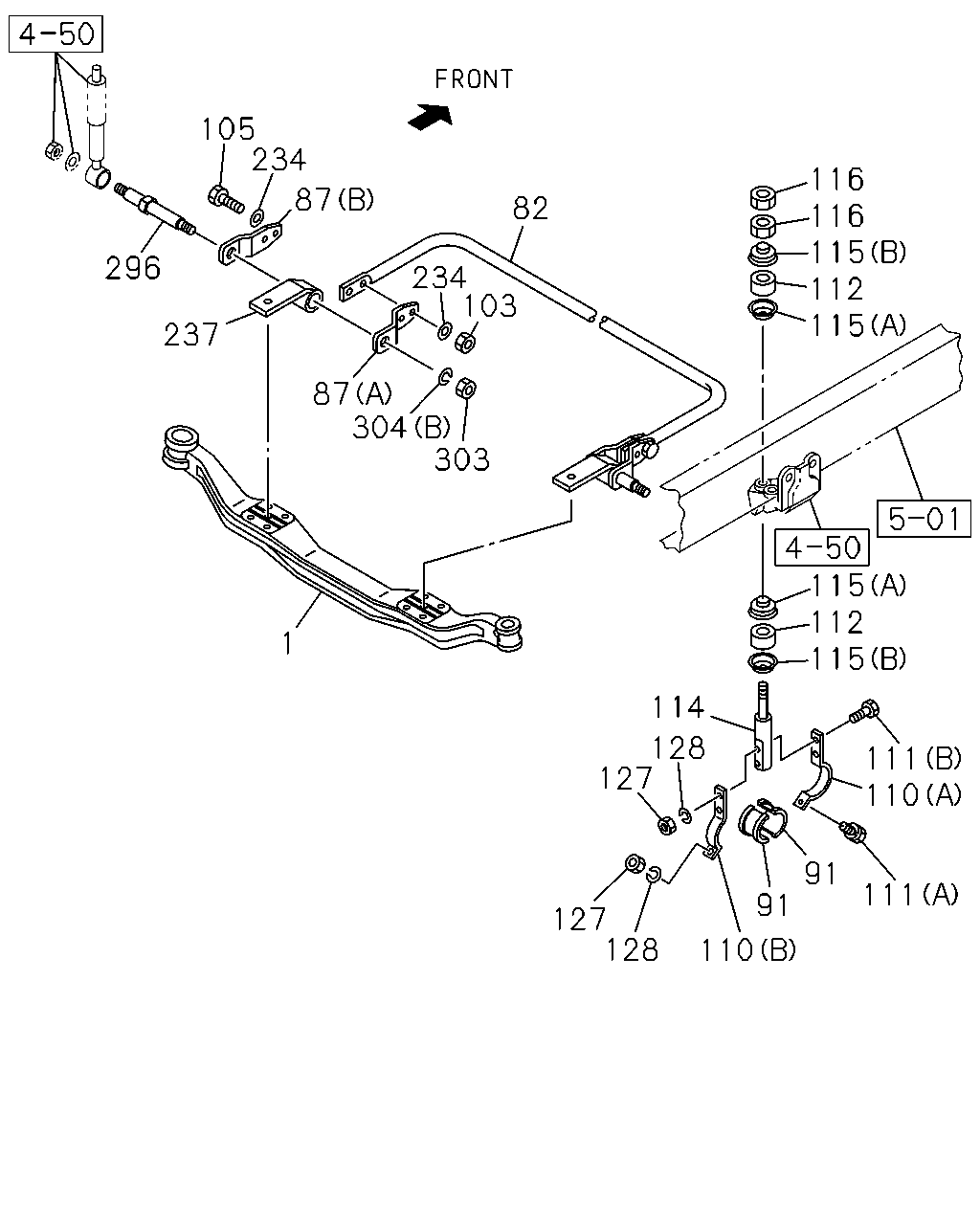

105 234 116 116 115 112 115 87 82 296 234 103 237 87 304 303 115 112 115 1 114 128 127 111 110 91 111 91 127 128 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-107-5	01	1	0107-
82	BAR; STAB,FRT SUSP	1-51771-150-0	01	1	0107-
87	BRACKET; STABILIZER (A)	1-51781-083-1	02	1	0107-
87	BRACKET; STABILIZER (B)	1-51781-084-1	02	1	0107-
91	BUSHING; RUBBER,STAB BAR	1-51779-079-0	04	1	0107-
103	NUT; BRKT FIX M14	9-99110-514-0	04	1	0107-
105	BOLT; BRKT FIX M14X70	9-91061-470-0	04	1	0107-
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	0107-
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	0107-
111	BOLT; CLAMP TO ROD (A) M12X30	0-20801-230-0	02	1	0107-
111	BOLT; CLAMP TO ROD (B) M12X50	0-20801-250-0	04	1	0107-
112	BUSHING; ROD	9-51631-039-0	04	1	0107-
114	ROD; STAB BAR	1-51773-072-2	02	1	0107-
115	WASHER; CENTER,STAB TO FRAME (B) ID=16.5	9-51631-040-0	04	1	0107-
115	WASHER; CENTER,STAB TO FRAME (A) ID=20.8	9-51631-041-0	04	1	0107-
116	NUT; LK,STAB TO FRAME M14	9-99111-414-0	04	1	0107-
127	NUT; CLAMP M12	9-99110-412-0	06	1	0107-
128	WASHER; LK,CLAMP ID=12.2	9-09150-512-0	06	1	0107-
234	WASHER; STAB ID=15	9-09651-069-0	08	1	0107-
237	SUPPORT; STAB BAR	1-51681-662-0	02	1	0107-
296	PIN; STAB	1-51682-145-2	02	1	0107-
303	NUT; PIN M20	9-99110-520-0	02	1	0107-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0107-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0107-

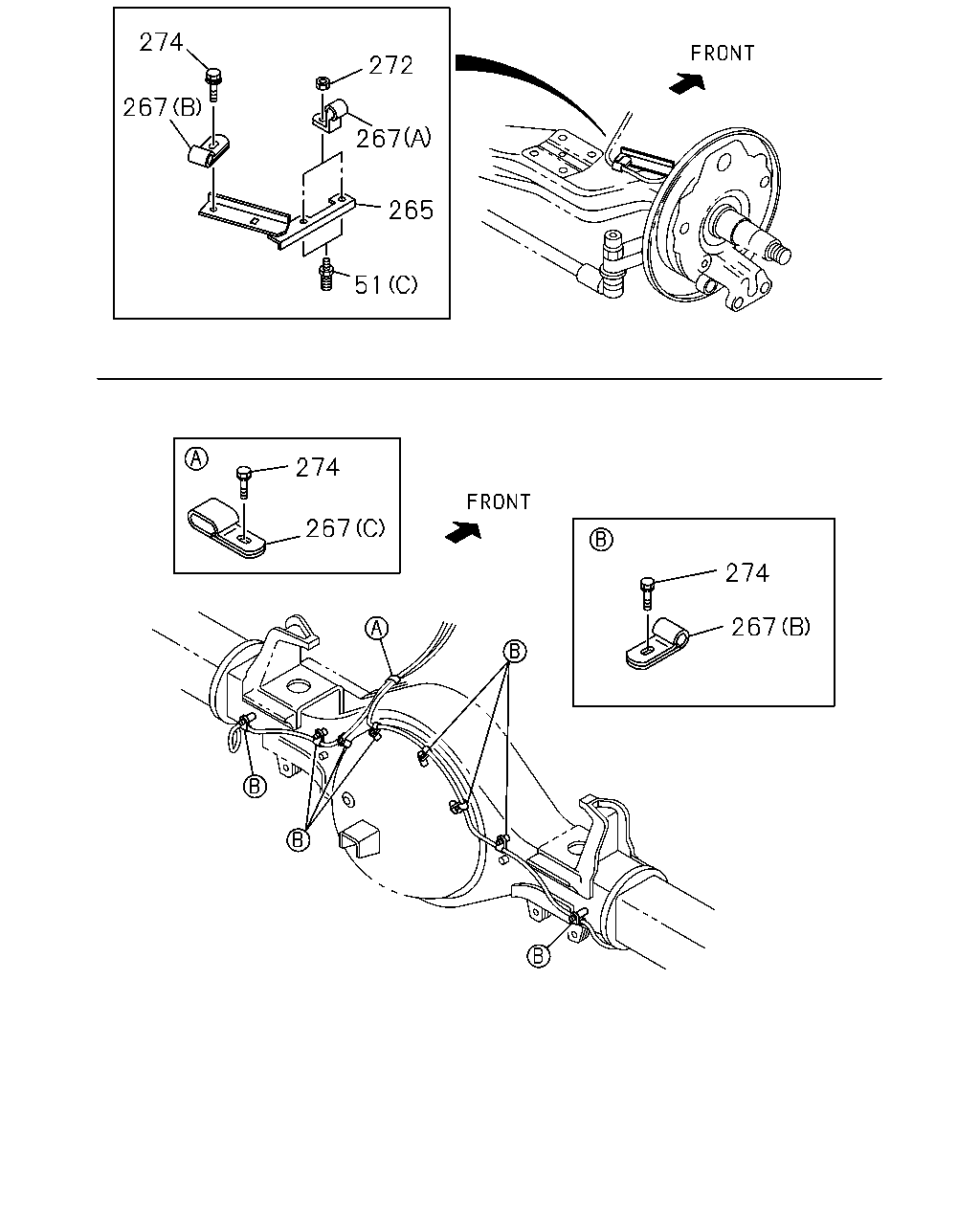

274 272 267 267 265 51 274 267 274 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	BOLT; POWER CHAMBER BRKT ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) M12X25 FLANGE	0-28681-225-0	02	1	0107-
51	BOLT; POWER CHAMBER BRKT ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (C) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0107-
51	BOLT; POWER CHAMBER BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA) (B) M12X25 FLANGE	0-28681-225-0	06	1	0107-
51	BOLT; POWER CHAMBER BRKT DISC WHEEL AL<SDM> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA) (A) M12X60 FLANGE	0-28081-260-0	02	1	0107-
51	BOLT; POWER CHAMBER BRKT BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM> (A) M12X60 FLANGE	0-28081-260-0	02	1	0107-
51	BOLT; POWER CHAMBER BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),DISC WHEEL AL<SDM> (A) M12X60 FLANGE	0-28081-260-0	02	1	0107-
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM(BFA) EXC. DISC WHEEL AL<SDM>	1-82699-622-0	01	1	0107-
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM(BFA) EXC. DISC WHEEL AL<SDM>	1-82699-621-0	01	1	0107-
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11X2 L=16	9-09535-025-0	01	1	0107-
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=11 L=16	9-09525-025-0	06	1	0107-
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) EXC. DISC WHEEL AL<SDM> (A) ID=11 H=20 L=20	5-09700-351-0	04	1	0107-
267	CLIP; HARNESS BRAKE SYSTEM SPRING BRAKE(BCR) ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 H=20 L=25	1-09700-848-0	02	1	0107-
267	CLIP; HARNESS BRAKE SYSTEM SPRING BRAKE(BCR) ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=16	9-09525-025-0	04	1	0107-
267	CLIP; HARNESS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=16	9-09525-025-0	11	1	0107-
267	CLIP; HARNESS FINAL GEAR 19.5"<BDC> (B) ID=11 L=16	9-09525-025-0	08	1	0107-
272	NUT; CLIP ANTILOCK BRAKE SYSTEM(BFA) EXC. DISC WHEEL AL<SDM> M8 FLANGE	0-91150-108-0	04	1	0107-
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) EXC. DISC WHEEL AL<SDM> M8X16 W/LK&PL WASHER	0-50140-816-0	04	1	0107-
274	BOLT; CLIP FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) M8X12 W/LK WASHER	0-50040-812-0	12	1	0107-
274	BOLT; CLIP FINAL GEAR 19.5"<BDC> M8X12 W/LK WASHER	0-50040-812-0	09	1	0107-
