Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#10718) — 243 parça

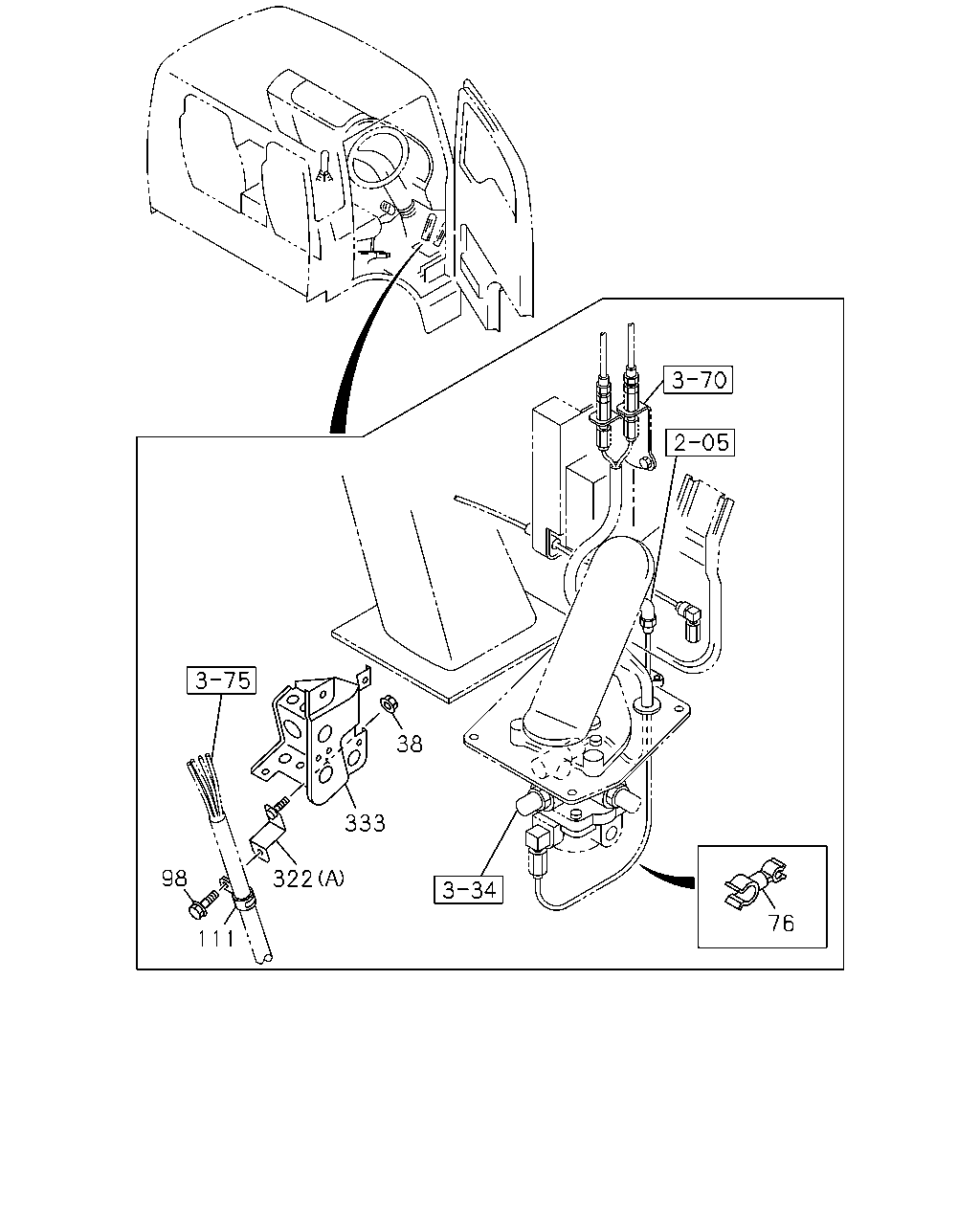

38 333 98 322 76 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0107-
38	NUT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	02	1	0107-
76	CLIP; NYLON TUBE ID=6 & 8.3	8-94167-742-0	02	1	0107-
98	BOLT; PIPE CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	01	1	0107-
111	CLIP; AIR PIPE MJD7S M/T(Y2Y) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ID=28 L=40	1-09701-261-0	01	1	0107-
111	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=28 L=40	1-09701-261-0	01	1	0107-
111	CLIP; AIR PIPE MJD7S M/T(Y2Y) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=25 L=50	1-09701-019-0	01	1	0107-
322	BRACKET; CLIP (A)	1-79996-360-0	01	1	0107-
322	BRACKET; CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) L=112	1-47475-694-1	01	1	0107-
333	BRACKET; BRK AIR PIPE IRELAND EQUIPMENT(NJY)	1-79907-103-0	01	1	0107-
333	BRACKET; BRK AIR PIPE EXC. IRELAND EQUIPMENT(NJY)	1-79997-360-6	01	1	0107-

20 34 296 74 306 376 106 321 106 297 376 110 321 293 297 292 267 376 268 27 107 286 306 83 297 279 317 75 316 107 264 306 266 125 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	04	1	0107-
20	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	0107-
20	BOLT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	03	1	0107-
20	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X16 FLANGE	0-28080-816-0	01	1	0107-
27	CLIP; FLEX HOSE LIGHT DUTY PACKAGE TRUCK<Y21> ID=11 L=50	9-09525-085-0	01	1	0107-
27	CLIP; FLEX HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=15 L=28	1-09701-216-0	02	1	0107-
34	NUT; BRKT MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	01	1	0107-
74	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	0107-
74	CLIP; NYLON TUBE AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=12 & 15	1-09709-281-1	01	1	0107-
74	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=12 H=24 L=20	1-09700-605-0	01	1	0107-
74	CLIP; NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=250	1-09707-126-0	03	1	0107-
75	BOLT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	02	1	0107-
75	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X16 FLANGE	0-28080-816-0	02	1	0107-
75	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	01	1	0107-
83	NUT; CLIP EXC. FULL FLOATING CAB(W16),LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
106	BRACKET; TUBE CLIP (D)	1-47476-200-0	01	1	0107-
106	BRACKET; TUBE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47478-825-0	01	1	0107-
106	BRACKET; TUBE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-47478-984-0	01	1	0107-
106	BRACKET; TUBE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=120 H=35	1-82699-970-0	01	1	0107-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=11.8 & 7.5	1-09709-182-0	01	1	0107-
107	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=35 L=33	1-09700-945-0	03	1	0107-
107	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (E) ID=35 H=45 L=33	1-09700-947-0	05	1	0107-
107	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (F) L=250	1-09707-126-0	13	1	0107-
107	CLIP; NYLON TUBE MJD7S M/T(Y2Y) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=25 H=30 L=35	1-09700-875-0	03	1	0107-
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (G) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0107-
107	CLIP; NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG>,LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0107-
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (H) ID=28 H=45 L=30	1-09700-948-0	03	1	0107-
107	CLIP; NYLON TUBE MJD7S M/T(Y2Y) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (H) ID=28 H=45 L=30	1-09700-948-0	03	1	0107-
110	CLIP; BAND,NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=250	1-09707-126-0	39	1	0107-
110	CLIP; BAND,NYLON TUBE (C) L=140	5-09707-031-1	02	1	0107-
110	CLIP; BAND,NYLON TUBE ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=250	1-09707-126-0	01	1	0107-
110	CLIP; BAND,NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=28 L=40	1-09701-261-0	01	1	0107-
125	CLIP; NYLON TUBE ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=12 & 12	1-09709-280-1	02	1	0107-
264	CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=35 L=33	1-09700-945-0	06	1	0107-
264	CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=18 H=23 L=28	1-09701-070-0	04	1	0107-
264	CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=35 L=33	1-09700-945-0	03	1	0107-
264	CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0107-
264	CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=18 L=28	1-09701-067-0	03	1	0107-
264	CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=18 H=23 L=28	1-09701-070-0	02	1	0107-
266	CLIP; NYLON TUBE ID=18 H=23 L=28	1-09700-860-0	01	1	0107-
267	BOLT; CLIP BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	01	1	0107-
268	NUT; CLIP BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
279	NUT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	05	1	0107-
286	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=28 H=45 L=30	1-09700-948-0	01	1	0107-
286	CLIP; NYLON TUBE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (A) ID=15 L=28	1-09701-216-0	01	1	0107-
286	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=250	1-09707-126-0	05	1	0107-
292	CLIP; AIR PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0107-
293	NUT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
296	BRACKET; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=50	1-47475-299-2	01	1	0107-
297	NUT; BRKT M10 FLANGE	0-91150-110-0	01	1	0107-
297	NUT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=31 H=30 L=35	1-09700-994-0	01	1	0107-
306	CLIP; NYLON TUBE DIFF LOCK<C3N> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=31 H=30 L=35	1-09700-994-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=28 H=45 L=30	1-09700-948-0	02	1	0107-
306	CLIP; NYLON TUBE (G) ID=12 & 12	1-09709-280-1	01	1	0107-
306	CLIP; NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=28 L=40	1-09701-261-0	01	1	0107-
306	CLIP; NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E) L=250	1-09707-126-0	03	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=24.5 L=27	1-09701-049-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=25 L=54	1-09700-392-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=12 H=24 L=20	1-09700-605-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=9 L=25 H=45	1-09700-867-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=35 L=33	1-09700-945-0	01	1	0107-
306	CLIP; NYLON TUBE EXC. DIFF LOCK<C3N>,LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=18 L=25 H=50	1-09701-096-0	01	1	0107-
306	CLIP; NYLON TUBE (D) ID=18 L=25 H=50	1-09701-096-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (E) L=250	1-09707-126-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (F) ID=11.8 & 7.5	1-09709-182-0	01	1	0107-
316	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	03	1	0107-
316	BOLT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8X16 FLANGE	0-28080-816-0	01	1	0107-
316	BOLT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	08	1	0107-
316	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X40 FLANGE	0-28680-840-0	01	1	0107-
317	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0107-
317	NUT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
321	BRACKET; CLIP (C)	1-47476-812-1	01	1	0107-
321	BRACKET; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-82699-428-0	01	1	0107-
321	BRACKET; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-47477-337-1	01	1	0107-
321	BRACKET; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47477-810-0	01	1	0107-
321	BRACKET; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E) L=75	1-47478-328-0	01	1	0107-
376	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	01	1	0107-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-
376	BOLT; BRKT ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	01	1	0107-
376	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	01	1	0107-

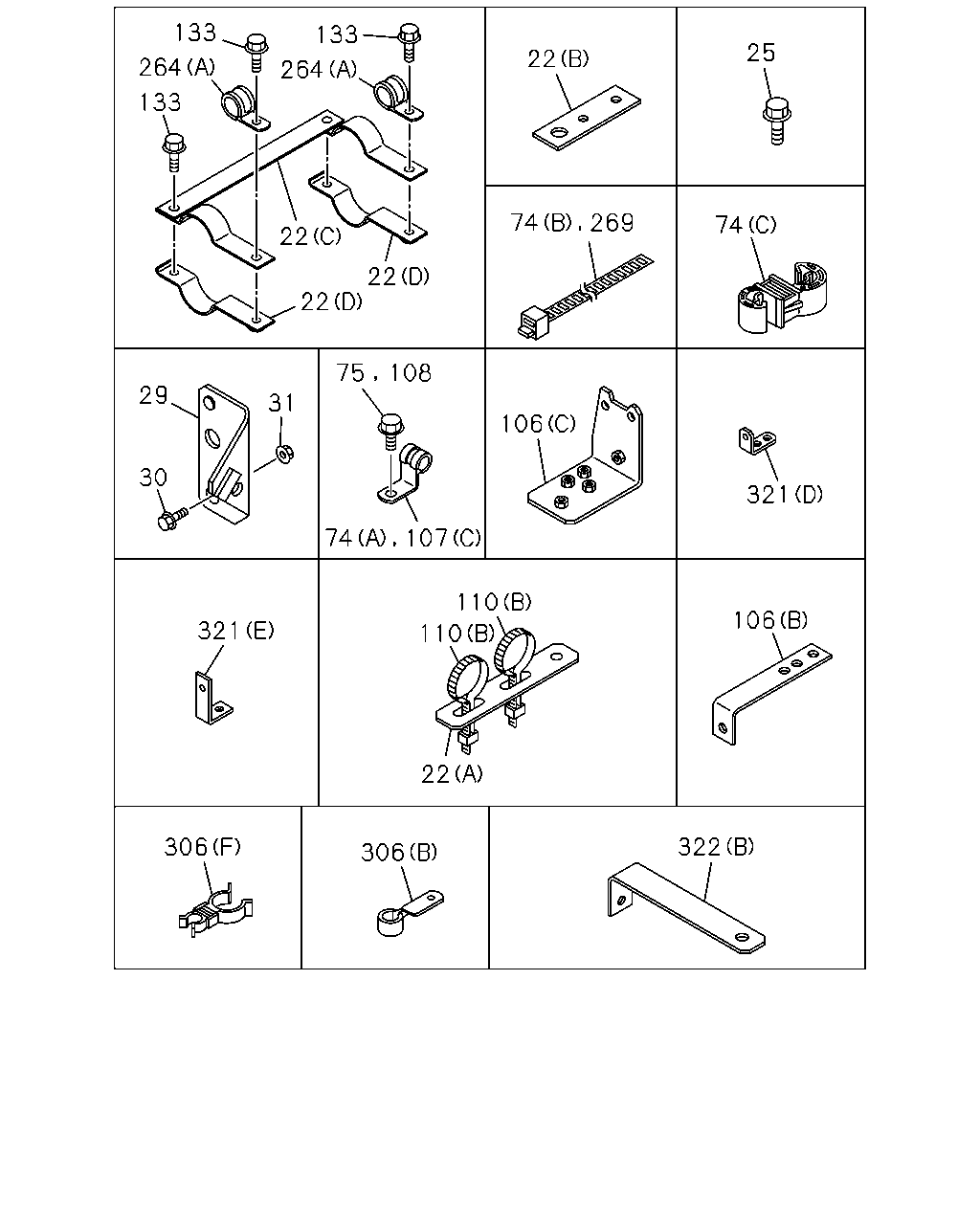

133 133 25 22 264 264 133 74 22 22 22 75 108 29 31 106 30 321 74 107 110 106 321 110 22 322 306 306 74 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	BRACKET; CLIP (C)	1-47477-844-0	02	1	0107-
22	BRACKET; CLIP (D)	1-47477-845-0	04	1	0107-
22	BRACKET; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=100	1-47477-620-1	01	1	0107-
22	BRACKET; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=125	1-47477-975-1	02	1	0107-
25	BOLT; CLIP EXC. FULL FLOATING CAB(W16),LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	01	1	0107-
29	BRACKET; CLIP,AIR PIPE LIGHT DUTY PACKAGE TRUCK<Y21>	1-47478-785-0	01	1	0107-
30	BOLT; CLIP BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M10X25 FLANGE	0-28681-025-0	01	1	0107-
31	NUT; CLIP BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M10 FLANGE	0-91150-210-0	01	1	0107-
74	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	0107-
74	CLIP; NYLON TUBE AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=12 & 15	1-09709-281-1	01	1	0107-
74	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=12 H=24 L=20	1-09700-605-0	01	1	0107-
74	CLIP; NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=250	1-09707-126-0	03	1	0107-
75	BOLT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	02	1	0107-
75	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X16 FLANGE	0-28080-816-0	02	1	0107-
75	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	01	1	0107-
106	BRACKET; TUBE CLIP (D)	1-47476-200-0	01	1	0107-
106	BRACKET; TUBE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47478-825-0	01	1	0107-
106	BRACKET; TUBE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-47478-984-0	01	1	0107-
106	BRACKET; TUBE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=120 H=35	1-82699-970-0	01	1	0107-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=11.8 & 7.5	1-09709-182-0	01	1	0107-
107	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=35 L=33	1-09700-945-0	03	1	0107-
107	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (E) ID=35 H=45 L=33	1-09700-947-0	05	1	0107-
107	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (F) L=250	1-09707-126-0	13	1	0107-
107	CLIP; NYLON TUBE MJD7S M/T(Y2Y) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=25 H=30 L=35	1-09700-875-0	03	1	0107-
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (G) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0107-
107	CLIP; NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG>,LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0107-
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (H) ID=28 H=45 L=30	1-09700-948-0	03	1	0107-
107	CLIP; NYLON TUBE MJD7S M/T(Y2Y) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (H) ID=28 H=45 L=30	1-09700-948-0	03	1	0107-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0107-
108	BOLT; TUBE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8X16 FLANGE	0-28080-816-0	01	1	0107-
108	BOLT; TUBE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	05	1	0107-
108	BOLT; TUBE CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28080-825-0	05	1	0107-
110	CLIP; BAND,NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=250	1-09707-126-0	39	1	0107-
110	CLIP; BAND,NYLON TUBE (C) L=140	5-09707-031-1	02	1	0107-
110	CLIP; BAND,NYLON TUBE ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=250	1-09707-126-0	01	1	0107-
110	CLIP; BAND,NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=28 L=40	1-09701-261-0	01	1	0107-
133	BOLT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	08	1	0107-
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0107-
133	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	0107-
133	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	01	1	0107-
133	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	10	1	0107-
133	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	02	1	0107-
264	CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=35 L=33	1-09700-945-0	06	1	0107-
264	CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=18 H=23 L=28	1-09701-070-0	04	1	0107-
264	CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=35 L=33	1-09700-945-0	03	1	0107-
264	CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0107-
264	CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=18 L=28	1-09701-067-0	03	1	0107-
264	CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=18 H=23 L=28	1-09701-070-0	02	1	0107-
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	20	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=31 H=30 L=35	1-09700-994-0	01	1	0107-
306	CLIP; NYLON TUBE DIFF LOCK<C3N> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=31 H=30 L=35	1-09700-994-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=28 H=45 L=30	1-09700-948-0	02	1	0107-
306	CLIP; NYLON TUBE (G) ID=12 & 12	1-09709-280-1	01	1	0107-
306	CLIP; NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=28 L=40	1-09701-261-0	01	1	0107-
306	CLIP; NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E) L=250	1-09707-126-0	03	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=24.5 L=27	1-09701-049-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=25 L=54	1-09700-392-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=12 H=24 L=20	1-09700-605-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=9 L=25 H=45	1-09700-867-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=35 L=33	1-09700-945-0	01	1	0107-
306	CLIP; NYLON TUBE EXC. DIFF LOCK<C3N>,LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=18 L=25 H=50	1-09701-096-0	01	1	0107-
306	CLIP; NYLON TUBE (D) ID=18 L=25 H=50	1-09701-096-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (E) L=250	1-09707-126-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (F) ID=11.8 & 7.5	1-09709-182-0	01	1	0107-
321	BRACKET; CLIP (C)	1-47476-812-1	01	1	0107-
321	BRACKET; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-82699-428-0	01	1	0107-
321	BRACKET; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-47477-337-1	01	1	0107-
321	BRACKET; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47477-810-0	01	1	0107-
321	BRACKET; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E) L=75	1-47478-328-0	01	1	0107-
322	BRACKET; CLIP (A)	1-79996-360-0	01	1	0107-
322	BRACKET; CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) L=112	1-47475-694-1	01	1	0107-

110 63 100 372 371 321 39 101 295 21 316 107 109 79 108 107 325 107 80 78 109 108 107 110 107 286 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	NUT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	04	1	0107-
21	NUT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	03	1	0107-
21	NUT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
39	CLIP; AIR PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=15 H=24 L=20	1-09700-606-0	01	1	0107-
63	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	01	1	0107-
78	CLIP; AIR PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=15 H=24 L=20	1-09700-606-0	01	1	0107-
79	BOLT; PIPE CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	01	1	0107-
80	NUT; CLIP,AIR PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
100	BRACKET; PIPE CLIP BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-47477-452-0	01	1	0107-
100	BRACKET; PIPE CLIP LIGHT DUTY PACKAGE TRUCK<Y21>	1-47477-452-0	01	1	0107-
100	BRACKET; PIPE CLIP BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-47477-481-0	01	1	0107-
100	BRACKET; PIPE CLIP LIGHT DUTY PACKAGE TRUCK<Y21>	1-47477-481-0	01	1	0107-
100	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21>	1-47477-770-0	01	1	0107-
100	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21>	1-47477-365-0	01	1	0107-
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0107-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=11.8 & 7.5	1-09709-182-0	01	1	0107-
107	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=35 L=33	1-09700-945-0	03	1	0107-
107	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (E) ID=35 H=45 L=33	1-09700-947-0	05	1	0107-
107	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (F) L=250	1-09707-126-0	13	1	0107-
107	CLIP; NYLON TUBE MJD7S M/T(Y2Y) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=25 H=30 L=35	1-09700-875-0	03	1	0107-
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (G) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0107-
107	CLIP; NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG>,LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0107-
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (H) ID=28 H=45 L=30	1-09700-948-0	03	1	0107-
107	CLIP; NYLON TUBE MJD7S M/T(Y2Y) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (H) ID=28 H=45 L=30	1-09700-948-0	03	1	0107-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0107-
108	BOLT; TUBE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8X16 FLANGE	0-28080-816-0	01	1	0107-
108	BOLT; TUBE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	05	1	0107-
108	BOLT; TUBE CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28080-825-0	05	1	0107-
109	NUT; TUBE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	04	1	0107-
109	NUT; TUBE CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
109	NUT; TUBE CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
109	NUT; TUBE CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	02	1	0107-
110	CLIP; BAND,NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=250	1-09707-126-0	39	1	0107-
110	CLIP; BAND,NYLON TUBE (C) L=140	5-09707-031-1	02	1	0107-
110	CLIP; BAND,NYLON TUBE ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=250	1-09707-126-0	01	1	0107-
110	CLIP; BAND,NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=28 L=40	1-09701-261-0	01	1	0107-
286	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=28 H=45 L=30	1-09700-948-0	01	1	0107-
286	CLIP; NYLON TUBE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (A) ID=15 L=28	1-09701-216-0	01	1	0107-
286	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=250	1-09707-126-0	05	1	0107-
295	NUT; CLIP,AIR PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=31 H=30 L=35	1-09700-994-0	01	1	0107-
306	CLIP; NYLON TUBE DIFF LOCK<C3N> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=31 H=30 L=35	1-09700-994-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=28 H=45 L=30	1-09700-948-0	02	1	0107-
306	CLIP; NYLON TUBE (G) ID=12 & 12	1-09709-280-1	01	1	0107-
306	CLIP; NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=28 L=40	1-09701-261-0	01	1	0107-
306	CLIP; NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E) L=250	1-09707-126-0	03	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=24.5 L=27	1-09701-049-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=25 L=54	1-09700-392-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=12 H=24 L=20	1-09700-605-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=9 L=25 H=45	1-09700-867-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=35 L=33	1-09700-945-0	01	1	0107-
306	CLIP; NYLON TUBE EXC. DIFF LOCK<C3N>,LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=18 L=25 H=50	1-09701-096-0	01	1	0107-
306	CLIP; NYLON TUBE (D) ID=18 L=25 H=50	1-09701-096-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (E) L=250	1-09707-126-0	01	1	0107-
306	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (F) ID=11.8 & 7.5	1-09709-182-0	01	1	0107-
316	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	03	1	0107-
316	BOLT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8X16 FLANGE	0-28080-816-0	01	1	0107-
316	BOLT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	08	1	0107-
316	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X40 FLANGE	0-28680-840-0	01	1	0107-
321	BRACKET; CLIP (C)	1-47476-812-1	01	1	0107-
321	BRACKET; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-82699-428-0	01	1	0107-
321	BRACKET; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-47477-337-1	01	1	0107-
321	BRACKET; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47477-810-0	01	1	0107-
321	BRACKET; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E) L=75	1-47478-328-0	01	1	0107-
325	CLIP; AIR PIPE EXC. FULL FLOATING CAB(W16),LIGHT DUTY PACKAGE TRUCK<Y21> ID=18 H=23 L=28	1-09700-860-0	01	1	0107-
371	BOLT; CLIP,AIR PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	01	1	0107-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	04	1	0107-

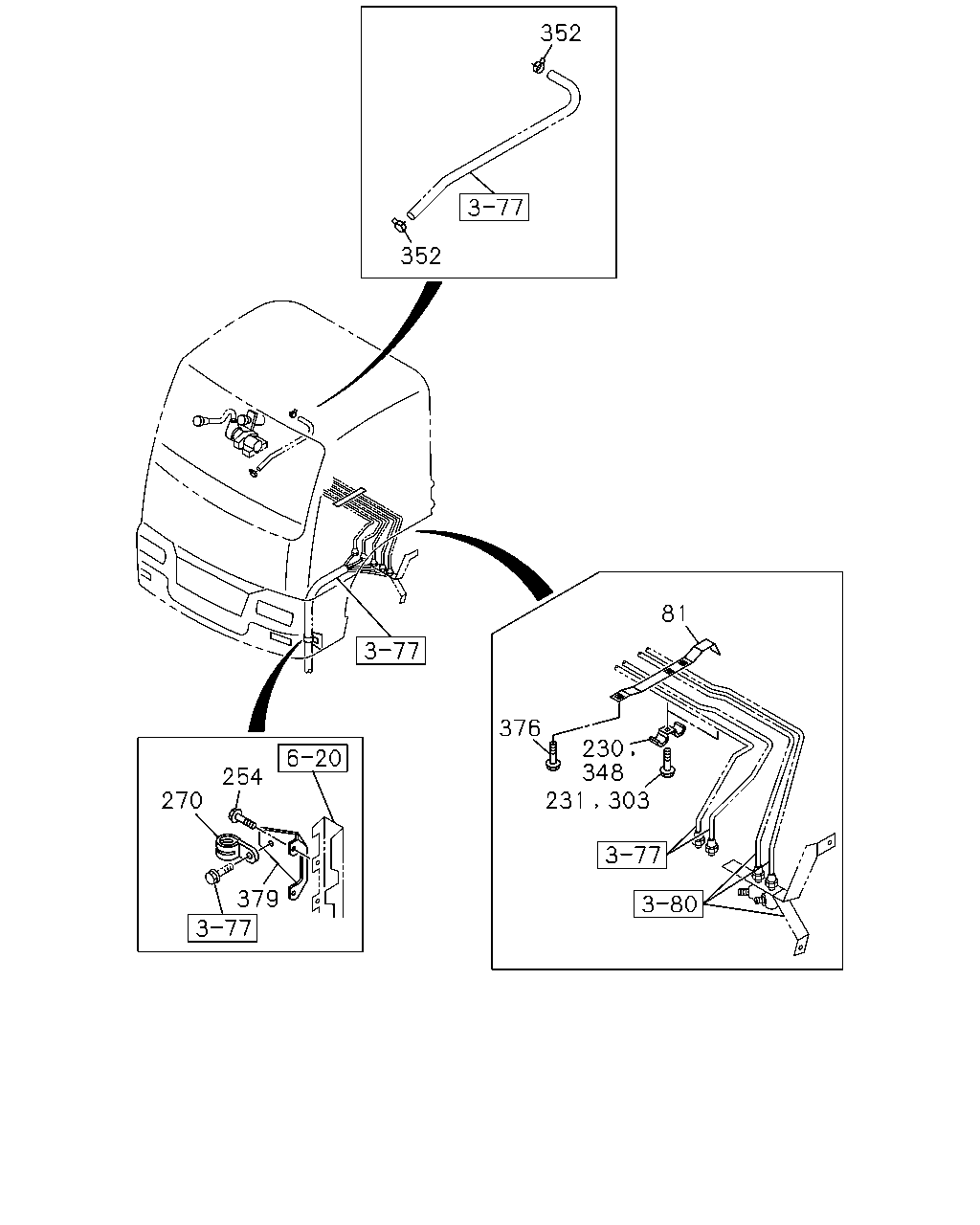

352 352 81 376 230 348 231 303 254 270 379

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	BRACKET; CLIP	1-47477-483-0	01	1	0107-
230	CLIP; PIPE,AIR ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	0107-
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	07	1	0107-
270	CLIP; NYLON TUBE ID=28 L=32	1-09701-107-1	02	1	0107-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	0107-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0107-
376	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	01	1	0107-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-
376	BOLT; BRKT ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	01	1	0107-
376	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	01	1	0107-
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
