◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10865 - EXD RHD FUEL TANK 400L/400L+200L ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#10717) — 77 parça

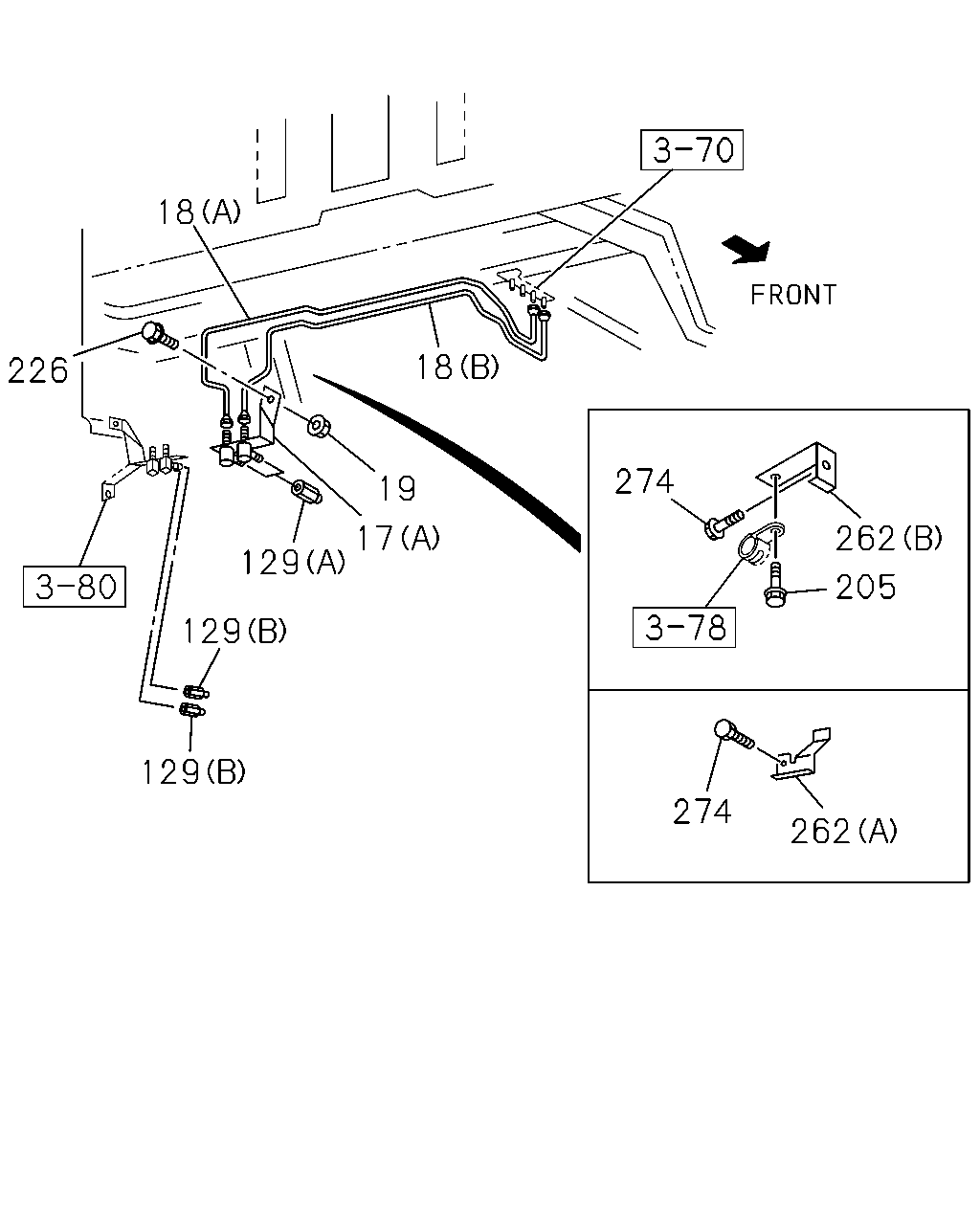

çizim 74409
18 18 226 274 19 262 17 129 205 129 129 274 262
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
(B) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0107-
17 UNION; AIR PIPE
(C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0107-
17 UNION; AIR PIPE
(D) 		1-09661-083-0 01 1 0107-
17 UNION; AIR PIPE
(A) 		1-47470-609-0 01 1 0107-
18 PIPE; AIR,UNION TO UNION
BAGGAGE BOX CAB RR SIDE<TBM> (A) L=1885 		1-49121-759-1 01 1 0107-
18 PIPE; AIR,UNION TO UNION
BAGGAGE BOX CAB RR SIDE<TBM> (B) L=1937 		1-49122-060-1 01 1 0107-
18 PIPE; AIR,UNION TO UNION
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) L=1749 		1-49121-758-1 01 1 0107-
18 PIPE; AIR,UNION TO UNION
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (B) L=1845 		1-49122-059-1 01 1 0107-
19 NUT; PIPE UNION
M8 		9-09110-408-0 01 1 0107-
129 CONNECTOR; NYLON TUBE
(B) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 0107-
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0107-
205 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0107-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0107-
226 BOLT; UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE 		0-28080-820-0 01 1 0107-
226 BOLT; UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE 		0-28680-830-0 02 1 0107-
262 BRACKET
(B) 		1-79996-143-0 01 1 0107-
262 BRACKET
(A) 		1-79996-144-0 01 1 0107-
274 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0107-
274 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0107-

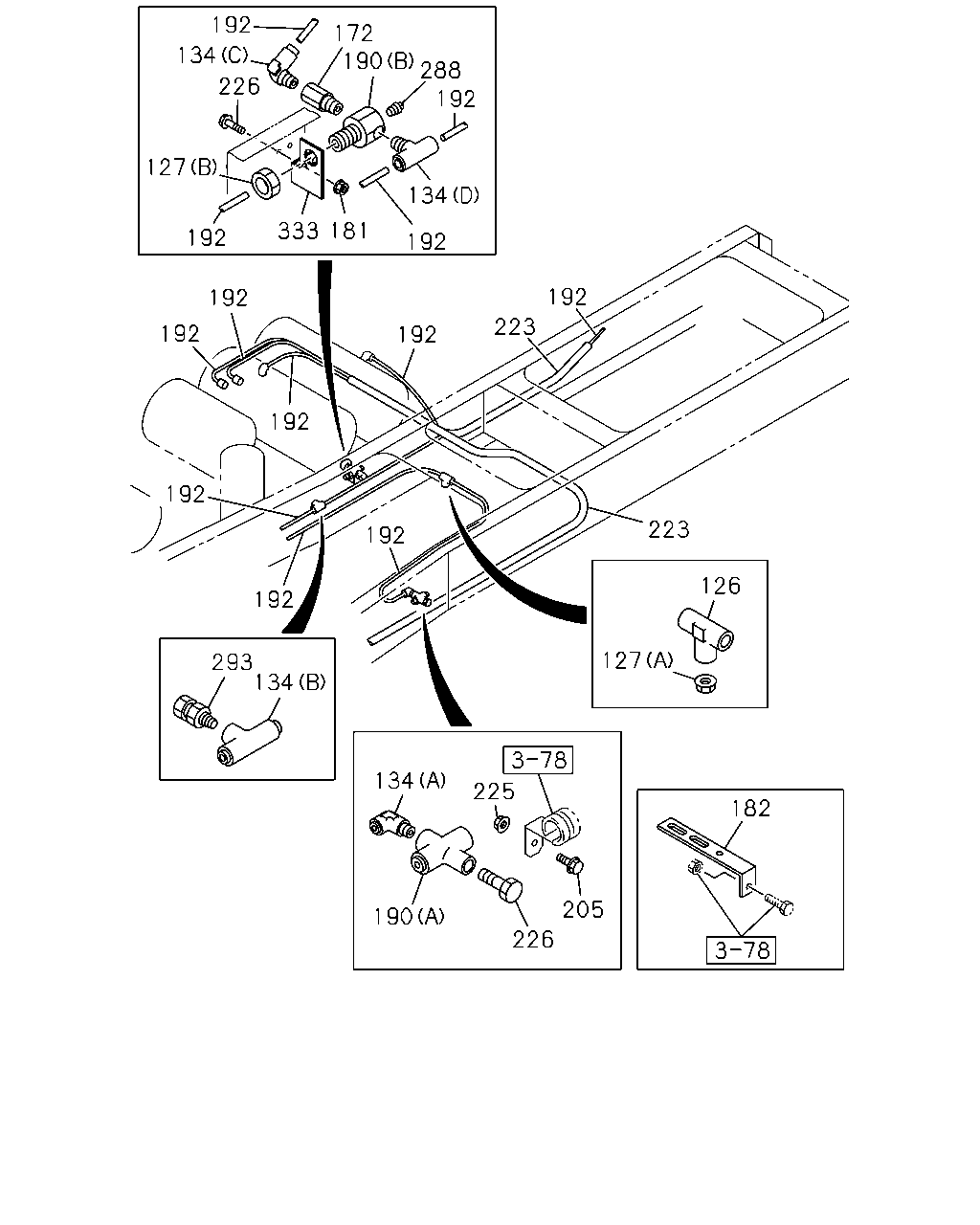

çizim 74451
192 172 190 288 134 226 192 127 134 333 181 192 19 192 192 223 192 192 192 192 223 192 126 192 127 293 134 134 225 182 205 190 226
BalonParca AdiParca NoAdetTipApplied Date
19 NUT; PIPE UNION
M8 		9-09110-408-0 01 1 0107-
126 UNION; NYLON TUBE
DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 0107-
127 NUT; UNION
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0107-
127 NUT; UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M22 		9-09111-422-0 01 1 0107-
134 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0107-
134 CONNECTOR
EXC. BRAKE REGULATION HONG KONG<TCZ>,LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-
134 CONNECTOR
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
134 CONNECTOR
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) DIN12X2 & R3/8 3WAY 		1-09661-005-0 01 1 0107-
172 ADAPTER; UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> PT3/8 		1-48319-058-0 01 1 0107-
181 NUT; TUBE UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE 		0-91150-108-0 02 1 0107-
182 BRACKET; TUBE CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=150 H=30 		1-47477-629-2 01 1 0107-
190 UNION; 3 WAY
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0107-
190 UNION; 3 WAY
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) 		1-09661-064-0 01 1 0107-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0107-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0107-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0107-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0107-
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0107-
205 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0107-
225 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0107-
226 BOLT; UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE 		0-28080-820-0 01 1 0107-
226 BOLT; UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE 		0-28680-830-0 02 1 0107-
288 PLUG
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> PT1/4 		9-99204-513-0 01 1 0107-
293 VALVE; CHECK 1-48410-479-1 01 1 0107-
333 BRACKET; CONNECTOR
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> 		1-47478-839-1 01 1 0107-

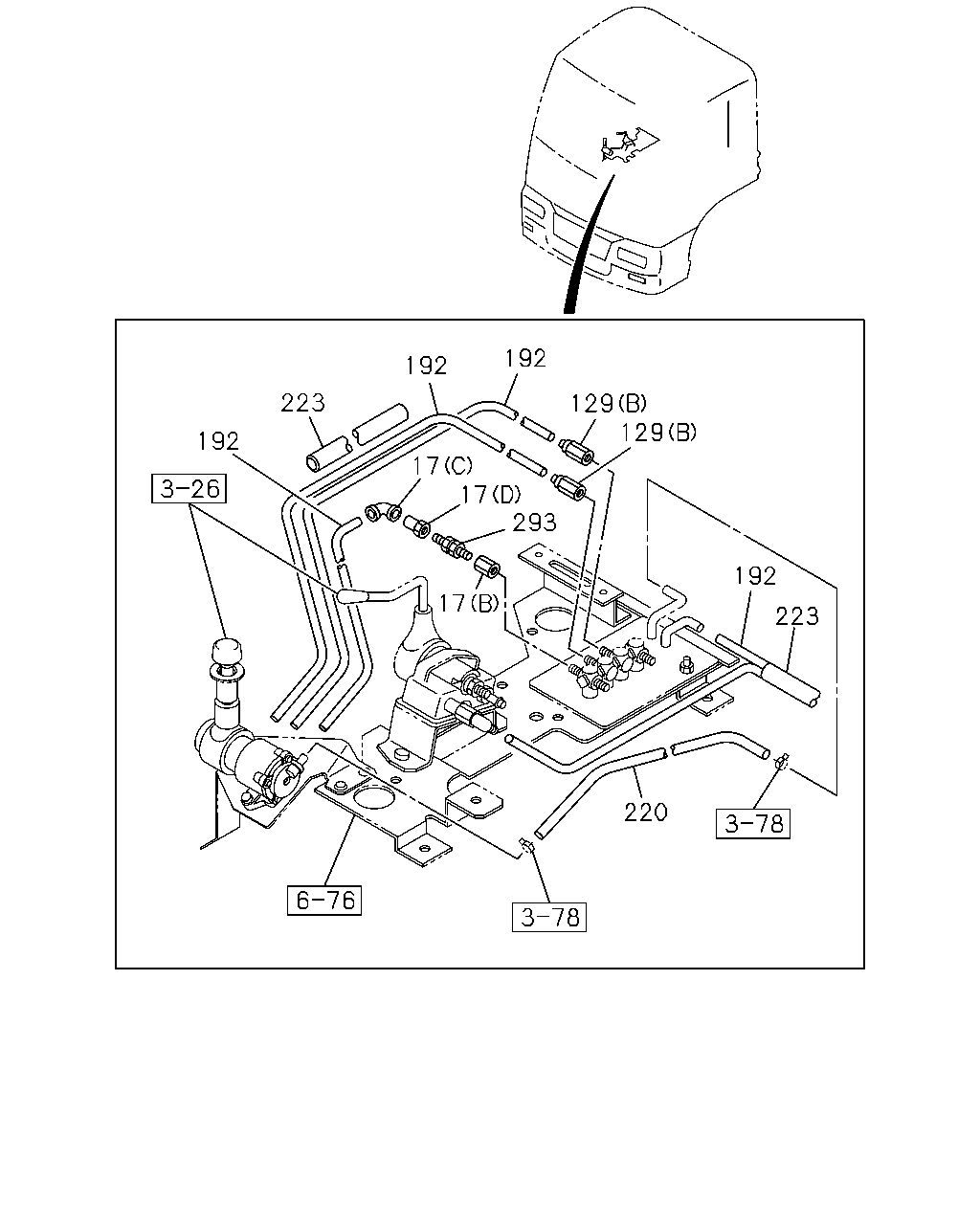

çizim 74454
192 192 223 129 129 192 17 17 293 192 17 223 220
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
(B) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0107-
17 UNION; AIR PIPE
(C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0107-
17 UNION; AIR PIPE
(D) 		1-09661-083-0 01 1 0107-
17 UNION; AIR PIPE
(A) 		1-47470-609-0 01 1 0107-
129 CONNECTOR; NYLON TUBE
(B) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 0107-
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0107-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0107-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0107-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0107-
220 HOSE; VINYL,EXH,PARKING BRK VLV
ZF M/T<X9E> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0107-
220 HOSE; VINYL,EXH,PARKING BRK VLV
ISUZU M/T<X9A> L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0107-
293 VALVE; CHECK 1-48410-479-1 01 1 0107-

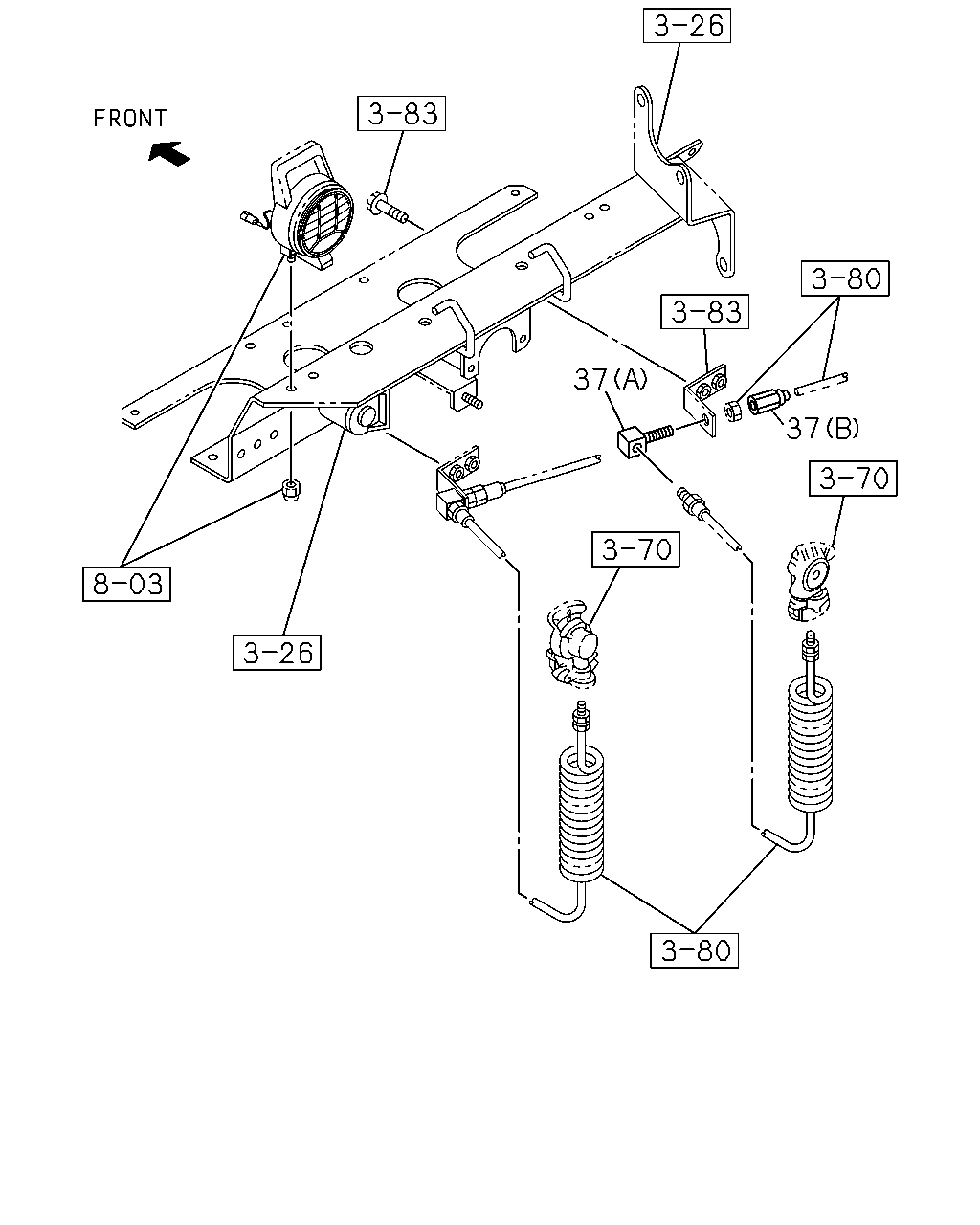

çizim 75039
37 37
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
LIGHT DUTY PACKAGE TRUCK<Y21> (A) 		1-09650-003-1 01 1 0107-
37 UNION; AIR PIPE
LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0107-
