3-75 — BRAKE PIPING; AIR,FRONT (#10716) — 101 parça

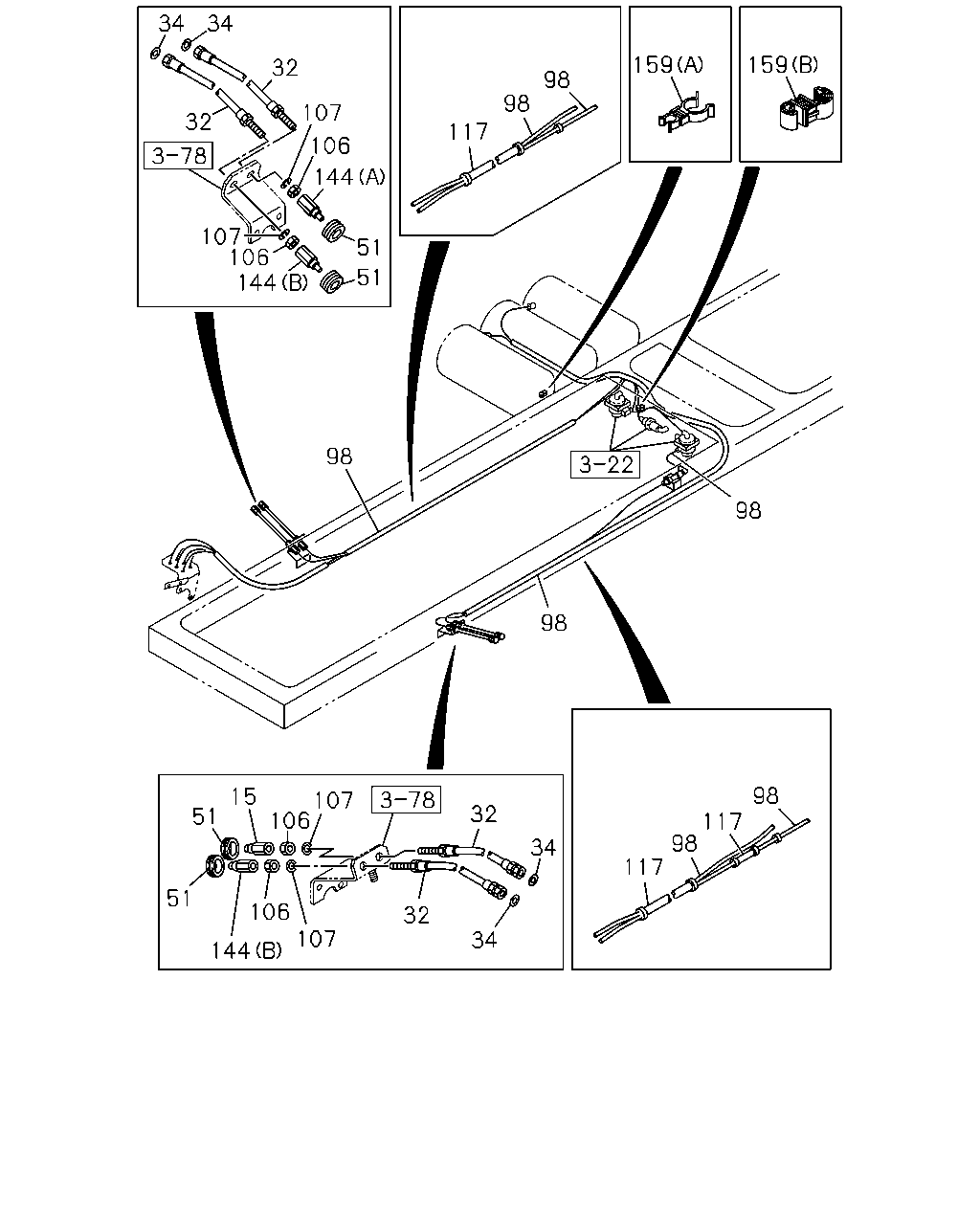

34 34 159 159 32 98 98 107 32 117 106 144 107 106 144 51 51 98 98 98 98 15 107 106 32 51 117 98 117 34 51 106 107 32 34 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CONNECTOR; AIR PIPE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0107-
15	CONNECTOR; AIR PIPE LIGHT DUTY PACKAGE TRUCK<Y21> DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0107-
15	CONNECTOR; AIR PIPE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0107-
32	HOSE; FLEX,FRT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=580	0-07807-580-1	02	1	0107-
32	HOSE; FLEX,FRT LIGHT DUTY PACKAGE TRUCK<Y21> L=580	0-07807-580-1	02	1	0107-
32	HOSE; FLEX,FRT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=560	0-07817-560-1	02	1	0107-
32	HOSE; FLEX,FRT LIGHT DUTY PACKAGE TRUCK<Y21> L=560	0-07817-560-1	02	1	0107-
32	HOSE; FLEX,FRT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> L=500	0-07847-500-1	02	1	0107-
34	GASKET; FLEX HOSE LIGHT DUTY PACKAGE TRUCK<Y21> ID=11 OD=18	9-09572-510-0	04	1	0107-
34	GASKET; FLEX HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=11 OD=18	9-09572-510-0	04	1	0107-
51	GROMMET; NYLON TUBE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=24 OD=30 T=17	9-09956-092-1	04	1	0107-
51	GROMMET; NYLON TUBE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> ID=28 OD=35 T=25	1-09332-011-1	02	1	0107-
51	GROMMET; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> ID=24 OD=30 T=17	9-09956-092-1	02	1	0107-
51	GROMMET; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> ID=24 OD=30 T=17	9-09956-092-1	02	1	0107-
98	TUBE; NYLON L=1670 & 2430 OD=12	1-49015-811-0	AR	1	0107-
98	TUBE; NYLON L=1560 & 3010 OD=12	1-49015-812-0	AR	1	0107-
98	TUBE; NYLON L=1010 OD=12	1-49215-514-0	AR	1	0107-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0107-
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0107-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0107-
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0107-
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0107-
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0107-
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87410-083-0	AR	1	0107-
106	NUT; FLEX HOSE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M22	9-09111-422-0	04	1	0107-
106	NUT; FLEX HOSE LIGHT DUTY PACKAGE TRUCK<Y21> M22	9-09111-422-0	04	1	0107-
106	NUT; FLEX HOSE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M20	9-99111-420-0	02	1	0107-
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=20.2	9-09150-520-0	02	1	0107-
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=22.5	9-09150-522-0	04	1	0107-
107	WASHER; LK,FLEX HOSE LIGHT DUTY PACKAGE TRUCK<Y21> ID=22.5	9-09150-522-0	04	1	0107-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0107-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87410-097-0	AR	1	0107-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	0107-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	0107-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0107-
144	ADAPTER BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A),(B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0107-
144	ADAPTER BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0107-
144	ADAPTER LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0107-
144	ADAPTER EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0107-
144	ADAPTER LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0107-
159	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=11.8 & 7.5	1-09709-182-0	01	1	0107-
159	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=12 & 12	1-09709-280-1	01	1	0107-

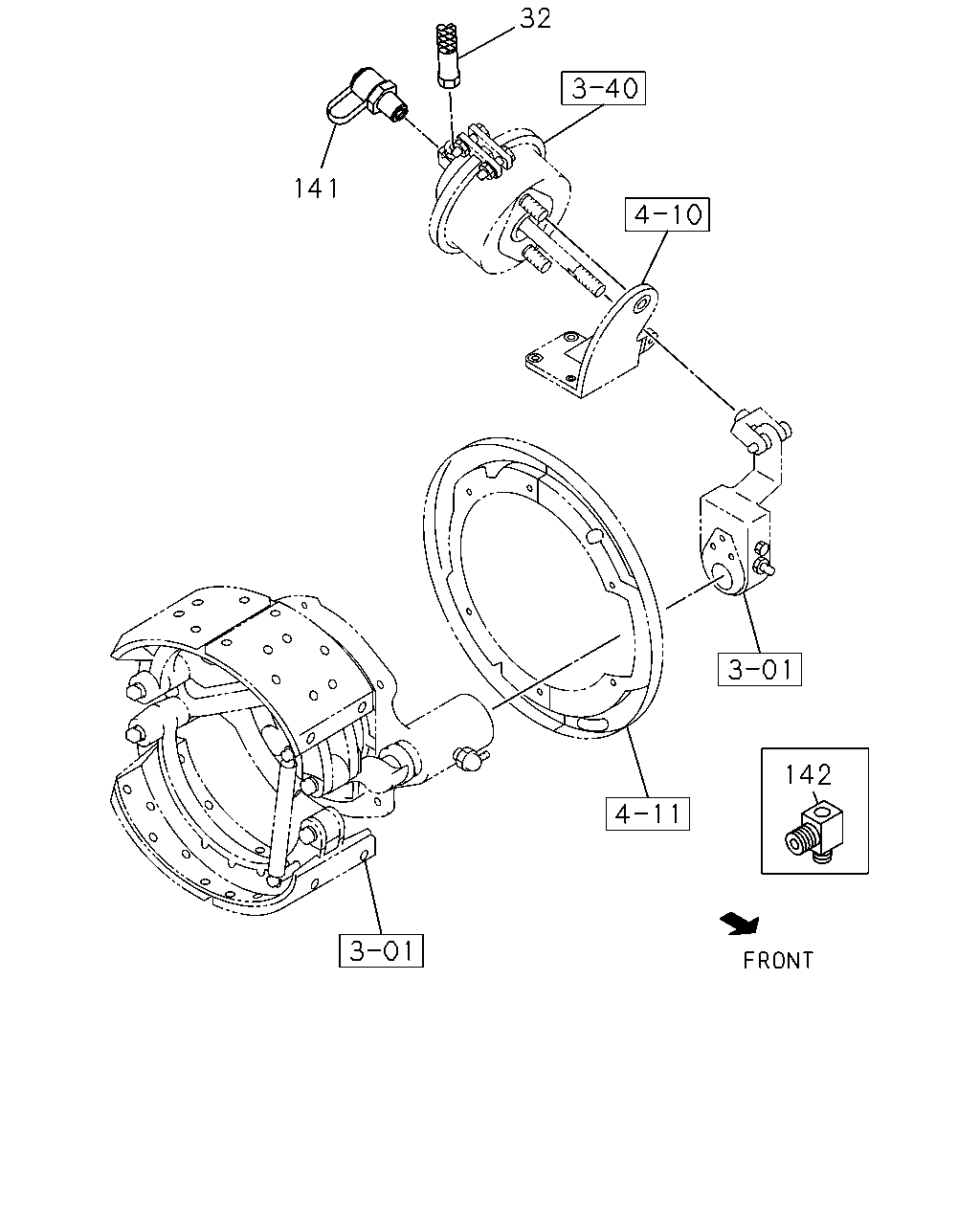

32 141 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	HOSE; FLEX,FRT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=580	0-07807-580-1	02	1	0107-
32	HOSE; FLEX,FRT LIGHT DUTY PACKAGE TRUCK<Y21> L=580	0-07807-580-1	02	1	0107-
32	HOSE; FLEX,FRT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=560	0-07817-560-1	02	1	0107-
32	HOSE; FLEX,FRT LIGHT DUTY PACKAGE TRUCK<Y21> L=560	0-07817-560-1	02	1	0107-
32	HOSE; FLEX,FRT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> L=500	0-07847-500-1	02	1	0107-
141	CONNECTOR; TEST BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0107-
141	CONNECTOR; TEST BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0107-
141	CONNECTOR; TEST DISC WHEEL AL<SDM> EXC. ANTILOCK BRAKE SYSTEM(BFA) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0107-
142	UNION; 3-WAY DISC WHEEL AL<SDM> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA)	1-09660-838-0	01	1	0107-
142	UNION; 3-WAY BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM>	1-09660-838-0	01	1	0107-

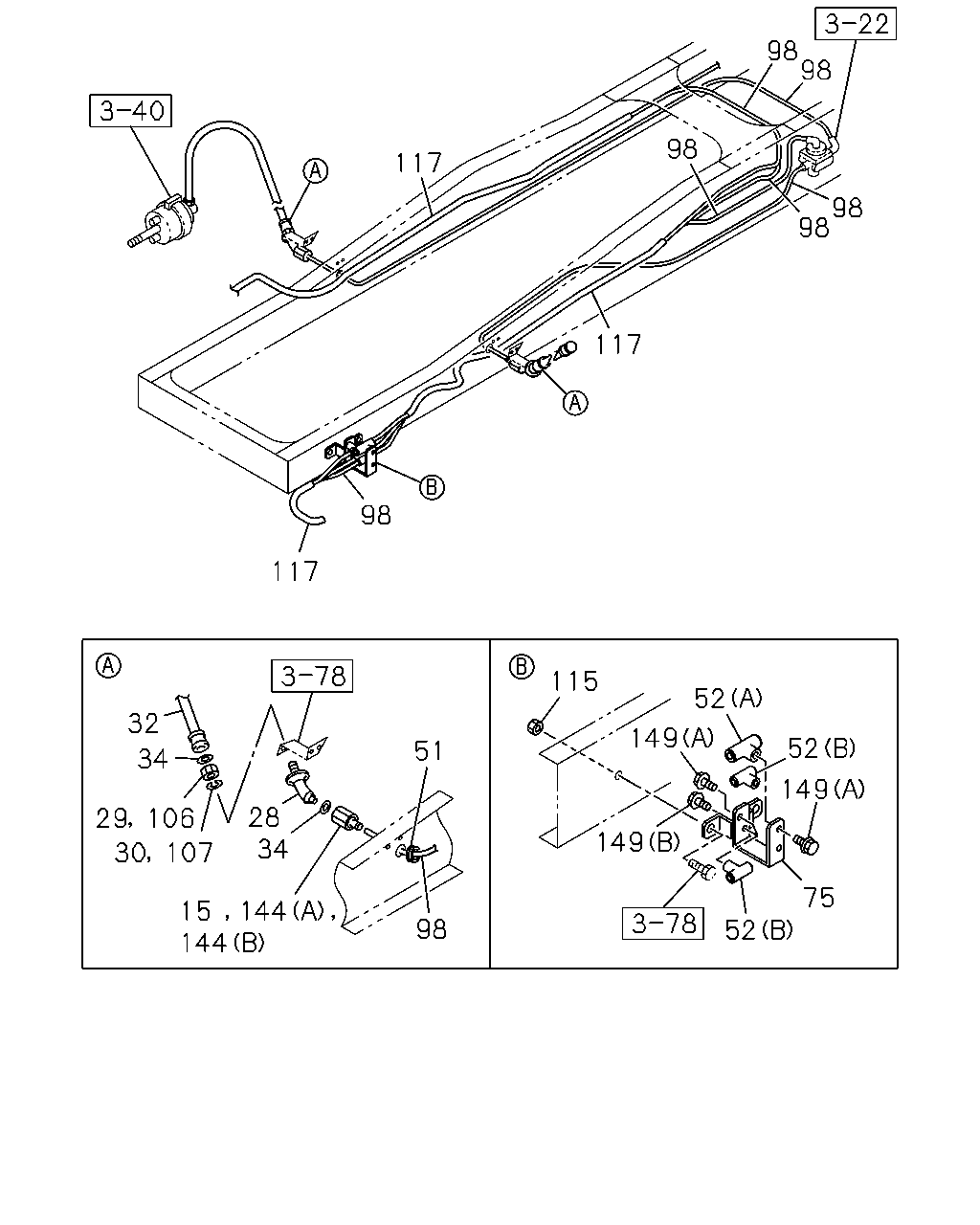

98 98 98 117 98 98 117 98 117 115 52 32 149 52 51 34 149 28 34 106 29 149 30 107 75 52 15 144 144 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CONNECTOR; AIR PIPE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0107-
15	CONNECTOR; AIR PIPE LIGHT DUTY PACKAGE TRUCK<Y21> DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0107-
15	CONNECTOR; AIR PIPE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0107-
28	NIPPLE; AIR PIPE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> M20	1-09654-199-2	02	1	0107-
29	NUT; NIPPLE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> M20	9-99111-420-0	02	1	0107-
30	WASHER; LK,NIPPLE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> ID=20.2	9-09150-520-0	02	1	0107-
32	HOSE; FLEX,FRT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=580	0-07807-580-1	02	1	0107-
32	HOSE; FLEX,FRT LIGHT DUTY PACKAGE TRUCK<Y21> L=580	0-07807-580-1	02	1	0107-
32	HOSE; FLEX,FRT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=560	0-07817-560-1	02	1	0107-
32	HOSE; FLEX,FRT LIGHT DUTY PACKAGE TRUCK<Y21> L=560	0-07817-560-1	02	1	0107-
32	HOSE; FLEX,FRT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> L=500	0-07847-500-1	02	1	0107-
34	GASKET; FLEX HOSE LIGHT DUTY PACKAGE TRUCK<Y21> ID=11 OD=18	9-09572-510-0	04	1	0107-
34	GASKET; FLEX HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=11 OD=18	9-09572-510-0	04	1	0107-
51	GROMMET; NYLON TUBE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=24 OD=30 T=17	9-09956-092-1	04	1	0107-
51	GROMMET; NYLON TUBE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> ID=28 OD=35 T=25	1-09332-011-1	02	1	0107-
51	GROMMET; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> ID=24 OD=30 T=17	9-09956-092-1	02	1	0107-
51	GROMMET; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> ID=24 OD=30 T=17	9-09956-092-1	02	1	0107-
52	CONNECTOR; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-09661-128-0	01	1	0107-
52	CONNECTOR; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	0107-
75	BRACKET; UNION TRAILER BRAKE HAND CONTROL<NLG> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-47478-163-2	01	1	0107-
98	TUBE; NYLON L=1670 & 2430 OD=12	1-49015-811-0	AR	1	0107-
98	TUBE; NYLON L=1560 & 3010 OD=12	1-49015-812-0	AR	1	0107-
98	TUBE; NYLON L=1010 OD=12	1-49215-514-0	AR	1	0107-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0107-
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0107-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0107-
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0107-
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0107-
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0107-
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87410-083-0	AR	1	0107-
106	NUT; FLEX HOSE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M22	9-09111-422-0	04	1	0107-
106	NUT; FLEX HOSE LIGHT DUTY PACKAGE TRUCK<Y21> M22	9-09111-422-0	04	1	0107-
106	NUT; FLEX HOSE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M20	9-99111-420-0	02	1	0107-
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=20.2	9-09150-520-0	02	1	0107-
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=22.5	9-09150-522-0	04	1	0107-
107	WASHER; LK,FLEX HOSE LIGHT DUTY PACKAGE TRUCK<Y21> ID=22.5	9-09150-522-0	04	1	0107-
115	NUT; TUBE UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M12 FLANGE	0-91150-212-0	02	1	0107-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0107-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87410-097-0	AR	1	0107-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	0107-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	0107-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0107-
144	ADAPTER BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A),(B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0107-
144	ADAPTER BRAKE SYSTEM SPRING BRAKE(BCR) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0107-
144	ADAPTER LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0107-
144	ADAPTER EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0107-
144	ADAPTER LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0107-
149	BOLT; UNION TRAILER BRAKE HAND CONTROL<NLG> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X16 FLANGE	0-28080-816-0	03	1	0107-
149	BOLT; UNION TRAILER BRAKE HAND CONTROL<NLG> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X20 FLANGE	0-28080-820-0	01	1	0107-
