◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10865 - EXD RHD FUEL TANK 400L/400L+200L ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#10715) — 231 parça

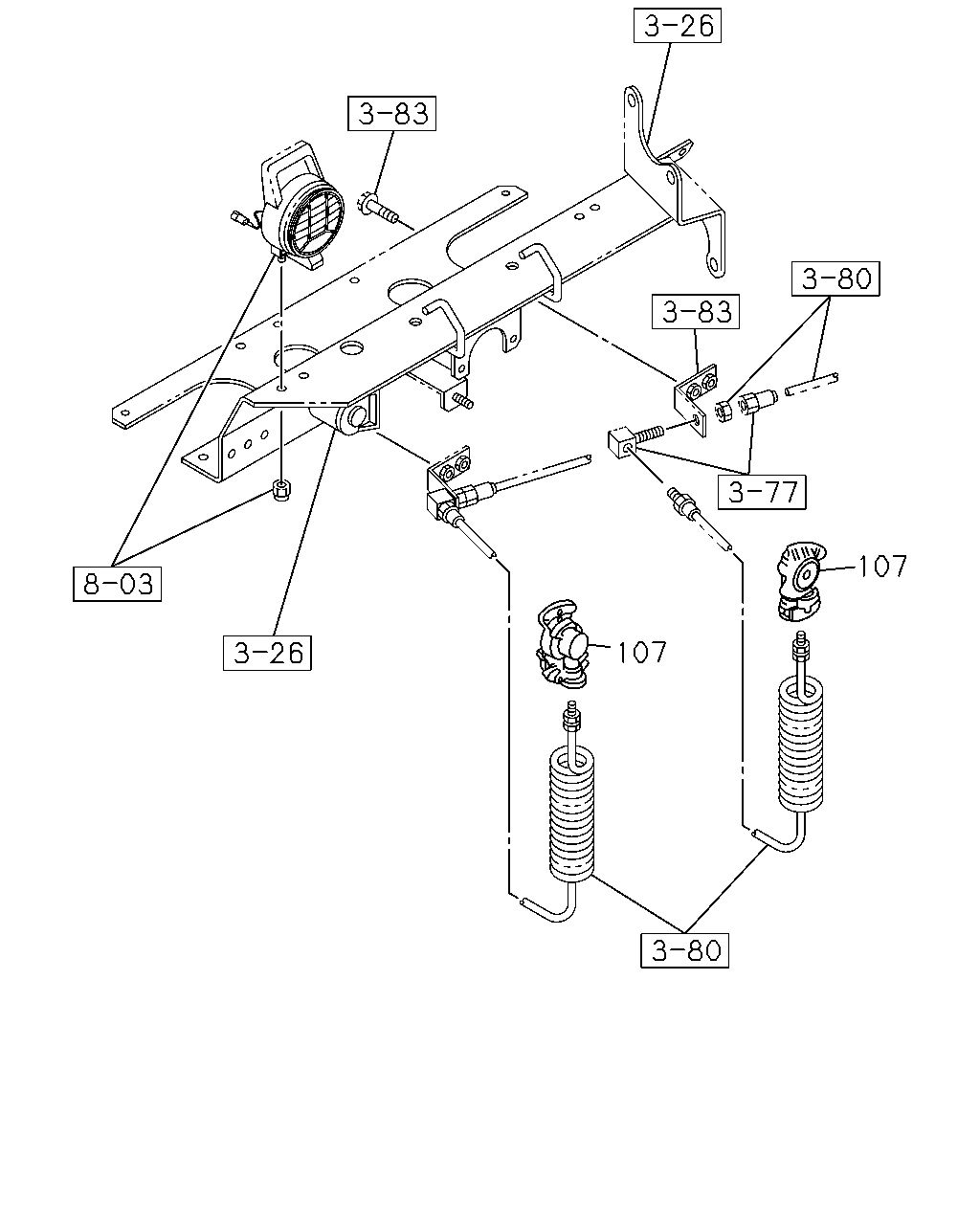

çizim 20724
107 107
BalonParca AdiParca NoAdetTipApplied Date
107 COUPLING; SERVICE
LIGHT DUTY PACKAGE TRUCK<Y21> EMERGENCY 		1-47478-210-0 01 1 0107-
107 COUPLING; SERVICE
LIGHT DUTY PACKAGE TRUCK<Y21> SERVICE 		1-47478-211-0 01 1 0107-

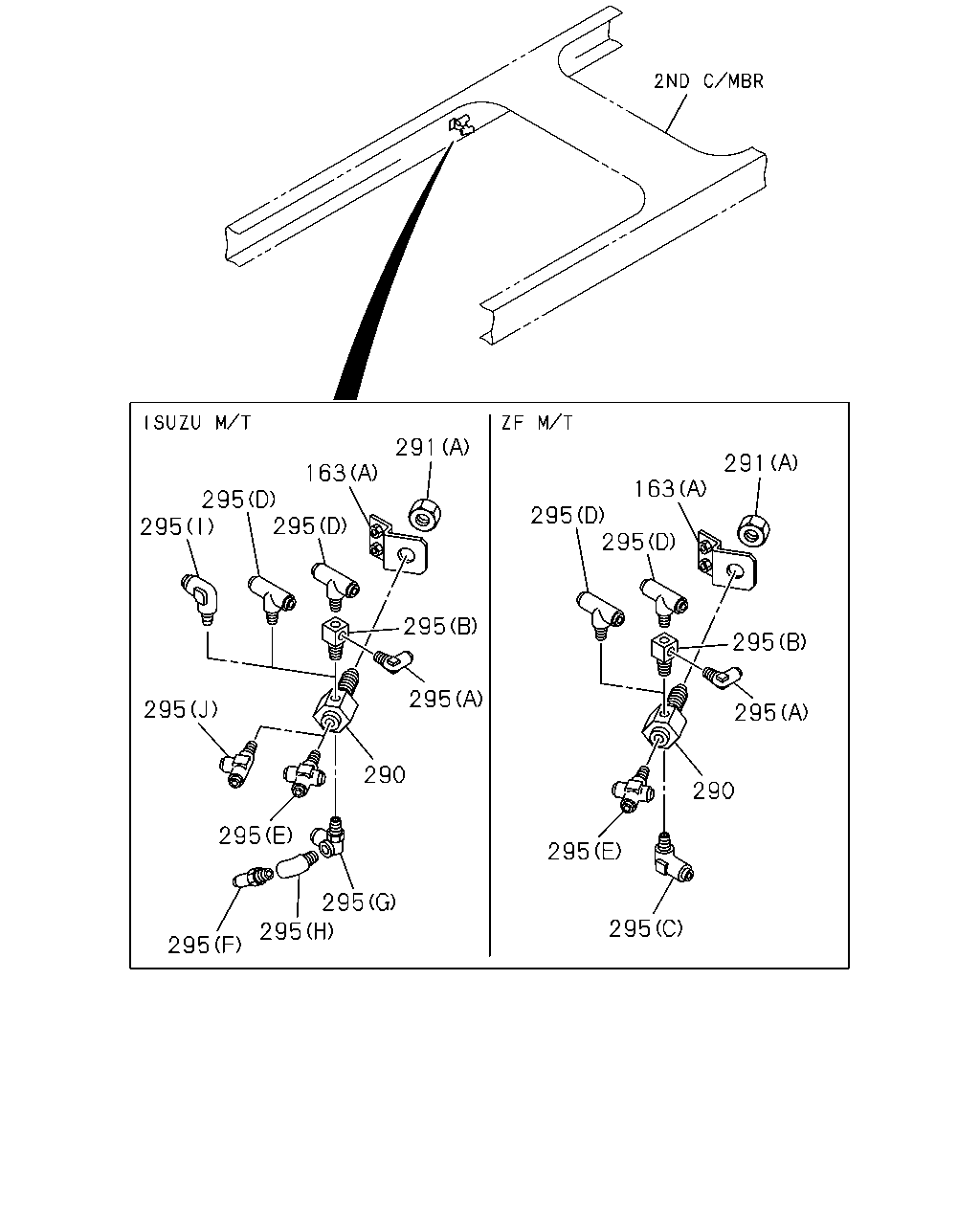

çizim 72540
291 291 163 163 295 295 295 295 295 295 295 295 295 295 290 290 295 295 295 295 295 295
BalonParca AdiParca NoAdetTipApplied Date
163 BRACKET; AIR PIPE
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) 		1-34656-009-0 01 1 0107-
163 BRACKET; AIR PIPE
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) 		1-47478-213-0 01 1 0107-
290 UNION; AIR PIPE
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> 		1-09661-064-0 01 1 0107-
291 NUT; UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M22 		9-09111-422-0 01 1 0107-
291 NUT; UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M12 		9-09840-280-0 02 1 0107-
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0107-
295 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (G) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (H) R1/4 & RC1/4 		1-09664-211-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (J) 		1-09661-073-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (I) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (E) 		1-09661-061-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (E) 		1-09661-061-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E) 		1-09661-061-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) PT3/8 3WAY 		1-09661-300-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-

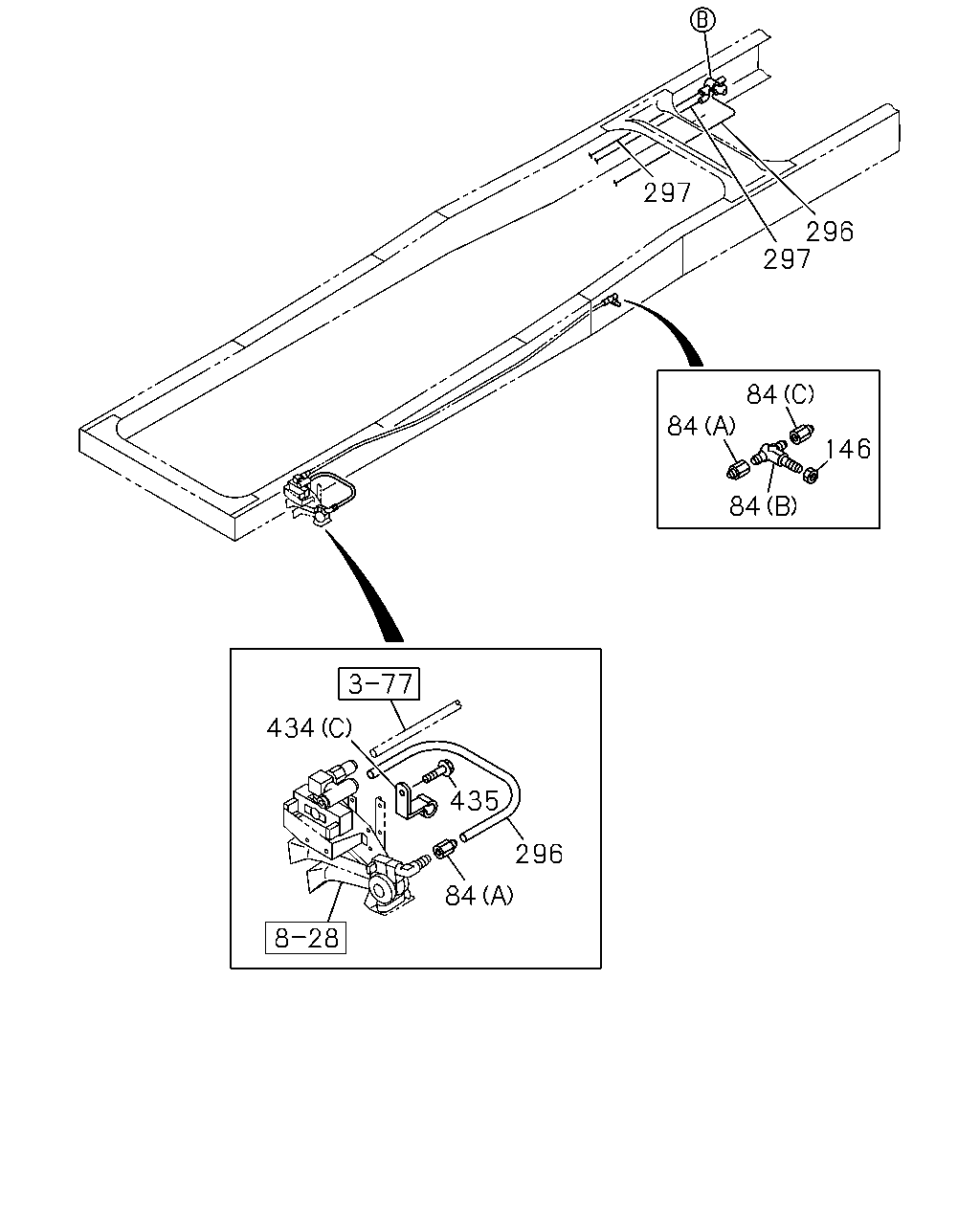

çizim 73067
297 296 297 84 84 146 84 435 296 84 434
BalonParca AdiParca NoAdetTipApplied Date
84 UNION; NYLON TUBE
LIGHT DUTY PACKAGE TRUCK<Y21> (B) M12 3WAY 		1-09654-137-2 01 1 0107-
84 UNION; NYLON TUBE
LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0107-
84 UNION; NYLON TUBE
LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0107-
84 UNION; NYLON TUBE
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0107-
146 NUT; UNION
LIGHT DUTY PACKAGE TRUCK<Y21> M12 FLANGE 		0-91150-212-0 01 1 0107-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 AR 1 0107-
296 TUBE; NYLON
L=224 OD=12 		1-49215-513-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0107-
297 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 0107-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0107-
434 CLIP
(C) ID=6 H=20 L=20 		1-09700-603-0 01 1 0107-
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 0107-
434 CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=24 L=27 		1-09700-809-0 06 1 0107-
434 CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=28 H=45 L=30 		1-09700-948-0 01 1 0107-
434 CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E) D=24 L=21 		1-09700-380-0 02 1 0107-
434 CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (F) L=250 		1-09707-126-0 01 1 0107-
435 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0107-
435 BOLT; CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> M8X16 FLANGE 		0-28080-816-0 05 1 0107-
435 BOLT; CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE 		0-28680-820-0 02 1 0107-
435 BOLT; CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE 		0-28680-825-0 01 1 0107-
435 BOLT; CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE 		0-28680-820-0 01 1 0107-

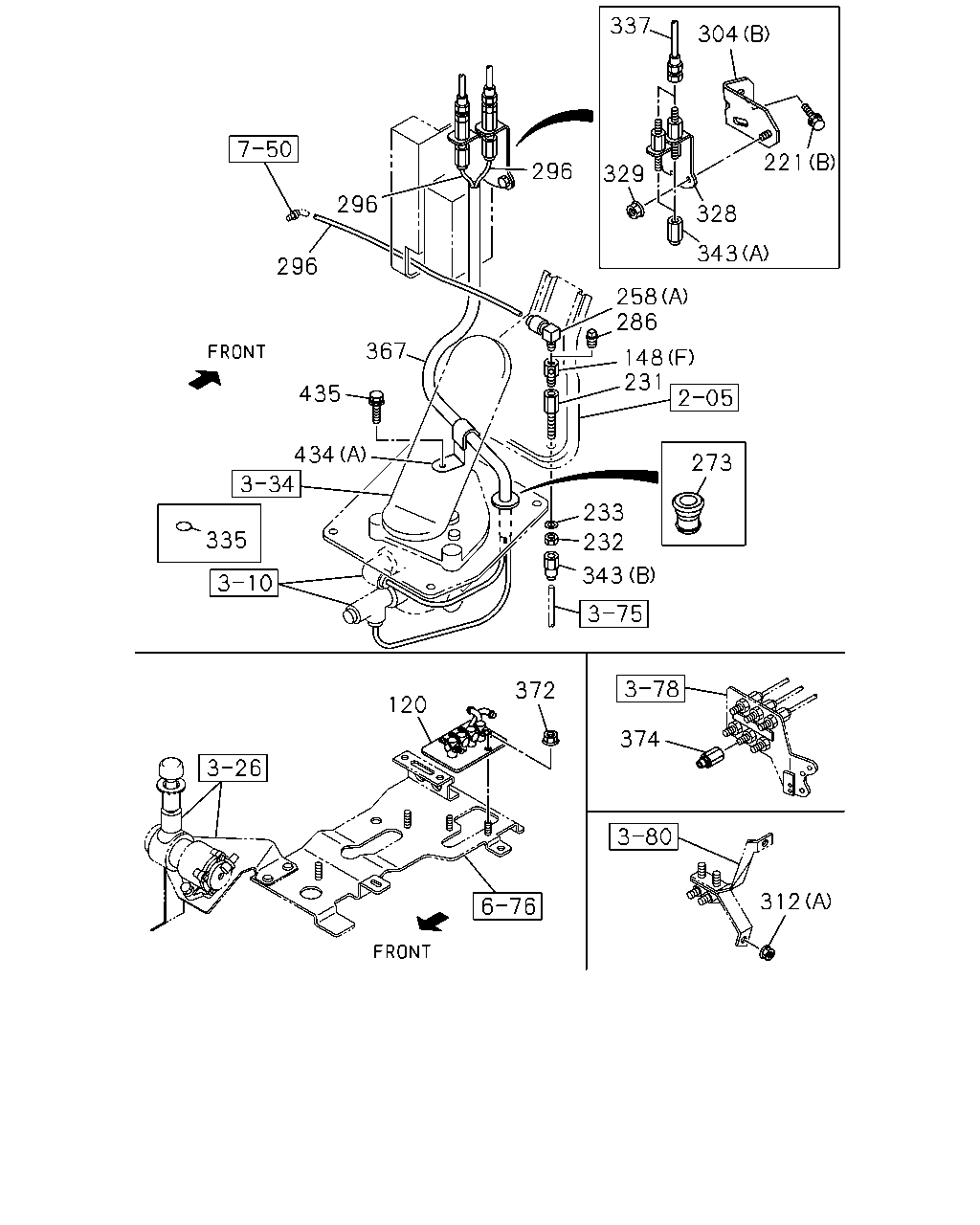

çizim 73608
337 304 221 296 329 296 328 343 296 258 286 367 148 231 435 434 273 233 335 232 343 372 120 374 312
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-604-0 01 1 0107-
148 CONNECTOR; UNION
LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-
148 CONNECTOR; UNION
LIGHT DUTY PACKAGE TRUCK<Y21> (B) 		1-09661-065-0 01 1 0107-
148 CONNECTOR; UNION
LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0107-
148 CONNECTOR; UNION
LIGHT DUTY PACKAGE TRUCK<Y21> (D) 		1-09661-073-0 01 1 0107-
148 CONNECTOR; UNION
LIGHT DUTY PACKAGE TRUCK<Y21> (E) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0107-
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (F) 		8-94338-417-0 01 1 0107-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
221 BOLT; BRKT
LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X30 FLANGE 		0-28680-830-0 02 1 0107-
221 BOLT; BRKT
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0107-
221 BOLT; BRKT
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) M8X35 FLANGE 		0-28680-835-0 01 1 0107-
231 UNION; AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0107-
231 UNION; AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0107-
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0107-
232 NUT; UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0107-
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0107-
233 WASHER; LK,UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0107-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (D) 		1-48319-059-0 01 1 0107-
273 GROMMET 1-09332-135-0 01 1 0107-
286 PLUG; AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 0107-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 AR 1 0107-
296 TUBE; NYLON
L=224 OD=12 		1-49215-513-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0107-
304 BRACKET; UNION
(B) 		1-71117-211-0 01 1 0107-
304 BRACKET; UNION
LIGHT DUTY PACKAGE TRUCK<Y21> (A) 		1-47478-828-0 01 1 0107-
304 BRACKET; UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) 		1-47477-045-0 01 1 0107-
312 NUT; UNION
(A) M8 		9-09110-408-0 01 1 0107-
312 NUT; UNION
LIGHT DUTY PACKAGE TRUCK<Y21> (B) M22 		9-09111-422-0 01 1 0107-
328 UNION; AIR PIPE 1-47470-442-0 01 1 0107-
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91150-106-0 01 1 0107-
335 SEAL; UNION
EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0107-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-07210-520-0 02 1 0107-
343 UNION; NYLON TUBE
(A) 		1-09660-796-1 02 1 0107-
343 UNION; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (B) 		1-09661-382-0 01 1 0107-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0107-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0107-
372 NUT
M8 FLANGE 		0-91150-108-0 02 1 0107-
374 CONNECTOR
LIGHT DUTY PACKAGE TRUCK<Y21> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0107-
434 CLIP
(C) ID=6 H=20 L=20 		1-09700-603-0 01 1 0107-
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 0107-
434 CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=24 L=27 		1-09700-809-0 06 1 0107-
434 CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=28 H=45 L=30 		1-09700-948-0 01 1 0107-
434 CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E) D=24 L=21 		1-09700-380-0 02 1 0107-
434 CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (F) L=250 		1-09707-126-0 01 1 0107-
435 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0107-
435 BOLT; CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> M8X16 FLANGE 		0-28080-816-0 05 1 0107-
435 BOLT; CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE 		0-28680-820-0 02 1 0107-
435 BOLT; CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE 		0-28680-825-0 01 1 0107-
435 BOLT; CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE 		0-28680-820-0 01 1 0107-

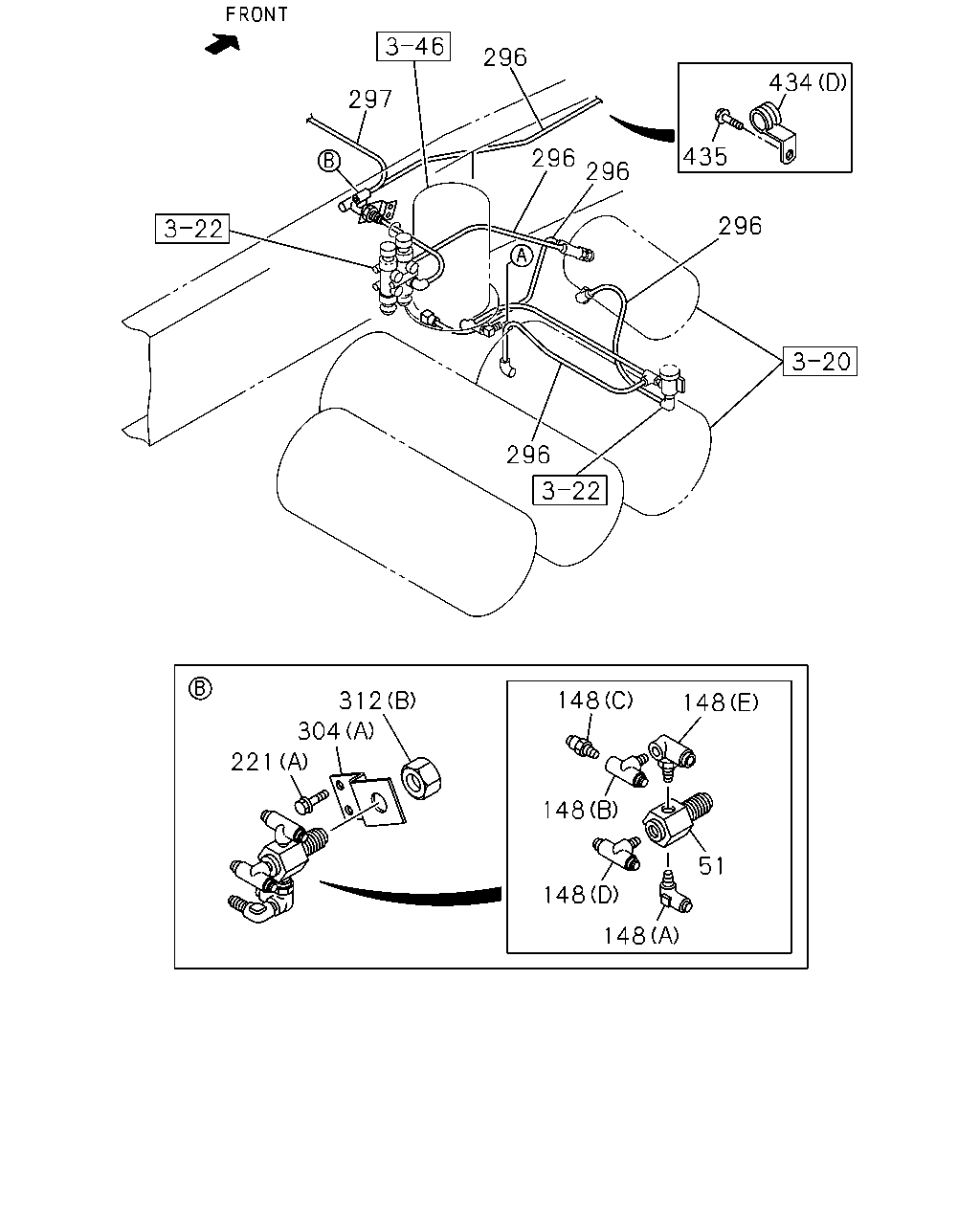

çizim 74509
296 434 297 435 296 296 296 296 148 312 148 304 221 148 51 148 148
BalonParca AdiParca NoAdetTipApplied Date
51 UNION
LIGHT DUTY PACKAGE TRUCK<Y21> 		1-09661-064-0 01 1 0107-
148 CONNECTOR; UNION
LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-
148 CONNECTOR; UNION
LIGHT DUTY PACKAGE TRUCK<Y21> (B) 		1-09661-065-0 01 1 0107-
148 CONNECTOR; UNION
LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0107-
148 CONNECTOR; UNION
LIGHT DUTY PACKAGE TRUCK<Y21> (D) 		1-09661-073-0 01 1 0107-
148 CONNECTOR; UNION
LIGHT DUTY PACKAGE TRUCK<Y21> (E) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0107-
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (F) 		8-94338-417-0 01 1 0107-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
221 BOLT; BRKT
LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X30 FLANGE 		0-28680-830-0 02 1 0107-
221 BOLT; BRKT
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0107-
221 BOLT; BRKT
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) M8X35 FLANGE 		0-28680-835-0 01 1 0107-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 AR 1 0107-
296 TUBE; NYLON
L=224 OD=12 		1-49215-513-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0107-
297 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 0107-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0107-
304 BRACKET; UNION
(B) 		1-71117-211-0 01 1 0107-
304 BRACKET; UNION
LIGHT DUTY PACKAGE TRUCK<Y21> (A) 		1-47478-828-0 01 1 0107-
304 BRACKET; UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) 		1-47477-045-0 01 1 0107-
312 NUT; UNION
(A) M8 		9-09110-408-0 01 1 0107-
312 NUT; UNION
LIGHT DUTY PACKAGE TRUCK<Y21> (B) M22 		9-09111-422-0 01 1 0107-
434 CLIP
(C) ID=6 H=20 L=20 		1-09700-603-0 01 1 0107-
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 0107-
434 CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=24 L=27 		1-09700-809-0 06 1 0107-
434 CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=28 H=45 L=30 		1-09700-948-0 01 1 0107-
434 CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E) D=24 L=21 		1-09700-380-0 02 1 0107-
434 CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (F) L=250 		1-09707-126-0 01 1 0107-
435 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0107-
435 BOLT; CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> M8X16 FLANGE 		0-28080-816-0 05 1 0107-
435 BOLT; CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE 		0-28680-820-0 02 1 0107-
435 BOLT; CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE 		0-28680-825-0 01 1 0107-
435 BOLT; CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE 		0-28680-820-0 01 1 0107-

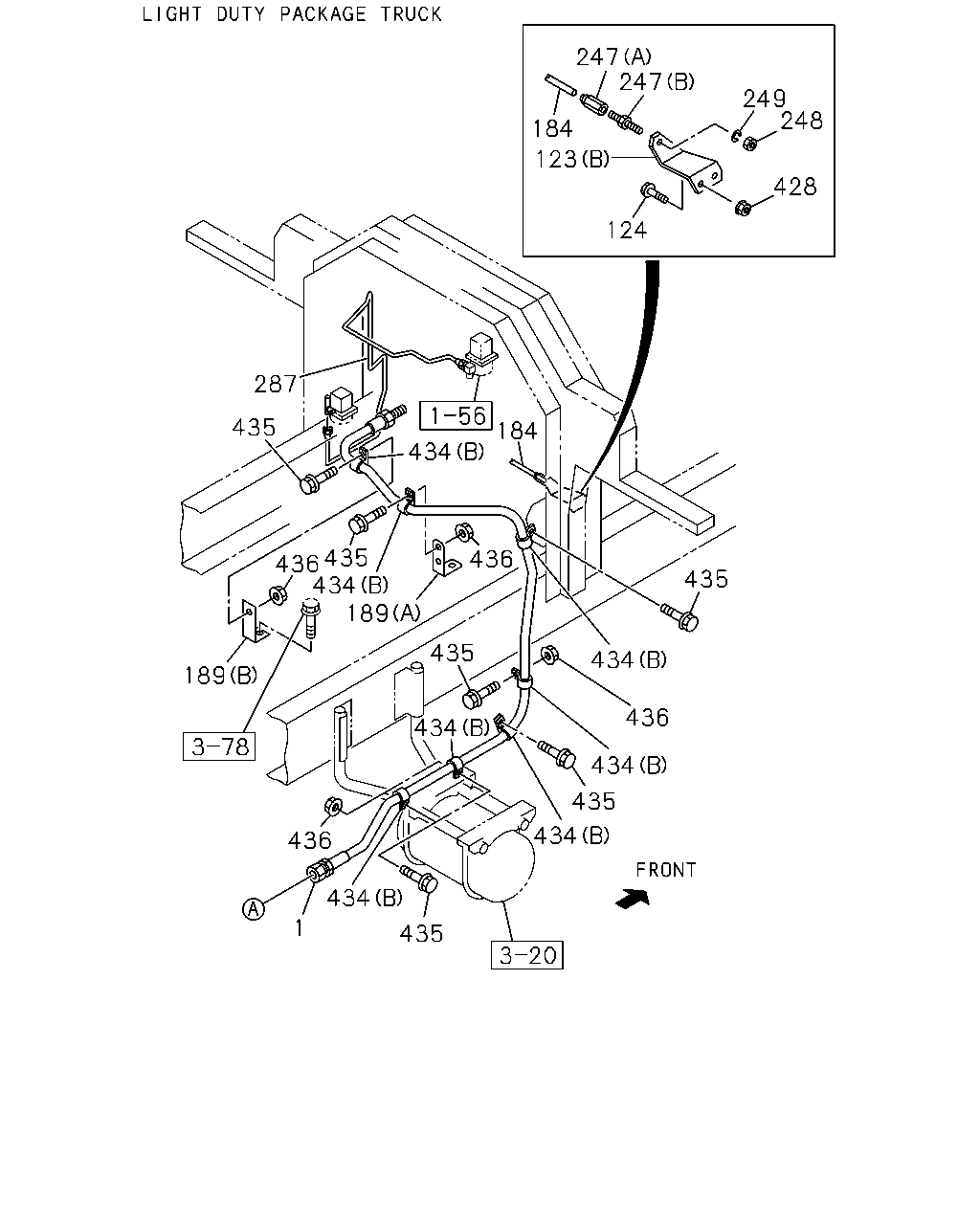

çizim 74510
247 247 249 248 184 123 428 124 287 435 184 434 435 436 434 189 436 435 435 434 189 436 434 434 435 434 436 434 1 435
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=1050 		1-09363-789-0 01 1 0107-
1 HOSE; FLEX,AIR TANK
LIGHT DUTY PACKAGE TRUCK<Y21> 		1-09363-857-0 01 1 0107-
123 BRACKET; UNION
LIGHT DUTY PACKAGE TRUCK<Y21> (B) 		1-47478-958-0 01 1 0107-
123 BRACKET; UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) 		1-47477-045-0 01 1 0107-
124 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0107-
184 HOSE; FLEX,AIR GOV
LIGHT DUTY PACKAGE TRUCK<Y21> L=820 		1-09363-690-0 01 1 0107-
184 HOSE; FLEX,AIR GOV
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=800 		1-09363-652-0 01 1 0107-
189 BRACKET; FLEX HOSE
LIGHT DUTY PACKAGE TRUCK<Y21> (A) 		1-47477-337-1 01 1 0107-
189 BRACKET; FLEX HOSE
LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=75 		1-47478-328-0 01 1 0107-
247 UNION; AIR PIPE
LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0107-
247 UNION; AIR PIPE
LIGHT DUTY PACKAGE TRUCK<Y21> (B) M12 L=66.5 		9-09223-306-1 01 1 0107-
247 UNION; AIR PIPE
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) M12 ELBOW 		9-09225-206-1 01 1 0107-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0107-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0107-
287 PIPE; AIR,MAG VLV
LIGHT DUTY PACKAGE TRUCK<Y21> 		1-49119-047-0 01 1 0107-
428 NUT; BRKT
LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE 		0-91150-208-0 02 1 0107-
428 NUT; BRKT
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE 		0-91150-108-0 02 1 0107-
434 CLIP
(C) ID=6 H=20 L=20 		1-09700-603-0 01 1 0107-
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 0107-
434 CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=24 L=27 		1-09700-809-0 06 1 0107-
434 CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=28 H=45 L=30 		1-09700-948-0 01 1 0107-
434 CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E) D=24 L=21 		1-09700-380-0 02 1 0107-
434 CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (F) L=250 		1-09707-126-0 01 1 0107-
435 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0107-
435 BOLT; CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> M8X16 FLANGE 		0-28080-816-0 05 1 0107-
435 BOLT; CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE 		0-28680-820-0 02 1 0107-
435 BOLT; CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE 		0-28680-825-0 01 1 0107-
435 BOLT; CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE 		0-28680-820-0 01 1 0107-
436 NUT; CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE 		0-91150-108-0 06 1 0107-
436 NUT; CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE 		0-91150-108-0 02 1 0107-
436 NUT; CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE 		0-91150-108-0 01 1 0107-

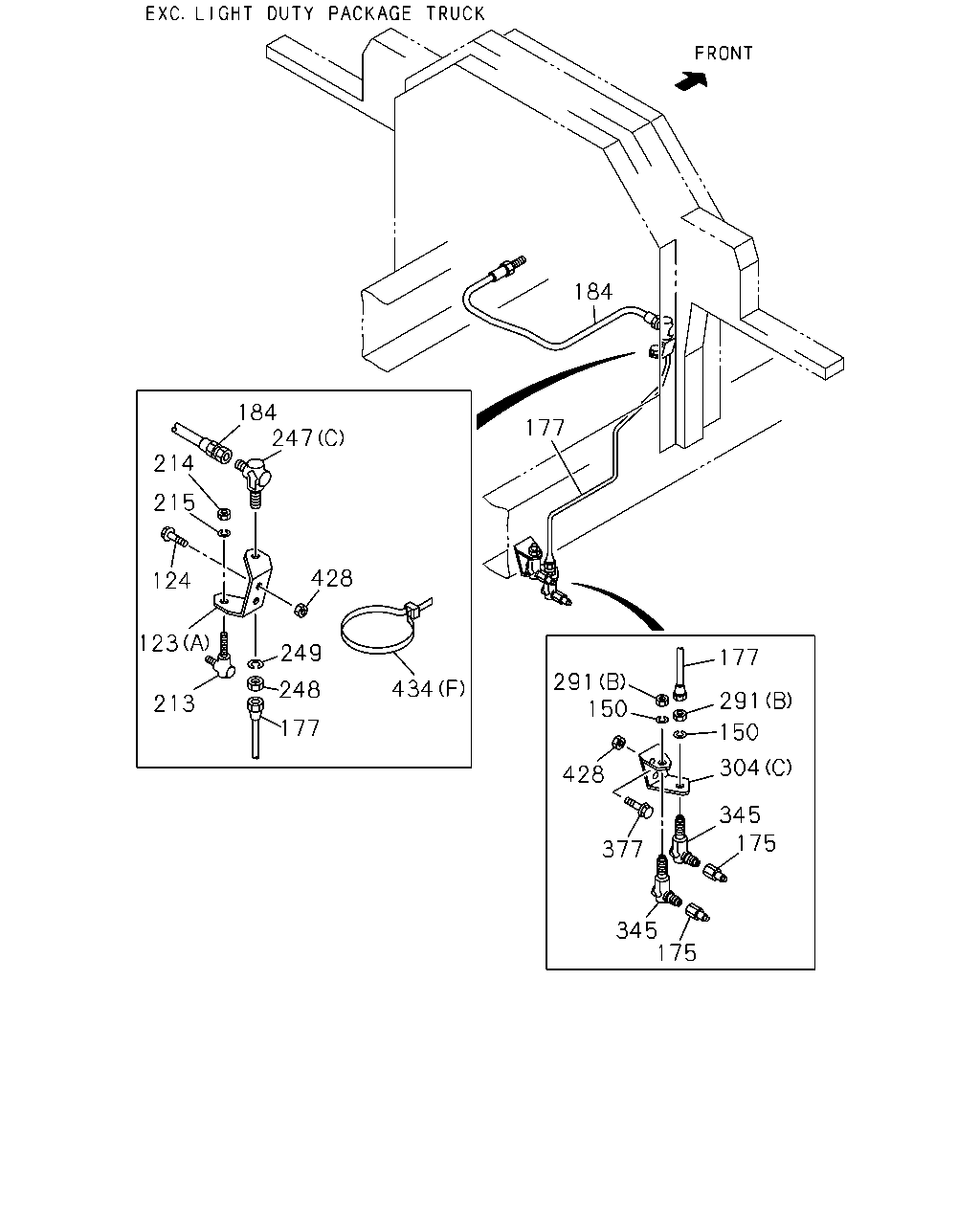

çizim 74821
184 184 247 177 214 215 428 124 123 249 177 291 150 434 248 291 213 177 150 304 428 345 175 377 345 175
BalonParca AdiParca NoAdetTipApplied Date
123 BRACKET; UNION
LIGHT DUTY PACKAGE TRUCK<Y21> (B) 		1-47478-958-0 01 1 0107-
123 BRACKET; UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) 		1-47477-045-0 01 1 0107-
124 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0107-
150 WASHER; LK,UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=12.2 		9-09150-512-0 02 1 0107-
175 CONNECTOR; AIR PIPE
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0107-
177 PIPE; AIR,UNION TO UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=687 SERVICED BY L=700 		1-47428-811-0 01 1 0107-
184 HOSE; FLEX,AIR GOV
LIGHT DUTY PACKAGE TRUCK<Y21> L=820 		1-09363-690-0 01 1 0107-
184 HOSE; FLEX,AIR GOV
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=800 		1-09363-652-0 01 1 0107-
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M12 3WAY 		9-09228-906-1 01 1 0107-
213 UNION; AIR PIPE
EXC. FULL FLOATING CAB(W16),LIGHT DUTY PACKAGE TRUCK<Y21> M12 ELBOW 		9-09225-206-1 01 1 0107-
214 NUT; UNION,AIR PIPE
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M12 		9-09840-280-0 01 1 0107-
215 WASHER; LK,UNION,AIR PIPE
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=12.2 		9-09150-512-0 01 1 0107-
247 UNION; AIR PIPE
LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0107-
247 UNION; AIR PIPE
LIGHT DUTY PACKAGE TRUCK<Y21> (B) M12 L=66.5 		9-09223-306-1 01 1 0107-
247 UNION; AIR PIPE
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) M12 ELBOW 		9-09225-206-1 01 1 0107-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0107-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0107-
291 NUT; UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M22 		9-09111-422-0 01 1 0107-
291 NUT; UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M12 		9-09840-280-0 02 1 0107-
304 BRACKET; UNION
(B) 		1-71117-211-0 01 1 0107-
304 BRACKET; UNION
LIGHT DUTY PACKAGE TRUCK<Y21> (A) 		1-47478-828-0 01 1 0107-
304 BRACKET; UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) 		1-47477-045-0 01 1 0107-
345 UNION; AIR PIPE
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M12 ELBOW 		9-09225-206-1 02 1 0107-
377 BOLT; BRKT FIX
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X35 FLANGE 		0-28680-835-0 02 1 0107-
428 NUT; BRKT
LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE 		0-91150-208-0 02 1 0107-
428 NUT; BRKT
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE 		0-91150-108-0 02 1 0107-
434 CLIP
(C) ID=6 H=20 L=20 		1-09700-603-0 01 1 0107-
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 0107-
434 CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=24 L=27 		1-09700-809-0 06 1 0107-
434 CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=28 H=45 L=30 		1-09700-948-0 01 1 0107-
434 CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E) D=24 L=21 		1-09700-380-0 02 1 0107-
434 CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (F) L=250 		1-09707-126-0 01 1 0107-

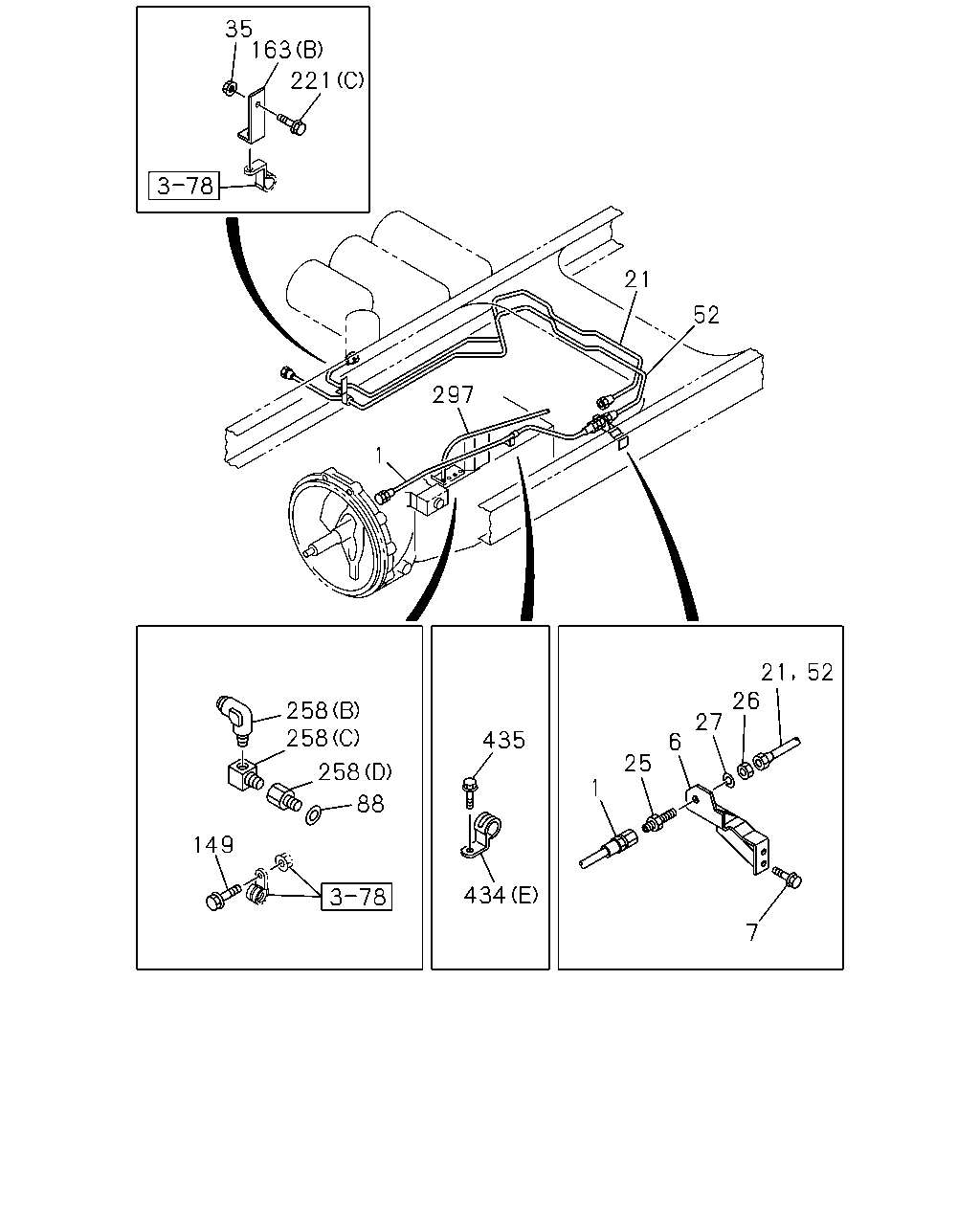

çizim 75040
35 163 221 21 52 297 1 21 26 27 52 258 258 435 6 25 258 1 88 149 434 7
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=1050 		1-09363-789-0 01 1 0107-
1 HOSE; FLEX,AIR TANK
LIGHT DUTY PACKAGE TRUCK<Y21> 		1-09363-857-0 01 1 0107-
6 BRACKET; FLEX HOSE,AIR TANK
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> 		1-47478-719-1 01 1 0107-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE 		0-28680-830-0 02 1 0107-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> 		1-49123-185-0 01 1 0107-
25 VALVE; CHECK
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> 		1-48320-042-1 01 1 0107-
26 NUT; CHECK VLV
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M22 		9-09111-422-0 01 1 0107-
27 WASHER; LK,CHECK VLV
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=22.5 		9-09150-522-0 01 1 0107-
35 NUT; BRKT
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE 		0-91150-108-0 01 1 0107-
52 PIPE; AIR,UNION TO AIR TANK
EXC. AIR DRYER<PS7>,LIGHT DUTY PACKAGE TRUCK<Y21> 		1-49123-186-0 01 1 0107-
88 GASKET; NYLON TUBE
MJD7S M/T(Y2Y) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0107-
149 BOLT; TUBE CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE 		0-28680-825-0 01 1 0107-
163 BRACKET; AIR PIPE
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) 		1-34656-009-0 01 1 0107-
163 BRACKET; AIR PIPE
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) 		1-47478-213-0 01 1 0107-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
221 BOLT; BRKT
LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X30 FLANGE 		0-28680-830-0 02 1 0107-
221 BOLT; BRKT
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0107-
221 BOLT; BRKT
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) M8X35 FLANGE 		0-28680-835-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0107-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (D) 		1-48319-059-0 01 1 0107-
297 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 0107-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0107-
434 CLIP
(C) ID=6 H=20 L=20 		1-09700-603-0 01 1 0107-
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 0107-
434 CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=24 L=27 		1-09700-809-0 06 1 0107-
434 CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> (D) ID=28 H=45 L=30 		1-09700-948-0 01 1 0107-
434 CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E) D=24 L=21 		1-09700-380-0 02 1 0107-
434 CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (F) L=250 		1-09707-126-0 01 1 0107-
435 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0107-
435 BOLT; CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> M8X16 FLANGE 		0-28080-816-0 05 1 0107-
435 BOLT; CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE 		0-28680-820-0 02 1 0107-
435 BOLT; CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE 		0-28680-825-0 01 1 0107-
435 BOLT; CLIP
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE 		0-28680-820-0 01 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
