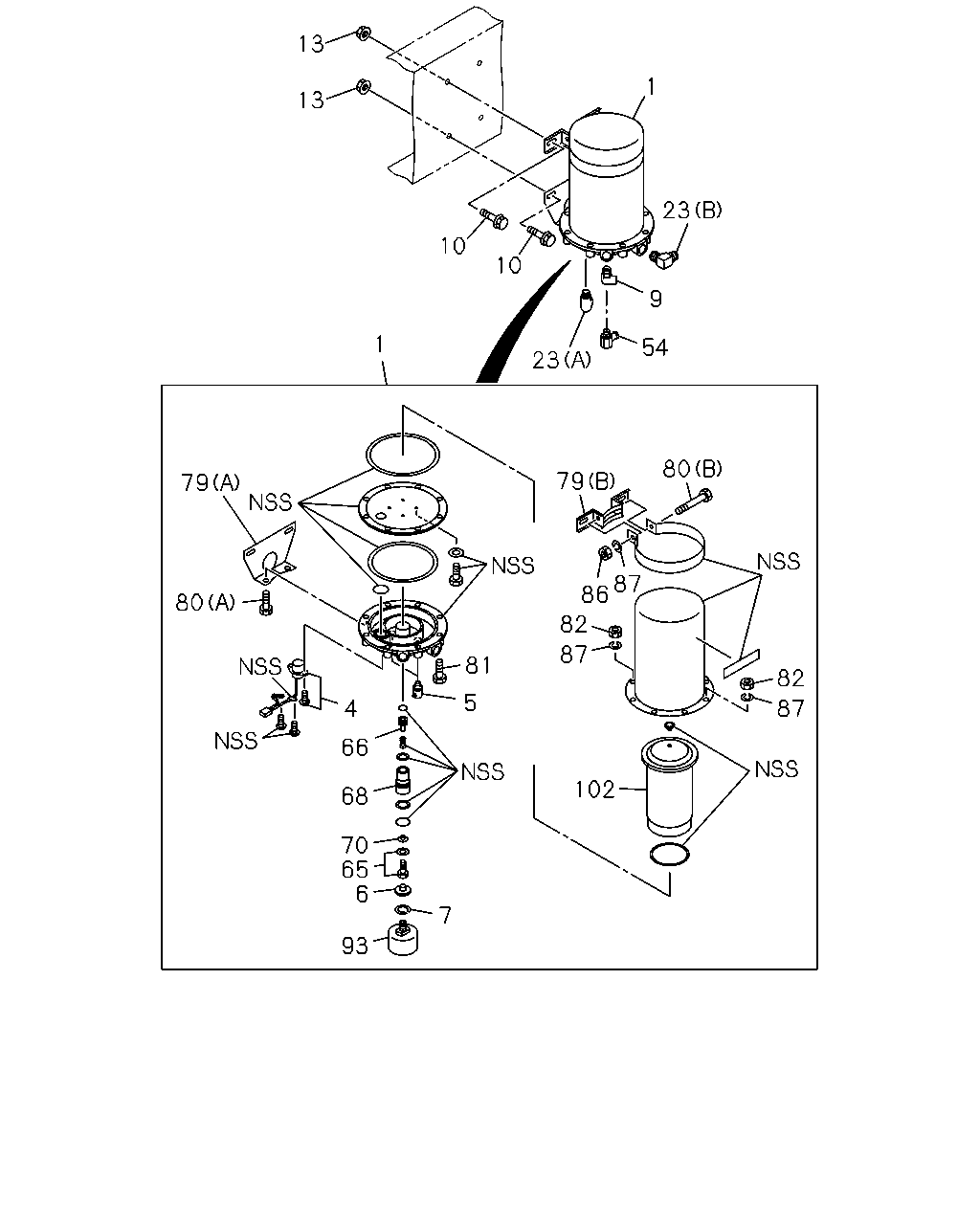

3-46 — AIR DRYER (#10713) — 64 parça

13 1 13 23 10 10 9 1 54 23 80 79 79 87 86 80 82 87 81 82 5 87 4 66 102 68 70 65 6 7 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48190-216-0	01	1	0107-
1	DRYER; AIR LIGHT DUTY PACKAGE TRUCK<Y21>	1-48190-290-0	01	1	0107-
4	THERMOSTAT KIT; AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21>	1-85576-216-0	01	1	0107-
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-85576-216-0	01	1	0107-
5	HEATER ASM; AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-085-0	02	1	0107-
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-085-0	02	1	0107-
6	COVER; EXH,AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-419-0	01	1	0107-
6	COVER; EXH,AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-419-0	01	1	0107-
7	RING; SNAP,AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-154-0	01	1	0107-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-154-0	01	1	0107-
9	CONNECTOR; PIPE,AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21> DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0107-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0107-
10	BOLT; AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M10X35 FLANGE	0-28681-035-0	04	1	0107-
10	BOLT; AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21> M10X30 FLANGE	0-28681-030-0	04	1	0107-
13	NUT; AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21> M10 FLANGE	0-91150-210-0	04	1	0107-
13	NUT; AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M10 FLANGE	0-91150-210-0	04	1	0107-
23	CONNECTOR; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0107-
23	CONNECTOR; AIR TANK AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0107-
23	CONNECTOR; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0107-
23	CONNECTOR; AIR TANK AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0107-
54	CONNECTOR AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	8-94241-962-0	01	1	0107-
65	BOLT; PURGE VLV LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-393-0	01	1	0107-
65	BOLT; PURGE VLV AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-393-0	01	1	0107-
66	PISTON; AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-198-0	01	1	0107-
66	PISTON; AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-198-0	01	1	0107-
68	BODY; VALVE LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-439-0	01	1	0107-
68	BODY; VALVE AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-439-0	01	1	0107-
70	VALVE; AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-105-0	01	1	0107-
70	VALVE; AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-105-0	01	1	0107-
79	BRACKET; AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-48199-336-0	01	1	0107-
79	BRACKET; AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-48199-336-0	01	1	0107-
79	BRACKET; AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48199-354-0	01	1	0107-
79	BRACKET; AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48199-354-0	01	1	0107-
80	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48199-335-0	01	1	0107-
80	BOLT; BRKT AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48199-335-0	01	1	0107-
80	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-48199-338-0	02	1	0107-
80	BOLT; BRKT AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-48199-338-0	02	1	0107-
81	BOLT; CASE,AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-341-0	06	1	0107-
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-341-0	06	1	0107-
82	NUT; CASE,AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-421-0	08	1	0107-
82	NUT; CASE,AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-421-0	08	1	0107-
86	NUT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-333-0	01	1	0107-
86	NUT; BRKT AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-333-0	01	1	0107-
87	WASHER; LK,BRKT LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-334-0	09	1	0107-
87	WASHER; LK,BRKT AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-334-0	09	1	0107-
93	SILENCER; AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-462-0	01	1	0107-
102	CARTRIDGE; AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-347-0	01	1	0107-
102	CARTRIDGE; AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-347-0	01	1	0107-

2 70 4 3 66 68 70 65 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21>	1-85576-140-0	01	1	0107-
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-85576-140-0	01	1	0107-
3	PISTON KIT; AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21>	1-85576-139-0	01	1	0107-
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-85576-139-0	01	1	0107-
4	THERMOSTAT KIT; AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21>	1-85576-216-0	01	1	0107-
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-85576-216-0	01	1	0107-
6	COVER; EXH,AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-419-0	01	1	0107-
6	COVER; EXH,AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-419-0	01	1	0107-
65	BOLT; PURGE VLV LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-393-0	01	1	0107-
65	BOLT; PURGE VLV AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-393-0	01	1	0107-
66	PISTON; AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-198-0	01	1	0107-
66	PISTON; AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-198-0	01	1	0107-
68	BODY; VALVE LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-439-0	01	1	0107-
68	BODY; VALVE AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-439-0	01	1	0107-
70	VALVE; AIR DRYER LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-105-0	01	1	0107-
70	VALVE; AIR DRYER AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48199-105-0	01	1	0107-
