◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10865 - EXD RHD FUEL TANK 400L/400L+200L ▶ 3 - Brakes, Brake System ▶ 3-40 - FRONT BRAKE POWER CHAMBER ▶

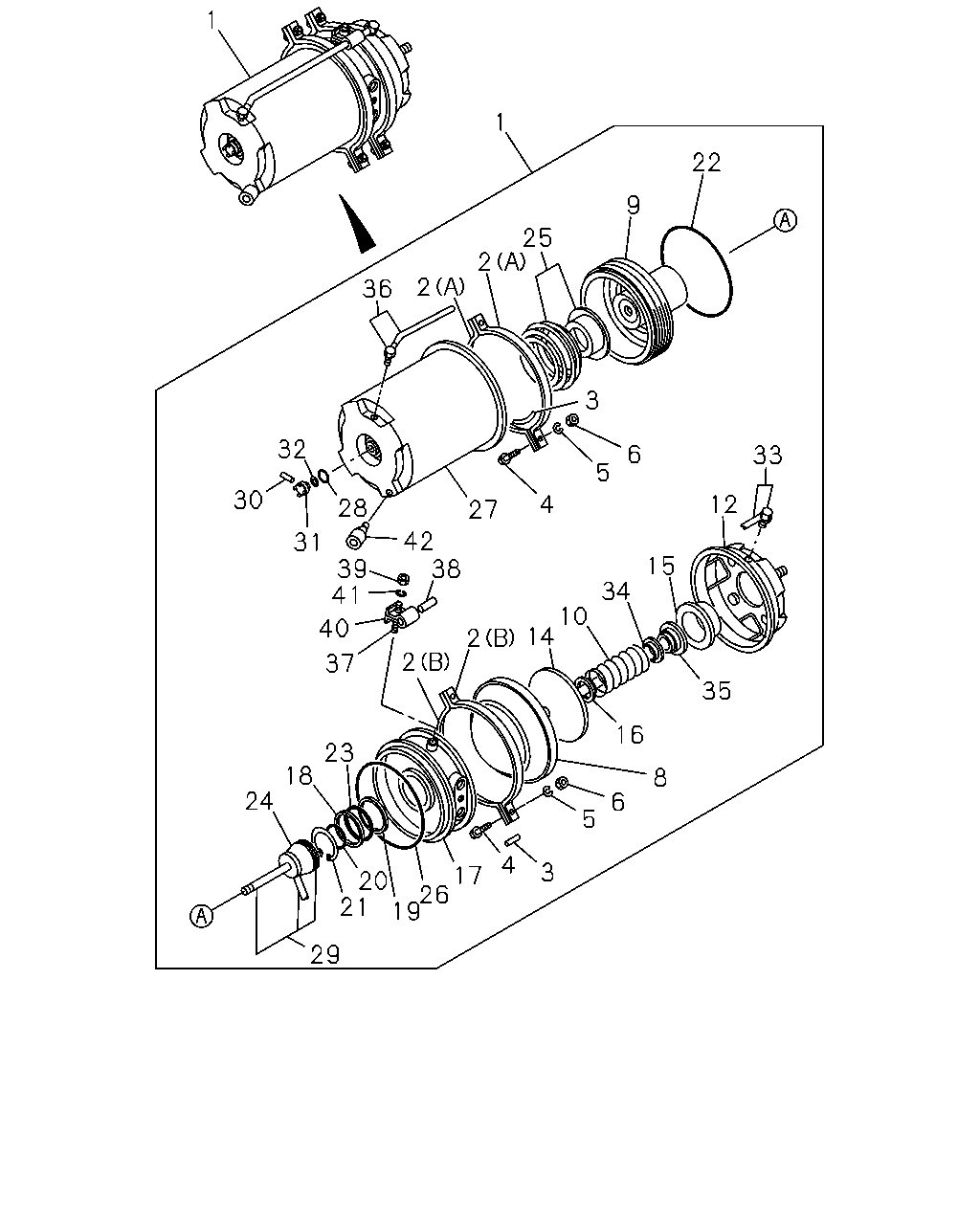

3-40 — FRONT BRAKE POWER CHAMBER (#10710) — 144 parça

1 1 22 9 25 2 2 36 3 32 6 33 5 30 12 4 28 27 42 38 31 39 41 15 34 10 14 40 2 2 37 35 16 23 18 8 24 6 5 4 3 17 20 26 21 19 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; POWER,FRT BRK BRAKE SYSTEM SPRING BRAKE(BCR)	1-48250-523-1	01	1	0107-
1	CHAMBER ASM; POWER,FRT BRK BRAKE SYSTEM SPRING BRAKE(BCR)	1-48250-522-1	01	1	0107-
1	CHAMBER ASM; POWER,FRT BRK EXC. BRAKE SYSTEM SPRING BRAKE(BCR),DISC WHEEL AL<SDM>,BRAKE REGULATION ECE<TDV>	1-48250-338-0	02	1	0107-
1	CHAMBER ASM; POWER,FRT BRK DISC WHEEL AL<SDM> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA)	1-48250-338-0	01	1	0107-
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM>	1-48250-338-0	01	1	0107-
1	CHAMBER ASM; POWER,FRT BRK DISC WHEEL AL<SDM> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA)	1-48250-524-0	01	1	0107-
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM>	1-48250-524-0	01	1	0107-
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48259-016-0	02	1	0107-
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48259-016-0	02	1	0107-
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-48259-031-0	02	1	0107-
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-48259-031-0	02	1	0107-
2	RING; CLAMP,SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (C)	1-48259-001-0	02	1	0107-
3	RETAINER; DIAPH BRAKE SYSTEM SPRING BRAKE(BCR)	1-48250-044-0	02	1	0107-
3	RETAINER; DIAPH BRAKE SYSTEM SPRING BRAKE(BCR)	1-48250-044-0	02	1	0107-
3	RETAINER; DIAPH EXC. BRAKE SYSTEM SPRING BRAKE(BCR),DISC WHEEL AL<SDM>,BRAKE REGULATION ECE<TDV>	9-48259-016-0	04	1	0107-
3	RETAINER; DIAPH DISC WHEEL AL<SDM> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA)	9-48259-016-0	03	1	0107-
3	RETAINER; DIAPH BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM>	9-48259-016-0	03	1	0107-
4	BOLT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-092-0	04	1	0107-
4	BOLT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-092-0	04	1	0107-
4	BOLT; CLAMP RING EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-002-0	04	1	0107-
5	WASHER; LK,CLAMP RING ID=10.2	9-09150-510-0	04	1	0107-
6	NUT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	9-83315-080-0	04	1	0107-
6	NUT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	9-83315-080-0	04	1	0107-
6	NUT; CLAMP RING EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M10	9-09110-010-0	04	1	0107-
8	DIAPHRAGM; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48258-011-0	01	1	0107-
8	DIAPHRAGM; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48258-011-0	01	1	0107-
8	DIAPHRAGM; SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48252-006-0	02	1	0107-
9	PISTON; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48262-005-0	01	1	0107-
9	PISTON; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48262-005-0	01	1	0107-
9	PISTON; SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48253-001-0	02	1	0107-
10	SPRING; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48255-003-0	01	1	0107-
10	SPRING; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48255-003-0	01	1	0107-
10	SPRING; PISTON,SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48255-001-0	02	1	0107-
12	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-243-0	01	1	0107-
12	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-242-0	01	1	0107-
12	COVER ASM; LWR,SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR),DISC WHEEL AL<SDM>,BRAKE REGULATION ECE<TDV>	1-48251-019-0	02	1	0107-
12	COVER ASM; LWR,SPR CHAMBER DISC WHEEL AL<SDM> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA)	1-48251-019-0	01	1	0107-
12	COVER ASM; LWR,SPR CHAMBER BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM>	1-48251-019-0	01	1	0107-
12	COVER ASM; LWR,SPR CHAMBER DISC WHEEL AL<SDM> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA)	1-48251-018-0	01	1	0107-
12	COVER ASM; LWR,SPR CHAMBER BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM>	1-48251-018-0	01	1	0107-
14	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48253-045-0	01	1	0107-
14	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48253-045-0	01	1	0107-
15	RETAINER; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-043-0	01	1	0107-
15	RETAINER; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-043-0	01	1	0107-
16	RETAINER; SPRING,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-033-0	01	1	0107-
16	RETAINER; SPRING,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-033-0	01	1	0107-
17	PLATE; PRESS,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-088-0	01	1	0107-
17	PLATE; PRESS,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-087-0	01	1	0107-
18	RING; BACKUP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-019-0	01	1	0107-
18	RING; BACKUP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-019-0	01	1	0107-
19	BEARING; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-020-0	01	1	0107-
19	BEARING; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-020-0	01	1	0107-
20	GASKET; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-047-0	01	1	0107-
20	GASKET; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-047-0	01	1	0107-
21	RING; SNAP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-060-0	01	1	0107-
21	RING; SNAP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-060-0	01	1	0107-
22	GASKET; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-048-0	01	1	0107-
22	GASKET; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-048-0	01	1	0107-
23	GASKET; COVER,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-049-0	01	1	0107-
23	GASKET; COVER,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-049-0	01	1	0107-
24	COVER; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48269-011-0	01	1	0107-
24	COVER; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48269-011-0	01	1	0107-
25	SPRING & SEAT SET BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-037-1	01	1	0107-
25	SPRING & SEAT SET BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-037-1	01	1	0107-
26	GASKET; PRESS PLATE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-053-0	01	1	0107-
26	GASKET; PRESS PLATE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-053-0	01	1	0107-
27	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-232-0	01	1	0107-
27	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-233-0	01	1	0107-
28	GASKET; SHELL BRAKE SYSTEM SPRING BRAKE(BCR)	9-09920-268-0	01	1	0107-
28	GASKET; SHELL BRAKE SYSTEM SPRING BRAKE(BCR)	9-09920-268-0	01	1	0107-
29	BOLT ASM; EMARGENCY BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-073-0	01	1	0107-
29	BOLT ASM; EMARGENCY BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-073-0	01	1	0107-
30	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-056-0	02	1	0107-
30	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-056-0	02	1	0107-
31	NUT; SHELL BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-054-0	01	1	0107-
31	NUT; SHELL BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-054-0	01	1	0107-
32	GASKET; BOLT BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-055-0	01	1	0107-
32	GASKET; BOLT BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-055-0	01	1	0107-
33	PIPE ASM; LWR COVER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-080-0	01	1	0107-
33	PIPE ASM; LWR COVER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-080-0	01	1	0107-
34	COVER; RETAINER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-065-0	01	1	0107-
34	COVER; RETAINER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-065-0	01	1	0107-
35	COVER; ROD & PLATE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-066-0	01	1	0107-
35	COVER; ROD & PLATE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-066-0	01	1	0107-
36	PIPE ASM; SHELL BRAKE SYSTEM SPRING BRAKE(BCR)	1-89922-126-1	01	1	0107-
36	PIPE ASM; SHELL BRAKE SYSTEM SPRING BRAKE(BCR)	1-89922-126-1	01	1	0107-
37	STUD; BRKT BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-050-0	01	1	0107-
37	STUD; BRKT BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-050-0	01	1	0107-
38	HOSE; AIR BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-051-0	01	1	0107-
38	HOSE; AIR BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-051-0	01	1	0107-
39	NUT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR)	8-94311-428-0	02	1	0107-
39	NUT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR)	8-94311-428-0	02	1	0107-
40	BRACKET; AIR HOSE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-244-0	01	1	0107-
40	BRACKET; AIR HOSE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-244-0	01	1	0107-
41	WASHER; LK,BRKT BRAKE SYSTEM SPRING BRAKE(BCR) ID=8.2	9-09150-508-0	01	1	0107-
41	WASHER; LK,BRKT BRAKE SYSTEM SPRING BRAKE(BCR) ID=8.2	9-09150-508-0	01	1	0107-
42	COVER; EXH BRAKE SYSTEM SPRING BRAKE(BCR)	1-89966-127-3	01	1	0107-
42	COVER; EXH BRAKE SYSTEM SPRING BRAKE(BCR)	1-89966-127-3	01	1	0107-

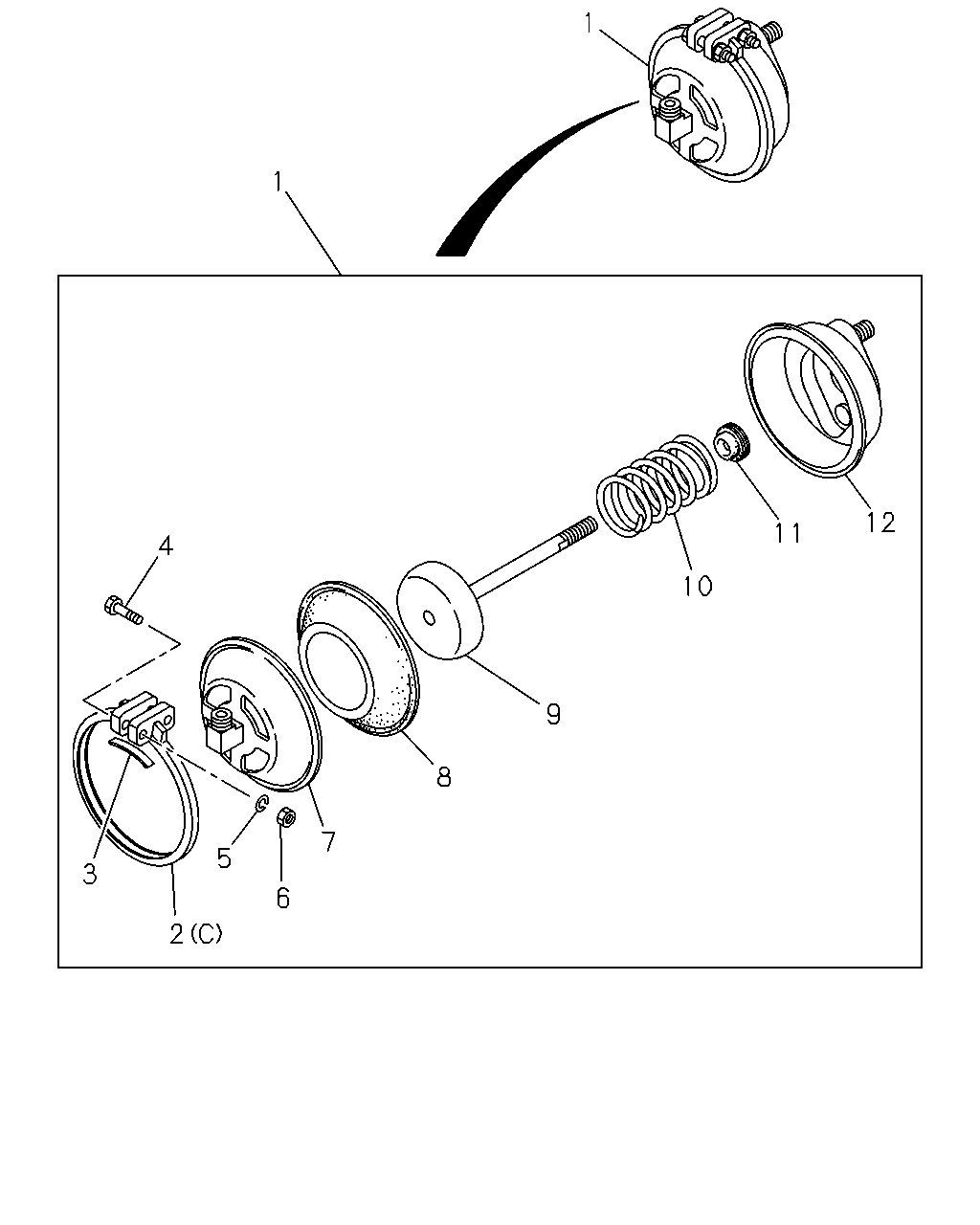

1 1 12 11 4 10 9 8 7 5 3 6 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; POWER,FRT BRK BRAKE SYSTEM SPRING BRAKE(BCR)	1-48250-523-1	01	1	0107-
1	CHAMBER ASM; POWER,FRT BRK BRAKE SYSTEM SPRING BRAKE(BCR)	1-48250-522-1	01	1	0107-
1	CHAMBER ASM; POWER,FRT BRK EXC. BRAKE SYSTEM SPRING BRAKE(BCR),DISC WHEEL AL<SDM>,BRAKE REGULATION ECE<TDV>	1-48250-338-0	02	1	0107-
1	CHAMBER ASM; POWER,FRT BRK DISC WHEEL AL<SDM> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA)	1-48250-338-0	01	1	0107-
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM>	1-48250-338-0	01	1	0107-
1	CHAMBER ASM; POWER,FRT BRK DISC WHEEL AL<SDM> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA)	1-48250-524-0	01	1	0107-
1	CHAMBER ASM; POWER,FRT BRK BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM>	1-48250-524-0	01	1	0107-
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48259-016-0	02	1	0107-
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48259-016-0	02	1	0107-
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-48259-031-0	02	1	0107-
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-48259-031-0	02	1	0107-
2	RING; CLAMP,SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (C)	1-48259-001-0	02	1	0107-
3	RETAINER; DIAPH BRAKE SYSTEM SPRING BRAKE(BCR)	1-48250-044-0	02	1	0107-
3	RETAINER; DIAPH BRAKE SYSTEM SPRING BRAKE(BCR)	1-48250-044-0	02	1	0107-
3	RETAINER; DIAPH EXC. BRAKE SYSTEM SPRING BRAKE(BCR),DISC WHEEL AL<SDM>,BRAKE REGULATION ECE<TDV>	9-48259-016-0	04	1	0107-
3	RETAINER; DIAPH DISC WHEEL AL<SDM> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA)	9-48259-016-0	03	1	0107-
3	RETAINER; DIAPH BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM>	9-48259-016-0	03	1	0107-
4	BOLT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-092-0	04	1	0107-
4	BOLT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-092-0	04	1	0107-
4	BOLT; CLAMP RING EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-002-0	04	1	0107-
5	WASHER; LK,CLAMP RING ID=10.2	9-09150-510-0	04	1	0107-
6	NUT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	9-83315-080-0	04	1	0107-
6	NUT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	9-83315-080-0	04	1	0107-
6	NUT; CLAMP RING EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M10	9-09110-010-0	04	1	0107-
7	COVER ASM; UPR,SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR),DISC WHEEL AL<SDM>,BRAKE REGULATION ECE<TDV>	1-48251-039-0	02	1	0107-
7	COVER ASM; UPR,SPR CHAMBER DISC WHEEL AL<SDM> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA)	1-48251-039-0	01	1	0107-
7	COVER ASM; UPR,SPR CHAMBER BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM>	1-48251-039-0	01	1	0107-
7	COVER ASM; UPR,SPR CHAMBER DISC WHEEL AL<SDM> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA)	1-48251-007-0	01	1	0107-
7	COVER ASM; UPR,SPR CHAMBER BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM>	1-48251-007-0	01	1	0107-
8	DIAPHRAGM; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48258-011-0	01	1	0107-
8	DIAPHRAGM; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48258-011-0	01	1	0107-
8	DIAPHRAGM; SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48252-006-0	02	1	0107-
9	PISTON; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48262-005-0	01	1	0107-
9	PISTON; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48262-005-0	01	1	0107-
9	PISTON; SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48253-001-0	02	1	0107-
10	SPRING; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48255-003-0	01	1	0107-
10	SPRING; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48255-003-0	01	1	0107-
10	SPRING; PISTON,SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48255-001-0	02	1	0107-
11	SEAL; PISTON,SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48252-025-0	02	1	0107-
12	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-243-0	01	1	0107-
12	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-242-0	01	1	0107-
12	COVER ASM; LWR,SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR),DISC WHEEL AL<SDM>,BRAKE REGULATION ECE<TDV>	1-48251-019-0	02	1	0107-
12	COVER ASM; LWR,SPR CHAMBER DISC WHEEL AL<SDM> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA)	1-48251-019-0	01	1	0107-
12	COVER ASM; LWR,SPR CHAMBER BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM>	1-48251-019-0	01	1	0107-
12	COVER ASM; LWR,SPR CHAMBER DISC WHEEL AL<SDM> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA)	1-48251-018-0	01	1	0107-
12	COVER ASM; LWR,SPR CHAMBER BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM>	1-48251-018-0	01	1	0107-
