2-20 — MANUAL TRANSMISSION ASM AND CASE (#1071) — 374 parça

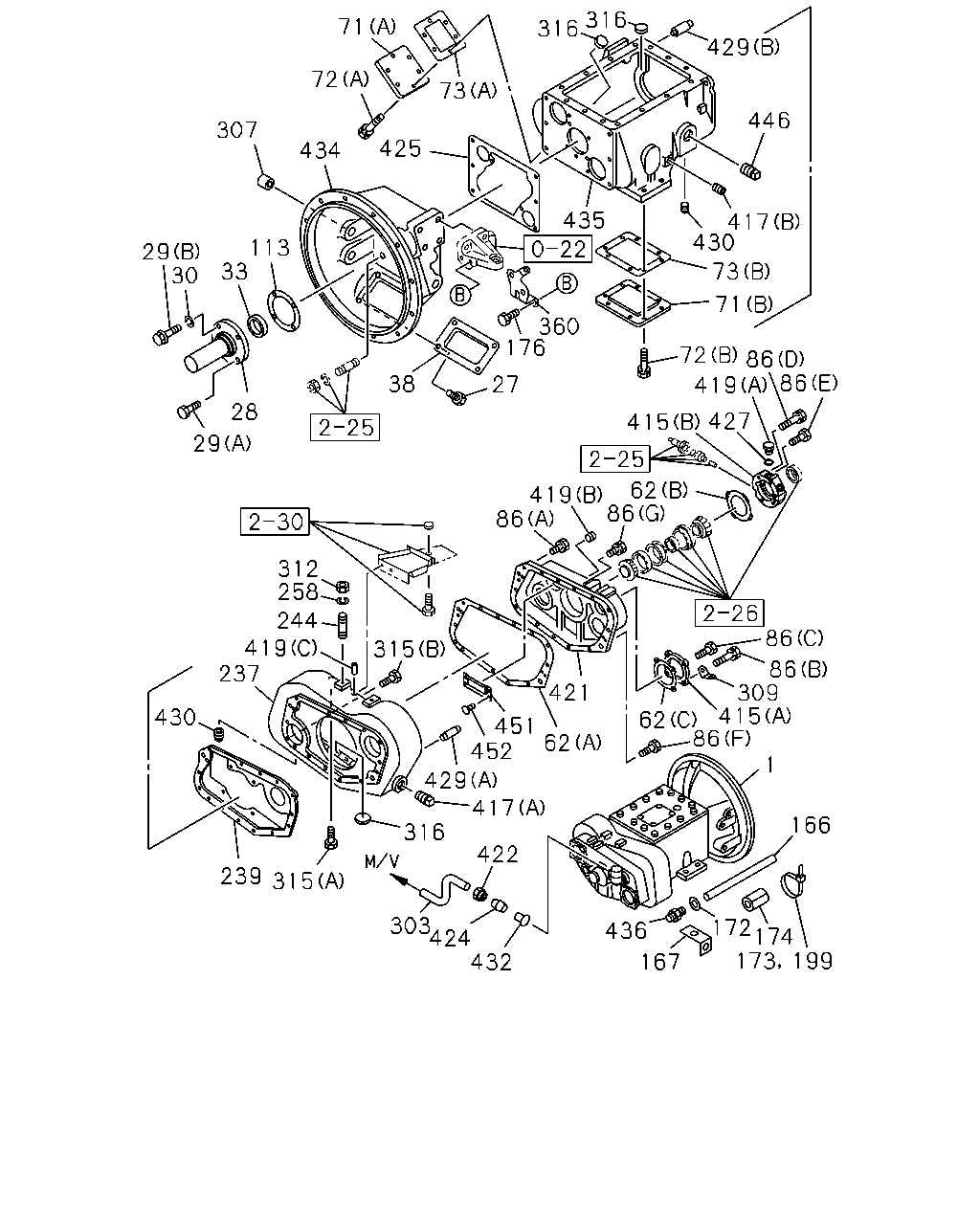

316 316 71 429 72 73 446 307 425 434 435 417 430 113 33 29 30 73 71 360 176 72 86 419 86 38 27 28 29 62 419 86 86 312 258 86 244 419 237 315 86 309 62 415 86 421 430 451 452 62 1 429 417 166 316 422 239 315 172 174 303 424 432 436 167 173 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TRANSMISSION ASM; MANUAL 14" CLUTCH(WF6) ASSISTER SHIFT CONTROL<WX8>	1-33033-932-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 14" CLUTCH(WF6) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33033-984-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8>	1-33035-763-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-607-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 35/6 17" EATON(W5E) 14" CLUTCH(WF6) ASSISTER SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33035-356-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 35/6 17" EATON(W5E) 14" CLUTCH(WF6) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTER SHIFT CONTROL<WX8>	1-33035-407-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/8 17" EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C) 14" CLUTCH(WF6) ASSISTER SHIFT CONTROL<WX8>	1-33035-354-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 35/6 17" EATON(W5E) 14" CLUTCH(WF6) ASSISTER SHIFT CONTROL<WX8> TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33035-354-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/8 17" EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C) 14" CLUTCH(WF6) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-406-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 35/6 17" EATON(W5E) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-406-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 14" SPICER CLUTCH(SFF)	1-33032-207-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) ASSISTER SHIFT CONTROL<WX8>	1-33035-789-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-633-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL	1-33036-621-1	01	1	9202-				●
1	TRANSMISSION ASM; MANUAL	1-33036-629-1	01	1	9209-					●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9202-9204	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9206-	●	●	●
27	BOLT; COVER TO CLU HSG	1-87061-534-0	04	1	9202-				●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9202-	●	●	●
28	COVER; FRT,TRANS CASE	1-87061-762-0	01	1	9202-				●
28	COVER; FRT,TRANS CASE	1-87061-764-0	01	1	9209-					●
29	BOLT; FRT COVER	1-09020-120-1	04	1	9202-9205	●	●	●
29	BOLT; FRT COVER	1-09040-089-0	04	1	9206-	●	●	●
29	BOLT; FRT COVER (A)	1-87060-778-0	02	1	9202-				●	●
29	BOLT; FRT COVER (B)	1-87061-530-0	02	1	9202-				●	●
30	WASHER; LK,FRT COVER	9-09150-510-0	04	1	9202-9205	●	●	●
30	WASHER; LK,FRT COVER	1-87061-225-0	02	1	9202-				●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9202-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-87061-765-0	01	1	9209-					●
38	COVER; CHECK HOLE,LWR	1-87061-422-0	01	1	9202-				●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9202-	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87061-590-0	01	1	9202-				●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87061-595-0	01	1	9202-				●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87061-120-0	01	1	9209-					●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87061-296-0	01	1	9209-					●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C)	1-87061-299-0	02	1	9209-					●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9202-	●	●	●
71	COVER; SIDE,TRANS CASE (A)	1-87060-698-0	01	1	9202-				●	●
71	COVER; SIDE,TRANS CASE (B)	1-87060-701-0	01	1	9202-				●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	9-01921-020-0	08	1	9202-9204	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9206-	●	●	●
72	BOLT; SIDE COVER (A)	1-87060-775-0	06	1	9202-				●	●
72	BOLT; SIDE COVER (B)	1-87060-776-0	08	1	9202-				●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9202-	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87060-702-0	01	1	9202-				●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87060-703-0	01	1	9202-				●	●
86	BOLT; RR COVER M12X65	9-01656-265-0	01	1	9202-9205	●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	9206-	●	●
86	BOLT; RR COVER M12X40	9-01991-240-0	08	1	9202-9205	●	●
86	BOLT; RR COVER M12X60	1-09044-084-0	01	1	9206-	●	●
86	BOLT; RR COVER M12X50	1-09020-137-0	02	1	9202-9205			●
86	BOLT; RR COVER M30X50	1-09044-085-0	02	1	9206-			●
86	BOLT; RR COVER M12X40	9-01991-240-0	09	1	9202-9205			●
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9206-			●
86	BOLT; RR COVER (A)	1-87060-778-0	10	1	9202-				●
86	BOLT; RR COVER (B)	1-87060-786-0	06	1	9202-				●
86	BOLT; RR COVER (C)	1-87061-592-0	11	1	9202-				●
86	BOLT; RR COVER (C)	1-87060-775-0	06	1	9209-					●
86	BOLT; RR COVER (A)	1-87060-778-0	08	1	9209-					●
86	BOLT; RR COVER (B)	1-87060-786-0	02	1	9209-					●
86	BOLT; RR COVER (F)	1-87061-230-0	02	1	9209-					●
86	BOLT; RR COVER (D)	1-87061-302-0	05	1	9209-					●
86	BOLT; RR COVER (E)	1-87061-303-0	01	1	9209-					●
86	BOLT; RR COVER (G)	1-87061-536-0	09	1	9209-					●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-546-0	01	1	9202-				●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-468-0	01	1	9209-					●
166	HOSE; AIR SUPPLY L=550	0-07150-550-0	01	1	9202-				●
166	HOSE; AIR SUPPLY L=710	0-07150-710-0	01	1	9209-					●
167	BRACKET; CLIP,AIR TUBE L=55	1-47476-177-0	01	1	9209-					●
172	GASKET; AIR HOSE ID=11 OD=18	9-09572-510-0	02	1	9202-				●	●
173	CLIP; BAND,AIR HOSE L=250	1-09707-126-0	02	1	9202-				●	●
174	SLEEVE; RUBBER,AIR HOSE ID=15 OD=19 L=50	1-09337-014-0	01	1	9202-				●	●
176	BOLT; UNION BRKT M8X16 W/LK WASHER	0-50040-816-0	02	1	9202-				●	●
199	CLIP; NYLON TUBE L=250	1-09707-126-0	01	1	9305-				●	●
237	CASE; GEAR	1-87061-520-0	01	1	9209-					●
239	GASKET; TRANS	1-87061-491-0	01	1	9209-					●
244	STUD; GEAR CASE	1-87061-593-0	03	1	9202-				●
244	STUD; GEAR CASE	1-87061-208-0	02	1	9209-					●
258	WASHER; LK	1-87060-770-0	03	1	9202-				●
258	WASHER; LK	1-87060-770-0	02	1	9209-					●
303	TUBE; NYLON SERVICED BY L=30000 OD=3/8"	1-09368-250-0	01	1	9202-				●	●
307	BUSHING; SHIFT FORK SHAFT	1-87061-485-0	04	1	9202-				●
307	BUSHING; SHIFT FORK SHAFT	1-87061-485-0	01	1	9209-					●
309	EYE; LIFTING	1-87060-783-0	02	1	9202-				●	●
312	NUT	1-87061-220-0	03	1	9202-				●
312	NUT	1-87061-220-0	02	1	9209-					●
315	BOLT; CASE (A)	1-87061-531-0	01	1	9209-					●
315	BOLT; CASE (B)	1-87061-532-0	14	1	9209-					●
316	MAGNET; TRANS CASE	1-87060-696-0	03	1	9202-				●	●
360	BRACKET; AIR PIPE	1-19199-208-0	01	1	9202-				●	●
415	COVER; BRG	1-87061-596-0	01	1	9202-				●
415	COVER; BRG (A)	1-87061-300-0	02	1	9209-					●
415	COVER; BRG (B)	1-87061-517-0	01	1	9209-					●
417	PLUG; OIL FILLER,TRANS	1-09604-021-0	01	1	9202-9405	●	●	●
417	PLUG; OIL FILLER,TRANS	1-09604-022-0	01	1	9406-	●	●	●
417	PLUG; OIL FILLER,TRANS (B)	1-87061-522-0	01	1	9202-				●	●
417	PLUG; OIL FILLER,TRANS (A)	1-87060-768-0	01	1	9209-					●
419	PLUG; RR COVER (B)	1-87061-597-0	01	1	9202-				●
419	PLUG; RR COVER (A)	1-87061-173-0	01	1	9202-				●	●
419	PLUG; RR COVER (B)	1-87061-304-0	01	1	9209-					●
419	PLUG; RR COVER (C)	1-87061-423-0	01	1	9209-					●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9202-	●	●
421	COVER; RR,TRANS	1-33131-087-4	01	1	9202-			●
421	COVER; RR,TRANS	1-87061-591-0	01	1	9202-				●
421	COVER; RR,TRANS	1-87061-515-0	01	1	9209-					●
422	NUT; SLEEVE OD=3/8"	1-09660-557-0	02	1	9202-				●	●
424	RING; INSERT OD=3/8"	1-09669-108-0	02	1	9202-				●	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-547-0	01	1	9202-				●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-445-0	01	1	9209-					●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9202-	●	●	●
429	PIN; STRAIGHT (B)	1-87061-412-0	02	1	9202-				●	●
429	PIN; STRAIGHT (A)	1-87061-165-0	02	1	9209-					●
430	PLUG; OIL DRAIN	1-09604-023-0	01	1	9202-	●	●	●
430	PLUG; OIL DRAIN	1-87061-223-0	01	1	9202-				●
430	PLUG; OIL DRAIN	1-87061-223-0	02	1	9209-					●
432	SLEEVE; TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	02	1	9202-				●	●
434	HOUSING; CLU	1-31110-092-2	01	1	9202-	●	●	●
434	HOUSING; CLU	1-87061-511-0	01	1	9202-				●	●
435	CASE; TRANS	1-33111-193-1	01	1	9202-9204	●	●
435	CASE; TRANS	1-33111-235-0	01	1	9205-	●	●
435	CASE; TRANS	1-33111-194-1	01	1	9202-9204			●
435	CASE; TRANS	1-33111-236-0	01	1	9205-			●
435	CASE; TRANS	1-87061-545-0	01	1	9202-				●
435	CASE; TRANS	1-87061-519-0	01	1	9209-					●
436	CONNECTOR; AIR HOSE,SUPPLY L=35	1-09660-039-0	01	1	9202-				●	●
446	PLUG; CASE,TRANS	1-87061-548-0	01	1	9202-				●
446	PLUG; CASE,TRANS	1-87061-521-0	01	1	9209-					●
451	PLATE; RR COVER	1-87061-435-0	01	1	9209-					●
452	SCREW; PLATE	1-87061-523-0	04	1	9209-					●

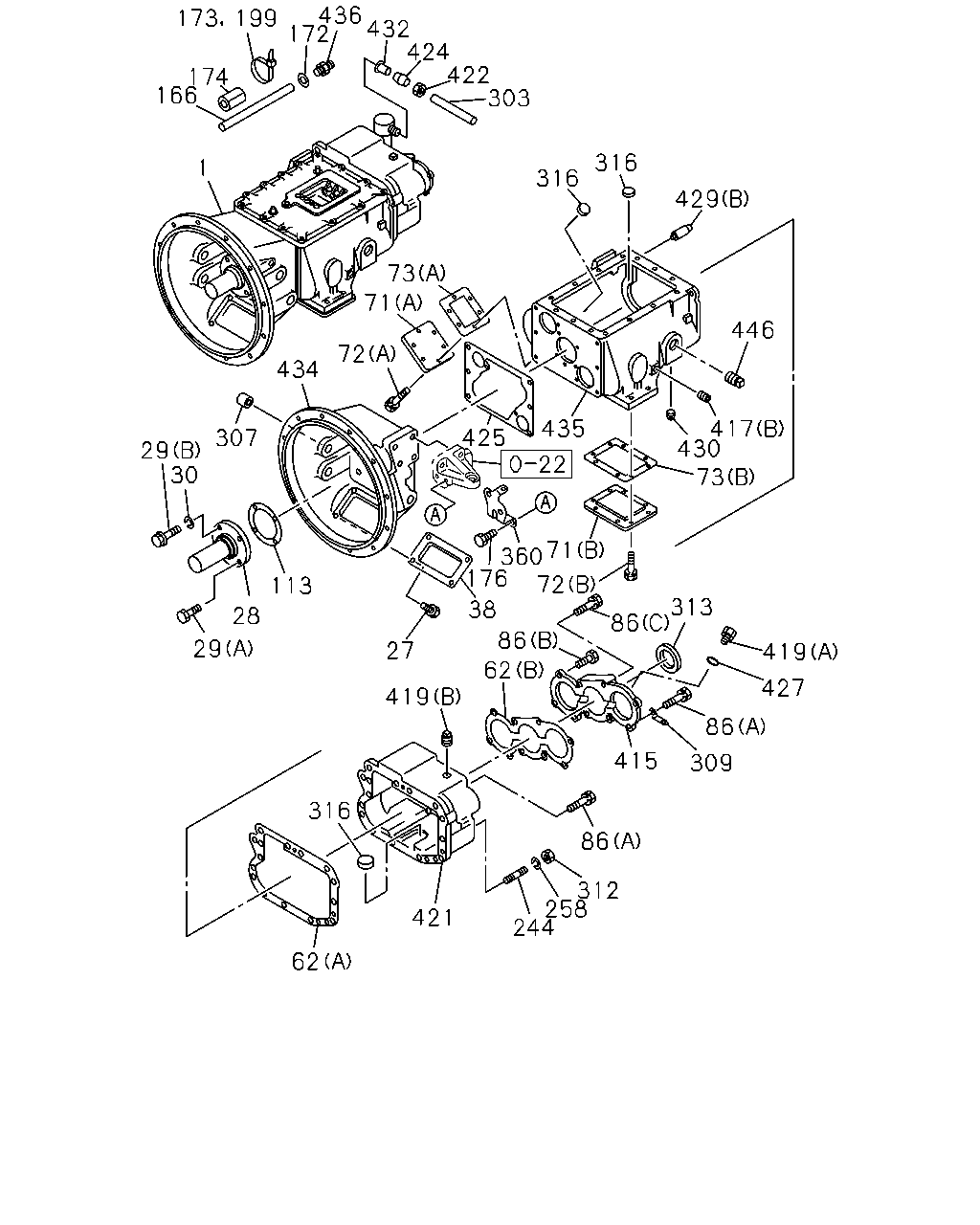

436 432 172 424 422 303 173 199 174 166 316 1 316 429 73 71 446 72 434 435 417 430 73 425 307 29 30 71 360 176 72 113 313 86 38 28 86 29 27 419 62 427 419 86 415 309 316 86 312 258 244 421 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TRANSMISSION ASM; MANUAL 14" CLUTCH(WF6) ASSISTER SHIFT CONTROL<WX8>	1-33033-932-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 14" CLUTCH(WF6) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33033-984-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8>	1-33035-763-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-607-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 35/6 17" EATON(W5E) 14" CLUTCH(WF6) ASSISTER SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33035-356-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 35/6 17" EATON(W5E) 14" CLUTCH(WF6) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTER SHIFT CONTROL<WX8>	1-33035-407-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/8 17" EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C) 14" CLUTCH(WF6) ASSISTER SHIFT CONTROL<WX8>	1-33035-354-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 35/6 17" EATON(W5E) 14" CLUTCH(WF6) ASSISTER SHIFT CONTROL<WX8> TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33035-354-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/8 17" EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C) 14" CLUTCH(WF6) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-406-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 35/6 17" EATON(W5E) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-406-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 14" SPICER CLUTCH(SFF)	1-33032-207-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) ASSISTER SHIFT CONTROL<WX8>	1-33035-789-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-633-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL	1-33036-621-1	01	1	9202-				●
1	TRANSMISSION ASM; MANUAL	1-33036-629-1	01	1	9209-					●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9202-9204	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9206-	●	●	●
27	BOLT; COVER TO CLU HSG	1-87061-534-0	04	1	9202-				●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9202-	●	●	●
28	COVER; FRT,TRANS CASE	1-87061-762-0	01	1	9202-				●
28	COVER; FRT,TRANS CASE	1-87061-764-0	01	1	9209-					●
29	BOLT; FRT COVER	1-09020-120-1	04	1	9202-9205	●	●	●
29	BOLT; FRT COVER	1-09040-089-0	04	1	9206-	●	●	●
29	BOLT; FRT COVER (A)	1-87060-778-0	02	1	9202-				●	●
29	BOLT; FRT COVER (B)	1-87061-530-0	02	1	9202-				●	●
30	WASHER; LK,FRT COVER	9-09150-510-0	04	1	9202-9205	●	●	●
30	WASHER; LK,FRT COVER	1-87061-225-0	02	1	9202-				●	●
38	COVER; CHECK HOLE,LWR	1-87061-422-0	01	1	9202-				●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9202-	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87061-590-0	01	1	9202-				●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87061-595-0	01	1	9202-				●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87061-120-0	01	1	9209-					●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87061-296-0	01	1	9209-					●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C)	1-87061-299-0	02	1	9209-					●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9202-	●	●	●
71	COVER; SIDE,TRANS CASE (A)	1-87060-698-0	01	1	9202-				●	●
71	COVER; SIDE,TRANS CASE (B)	1-87060-701-0	01	1	9202-				●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	9-01921-020-0	08	1	9202-9204	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9206-	●	●	●
72	BOLT; SIDE COVER (A)	1-87060-775-0	06	1	9202-				●	●
72	BOLT; SIDE COVER (B)	1-87060-776-0	08	1	9202-				●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9202-	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87060-702-0	01	1	9202-				●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87060-703-0	01	1	9202-				●	●
86	BOLT; RR COVER M12X65	9-01656-265-0	01	1	9202-9205	●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	9206-	●	●
86	BOLT; RR COVER M12X40	9-01991-240-0	08	1	9202-9205	●	●
86	BOLT; RR COVER M12X60	1-09044-084-0	01	1	9206-	●	●
86	BOLT; RR COVER M12X50	1-09020-137-0	02	1	9202-9205			●
86	BOLT; RR COVER M30X50	1-09044-085-0	02	1	9206-			●
86	BOLT; RR COVER M12X40	9-01991-240-0	09	1	9202-9205			●
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9206-			●
86	BOLT; RR COVER (A)	1-87060-778-0	10	1	9202-				●
86	BOLT; RR COVER (B)	1-87060-786-0	06	1	9202-				●
86	BOLT; RR COVER (C)	1-87061-592-0	11	1	9202-				●
86	BOLT; RR COVER (C)	1-87060-775-0	06	1	9209-					●
86	BOLT; RR COVER (A)	1-87060-778-0	08	1	9209-					●
86	BOLT; RR COVER (B)	1-87060-786-0	02	1	9209-					●
86	BOLT; RR COVER (F)	1-87061-230-0	02	1	9209-					●
86	BOLT; RR COVER (D)	1-87061-302-0	05	1	9209-					●
86	BOLT; RR COVER (E)	1-87061-303-0	01	1	9209-					●
86	BOLT; RR COVER (G)	1-87061-536-0	09	1	9209-					●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-546-0	01	1	9202-				●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-468-0	01	1	9209-					●
166	HOSE; AIR SUPPLY L=550	0-07150-550-0	01	1	9202-				●
166	HOSE; AIR SUPPLY L=710	0-07150-710-0	01	1	9209-					●
172	GASKET; AIR HOSE ID=11 OD=18	9-09572-510-0	02	1	9202-				●	●
173	CLIP; BAND,AIR HOSE L=250	1-09707-126-0	02	1	9202-				●	●
174	SLEEVE; RUBBER,AIR HOSE ID=15 OD=19 L=50	1-09337-014-0	01	1	9202-				●	●
176	BOLT; UNION BRKT M8X16 W/LK WASHER	0-50040-816-0	02	1	9202-				●	●
199	CLIP; NYLON TUBE L=250	1-09707-126-0	01	1	9305-				●	●
244	STUD; GEAR CASE	1-87061-593-0	03	1	9202-				●
244	STUD; GEAR CASE	1-87061-208-0	02	1	9209-					●
258	WASHER; LK	1-87060-770-0	03	1	9202-				●
258	WASHER; LK	1-87060-770-0	02	1	9209-					●
303	TUBE; NYLON SERVICED BY L=30000 OD=3/8"	1-09368-250-0	01	1	9202-				●	●
307	BUSHING; SHIFT FORK SHAFT	1-87061-485-0	04	1	9202-				●
307	BUSHING; SHIFT FORK SHAFT	1-87061-485-0	01	1	9209-					●
309	EYE; LIFTING	1-87060-783-0	02	1	9202-				●	●
312	NUT	1-87061-220-0	03	1	9202-				●
312	NUT	1-87061-220-0	02	1	9209-					●
313	SEAL; OIL	1-87061-782-0	01	1	9202-				●
316	MAGNET; TRANS CASE	1-87060-696-0	03	1	9202-				●	●
360	BRACKET; AIR PIPE	1-19199-208-0	01	1	9202-				●	●
415	COVER; BRG	1-87061-596-0	01	1	9202-				●
415	COVER; BRG (A)	1-87061-300-0	02	1	9209-					●
415	COVER; BRG (B)	1-87061-517-0	01	1	9209-					●
417	PLUG; OIL FILLER,TRANS	1-09604-021-0	01	1	9202-9405	●	●	●
417	PLUG; OIL FILLER,TRANS	1-09604-022-0	01	1	9406-	●	●	●
417	PLUG; OIL FILLER,TRANS (B)	1-87061-522-0	01	1	9202-				●	●
417	PLUG; OIL FILLER,TRANS (A)	1-87060-768-0	01	1	9209-					●
419	PLUG; RR COVER (B)	1-87061-597-0	01	1	9202-				●
419	PLUG; RR COVER (A)	1-87061-173-0	01	1	9202-				●	●
419	PLUG; RR COVER (B)	1-87061-304-0	01	1	9209-					●
419	PLUG; RR COVER (C)	1-87061-423-0	01	1	9209-					●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9202-	●	●
421	COVER; RR,TRANS	1-33131-087-4	01	1	9202-			●
421	COVER; RR,TRANS	1-87061-591-0	01	1	9202-				●
421	COVER; RR,TRANS	1-87061-515-0	01	1	9209-					●
422	NUT; SLEEVE OD=3/8"	1-09660-557-0	02	1	9202-				●	●
424	RING; INSERT OD=3/8"	1-09669-108-0	02	1	9202-				●	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-547-0	01	1	9202-				●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-445-0	01	1	9209-					●
427	GASKET; RR COVER	1-87061-174-0	01	1	9202-				●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9202-	●	●	●
429	PIN; STRAIGHT (B)	1-87061-412-0	02	1	9202-				●	●
429	PIN; STRAIGHT (A)	1-87061-165-0	02	1	9209-					●
430	PLUG; OIL DRAIN	1-09604-023-0	01	1	9202-	●	●	●
430	PLUG; OIL DRAIN	1-87061-223-0	01	1	9202-				●
430	PLUG; OIL DRAIN	1-87061-223-0	02	1	9209-					●
432	SLEEVE; TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	02	1	9202-				●	●
434	HOUSING; CLU	1-31110-092-2	01	1	9202-	●	●	●
434	HOUSING; CLU	1-87061-511-0	01	1	9202-				●	●
435	CASE; TRANS	1-33111-193-1	01	1	9202-9204	●	●
435	CASE; TRANS	1-33111-235-0	01	1	9205-	●	●
435	CASE; TRANS	1-33111-194-1	01	1	9202-9204			●
435	CASE; TRANS	1-33111-236-0	01	1	9205-			●
435	CASE; TRANS	1-87061-545-0	01	1	9202-				●
435	CASE; TRANS	1-87061-519-0	01	1	9209-					●
436	CONNECTOR; AIR HOSE,SUPPLY L=35	1-09660-039-0	01	1	9202-				●	●
446	PLUG; CASE,TRANS	1-87061-548-0	01	1	9202-				●
446	PLUG; CASE,TRANS	1-87061-521-0	01	1	9209-					●

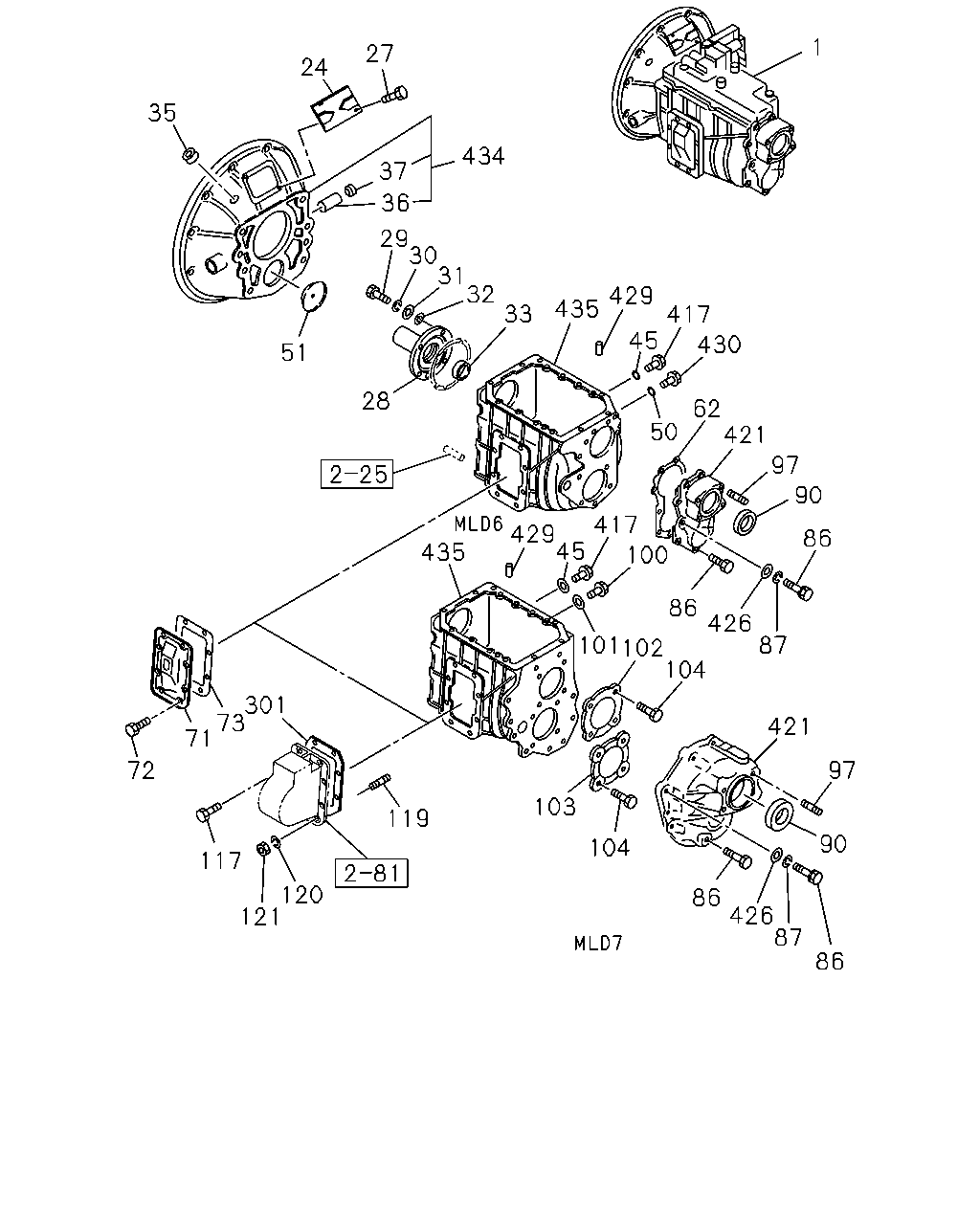

1 27 24 35 434 37 36 29 30 31 32 33 429 435 417 45 430 51 28 62 421 50 97 417 429 45 100 90 86 435 86 426 87 101 102 104 301 73 71 421 97 72 103 119 90 104 117 120 121 86 426 87 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TRANSMISSION ASM; MANUAL 14" CLUTCH(WF6) ASSISTER SHIFT CONTROL<WX8>	1-33033-932-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL 14" CLUTCH(WF6) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33033-984-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8>	1-33035-763-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-607-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 35/6 17" EATON(W5E) 14" CLUTCH(WF6) ASSISTER SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33035-356-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 35/6 17" EATON(W5E) 14" CLUTCH(WF6) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTER SHIFT CONTROL<WX8>	1-33035-407-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/8 17" EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C) 14" CLUTCH(WF6) ASSISTER SHIFT CONTROL<WX8>	1-33035-354-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 35/6 17" EATON(W5E) 14" CLUTCH(WF6) ASSISTER SHIFT CONTROL<WX8> TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33035-354-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/8 17" EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C) 14" CLUTCH(WF6) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-406-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 35/6 17" EATON(W5E) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-406-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 14" SPICER CLUTCH(SFF)	1-33032-207-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) ASSISTER SHIFT CONTROL<WX8>	1-33035-789-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-633-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL	1-33036-621-1	01	1	9202-				●
1	TRANSMISSION ASM; MANUAL	1-33036-629-1	01	1	9209-					●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9202-	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9202-9204	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9206-	●	●	●
27	BOLT; COVER TO CLU HSG	1-87061-534-0	04	1	9202-				●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9202-	●	●	●
28	COVER; FRT,TRANS CASE	1-87061-762-0	01	1	9202-				●
28	COVER; FRT,TRANS CASE	1-87061-764-0	01	1	9209-					●
29	BOLT; FRT COVER	1-09020-120-1	04	1	9202-9205	●	●	●
29	BOLT; FRT COVER	1-09040-089-0	04	1	9206-	●	●	●
29	BOLT; FRT COVER (A)	1-87060-778-0	02	1	9202-				●	●
29	BOLT; FRT COVER (B)	1-87061-530-0	02	1	9202-				●	●
30	WASHER; LK,FRT COVER	9-09150-510-0	04	1	9202-9205	●	●	●
30	WASHER; LK,FRT COVER	1-87061-225-0	02	1	9202-				●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9202-9205	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9202-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9202-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-87061-765-0	01	1	9209-					●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9202-	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9202-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9202-	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9202-9405	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9202-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-057-0	01	1	9202-9402	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9403-	●	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9202-	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87061-590-0	01	1	9202-				●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87061-595-0	01	1	9202-				●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87061-120-0	01	1	9209-					●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87061-296-0	01	1	9209-					●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C)	1-87061-299-0	02	1	9209-					●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9202-	●	●	●
71	COVER; SIDE,TRANS CASE (A)	1-87060-698-0	01	1	9202-				●	●
71	COVER; SIDE,TRANS CASE (B)	1-87060-701-0	01	1	9202-				●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	9-01921-020-0	08	1	9202-9204	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9206-	●	●	●
72	BOLT; SIDE COVER (A)	1-87060-775-0	06	1	9202-				●	●
72	BOLT; SIDE COVER (B)	1-87060-776-0	08	1	9202-				●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9202-	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87060-702-0	01	1	9202-				●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87060-703-0	01	1	9202-				●	●
86	BOLT; RR COVER M12X65	9-01656-265-0	01	1	9202-9205	●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	9206-	●	●
86	BOLT; RR COVER M12X40	9-01991-240-0	08	1	9202-9205	●	●
86	BOLT; RR COVER M12X60	1-09044-084-0	01	1	9206-	●	●
86	BOLT; RR COVER M12X50	1-09020-137-0	02	1	9202-9205			●
86	BOLT; RR COVER M30X50	1-09044-085-0	02	1	9206-			●
86	BOLT; RR COVER M12X40	9-01991-240-0	09	1	9202-9205			●
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9206-			●
86	BOLT; RR COVER (A)	1-87060-778-0	10	1	9202-				●
86	BOLT; RR COVER (B)	1-87060-786-0	06	1	9202-				●
86	BOLT; RR COVER (C)	1-87061-592-0	11	1	9202-				●
86	BOLT; RR COVER (C)	1-87060-775-0	06	1	9209-					●
86	BOLT; RR COVER (A)	1-87060-778-0	08	1	9209-					●
86	BOLT; RR COVER (B)	1-87060-786-0	02	1	9209-					●
86	BOLT; RR COVER (F)	1-87061-230-0	02	1	9209-					●
86	BOLT; RR COVER (D)	1-87061-302-0	05	1	9209-					●
86	BOLT; RR COVER (E)	1-87061-303-0	01	1	9209-					●
86	BOLT; RR COVER (G)	1-87061-536-0	09	1	9209-					●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	01	1	9202-9205	●	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	02	1	9202-9205			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9202-	●	●	●
97	STUD; PARKING BRK	1-09302-099-0	01	1	9202-	●	●	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	9202-			●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9202-			●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-036-0	01	1	9202-			●
103	RETAINER; BRG	1-33151-037-0	01	1	9202-			●
104	BOLT; BRG RET M10X30	9-01921-030-0	08	1	9202-9204			●
104	BOLT; BRG RET M10X30 W/LK WASHER	0-50051-030-0	08	1	9205-9205			●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9206-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28	0-50051-028-0	06	1	9202-9205	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9206-	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9202-	●	●	●
120	WASHER; LK,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	02	1	9202-9205	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10	9-09110-410-0	02	1	9202-9205	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●
301	PLATE; DIST,PTO TO TRANS PTO CONTROL<SV6> T=1.80	1-38119-013-0	01	1	9202-9408		●	●
301	PLATE; DIST,PTO TO TRANS PTO CONTROL<SV6>	1-38119-039-0	01	1	9409-		●	●
417	PLUG; OIL FILLER,TRANS	1-09604-021-0	01	1	9202-9405	●	●	●
417	PLUG; OIL FILLER,TRANS	1-09604-022-0	01	1	9406-	●	●	●
417	PLUG; OIL FILLER,TRANS (B)	1-87061-522-0	01	1	9202-				●	●
417	PLUG; OIL FILLER,TRANS (A)	1-87060-768-0	01	1	9209-					●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9202-	●	●
421	COVER; RR,TRANS	1-33131-087-4	01	1	9202-			●
421	COVER; RR,TRANS	1-87061-591-0	01	1	9202-				●
421	COVER; RR,TRANS	1-87061-515-0	01	1	9209-					●
426	WASHER; PL,RR COVER ID=12.5	9-09160-512-0	01	1	9202-9205	●	●
426	WASHER; PL,RR COVER ID=12.5	9-09160-512-0	02	1	9202-9205			●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9202-	●	●	●
429	PIN; STRAIGHT (B)	1-87061-412-0	02	1	9202-				●	●
429	PIN; STRAIGHT (A)	1-87061-165-0	02	1	9209-					●
430	PLUG; OIL DRAIN	1-09604-023-0	01	1	9202-	●	●	●
430	PLUG; OIL DRAIN	1-87061-223-0	01	1	9202-				●
430	PLUG; OIL DRAIN	1-87061-223-0	02	1	9209-					●
434	HOUSING; CLU	1-31110-092-2	01	1	9202-	●	●	●
434	HOUSING; CLU	1-87061-511-0	01	1	9202-				●	●
435	CASE; TRANS	1-33111-193-1	01	1	9202-9204	●	●
435	CASE; TRANS	1-33111-235-0	01	1	9205-	●	●
435	CASE; TRANS	1-33111-194-1	01	1	9202-9204			●
435	CASE; TRANS	1-33111-236-0	01	1	9205-			●
435	CASE; TRANS	1-87061-545-0	01	1	9202-				●
435	CASE; TRANS	1-87061-519-0	01	1	9209-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
