Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#10708) — 215 parça

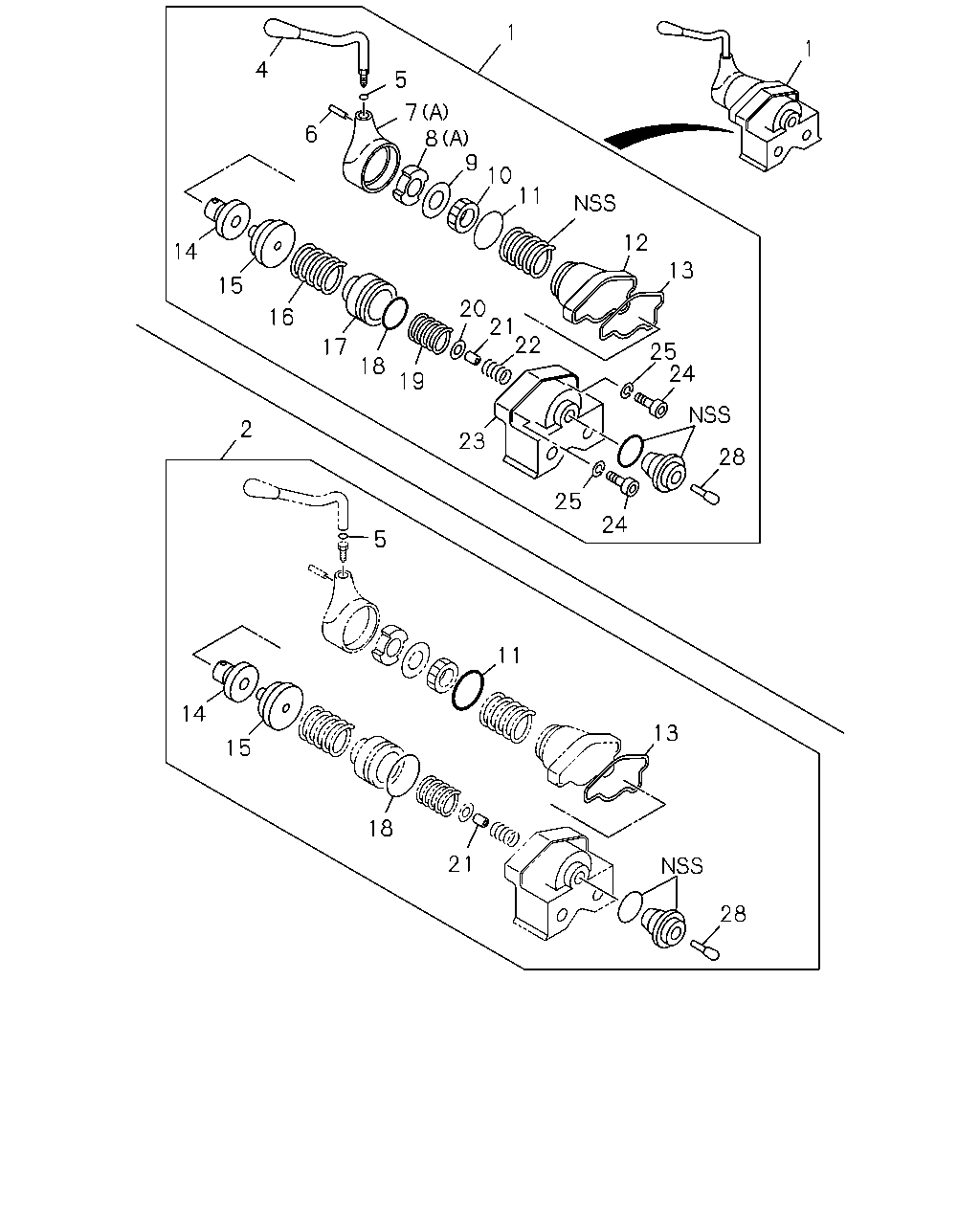

1 1 4 5 7 8 6 9 10 11 12 14 13 15 20 21 22 16 17 25 24 18 19 2 23 28 25 24 5 11 14 13 15 18 21 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK IRELAND EQUIPMENT(NJY) TRAILER BRAKE HAND CONTROL<NLG>	1-48100-806-1	01	1	0107-
1	VALVE ASM; HAND BRK TRAILER BRAKE HAND CONTROL<NLG> EXC. IRELAND EQUIPMENT(NJY)	1-48100-848-0	01	1	0107-
2	REPAIR KIT; HAND BRK VLV IRELAND EQUIPMENT(NJY) TRAILER BRAKE HAND CONTROL<NLG>	1-85576-202-0	01	1	0107-
2	REPAIR KIT; HAND BRK VLV TRAILER BRAKE HAND CONTROL<NLG> EXC. IRELAND EQUIPMENT(NJY)	1-85576-181-0	01	1	0107-
4	HANDLE ASM; BRK VLV IRELAND EQUIPMENT(NJY) TRAILER BRAKE HAND CONTROL<NLG>	1-48119-516-0	01	1	0107-
4	HANDLE ASM; BRK VLV TRAILER BRAKE HAND CONTROL<NLG> EXC. IRELAND EQUIPMENT(NJY)	1-48119-517-0	01	1	0107-
5	GASKET; HANDLE TRAILER BRAKE HAND CONTROL<NLG>	1-48119-128-0	01	1	0107-
6	PIN; SPR TRAILER BRAKE HAND CONTROL<NLG>	1-48119-143-0	01	1	0107-
7	HEAD; BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-209-0	01	1	0107-
7	HEAD; BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-201-0	01	1	0107-
7	HEAD; BRK VLV TRAILER BRAKE HAND CONTROL<NLG> (A)	1-48119-131-0	01	1	0107-
8	STOPPER; BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B)	1-48469-200-0	01	1	0107-
8	STOPPER; BRK VLV IRELAND EQUIPMENT(NJY) TRAILER BRAKE HAND CONTROL<NLG> (A)	1-48119-327-0	01	1	0107-
8	STOPPER; BRK VLV TRAILER BRAKE HAND CONTROL<NLG> EXC. IRELAND EQUIPMENT(NJY) (A)	1-48119-239-0	01	1	0107-
9	WASHER; LK,ADJ TRAILER BRAKE HAND CONTROL<NLG>	1-48119-123-0	01	1	0107-
10	RING; ADJ TRAILER BRAKE HAND CONTROL<NLG>	1-48119-122-0	01	1	0107-
11	GASKET; HD TO COVER IRELAND EQUIPMENT(NJY) TRAILER BRAKE HAND CONTROL<NLG>	1-48119-328-0	01	1	0107-
11	GASKET; HD TO COVER TRAILER BRAKE HAND CONTROL<NLG> EXC. IRELAND EQUIPMENT(NJY)	1-48119-130-0	01	1	0107-
12	COVER; BRK VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-097-0	01	1	0107-
13	GASKET; BODY TO COVER TRAILER BRAKE HAND CONTROL<NLG>	1-48119-120-0	01	1	0107-
14	FOLLOWER; CAM TRAILER BRAKE HAND CONTROL<NLG>	1-48129-135-0	01	1	0107-
15	CAM; FOLLOWER TRAILER BRAKE HAND CONTROL<NLG>	1-48129-134-0	01	1	0107-
16	SPRING; GRUDUATING TRAILER BRAKE HAND CONTROL<NLG>	1-48129-101-0	01	1	0107-
17	PISTON; SPR TRAILER BRAKE HAND CONTROL<NLG>	1-48129-095-0	01	1	0107-
18	GASKET; BODY TRAILER BRAKE HAND CONTROL<NLG>	1-48129-096-0	01	1	0107-
19	SPRING; PISTON TRAILER BRAKE HAND CONTROL<NLG>	1-48129-094-0	01	1	0107-
20	GUIDE; VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-090-0	01	1	0107-
21	VALVE; IN & EXH TRAILER BRAKE HAND CONTROL<NLG>	1-48121-017-0	01	1	0107-
22	SPRING; VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48123-024-0	01	1	0107-
23	BODY; BRK VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48111-060-0	01	1	0107-
24	BOLT; EXH VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-092-0	02	1	0107-
25	WASHER; LK,EXH VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-093-0	02	1	0107-
28	STEM ASM; BRK VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-089-0	01	1	0107-

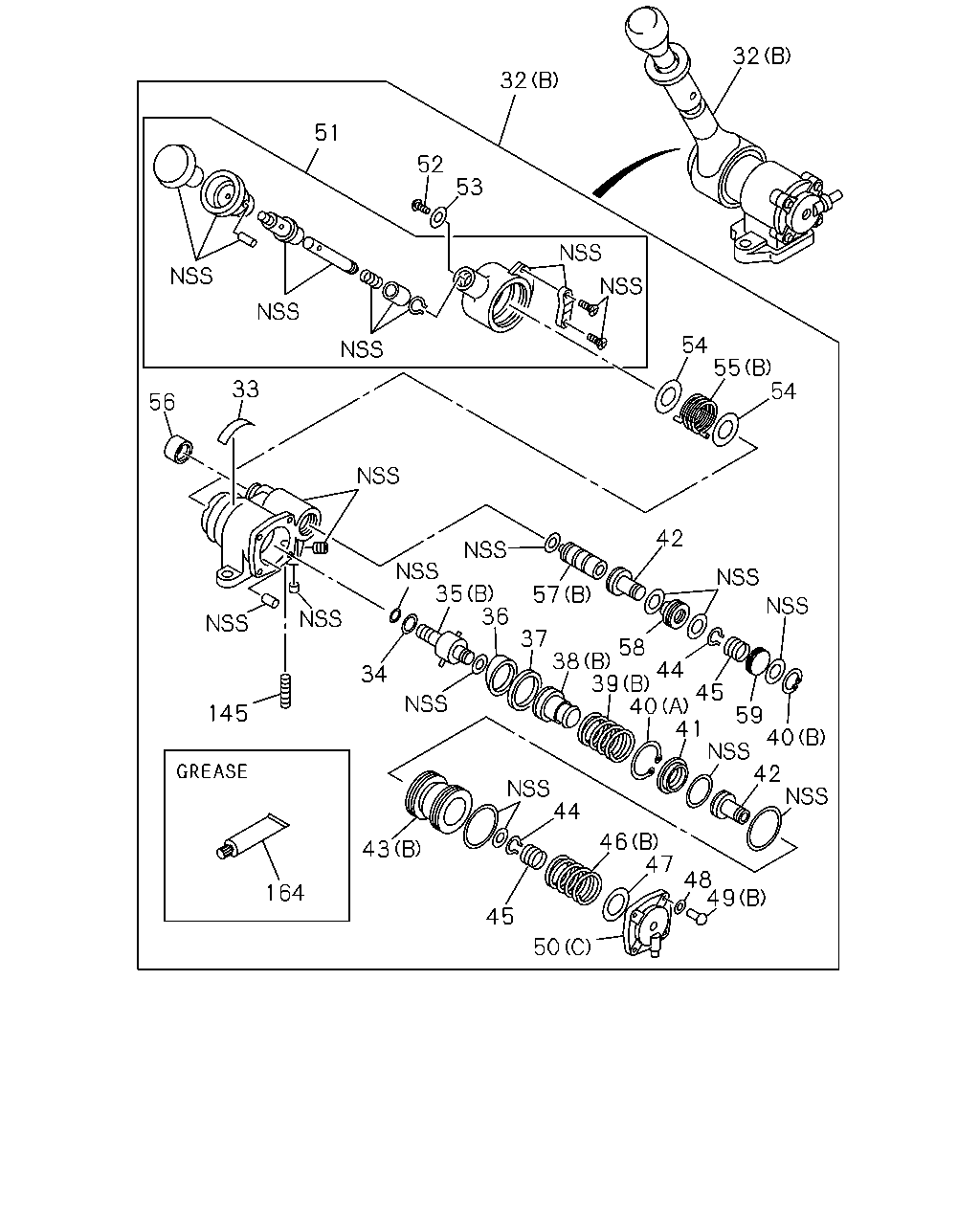

32 32 51 52 53 54 55 54 33 56 42 35 36 57 37 58 38 44 39 45 40 41 42 34 145 59 40 44 46 47 43 48 49 164 45 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT MJD7S M/T(Y2Y) BRAKE REGULATION HONG KONG<TCZ> (B)	1-48460-315-0	01	1	0107-
32	VALVE; BRK,HAND CONT MJD7S M/T(Y2Y) EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48460-316-0	01	1	0107-
32	VALVE; BRK,HAND CONT TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) BRAKE REGULATION HONG KONG<TCZ> (A)	1-48460-341-0	01	1	0107-
32	VALVE; BRK,HAND CONT TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48460-339-0	01	1	0107-
33	PLATE; CAUTION MJD7S M/T(Y2Y) BRAKE REGULATION HONG KONG<TCZ>	1-48469-081-0	01	1	0107-
33	PLATE; CAUTION MJD7S M/T(Y2Y) EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48469-121-0	01	1	0107-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0107-
35	HOLDER; CAM MJD7S M/T(Y2Y) (B)	1-48469-054-0	01	1	0107-
35	HOLDER; CAM TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-207-0	01	1	0107-
35	HOLDER; CAM TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-171-0	01	1	0107-
36	RING; CAM MJD7S M/T(Y2Y)	1-48469-056-0	01	1	0107-
37	GUIDE; CAM RING MJD7S M/T(Y2Y)	1-48469-058-0	01	1	0107-
38	SEAT; EXH VLV MJD7S M/T(Y2Y) (B)	1-48469-057-0	01	1	0107-
38	SEAT; EXH VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-172-0	01	1	0107-
39	SPRING; RETURN,CAM RING MJD7S M/T(Y2Y) (B)	1-48469-063-0	01	1	0107-
39	SPRING; RETURN,CAM RING TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-150-0	01	1	0107-
40	RING; SNAP MJD7S M/T(Y2Y) (A)	1-48469-067-0	01	1	0107-
40	RING; SNAP MJD7S M/T(Y2Y) (B)	1-48469-079-0	01	1	0107-
41	SEAT; FEED VLV MJD7S M/T(Y2Y)	1-48469-066-0	01	1	0107-
42	VALVE; FEED MJD7S M/T(Y2Y)	1-48469-065-0	02	1	0107-
43	PISTON; HAND BRK VLV MJD7S M/T(Y2Y) (B)	1-48469-064-0	01	1	0107-
43	PISTON; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-151-0	01	1	0107-
44	RING; SNAP,FEED VLV MJD7S M/T(Y2Y)	1-48469-068-0	02	1	0107-
45	SPRING; FEED VLV MJD7S M/T(Y2Y)	1-48469-070-0	02	1	0107-
46	SPRING; MAIN,PISTON MJD7S M/T(Y2Y) BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-071-0	01	1	0107-
46	SPRING; MAIN,PISTON MJD7S M/T(Y2Y) EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-119-0	01	1	0107-
46	SPRING; MAIN,PISTON TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-173-0	01	1	0107-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0107-
48	WASHER; COVER MJD7S M/T(Y2Y) BRAKE REGULATION HONG KONG<TCZ>	1-48469-074-0	04	1	0107-
49	SCREW; COVER MJD7S M/T(Y2Y) BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-075-0	04	1	0107-
49	SCREW; COVER MJD7S M/T(Y2Y) EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-120-0	04	1	0107-
49	SCREW; COVER TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-169-0	04	1	0107-
50	COVER; HAND BRK VLV MJD7S M/T(Y2Y) (C)	1-48469-073-0	01	1	0107-
50	COVER; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-153-0	01	1	0107-
50	COVER; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B)	1-48469-196-0	01	1	0107-
51	HANDLE ASM; HAND BRK VLV MJD7S M/T(Y2Y)	1-48469-060-0	01	1	0107-
52	SCREW; HANDLE	1-48469-062-0	01	1	0107-
53	WASHER; HANDLE	1-48469-061-0	01	1	0107-
54	SEAT; SPRING MJD7S M/T(Y2Y)	1-48469-082-0	02	1	0107-
55	SPRING; RETURN,HANDLE MJD7S M/T(Y2Y) (B)	1-48469-059-0	01	1	0107-
55	SPRING; RETURN,HANDLE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-155-0	01	1	0107-
56	BOOT; PLUNGER MJD7S M/T(Y2Y)	1-48469-080-0	01	1	0107-
57	PLUNGER; HAND BRK VLV MJD7S M/T(Y2Y) (B)	1-48469-076-0	01	1	0107-
57	PLUNGER; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-180-0	01	1	0107-
58	HOLDER; FEED VLV MJD7S M/T(Y2Y)	1-48469-077-0	01	1	0107-
59	HOLDER; SPRING MJD7S M/T(Y2Y)	1-48469-078-0	01	1	0107-
145	STUD; HAND BRK VLV MJD7S M/T(Y2Y)	1-48469-069-0	01	1	0107-
164	GREASE; HAND BRK VLV MJD7S M/T(Y2Y)	1-48469-084-0	01	1	0107-

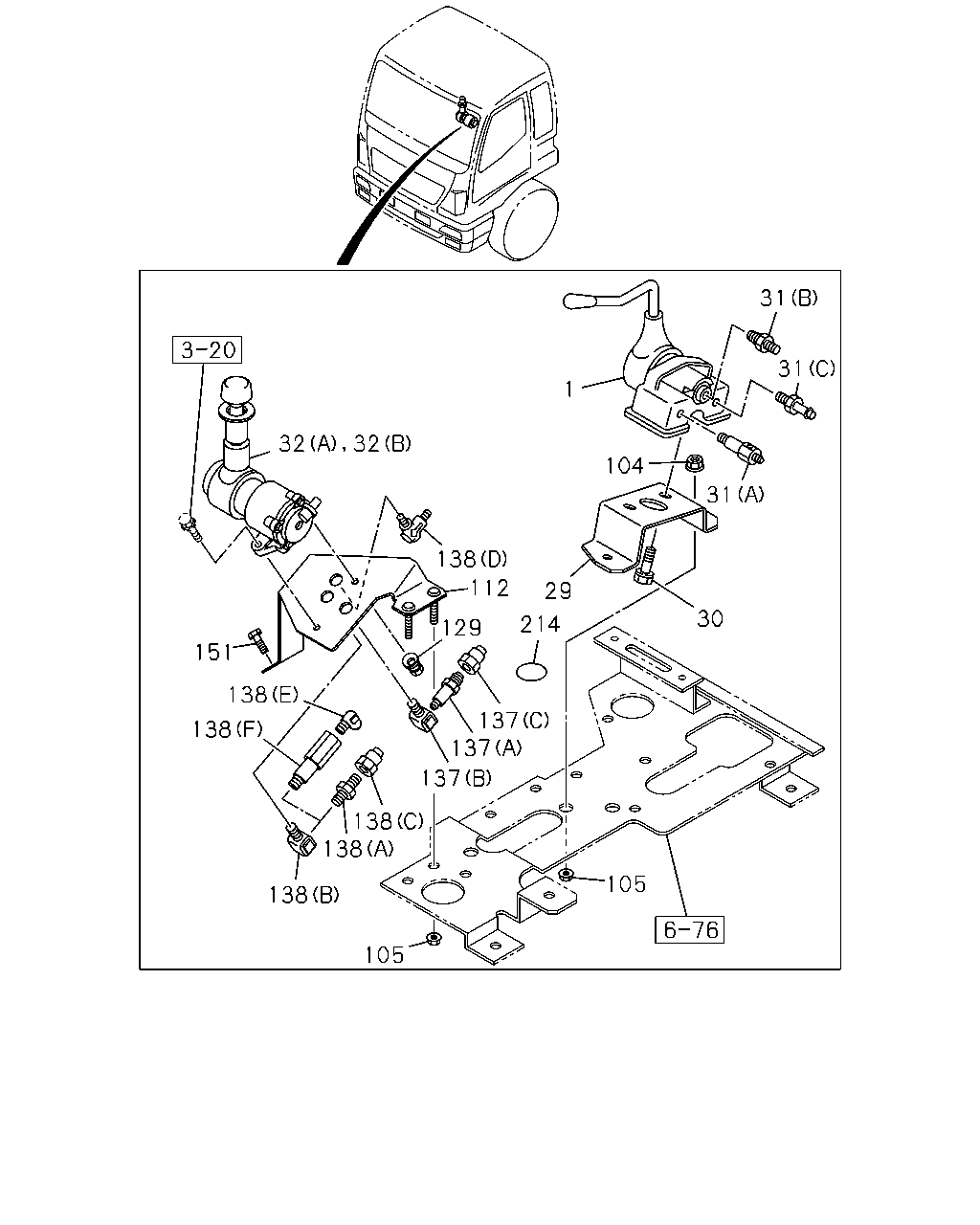

31 31 1 32 32 104 31 138 112 29 30 214 129 151 138 137 137 138 137 138 138 105 138 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK IRELAND EQUIPMENT(NJY) TRAILER BRAKE HAND CONTROL<NLG>	1-48100-806-1	01	1	0107-
1	VALVE ASM; HAND BRK TRAILER BRAKE HAND CONTROL<NLG> EXC. IRELAND EQUIPMENT(NJY)	1-48100-848-0	01	1	0107-
29	BRACKET; HAND BRK	1-79997-357-1	01	1	0107-
30	BOLT; BRKT,HAND BRK VLV M10X20 W/LK WASHER	0-50041-020-0	02	1	0107-
31	CONNECTOR; HAND BRK VLV (A) M14	1-09656-391-2	01	1	0107-
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	0107-
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0107-
32	VALVE; BRK,HAND CONT MJD7S M/T(Y2Y) BRAKE REGULATION HONG KONG<TCZ> (B)	1-48460-315-0	01	1	0107-
32	VALVE; BRK,HAND CONT MJD7S M/T(Y2Y) EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48460-316-0	01	1	0107-
32	VALVE; BRK,HAND CONT TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) BRAKE REGULATION HONG KONG<TCZ> (A)	1-48460-341-0	01	1	0107-
32	VALVE; BRK,HAND CONT TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48460-339-0	01	1	0107-
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0107-
105	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0107-
112	BRACKET; CONT VLV ISUZU M/T<X9A>	1-79996-336-1	01	1	0107-
112	BRACKET; CONT VLV ZF M/T<X9E>	1-79996-387-0	01	1	0107-
129	NUT; VLV PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	01	1	0107-
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0107-
137	CONNECTOR; SUPPLY ISUZU M/T<X9A> (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0107-
137	CONNECTOR; SUPPLY ZF M/T<X9E> (A)	1-09650-352-1	01	1	0107-
137	CONNECTOR; SUPPLY ZF M/T<X9E> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0107-
138	CONNECTOR; DELIVERY ZF M/T<X9E> (F)	1-09660-335-1	01	1	0107-
138	CONNECTOR; DELIVERY ZF M/T<X9E> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
138	CONNECTOR; DELIVERY (B) PT1/4 2WAY	1-09660-693-0	01	1	0107-
138	CONNECTOR; DELIVERY ISUZU M/T<X9A> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0107-
138	CONNECTOR; DELIVERY ISUZU M/T<X9A> (A) M14	1-09656-391-2	01	1	0107-
138	CONNECTOR; DELIVERY (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0107-
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0107-
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	02	1	0107-

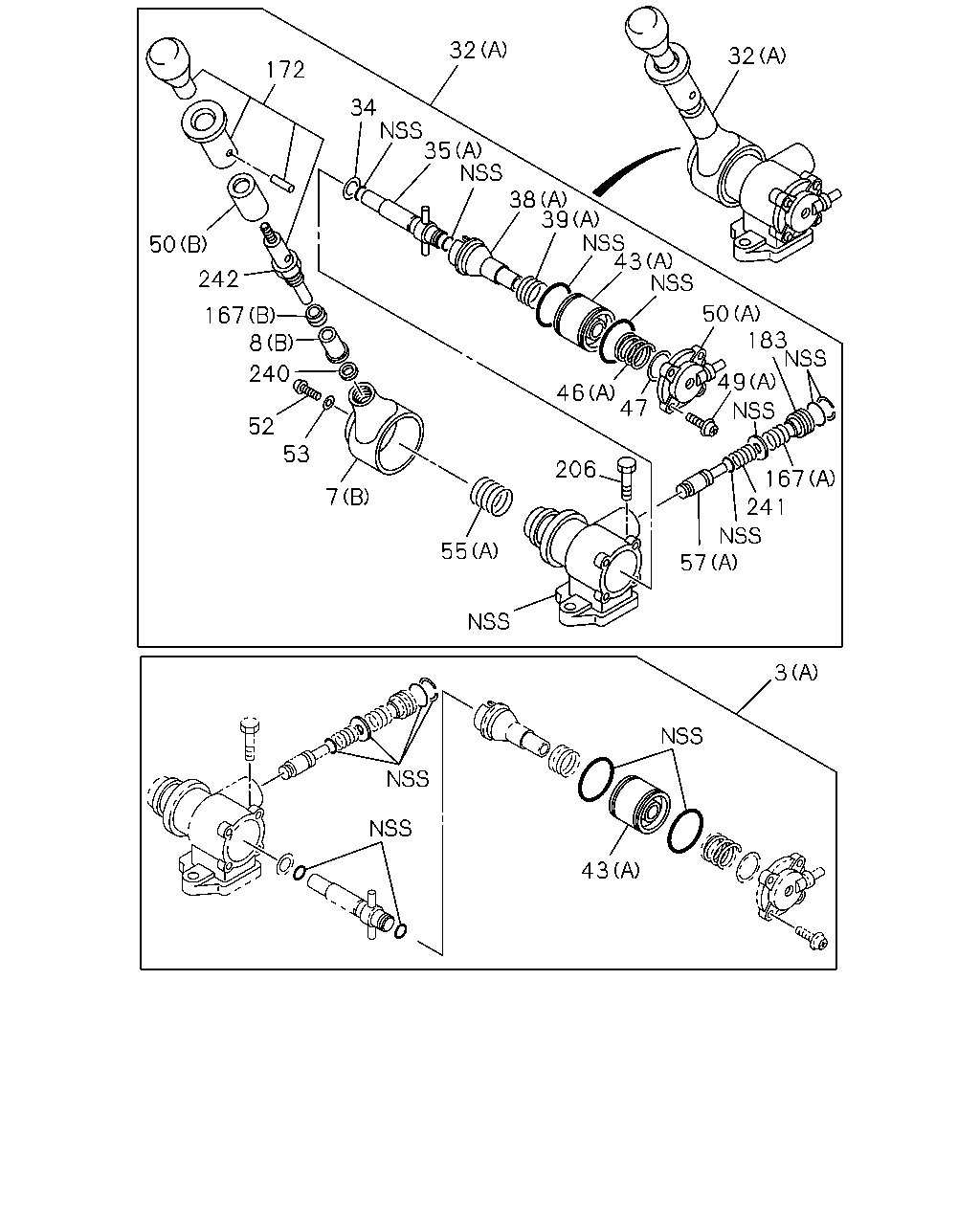

32 32 172 34 35 38 39 43 50 242 50 183 167 8 240 49 46 47 52 53 167 241 206 7 57 55 3 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

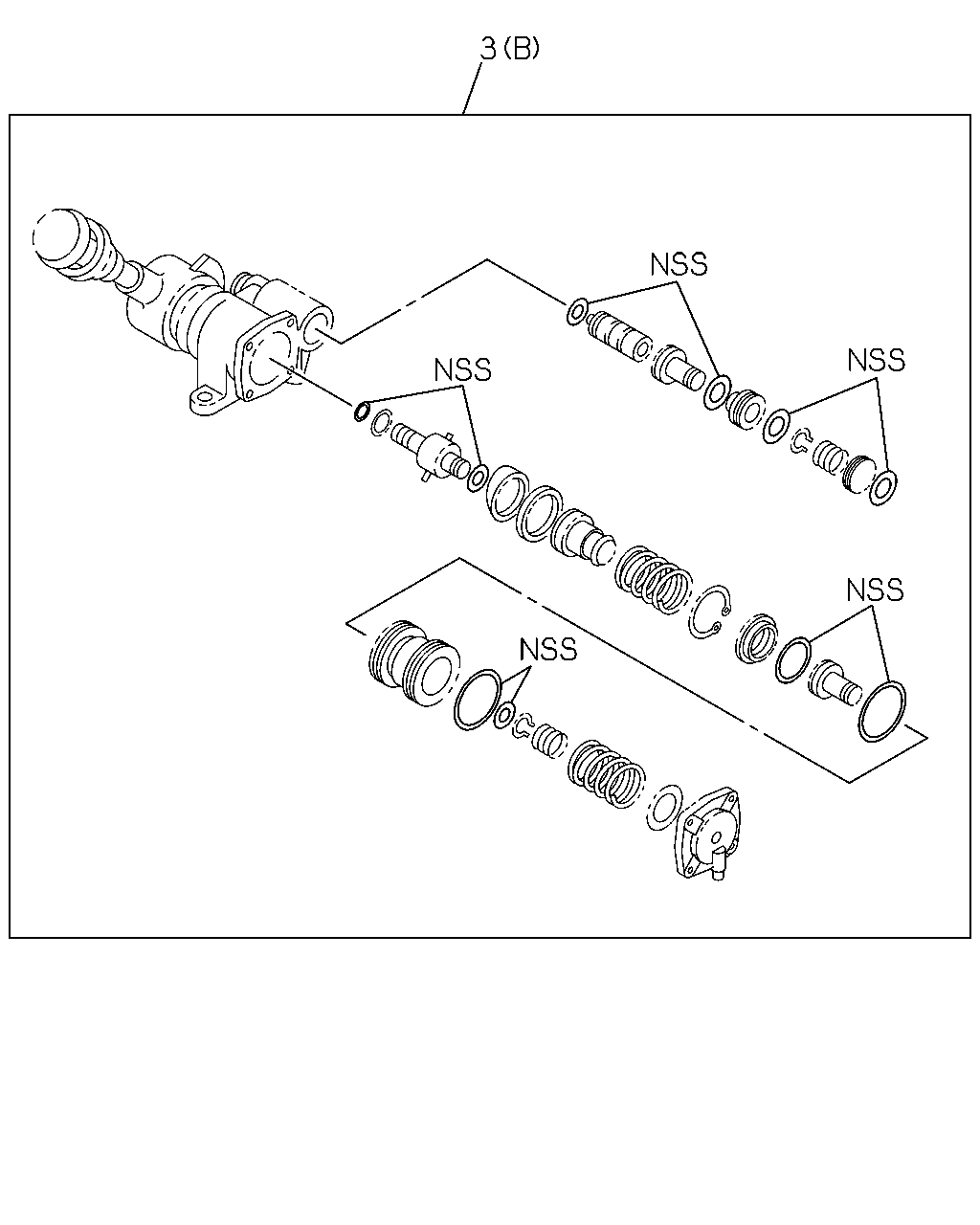

3	REPAIR KIT; HAND BRK VLV MJD7S M/T(Y2Y) (B)	1-48469-083-0	01	1	0107-
3	REPAIR KIT; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-85576-245-0	01	1	0107-
7	HEAD; BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-209-0	01	1	0107-
7	HEAD; BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-201-0	01	1	0107-
7	HEAD; BRK VLV TRAILER BRAKE HAND CONTROL<NLG> (A)	1-48119-131-0	01	1	0107-
8	STOPPER; BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B)	1-48469-200-0	01	1	0107-
8	STOPPER; BRK VLV IRELAND EQUIPMENT(NJY) TRAILER BRAKE HAND CONTROL<NLG> (A)	1-48119-327-0	01	1	0107-
8	STOPPER; BRK VLV TRAILER BRAKE HAND CONTROL<NLG> EXC. IRELAND EQUIPMENT(NJY) (A)	1-48119-239-0	01	1	0107-
32	VALVE; BRK,HAND CONT MJD7S M/T(Y2Y) BRAKE REGULATION HONG KONG<TCZ> (B)	1-48460-315-0	01	1	0107-
32	VALVE; BRK,HAND CONT MJD7S M/T(Y2Y) EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48460-316-0	01	1	0107-
32	VALVE; BRK,HAND CONT TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) BRAKE REGULATION HONG KONG<TCZ> (A)	1-48460-341-0	01	1	0107-
32	VALVE; BRK,HAND CONT TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48460-339-0	01	1	0107-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0107-
35	HOLDER; CAM MJD7S M/T(Y2Y) (B)	1-48469-054-0	01	1	0107-
35	HOLDER; CAM TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-207-0	01	1	0107-
35	HOLDER; CAM TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-171-0	01	1	0107-
38	SEAT; EXH VLV MJD7S M/T(Y2Y) (B)	1-48469-057-0	01	1	0107-
38	SEAT; EXH VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-172-0	01	1	0107-
39	SPRING; RETURN,CAM RING MJD7S M/T(Y2Y) (B)	1-48469-063-0	01	1	0107-
39	SPRING; RETURN,CAM RING TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-150-0	01	1	0107-
43	PISTON; HAND BRK VLV MJD7S M/T(Y2Y) (B)	1-48469-064-0	01	1	0107-
43	PISTON; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-151-0	01	1	0107-
46	SPRING; MAIN,PISTON MJD7S M/T(Y2Y) BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-071-0	01	1	0107-
46	SPRING; MAIN,PISTON MJD7S M/T(Y2Y) EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-119-0	01	1	0107-
46	SPRING; MAIN,PISTON TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-173-0	01	1	0107-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0107-
49	SCREW; COVER MJD7S M/T(Y2Y) BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-075-0	04	1	0107-
49	SCREW; COVER MJD7S M/T(Y2Y) EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-120-0	04	1	0107-
49	SCREW; COVER TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-169-0	04	1	0107-
50	COVER; HAND BRK VLV MJD7S M/T(Y2Y) (C)	1-48469-073-0	01	1	0107-
50	COVER; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-153-0	01	1	0107-
50	COVER; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B)	1-48469-196-0	01	1	0107-
52	SCREW; HANDLE	1-48469-062-0	01	1	0107-
53	WASHER; HANDLE	1-48469-061-0	01	1	0107-
55	SPRING; RETURN,HANDLE MJD7S M/T(Y2Y) (B)	1-48469-059-0	01	1	0107-
55	SPRING; RETURN,HANDLE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-155-0	01	1	0107-
57	PLUNGER; HAND BRK VLV MJD7S M/T(Y2Y) (B)	1-48469-076-0	01	1	0107-
57	PLUNGER; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-180-0	01	1	0107-
167	SPRING; VALVE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-48469-177-0	01	1	0107-
167	SPRING; VALVE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B)	1-48469-184-0	01	1	0107-
172	KNOB; VALVE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) BRAKE REGULATION HONG KONG<TCZ>	1-48469-210-0	01	1	0107-
172	KNOB; VALVE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48469-203-0	01	1	0107-
183	RETAINER; VALVE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z)	1-48469-185-0	01	1	0107-
206	BOLT; HAND BRK VALVE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z)	1-48469-160-0	01	1	0107-
240	RING; STOPPER TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) BRAKE REGULATION HONG KONG<TCZ>	1-48469-208-0	01	1	0107-
240	RING; STOPPER TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48469-199-0	01	1	0107-
241	SPRING; RETURN TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z)	1-48469-182-0	01	1	0107-
242	NUT; LK TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z)	1-48469-179-0	01	1	0107-

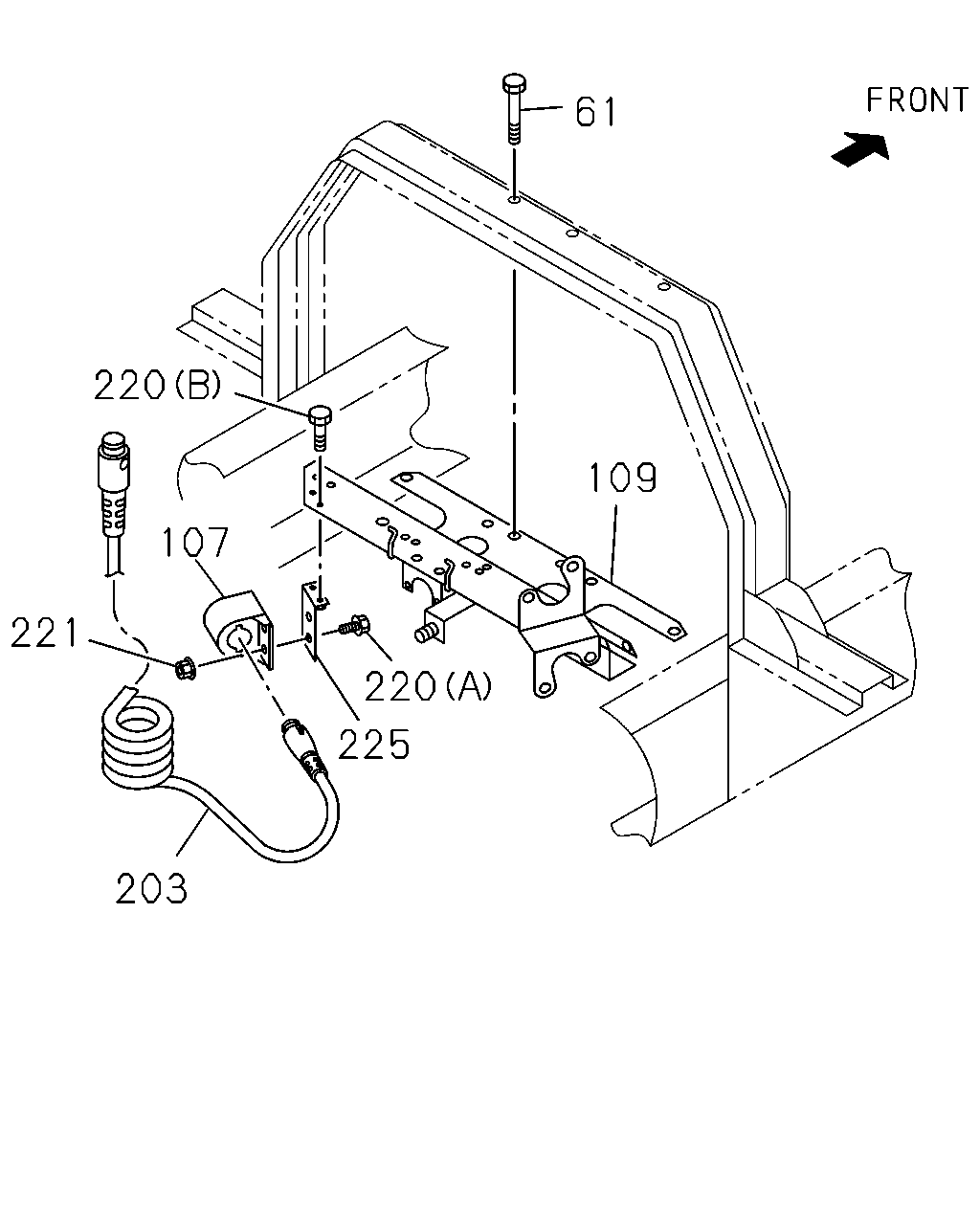

61 220 109 107 221 220 225 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	BOLT; STEP BOARD EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M10X25 FLANGE	0-28681-025-0	08	1	0107-
107	HANGER; JUMPER HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-57550-022-0	01	1	0107-
109	BRACKET; HOSE HANGER ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-53497-671-0	01	1	0107-
109	BRACKET; HOSE HANGER EXC. ANTILOCK BRAKE SYSTEM(BFA),LIGHT DUTY PACKAGE TRUCK<Y21>	1-53497-672-0	01	1	0107-
203	CABLE; JUMPER L=4000	1-82659-186-2	01	1	0107-
220	BOLT; HANGER EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M6X16 FLANGE	0-28680-616-0	02	1	0107-
220	BOLT; HANGER EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X25 FLANGE	0-28680-825-0	02	1	0107-
221	NUT; HANGER EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M6 FLANGE	0-91150-106-0	02	1	0107-
225	BRACKET; HANGER EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-82698-002-0	01	1	0107-

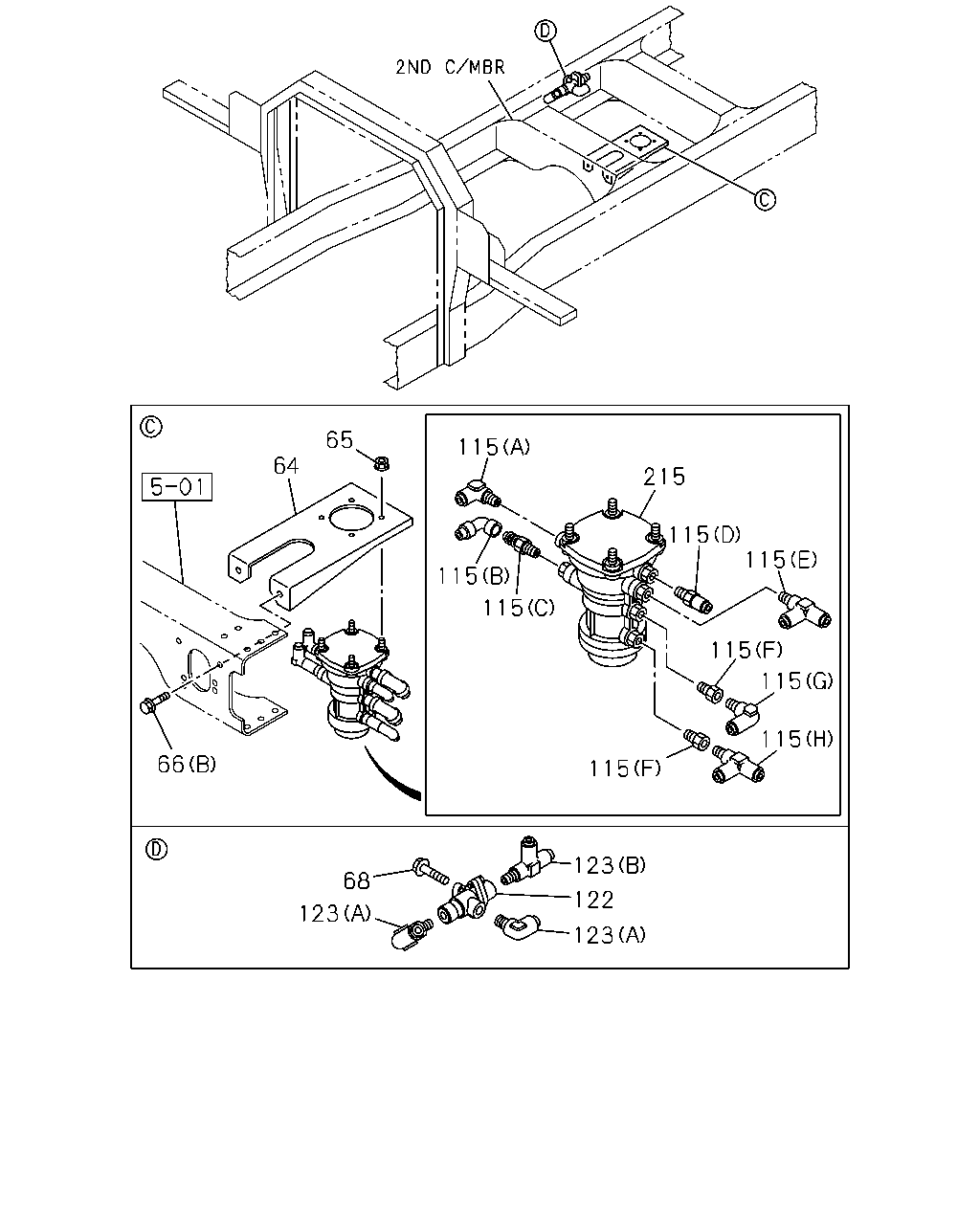

65 115 64 215 115 115 115 115 115 115 115 66 115 123 68 122 123 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BRACKET; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21>	1-47478-295-0	01	1	0107-
64	BRACKET; RELAY VLV EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48495-219-1	01	1	0107-
65	NUT; RELAY VLV M8 FLANGE	0-91150-108-0	04	1	0107-
66	BOLT; VLV BRKT LIGHT DUTY PACKAGE TRUCK<Y21> (B) M10X20 FLANGE	0-28081-020-0	02	1	0107-
66	BOLT; VLV BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X25 FLANGE	0-28680-825-0	01	1	0107-
66	BOLT; VLV BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M10X25 FLANGE	0-28681-025-0	02	1	0107-
68	BOLT; DOUBLE CHECK VLV LIGHT DUTY PACKAGE TRUCK<Y21> M8X16 FLANGE	0-28080-816-0	02	1	0107-
115	CONNECTOR; DUAL RELAY VLV (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0107-
115	CONNECTOR; DUAL RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
115	CONNECTOR; DUAL RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-
115	CONNECTOR; DUAL RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (E) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0107-
115	CONNECTOR; DUAL RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (H) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0107-
115	CONNECTOR; DUAL RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN12 ID=15.4 ELBOW	1-09661-079-1	01	1	0107-
115	CONNECTOR; DUAL RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (C) R3/8 OD=15.9	1-09661-082-0	01	1	0107-
115	CONNECTOR; DUAL RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (F) PT3/8	1-09664-210-0	02	1	0107-
115	CONNECTOR; DUAL RELAY VLV EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (I) DIN8 ELBOW	1-09660-924-1	02	1	0107-
115	CONNECTOR; DUAL RELAY VLV EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (J)	1-09660-948-0	02	1	0107-
115	CONNECTOR; DUAL RELAY VLV EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0107-
122	VALVE ASM; DOUBLE CHECK	1-48410-531-0	01	1	0107-
123	CONNECTOR; DBL CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0107-
123	CONNECTOR; DBL CHECK VLV (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0107-
215	VALVE; TRAILER CONT	1-48210-684-0	01	1	0107-

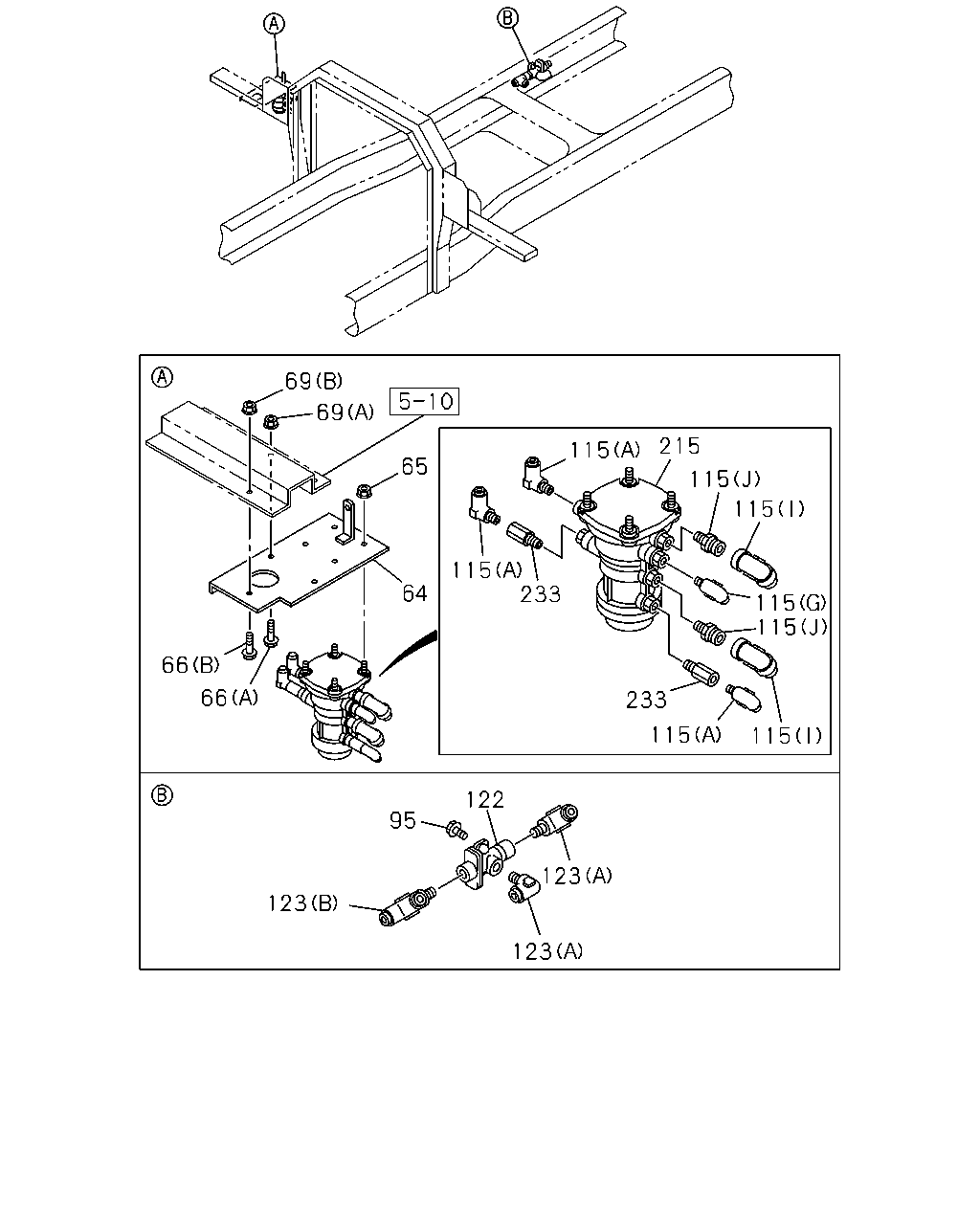

69 69 215 115 65 115 115 115 233 64 115 115 66 66 233 115 115 122 95 123 123 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BRACKET; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21>	1-47478-295-0	01	1	0107-
64	BRACKET; RELAY VLV EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48495-219-1	01	1	0107-
65	NUT; RELAY VLV M8 FLANGE	0-91150-108-0	04	1	0107-
66	BOLT; VLV BRKT LIGHT DUTY PACKAGE TRUCK<Y21> (B) M10X20 FLANGE	0-28081-020-0	02	1	0107-
66	BOLT; VLV BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X25 FLANGE	0-28680-825-0	01	1	0107-
66	BOLT; VLV BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M10X25 FLANGE	0-28681-025-0	02	1	0107-
69	NUT; VLV BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8 FLANGE	0-91150-108-0	01	1	0107-
69	NUT; VLV BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M10 FLANGE	0-91150-210-0	02	1	0107-
95	BOLT; BRKT,DOUBLE CHECK VLV EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X16 FLANGE	0-28080-816-0	02	1	0107-
115	CONNECTOR; DUAL RELAY VLV (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0107-
115	CONNECTOR; DUAL RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
115	CONNECTOR; DUAL RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-
115	CONNECTOR; DUAL RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (E) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0107-
115	CONNECTOR; DUAL RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (H) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0107-
115	CONNECTOR; DUAL RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN12 ID=15.4 ELBOW	1-09661-079-1	01	1	0107-
115	CONNECTOR; DUAL RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (C) R3/8 OD=15.9	1-09661-082-0	01	1	0107-
115	CONNECTOR; DUAL RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (F) PT3/8	1-09664-210-0	02	1	0107-
115	CONNECTOR; DUAL RELAY VLV EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (I) DIN8 ELBOW	1-09660-924-1	02	1	0107-
115	CONNECTOR; DUAL RELAY VLV EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (J)	1-09660-948-0	02	1	0107-
115	CONNECTOR; DUAL RELAY VLV EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0107-
122	VALVE ASM; DOUBLE CHECK	1-48410-531-0	01	1	0107-
123	CONNECTOR; DBL CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0107-
123	CONNECTOR; DBL CHECK VLV (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0107-
215	VALVE; TRAILER CONT	1-48210-684-0	01	1	0107-
233	ADAPTER; VLV EXC. LIGHT DUTY PACKAGE TRUCK<Y21> PT3/8	1-48319-058-0	02	1	0107-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	3	REPAIR KIT; HAND BRK VLV MJD7S M/T(Y2Y) (B)	1-48469-083-0	01	1	0107-
	3	REPAIR KIT; HAND BRK VLV TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A)	1-85576-245-0	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
