Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#10707) — 216 parça

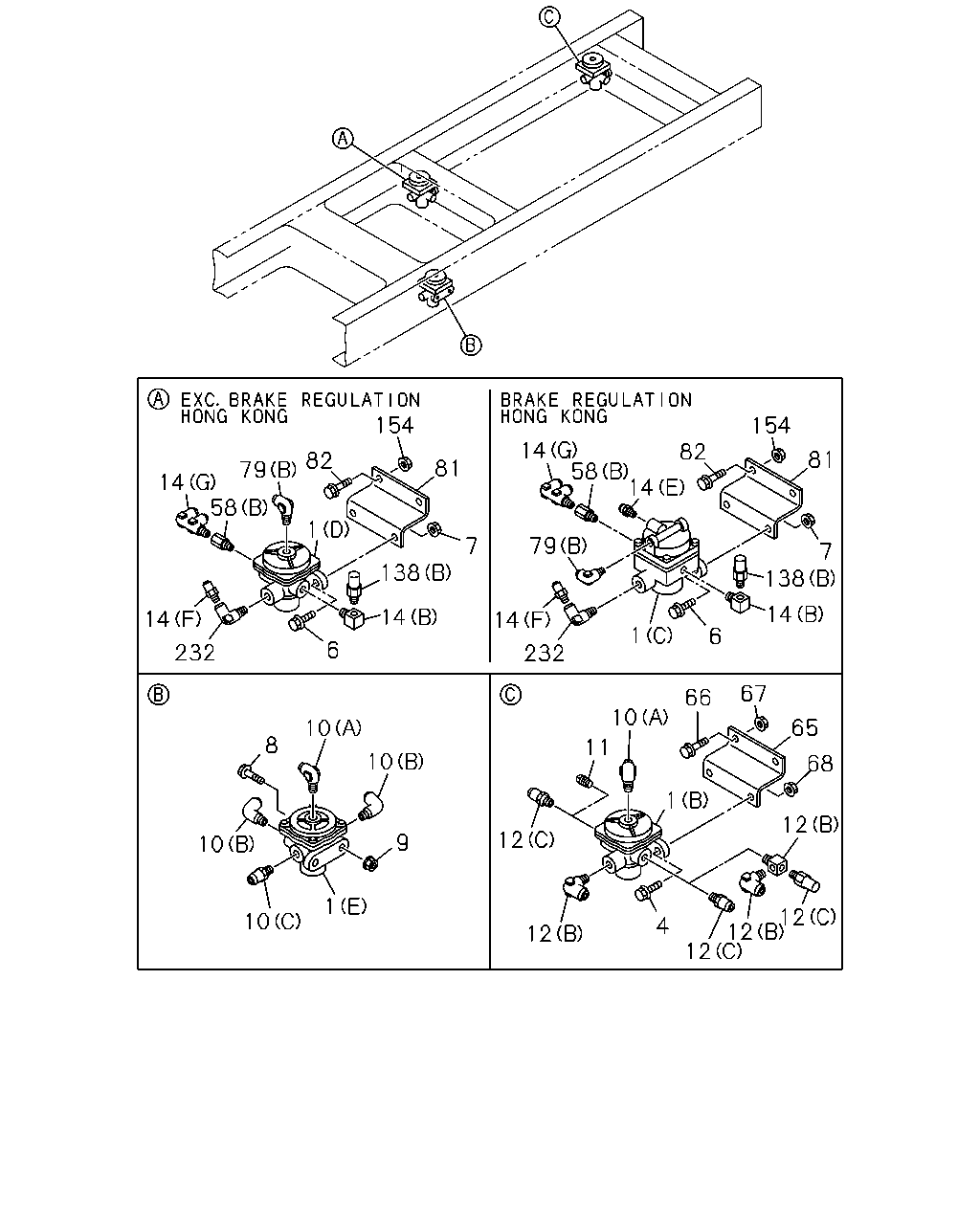

154 154 14 58 14 82 81 82 79 81 14 58 1 79 7 7 138 138 14 14 14 14 1 6 6 232 232 67 66 10 65 10 8 11 10 8 1 12 12 9 10 1 12 12 12 10 4 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48210-875-0	01	1	0107-
1	VALVE; RELAY RWD RR BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48240-041-0	01	1	0107-
1	VALVE; RELAY RWD RR EXC. BRAKE SYSTEM SPRING BRAKE(BCR),BRAKE REGULATION HONG KONG<TCZ>,LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-48240-052-0	01	1	0107-
1	VALVE; RELAY RWD RR LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-48210-997-0	01	1	0107-
1	VALVE; RELAY RWD RR EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E)	1-48210-278-0	01	1	0107-
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	0107-
6	BOLT; VLV M10X35 FLANGE	0-28681-035-0	02	1	0107-
6	BOLT; VLV LIGHT DUTY PACKAGE TRUCK<Y21> M10X35 FLANGE	0-28681-035-0	02	1	0107-
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0107-
7	NUT; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> M10 FLANGE	0-91150-210-0	02	1	0107-
8	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M10X20 FLANGE	0-28081-020-0	02	1	0107-
8	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M10X30 FLANGE	0-28681-030-0	02	1	0107-
8	BOLT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M10X40 FLANGE	0-28681-040-0	02	1	0107-
9	NUT M10 FLANGE	0-91150-210-0	02	1	0107-
10	CONNECTOR EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0107-
10	CONNECTOR EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0107-
10	CONNECTOR EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0107-
10	CONNECTOR EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0107-
11	PLUG ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> PT3/8	9-09204-517-0	01	1	0107-
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0107-
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0107-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0107-
12	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0107-
12	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0107-
12	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0107-
12	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (D) PT3/8 3WAY	1-09661-300-0	01	1	0107-
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (D) PT3/8 3WAY	1-09661-300-0	01	1	0107-
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-
14	CONNECTOR; RELAY VLV EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0107-
14	CONNECTOR; RELAY VLV EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (G) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0107-
14	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0107-
14	CONNECTOR; RELAY VLV EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0107-
14	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0107-
14	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (D) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0107-
14	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (A) PT3/8 3WAY	1-09661-300-0	01	1	0107-
58	ADAPTER LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48219-154-0	03	1	0107-
58	ADAPTER EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (B) PT3/8	1-48319-058-0	01	1	0107-
58	ADAPTER LIGHT DUTY PACKAGE TRUCK<Y21> (A) PT3/8	1-09664-210-0	01	1	0107-
65	BRACKET; RELAY VLV RR	1-47477-964-0	01	1	0107-
66	BOLT; BRKT,RELAY VLV RR M10X35 FLANGE	0-28681-035-0	02	1	0107-
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91150-210-0	02	1	0107-
79	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0107-
79	CONNECTOR; RELAY VLV EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0107-
79	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0107-
81	BRACKET; RELAY VLV,PARKING BRK EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-47478-233-0	01	1	0107-
82	BOLT; BRKT,RELAY VLV EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M10X30 FLANGE	0-28681-030-0	02	1	0107-
138	SWITCH; RELAY VALVE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48340-057-1	01	1	0107-
138	SWITCH; RELAY VALVE LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-48340-064-1	01	1	0107-
154	NUT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M10 FLANGE	0-91150-210-0	02	1	0107-
232	VALVE; CHECK LIGHT DUTY PACKAGE TRUCK<Y21>	1-48320-031-1	01	1	0107-
232	VALVE; CHECK EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21>	1-48320-031-1	01	1	0107-

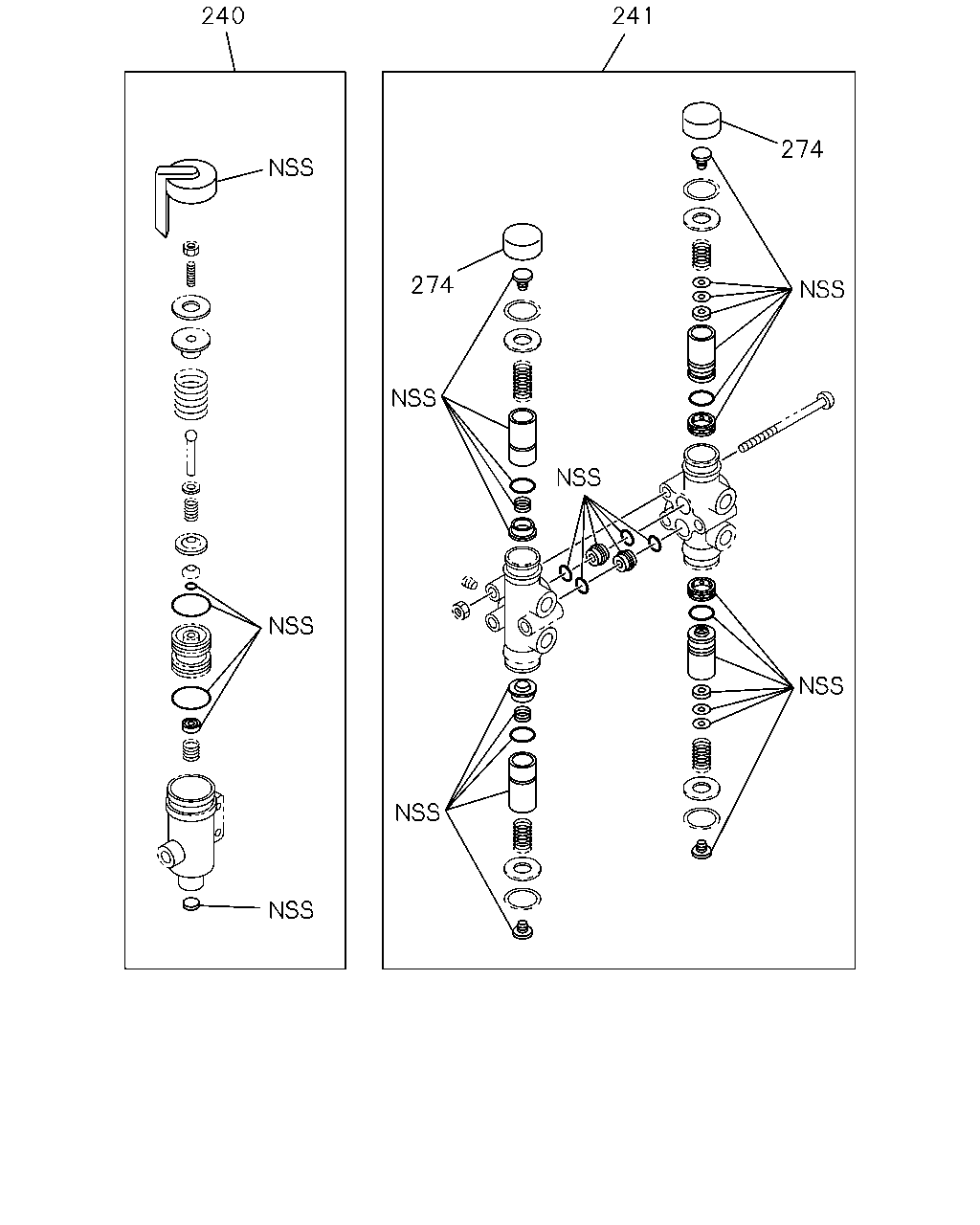

240 241 274 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
240	REPAIR KIT; AIR CONT GOV	1-85576-303-0	01	1	0107-
241	REPAIR KIT; PROTECTION VALVE	1-85576-240-0	01	1	0107-
274	COVER; DUST	1-48119-450-0	02	1	0107-

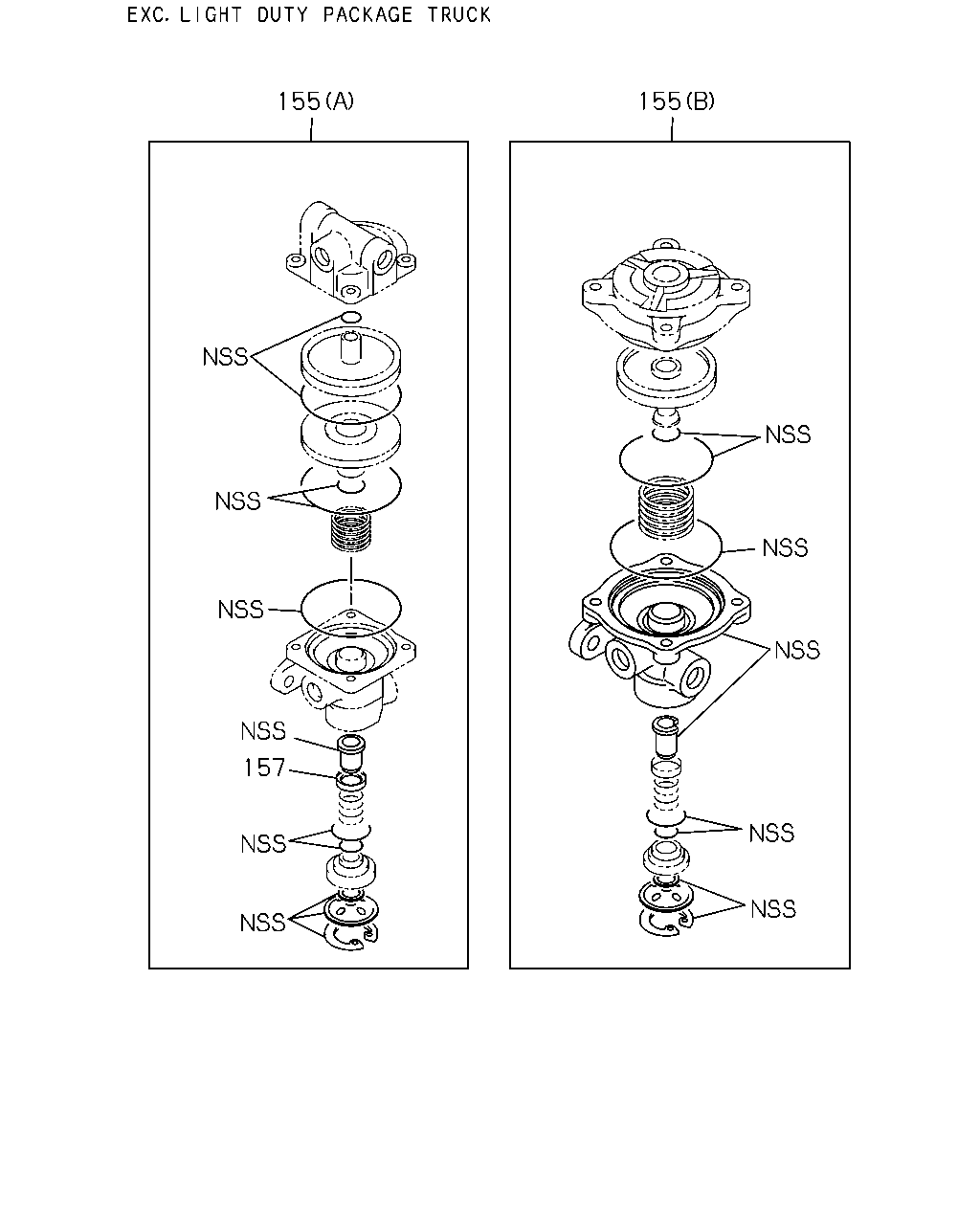

155 155 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-85576-294-0	03	1	0107-
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-85576-035-0	01	1	0107-
155	REPAIR KIT; RELAY VALVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-85576-033-0	01	1	0107-
155	REPAIR KIT; RELAY VALVE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),BRAKE REGULATION HONG KONG<TCZ>,LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-85576-033-0	01	1	0107-
155	REPAIR KIT; RELAY VALVE EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-85576-033-0	01	1	0107-
157	RETAINER; VALVE LIGHT DUTY PACKAGE TRUCK<Y21>	1-48213-002-0	03	1	0107-
157	RETAINER; VALVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48213-002-0	01	1	0107-
157	RETAINER; VALVE EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21>	1-48213-002-0	01	1	0107-
157	RETAINER; VALVE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21>	1-48213-002-0	01	1	0107-

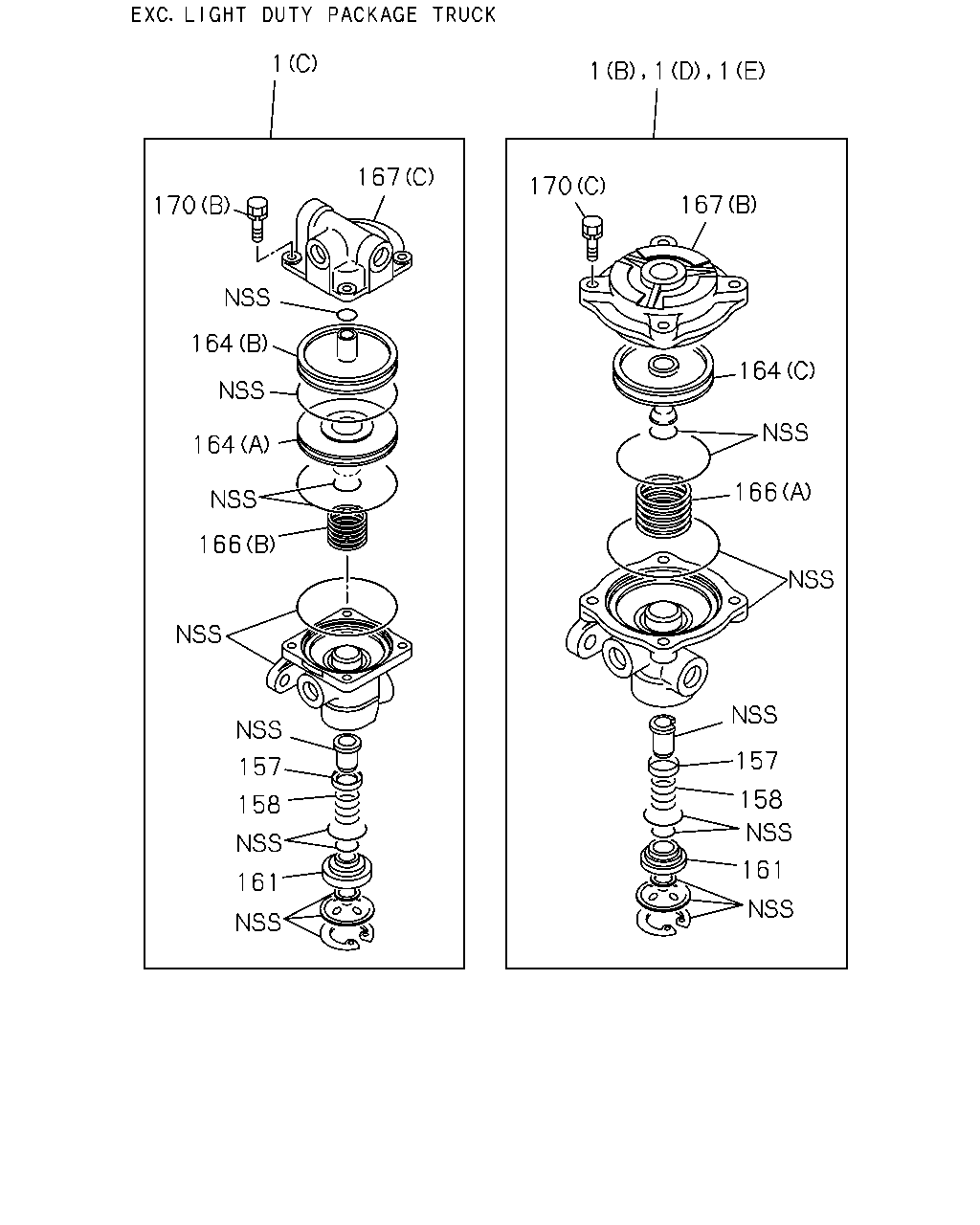

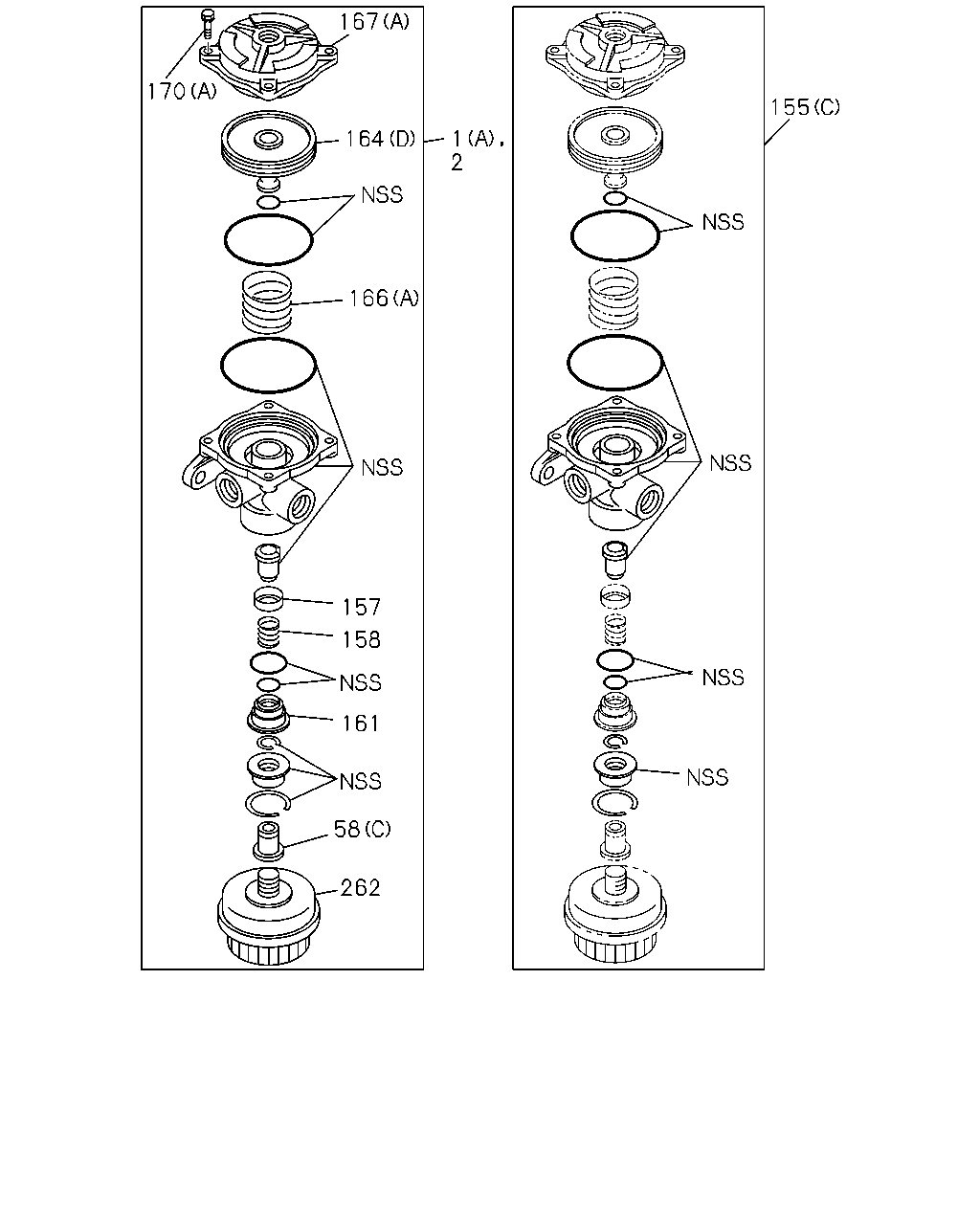

167 170 155 1 2 164 166 157 158 161 58 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48210-875-0	01	1	0107-
1	VALVE; RELAY RWD RR BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48240-041-0	01	1	0107-
1	VALVE; RELAY RWD RR EXC. BRAKE SYSTEM SPRING BRAKE(BCR),BRAKE REGULATION HONG KONG<TCZ>,LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-48240-052-0	01	1	0107-
1	VALVE; RELAY RWD RR LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-48210-997-0	01	1	0107-
1	VALVE; RELAY RWD RR EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E)	1-48210-278-0	01	1	0107-
2	VALVE; RELAY LIGHT DUTY PACKAGE TRUCK<Y21>	1-48210-997-0	02	1	0107-
58	ADAPTER LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48219-154-0	03	1	0107-
58	ADAPTER EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (B) PT3/8	1-48319-058-0	01	1	0107-
58	ADAPTER LIGHT DUTY PACKAGE TRUCK<Y21> (A) PT3/8	1-09664-210-0	01	1	0107-
155	REPAIR KIT; RELAY VALVE LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-85576-294-0	03	1	0107-
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-85576-035-0	01	1	0107-
155	REPAIR KIT; RELAY VALVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-85576-033-0	01	1	0107-
155	REPAIR KIT; RELAY VALVE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),BRAKE REGULATION HONG KONG<TCZ>,LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-85576-033-0	01	1	0107-
155	REPAIR KIT; RELAY VALVE EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-85576-033-0	01	1	0107-
157	RETAINER; VALVE LIGHT DUTY PACKAGE TRUCK<Y21>	1-48213-002-0	03	1	0107-
157	RETAINER; VALVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48213-002-0	01	1	0107-
157	RETAINER; VALVE EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21>	1-48213-002-0	01	1	0107-
157	RETAINER; VALVE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21>	1-48213-002-0	01	1	0107-
158	SPRING; VALVE LIGHT DUTY PACKAGE TRUCK<Y21>	1-47819-089-0	03	1	0107-
158	SPRING; VALVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-47819-089-0	01	1	0107-
158	SPRING; VALVE EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21>	1-47819-089-0	01	1	0107-
158	SPRING; VALVE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21>	1-47819-089-0	01	1	0107-
161	GUIDE; VALVE LIGHT DUTY PACKAGE TRUCK<Y21>	1-48129-014-0	03	1	0107-
161	GUIDE; VALVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48129-014-0	01	1	0107-
161	GUIDE; VALVE EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21>	1-48129-014-0	01	1	0107-
161	GUIDE; VALVE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21>	1-48129-014-0	01	1	0107-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-48219-032-0	01	1	0107-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48219-047-0	01	1	0107-
164	PISTON; RELAY VALVE LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-48219-071-0	03	1	0107-
164	PISTON; RELAY VALVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48219-071-0	01	1	0107-
164	PISTON; RELAY VALVE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),BRAKE REGULATION HONG KONG<TCZ>,LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48219-071-0	01	1	0107-
164	PISTON; RELAY VALVE EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48219-071-0	01	1	0107-
166	SPRING; PISTON LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47819-090-0	03	1	0107-
166	SPRING; PISTON BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48219-048-0	01	1	0107-
166	SPRING; PISTON EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47819-090-0	01	1	0107-
166	SPRING; PISTON EXC. BRAKE SYSTEM SPRING BRAKE(BCR),BRAKE REGULATION HONG KONG<TCZ>,LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47819-090-0	01	1	0107-
166	SPRING; PISTON EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47819-090-0	01	1	0107-
167	COVER; VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48219-050-1	01	1	0107-
167	COVER; VALVE LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-48219-070-0	03	1	0107-
167	COVER; VALVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48219-070-0	01	1	0107-
167	COVER; VALVE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),BRAKE REGULATION HONG KONG<TCZ>,LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48219-070-0	01	1	0107-
167	COVER; VALVE EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48219-070-0	01	1	0107-
170	SCREW; COVER TO BODY BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48219-041-0	04	1	0107-
170	SCREW; COVER TO BODY LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-48219-039-0	12	1	0107-
170	SCREW; COVER TO BODY EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48219-039-0	04	1	0107-
170	SCREW; COVER TO BODY EXC. BRAKE SYSTEM SPRING BRAKE(BCR),BRAKE REGULATION HONG KONG<TCZ>,LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48219-039-0	04	1	0107-
170	SCREW; COVER TO BODY EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48219-039-0	04	1	0107-
262	SILENCER; RELAY VALVE LIGHT DUTY PACKAGE TRUCK<Y21>	1-48219-149-0	03	1	0107-

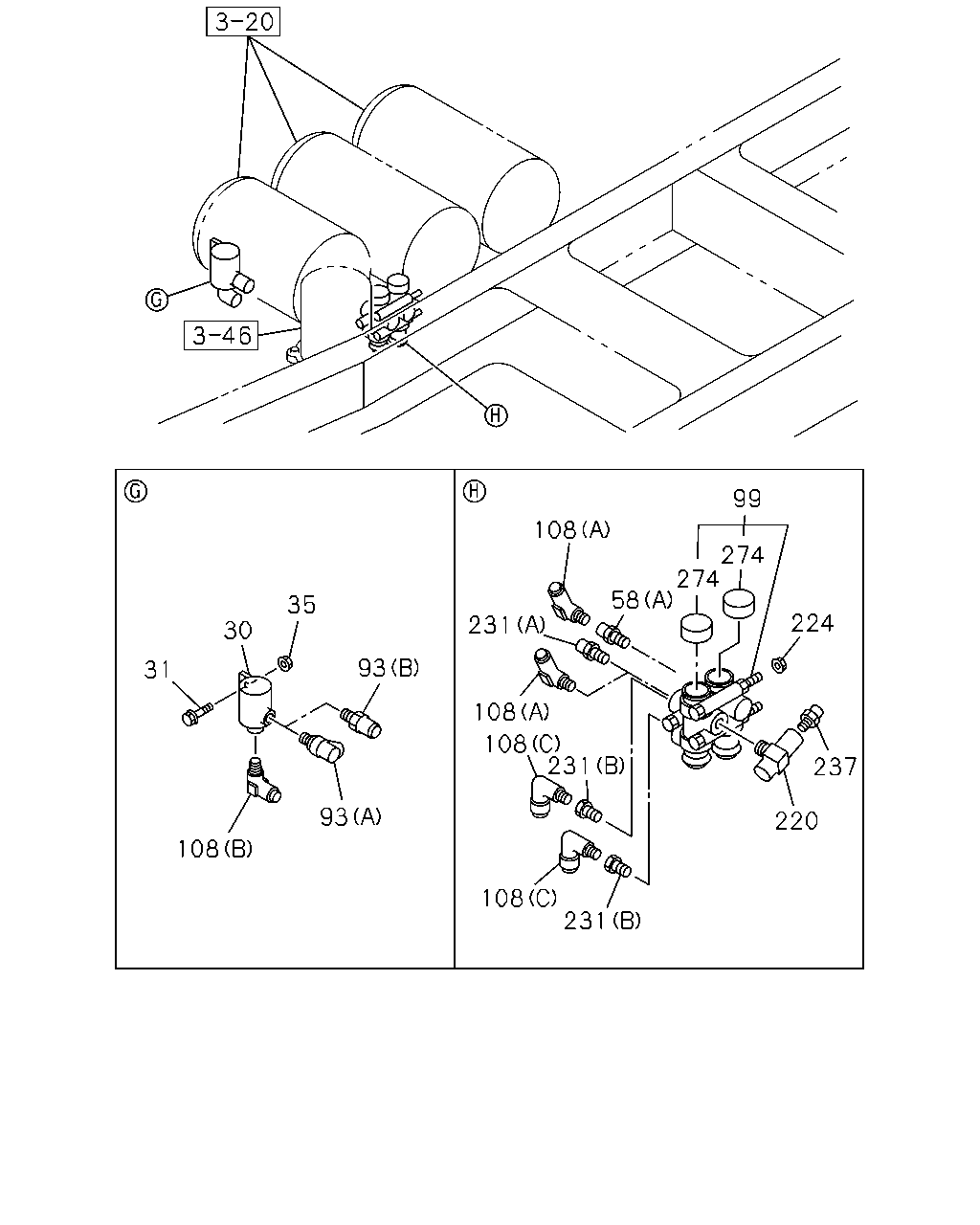

99 108 274 274 58 35 224 231 30 93 31 108 108 231 237 93 220 108 108 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	GOVERNOR; AIR CONT	1-48350-063-0	01	1	0107-
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	0107-
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0107-
58	ADAPTER LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48219-154-0	03	1	0107-
58	ADAPTER EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (B) PT3/8	1-48319-058-0	01	1	0107-
58	ADAPTER LIGHT DUTY PACKAGE TRUCK<Y21> (A) PT3/8	1-09664-210-0	01	1	0107-
93	CONNECTOR; GOV EXC. AIR DRYER<PS7>,LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0107-
93	CONNECTOR; GOV LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN6X2 & R1/4 3WAY	1-09661-070-0	01	1	0107-
93	CONNECTOR; GOV AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN6X2 & R1/4 3WAY	1-09661-070-0	01	1	0107-
99	VALVE; PROTECTION	1-48110-175-1	01	1	0107-
108	CONNECTOR; ELBOW (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0107-
108	CONNECTOR; ELBOW LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0107-
108	CONNECTOR; ELBOW EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
108	CONNECTOR; ELBOW EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN12 ID=15.4 ELBOW	1-09661-079-1	02	1	0107-
220	CONNECTOR; 3WAY	1-09661-232-0	01	1	0107-
224	NUT; PROTECTION VALVE M8 FLANGE	0-91150-108-0	03	1	0107-
231	CONNECTOR; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0107-
231	CONNECTOR; NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0107-
231	CONNECTOR; NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) R3/8 OD=15.9	1-09661-082-0	02	1	0107-
237	VALVE; SAFETY	1-48320-012-1	01	1	0107-
274	COVER; DUST	1-48119-450-0	02	1	0107-

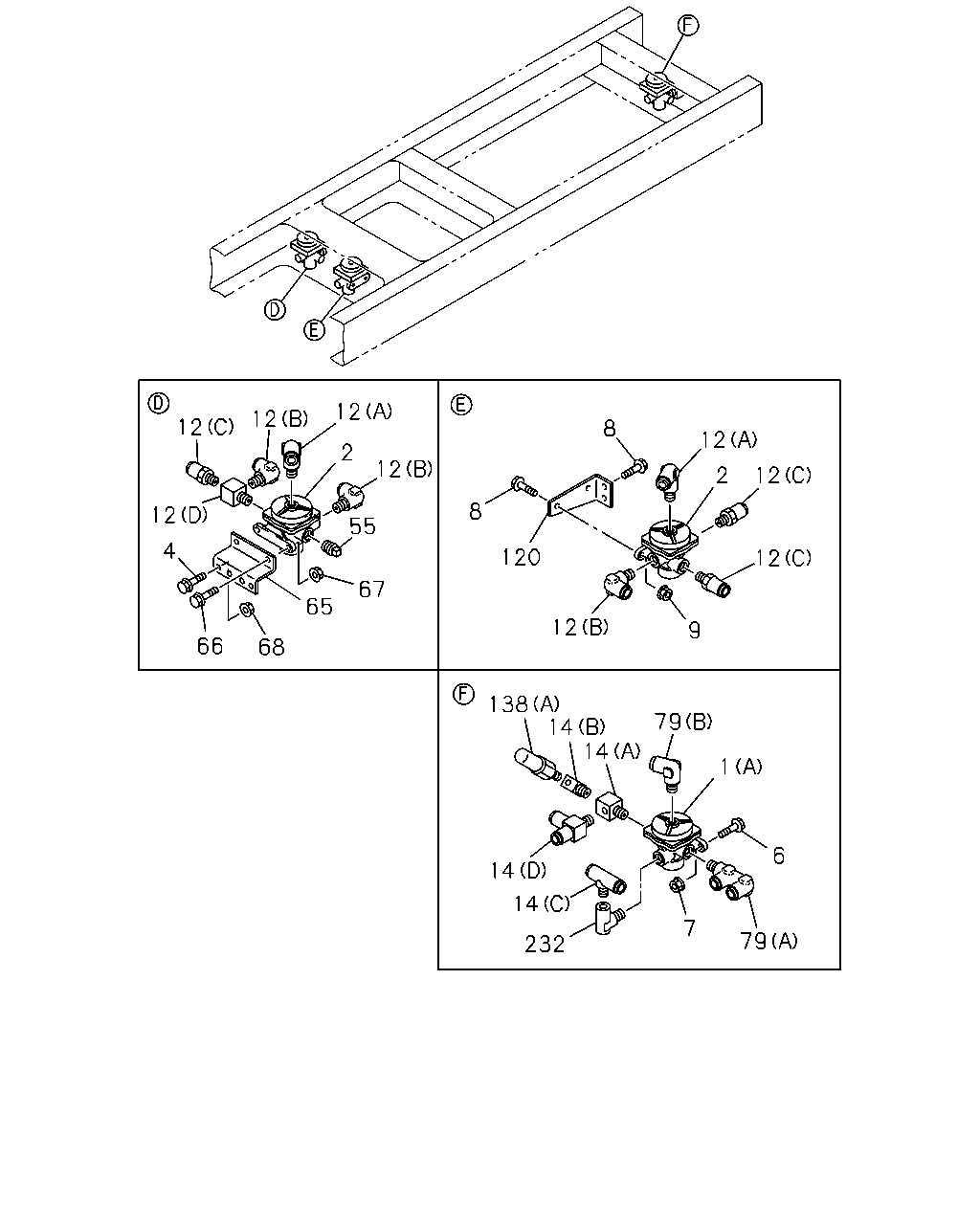

12 12 12 8 12 2 12 2 12 8 12 55 4 120 12 67 65 12 9 66 68 138 14 14 79 1 6 14 14 7 79 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48210-875-0	01	1	0107-
1	VALVE; RELAY RWD RR BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48240-041-0	01	1	0107-
1	VALVE; RELAY RWD RR EXC. BRAKE SYSTEM SPRING BRAKE(BCR),BRAKE REGULATION HONG KONG<TCZ>,LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-48240-052-0	01	1	0107-
1	VALVE; RELAY RWD RR LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-48210-997-0	01	1	0107-
1	VALVE; RELAY RWD RR EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E)	1-48210-278-0	01	1	0107-
2	VALVE; RELAY LIGHT DUTY PACKAGE TRUCK<Y21>	1-48210-997-0	02	1	0107-
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	0107-
6	BOLT; VLV M10X35 FLANGE	0-28681-035-0	02	1	0107-
6	BOLT; VLV LIGHT DUTY PACKAGE TRUCK<Y21> M10X35 FLANGE	0-28681-035-0	02	1	0107-
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0107-
7	NUT; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> M10 FLANGE	0-91150-210-0	02	1	0107-
8	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M10X20 FLANGE	0-28081-020-0	02	1	0107-
8	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M10X30 FLANGE	0-28681-030-0	02	1	0107-
8	BOLT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M10X40 FLANGE	0-28681-040-0	02	1	0107-
9	NUT M10 FLANGE	0-91150-210-0	02	1	0107-
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0107-
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0107-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0107-
12	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0107-
12	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0107-
12	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0107-
12	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (D) PT3/8 3WAY	1-09661-300-0	01	1	0107-
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (D) PT3/8 3WAY	1-09661-300-0	01	1	0107-
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-
14	CONNECTOR; RELAY VLV EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0107-
14	CONNECTOR; RELAY VLV EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (G) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0107-
14	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0107-
14	CONNECTOR; RELAY VLV EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0107-
14	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0107-
14	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (D) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0107-
14	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (A) PT3/8 3WAY	1-09661-300-0	01	1	0107-
55	PLUG; SUPPLY LIGHT DUTY PACKAGE TRUCK<Y21> PT3/8	9-09204-517-0	01	1	0107-
65	BRACKET; RELAY VLV RR	1-47477-964-0	01	1	0107-
66	BOLT; BRKT,RELAY VLV RR M10X35 FLANGE	0-28681-035-0	02	1	0107-
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91150-210-0	02	1	0107-
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	0107-
79	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0107-
79	CONNECTOR; RELAY VLV EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0107-
79	CONNECTOR; RELAY VLV LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0107-
120	BRACKET; VLV LIGHT DUTY PACKAGE TRUCK<Y21>	1-47478-303-0	01	1	0107-
138	SWITCH; RELAY VALVE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48340-057-1	01	1	0107-
138	SWITCH; RELAY VALVE LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-48340-064-1	01	1	0107-
232	VALVE; CHECK LIGHT DUTY PACKAGE TRUCK<Y21>	1-48320-031-1	01	1	0107-
232	VALVE; CHECK EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21>	1-48320-031-1	01	1	0107-

1 1 1 1 167 170 167 170 164 164 164 166 166 157 157 158 158 161 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48210-875-0	01	1	0107-
1	VALVE; RELAY RWD RR BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48240-041-0	01	1	0107-
1	VALVE; RELAY RWD RR EXC. BRAKE SYSTEM SPRING BRAKE(BCR),BRAKE REGULATION HONG KONG<TCZ>,LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-48240-052-0	01	1	0107-
1	VALVE; RELAY RWD RR LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-48210-997-0	01	1	0107-
1	VALVE; RELAY RWD RR EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E)	1-48210-278-0	01	1	0107-
157	RETAINER; VALVE LIGHT DUTY PACKAGE TRUCK<Y21>	1-48213-002-0	03	1	0107-
157	RETAINER; VALVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48213-002-0	01	1	0107-
157	RETAINER; VALVE EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21>	1-48213-002-0	01	1	0107-
157	RETAINER; VALVE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21>	1-48213-002-0	01	1	0107-
158	SPRING; VALVE LIGHT DUTY PACKAGE TRUCK<Y21>	1-47819-089-0	03	1	0107-
158	SPRING; VALVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-47819-089-0	01	1	0107-
158	SPRING; VALVE EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21>	1-47819-089-0	01	1	0107-
158	SPRING; VALVE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21>	1-47819-089-0	01	1	0107-
161	GUIDE; VALVE LIGHT DUTY PACKAGE TRUCK<Y21>	1-48129-014-0	03	1	0107-
161	GUIDE; VALVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48129-014-0	01	1	0107-
161	GUIDE; VALVE EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21>	1-48129-014-0	01	1	0107-
161	GUIDE; VALVE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21>	1-48129-014-0	01	1	0107-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-48219-032-0	01	1	0107-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48219-047-0	01	1	0107-
164	PISTON; RELAY VALVE LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-48219-071-0	03	1	0107-
164	PISTON; RELAY VALVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48219-071-0	01	1	0107-
164	PISTON; RELAY VALVE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),BRAKE REGULATION HONG KONG<TCZ>,LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48219-071-0	01	1	0107-
164	PISTON; RELAY VALVE EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48219-071-0	01	1	0107-
166	SPRING; PISTON LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47819-090-0	03	1	0107-
166	SPRING; PISTON BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48219-048-0	01	1	0107-
166	SPRING; PISTON EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47819-090-0	01	1	0107-
166	SPRING; PISTON EXC. BRAKE SYSTEM SPRING BRAKE(BCR),BRAKE REGULATION HONG KONG<TCZ>,LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47819-090-0	01	1	0107-
166	SPRING; PISTON EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47819-090-0	01	1	0107-
167	COVER; VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48219-050-1	01	1	0107-
167	COVER; VALVE LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-48219-070-0	03	1	0107-
167	COVER; VALVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48219-070-0	01	1	0107-
167	COVER; VALVE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),BRAKE REGULATION HONG KONG<TCZ>,LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48219-070-0	01	1	0107-
167	COVER; VALVE EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48219-070-0	01	1	0107-
170	SCREW; COVER TO BODY BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48219-041-0	04	1	0107-
170	SCREW; COVER TO BODY LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-48219-039-0	12	1	0107-
170	SCREW; COVER TO BODY EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48219-039-0	04	1	0107-
170	SCREW; COVER TO BODY EXC. BRAKE SYSTEM SPRING BRAKE(BCR),BRAKE REGULATION HONG KONG<TCZ>,LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48219-039-0	04	1	0107-
170	SCREW; COVER TO BODY EXC. BRAKE REGULATION ECE<TDV>,LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48219-039-0	04	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
