Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#10706) — 239 parça

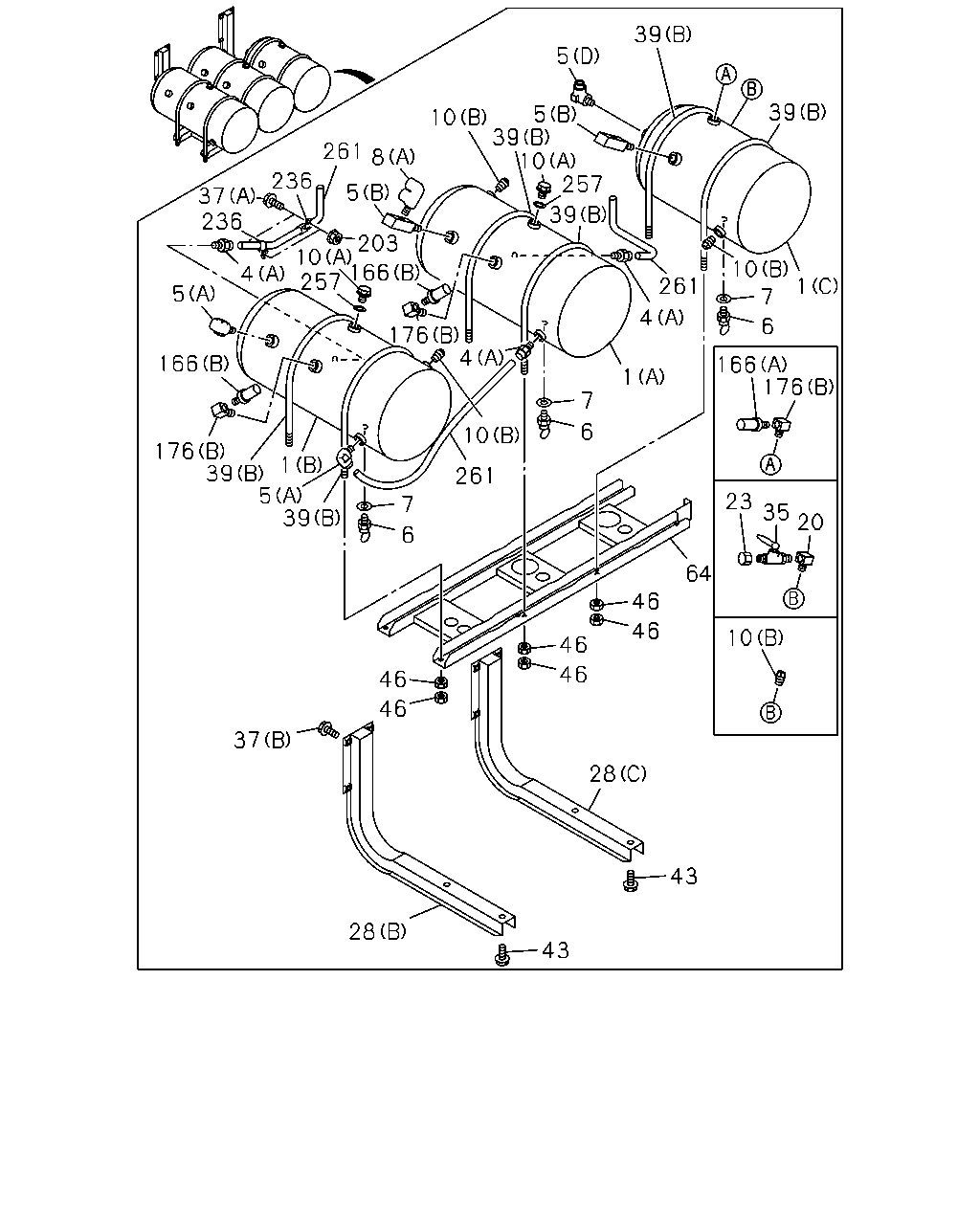

39 5 39 10 5 39 10 257 261 8 236 5 37 236 39 203 10 166 257 10 1 7 4 261 5 4 6 176 4 166 166 176 1 7 6 10 176 39 5 39 1 261 23 7 35 20 6 64 46 46 10 46 46 46 46 37 28 43 28 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48370-710-0	01	1	0107-
1	TANK ASM; AIR (C)	1-48370-712-0	01	1	0107-
1	TANK ASM; AIR (D)	1-48370-714-0	01	1	0107-
1	TANK ASM; AIR LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48370-711-0	01	1	0107-
1	TANK ASM; AIR EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48370-942-1	01	1	0107-
4	CONNECTOR; FLARE LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
4	CONNECTOR; FLARE LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	05	1	0107-
4	CONNECTOR; FLARE LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-09661-134-0	01	1	0107-
4	CONNECTOR; FLARE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-
4	CONNECTOR; FLARE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0107-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0107-
5	UNION; AIR TANK (C) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0107-
5	UNION; AIR TANK AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
5	UNION; AIR TANK EXC. AIR DRYER<PS7>,LIGHT DUTY PACKAGE TRUCK<Y21> (E) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	0107-
5	UNION; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (B) PT3/8 ELBOW	1-09660-696-0	02	1	0107-
5	UNION; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-09660-778-1	02	1	0107-
5	UNION; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0107-
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48312-015-0	01	1	0107-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0107-
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7>,LIGHT DUTY PACKAGE TRUCK<Y21>	1-48312-015-0	02	1	0107-
6	COCK; DRAIN,AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21>	1-48312-015-0	05	1	0107-
6	COCK; DRAIN,AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48312-015-0	04	1	0107-
7	GASKET; DRAIN COCK AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=14	1-09630-145-0	01	1	0107-
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7>,LIGHT DUTY PACKAGE TRUCK<Y21> ID=14	1-09630-145-0	02	1	0107-
7	GASKET; DRAIN COCK LIGHT DUTY PACKAGE TRUCK<Y21> ID=14	1-09630-145-0	06	1	0107-
7	GASKET; DRAIN COCK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=14	1-09630-145-0	05	1	0107-
8	CONNECTOR; AIR TANK (B)	1-09661-027-0	01	1	0107-
8	CONNECTOR; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0107-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0107-
10	PLUG; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-09604-106-0	01	1	0107-
10	PLUG; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (B) PT3/8	9-09204-517-0	02	1	0107-
10	PLUG; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-09604-106-0	02	1	0107-
10	PLUG; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) PT3/8	9-09204-517-0	03	1	0107-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (B) PT3/8	9-09204-517-0	01	1	0107-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0107-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	0107-
28	BRACKET; AIR TANK (A)	1-48317-820-2	01	1	0107-
28	BRACKET; AIR TANK (B)	1-48317-856-0	01	1	0107-
28	BRACKET; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48317-818-0	01	1	0107-
28	BRACKET; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48317-868-0	01	1	0107-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0107-
37	BOLT; AIR TANK (B) M10X35 FLANGE	0-28681-035-0	04	1	0107-
37	BOLT; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (B) M12X50 FLANGE	0-28081-250-0	08	1	0107-
37	BOLT; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	04	1	0107-
37	BOLT; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-
37	BOLT; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M12X40 FLANGE	0-28681-240-0	08	1	0107-
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0107-
39	U-BOLT; AIR TANK (B)	1-48317-675-0	06	1	0107-
43	BOLT; STAY,AIR TANK,MAIN M12X25 FLANGE	0-28681-225-0	04	1	0107-
46	NUT; U-BOLT LIGHT DUTY PACKAGE TRUCK<Y21> M8	9-09110-408-0	32	1	0107-
46	NUT; U-BOLT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8	9-09110-408-0	08	1	0107-
46	NUT; U-BOLT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8	9-09110-408-0	24	1	0107-
64	STAY; AIR TANK,MAIN	1-48317-819-1	01	1	0107-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (B) 530KPA	1-48340-054-1	05	1	0107-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) (A) 650KPA	1-48340-059-1	01	1	0107-
176	ADAPTER (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0107-
176	ADAPTER (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0107-
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) PT3/8	1-09664-210-0	02	1	0107-
203	NUT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
236	CLIP; BAND LIGHT DUTY PACKAGE TRUCK<Y21> ID=12 H=24 L=20	1-09700-605-0	04	1	0107-
236	CLIP; BAND EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=14 H=50 L=20	1-09700-843-0	02	1	0107-
257	GASKET; PLUG EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=14	1-09630-145-0	02	1	0107-
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0107-

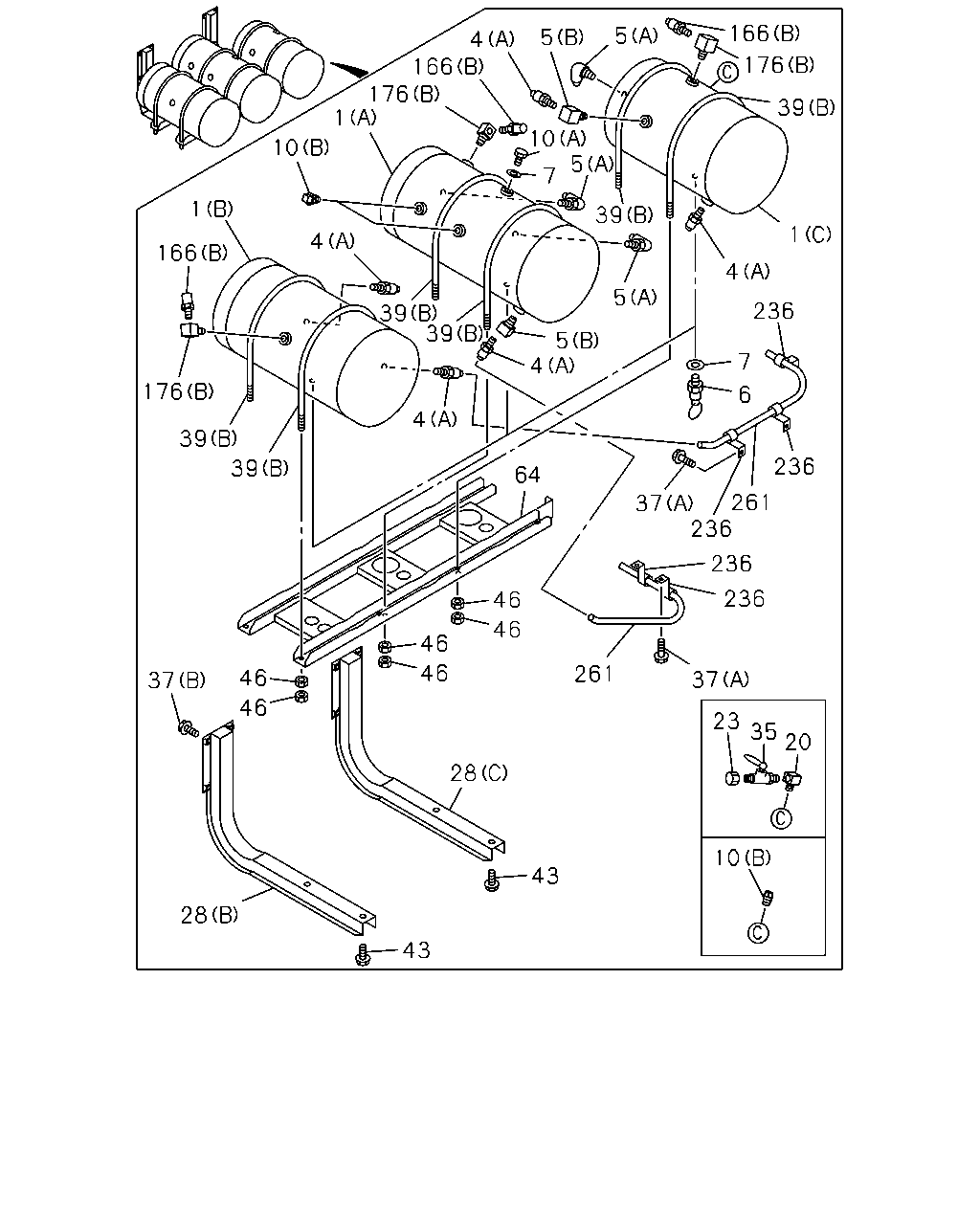

166 5 5 4 166 176 176 39 1 10 5 10 7 1 39 1 4 166 4 5 236 39 39 5 4 7 176 6 4 39 236 39 64 261 236 37 236 236 46 46 46 46 261 46 37 37 46 23 35 20 28 10 43 28 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48370-710-0	01	1	0107-
1	TANK ASM; AIR (C)	1-48370-712-0	01	1	0107-
1	TANK ASM; AIR (D)	1-48370-714-0	01	1	0107-
1	TANK ASM; AIR LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48370-711-0	01	1	0107-
1	TANK ASM; AIR EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48370-942-1	01	1	0107-
4	CONNECTOR; FLARE LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
4	CONNECTOR; FLARE LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	05	1	0107-
4	CONNECTOR; FLARE LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-09661-134-0	01	1	0107-
4	CONNECTOR; FLARE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-
4	CONNECTOR; FLARE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0107-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0107-
5	UNION; AIR TANK (C) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0107-
5	UNION; AIR TANK AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
5	UNION; AIR TANK EXC. AIR DRYER<PS7>,LIGHT DUTY PACKAGE TRUCK<Y21> (E) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	0107-
5	UNION; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (B) PT3/8 ELBOW	1-09660-696-0	02	1	0107-
5	UNION; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-09660-778-1	02	1	0107-
5	UNION; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0107-
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48312-015-0	01	1	0107-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0107-
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7>,LIGHT DUTY PACKAGE TRUCK<Y21>	1-48312-015-0	02	1	0107-
6	COCK; DRAIN,AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21>	1-48312-015-0	05	1	0107-
6	COCK; DRAIN,AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48312-015-0	04	1	0107-
7	GASKET; DRAIN COCK AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=14	1-09630-145-0	01	1	0107-
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7>,LIGHT DUTY PACKAGE TRUCK<Y21> ID=14	1-09630-145-0	02	1	0107-
7	GASKET; DRAIN COCK LIGHT DUTY PACKAGE TRUCK<Y21> ID=14	1-09630-145-0	06	1	0107-
7	GASKET; DRAIN COCK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=14	1-09630-145-0	05	1	0107-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0107-
10	PLUG; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-09604-106-0	01	1	0107-
10	PLUG; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (B) PT3/8	9-09204-517-0	02	1	0107-
10	PLUG; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-09604-106-0	02	1	0107-
10	PLUG; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) PT3/8	9-09204-517-0	03	1	0107-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (B) PT3/8	9-09204-517-0	01	1	0107-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0107-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	0107-
28	BRACKET; AIR TANK (A)	1-48317-820-2	01	1	0107-
28	BRACKET; AIR TANK (B)	1-48317-856-0	01	1	0107-
28	BRACKET; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48317-818-0	01	1	0107-
28	BRACKET; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48317-868-0	01	1	0107-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0107-
37	BOLT; AIR TANK (B) M10X35 FLANGE	0-28681-035-0	04	1	0107-
37	BOLT; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (B) M12X50 FLANGE	0-28081-250-0	08	1	0107-
37	BOLT; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	04	1	0107-
37	BOLT; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-
37	BOLT; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M12X40 FLANGE	0-28681-240-0	08	1	0107-
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0107-
39	U-BOLT; AIR TANK (B)	1-48317-675-0	06	1	0107-
43	BOLT; STAY,AIR TANK,MAIN M12X25 FLANGE	0-28681-225-0	04	1	0107-
46	NUT; U-BOLT LIGHT DUTY PACKAGE TRUCK<Y21> M8	9-09110-408-0	32	1	0107-
46	NUT; U-BOLT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8	9-09110-408-0	08	1	0107-
46	NUT; U-BOLT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8	9-09110-408-0	24	1	0107-
64	STAY; AIR TANK,MAIN	1-48317-819-1	01	1	0107-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (B) 530KPA	1-48340-054-1	05	1	0107-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) (A) 650KPA	1-48340-059-1	01	1	0107-
176	ADAPTER (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0107-
176	ADAPTER (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0107-
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) PT3/8	1-09664-210-0	02	1	0107-
236	CLIP; BAND LIGHT DUTY PACKAGE TRUCK<Y21> ID=12 H=24 L=20	1-09700-605-0	04	1	0107-
236	CLIP; BAND EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=14 H=50 L=20	1-09700-843-0	02	1	0107-
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0107-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	0107-

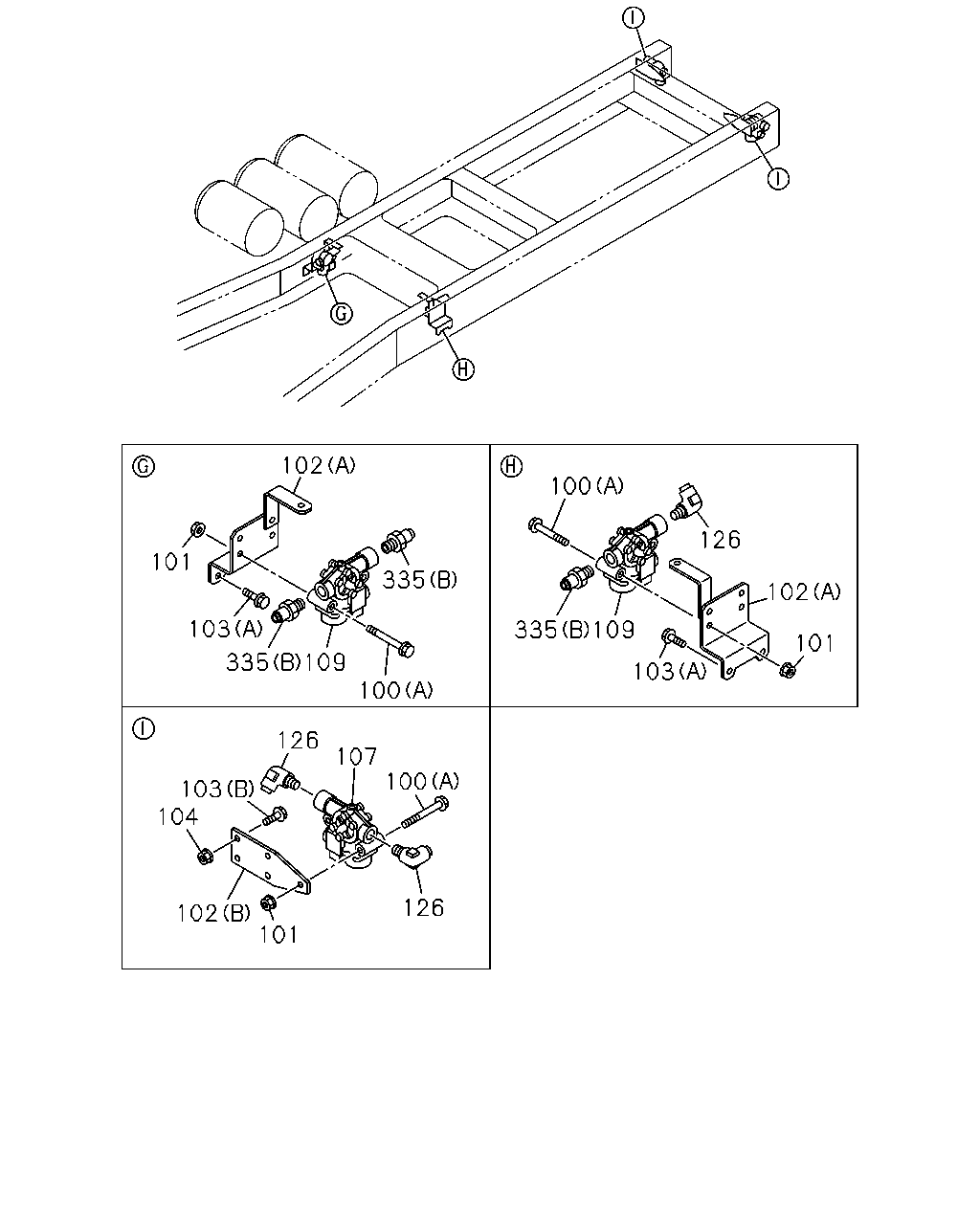

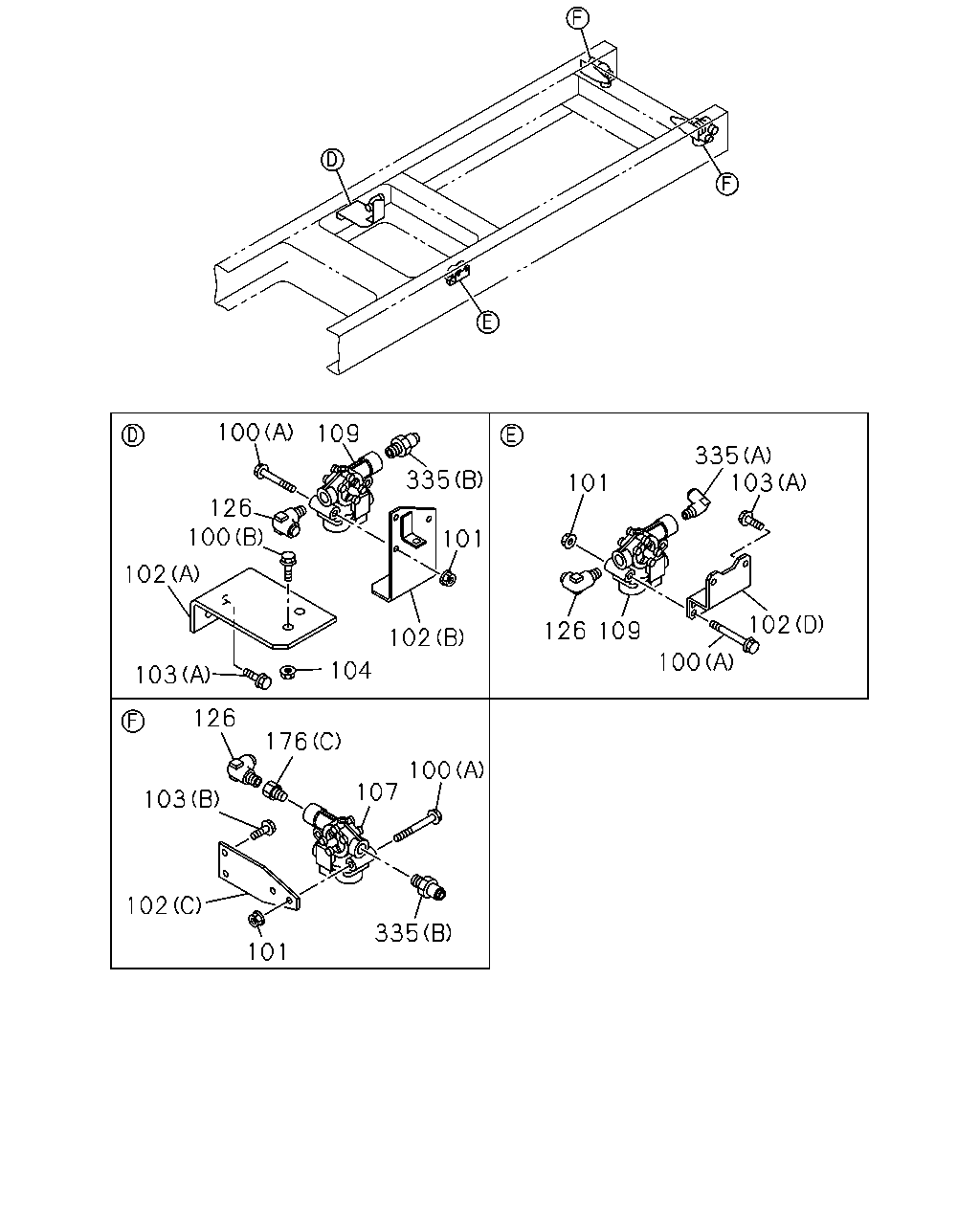

100 109 335 103 335 101 126 100 101 102 102 126 109 102 100 104 103 126 176 100 107 103 102 335 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X20 FLANGE	0-28680-820-0	02	1	0107-
100	BOLT; MODULATOR LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X80 FLANGE	0-28080-880-0	08	1	0107-
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X80 FLANGE	0-28080-880-0	08	1	0107-
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	16	1	0107-
101	NUT; MODULATOR LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	12	1	0107-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-47478-304-0	02	1	0107-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-47478-827-0	01	1	0107-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47479-028-0	01	1	0107-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47479-029-1	01	1	0107-
102	BRACKET; MODULATOR LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47478-658-0	02	1	0107-
102	BRACKET; MODULATOR LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47478-827-0	02	1	0107-
103	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X25 FLANGE	0-28680-825-0	04	1	0107-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X25 FLANGE	0-28680-825-0	04	1	0107-
103	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X30 FLANGE	0-28680-830-0	04	1	0107-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X30 FLANGE	0-28680-830-0	04	1	0107-
104	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	02	1	0107-
104	NUT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	04	1	0107-
107	MODULATOR; RR LIGHT DUTY PACKAGE TRUCK<Y21>	1-48210-880-0	02	1	0107-
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48210-880-0	02	1	0107-
109	MODULATOR; FRT LIGHT DUTY PACKAGE TRUCK<Y21>	1-48210-880-0	02	1	0107-
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48210-880-0	02	1	0107-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0107-
126	CONNECTOR; ELBOW LIGHT DUTY PACKAGE TRUCK<Y21> DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0107-
176	ADAPTER (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0107-
176	ADAPTER (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0107-
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) PT3/8	1-09664-210-0	02	1	0107-
335	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
335	CONNECTOR; MODULATOR LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0107-
335	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0107-

215 28 60 216 46 46 46 37 216 46 208 4 5 3 1 166 8 5 7 6 7 6 166 14 166 176 10 39 39 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48370-710-0	01	1	0107-
1	TANK ASM; AIR (C)	1-48370-712-0	01	1	0107-
1	TANK ASM; AIR (D)	1-48370-714-0	01	1	0107-
1	TANK ASM; AIR LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48370-711-0	01	1	0107-
1	TANK ASM; AIR EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-48370-942-1	01	1	0107-
3	VALVE; CHECK,AIR TANK	1-48320-013-2	01	1	0107-
4	CONNECTOR; FLARE LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
4	CONNECTOR; FLARE LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	05	1	0107-
4	CONNECTOR; FLARE LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-09661-134-0	01	1	0107-
4	CONNECTOR; FLARE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-
4	CONNECTOR; FLARE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0107-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0107-
5	UNION; AIR TANK (C) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0107-
5	UNION; AIR TANK AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
5	UNION; AIR TANK EXC. AIR DRYER<PS7>,LIGHT DUTY PACKAGE TRUCK<Y21> (E) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	0107-
5	UNION; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (B) PT3/8 ELBOW	1-09660-696-0	02	1	0107-
5	UNION; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-09660-778-1	02	1	0107-
5	UNION; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0107-
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48312-015-0	01	1	0107-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0107-
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7>,LIGHT DUTY PACKAGE TRUCK<Y21>	1-48312-015-0	02	1	0107-
6	COCK; DRAIN,AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21>	1-48312-015-0	05	1	0107-
6	COCK; DRAIN,AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48312-015-0	04	1	0107-
7	GASKET; DRAIN COCK AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=14	1-09630-145-0	01	1	0107-
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7>,LIGHT DUTY PACKAGE TRUCK<Y21> ID=14	1-09630-145-0	02	1	0107-
7	GASKET; DRAIN COCK LIGHT DUTY PACKAGE TRUCK<Y21> ID=14	1-09630-145-0	06	1	0107-
7	GASKET; DRAIN COCK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=14	1-09630-145-0	05	1	0107-
8	CONNECTOR; AIR TANK (B)	1-09661-027-0	01	1	0107-
8	CONNECTOR; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0107-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0107-
10	PLUG; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-09604-106-0	01	1	0107-
10	PLUG; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (B) PT3/8	9-09204-517-0	02	1	0107-
10	PLUG; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-09604-106-0	02	1	0107-
10	PLUG; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) PT3/8	9-09204-517-0	03	1	0107-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (B) PT3/8	9-09204-517-0	01	1	0107-
14	UNION; 3 WAY,AIR TANK PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0107-
28	BRACKET; AIR TANK (A)	1-48317-820-2	01	1	0107-
28	BRACKET; AIR TANK (B)	1-48317-856-0	01	1	0107-
28	BRACKET; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48317-818-0	01	1	0107-
28	BRACKET; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-48317-868-0	01	1	0107-
37	BOLT; AIR TANK (B) M10X35 FLANGE	0-28681-035-0	04	1	0107-
37	BOLT; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (B) M12X50 FLANGE	0-28081-250-0	08	1	0107-
37	BOLT; AIR TANK LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	04	1	0107-
37	BOLT; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-
37	BOLT; AIR TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M12X40 FLANGE	0-28681-240-0	08	1	0107-
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0107-
39	U-BOLT; AIR TANK (B)	1-48317-675-0	06	1	0107-
46	NUT; U-BOLT LIGHT DUTY PACKAGE TRUCK<Y21> M8	9-09110-408-0	32	1	0107-
46	NUT; U-BOLT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8	9-09110-408-0	08	1	0107-
46	NUT; U-BOLT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8	9-09110-408-0	24	1	0107-
60	NUT; AIR TANK FIX LIGHT DUTY PACKAGE TRUCK<Y21> M10 FLANGE	0-91150-210-0	04	1	0107-
60	NUT; AIR TANK FIX EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M10 FLANGE	0-91150-210-0	02	1	0107-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (B) 530KPA	1-48340-054-1	05	1	0107-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) (A) 650KPA	1-48340-059-1	01	1	0107-
176	ADAPTER (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0107-
176	ADAPTER (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0107-
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) PT3/8	1-09664-210-0	02	1	0107-
208	BOLT; CLIP AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	01	1	0107-
215	PIPE; VINYL AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=500 SERVICED BY L=3000	0-03566-300-0	01	1	0107-
216	CLIP; PIPE,VINYL AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=24 L=32	1-09700-766-1	01	1	0107-
216	CLIP; PIPE,VINYL AIR DRYER<PS7> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=21	8-94242-034-0	01	1	0107-

102 100 126 101 335 102 103 101 103 100 126 107 100 103 104 126 102 101 335 109 335 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X20 FLANGE	0-28680-820-0	02	1	0107-
100	BOLT; MODULATOR LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X80 FLANGE	0-28080-880-0	08	1	0107-
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X80 FLANGE	0-28080-880-0	08	1	0107-
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	16	1	0107-
101	NUT; MODULATOR LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	12	1	0107-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-47478-304-0	02	1	0107-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-47478-827-0	01	1	0107-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47479-028-0	01	1	0107-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47479-029-1	01	1	0107-
102	BRACKET; MODULATOR LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47478-658-0	02	1	0107-
102	BRACKET; MODULATOR LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47478-827-0	02	1	0107-
103	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X25 FLANGE	0-28680-825-0	04	1	0107-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X25 FLANGE	0-28680-825-0	04	1	0107-
103	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X30 FLANGE	0-28680-830-0	04	1	0107-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X30 FLANGE	0-28680-830-0	04	1	0107-
104	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	02	1	0107-
104	NUT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	04	1	0107-
107	MODULATOR; RR LIGHT DUTY PACKAGE TRUCK<Y21>	1-48210-880-0	02	1	0107-
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48210-880-0	02	1	0107-
109	MODULATOR; FRT LIGHT DUTY PACKAGE TRUCK<Y21>	1-48210-880-0	02	1	0107-
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-48210-880-0	02	1	0107-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0107-
126	CONNECTOR; ELBOW LIGHT DUTY PACKAGE TRUCK<Y21> DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0107-
335	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
335	CONNECTOR; MODULATOR LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0107-
335	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
